KPN TF 5300k User manual

TF 5300k
User Guide
Digital Terrestrial Receiver
Personal Video Recorder
CONAX

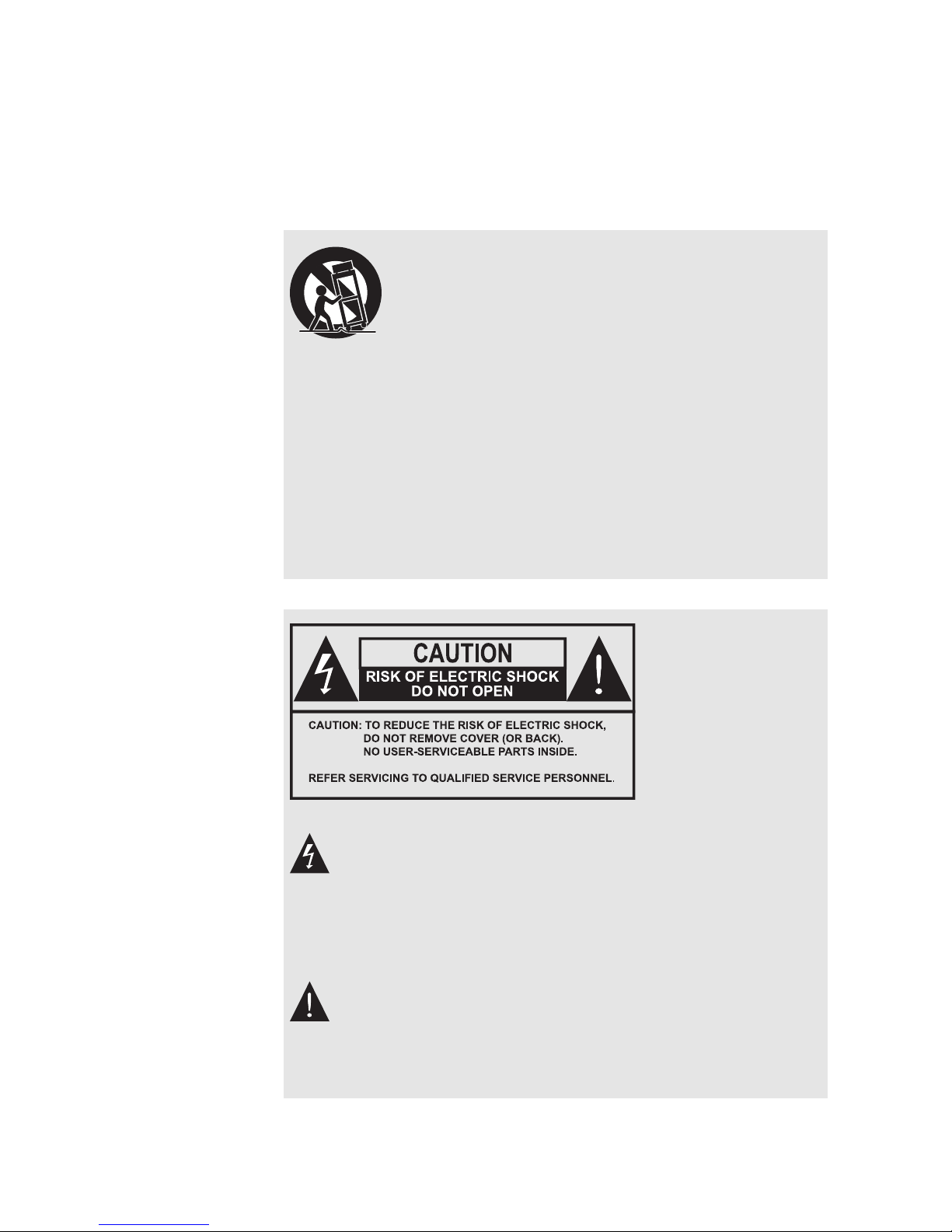

Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
• Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
• The mains plug, which is used as a disconnect device,
shall remain readily operable.
The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.

iv Contents
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10

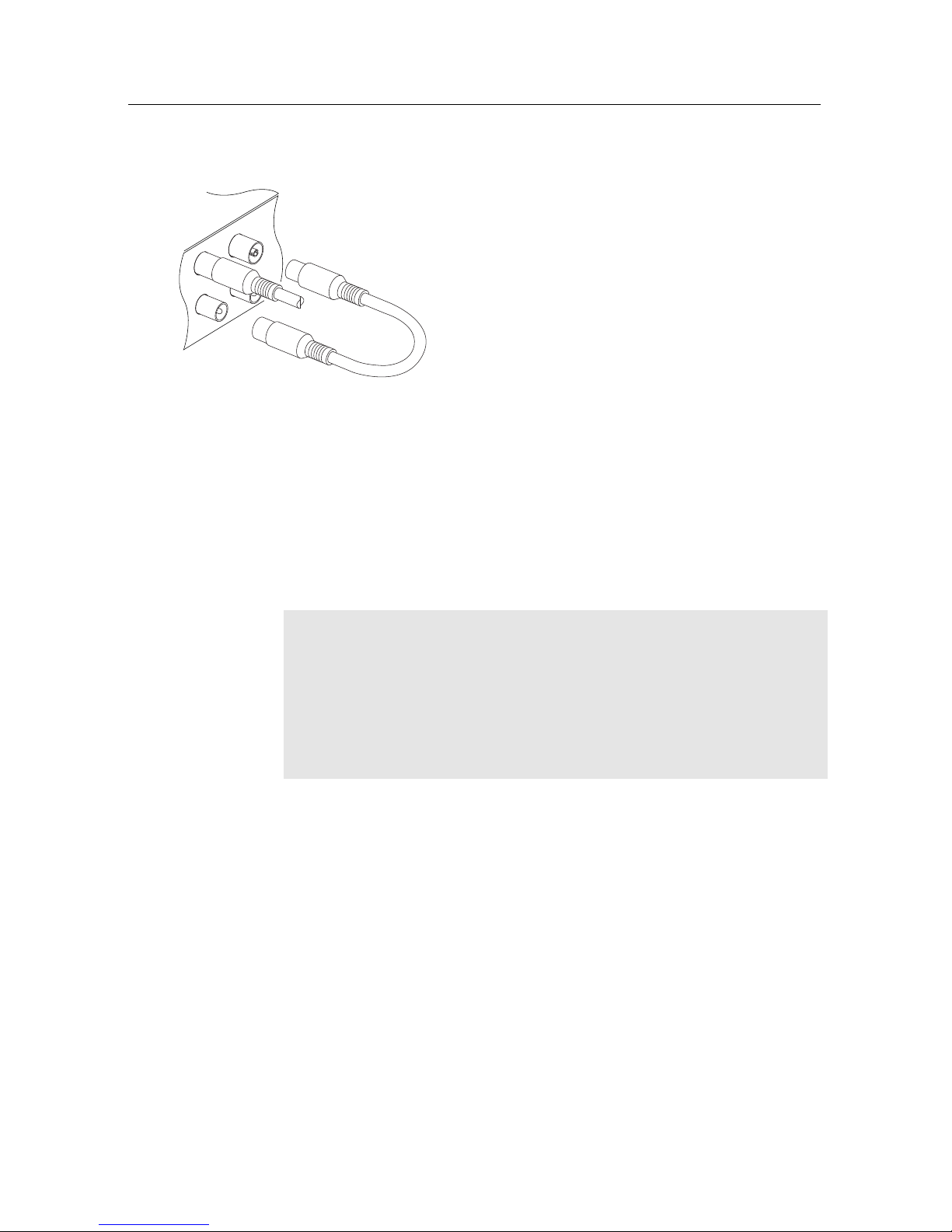

2.4.1 Connecting the antenna .................. 11
2.4.2 Connecting to your television set ............ 11
2.4.3 Connecting to your video cassette recorder ....... 14
2.5 Inserting batteries in the remote control ............. 14
2.6 Switching on for the first time ................... 15
2.6.1 Powering on and checking picture ............ 15
3 Preference Settings 16
3.1 Language settings .......................... 16
3.2 Video and audio settings ...................... 18
3.2.1 Television standard .................... 18
3.2.2 Colour model ........................ 19

Contents v
3.2.3 Video cassette recorder .................. 19
3.2.4 Television aspect ratio ................... 20
3.2.5 Audio mode ........................ 20
3.2.6 Radio frequency output .................. 21
3.3 Local time setting .......................... 21
3.4 Parental control ........................... 23
3.5 Adjusting the On-Screen Display ................. 23
3.6 To turn on the time shift feature .................. 24
4 Service Search 25
4.1 Searching broadcasting services .................. 25
4.2 Resetting to factory settings .................... 26
5 Daily Usage 27
5.1 Volume control ........................... 27
5.2 Watching television ......................... 27
5.2.1 The services list ....................... 27
5.2.2 The favourite services list ................. 29
5.2.3 Viewing programme information ............ 30
5.2.4 Selecting audio tracks ................... 31
5.2.5 Selecting subtitle tracks .................. 31
5.2.6 Viewing teletext ...................... 31
5.3 Viewing electronic programme guide .............. 31
5.4 Watching multifeed programme ................. 32
5.5 Using time shift ........................... 33
5.6 Using picture in picture ...................... 34
6 Listing Services 36
6.1 Editing the favourite list ...................... 36
6.2 How to use on-screen keyboard .................. 38
7 Recording and Playing 39
7.1 Recording a programme ...................... 40
7.1.1 Instant recording ...................... 40
7.1.2 Current programme recording .............. 42
7.1.3 Timer recording ...................... 43
7.1.4 Scheduling recordings using the programme guide . . 45

vi Contents
7.1.5 Recording a time-shifted programme .......... 46
7.2 File archive ............................. 46
7.2.1 To delete a recording .................... 47
7.2.2 To sort recordings ..................... 47
7.2.3 To lock a recording ..................... 47
7.2.4 To rename a recording ................... 48
7.2.5 To make a new folder ................... 48
7.2.6 To move a recording to another folder .......... 48
7.3 Playing back a recording ...................... 49
7.3.1 To navigate using the progress bar ............ 49
7.3.2 To play in slow motion .................. 50
7.3.3 To play in fast motion ................... 50
7.3.4 To make a bookmark .................... 51
7.3.5 To play back a recording repeatedly ........... 51
7.3.6 To play back recordings in sequence ........... 52
7.4 Editing a recording ......................... 52
7.5 Copying a recording ........................ 53
7.6 Formatting the hard disk ...................... 53
8 Firmware Update 55
Index 56

1
Chapter 1
Introduction
The TF 5300k digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 5300k digital receiver has the following features:
• Can store up to 2000 television and radio services.

2 Introduction
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record one service while you are currently watch-
ing another.
• The large storage capacity of the hard disk drive allows
you to record up to about 60 hours of television —in case
of 250 gigabytes— in excellent picture and sound quality.
• Time shift is a special technical feature available on the TF
5300k. You can pause the programme you are watching
and resume it again at a later time. Then you can quickly
go to any part of the current programme by fast forward
or backward search.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
TV/STB
OK
REMOTE
STANDBY
TV/STB lamp lights up while your video recorder operates
instead of the digital receiver. See § 3.2.3 for more
details.
REMOTE lamp lights up whenever you press a button on
the remote control.
STANDBY lamp lights up while the digital receiver is in
standby mode.
Front display displays the current time in standby mode,
and displays the current service in operation mode.
STANDBY button switches the digital receiver between
standby mode and operation mode.
MENU button displays the main menu. It is also used to
return to the previous menu from a submenu.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
OK button displays the services list. See § 5.2.1 for more
details. It is also used to select a menu item.

4 Introduction
Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.

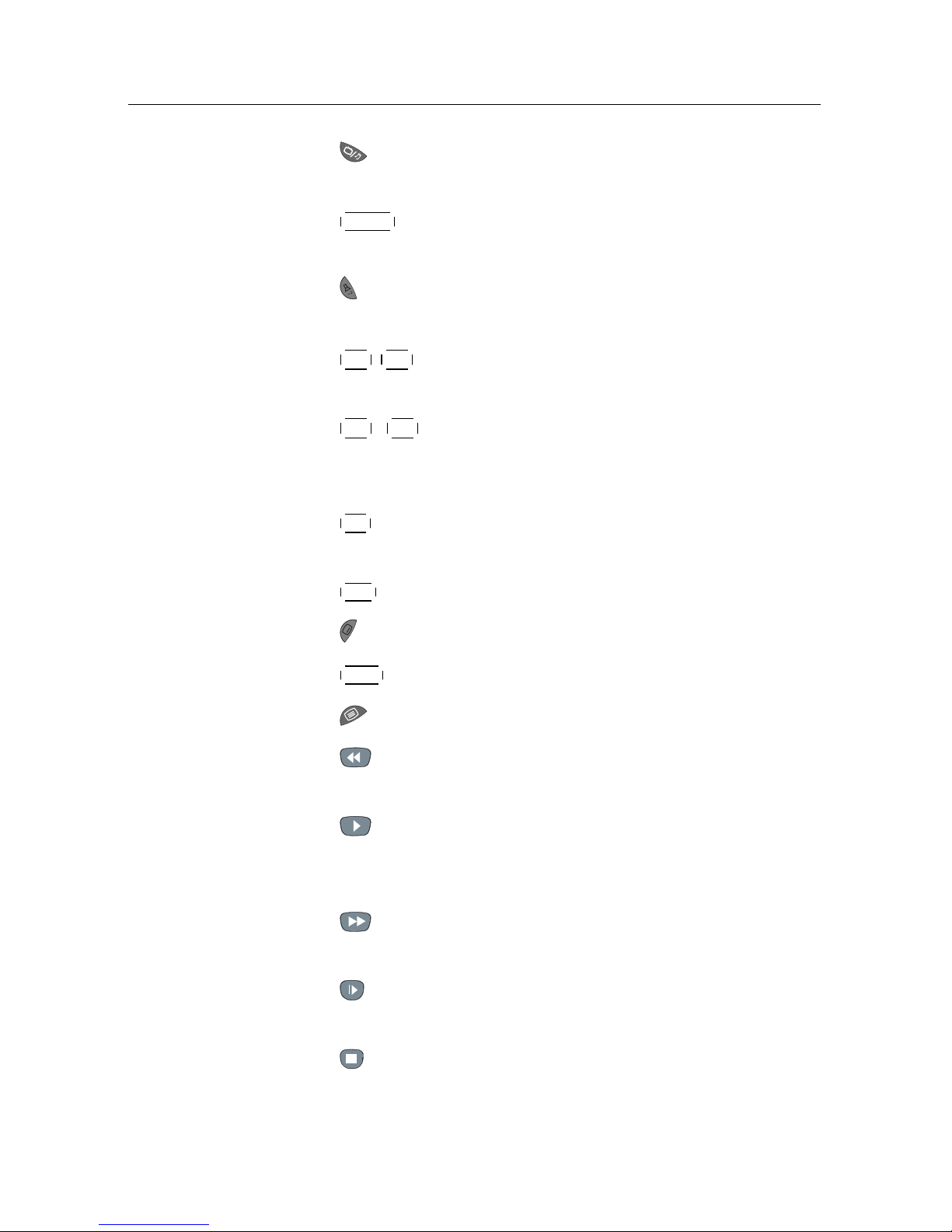

1.2.2 The remote control
1
 button switches the digital re-
ceiver between standby mode and
operation mode.
2
 mutes the sound. Press again
to switch it back on.
3




UHF displays the radio frequency
setting menu. See § 3.2.6 for more
details.
4
 switches the output of the TV
SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3
for more details.
5
 is used to set a sleep timer in 10
minute increments.
6
 Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
7
 switches between the current
service and the previously viewed
one.
8
 displays the service information
box. It is also used to display more
information about a programme.
9




GUIDE displays the electronic programme guide.
