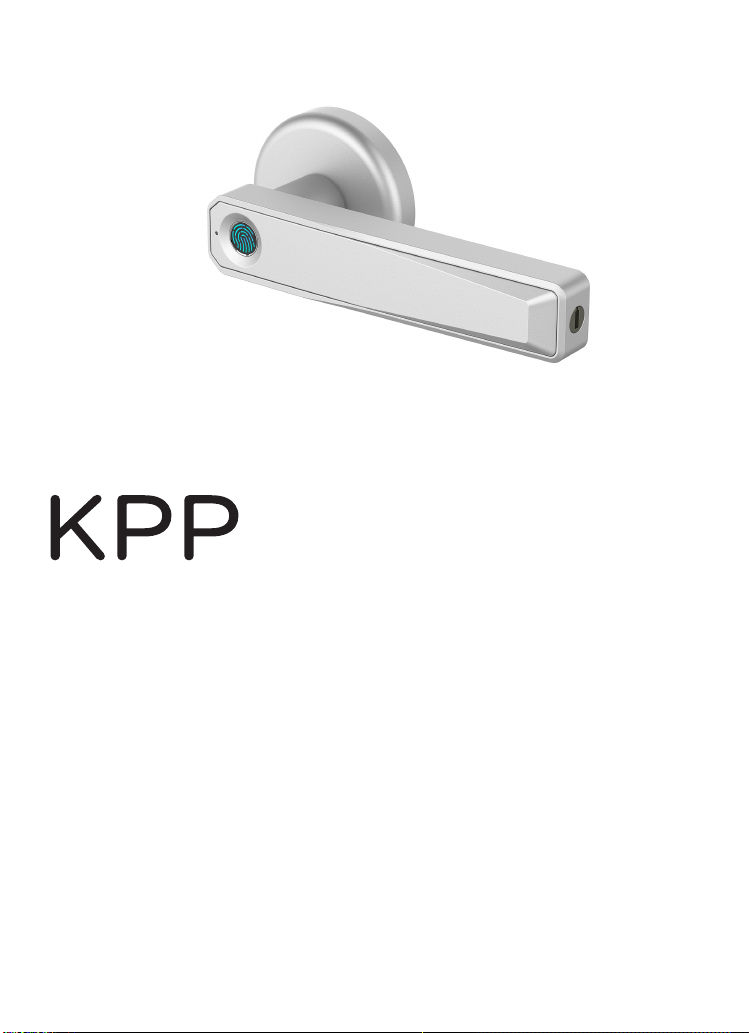

KPP tirumio-369 User manual

Fingerprint Door Lock Manual
Please watch the video of installation and fingerprint program,
link:
https://www.amazon.com/
vdp/08176f45418847debd2de2bed6093168

Please read the manual before installing. If you have any
question, please feel free to contact our service team.
WARNING:
This manufacturer advises that no lock can provide complete
security by itself.
This lock may be defeated by forcible or technical means, or
evaded by entry elsewhere on the property. No lock can
substitute for caution, awareness of your environment, and
common sense. In order to enhance security and reduce risk,
you should consult a qualified locksmith or other security
professional.
Warranty & After-sale Service:
We provide one-year warranty with lifetime technical support.
Any questions please feel free to contact us.
Customer Service Support:
E-mail: [email protected]
(Included your Amazon order number when contacting support,
we will reply within one day)
PREFACE

Item No. tirumio-369
Material Zinc Alloy
Weight 2.2 LB
Unlocking Way Fingerprint, Mechanical key
Power Supply 4pcs AAA batteries
Static Current ≤30uA
Working Current <250mA
Working Temperature -10~60℃
Setting Button
INTRODUCTION

Description
The Front Panel (with Fingerprints)
The Back Panel
Latch
Strike Plate,Box Striking Plate
Keys
Spindle
Screw Tubes
Longest Flat Screws
Wood Screws
PACKAGE

K
A-The Front Handle
1-B Mounting Screw for Cover
3-B Battery Case
D-Strike Plate & Box Striking Plate
F-Spindle
H-Screw Tube
J-Wood Screws
B-The Back Handle
2-B Back Handle Cover
C-Latch
E-Key
G-Flat Screw
I-Longest Screw
K-Latch Bolt
INSTALLATION MANUAL

Installation Step
Warning: Install and test lock with door open to avoid being
locked out.
1) Insert the latch and ensure it is parallel to the door face
(Make sure the latch bolt's curved side is facing the entrance
of the door as depicted in the picture below).
2) Use 2 wood screws to secure latch.
3) Tighten 2 connecting screws on the front handle and Insert
the spindle and passing the connecting wire through spindle.

4) Insert the front handle into the latch, make sure the
connecting spindle is inserted through the holes on the both
sides latch, and the spindle is inserted through the square
hole in the middle.
5) Press slightly on the battery cover and unscrew the
screw on the battery panel. Open the battery cover and
remove the battery case.
Install the back handle and make sure the spindle and IC
line are inserted through the square hole. Connect front
panel and back panel with 2 longest screw.

Press down the handle
while installing the
second screw
Install first
screw in here
6) Connect IC wire to the white port in front of the battery
case carefully. Insert 4pc(AAA) 1.5V alkaline batteries.e,
slide the battery cover back onto the receiver module and
tighten the screw, the installation of mechanical handle is
now completed.
7) You can now set up admin and user fingerprint by
pressing the button on the back handle with a small screw
that was supplied. Please refer to page 8.

OPERATION INSTRUCTIONS
Warning:
The lock come with a default setting that any fingerprint can
open the lock, so please register your fingerprint before
you use it.
First press the little recessed setting button with a small
screw on the back handle(Note: the big button is for
normally open setting not for fingerprint setting) as follow:
Set Factory Settings or Remove All Fingerprints
a) Long press and hold the setting button, a blue light will
start flashing. After 9 seconds, the red light flashes,
release the button.
b) The green light indicates that the factory settings have
been restored successfully, all fingerprints have been
deleted at this point. any fingerprint can now open the lock.
c) The lock will be closed five seconds after unlocking.
Add the first administrator fingerprint
The first three set of fingerprint are administrator fingerprints,
and other fingerprint are ordinary user fingerprints.
Setting Button

Administrator fingerprints allow other users or administrator
to enter their own fingerprints
a)Long press the setting button, when the blue light flashes,
release the setting button, the light remains blue, fingerprints
can be recorded at this point
b)Press the fingerprint five times in a row, blue-green-
blue-green-blue-green-blue-green-blue-green, the green
light is always on and turn off indicate success
Add Second Fingerprint
a) Long press the setting button, when the blue light flashes,
release the setting button, release, verify the first
administrator’s fingerprint. If successful, the blue light stops
flashing and remains on, start to enter a new fingerprint like
first fingerprint setting. Press the fingerprint five times in a
row, the green light is always on to indicate success.
b) When the blue light is on, new fingerprints can be
recorded. You can input 2 or more fingerprints in case of
your fingerprint are damaged for injury or stains.
Channel Mode Setting
Turn on the mode of normally open
Press the normally open button on the back handle for 1
second, the blue/red light flashes. Release the button, the
green light is on which indicates the successful setting.
Turn off the mode of normally open
