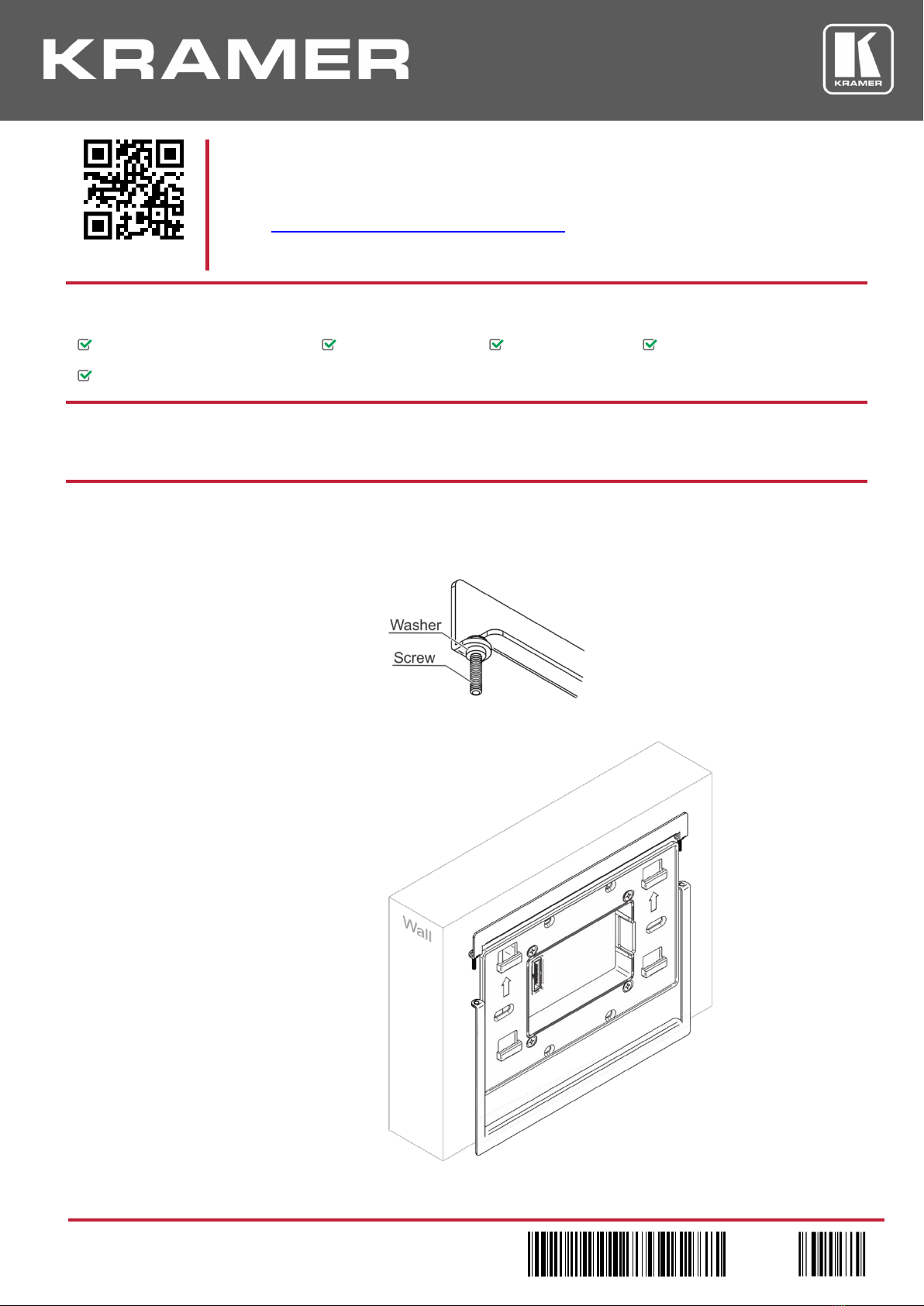

KT-107-OWLK Quick Start Guide
This guide helps you install and use your KT-107-OWLK for the first time.
Go to www.kramerav.com/downloads/KT-107-OWLK to download the latest user manual and check if
firmware upgrades are available.
Step 1: Check what’s in the box
KT-107-OWLK On-Wall Lock
2 Installation screws
3 washers
1 Quick start guide
Kramer screwdriver
Step 2: Get to know your KT-107-OWLK
The KT-107-OWLK On-Wall Lock secures KT-107,KT-107RB and KT-107S touch panels safely to a wall.
Step 3: Secure KT-107-OWLK to a wall:
The following diagrams illustrate attaching the On-Wall Lock mechanism with the short part above and the long part below. You
can also attach the other way around.
1. Insert the 2 screws (supplied)
into the screw openings and
insert the washers from below.
2. Place the short part (together
with the screws) over the
installed on-wall mount unit.
3. From below, slide the long
frame part towards the short
frame part.

4. Loosely screw the top frame
part to the lower frame part (do
not tighten the screws).
5. After hanging the KT-107 on the
wall, tighten the two screws until
the KT-107 is securely fixed in
place.
