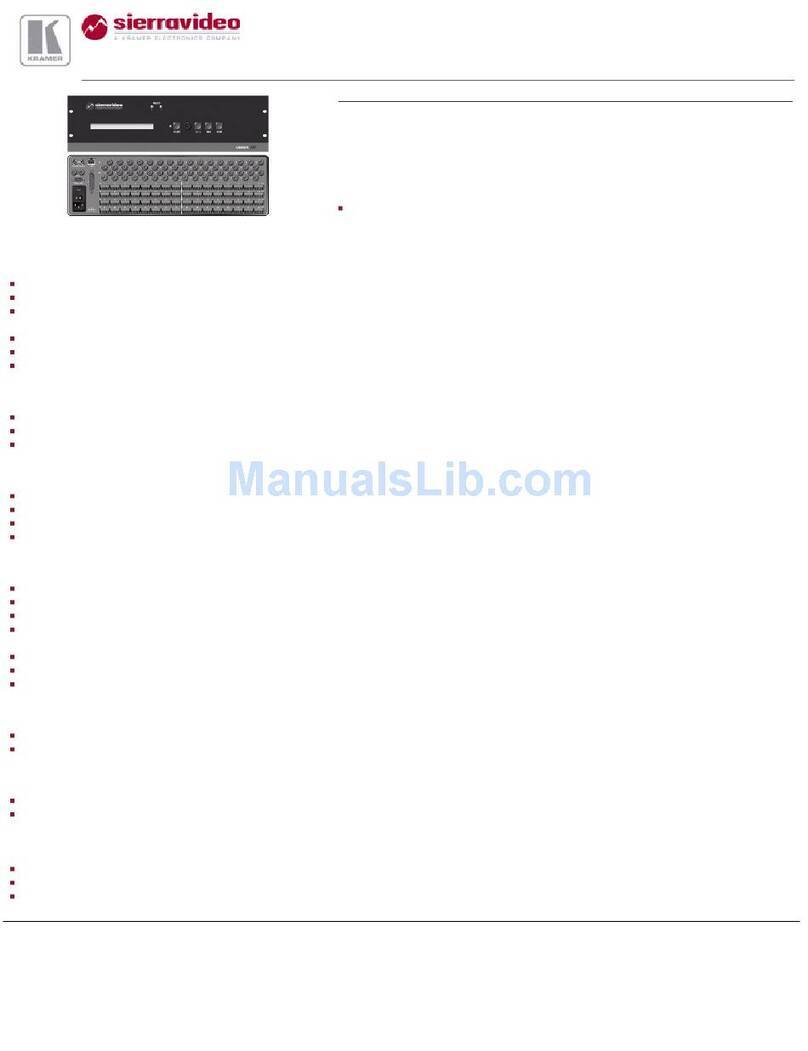

LASSEN 3216HDS 32x16
LASSEN HD™ 32 SERIES ROUTING SWITCHERS
LASSEN HD 3216 SERIES SERIES
HD- SDI AND SDI VIDEO WITH STEREO AUDIO.
DESCRIPTION
The Lassen 32 series are high performance routing switchers for SDI (SMPTE 259) and HD -
SDI (SMPTE 292) video signals. These units come in a compact 3U (5.25” ) frame and can
be ordered with or without analog or digital audio. They can route any or all inputs to any
or all outputs. HD - SDI models can input SDI and HD - SDI simultaneously, but there is no
conversion between formats.
Redundant Power Supply optional on all 3232 & 3216 series. Add “ R ”to the model
number. Frame size = 4U (7”).
LASSEN XL ANALOG (COMPOSITE) VIDEO FEATURES -
High Bandwidth - 300MHz ( - 3dB) fully loaded.
Very Low Crosstalk - 80dB @ 1MHz, - 47dB @100MHz.
Qwik Adjust Knob™ Rotary Control interface - This user intuitive knob along with the 80 character LCD display provides quick and convenient setup,
adjustment and signal switching.
Video Mute Capability -
Genlock Input - Looping internal sync input for vertical interval switching.
Output Disconnect Feature -
LASSEN SDI VIDEO FEATURES -
Maximum Data Rates - 360Mbits/sec.
Standards - SMPTE 310, SMPTE 259, DVB - ASI.
Jitter - < 0.2UI.
LASSEN HD VIDEO FEATURES -
Backwards compatible with SDI Signals -
Maximum Data Rates - 1.485Gbits/sec.
Standards - SMPTE 310, SMPTE 259, SMPTE 292, DVB - ASI.
Jitter - < 0.2UI.
ANALOG AUDIO FEATURES. -
Audio Type - Balanced or un - balanced on terminal blocks.
Input (Level) Adjustment Capability ( - 10dB to +15dB) - Each input via RS - 232, front panel, and G.R.I.P software.
Output (Volume) Adjustment Capability (Mute, - 59.5dB to +15dB) - Each input via RS - 232, front panel, and G.R.I.P software.
No Zipper Effect - Lassen routing switchers employ zero crossover chip technology which eliminates the annoying “zipper sound effect”associated with
digital volume controls.
Audio Mute Capability. -
Crosstalk - 80dB @ 1kHz & 70dB @ 20kHz.
S/N (20 - 20kHz) - 90dB.
DIGITAL AUDIO FEATURES -
Standards - Balanced AES/EBU.
Jitter - +/ - 20ns.
OTHER FEATURES -
Firmware Updates - Downloadable.
Control - Local front panel control with 80 character LCD readout.
RS - 232/422 plus RS - 485 for optional control panels.
IP (Ethernet) control.
G.R.I.P: Windows ® - based routing switcher setup/diagnostic software.
Redundant Power Supplies - Optional on 32x16 & 32x32 models.
Approvals - UL & CE.
Control Panels (Optional) - Programmable, Single Bus and XY.

© www.kramerelectronics.com 2008
LASSEN 3216HDS 32x16
LASSEN HD™ 32 SERIES ROUTING SWITCHERS
LASSEN HD 3216 SERIES
HD- SDI AND SDI VIDEO WITH STEREO AUDIO.
SPECIFICATIONS
ANALOG VIDEO
ANALOG AUDIO
SDI VIDEO
DIGITAL AUDIO
HD - SDI VIDEO
INPUT IMPEDANCE
75 Ω nominal
INPUT CONNECTOR TYPE
BNC
VIDEO INPUT LEVEL
300mV to 2.5V P - P
VIDEO BANDWIDTH
300MHz ( - 3dB)
CROSSTALK
80dB @ 1MHz
- 47dB @ 100MHz
1 INPUT TO MANY OUTPUTS
All electrical specifications remain the same
VIDEO GAIN
Unity (adjustable per channel +/ - 1.5dB)
MAX. INPUT AMPLITUDE
+ 24dBu
INPUT IMPEDANCE
> 20k Ω
OUTPUT IMPEDANCE
< 50 Ω
VOLTAGE GAIN (ADJUSTMENT RANGE IF ANY)
Unity +/ - 0.75dB max (+ - 0.25 typical)
Input adjust range: - 8dB to + 20dB
Output adjustment range: + 15dB to fully off (Mute)
FREQUENCY RESPONSE
20Hz to 20kHz +/ - 0.5dB(typical - 3dB @ 120kHz) (unity gain)
S/N RATIO (20 TO 20KHZ)
96dB (20 - 20kHz unweighted - unity gain)
CROSSTALK (ALL INPUTS HOSTILE)
< - 80dB @ 1kHz (unity gain)
< - 60dB @ 10kHz (unity gain)
IM & THD (20 TO 20KHZ)
THD: < 0.025% (20Hz - 20kHz @ + 4dBu) (unity gain)
IM: < 0.025 SMPTE - DIN @ + 4dBu (unity gain)
< 0.01% CCIF @ + 16dBu (unity gain)
MAX OUTPUT AMPLITUDE
+ 24dBu balanced
+ 18dBu unbalanced
AUDIO CONNECTORS
5 pin per stereo input or output
Every IO can be connected to be either balanced or unbalanced
DATA RATES
up to 360 Mbps/sec
DATA TYPES
SMTE 310, SMPTE 259, DVB - ASI
INPUT CABLE EQUALIZATION RANGE
0 - 200 meters
INPUT RETURN LOSS
> 15dB
OUTPUT LEVEL
750 - 850mVp - p
OUTPUT JITTER
< 0.2 UI
OUTPUT RETURN LOSS
> 15dB
SIGNAL CONNECTORS
BNC
DATA RATES
AES3: Balanced; AES3ID: Unbalanced
CONNECTOR
AES3: XLR/phoenix ; AES3ID: BNC
INPUT/OUTPUT IMPEDANCE
AES3: 110 Ω ; AES3ID: 75 Ω
OUTPUT LEVEL
AES3: 2 - 7Vp - p; AES3ID: 10Vp - p
CABLE
AES3: STP; AES3ID: Coax
MAX. DISTANCE
AES3: 100m; AES3ID: 1000m
MIN. INPUT
AES3: 2Vp - p; AES3ID: 32Vp - p
EQUALIZATION
AES3: Optional; AES3ID: Optional
JITTER
AES3: +/ - 20ns; AES3ID: +/ - 20ns
BANDWIDTH
AES3: 1MHz - 6MHz; AES3ID: 1MHz - 6MHz
DATA RATES
up to 1.485 Gbits/sec
DATA TYPES
SMTE 310, SMPTE 259, SMPTE 292, DVB - ASI
INPUT CABLE EQUALIZATION RANGE
0 - 100 meters for SMPTE 292
0 - 200 meters for all other stds.
INPUT RETURN LOSS
> 15dB up to 1.5GHz
OUTPUT LEVEL
750 - 850mVp - p
OUTPUT JITTER
< 0.2 UI
OUTPUT RETURN LOSS
> 15dBup to 1.5GHz
SIGNAL CONNECTORS
BNC
