Krell Industries Evolution 707 Quick start guide

EVOLUTION 707 OWNER’S REFERENCE

Evolution 707 Reference Surround Sound Preamp / Processor
THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT.
Please contact your authorized dealer, distributor, or Krell if you have any questions not addressed in
this reference manual.
WARNING: Do not place the component where it could be exposed to dirt or excessive moisture.
The ventilation grids on the top and bottom of the Evolution 707 must be unobstructed at all times.
Do not place flammable material on top of or beneath the component.
When making connections to this or any other component, make sure all components are off. Turn
off all system power before connecting the Evolution 707 to any other component. Make sure all
cable terminations are of the highest quality, free from frayed ends, short circuits or cold solder
joints.
CONTACT INFORMATION: Krell Industries, LLC
45 Connair Road
Orange, CT 06477-3650 USA
TEL [phone]
FAX [phone]
E-MAIL [email protected]
WEBSITE http://www.krellonline.com
Krell® is a registered trademark of Krell Industries LLC., and is restricted for use by Krell Industries LLC., its subsidiaries, and authorized agents. Krell Current Mode™
is a trademark of Krell Industries, LLC. All other trademarks and trade names are registered to their respective companies.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S.
and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a
trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Manufactored under license from Dolby Laboratories. Dolby, Pro Logic, and the doulbe-D symbol are trademarks of Dolby Laboratories.

Table of Contents
Introduction (9)
Features and Functions (9)
Specifications (10)
Getting Started (13)
UNPACKING AND PLACEMENT (13)
Accessories included
AC Power guidelines (13)

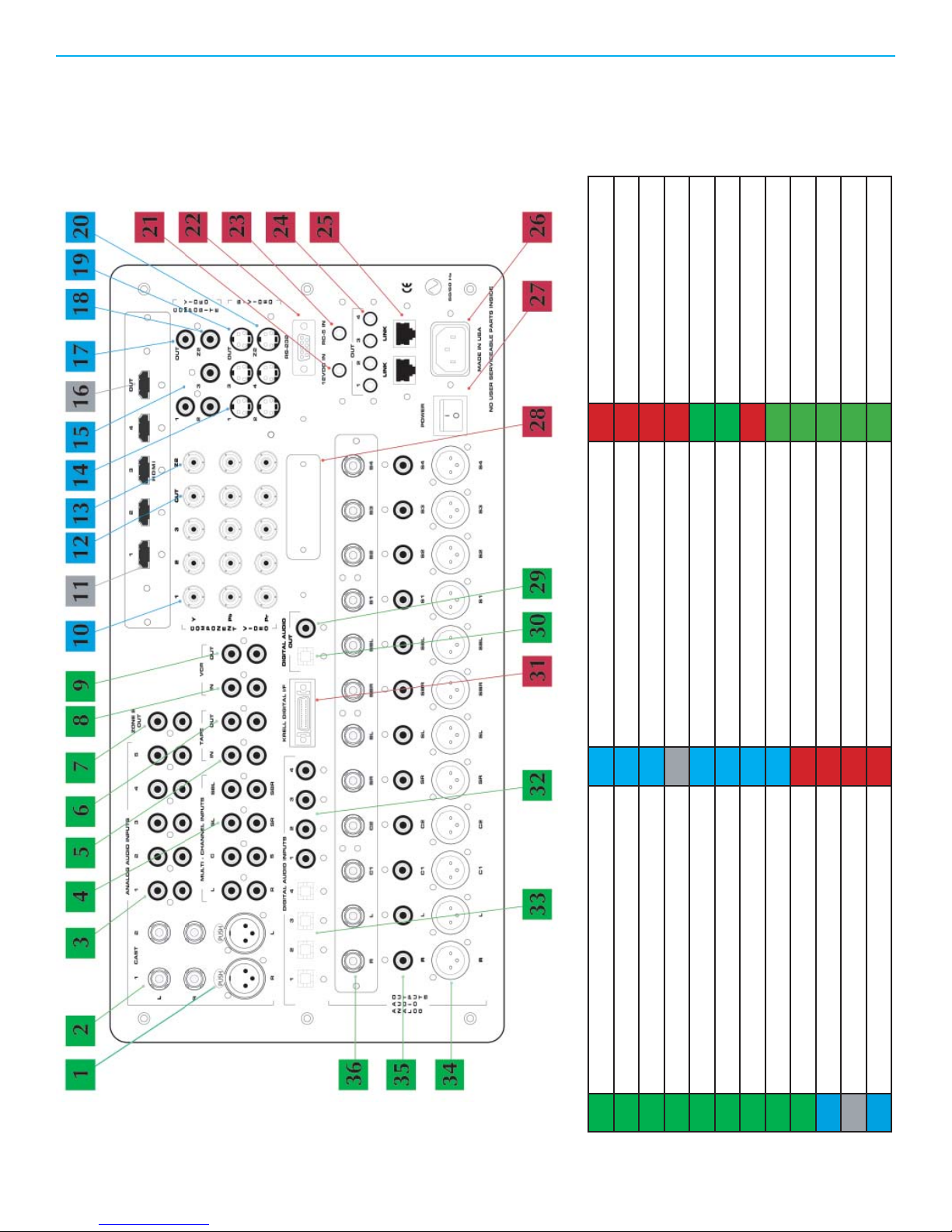

Back Panel Description (Diagram) (14)
Front Panel and Remote Control Function (Diagram) (15)
Initial Setup (16)
OSD (On Screen Display) (16)
Connection and Operation of the OSD (16)
AC Power cord connection (16)
Video output Connection (16)
5. Power Button (16)
6. Menu Button (16)
Main Menu, Navigation and Setup (17)
CONFIGURE VIDEO OUTPUT (17)
Overview (17)
Analog Video Scaler (17)
Setting maximum Video output resolution (17)
Setting Zone 2 video output resolution (17)
LISTENING ROOM SETUP (18)
Overview (18)
Configure Speakers (18)
Quantity (18)
Full Range (18)
LIM (?) Hz (18)
Front (19)
Center (19)
Surround (19)
Back (19)
1.
1.
2.
3.
1.
2.
A.
B.
1.
2.
A.
B.
C.
D.
E.
F.
G.

Table of Contents Cont...
5.1 Surround (19)
Subwoofer (20)
Speaker Distance (21)
Left, Right (21)
Center, Center2 (21)
L Surr, R Surr (21)
L Back, R Back (21)
Sub1, Sub2, Sub3, Sub4 (21)
Calibrate Room Setup (22)
Auto Noise Sequence (22)
Manual Noise Sequence (22)
Program Material (22)
CONFIGURE DEVICES (23)
Overview (23)
Defining inputs and outputs for audio and video sources (23)
Video input and output connections (23)
Digital Video Options (23)
HDMI
Analog Video Options (23)
Component Video
S-Video
Composite Video
Audio Input and Output connections (24)
Digital Audio Options (24)
HDMI
Optical S/PDIF
Coaxial S/PDIF
2. Analog Audio Options (24)
CAST
Balanced
Single-Ended
Multi-Channel
H.
I.
3.
A.
B.
C.
D.
E.
4.
A.
B.
C.
1.
A.
B.
1.
a.
2.
a.
b.
c.
C.
1.
a.
b.
c.
a.
b.
c.
d.

Table of Contents Cont...
Changing default input presets. (26)
Configure Video (26)
Assigning Video Inputs (26)
Setting the Main Video Input (26)
Setting the Zone 2 Video input (26)
Configure Audio (27)
Assigning Audio Inputs (27)
Analog (28)
Digital (28)
Lip Sync (28)
EQ Memory (28)
Setting the Analog audio Input (28)
Analog (28)
Digital (28)
Choosing an Analog Decode Preference (28)
Auto Migration (29)
Choosing a Digital Decode Preference (29)
Assign Lip Sync Delay (31)
Assign EQ Memory (31)
Configure Trigger (32)
Overview (32)
Configure Trigger (32)
Delay (32)
2.
3.
A.
1.
2.
4.
A.
1.
2.
3.
4.
B.
1.
2.
C.
D.
E.
F.
G.
5.
A.
B.
C.

Table of Contents Cont...
CONFIGURE LEVEL ADJUSTMENT (33)
Overview (33)
Device Trim (33)
Analog Input Trim (33)
Anti-Clip
Input Gain
Music Mode Sub Trim (33)
DTS Control Trim (33)
PLII Control Trim (34)
Maximum Volume Limit (34)
Zone 2 Level (34)
OPERATION (35)
Overview (35)
OSD Operation (35)
OSD On Time (35)
Line Number (35)
Menu Back ground (35)
Transparent
Solid
LCD Contrast (35)
Audio Operation (35)
Mute Mode (35)
Dolby Hold Mode (35)
DTS Mode Hold (35)
EX Auto Switching (35)
Dynamic Range (35)
5.1 Input Setup (36)
Program Remote (36)
System Information (36)
1.
2.
3.
A.
B.
4.
5.
6.
7.
8.
1.
2.
A.
B.
C.
1.
2.
D.
3.
A.
B.
C.
D.
E.
4.
5.
6.

Table of Contents Cont...
Room EQ Setup (37)
Overview (37)
Memory (37)
Channel (37)
Filter Parameters (37)
Type (37)
HPF (37)
LPF (38)
Notch (38)
Lshlf (39)
Hshlf (39)
Pking (39-40)
2. Frequency (40)
3. Shape (40)
4. Level (40)
Apply (40)
Basic Operation of the Evolution 707 (41)
Power On/ Off and Stand-By (41)
Volume Control (41)
Quick level adjustment buttons (41)
Center
Surr
Back
Sub
Bal
EQ assignment
Zone 2 Output (41)
Tape/ VCR inputs and outputs (42)
Button Mode Presets (42)
Save and Recall (42)
Factory Reset (42)
7.
A.
B.
C.
D.
1.
a.
b.
c.
d.
e.
f.
E.
1.
2.
3.
A.
B.
C.
D.
E.
F.
4.
5.
6.
7.
8.

Table of Contents Cont...
Evolution 707 Future Upgrades and Firmware (43)
ABCD Mode Options (43)
Mic Input (43)
RS-232 Control (44)
RS-232 Code Set
Preparing for RS-232 Connectiviity (44)
Settings (44)
Notes (44)
Code (Diagram) (44)
RS-232 Feedback (48)
RC-5 Control (58)
RC-5 Code Set (58)
Preparing for RC-5 Connectivity (58)
Settings (58)
Notes (58)
Code (Diagram) (59)
Questions and Answers (61)
Warranty (62)
Service (63)
1.
2.
1.
2.
3.
4.
1.
2.
3.
4.

Introduction to the KRELL Evolution 707
Thank you for your purchase of the Evolution 707 Surround Sound Preamplifier/ Processor. Coupling
legendary KRELL preamplifier technology, state of the art digital processing, and the latest in HDMI
1.3 surround formats, the Evolution 707 is an uncompromising centerpiece for a reference music and
home theater system. Housed in a chassis normally reserved for Krell amplifiers, each critical sub
circuit is given unrestricted space for maximum circuit density. Designed to take full advantage of the
lossless Dolby and DTS Master Audio sound tracks found on Blu-ray discs, the Evolution boasts the
most advanced circuitry ever employed in a surround sound preamplifier/ processor. The Evolution
707 begins as a reference preamplifier utilizing discrete current based Class A, direct coupled circuitry
for enhanced speed and ultra high signal bandwidth. All twelve Evolution 707 analog output stages
are built to the same exacting standard and support Krell CAST, balanced and single-ended cable
connections. At the heart of the Evolution 707 digital signal processing is a pair of dual core 32 bit
Crystal CS497004 DSP’s performing 1.8 giga operations per second. Video signals are treated with
equal care and are afforded isolated circuitry for broadcast quality transmission of signals up to
1080p/60Hz. A massive toroidal transformer, larger than in many amplifiers, insures precise voltages
for the individual audio, video, processing, and control stages. These advanced technologies pair
elegantly to an interface configurable to a user’s preferences.
Features and Functions
The Evolution 707 includes 8.4 channels of audio output. In addition to the standard 7.1 channels
available in conventional surround sound processors, the Evolution 707 includes a second center
channel for positioning above and below screen applications and three additional subwoofer
outputs. Subwoofer options include multiple left/right, front/ back, and Low Frequency Effects
(LFE) options. Individual crossover settings for each speaker provide seamless integration between
subwoofer and main speakers. A powerful 1/3 octave digital equalizer completes the fine tuning by
tailoring individual speaker performance to listening environments that are less than ideal.
The Evolution 707 video circuitry is fully HDMI 1.3 compliant, supports 24 bit Deep Color content, and
is equipped with an onboard video scaler. With stunning clarity, this scaler up-converts incoming
analog video signals to a maximum of 1080p/60Hz over HDMI output or 1080p/30Hz via component
video output. A second video zone enables viewing of another video source simultaneously.
Evolution 707 software based core is readily updatable via a standard RS-232 computer connection if
improvements become available. One future update is room correction. Included with the Evolution
707 is a sensitive calibration microphone that will gather information from the listening environment
and suggest a set of calibrations for optimal performance. Once the software is completed, this will
be made available to all Evolution 707 end users at no charge.
The Evolution 707 is a sophisticated product with many operational options. This manual is divided
into several parts, detailing the various configurations and settings available in the Evolution 707.

Specifications
SIGNAL-TO-NOISE RATIO “A” Weighted 96 dB
TOTAL HARMONIC DISTORTION (THD) Unweighted 20 Hz-20 kHz, +0, -.5 dB
INPUTS ANALOG AUDIO (2) Pair CAST via CAST connectors
(1) Pair Balanced via XLR connectors
(5) Pairs Single-ended via RCA connectors
(1) Discrete 7.1 via RCA connectors
(1) Tape in via RCA connectors
(1) VCR audio in via RCA connectors
DIGITAL AUDIO (4) HDMI via HDMI connectors
(4) EIAJ optical via Toslink connectors
(4) Coaxial via RCA connectors
DIGITAL VIDEO (4) HDMI via HDMI connectors
ANALOG VIDEO (3) Component Video via RCA connectors
(4) S-video via DIN connectors
(3) Composite Video via RCA connectors
OUTPUTS
ANALOG AUDIO (12) CAST via CAST Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(12) Balanced via XLR Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(12) Single-ended via RCA Connectors
R, L, C1, C2, SR, SL, SBR, SBL, S1, S2, S3, S4
(1) Tape out via RCA connectors
(1) VCR audio out via RCA connectors
(1) Zone 2 out via RCA connectors
DIGITAL AUDIO (1) EIAJ optical via TosLink connector
(1) Coaxial via RCA connector
DIGITAL VIDEO (1) HDMI via HDMI connector
ANALOG VIDEO (1) Component Video via RCA connectors
(1) Zone 2 Component Video via RCA connectors
(1) S-video via DIN connectors
(1) Zone 2 S-video via DIN connector
(1) Composite Video via RCA connector
(1) Zone 2 Composite Video via RCA connector

Specifications Cont...
CONTROL (1) IR Receiver for Remote Control
(1) RS-232 via DB9 Female Connector Straight Wired
(1) RC-5 via 1/8” stereo “trs” Receptacle
(1) 12vdc Remote Trigger Input via 1/8” Mono receptacle
(4) 12vdc Remote Trigger Outputs via 1/8 Mono
receptacles
(2) Proprietary KRELL CAN ports via RJ-45 Connectors
DIGITAL DECODING MODES Dolby TrueHD
Dolby Digital Plus
Dolby Digital
Dolby Digital EX
Dolby Pro Logic IIx
DTS-HD Master Audio™
DTS-HD High Resolution Audio™
DTS Digital Surround | ES | Neo:6 | 96/24™
PCM 5.1
PCM 7.1
PREAMP (Direct Analog Only)
PREAMP 5.1 (Direct Analog Only)
SURROUND ENHANCEMENT MODES General Admission
Front Row
On Stage
Enhanced Stereo
Orchestra
Mezzanine
Full Range + Sub
Monophonic
Party
RS-232 DB9 Pin Out 1. Data Carrier Detect
2. Received Data
3. Transmitted Data
4. Data Terminal Ready
5. Signal Ground
6. Data Set Ready
7. Request To Send
8. Clear To Send
9. Ring Indicator

Specifications Cont...
RC-5 pin out Tip = RC-5 data, Ring = +5 V, Sleeve = GND
XLR Pin Out Pin 1 (ground) Pin 2 (non-inverting “Hot”) Pin 3 (Inverting)
Maximum Input Balanced 8.2 Vrms
Single Ended 4.1 Vrms
Maximum Output Balanced 17.8 Vrms
Single Ended 8.9 Vrms
Audio Input Impedance Balanced 475 KΩ
Single Ended 47 KΩ
Audio Output Impedance Balanced 150 Ω
Single Ended 150 Ω
Power Consumption Stand-by 178W
Operation 196W
DIMENSIONS Inches (L) 21.22 x (W) 17.25 x (H) 8.75
Centimeters (L) 53.90 x (W) 43.82 x (H) 22.23
WEIGHT 52lbs Unit only
23.59kg Unit only
64lbs Shipping Weight
29.03kg Shipping weight
All operational features, functions and specifications are subject to change without notification.

Getting Started
UNPACKING AND PLACEMENT
The Evolution 707 is a precision instrument and should be handled with the utmost care when deciding where
it is to be placed and while it is being unpacked and finally installed. Because of its physical size and weight, it is
recommended that two people unpack and place the unit. Makes sure the installation location is dry and level,
and able to provide adequate ventilation. The Evolution 707 runs warm to the touch and requires the bottom
and top of the unit be free from obstruction with good circulation of air. Allow a minimum of 3 inches above the
unit for proper ventilation. Additional ventilation may be required when the unit occupies the same space with
other electronics that generate heat like power amplifiers. Please consult an authorized KRELL dealer or KRELL
industries to insure proper installation guidelines.
Accessories included
1 AC Power cord
1 Handheld Remote control
1 Trigger cable
1 Owner’s reference
1 Quick start guide
1 Warranty registration card
2 AAA Batteries
1 T-10 torx wrench
AC Power Guidelines
The Evolution 707 is designed to work all over the world. The operating voltage is determined at the factory and
is specifically set to operate in the country of final destination. The Evolution 707 requires good clean power and
doesn’t require additional filtration. Make sure the AC line voltage is within plus or minus 10% of the specified AC
line voltage setting for proper operation.
NOTE: The Evolution 707 may not operate correctly when AC regeneration or voltage conversion devices are
utilized.
1.
A.
B.
C.
D.
E.
F.
G.
H.

Getting Started
Back Panel Description
1 Balanced analog inputs 13 Zone 2 Component video output 25 KRELL can link 2 CAST inputs 14 S-video inputs 26 AC power cord receptacle 3 Single-ended analog inputs 15 Composite video inputs 27 Main Power Switch 4 Multichannel analog input 16 HDMI output 28 Auxiliary dock interface 5 Tape input 17 Composite video output 29 Coaxial digital output 6 Tape output 18 Zone 2 Composite video output 30 EIAJ optical digital output 7 Zone 2 analog audio outputs 19 S-video output 31 Auxiliary digital interface 8 VCR audio input 20 Zone 2 S-video output 32 Coaxial digital inputs 9 VCR audio output 21 12v Trigger input 33 EIAJ optical digital inputs
10 Component video inputs 22 RS-232 control port 34 Balanced audio outputs 11 HDMI 1.3 Inputs 23 RC-5 control port 35 Single-ended audio outputs 12 Component video output 24 12v Trigger outputs 36 CAST audio outputs

Getting Started
Front Panel and Remote Control Function
1 Display window 15 Navigate right adjustment
2 Volume Up/ Down adjustment 16 Enter button
3 Quick center channel adjust 17 Previous screen adjustment
4 Quick Surround channel adjust 18 Activate OSD Menu button
5 Quick Preamp Mode Button 19 Mute audio select
6 Quick Stereo Mode Button 20 Setup memory recall
7 Quick Mode 1 Button 21 Save system setup
8 Quick Mode 2 Button 22 Zone 2 PWR button
9Quick Dolby Pro Logic Button 23 Microphone Input
10 Quick Surr Back channel adjust 24 IR receive window
11 Quick Sub channel adjust 25 Power Standby button
12 Balance adjust 26 Device input select
13 Navigate left adjustment 27 Main Zone Select
14 A, B, C, D Quick Select

Initial Setup
OSD (On Screen Display)
Connection and Operation of the OSD
The OSD (On Screen Display) connection of the Evolution 707 to a video display is the single most
important connection to the setup of this processor. The entire configuration and setup of the
Evolution 707 is performed while viewing the OSD.
Note: Do not connect any inputs at this time.
Attach the AC power cord to the receptacle on the back of the Evolution 707.
Plug the Power cord into an AC receptacle and turn on the rear power switch.
The Evolution 707 will go through an initialization process and display the current software revision
installed. Wait for the initialization to complete before proceeding.
Connect the Video Output of the Evolution 707 to a Video Monitor
The OSD can be displayed from any video output. HDMI, component, s-video and composite video
are all supported. Care should be taken in selecting which video format to use. Older monitors,
projectors and televisions do not have the ability to display some of the latest video output formats.
Use composite video if you are uncertain as to the video display’s capabilities.
NOTE: When using the HDMI output for OSD do not connect an HDMI input at this time. It can make
initial setup more difficult as the Evolution 707 will be communicating with the source before the
setup of inputs and outputs has occurred.
Press the Power button on the front panel.
Within a few seconds the video display will show a blue screen with white text.
NOTE: If you are using an analog output such as component or composite video, press cd on the
front panel, this will go to an analog defaulted video setting and expedite your setup.
NOTE: If a blue screen with text does not occur, check the following:
Video connections
Input of the video display
Evolution 707 is in operation mode
If a problem still persists, turn the Evolution 707 off via the rear panel switch and turn it back
on.
Press the Menu Button
Now that a video connection has been established, press the Menu button, the set-up menu will
appear on the video display. It is now possible to navigate the set-up menu using a combination of
the up, down, left, right, enter, and previous buttons. These can be accessed via the Front panel of
the Evolution 707 or the remote control.
1.
2.
3.
4.
5.
A.
B.
C.
6.

Main Menu, Navigation and Setup
CONFIGURE VIDEO OUTPUT
Overview
Configure video output sets the analog video scaler to an appropriate video output resolution.
Analog video can be up-scaled up to 1080P 60Hz allowing video parity for all video sources Once
this has been set all analog video sources will be up-scaled and output to this resolution. HDMI
inputs are NOT affected by this setting.
NOTE: Make sure your video display is capable of displaying the output resolution selected, a series
of error messages requiring user response will appear if the output resolution is set incorrectly.
Analog Video Scaler
Setting maximum Video output resolution
These are the available analog scaler output formats
480i - 720 x 480 60Hz 720p - 1280 x 720 60Hz 1080p - 1920 x 1080 30Hz
480p - 720 x 480 60Hz 1080i - 1920 x 1080 50Hz
(Outside the USA)
1080p - 1920 x 1080 50Hz
(Outside the USA)
576i - 720 x 576 50Hz
(Outside the USA) 1080i - 1920 x 1080 60Hz 1080p - 1920 x 1080 60Hz
576p - 720 x 576 50Hz
(Outside the USA) 1080p - 1920 x 1080 24Hz
720p - 1280 x 720 50Hz
(Outside the USA)
1080p- 1920 x 1080 25Hz
(Outside the USA)
Setting Zone 2 video output resolution
The Evolution 707 has a separate set of video outputs available specifically to operate a
second video system or zone. These signals can be routed to an entirely different system
and operated separately from the main zone system. The second zone video can be output
over component, s-video or composite video terminations.
NOTE: The zone two video can only utilize analog video sources, HDMI inputs cannot output
zone 2 video, however any component, s-video or composite video can be output to zone 2
video.
1.
2.
A.
B.

Main Menu, Navigation and Setup Cont...
These are the available analog scaler output formats for Zone 2
480i - 720 x 480 60Hz 576p - 720 x 576 50Hz
(Outside the USA)
1080i - 1920 x 1080 50Hz
(Outside the USA)
480p - 720 x 480 60Hz 720p - 1280 x 720 50Hz
(Outside the USA) 1080i - 1920 x 1080 60Hz
576i - 720 x 576 50Hz
(Outside the USA) 720p - 1280 x 720 60Hz
LISTENING ROOM SETUP
Overview
Listening room setup is comprised of three major parts; configure speakers, speaker distance
and calibrate volume. This group of settings defines the speaker crossover parameters as well as
distance of speaker relative to the listening position and speaker SPL (sound pressure levels). Each
loudspeaker in the system can be set to a specific crossover point to insure proper utilization of that
speaker’s frequency response and its relationship to the subwoofer.
Configure Speakers
Defines number of speakers and the frequency relationship to the subwoofer or LFE channels for
each group of speakers in the surround system. The quantity and frequency options are available for
each group of speakers listed below.
Quantity - Sets the number of channels in the system.
Full Range – This setting allows the passing of full spectrum audio frequencies including LFE
information.
LIM ( ? ) (limited) Hz – Sets the low pass filter frequency. Low frequency information below
this setting is channeled to the sub woofers or LFE channels.
The following settings are available to any of the speakers in the system except the
subwoofer. This setting will specify a point where the low frequency response of each
speaker respectively will be re-routed to the subwoofer or LFE enabled speakers. Choose
a setting from the chart below that corresponds to the low frequency specification of the
speakers in use.
1.
2.
A.
B.
C.
LIM 40 Hz LIM 75 Hz LIM 120 Hz LIM 190 Hz
LIM 45 Hz LIM 80 Hz LIM 130 Hz LIM 200 Hz
LIM 50 Hz LIM 85 Hz LIM 140 Hz LIM 210 Hz
LIM 55 Hz LIM 90 Hz LIM 150 Hz LIM 220 Hz
LIM 60 Hz LIM 95 Hz LIM 160 Hz LIM 230 Hz
LIM 65 Hz LIM 100 Hz LIM 170 Hz LIM 240 Hz
LIM 70 Hz LIM 110 Hz LIM 180 Hz LIM 250 Hz

Main Menu, Navigation and Setup Cont...
Front - Speaker channels positioned front Left and front Right respective to the listening
position.
Quantity – N/A
NOTE: Left and Right front speakers are a minimum requirement for surround or two
channel music play back. The quantity value cannot be changed.
Crossover - Full, LIM (?) Hz
Center - Speaker channels positioned front Center respective to the listening position.
Quantity - NO, 1 and 2
Crossover - Full, LIM (?) Hz
NOTE: The Evolution 707 allows the use of an additional center channel speaker. The
settings for the center channels are exactly the same and they are configured as if
there were one. Typically a second center channel is used in very large rooms where a
higher output level is required.
Surround - Speaker channels positioned to the Left and Right midway into the room
respective to the listening position.
Quantity - NO, 1 and 2
Crossover - Full, LIM (?) Hz
Back – Speaker channels positioned to the Left and Right behind the listening position
respectively.
Quantity - NO, 1 and 2
Crossover - Full, LIM (?) Hz
5.1 Surround – This setting allows the steering of surround information to be routed
additionallytotherearspeakers,surroundspeakersorbothduring5.1channelplaybackin
a 7.1 system.
NOTE: This function is to utilize the rear speakers for 5.1 source material only. 7.1 material
generates the rear channel information.
The options are:
Both - Routes Surround information to both the Surround speakers and the Back
speakers.
Back - Routes Surround information to the Back speakers.
Surround - Routes Surround information to the Surround speakers.
D.
1.
1.
E.
1.
2.
F.
1.
2.
G.
1.
2.
H.
1.
2.
3.

Main Menu, Navigation and Setup Cont...
Subwoofer – A speaker channel (s) specifically utilized for LFE (Low Frequency Effects)
information and low frequency information to surround speakers set to limited.
Quantity – NO, 1, 2, 3, and 4
NOTE: The Evolution 707 allows the use of up to three additional subwoofers. The
settings for each of the SW channels originate from the original LFE channel but are
configured individually to perform specific or similar functions. Subwoofer options
are based on quantity used. The combinations are:
SMALL + LFE – LFE and Subwoofer functions are enabled. All low frequency from
speakers set to limited as well as the LFE effects are sent to the subwoofer(s).
FRONT + LFE - LFE and Subwoofer functions are enabled. All low frequency from
speakers in the FRONT set to limited as well as the LFE effects are sent to the
subwoofer(s).
BACK + LFE - LFE and Subwoofer functions are enabled. All low frequency from
speakers in the BACK set to limited as well as the LFE effects are sent to the
subwoofer(s).
LEFT + LFE - LFE and Subwoofer functions are enabled, all low frequency from
speakers on the LEFT side set to limited as well as the LFE effects are enabled.
RIGHT + LFE- LFE and Subwoofer functions are enabled. All low frequency from
speakers on the RIGHT side set to limited as well as the LFE effects are sent to the
subwoofer(s).
The combination of subwoofer modes are selected only via the first line of text to
the right of the “SUB1” label. Set the quantity of sub channels, then navigate to
this text, press the enter key and scroll through the available options for that quantity
combination. The Chart below describes various subwoofer combinations.
1 SUB 2 SUBS 3 SUBS 4 SUBS
SUB 1 SMALL + LFE SMALL + LFE SMALL + LFE SMALL + LFE
LEFT + LFE LEFT + LFE LEFT + LFE
FRONT + LFE FRONT + LFE FRONT + LFE
SUB 2 N/A SMALL + LFE SMALL + LFE SMALL + LFE
RIGHT + LFE RIGHT + LFE RIGHT + LFE
BACK + LFE BACK + LFE BACK + LFE
SUB 3 N/A N/A SMALL + LFE SMALL + LFE
LFE LEFT + LFE
FRONT + LFE
SUB 4 N/A N/A N/A SMALL + LFE
RIGHT + LFE
BACK + LFE
I.
1.
•
•
•
•
•
