Krell Industries KAV-300IL User manual

Instructions for Use
Owner’s Reference
THE LEADER IN AUDIO ENGINEERING
KAV–300iL
Remote Control
Integrated Amplifier

This product is manufactured in the United States of America. Krell®is a registered trademark of Krell
Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents.
Krell Current Mode™ and Theater Throughput™ are trademarks of Krell Industries, Inc. All other trade-
marks and tradenames are registered to their respective companies.
© 2001 by Krell Industries, Inc. All rights reserved P/N 305219
Krell Industries, Inc.
45 Connair Road
Orange, CT 06477-3650 USA
TEL [phone]
FAX [phone]
E-MAIL [email protected]
WEBSITE http://www.krellonline.com
This product complies with the EMC directive (89/336/EEC) and the low-voltage
directive (73/23/EEC).
Do not place the integrated amplifier where it could be exposed to dripping or
splashing.
The ventilation grids on the top and bottom of the KAV–300iL must be unobstruct-
ed at all times during operation. Do not place flammable material on top of or
beneath the component.
When making connections to this or any other component, make sure all compo-
nents are off. Turn off all systems’ power before connecting the KAV–300iL to any
other component. Make sure all cable terminations are of the highest quality, free
from frayed ends, short circuits, or cold solder joints.
THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT.
Please contact your authorized dealer, distributor, or Krell if you have any ques-
tions not addressed in this reference manual.
KAV–300iL
Remote Control Integrated Amplifier
Instructions for Use
v 01.2
CONTACT
INFORMATION
WARNINGS

Krell KAV–300iL iii
Contents
Page
INTRODUCTION 1
DEFINITION OF TERMS 2
UNPACKING 4
PLACEMENT 5
AC Power Guidelines 5
Power Cord 5
FRONT PANEL DESCRIPTION 7
BACK PANEL DESCRIPTION 10
REMOTE CONTROL DESCRIPTION 13
Battery Installation and Removal 13
Remote Control Functions 13
CONNECTING THE KAV–300iL TO YOUR SYSTEM 15
Connection Steps 15
OPERATING YOUR KAV–300iL 16
Amplifier Operation 16
Tape Input and Output 17
OPTIONAL CONFIGURATIONS 18
Configuring the KAV–300iL for Theater Throughput 18
HOW TO TROUBLESHOOT SYSTEM NOISE 20
QUESTIONS AND ANSWERS 21
WARRANTY 22
RETURN AUTHORIZATION PROCEDURE 23
SPECIFICATIONS Back Cover

iv Krell KAV–300iL
Illustrations
FIGURE 1 The KAV–300iL Front Panel 6
FIGURE 2 The KAV–300iL Back Panel 9

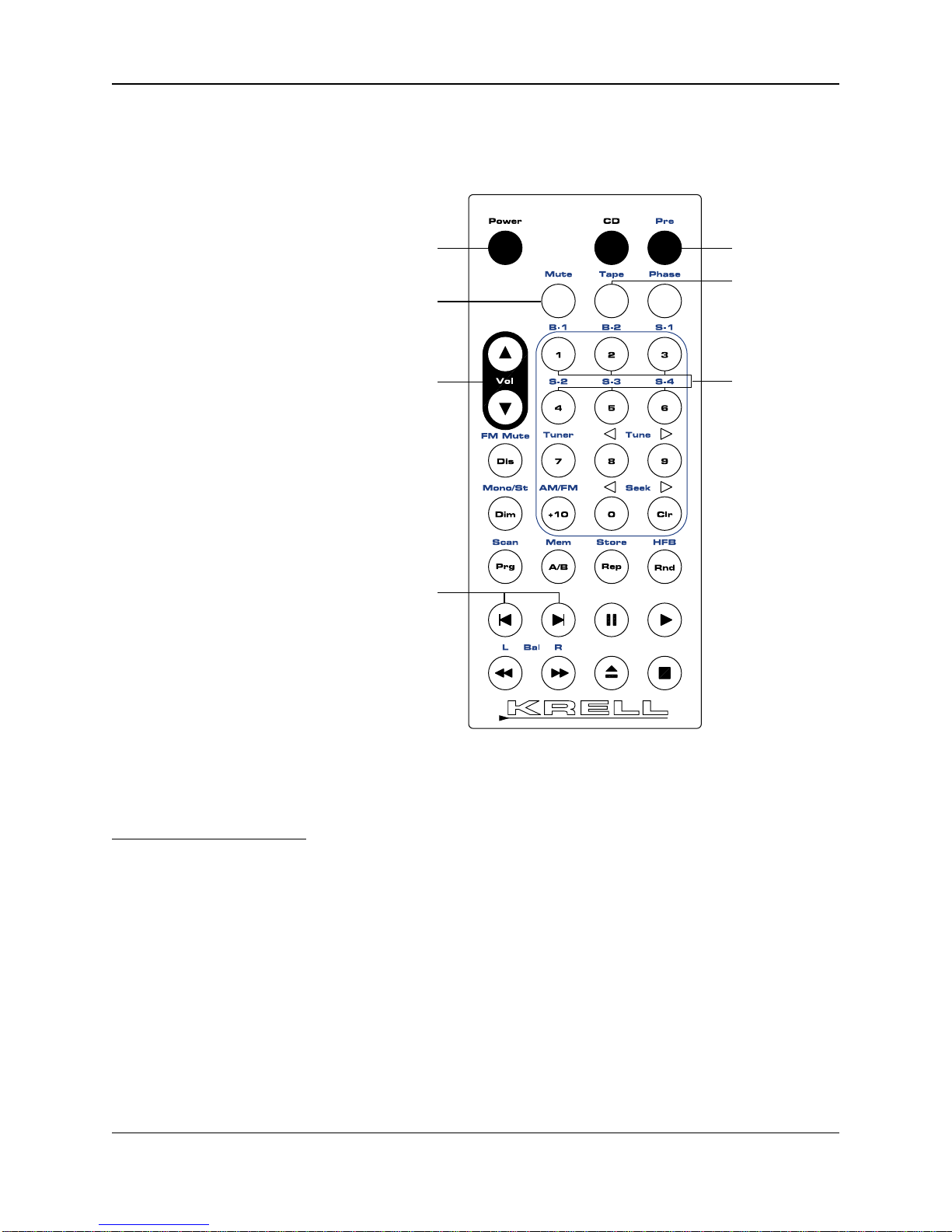

FIGURE 3 The KAV–300iL Remote Control 12
Page

Krell KAV–300iL 1
Introduction
Thank you for your purchase of the Krell KAV–300iL Remote
Control Integrated Amplifier. This fully integrated amplifier and pre-
amplifier has a fully balanced signal path from input to output and
employs a wide bandwidth design with low negative feedback for
sonic accuracy throughout the frequency spectrum. All circuits up
to the driver stage are pure Class A.
Krell’s new surface mount technology (SMT) means that the
KAV–300iL is an integrated amplifier with big power—200 Watts
per channel—that does not require big space. SMT allows individ-
ual circuit elements to be placed very close together. This shortens
signal paths and allows circuit elements to operate at the same
temperature, resulting in more accurate signal transfer and
enhanced reliablilty.
The KAV–300iL is easy to operate and integrate into your system.
The remote control accesses all amplifier functions, and remote
control connection options allow the KAV–300iL to be easily con-
nected with other components. The Theater Throughput feature
provides easy integration of the amplifier into a home theater
system.
This owner’s reference manual contains important information on
the placement, installation, and operation of the KAV–300iL.
Please read this information carefully. A thorough understanding of
these details will help ensure satisfactory operation and long life
for your KAV–300iL and related system components.

Definition of Terms
OPERATION
Following are the definitions of key terms used in your owner’s ref-
erence manual.
Theater Throughput
Theater Throughput is a Krell configuration option that allows the
signal from a surround preamp/processor to pass through a Krell
preamplifier or integrated amplifier with no gain, for integrated vol-
ume and balance management of Krell home theater systems.
Balanced
A symmetrical input or output circuit that has equal impedance
from both input terminals to a common ground reference point.
The industry standard for professional and sound recording instal-
lations, balanced connections have 6 dB more gain than single-
ended connections and allow the use of long interconnect cables.
Balanced connections are completely immune to induced noise
from the system or the environment.
Single-ended
A two-wire input or output circuit. Use care when using single-
ended connections as the ground connection is made last and
broken first. Turn the system off prior to making or breaking single-
ended connections. Single-ended connections are not recom-
mended for connections requiring long cable runs.
Off
The component is off when the AC power cord is unplugged from
the wall receptacle.
Stand-by Mode
A low power consumption status that keeps the audio circuits at
idle. When you plug the AC power cord into the wall receptacle,
the red stand-by LED illuminates. The component is now ready to
be switched to the operational mode. Krell recommends leaving
the component in the stand-by mode when it is not playing music.
Operational Mode
When the component is in the stand-by mode, and you press the
power button on the front panel or the power key on the remote
control, the blue power LED illuminates. The component is in the
operational mode and is ready to play music.
CONFIGURATIONS
INPUT AND OUTPUT
CONNECTIONS
2Krell KAV–300iL

Definition of Terms, continued
Krell Current Mode
A proprietary Krell circuit topology in which the audio gain stages
of a component operate in the current rather than voltage domain.
This unique technology provides the component with exceptional
speed and a wide bandwidth.
TECHNOLOGY
Krell KAV–300iL 3

4Krell KAV–300iL
Unpacking
After opening the box and removing the top layer of foam, the
KAV–300iL and the KAV–300iL accessory kit containing the follow-
ing items will be visible:
1 AC power cord
1 12 VDC (12 V trigger) cable
2 spare loudspeaker fuses (AGC 8)
1 KAV–300iL remote control
1 CR2025 lithium battery
Grasp the underside of the amplifier and lift it straight out of the
packing box.
Place the amplifier in a safe location and remove the protective
plastic wrapping.
If any of these items are not included please contact your authorized
Krell dealer.
Save all packing materials. If you must ship your KAV–300iL in the future,
repack the unit in its original packaging to prevent shipping damage.
Notes

Krell KAV–300iL 5
Placement
Before you install the KAV–300iL into your system, review the fol-
lowing guidelines to choose the location for the KAV–300iL. This
will facilitate a clean, trouble-free installation. The KAV–300iL does
not require any type of special rack or cabinet for installation. For
the dimensions of the KAV–300iL, see Specifications, on the
back cover.
Place the KAV–300iL on a firm, level surface, away from excessive
heat, humidity, or moisture. The KAV–300iL requires at least two
inches (5 cm) of clearance on each side and at least two inches
(5 cm) of clearance above and below the component to provide
adequate ventilation. Installations inside cabinetry may need extra
ventilation.
The KAV–300iL is not hum-sensitive. Other components may be
placed on or around the KAV–300iL (make sure ventilation grids
remain unobstructed).
Place the amplifier as close to the loudspeakers as possible and
keep loudspeaker cable lengths to a minimum. Loudspeaker cable
adds impedance to the load the amplifier must drive, regardless of
the cable’s gauge. All Krell amplifiers drive the lowest impedances
with ease, but long loudspeaker cables reduce the maximum
power that can be delivered to the loudspeakers.
The KAV–300iL has superb regulation and does not require a ded-
icated AC circuit. Avoid connections through extension cords or
multiple AC adapters. High quality 15 amp grounded AC strips are
acceptable. High quality AC line conditioners or filters may be
used if they are grounded and meet or exceed the unit’s maximum
power consumption of 1800 Watts.
The KAV–300iL should be operated only with the power cord
supplied. Please contact your authorized Krell dealer, distributor,
or Krell before using any devices designed to alter or stabilize the
AC power for the KAV–300iL.
AC Power
Guidelines
Power Cord

Figure 1 The KAV-300iL Front Panel
2 71 4 116 9 1083 5
Mode Indicators
8 Mute Button 9 Mute LED
Volume Adjustment Functions 10 Level Up
and Down Buttons
11 Front Panel Display
Power 1 Power Button 2 Power LED 3 Stand-by LED 4 Infrared Sensor Analog Devices 5 S-1, S-2, S-3, and
B-1 Buttons and LED
6 Tape Button 7 Tape LED

Krell KAV–300iL 7
The front panel of the KAV–300iL accesses power on and off,
analog input selections, volume control, and mute. The front panel
display shows the volume and balance levels, and Theater
Throughput status.
1 Power Button
Use this button to switch the KAV–300iL between the stand-by and
the operational modes.
2 Power LED
The blue power LED illuminates when the KAV–300iL is in the
operational mode. The power LED also flashes when any remote
control key is pressed.
3 Stand-by LED
The red stand-by LED illuminates when the KAV–300iL is plugged
into a standard AC wall receptacle, indicating that the amplifier is
in the stand-by mode and ready to be switched to the operational
mode.
4 Infrared Sensor
The infrared sensor receives commands from the KAV–300iL
remote control. For proper remote control operation, make sure
the infrared sensor is clear of any obstructions.
5 S-1, S-2, S-3, and B-1 Buttons and LEDs
Use these buttons to select a balanced analog source component
(B-1) via an XLR connector or a single-ended analog source com-
ponent (S-1, S-2, or S-3) via single-ended RCA connectors. The
selected button’s LED illuminates.
6 Tape Button
Use this button to playback pre-recorded tapes. You may also use
this button to compare the output signal of an analog tape recorder
to an audio source. See Tape Input and Output, on page 17.
7 Tape LED
The red tape monitor LED illuminates when the tape monitor is
activated. The LED does not illuminate when an audio source is
activated.
Front Panel Description
See Figure 1 on page 6
POWER
ANALOG
SOURCE
COMPONENTS

8Krell KAV–300iL
Front Panel Description continued
8 Mute Button
Use this button to interrupt the signal of the input you have select-
ed. To unmute, press the mute button again.
9 Mute LED
The red mute LED illuminates when you press the mute button or
mute key (28) on the remote control.
10 Level Up and Down Buttons
The volume level buttons adjust the amplifier output level, which is
indicated numerically on the front panel display; range is 0-151.
11 Front Panel Display
The front panel display shows volume and balance levels and
Theater Throughput status.
MODE INDICATORS
VOLUME ADJUSTMENT
FUNCTIONS

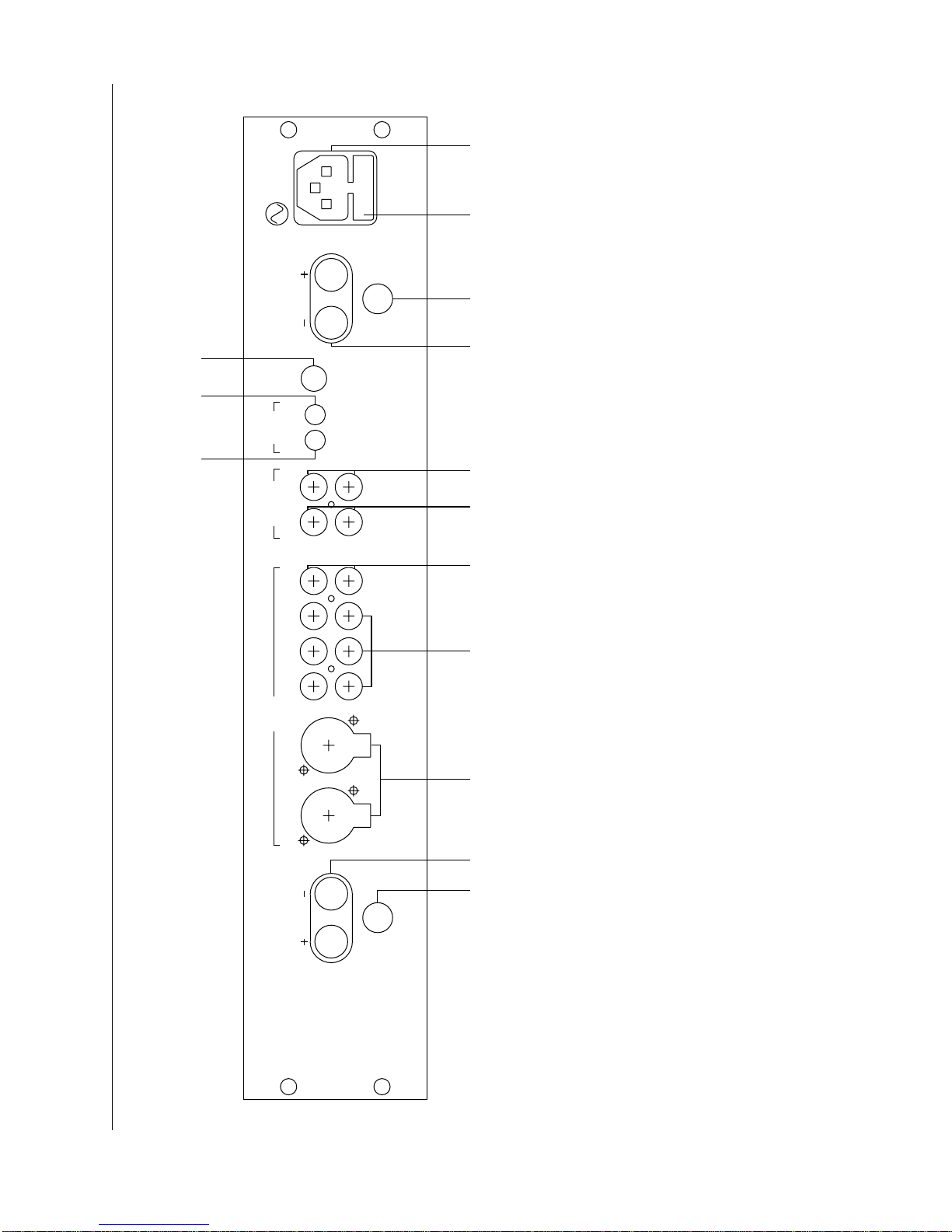

Figure 2 The KAV-300iL Back Panel
50/60 Hz
19 30 18
23 12 13 14 15 16 17 12 23 22 21
MADE IN USA
FUSE
AGC 8
LEFT OUTPUT
IN
IN
RC–5
12VDC
OUT
OUTPUTS
TAPE PREAMP
LEFT
TAPES – 3S – 2S – 1
INPUTS
B – 1 LEFTB – 1 RIGHT
RIGHT OUTPUT
RIGHT
FUSE
AGC 8
NO USER SERVICEABLE PARTS INSIDE
KAV–300iL
Amplifier Channel Outputs 12 Left and Right Loudspeaker
Outputs
Analog Inputs 13 Left and Right Balanced
Analog Inputs
14 Left and Right Single-Ended
Analog Inputs
15 Left and Right Tape Inputs
Analog Outputs 16 Left and Right Tape Outputs 17 Left and Right Preamp Outputs Remote Connections 18 RC-5 In 19 12 VDC Out 20 12 VDC In Power 21 IEC Connector 22 Line Fuse 23 AGC 8
Left and Right Loudspeaker Fuses

Back Panel Description
See Figure 2 on page 9
10 Krell KAV–300iL
The KAV–300iL back panel provides connections for all inputs and
outputs, power on/off, and additional remote connections.
12 Left and Right Loudspeaker Outputs
The KAV–300iL is equipped with standard binding posts for each
amplifier channel. These connectors accept bare wire, pins, or
spade lugs. Use the red terminal for the positive connection and
the black terminal for the negative connection.
13 Left and Right Balanced Analog Inputs
The KAV–300iL is equipped with one pair of balanced (B-1) inputs
via XLR connectors.
14 Left and Right Single-Ended Analog Inputs
The KAV–300iL is equipped with three pairs of single-ended (S-1,
S-2, or S-3) inputs via RCA connectors.
15 Left and Right Tape Inputs
The KAV–300iL is equipped with a pair of single-ended tape inputs
via RCA connectors.
16 Left and Right Tape Outputs
The KAV–300iL is equipped with a pair of single-ended tape
outputs via RCA connectors.
17 Left and Right Preamp Outputs
The KAV–300iL is equipped with a pair of single-ended pre-
amplifier outputs.
18 RC-5 In
The KAV–300iL is equipped with an RC-5 input that makes custom
installation easy and secure by accepting baseband RC-5 input
commands from hardwired remote controllers.
19 12 VDC Out
The KAV–300iL is equipped with an output that sends 12 VDC
(12 V trigger) power on/off signals to other Krell components and
other devices that incorporate a 12 V trigger. This allows you to
turn other components on or off, or to and from stand-by, from the
KAV–300iL. When the KAV–300iL is switched between stand-by
and operate, it sends a signal from the 12 VDC Out that will switch
other components, allowing whole systems or parts of systems to
be easily coordinated.
AMPLIFIER CHANNEL
OUTPUTS
ANALOG INPUTS
ANALOG OUTPUTS
REMOTE
CONNECTIONS

Back Panel Description, continued
Krell KAV–300iL 11
20 12 VDC In
The KAV–300iL is equipped with an input that receives 12 VDC
(12 V trigger) power on/off signals from other Krell components
and other devices that incorporate a 12 V trigger. This allows you
to turn the KAV–300iL on or off, or to and from stand-by, from
other components.
The 12 VDC output current is limited to 30 ma.
Consult the owner’s reference of the components used in a custom
installation to take full advantage of the remote capability of the
KAV–300iL.
21 IEC Connector
The connector is for use with the provided IEC standard 15 amp
power cord.
22 Line Fuse
The 50/60 Hz line fuse protects the KAV–300iL against short cir-
cuits from the external AC power.
23 AGC 8 Fuses
The AGC 8 fuses protect the KAV–300iL against short circuits in
the loudspeaker output.
Fuses must be replaced with the fuse value specified on the back panel.
REMOTE
CONNECTIONS,
continued
POWER
Notes
Note

Figure 3 The KAV-300iL Remote Control
12 Krell KAV–300iL
24 25
27
26
28
29
30
Power
24 Power Key
25 Pre Key
Analog Functions
26 Analog Input Keys
27 Tape Key
Output Control
Functions
29 Mute Key
29 Vol (Volume) Keys
30 Bal (Balance) Keys
Note Remote control keys listed above function with the KAV-300iL. Other keys
on this remote control may activate other Krell components. Consult the
Krell reference manual for each model to review your component’s full
remote control capabilities.

Remote Control Description
See Figure 3 on page 12
Krell KAV–300iL 13
The KAV-300iL remote control uses one CR2025 lithium battery,
which is included with the shipment.
To open the battery compartment on the back of the remote
control:
1. Place the remote face down on the table.
2. Use your thumbnail or a small jeweler’s or eyeglass screw-
driver to move the small switch toward the center of the
remote, while using your index fingernail or screwdriver to pull
down gently on the slot to the right of the switch. The battery
compartment will slide out.
Do not use a knife or other sharp objects to open the battery compart-
ment; they will scratch the remote control finish.
3. Place the battery, positive side up, in the battery tray.
4. Slide battery compartment back into the remote until you hear
a click.
The remote control is ready for operation.
Replace battery when remote control function becomes intermittent.
Remove battery if the remote control is not used for a long period of time.
Battery leakage can damage the remote control.
The KAV–300iL remote control accesses complete power amplifier
and preamplifier functions. A description of the remote control keys
that activate the KAV–300iL follows.
24 Pwr (Power) Key
Use this key to switch the KAV–300iL between the stand-by and
the operational modes.
25 Pre Key
Use this key to activate the KAV–300iL remote to access amplifier
commands.
Note
Notes
Battery
Installation
and
Removal
Remote Control
Functions
POWER

Remote Control Functions continued
14 Krell KAV–300iL
26 Analog Input Keys
Use these keys to select a balanced source (B-1) or single-ended
sources (S-1, S-2, or S-3). The selected input LED on the front
panel illuminates.
27 Tape Key
Use this key to monitor the output signal of a three-head analog
tape recorder, compared to the output signal from an audio
source, when making a recording. See Tape Input and Output,
on page 17. The red tape monitor LED on the front panel illumi-
nates when the tape monitor is activated. The LED does not illumi-
nate when an audio source is activated.
28 Mute Key
Use this key to interrupt the signal of the input you have selected.
To unmute, press the mute key again. The red mute LED (9) on
the front panel illuminates when you press the mute button (8) or
key.
29 Vol (Volume) Keys
Press these keys to adjust the amplifier output level, which is indi-
cated numerically on the front panel display (11); range is 0-151.
30 Bal (Balance) Keys
Use these keys to shift the balance to the left or the right channel.
Balance level is indicated in the front panel display (11). To display
balance, push any key on the remote.
The front panel display indicates:
-C-
when the system is balanced. If the system is not balanced, the
front panel display indicates if balance is right or left of center, and
how much, on a scale of 1(least out of balance) to 5(most out of
balance).
Example: A display of:
- - 3
means that the balance is moderately right of center. A display of:
5- -
means the balance is severely left of center.
The remote control keys listed above function with the KAV–300iL. Other
keys on this remote control may activate other Krell components, for
example, compact disc players. Consult the Krell owner’s reference man-
ual for each component to review your component’s full remote control
capabilities.
ANALOG FUNCTIONS
OUTPUT CONTROL
FUNCTIONS
Note

Krell KAV–300iL 15
Krell recommends using balanced interconnect cables. Balanced
interconnect cables not only can minimize sonic loss but are also
immune to induced noise, especially with installations using long
cables. Balanced connections have 6 dB more gain than single-
ended connections. When level matching is critical, keep this gain
value in mind.
Follow these steps to connect the KAV–300iL to your system.
1. Make sure all power sources and components are off before
connecting inputs and outputs.
2. Neatly organize the wiring between the KAV–300iL and all sys-
tem components. Separate AC wires from audio cables to
prevent hum or other unwanted noises from being introduced
into the system.
3. Connect the left and right loudspeaker cables to the integrated
amplifier’s left and right loudspeaker output terminals (12).
The KAV–300iL uses standard binding posts for each amplifier
channel. These connectors accept bare wire, pins, or spade
lugs. Use the red terminal for the positive connection and the
black terminal for the negative connection.
4. Connect the left and right outputs of your source components to
the appropriate analog inputs (13, 14) on the KAV–300iL.
The KAV–300iL is equipped with one balanced input (B-1), three
single-ended inputs (S-1, S-2, or S-3), and one tape input (15).
The B-1, S-1, S-2, and S-3 inputs can be configured for Theater
Throughput. See Optional Configurations, on page 18 for
information on configuring an input for Theater Throughput.
5. Use the preamp outputs (17) to connect to an additional power
amplifier, for loudspeakers in another room.
6. Plug the AC cord into the IEC connector (21) on the back panel
of the KAV–300iL. Plug the remaining end into the AC wall
receptacle. The red stand-by LED (3) illuminates. There is no
audible click or delay.
Pin 1 Shield (ground)
Pin 2 Non-inverting (hot) (0°)
Pin 3 Inverting (cold) (180°)
Connecting the KAV–300iL
to Your System
USING BALANCED
CONNECTIONS
Connection
Steps
Pin assignments for the
XLR connectors

16 Krell KAV–300iL
This section provides information about operating the KAV–300iL.
The KAV–300iL provides basic input selection and volume control
operation from the front panel. The remote control includes addi-
tional preamplifier functions as well as CD transport and amplifier
controls. See Remote Control, on page 13, for more information.
After the KAV–300iL is connected to AC power and is in the
stand-by mode, use the power button (1) or key (24) to switch the
component to the operational mode. The blue power LED (2)
illuminates.
The KAV–300iL Remote Control Integrated Amplifier is easy to
operate. However, great care should be exercised when operating
a system that includes the KAV–300iL, because of the amplifier’s
power output. Switching between active sources without muting
the preamplifier output, or bumping/miscuing a device, can gener-
ate large transients at low frequencies. The KAV–300iL may gen-
erate enough power with these transients to damage most loud-
speakers. To avoid damage, be sure to switch all sources with the
preamplifier level either muted or fully attenuated. Do not change
inputs to the amplifier while the amplifier is on.
Krell amplifiers have large reserves of clean power and can safely drive
loudspeakers to higher sound pressure levels than other amplifiers.
However, use care when setting high playback levels and lower the vol-
ume level at any sign of loudspeaker distress.
When powering up any system, always turn amplifiers on last.
When powering down, always turn amplifiers off first.
1. When the amplifier is in stand-by mode, with the red stand-by
LED (3) illuminated, turn the amplifier on by pressing the
power button (1), or pressing the power key (24) on the remote
control. There is an audible click. The blue power LED (2) illu-
minates, and the red stand-by LED (3) turns off. The amplifier
is now ready for operation.
2. With the amplifier in the mute position, or the volume control
fully attenuated, select a source from the front panel (5) or
using the remote control (26). Start playing the source. Set the
volume to a comfortable listening level using the level up and
down buttons (10) or volume keys (29).
Operating Your KAV–300iL
Amplifier
Operation
Note
ON/OFF AND
STAND-BY OPERATION
