KROHNE Senator S24W User manual

24 GHz Radar (FMCW) Level Transmitter for liquids in
the water and waste water industry
Senator S24W
Senator S24WSenator S24W
Senator S24W Handbook
HandbookHandbook
Handbook
© HAWK 06/2020 - Senator S24W Radar Manual v1.00 en

All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without
the prior written authorisation of HAWK Measurement Systems Pty Ltd.
2
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
Copyright 2020 by HAWK Measurement Systems Pty Ltd
: IMPRINT :::::::::::::::::::::::::::::::::::::::

CONTENTS
3
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
Senator S24W
1 Safety instructions 6
1.1 Software history ............................................................................................................... 6
1.2 Intended use ..................................................................................................................... 6
1.3 Certification ...................................................................................................................... 7
1.4 Radio approvals ................................................................................................................ 8
1.4.1 European Union (EU)............................................................................................................... 8
1.4.2 U.S.A. and Canada................................................................................................................. 10
1.5 Safety instructions from the manufacturer ................................................................... 13
1.5.1 Copyright and data protection .............................................................................................. 13
1.5.2 Disclaimer ............................................................................................................................. 13
1.5.3 Product liability and warranty .............................................................................................. 14
1.5.4 Information concerning the documentation......................................................................... 14
1.5.5 Warnings and symbols used................................................................................................. 15
1.6 Safety instructions for the operator............................................................................... 15
2 Device description 16
2.1 Scope of delivery............................................................................................................. 16
2.2 Device description .......................................................................................................... 16
2.3 Visual Check ................................................................................................................... 17
2.4 Nameplates .................................................................................................................... 18
2.4.1 Nameplate (examples).......................................................................................................... 18
3 Installation 19
3.1 Pre-installation requirements ....................................................................................... 19
3.2 Pressure and temperature ranges ................................................................................ 19
3.3 Recommended mounting position: tanks ...................................................................... 20
3.4 Recommended mounting position: flow channels ........................................................ 21
3.5 Mounting restrictions ..................................................................................................... 21
3.5.1 General notes........................................................................................................................ 22
3.5.2 Recommendations for pits and tanks made of non-conductive materials.......................... 23
3.6 Orientable device collar ................................................................................................. 25
3.6.1 How to attach the orientable device collar to the device ..................................................... 25
3.6.2 How to tilt the orientable device collar to the device ........................................................... 26
4 Electrical connections 27
4.1 Safety instructions.......................................................................................................... 27
4.2 General notes ................................................................................................................. 27
4.3 Electrical connection for current output ....................................................................... 28
4.3.1 Non-Ex devices ..................................................................................................................... 28
4.4 Ingress protection .......................................................................................................... 29
4.5 Networks ........................................................................................................................ 29
4.5.1 General information.............................................................................................................. 29
4.5.2 Point-to-point connection..................................................................................................... 30
4.5.3 Multi-drop networks ............................................................................................................. 31

CONTENTS
4
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
Senator S24W
5 Start-up 32
5.1 Start-up checklist........................................................................................................... 32
5.2 Operating concept ..........................................................................................................32
5.3 PACTware™: general notes ........................................................................................... 32
5.4 PACTware: software installation.................................................................................... 32
5.5 How to start the device................................................................................................... 33
5.6 Software configuration ................................................................................................... 33
5.6.1 General notes........................................................................................................................ 33
5.6.2 Procedure.............................................................................................................................. 34
6 Operation 38
6.1 How to load settings from the device............................................................................. 38
6.1.1 General notes........................................................................................................................ 38
6.1.2 Procedure 1........................................................................................................................... 38
6.1.3 Procedure 2........................................................................................................................... 38
6.1.4 Procedure 3........................................................................................................................... 39
6.2 How to change device settings....................................................................................... 39
6.2.1 Protection of the device settings (security roles)................................................................. 39
6.2.2 Standard setup...................................................................................................................... 40
6.2.3 How to make a filter to remove radar signal interference .................................................. 42
6.2.4 Procedure: changing device settings ................................................................................... 44
6.2.5 Data about menu items and parameters (online Help)........................................................ 45
6.3 How to send settings to the device (store to the device) ............................................... 45
6.3.1 General notes........................................................................................................................ 45
6.3.2 Procedure 1........................................................................................................................... 46
6.3.3 Procedure 2........................................................................................................................... 46
6.3.4 Procedure 3........................................................................................................................... 46
6.4 Advanced configuration (C Full setup menu)................................................................. 47
6.4.1 Level measurement .............................................................................................................. 47
6.4.2 Distance measurement ........................................................................................................ 48
6.4.3 Conversion tables ................................................................................................................. 49
6.5 How to close PACTware ................................................................................................. 54
7 Service 55
7.1 Periodic maintenance..................................................................................................... 55
7.2 Service warranty............................................................................................................. 55
7.3 Availability of services .................................................................................................... 55
7.4 Returning the device to the manufacturer..................................................................... 56
7.4.1 General information.............................................................................................................. 56
7.4.2 Form (for copying) to accompany a returned device............................................................ 57
7.5 Disposal .......................................................................................................................... 57
7.6 Disassembly and recycling............................................................................................. 58
7.6.1 General notes........................................................................................................................ 58
7.6.2 Compact version ................................................................................................................... 58

CONTENTS
5
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
Senator S24W
8 Technical data 63
8.1 Measuring principle........................................................................................................63
8.2 Technical data................................................................................................................. 64
8.3 Measuring accuracy ....................................................................................................... 67
8.4 Minimum power supply voltage ..................................................................................... 68
8.5 Dimensions and weights ................................................................................................ 69
9 Appendix 77
9.1 Function description.......................................................................................................77
9.2 Device status and error messages ................................................................................ 91
9.2.1 Error mapping (NAMUR NE 107) .......................................................................................... 91
9.2.2 Error monitor ........................................................................................................................ 91
9.2.3 Diagnosis tab......................................................................................................................... 91
9.2.4 Solutions to errors ................................................................................................................ 92
9.3 Accessories..................................................................................................................... 92
9.4 Glossary .......................................................................................................................... 92
10 Notes 95

1 SAFETY INSTRUCTIONS
6
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
1.1 Software history
"Firmware revision" agrees with NAMUR NE 53. It is a series of numbers used to record the
revision status of embedded software (firmware) in electronic equipment assemblies. It gives
data on the type of changes made and the effect that changes have on compatibility.
Data about software revisions is shown in menu C5.1.2 Identification. For more data, refer to
Function description on page 77. If it is not possible to refer to the device menu, record the serial
number of the device (given on the device nameplate) and speak to the supplier.
Changes and effect on compatibility
1.2 Intended use
This radar level transmitter measures distance, level, volume, flow and reflectivity of liquids,
pastes and slurries.
It can be installed on tanks, reactors, open channels and open sea.
1Downwards compatible changes and fault repair with no effect on operation (e.g. spelling
mistakes on display)
2-_ Downwards compatible hardware and/or software change of interfaces:
HHART®
PProfibus
FFOUNDATION fieldbus
3-_ Downwards compatible hardware and/or software change of inputs and outputs:
CO Current output
FO,
PO Frequency output / pulse output
SO Status output
LS Limit switch
CI Current input
DDisplay
Release
date
Printed circuit
assembly
Firmware
revision
Electronic
revision
Hardware
revision
Changes and
compatibility
Documentation
2019-03-27 Main and Support BL1.31.06 ER2.0.0_ 4002815701f —Manual v1.00 en
Sensor 4002859301a
CAUTION!
Responsibility for the use of the measuring devices with regard to suitability, intended use and
corrosion resistance of the used materials against the measured fluid lies solely with the
operator.
INFORMATION!
The manufacturer is not liable for any damage resulting from improper use or use for other than
the intended purpose.

SAFETY INSTRUCTIONS 1
7
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
1.3 Certification
The device meets the essential requirements of the EU Directives:
•Electromagnetic Compatibility (EMC) directive
•The safety part of the Low-Voltage directive
The manufacturer certifies successful testing of the product by applying the CE marking. For
more data about the EU Directives and European Standards related to this device, refer to the EU
Declaration of Conformity. You can download this document free of charge from the website.
All devices are based on the CE marking and meet the requirements of NAMUR
Recommendations NE 43, NE 53 and NE 107.
CE marking

1 SAFETY INSTRUCTIONS
8
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
1.4 Radio approvals
1.4.1 European Union (EU)
This level transmitter is approved to be used outside metallic tanks.
LPR (Level Probing Radar) devices
Use approved personnel to install the device. If the device is operated in the open air (outdoors),
it agrees with the RED (Radio Equipment Directive) if you obey these instructions:
• The antenna must always point downwards. The boresight direction of the antenna must be
vertical. No other angles are permitted.
• Install the device more than 4 km / 2.485 mi away from radio astronomy sites.
• If the device is 4...40 km / 2.485...24.855 mi away from radio astronomy sites, do not install the
device more than 15 m / 49.21 ft above the ground.
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic
tank etc.). You can use LPR devices for TLPR applications. The LPR devices meet the
requirements of the RED (Radio Equipment Directive) for use in the member countries of the EU.

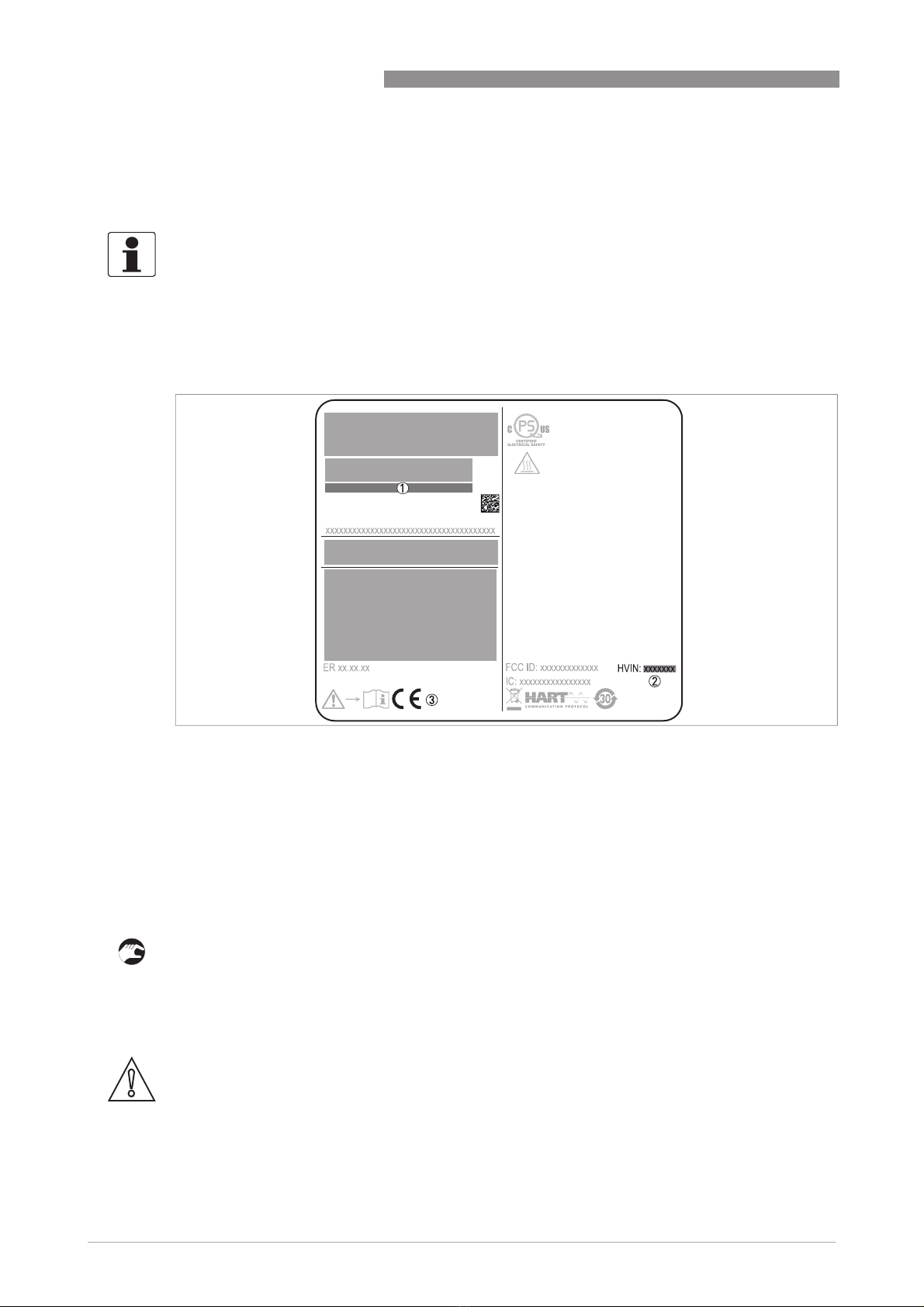

Figure 1-1: European Union: radio approval information on the nameplate
1 Type code (defined in order)
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24GHZ = 24 GHz), the
location of the device (L=LPR) and the type of signal converter (compact (C))
LPR device: HVIN: 24G14-L-C
3 CE sign
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
CAUTION!
If it is necessary to install the device less than 4 km / 2.485 mi from radio astronomy sites, you
must get the approval of the national regulatory authority before installation (e.g. ANFR
(France), Bundesnetzagentur (Germany), Ofcom (United Kingdom) etc.).

SAFETY INSTRUCTIONS 1
9
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
Radio quiet zones: locations of radio astronomy sites (stations) in Europe and northern Eurasia
Country Name of the station Location
Latitude, ϕLongitude, λ
Finland Metsähovi 60°13'04" N 24°23'37" E
Tuorla 60°24'56" N 22°26'31" E
France Plateau de Bure 44°38'01" N 05°54'26" E
Germany Effelsberg 50°31'32" N 06°53'00" E
Hungary Penc 47°47'22" N 19°16'53" E
Italy Medicina 44°31'14" N 11°38'49" E
Noto 36°52'34" N 14°59'21" E
Sardinia 39°29'50" N 09°14'40" E
Latvia Ventspils 57°33'12" N 21°51'17" E
Poland Kraków –Fort Skala 50°03'18" N 19°49'36" E
Russia Dmitrov 56°26'00" N 37°27'00" E
Kalyazin 57°13'22" N 37°54'01" E
Pushchino 54°49'00" N 37°40'00" E
Zelenchukskaya 43°49'53" N 41°35'32" E
Spain Yebes 40°31'27" N 03°05'22" W
Robledo 40°25'38" N 04°14'57" W
Switzerland Bleien 47°20’26" N 08°06’44" E
Sweden Onsala 57°23’45" N 11°55’35" E
UK Cambridge 52°09'59" N 00°02'20" E
Darnhall 53°09'22" N 02°32'03" W
Jodrell Bank 53°14'10" N 02°18'26" W
Knockin 52°47'24" N 02°59'45" W
Pickmere 53°17'18" N 02°26'38" W

1 SAFETY INSTRUCTIONS
10
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
1.4.2 U.S.A. and Canada
This level transmitter is approved to be used outside metallic tanks.
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic
tank etc.).
LEGAL NOTICE!
FCC
FCCFCC
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference which may cause un-
desired operation.
Changes or modifications made to this equipment not expressly approved by the manufacturer
may void the FCC authorizations to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.

SAFETY INSTRUCTIONS 1
11
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
The Product Marketing Name (PMN) of this device is "Senator S24W".
LEGAL NOTICE!
IC
ICIC
IC
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause un-
desired operation.
This device and the handbook complies with the requirements of RSS-Gen. Operation is subject
to the conditions that follow:
1. The installation of the LPR/TLPR device shall be done by trained installers, in strict compliance
with the manufacturer
’ s instructions.
2. The use of this device is on a "no-interference, no-protection" basis. That is, the user shall ac-
cept operations of high-powered radar in the same frequency band which may interfere with or
damage this device. However, devices found to interfere with primary licensing operations will
be required to be removed at the user
’ s expense.
3. LPR devices: Ensure a vertically downward orientation of the transmit antenna and an instal-
lation only at fixed locations.
4. The installer / user of this device shall ensure that it is at least 10 km from the Dominion Radio
Astrophysical Observatory (DRAO) near Penticton, British Columbia. The coordinates of the
DRAO are latitude 49
° 19'15" N and longitude 119 ° 37'12" W. For devices not meeting this 10 km
separation (e.g. those in the Okanagan Valley, British Columbia) the installer / user must coor-
dinate with, and obtain the written concurrence of, the Director of the DRAO before the equip-
ment can be installed or operated. The Director of the DRAO may be contacted at 250-497-2300
(tel.) or 250-497-2355 (fax). Alternatively, the Manager, Regulatory Standards, Industry Canada,
may be contacted.

1 SAFETY INSTRUCTIONS
12
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
Figure 1-2: U.S.A. and Canada: radio approval information on the nameplate
1 Type code (defined in order)
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24GHZ = 24 GHz), the
location of the device (L=LPR) and the type of signal converter (compact (C))
LPR device: HVIN: 24G14-L-C
3 FCC ID and IC number
LPR device: FCC-ID: Q6BFMCW24G14L, IC number: 1991D-FMCW24G14L
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:

SAFETY INSTRUCTIONS 1
13
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
1.5 Safety instructions from the manufacturer
1.5.1 Copyright and data protection
The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.
The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.
The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.
The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.
We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.
We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.
1.5.2 Disclaimer
The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.
This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.
Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.
The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.

1 SAFETY INSTRUCTIONS
14
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
1.5.3 Product liability and warranty
The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation or operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.
1.5.4 Information concerning the documentation
To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.
If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of icons as shown below.

SAFETY INSTRUCTIONS 1
15
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
1.5.5 Warnings and symbols used
Safety warnings are indicated by the following symbols.
• HANDLING
HANDLINGHANDLING
HANDLING
This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.
iRESULT
RESULTRESULT
RESULT
This symbol refers to all important consequences of the previous actions.
1.6 Safety instructions for the operator
DANGER!
This warning refers to the immediate danger when working with electricity.
DANGER!
This warning refers to the immediate danger of burns caused by heat or hot surfaces.
DANGER!
This warning refers to the immediate danger when using this device in a hazardous atmosphere.
DANGER!
These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.
WARNING!
Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.
CAUTION!
Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.
INFORMATION!
These instructions contain important information for the handling of the device.
LEGAL NOTICE!
This note contains information on statutory directives and standards.
WARNING!
In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.

2 DEVICE DESCRIPTION
16
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
2.1 Scope of delivery
2.2 Device description
This device is a 24 GHz FMCW-radar level transmitter. It is a non-contact technology and is 2-
wire loop-powered. It is designed to measure the distance, level, volume, flow and reflectivity of
liquids, pastes and slurries. For more data about the measuring principle, refer to
Measuring
principle
on page 63.
Radar level transmitters use an antenna to emit a signal to the surface of the measured product.
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
Figure 2-1: Scope of delivery
1 Device
2 Quick Start and supplementary instructions (if the device has the appropriate options)
3 Option: electrical cable clamp with a device hanger
4 Option: jam nut (attaches the top of the device to a support fitting)
5 Option: low-pressure flange with a jam nut (attaches the top or the bottom of the device to a counter flange)
6 Option: wall support fitting (bracket)
7 Option: orientable device collar with a support fitting (attaches the device to a ceiling or roof)

DEVICE DESCRIPTION 2
17
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
2.3 Visual Check
INFORMATION!
Inspect the packaging carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.

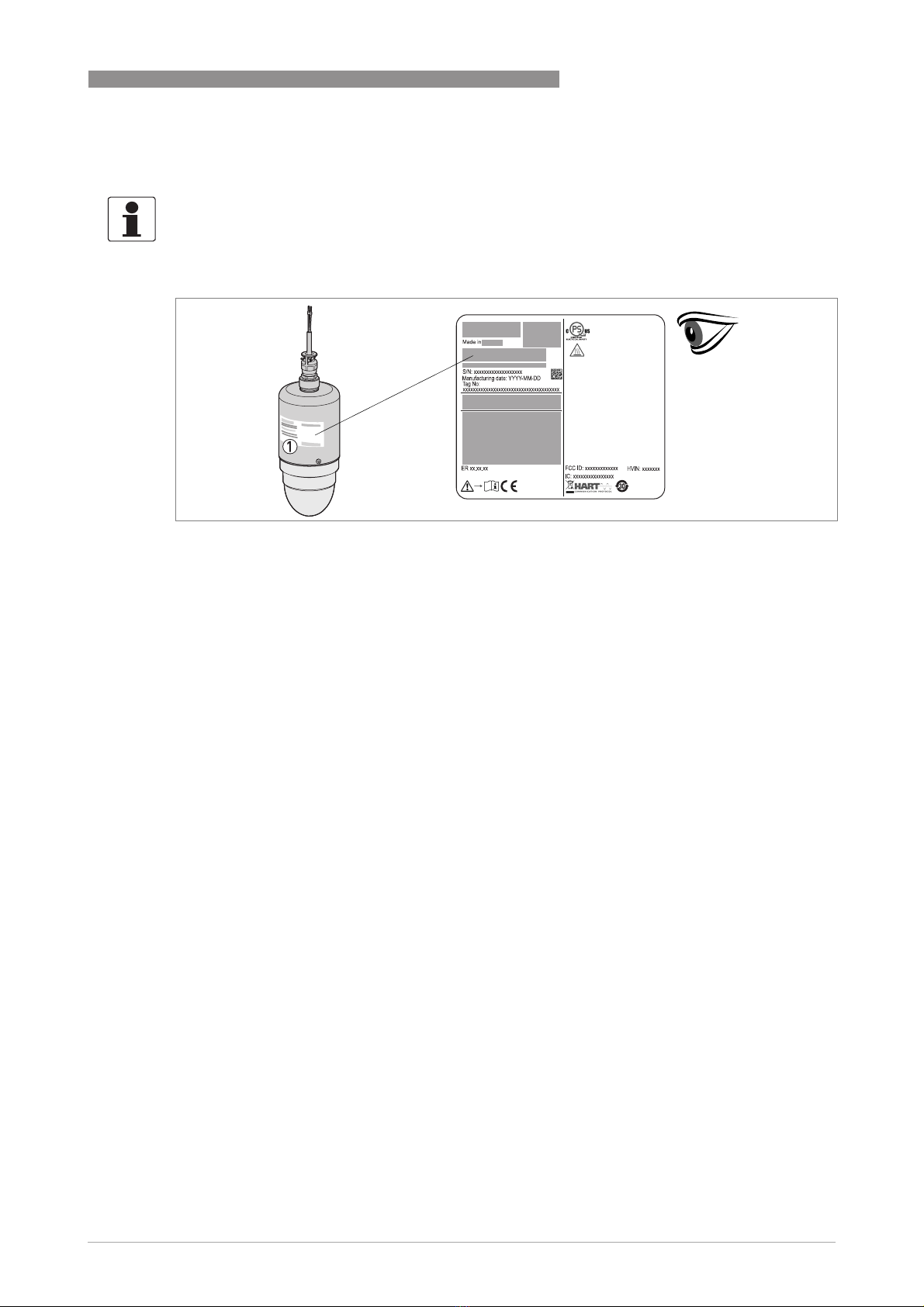

Figure 2-2: Visual check
1 Device nameplate (for more data refer to
Nameplate (examples) on page 18)

2 DEVICE DESCRIPTION
18
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
2.4 Nameplates
2.4.1 Nameplate (examples)
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
Figure 2-3: Non-Ex nameplate attached to the housing
1 Electronic revision (according to NAMUR NE 53)
2 Signal output (analog, HART®, fieldbus, etc.), input voltage and maximum current (fieldbus options: basic current)
3 Degree of ingress protection (according to EN 60529 / IEC 60529)
4
5 Date of manufacture
6 Serial number
7 Type code (defined in order)
8 Model name and number. C = compact version.
9 Company logo, name and postal address
Country of manufacture / Company web address
10 cQPSus electrical safety certification for the USA and Canada. Agrees with NEC and CEC requirements for installa-
tion in ordinary locations.
11 WARNING! Hot surface. If the device is connected to tank that operates at high temperature, there is a risk of injury.

INSTALLATION 3
19
Senator S24W
www.hawkmeasure.com06/2020 - Senator S24W Radar Manual v1.00 en
3.1 Pre-installation requirements
•Heat sources (sunlight, adjacent system components etc.) can increase the internal
temperature of the device and cause damage. Make sure that the internal temperature is not
more than the maximum limit. The maximum permitted ambient temperature is +80°C/
+176°F. The maximum permitted surface temperature is +80°C / +176°F.
•Do not subject the signal converter to heavy vibrations. The devices are tested for vibration
and agree with EN 60068-2-6. If there is vibration, we recommend that you use the electrical
cable clamp with a device hanger.
3.2 Pressure and temperature ranges
Maximum process connection temperature and operating pressure
INFORMATION!
Obey the precautions that follow to make sure that the device is correctly installed.
Figure 3-1: Pressure and temperature ranges
1 Temperature at the process connection
Non-Ex devices: -40...+80°C / -40...+176°F
Devices with Hazardous Location approvals: see supplementary instructions
2 Ambient temperature
Non-Ex devices: -20...+80°C / -4...+176°F
Devices with Hazardous Location approvals: see supplementary instructions
3 Process pressure
max. 3 barg / 43.5 psig (threaded connection on the antenna)
Antenna type Options Maximum process
connection temperature
Maximum operating
pressure
[°C] [°F] [barg] [psig]
Drop, PP G 3 threaded connection
1
+80 +176 343.5
Drop, PP Other process
connections
+80 +176 12 14.5 2
1This process connection is on the antenna
2Atmospheric pressure

3 INSTALLATION
20
Senator S24W
www.hawkmeasure.com 06/2020 - Senator S24W Radar Manual v1.00 en
3.3 Recommended mounting position: tanks
We recommend that you prepare the installation when the tank is empty.
CAUTION!
Follow these recommendations to make sure that the device measures correctly. They have an
effect on the performance of the device.
Nozzle position
Figure 3-2: Nozzle position
1 Minimum distance of the nozzle or socket from the tank wall: 200 mm / 7.9¨
INFORMATION!
If there is a nozzle on the tank before installation, the nozzle must be a minimum of 200 mm /
7.9
¨ from the tank wall. The tank wall must be flat and there must not be obstacles adjacent to
the nozzle or on the tank wall.
Other mounting positions
Figure 3-3: Other mounting positions
1 Suspended device (electrical cable clamp with device hanger)
2 Installation on a manhole. In this illustration, the device has the low-pressure flange option.
3 Device with a wall support (bracket)
4 Device attached to a wall with the orientable device collar
