CONDTROL XLiner Pento 360G User manual

PROFESSIONAL
XLINER
360 G / COMBO 360 G
Mode d’emploi
FR
User manual
EN
Bedienungsanleitung
DE
Руководство по эксплуатации
RU
Manuale dell’utente
IT

22
XLiner 360 G / COMBO 360 G
EN CONTENTS
SAFETY INSTRUCTIONS 4
PRODUCT DESCRIPTION 5
TECHNICAL SPECIFICATIONS 8
PACKAGE 8
OPERATION 9
ACCURACY CHECK 11
CARE AND MAINTENANCE 15
UTILIZATION 15
WARRANTY 16
DE INHALT
SICHERHEITSHINWEISE 17
BESTIMMUNGSGEMÄßER GEBRAUCH 18
TECHNISCHE DATEN 21
LIEFERUMFANG 21
BETRIEB 22
GENAUIGKEITSÜBERPRÜFUNG 24
PFLEGE 28
ENTSORGUNG 28
GARANTIE 29
WARTUNG UND REPARATUR 30
FR TABLE DES MATIÈRES
INSTRUCTIONS DE SÉCURITÉ 31
DESCRIPTION DU PRODUIT 32
SPÉCIFICATIONS TECHNIQUES 35
COFFRET 35
FONCTIONNEMENT 36
CONTRÔLE DE LA PRÉCISION 38
ENTRETIEN ET MAINTENANCE 42
UTILISATION 43
GARANTIE 43

33
XLiner 360 G / COMBO 360 G
IT CONTENUTI
ISTRUZIONE DI SICUREZZA 45
DESCRIZIONE DEL DISPOSITIVO 46
CARATTERISTICHE TECNICHE 48
COMPLETAMENTO 49
LAVORO CON IL DISPOSITIVO 50
CONTROLLO DI PRECISIONE 52
MANUTENZIONE E FUNZIONAMENTO 56
UTILIZATION 57
GARANZIA 57
RU СОДЕРЖАНИЕ
  


 




 

44
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G
SAFETY INSTRUCTIONS
Attention! This user manual is an essential part of this product.
The user manual should be read carefully before you use the product
for the first time. If the product is given to someone for temporary
use, be sure to enclose user manual to it.
- Do not misuse the product
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
product.
Laser radiation!
Do not stare into beam
Class 2 laser
<1 mW 520nm
EN60825-1: 2007-03
-Do not look into the laser beam or its reflection, with unprotected
eye or through an optical instrument. Do not point the laser beam at
people or animals without the need. You can dazzle them.
-To protect your eyes close them or look aside.
- Always install the product in such a way, so that laser line is below
or above eye level.
- Do not let unauthorized people enter the zone of product operation.
- Store the product beyond reach of children and unauthorized
people.
- It is prohibited to disassemble or repair the product yourself. Entrust
product repair to qualified personnel and use original spare parts
only.
- Do not use the product in explosive environment, close to flammable
materials.
- Laser intensive glasses are used for better recognition of the laser
beam, do not use them for other purposes. Laser glasses do not
protect from laser radiation as well as ultraviolet radiation and reduce
color perception.

55
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G
PRODUCT DESCRIPTION
Cross line laser XLiner 360 G / COMBO 360 G CONDTROL is intended to
project vertical and horizontal lines. The laser level is suitable for use
at both indoor and outdoor building areas.
The laser level has 2 operating modes:
- automatic leveling to project horizontal and vertical planes
and lines. Leveling function allows to automatically compensate
irregularities within self-leveling range of ±3,5°;
- locked compensator, to build inclined planes and lines;
Pulse mode allows using laser receiver to increase working range of
the laser level or to work when laser is hard to be defined in bright
lighting conditions.
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash it
immediately with soap and water. In case of contact with eyes, flush
with clean water during 10 minutes and consult the doctor.

66
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G

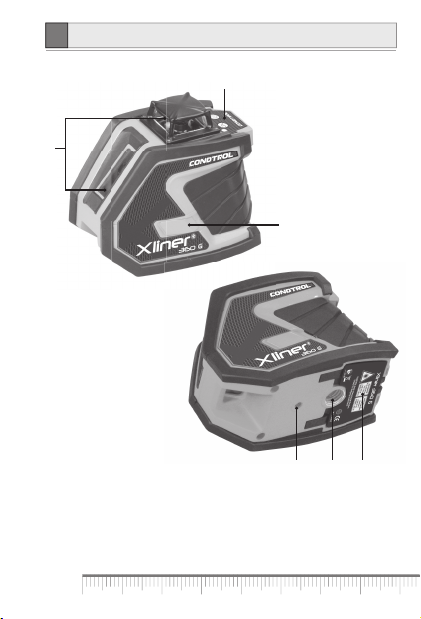

1 - Laser lines exit windows
2 - Control panel
3 - Battery cover
4 - 1/4’’mounting thread
5 - 5/8’’ mounting thread
6 - Compensator lock
34 5
1
2
6

77
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G

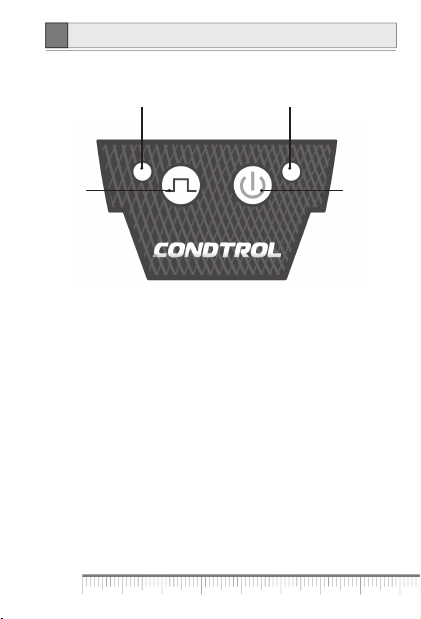

Control panel
1 Switch on/off:
- the laser level
- laser planes
2 Switch on/off pulse mode
3 Power indicator
4 Pulse mode indicator
2 1
43

88
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G
TECHINCAL SPECIFICATIONS
Working range/with receiver 40 m/80 m*
Self-levelling accuracy ±0,2 mm/m
Self-levelling range ± 3,5°
Operating temperature -10°C ... +50°C
Storage temperature 
Relative humidity 90%
Protection rating IP54
Tripod mounting thread 1/4’’ and 5/8’’
Laser type Class II 520 nm < 1 mW
Power supply 
Dimensions 132x85x116 mm
Weight 0,44 kg
* The operating range may differ from the declared depending on the
lighting conditions.
SET
XLiner 360 G / XLiner COMBO 360 G
Cross line laser, carry bag, batteries 4 pcs., user manual.
XLiner 360G Kit / XLiner COMBO 360 G Kit
Cross line laser, batteries 4 pcs., magnetic target, wall mount, clamp,
user manual, plastic case.

99
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G
OPERATION
Before start operation remove the battery cover, insert the batteries,
observing correct polarity. Put battery cover back.
Use AA alkaline batteries only, all batteries should be of the same type
and brand with the same charge level. Replace batteries if battery
charge level indicator starts flashing red while operation.
Place the laser level on a firm and stable surface or a tripod.
Move compensator lock to choose necessary operating mode:
1) Automatic levelling:
Move lever lock to ON position .
Compensator is unlocked. Power indicator becomes red. If the laser
level is out of the range of automatic compensation laser lines flash.
Short press button to switch on necessary laser planes.
Short press button to switch on/off pulse mode that allows
working with laser receiver. In this mode pulse mode indicator will
turn red. To switch the laser level off move compensator lock to locked
position .
2) Locked compensator, to build inclined planes and lines:
Move compensator lock to OFF position . Compensator is locked.
Power indicator becomes red. Press and hold button
during 3 seconds to switch the laser level on.
Short press button to switch on necessary laser planes.
Activated laser lines flash every 5 seconds in this mode.

1010
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G
Short press button to switch on/off pulse mode that allows
working with laser receiver. In this mode pulse mode indicator will
turn red.
To switch the laser level off short press button several times
until all laser planes are off.
Attention! To increase operating time and avoid the risk of
unintentional blindness switch the laser on only when you are ready
to work.
If operated near objects or air streams with the temperature different
from the environment the laser line may tremble due to heterogeneity
of the atmosphere. The longer the distance, the more trembling of the
laser line can be observed.
The width of the laser line increases as soon as operating distance
increases as well. The layout should be made along the axis of the laser
line. For maximum accuracy, use the middle portion of the laser line.
It should be noted that the shape of the laser line on the object’s

the surface relative to the laser plane.
Bluetooth
Bluetooth is always on by default.
Switch on the laser level. Activate Bluetooth at your portable device
and start the app “XLiner Remote”. Perform connection via Bluetooth.
The app allows switching on and off the laser lines and dots, receiver
mode, as well as adjust the brightness of the laser for optimal visibility
and energy saving and control the battery charge level without
touching the laser level.

1111
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G
ACCURACY CHECK

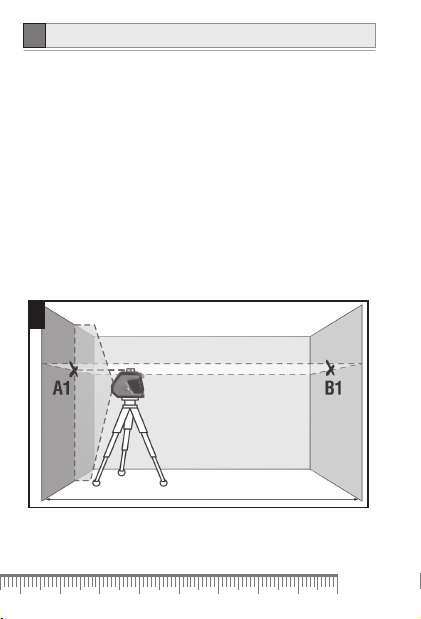

Check of horizontal line
Check of horizontal line is carried out by using 2 walls A and B located
opposite each other at 5m distance.

compensator and switch on vertical and horizontal lines. Expand the
device emitters in the direction of wall A so that the crossing of the
laser lines on the wall is located in front of the laser level. Mark the
crossing point of laser lines as A1. Mark point B on the wall B.

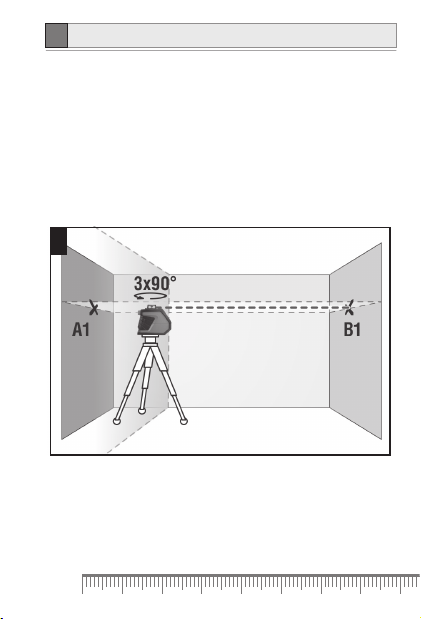

2. Turn the instrument by 90°. Check misalignment of horizontal line

mark exceeds 1 mm, please contact service center.
3. Repeat step 2 for 2 more times, turning the laser level in one
direction.
A
5m

1212
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G
4. Install the laser level closer to the wall B, mark the crossing point
        

5. Turn the instrument by 180° and mark the crossing point of the laser
 

6. Check the distance dA, dB between marked points A1, A2 and B1, B2

mm, please contact service center.
B

1313
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G
C
D

1414
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G

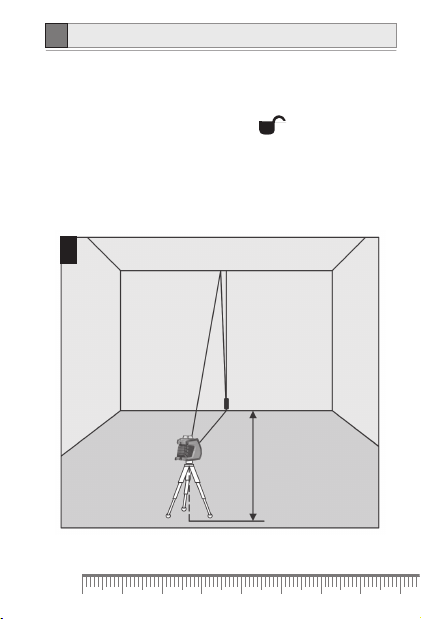

Check of vertical line
Use a plumb bob as a reference of a vertical line. Place the laser level at

1. Move compensator lock to ON position , then switch on vertical
plane and align vertical laser line with the low point of plumb bob.
2. If deviation between the laser line and the plumb line exceeds 0.2


E
1.5m

1515
user manual
EN
LASER LEVEL
XLiner 360 G / COMBO 360 G
CARE AND MAINTENANCE
Maintenance of the following recommendations will extend the life
of the device:
- Transport and carry the product only with locked compensator.
- Keep the product clean and protected from any bumps, dust and
dampness; do not allow getting moisture, dust or other dirt inside of
the product.
- In case if any moisture goes into the product, remove the batteries
and take it to the service center.
- Do not keep or use the device for a long time at high humidity
conditions.
- Keep the instrument clean and wipe it with a clean and soft cloth.
Mishandling of the following rules can cause electrolite leakage
from the batteries or other damages:
- Remove the batteries from the product if you do not use it for a long
time.
- Do not use different battery types with different charge levels.
- Do not leave discharged batteries in the product.
UTILIZATION
Expired tools, accessories and package should be passed for waste
recycle. Please send the product to the following address for proper
recycle:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
Germany
Do not throw the product in municipal waste!

and their components must be collected separately and submitted to
environmentally friendly recycle of wastes.

1616
user manual
LASER LEVEL
EN
XLiner 360 G / COMBO 360 G
WARRANTY
All CONDTROL GmbH products go through post-production control
and are governed by the following warranty terms. The buyer’s right
to claim about defects and general provisions of the current legislation
do not expire.
          
discovered during the warranty period, that represent the defect in
material or workmanship in full volume and at its own expense.
            

          
or improper use, malfunction of the product caused by failure to
observe the instructions of this user manual, untimely maintenance
and service and insufficient care, the use of non-original accessories
and spare parts. Modifications in design of the product relieves the
seller from responsibility for warranty works. The warranty does not
cover cosmetic damage, that doesn’t hinder normal operation of the
product.
      
repair of the device.

L GmbH warranty period
is not renewed or extended.
           
associated with a defect of the device, the rental cost of alternative
equipment for the period of repair.
This warranty applies to German law except provision of the United
Nations Convention on contracts for the international sale of goods

In warranty case please return the product to retail seller or send it
with defect description to the following address:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
Germany

1717
Bedienungsanleitung
DE
KREUZLINIENLASER
XLiner 360 G / COMBO 360 G
SICHERHEITSHINWEISE
Bitte lesen und befolgen Sie für die sichere Verwendung Ihres
Gerätes alle Anweisungen. Warnschilder müssen stets sichtbar
und erkennbar sein. Bewahren Sie diese Bedienungsanleitung auf
und werfen Sie sie nicht weg. Bei nicht fachgerechter Anwendung
können Sie Laserstrahlung ausgesetzt sein.
Sie erhalten Ihr Gerät mit einem Warnschild in Englisch. Bitte
beachten Sie das hier abgebildete Warnschild in Deutsch.
LASERSTRAHLUNG!
Nicht in den Strahl blicken
Laserklasse 2
<1 mW 520nm
EN60825-1: 2007-03
Richten Sie den Laserstrahl niemals auf Personen oder Tiere. Blicken
Sie nicht in den Laserstrahl, auch nicht mit optischen Instrumenten.
Sie gefährden Ihr Augenlicht. Ihr Gerät erzeugt Laserstrahlung
der Klasse 2 gemäß EN60825-1. Die Laserbrille dient nicht als
Schutzbrille, sondern zur besseren Sichtbarkeit des Laserstrahls. Sie
bietet keinen Schutz vor Laserstrahlung. Die Laserbrille kann nicht
als Sonnenbrille verwendet werden. Der Einsatz im Straßenverkehr
ist verboten. Die Laserbrille schützt nicht vor UV-Licht und
verringert die Wahrnehmung von Farbunterschieden. Reparatur
und Wartung dürfen nur durch Fachpersonal mit Qualifikation
erfolgen, das originale Ersatzkomponenten einsetzt. Kinder dürfen
aus Sicherheitsgründen das Gerät nur unter Aufsicht benutzen.
Verwenden Sie das Gerät nicht in der Nähe von brennbaren Stoffen,
da im Gerät Funken entstehen können. Die Halterung des Gerätes
beinhaltet Magnete. Verwenden Sie sie daher nicht in der Nähe von
Herzschrittmachern, da deren Funktion durch Magnetfelder gestört
werden kann. Vermeiden Sie ebenso die Nähe zu magnetischen
Datenträgern oder Geräten, die auf Magnetfelder reagieren. Die
Folge können Datenlöschungen oder –zerstörung sein.

1818
Bedienungsanleitung
KREUZLINIENLASER
DE
XLiner 360 G / COMBO 360 G
BESTIMMUNGSGEMÄßER GEBRAUCH
Der Multiline –Kreuzlinienlaser XLiner 360 G / COMBO 360 G
CONDTROL wird zur Ermittlung und Überprüfung von horizontalen
und vertikalen Linien und Ebenen. Er ist für den Innen- und
Außenbereich geeignet.
Das Gerät hat zwei Betriebsarten:
- Mit Nivellierautomatik der Gehäuseneigung bis zu ±3,5° zum
Erzeugen waagerechter und senkrechter Laser- Linien und –Ebenen.
- Zum Erzeugen von Laser- Linien und –Ebene mit jeglichen Neigungen.
Der Pulsiermodus ist dazu bestimmt, die Reichweite mit dem
Handempfänger zu erweitern oder die Laserstrahlen des Linienlasers
bei ungünstigen Umgebungsbedingungen zu lokalisieren.

1919
Bedienungsanleitung
DE
KREUZLINIENLASER
XLiner 360 G / COMBO 360 G
1 - Austrittsöffnung Laserstrahl
2 - Bedienfeld
3 - Batteriefachdeckel
4 - 1/4’’ Stativaufnahme
5 - 5/8’’ Stativaufnahme
6 – Pendelsperre
34 5
1
2
6

2020
Bedienungsanleitung
KREUZLINIENLASER
DE
XLiner 360 G / COMBO 360 G
Bedienfeld
1 Ein-/Ausschalter für:
- Kreuzlinienlaser
- Laserstrahlen
2 Taste zum Ein-/Abschalten des Empfängerbetriebs
3 Batteriezustandsanzeige
4 Anzeige Pulsiermodus
2 1
43
