Kruger KRAI100OIL Installation instructions

Industrial vacuum cleaner
Operator’s and maintenance manual
Original and official manual
Read this manual carefully before using the vacuum cleaner
KRAI100OIL

Introduction
This manual provides all the information needed to use and service your vacuum cleaner. Good operation
and durability depend on proper maintenance and careful use.
Before leaving the factory, this particular model has undergone stringent tests to ensure utmost reliability.
Always check however to make sure the vacuum cleaner has not been damaged during transport in such a
way as to affect operation and safety.
This manual should be considered an integral part of the vacuum cleaner and must be kept together
with the unit until this is scrapped. In case of loss of or damage to the manual, ask KRÜGER TECHNOLOGY
S.L. for a new copy.
The technical details contained in this manual are the property of KRÜGER TECHNOLOGY S.L. and should
be deemed of a confidential nature.
Even partial reproduction of the graphic project, the text and the illustrations is legally forbidden.
Some details shown in the illustrations in this manual may be different from those of your vacuum
cleaner. Some component parts may have been removed for greater clarity.
For easier reference, this manual is split into sections, identifiable by specific graphic symbols.
The subjects dealt with in this manual are those expressly required by "Machine Directive 2006/42/CE"
and the technical details shown are those provided by the manufacturer at the time of compilation.
This manual must be kept in a place accessible to all the personnel charged with operating and servicing
the vacuum cleaner.
In case of any doubts, always immediately phone the After-Sales Service.
The competent Law Court for all disputes is that of PAMPLONA (Spain).
The manual must be kept with the vacuum cleaner in case of resale!
www.kruger.es

Contents
Information section
1.1 Identification of main parts 1
1.2 Accessories provided 2
1.3 Identification details of manufacturer 3
1.4 Marking plate
1.5 Intended uses 4
1.6 Allowed environmental conditions
1.7 Noise level
1.8 Storage
1.9 Scrapping
1.10 Technical details 5
1.11 Warranty 6
Safety section
2.1 Safety details 7
2.2 Safety warnings 8
2.3 Safety plates and symbols 11
2.4 Outstanding risks 12
2.5 Applied directives
Installation section
3.1 Handling 13
3.2 Installation 14
Operation section
4.1 Description of controls 16
4.2 Work cycle 17
4.3 Manual emptying of the container 19
4.4 Discharging of the container by means of the reversed air flow valve 21
Maintenance section
5.1 Informative notes 23
5.2 General safety warnings
5.3 Maintenance operations 24
5.4 Replacing the filters 25
5.5 Troubleshooting 27
Spare parts section
6.1 Recommended spare parts 28
www.kruger.es

Information Section
1.1 Identification of main parts
1) Reversed air flow valve
2) Release fastening
3) Suction point
4) Push handle
5) Level indicator
6) Fixed wheels
7) Vacuumed material container
8) Castors
9) Switch
1
2
3
5
6
7
8
9
4
www.kruger.es

Information Section
1.2 Accessories provided
FI.0284.0000- D. 477 H. 175 20 MICRON SUPERWEB 3D FILTER
(ONLY SPARE PART)
www.kruger.es

Information Section
1.3 Identification details of manufacturer
KRÜGER TECHNOLOGY S.L.
Pol. Agustinos C/G Parc. B2
31013 Pamplona (Navarra) SPAIN
Tel. [phone]
www.kruger.es
[email protected]

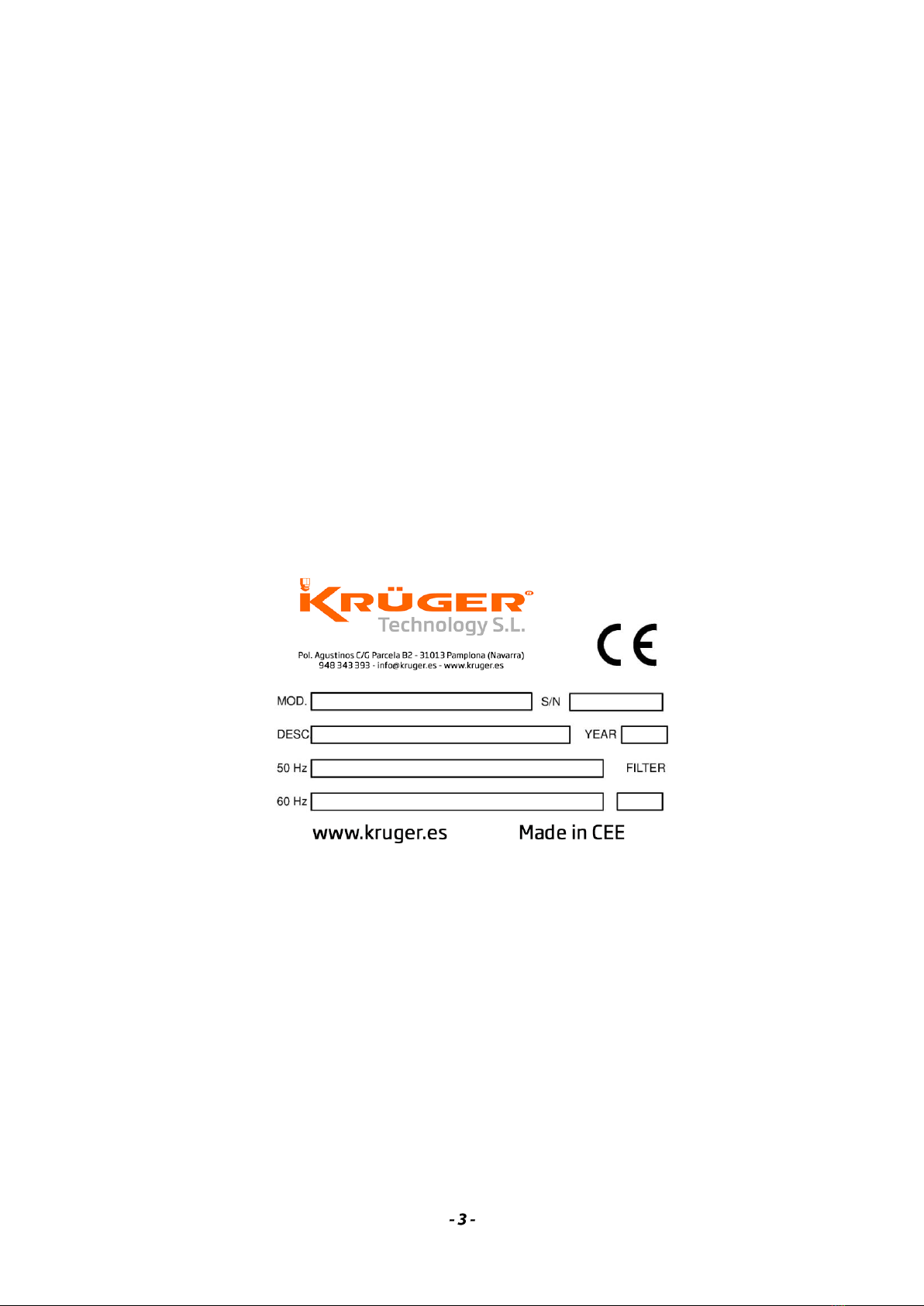

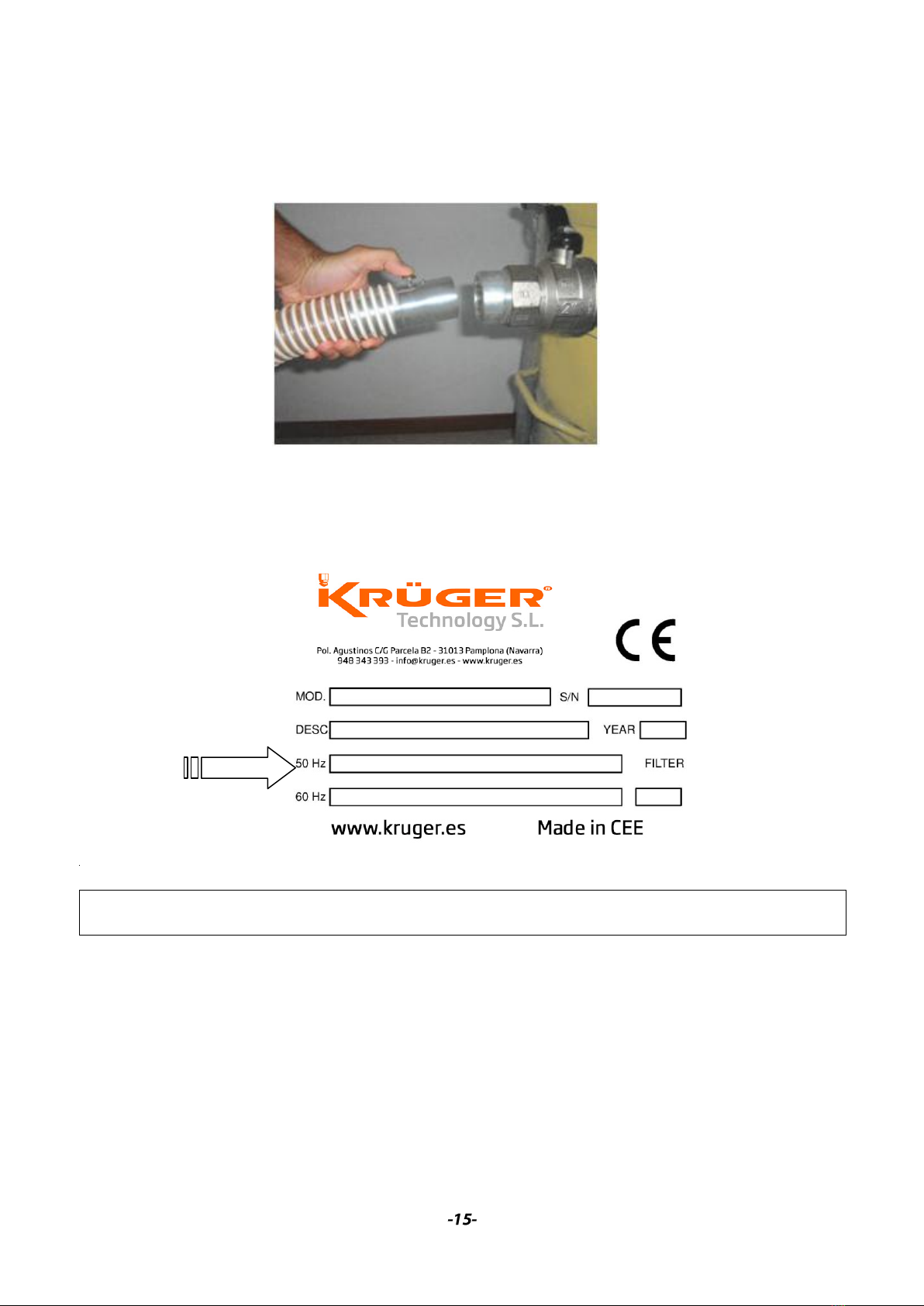

1.4 Marking plate
In compliance with the Machine Directive 2006/42/CE on vacuum cleaners, the machine is fitted with CE
plates.
When contacting the manufacturer or dealer, always quote the details shown on the vacuum cleaner plate.
www.kruger.es

Information Section
1.5 Intended uses
These specific vacuum cleaner models have been designed, built and protected for vacuuming specifically
liquids, dusts solid materials, using special filters.
Warning!
Always use specific filters for the type of dust or materials to be vacuumed.
Any other use is considered IMPROPER.
The vacuum cleaner is in any case intended for professional industrial use.
1.6 Allowed environmental conditions
To ensure the correct operation of the vacuum cleaner, this must be positioned protected against
atmospheric agents (rain, hail, snow, fog, dusts in suspension, etc.) with an environmental running
temperature between 5°C and 45°C and relative humidity not above 70%.
The work environment must be clean, well-enough lit and devoid of explosive atmosphere.
1.7 Noise level
Noise level readings were taken in accordance with the provisions of Machine Directive 2006/42/CE
standards.
Sound tests performed on this specific vacuum cleaner model have been taken from a distance of 1 meter
and from a height of 1,60 meters, showing an acoustic pressure no higher than:
78 dB (A)
The vibrations transmitted by the machine are lower than 2,5 m2/s.
Attention!
Pursuant to articles L.D. 81/08, workers exposed to sound pressure levels above 85 dB (A) must be
protected by special individual protection devices.
It is therefore necessary, if such working conditions exist, to provide workers with such approved
individual protection devices and to inform them of the risks relating to noise exposure.
1.8 Storage
Remove the filter and clean it, empty the container and store the vacuum cleaner in a place protected
against atmospheric agents with a temperature between 0°C and 40°C. Cover with a nylon sheet to prevent
accumulation of dust.
1.9 Scrapping
In case of scrapping, all the component parts of the vacuum cleaner will have to be disposed of through
adequate disposal channels in accordance with applicable legislation.
Before scrapping, all plastic and rubber parts will have to be separated from the electrical material. Parts
made of plastic, aluminium and steel only may be recycled if collected by special centres.
www.kruger.es

Information Section
1.10 Technical details
Power
kW
3
Voltage
Volts
400
Max. vacuums rate
mm
H2O
3.000
Max. air flow rate
m3/h
300
Noise level
dB
(A)
78
Filter type
SUPERWEB 3D
Capacity
lt
100
Suction inlet
Ø
50
Dimensions
cm.
67 X 66 x 125
KRAI100OIL
www.kruger.es

Information Section
1.11 Warranty
KRÜGER TECHNOLOGY S.L. guarantees this vacuum cleaner model for a period of 24 months from the date
of purchase indicated on the tax document at the time of delivery of the vacuum cleaner by the seller.
The warranty shall be invalidated in the event of the vacuum cleaner having been repaired by unauthorised
third parties or of equipment or accessories being used that have not been supplied by KRÜGER
TECHNOLOGY S.L. or which have not been recommended or approved by KRÜGER TECHNOLOGY S.L. or
whose serial number has been removed or altered during the warranty period.
KRÜGER TECHNOLOGY S.L. undertakes to repair or replace, free of charge, those parts which, during the
warranty period show manufacturing faults. Repairs shall be made in the KRÜGER TECHNOLOGY S.L.
facilities only or in a Technical Assistance Centre indicated by us and machines shall be sent to us carriage
free (transport costs to be paid by the user, unless otherwise agreed).
The warranty does not cover any cleaning of working parts.
Faults not directly attributable to materials or manufacture shall be examined only in our facility or in a
Technical Assistance Centre indicated by us. If claims appear unjustified, all the costs relating to repair
and/or replacement of parts shall be charged to the buyer.
The purchase tax document shall be shown to the technical personnel making the repairs and must
accompany the vacuum cleaner dispatched for repair.
The warranty does not cover: accidental damage, caused by transport or carelessness or inadequate
treatment, or improper use not in compliance with the instructions in the instruction manual, or in any
case by occurrences not dependent on normal operation or use of the vacuum cleaner. KRÜGER
TECHNOLOGY S.L. declines all responsibility for any damage to persons or things caused by bad or
improper use of the vacuum cleaner.
All disputes shall be referred to the Law Court of Pamplona (Spain).
The manufacturer declines all liability in the following cases:
Failure to send the warranty Certificate
Failure to follow the instructions
Use of non-original spare parts
Failure to service the machine properly
www.kruger.es

Safety Section
2.1 Safety details
The person in charge of safety shall be responsible for informing workers about the risks associated with
vacuum cleaner operation.
The obligation also exists of training workers so they are able to protect themselves and others.
Failure to observe basic safety regulations and Warnings could cause accidents during vacuum cleaner
operation, maintenance and repair. Accidents can often be avoided by recognising potentially dangerous
situations before these occur. Operators should be aware of potential hazards and be trained and skilled
enough. They should also have the tools necessary to perform these duties properly.
KRÜGER TECHNOLOGY S.L. shall under no circumstances be deemed liable for accidents or damage caused
by use of the vacuum cleaner by personnel not properly trained or who use it in an improper manner, as
well as by even partial failure to comply with the safety regulations and intervention procedures indicated
in this manual.
The safety Warnings and warning notices are indicated in this manual and on the product.
Unless these hazard messages are heeded, the operator could become involved in accidents with
serious consequences for him/herself and for other people.
The safety messages are highlighted by the following symbols:
Attention!
Unless these messages are heeded, operator injuries could occur.
Warning!
Unless these messages are heeded, vacuum cleaner damage could occur.
KRÜGER TECHNOLOGY S.L. cannot foresee all possible circumstances capable of representing a
potential hazard. The warnings in this manual and on the products should not therefore be deemed
exhaustive. In the event of tools, procedures, work or machining methods being used that are not
explicitly recommended by KRÜGER TECHNOLOGY S.L., make sure no hazards exist for operators and
others.
Only ever use original KRÜGER TECHNOLOGY S.L. spare parts.
KRÜGER TECHNOLOGY S.L. declines all liability in the event of non-original spare parts being used.
www.kruger.es

Safety Section
2.2 Safety warnings
Attention!
The following indications are, by themselves, not enough to fully protect against all the hazards that
could arise during vacuum cleaner operation. These will have to be integrated with common sense and
the experience of the operator, both of which are crucial factors for preventing accidents. Each section of
this manual lists further specific safety warnings for the various operations.
Maintenance jobs must always be performed with the power plug detached from the power point.
The employer must inform and train the user according to the provisions of applicable laws.
Before using the machine, prepare and train yourself by reading this manual carefully. Use of the machine
by untrained and unauthorised persons is forbidden.
Using the machine to vacuum toxic substances is forbidden unless this has been equipped with special
filters required for the specific type of dusts. Such filters must be explicitly requested by you.
If the machine is used to vacuum toxic-harmful substances, the container must be emptied and the filters
cleaned using adequate individual protection devices, selected according to the type of substances to be
vacuumed.
Do not vacuum flammable materials or substances or which could cause explosions (fuels, solvents, etc.). To
vacuum such materials, the machine must be built with Anti-explosion Motor and Electric System and this
must be requested by you explicitly.
Do not vacuum corrosive substances unless the machine is equipped with containers suitable for this
purpose (Stainless-steel AISI 304).
Use of the machine without the supplied filters is not recommended.
If the filters are correctly fitted, the machine will not eject any objects.
Never rest miscellaneous materials on the horizontal protection guard.
The machine casing containing moving parts must not be removed by the user.
When using the machine, mind other people, especially children.
Use the machine cautiously on slopes and ramps.
Do not change direction on gradients.
Make sure the parked machine remains stable by operating the braked wheel.
www.kruger.es

Safety Section
During cleaning operations, maintenance jobs or when changing parts, the starter switch must be off and
the machine must be disconnected from the power mains by removing the cable from the socket.
Only skilled persons should carry out repairs.
During use, mind the power supply cables and avoid crushing or pulling these.
Periodically check the mains power cable to ensure this is not damaged.
In the event of the cable being damaged, the machine must not be used.
In the event of the cable, plugs or couplings being replaced, make sure these are protected against water
spray and check mechanical strength.
Never pull the machine by means of the power cable and the vacuum pipe.
Motor brushes and burnt-out fuses must be replaced by KRÜGER TECHNOLOGY S.L. or authorised
dealers. Always use original spare parts.
The user is responsible for disposing of vacuumed substances in accordance with applicable laws.
After 10 years of use, we recommend sending the machine for a complete overhaul to KRÜGER
TECHNOLOGY S.L.
The machine is supplied with: instruction manual, Exploded Spare Parts drawing, Test Sheet, Warranty
Slip, Approval Certificate.
In the event of Customers fitting a tool to the machine not supplied by KRÜGER TECHNOLOGY S.L., make
sure the safety conditions required by Machine Directive 2006/42/CE are complied with and in any event,
KRÜGER TECHNOLOGY S.L. is unable to accept liability for any problems arising from use of such tool.
The vacuum cleaner must not be operated in a corrosive or explosive environment.
Always make sure the vacuum cleaner is free of all foreign materials such as debris, oil, equipment
and other objects that could affect operation and cause injury to persons.
Avoid using flammable or toxic solvents such as petrol, benzene, ether and alcohol for cleaning.
Avoid prolonged contact with solvents and inhaling their vapours. Avoid use close to open flames or
sources of heat.
Never use the vacuum cleaner without the filter.
Do not vacuum lit cigarette ends. The filter could be damaged.
Do not vacuum petrol or flammable liquids in general.
www.kruger.es

Safety Section
Make sure all the guards and protection devices are in place and that all the safety devices are in place and
working properly.
Do not wear loose or hanging clothing such as ties, scarves or torn garments that could become trapped
and be sucked up by the cleaner.
Do not open the vacuum container with the machine running.
The manual should always be kept handy for reference so the operating cycle can be checked every time
there are doubts.
In the event of this manual being lost or damaged, ask KRÜGER TECHNOLOGY S.L. for a new copy.
Structural damage and improper alterations or repairs could change the protection capacity of the vacuum
cleaner and therefore cancel this certification.
Any alterations to the appliance must only be made by KRÜGER TECHNOLOGY S.L. engineers.
During maintenance jobs, affix a notice to the appliance indicating "MACHINE BEING SERVICED, DO NOT
START".
Climbing on the cleaner is forbidden.
Never touch electric wires, switches, buttons, etc. with wet hands.
Before connecting to the power mains, make sure the power voltage and frequency are those shown on the
machine plate.
Make power connections to a mains supply with efficient earth system.
In the event of an extension being used, make sure this is in perfect condition, marked CE and that the cross
section of the cable is suitable for the vacuum cleaner power input.
When restoring original working conditions, the appointed personnel should make sure that at the end of
the operating procedure, proper vacuum cleaner operation safety conditions are restored, especially the
safety devices and the protective guards.
Only adult persons should use the vacuum cleaner.
During vacuuming operations, always brake the vacuum cleaner using the special revolving wheel lock.
www.kruger.es

Safety Section
2.3 Safety plates and symbols
Plates are affixed to the vacuum cleaner showing safety symbols and/or messages.
Attention!
Make sure all the safety messages are legible.
Clean these with a cloth, soap and water. Do not use solvents, diesel fuel or petrol.
Replace the damaged plates with new ones supplied by KRÜGER TECHNOLOGY S.L..
If a plate is affixed to a replaced part, make sure a new plate is affixed to the new part.
Attention!
Read the operator's and maintenance manual carefully before using the cleaner or doing any
maintenance jobs.
www.kruger.es

Safety Section
2.4 Outstanding risks
Careful analysis of risks performed by the manufacturer and stored in the technical file has made it possible
to eliminate most of the risks associated with vacuum cleaner operation.
The manufacturer advises carefully following the instructions, procedures and advice contained in this
manual as well as applicable safety regulations, including the use of the envisaged protection devices, both
those integrated in the cleaner and individual.
Outstanding risks associated with the vacuum cleaner could be:
Electrical maintenance risks caused by the need to work under power.
Pursuant to Presidential Decree 81/08, only trained personnel should work on the machine with the power
supply connected and this must have double earth insulation.
Risk of improper use in the presence of explosive and flammable substances.
The vacuum cleaner must not be used in environments containing substances in the form of liquids that
could vaporise at room temperature and flammable dusts and gas.
Risks of operation in humid environments.
Keep to the limits shown in this manual at chap. 1.6 Allowed environmental conditions.
Risk of erroneous interpretation of the safety pictograms.
Having identified the various outstanding risks, the manufacturer has affixed to the cleaner a number of
hazard labels in compliance with regulations relating to the graphic symbols to be used. The user must
immediately replace any safety plates that become illegible due to wear or damage.
Attention!
Removing the safety plates on the vacuum cleaner is strictly forbidden. The manufacturer declines all
liability in relation to vacuum cleaner safety in the event of failure to comply with the above indications.
2.5 Applied directives
The following directives apply to the vacuum cleaner described in this manual:
2006/42/CE Machine Directive
2014/30/EU Electromagnetic compatibility directive
2014/35/EU Low-voltage directive
www.kruger.es

Installation Section
3.1 Handling
The machine is supplied in a strong cardboard box secured with straps.
Transport the package using a fork-lift truck of adequate lifting capacity and make sure it is stable and that
weight is properly distributed on the forks.
Before starting to move, make sure the transit area is free and that there are no moving objects on the
packaging.
During movement, keep the load low for greater stability and safety.
When starting up the vacuum cleaner, move this by means of the wheels supplied.
The appliance must never be moved using fork-lift trucks or other equipment that lifts it off the floor.
If for any reason the need arises to lift and transport the vacuum cleaner, this operation must be performed
under the responsibility of the user. The user is therefore invited to secure the load as he best thinks fit to
ensure the operation is performed in total safety.
A
(cm)
B
(cm)
H
(cm)
Weight
(package included)
Kg
KRAI100OIL
73
85
175
100
A
B
H
www.kruger.es

Installation Section
3.2 Installation
Warning!
Before installing the vacuum cleaner, carefully make a sight check to pinpoint any damage suffered
during transport.
In the event of any component parts being damaged, do not proceed with installation. Notify the
manufacturer and reach an agreement on how to proceed.
The vacuum cleaner already features a suction filter.
Fit the accessory required for the type of vacuuming operation on the opposite end of the hose.
Note: No standard accessories (reducers, hoses, nozzles) are included with the vacuum; accessories must
be specified and ordered separately.
Contact your dealer for information relating to the different types of optional accessories available for this
specific vacuum cleaner model.
Fit the supplied pipe on the connector.
www.kruger.es

Installation Section

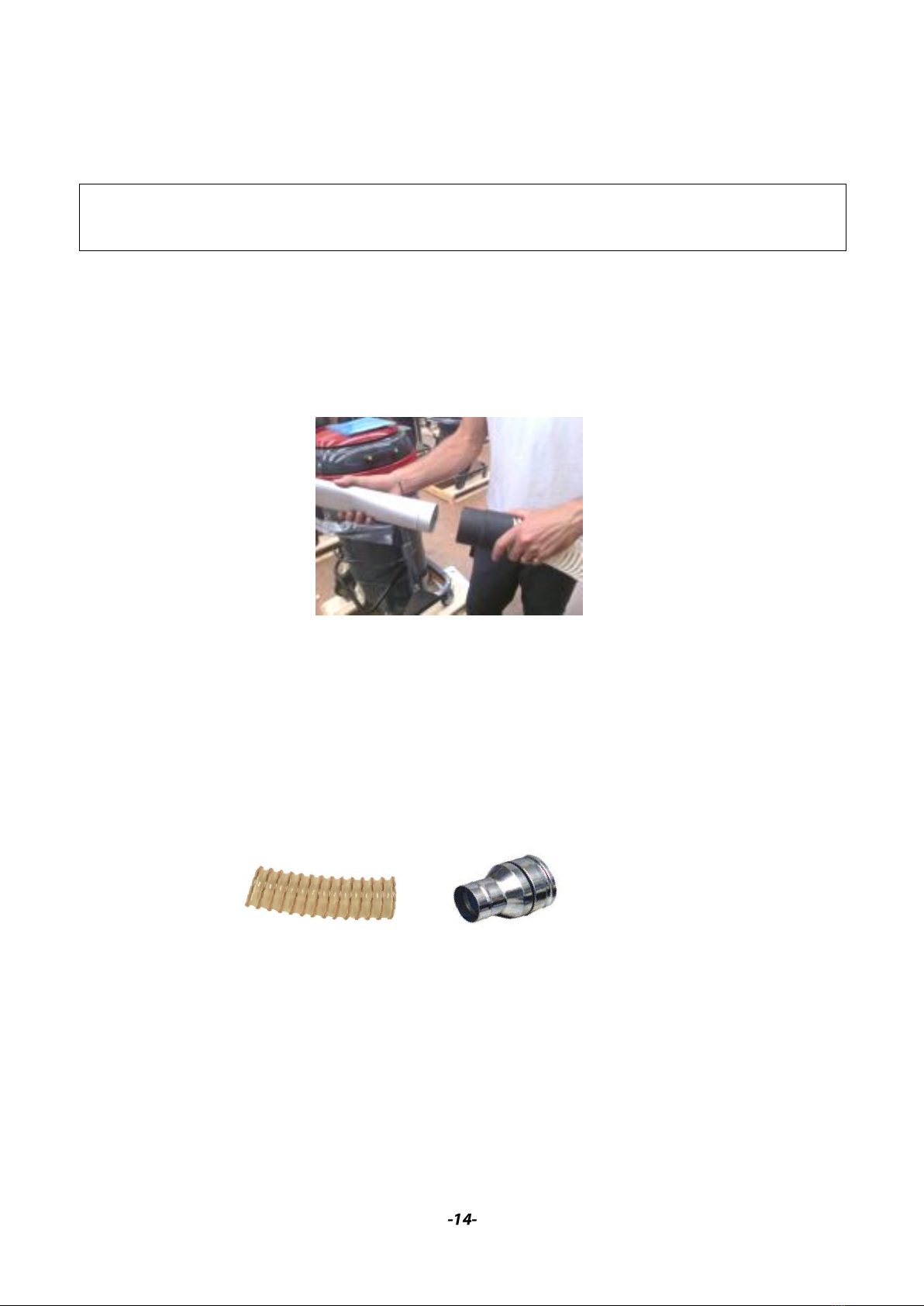

Fit the supplied connector on the pipe union
Make sure the power supply corresponds to the voltage and frequency indicated on the vacuum cleaner
plate.
Warning!
Do not fit the plug in the power socket with wet hands.
In the event of an extension being used, make sure this is in perfect condition, in compliance with CE
standards and with cable cross section suitable for the power input of the vacuum cleaner.
If, when the vacuum cleaner is switched on, the inlet blows air out instead of sucking it in, the machine will
have to be switched off, the plug detached from the power socket and the direction of rotation of the
motor changed by modifying the plug using a screwdriver.
www.kruger.es

Operation Section

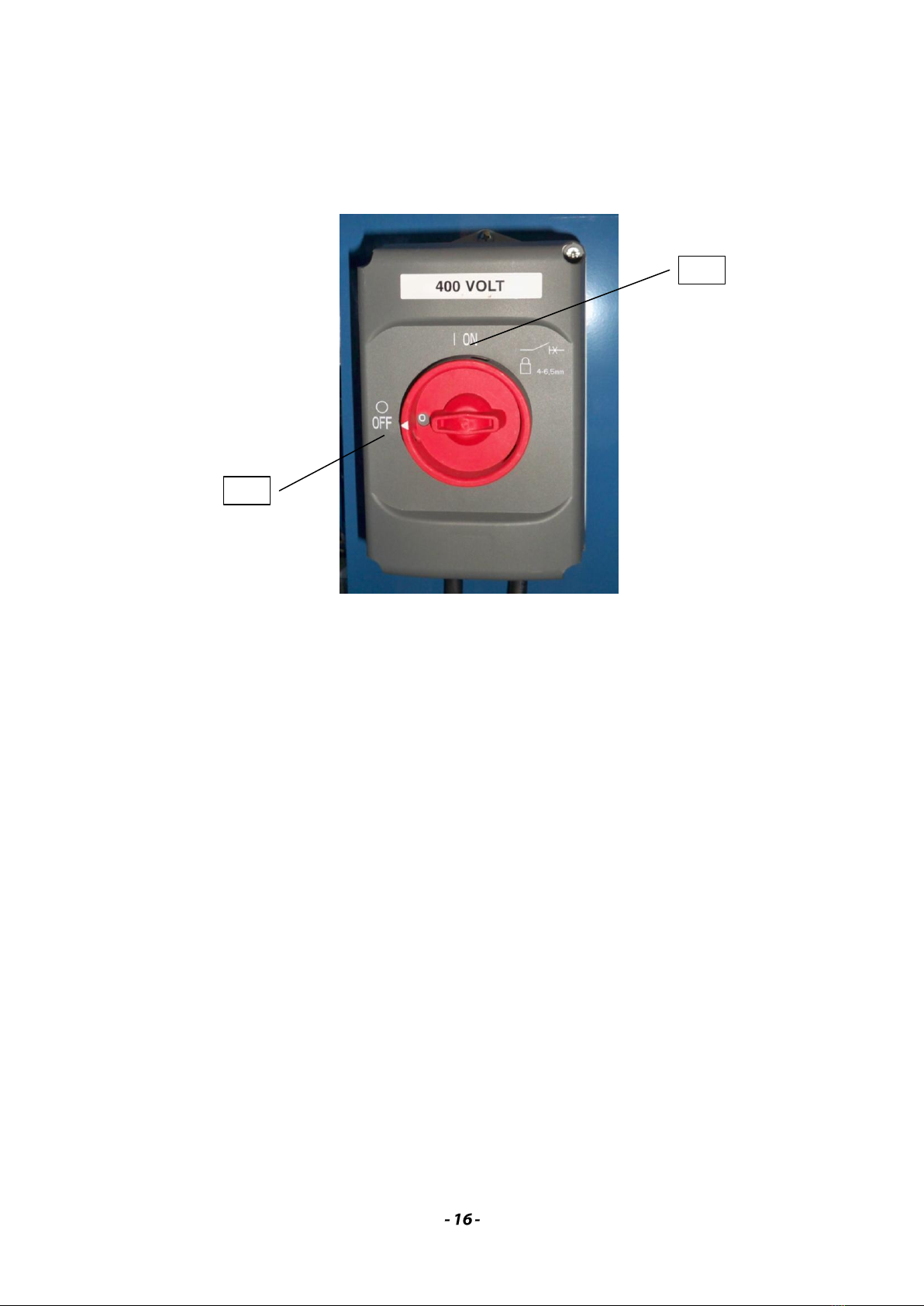

4.1 Description of controls
1) STOP POSITION
2) START POSITION
2
1
www.kruger.es

Operation Section
4.2 Work cycle
Warning!
Before fitting the plug, make sure the power voltage corresponds to that on the CE marking plate.
Make sure the power plug is correctly fitted in the power socket.
Make sure the flexible hose is properly fitted and locked in the vacuum pipe union.
Make sure the power cable and any extension used are integral and in perfect condition.

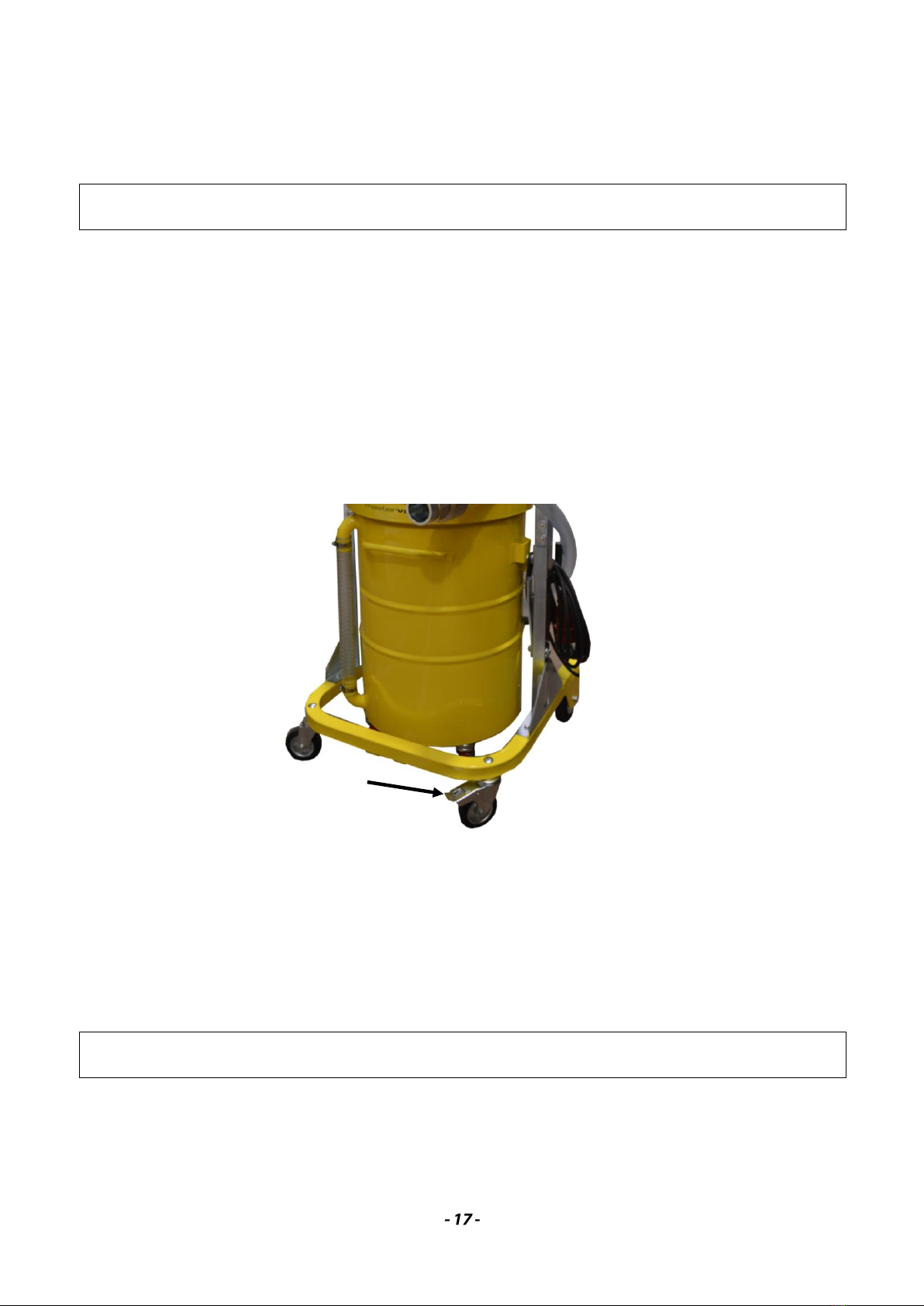

Block the vacuum cleaner by means of the retainer provided.
Grip one end of the flexible hose complete with selected accessory.
Press the Start button and start vacuuming.
To stop the vacuum cleaner, press the Stop button.
Warning!
Before switching the vacuum cleaner back on, make sure the motors have come to a complete halt.
After finishing work, disconnect the vacuum cleaner from the power socket.
www.kruger.es
