KSIX Free Pods User manual
Free Pods
User manual
Free Pods is a set of independent, true wireless stereo earphones that
connect to a mobile device via Bluetooth.
They can be used with any multimedia device that has Bluetooth 5.0 or
higher, such as smartphones, tablets, videogame consoles, music players,
laptop computers, etc. You can make phone calls and play music with the
earphones.

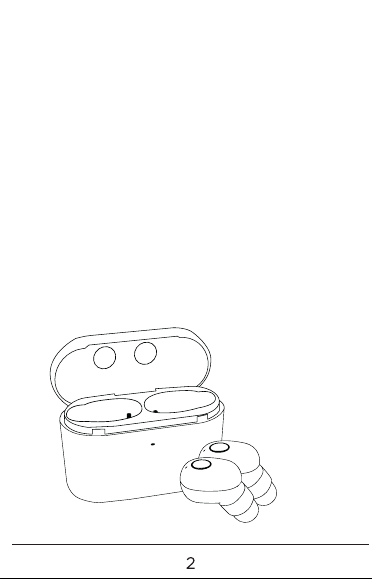

The case for the earphones serves as a protective shell that allows you
to take them on the go safely. The case can also be used as an external
battery to charge the earphones at any time and place, without needed to
rely on a power source.
Technical specifications
• Bluetooth Connectivity V 5.0
• Bluetooth profiles HSP, HFP, A2DP, AVRCP
• Integrated microphone
• Diameter: 8 mm
• Operational range: 10 m
• Frequency range: 20Hz-22Khz
• Maximum power: 5V/1A
• Impedance: 32Ω
• Sensitivity: -42±3dB
• Battery capacity: 60 mAh (each earpiece)
• Battery capacity of the case: 400 mAh
• Time in play mode: 3.5 hours + 8.5 hours with the charging case
• Time to charge: 1 hour
• Micro USB-USB cable included
• 2 interchangeable ear tips sets included
Product description
Turn Free Pods earphones On/Off
Take the earphones out of the case, and press and hold the multifunction
buttons for 3 seconds to turn them on.
To turn them off, press and hold the multifunction buttons for 5 seconds.
Note: If the earphones are turned on without being connected to a mobile
device via Bluetooth for 5 minutes, they will turn off automatically.
Connect the Free Pods earpieces to each other
1. Turn the earphones on.
2. Once they are on, the LED on one earpiece will blink blue and red at a
fast pace, while the LED on the other earpiece blinks blue and red at a
slow pace.
3. After 5 seconds, the LED on one of the earpieces will blink blue slowly,
while the LED on the other earpiece will still blink blue and red at a fast
pace. This means that the earpieces have linked to each other.
Connect both Free Pods earpieces to your mobile device
1. Once the earpieces have linked to each other, turn on Bluetooth on
your mobile device.
2. Find and select the signal named “ksix_true” to link the earphones to
your mobile device.
3. Once the earphones have successfully linked to your mobile device, the
LEDs will blink blue slowly.
Note: When turning the earphones on, they will reconnect to the last
linked mobile device, as long as Bluetooth is activated on the device.
How to charge the battery of the Free Pods earphones
When the battery of the Free Pods earphones is low or depleted, charge
them using the case.
1. Place the earphones in the case.
2. Connect the case to a power source using the Micro USB-USB cable. You
can connect it to a USB port on a computer or a laptop.
Note: Connecting the charging case to a power outlet requires an adaptor
that is not included with this product.
3. While the earphones are charging, the LED indicators will blink red.
4. When the earphones are through charging, the LED indicators will
remain red, without blinking.
The case can also be used to charge the earphones independently,
without needing to be connected to a power source.
How to charge the earphones only using the charging case
1. First, you should charge the case’s internal battery. To do this, connect
the case to a power source using the Micro USB-USB cable.
2. While the case is charging the LED indicator will blink red, slowly. When
the case’s internal battery is fully charged, the LED indicator will remain
red, without blinking.
3. Once the case’s internal battery is fully charged, place the earphones
inside the case to charge them.
Music player controls
You can control the music player on your mobile device by using the
multifunction buttons on the earphones.
• Play/Pause: Press the multifunction button once.
• Go to the next track: Press and hold the multifunction button for 2
seconds.
Handling calls
Use the earphones to receive calls.
• Answer/End an incoming call: Press the multifunction button once.
• Reject an incoming call: Press and hold the multifunction button for
2 seconds.
• Redial: Press the multifunction button twice, rapidly.
Maintenance recommendations
• Regularly clean the earphones with a dry cloth.
• Avoid breaking the earphones. Do not put objects over them.
• Keep the earphones connectors and buttons free from dust, dirt, lint,
etc.
• If the earphones include a cable do not pull from it to unplug them.
• Keep the earphones always in a dry place, away from humidity.
• When not using the earphones or earphones, store them in a place free
from dust, dirt, lint, liquids, etc.
• Do not pull the earphones earbud tip excessively.
The earbud tip may tear.
Safety information
Please read the following instructions.
• Keep away the earphones from heat sources (fire) and from humidity
(water and other liquids).
• Do not attempt to open the earphones. You might damage them.
• Do not leave the earphones in contact with flammable materials.
• Do not throw the earphones into fire.
• If the earphones are wet or damaged do not plug them into your
multimedia device.
• Keep them away from children.
• Do not plug the earphones into incompatible objects or devices.
• Do not use the earphones if you perceive any visible defects.
• Do not dismount or modify the earphones. These actions will invalidate
the warranty.
• Use only the supplied chargers and cables to charge the earphones.
Unapproved chargers or cables can damage the battery or the
earphones or earphones.
• If the earphones have Hands-Free function, do not drive a vehicle and
speak by phone simultaneously.
• Do not put the earphones in your ears without earbud tips.
• Do not listen too loud the music with the earphones or earphones.
Legal Note
Hereby, Atlantis Internacional S.L. declares that this product is in
compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EC.
The features and functions described in this manual are based on tests
made by Atlantis Internacional S.L. It is the user’s responsibility to
examine and verify the product after its purchase. Atlantis Internacional
S.L. is not responsible and will never be liable for any personal loss or
injury, economical loss, material loss or any damage due to misuse, abuse
or improper installation of the product.
Atlantis Internacional S.L. is not responsible and will never be liable for
any function, communication and connection failure between the product
and Bluetooth enabled devices.
Electronic and electrical devices disposal
This symbol indicates that electrical and electronic equipment is to be
collected separately.
• This product is designated for separate collection at an appropriate
collection point. Do not dispose of as household waste.
• The final price of this product includes the cost necessary for the correct
environmental management of the generated waste.
• If the equipment uses batteries, they must be removed from the equi-
pment and disposed in an appropriate collection center. If the batteries
cannot be removed, do not attempt to do it yourself since it must be
done by a qualified professional.
• Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment
that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in
charge of waste management.
5 86 97 10
MFBMicrophone
LED indicator
LED indicator
Charging Port
