Installation
PV1, PV2
1
Any product damage or property loss caused by the following conditions, Kstar does
not assume any direct or indirect liability.
2.1.1 General
NOTE:
Please be cautious unpacking the battery, otherwise components could be damaged.
This Manual introduces the basic steps to install and set up Kstar BluE-H5/H3.
This BluE-H5/H3 energy storage system is outdoor version and can be installed in an
outdoor or an indoor location.
When BluE-H5/H3 systems are installed in a room, BluE-H5/H3 must not be hampered by
the structure of the building, the furnishings and equipment of the room.
The Storion BluE-H5/H3 is naturally ventilated. The location should therefore be clean, dry
and adequately ventilated. The mounting location must allow free access to the unit for
installation and maintenance purposes, and the system panels must not be blocked.
The following locations are not allowed for installation:
The BluE-H5/H3 shall not be installed :
(a) in restricted locations as defined for panels in AS / NZS 3000;
(b) within 600mm of any heat source, such as hot water unit, gas heater, air conditioning
unit or any other appliance.
(c) within 600mm of any exit;
(d) within 600mm of any window or ventilation opening;
(e) within 900mm of access to 240Vac connections;
(f) within 600mm of side of other device.
2.1.2 Restricted Locations
habitable rooms;
ceiling cavities or wall cavities;
on roofs that are not specifically considered suitable;
access / exit areas or under stairs / access walkways;
where the freezing point can be reached, such as garages, carports or other places as
well as wet rooms (environmental category 2);
locations with humidity and condensation over 90%;
places where salty and humid air can penetrate;
seismic areas - additional security measures are required;
Sites with altitude below 2000m;
places with an explosive atmosphere;
locations with direct sunlight or a large change in the ambient temperature;
places with flammable materials or gases or an explosive atmosphere.
Product modified, design changed or parts replaced without authorization;Kstar
Changes, repair attempts and erasing of series number or seals by non Kstar
technician;
System design and installation are not in compliance with standards and regulations;
Fail to comply with the local safety regulations (VDE for DE, SAA for AU);
Transport damage (including painting scratch caused by rubbing inside packaging
during shipping). A claim should be made directly to shipping or insurance company
in this case as soon as the container/packaging is unloaded and such damage is
identified;
Fail to follow any/all of the user manual, the installation guide and the maintenance
regulations;
Improper use or misuse of the device;
Insufficient ventilation of the device;
The maintenance procedures relating to the product have not been followed to an
acceptable standard;
Force majeure (violent or stormy weather, lightning, overvoltage, fire etc.);
Damages caused by any external factors.
02
GRID
13 www.kstar.com 14
www.kstar.com
2
BACKUP
3DRM4
COM
5CT/METER
6
INV
7BAT+,BAT-
8
1.8 Liability Limitation
2.1 Installation Site and Environment
User Manual User Manual
DVC C DVC C
DVC C DVC A
DVC A DVC A
DVC B/C DVC C
Description Description
Object Object
DVC class DVC class

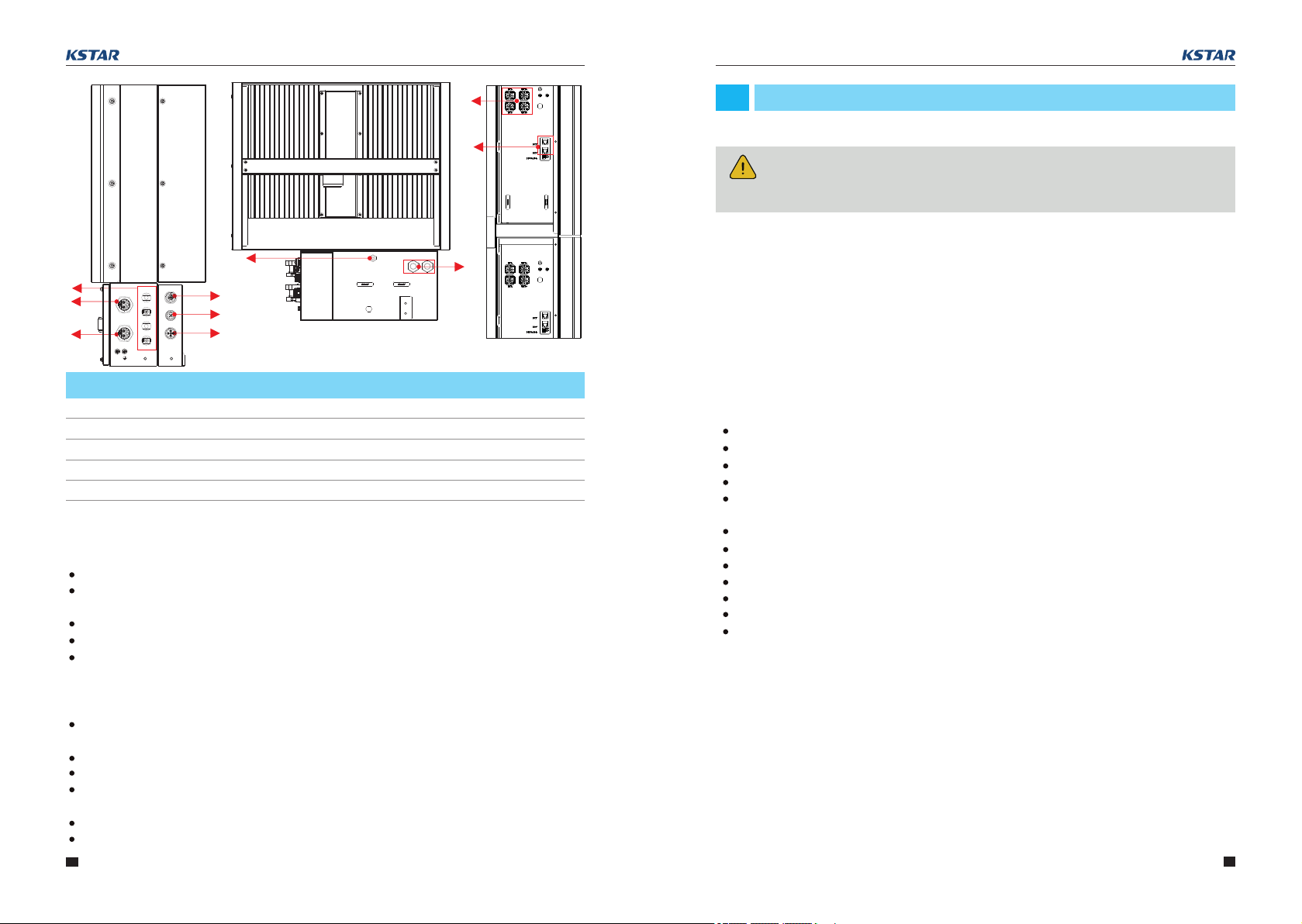

Figure 7 Cable Box Part without Covers
2
3
1
BACK UP
ON GRID
PV1+
PV1-
PV2+
PV2-
DRM
COM
CT/METER
INV BAT+ BAT-
78
4
5
6
8
9
RJ45
9DVC C
