KTI KWB-1111 User manual

Wireless LAN Access Point
With WDS function
User Guide

Regulatory notes and statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN
devices. The energy levels of these emissions however are far much less than
the electromagnetic energy emissions from wireless devices like for example
mobile phones. Wireless LAN devices are safe for use frequency safety
standards and recommendations. The use of Wireless LAN devices may be
restricted in some situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or
identified as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas
industrial plants, private buildings etc.) is not clear, please ask for
authorization to use these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance
with the instructions included in the user documentation provided with the
product. Any changes or modifications made to this device that are not
expressly approved by the manufacturer may void the user’s authority to
operate the equipment. The Manufacturer is not responsible for any radio or
television interference caused by unauthorized modification of this device, of
the substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of
government regulations arising from failing to comply with these guidelines.
USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and

2. This device must accept any interference, including interference that may
cause undesired operation of this device.
FCC Radio Frequency Exposure statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET
65 and found compliant to the requirements as set forth in CFR 47 Sections
2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio
frequency devices. The radiated output power of this Wireless LAN device is
far below the FCC radio frequency exposure limits. Nevertheless, this device
shall be used in such a manner that the potential for human contact during
normal operation is minimized.
When nearby persons has to be kept to ensure RF exposure compliance, in
order to comply with RF exposure limits established in the ANSI C95.1
standards, the distance between the antennas and the user should not be less
than 20 cm.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

Export restrictions
This product or software contains encryption code that may not be exported or
transferred from the US of Canada without an approved US Department of
Commerce export license.
Safety Information
Your device contains a low power transmitter. When device is transmitted it
sends out radio frequency (RF) signal.
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. Use on the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the
transmitter and may violate FCC regulations.
CE Mark Warning
This is a Class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted.
These are considered relevant and sufficient.
Protection requirements for electromagnetic compatibility –
Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1,
EN 301 489-17 and EN 55024 has been conducted. These are
considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328-2 has been
conducted. These are considered relevant and sufficient.

TABLE OF CONTENT
About This Guide.................................................................................1
Purpose ............................................................................................1
Overview of this User’s Guide.........................................................1
Unpacking and Setup...........................................................................3
Unpacking........................................................................................3
Setup................................................................................................3
Hardware Instalation............................................................................5
LED Indicator ..................................................................................5
Rear Panel........................................................................................6
Hardware connections......................................................................7
Connect to the Switch/Hub..........................................................7
Check the installation...................................................................7
Configuring the Wireless LAN Access Point ......................................9
Login................................................................................................9
Site Contents of the Access Point..................................................10
Status..............................................................................................11
Wireless .........................................................................................12
TCP/IP Setting...............................................................................19
Statistics.........................................................................................19
Upgrade Firmware.........................................................................20
Save/Reload Settings .....................................................................21
Password Settings ..........................................................................22
Technical Specifications....................................................................23

1
ABOUT THIS GUIDE
Congratulations on your purchase of this IEEE 802.11b Wireless LAN
Access Point. This manual helps to features the innovating wireless
technology that can help you build a wireless network easily! This
manual contains detailed instructions in operation of this product.
Please keep this manual for future reference.
With a WLAN (IEEE 802.11b) Access Point, a mobile computer can share
data with another mobile computer in a wireless way. Easy-to-use utilities are
bundled with WLAN Access Point for configuration and monitoring purposes.
WLAN networking can wirelessly transmit and receive data, minimizing the
need for wired connections, at a speed of up to eleven megabit per second.
With WLAN networking, you can locate your PC wherever you want without
wires and cables.
WLAN networking provides users with an access to real-time information
anywhere in their organization. The mobility provides productivity and
service, which are not available under wired networks.
Purpose
This manual discusses how to install the WLAN Access Point.
Overview of this User’s Guide
Introduction. Describes the WLAN Access Point and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
WLAN Access Point.
Hardware Installation. Describes the LED indicators of the AP.
Software Installation. Tells how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and
environmental) specifications of the WLAN Access Point.

3
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the Access
Point.
Unpacking
Open the box of the Access Point and carefully unpack it. The box
should contain the following items:
 One Wireless Access Point
 One external power adapter
 One CD-Rom (User’s guide)
If any item is found missing or damaged, please contact your local
reseller for replacement.
Setup
The setup of the Wireless Access Point can be performed using the
following steps:
 Locate an optimum location for the Wireless LAN Access Point
(AP). The best place for your AP is usually the center of your
wireless network, with line of sight to all of your mobile stations.
 Visually inspect the Ethernet RJ45 port connector and make
sure that it is fully plugged in to the system’s Ethernet
switch/hub port.
 Fix the direction of the antennas. Try to place the AP in a
position that can best cover your wireless network. Normally,
the higher you place the antenna, the better the performance will
be. The antenna’s position enhances the receiving sensitivity.

4
 Visually inspect if the Power Adaptor was fully plugged to the
device power jack.

5
HARDWARE INSTALATION

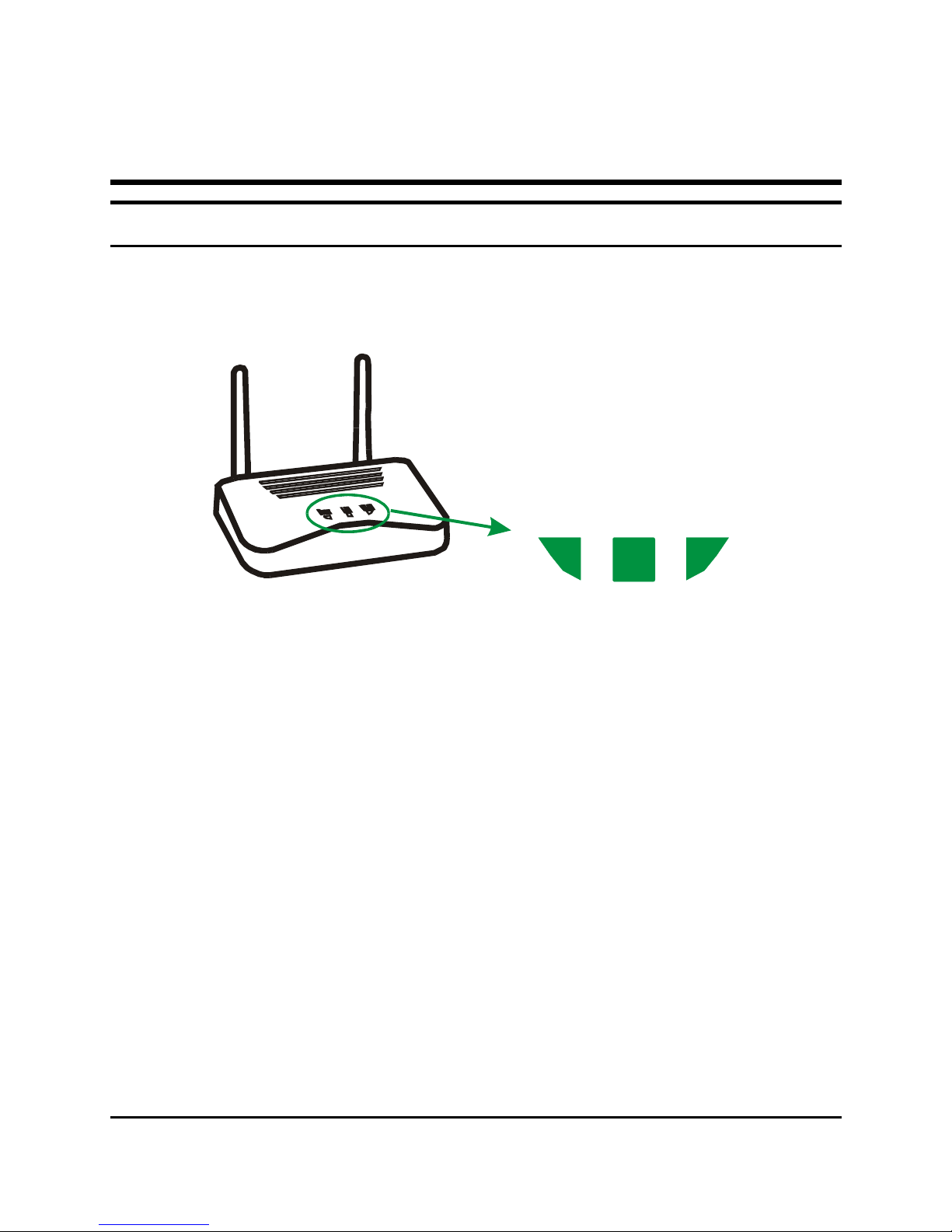

LED Indicator
The figure below shows the LED Indicator of the Wireless LAN
Access Point.
Power LAN WLAN
Front View
POWER
This indicator lights green when the Access Point receives power.
Otherwise, it turns off.
LAN (Link/ACT)
The indicator lights green when the LAN port is connected to a
100Mbps Ethernet station, the indicator blinks green while
transmitting or receiving data on the 100Mbps Ethernet network.
WLAN (Link)
The indicator blinks green when the wireless station connected to the
AP, the AP is always transmitting or receiving data once a wireless
device is connected, otherwise, the light turns off.

6

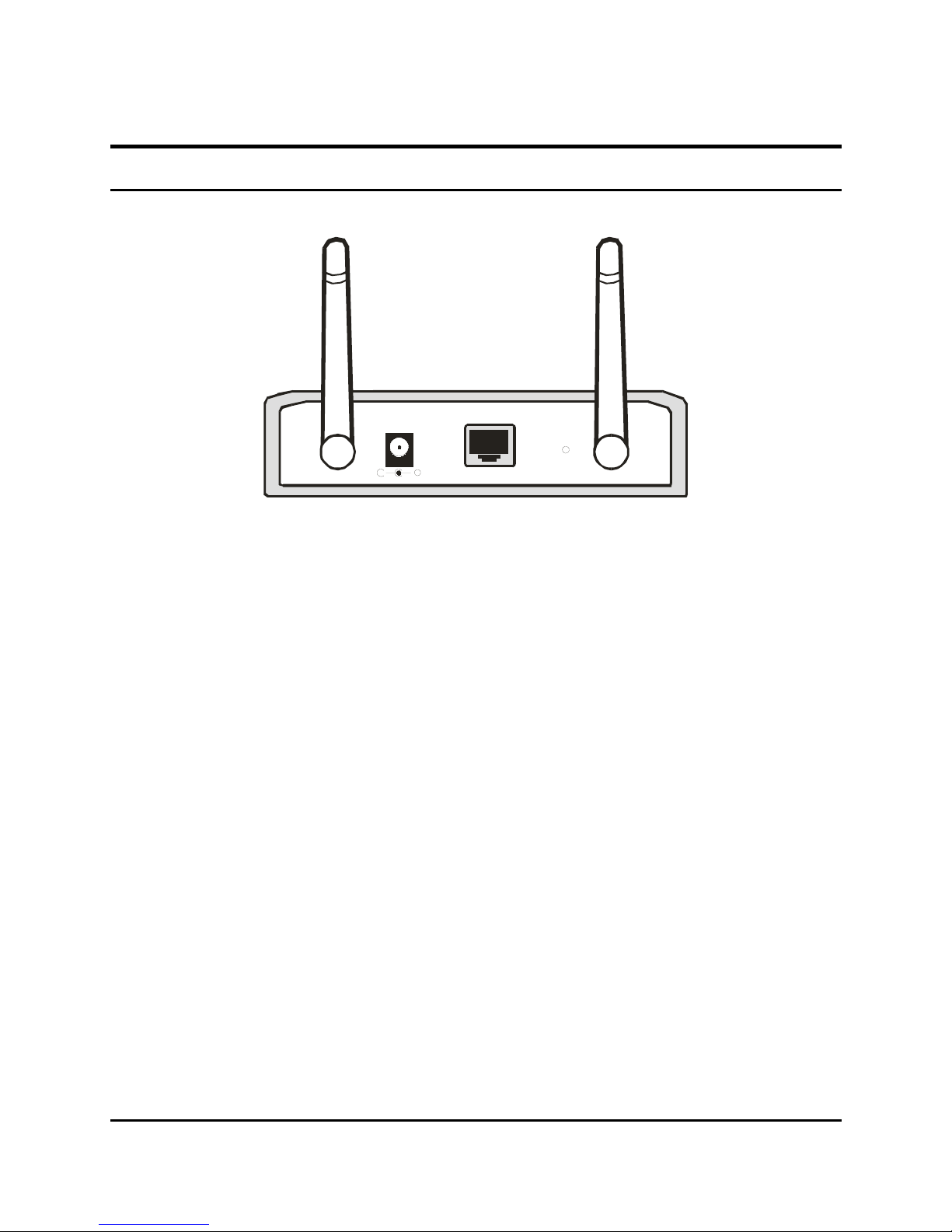

Rear Panel
The figure below shows the rear panel of the Access Point
- +
Rear Panel
Ethernet
Ethernet uplink port with auto-sensing for connecting to either
10/100Mbps Fast Ethernet connections, connect this port to
switch/hub.
Reset
There is two function by pressing the “Reset” button, one is software
reboot and the other is factory reset.
 Software Reboot: to reboot the Access Point, press the “Reset”
button.
 Factory Reset: to reset the setting back to factory default setting,
press the “Reset” button within 10 seconds, once you press the
button, the LED of the WLAN will turn off and when the
Access Point is ready, the LED will start blinking.
DC Power
Connect the AC Power Adapter to the AP’s power jack.

7
Hardware connections
Switch/Hub
PC
Notebook
Notebook
POWER
SYSTEM
LAN
1234
Link/ACT
100M
Ethernet port
Wireless LAN Networking
Connect to the Switch/Hub
1. Plug in one end of the RJ45 network cable to the Switch/Hub port,
2. Plug in the other end of the RJ45 network cable to the Wireless
Access Point.
Check the installation
The control LEDs of the Access Point are clearly visible and the status
of the network link can be seen instantly:
1. With the power source on, once the device is connected, the
Power, LAN and WLAN port link LEDs of the Internet
Broadband Router will light up indicating a normal status.
2. If the LAN Port’s Link indicator does not light up then check the
RJ-45 cable if it is firmly feed to the RJ45 port, while the LAN is
link up to the Switch/Hub, the LAN port’s LED will light up.

9
CONFIGURING THE WIRELESS LAN ACCESS POINT
The Wireless Access Point has a Web GUI interface for the
configuration. The AP can be configured through the Web Browser. A
network manager can manage, control and monitor the AP from the
local LAN. This section indicates how to configure the AP to enable
its functions.
Login
Before you configure this device, note that when the AP is configured
through an Ethernet connection, make sure the manager PC must be
set on same the IP network. For example, when the default network
address of the default IP address of the AP is 192.168.1.100, then the
manager PC should be set at 192.168.1.x (where x is a number
between 1 and 254), and the default subnet mask is 255.255.255.0.
Open Internet Explorer 5.0 or above Web browser.
Enter IP address http://192.168.1.100 (the factory-default IP address
setting) to the address location.
When there is a screen need to enter the Network password, it means
that there is a password settle, type in the password you entered before.
There is no need to enter any password when you first login the AP,
the default setting is without password.

10
Site Contents of the Access Point
There are seven main functions included in the site contents: Status,
Wireless Settings, TCP/IP Settings, Statistics, Upgrade Firmware,
Save and Reload Settings and Password Settings. Point the selections in
the left side of the menu screen.

11
Status
The Status Function shows the System, Wireless Configuration and
TCP/IP Configuration status and some settings of the Access Point.

12
Wireless
The Wireless Settings contain five minor settings, Basic Settings,
Advanced Settings, Security, Access Control and Connection List.
I. Basic Settings
This page is to set the AP Name, SSID and Channel Number.
 AP Name: appoint a name for the AP.
 SSID: It is an ASCII string up to 32 characters used to identify a
WLAN that prevents the unintentional merging of two co-
located WLANs. The SSID value must be the same in all
stations and AP in the extended WLAN.
 Wireless Channel: There are 14 channels available. The
channels differ from country to country. Select the channel to be
used.
Click “Apply Changes” after you set your AP Name, SSID and
Channels to save the changes, or press “Reset” to set back to factory
default setting.
