M-xxx B-xx-xx is a spring-actuated brake in a fixed calliper design serving to ge-
nerate a brake force onto a brake disk in order to decelerate a plant’s movement
or stop it, respectively, or keep it at standstill.

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
2 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
The KTR brake system was designed to operate as a service brake/emergency stop brake on rotating
brake disks. For any other applications please consult with KTR.
1Technical data 3
2Advice 5
2.1 General advice 5
2.2 Safety and advice symbols 5
2.3 General hazard warnings 5
2.4 Intended use 5
3Storage, transport and packaging 6
3.1 Storage 6
3.2 Transport and packaging 6
4Assembly 6
4.1 Components of the brake 6
4.2Preparation of assembly 7
4.3 Brake pads 8
4.4 Assembly of the brake 8
4.5 Pressure port of a brake 10
4.6 Pressure port of several brakes 11
4.7 Start-up of the brake 12
4.8Setting/Re-setting of the brake 13
4.9 Recommendation of liquids to be used 15
4.10 Disassembly of the brake 16
4.11 Spares inventory, customer service addresses 16
4.12 Disposal 17
5Maintenance 17
5.1 Replacement of brake pads 17
5.2 Maintenance of the brake / replacement of single parts 18
5.3 Maintenance and service 20
6Accessories - Sensor 21
6.1 Technical Data „State/wear sensor“ 21
6.2 Assembly / start-up 22
Table of contents

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
3 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:

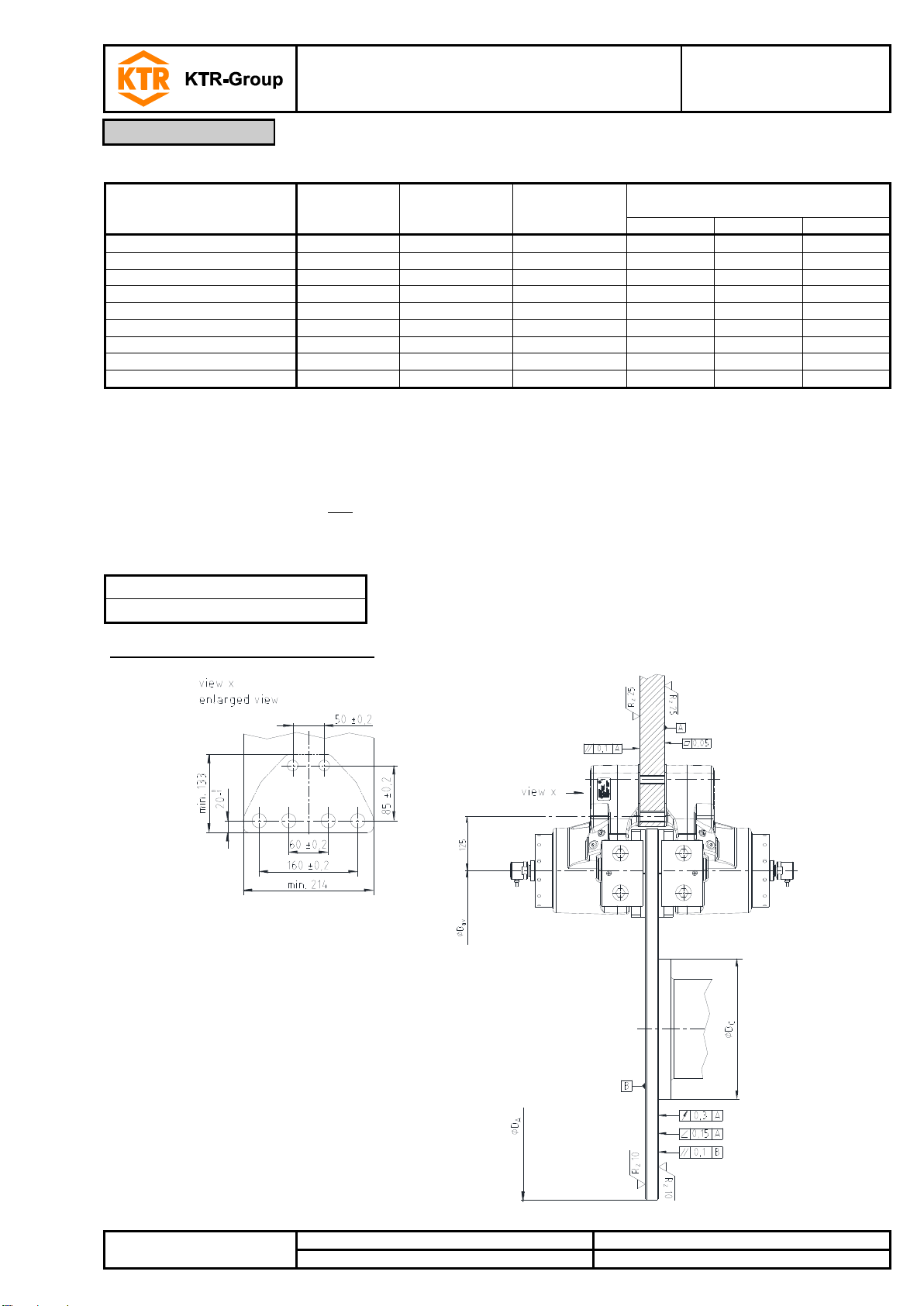

Illustration 1: Dimensio-
nal drawing
Table 1: Technical data
M-xxx B-xx-xx
Weight
[kg]
Approx. 185 - 215 1)
Width of brake pad
[mm]
200
Surface of each brake pad
organic
[mm2]
57,900
powder
metal
[mm2]
53,500
Max. wear of each brake pad
[mm]
10
Rated coefficient of friction 2)
[μ =]
0.4
Total brake piston surface - complete brake
[cm2]
137.4
Volume for each brake caliper with 1 mm stroke
[cm3]
13.74
Max. operating pressure
[bar]
200
Pressure port
G 1/4
Oil bleed
G 1/8
Min. diameter of brake disk ØDA
[mm]
800
Operating temperature
[°C]
-20 to +50
1) Weight depending on clamping force
1 Technical data

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
4 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
Table 2: Clamping force, loss of preload force andopening pressure
Brake type 3)
Clamping
force
Fc[kN]
Loss of power 4)
[%]
Opening pres-
sure [bar]
Braking torque [Nm] with
brake disk Ø [mm]
800
1500
2000
KTR-STOP®M-100 B-xx-xx
100
7.0
110
24000
52000
72000
KTR-STOP®M-110 B-xx-xx
110
6.5
120
26400
57200
79200
KTR-STOP®M-120 B-xx-xx
120
8.5
130
28800
62400
86400
KTR-STOP®M-130 B-xx-xx
130
5.0
140
31200
67600
93600
KTR-STOP®M-140 B-xx-xx
140
4.5
150
33600
72800
100800
KTR-STOP®M-150 B-xx-xx
150
7.5
165
36000
78000
108000
KTR-STOP®M-160 B-xx-xx
160
7.0
180
38400
83200
115200
KTR-STOP®M-170 B-xx-xx
170
6.5
190
40800
88400
122400
KTR-STOP®M-180 B-xx-xx
180
6.0
190
43200
93600
129600
2) The friction coefficient each depends on the application or material of the brake pad; please consult with KTR.
3) Other brake types on request
4) With a stroke of 1 mm
= 2FF cb
2
D
FzM av
bb =
Fb
Fc
Mb
z
Dav
= Brake power [kN]
= Clamping force [kN]
= Braking torque [kNm]
= Number of brakes
= Effective diameter of brake [m]
Table 3: Calculation of brake disk
DC max. = DA- 420
Dav = DA- 200
Connection dimensions of brake
Illustration 2: Connection dimensions
1 Technical data

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
5 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
Please read through these operating/assembly instructions carefully before you start up the brake.
Please pay special attention to the safety instructions!
The operating/assembly instructions are part of your product. Please store them carefully.
The copyright for these operating/assembly instructions remains with KTR.
STOP
Warning of personal injury
This symbol indicates notes which may contribute to pre-
venting bodily injuries or serious bodily injuries that may
result in death.
!
Warning of product damages
This symbol indicates notes which may contribute to pre-
venting material or machine damage.

General advice
This symbol indicates notes which may contribute to pre-
venting adverse results or conditions.
STOP
With assembly, operation and maintenance of the brake it has to be made sure that the enti-
re drive train is secured against accidental switch-on. You may be seriously hurt by rotating
parts. Please make absolutely sure to read through and observe the following safety indica-
tions.
•All operations on and with the brake have to be performed taking into account "safety first".
•Make sure to switch off the power pack before you perform your work on the brake.
•Secure the power pack against accidental switch-on, e. g. by providing warning signs at the place of switch-on
or removing the fuse for current supply.
•Do not reach into the operating area of the brake as long as it is in operation.
•Please secure the brake against accidental contact. Please provide for the necessary protection devices.
•Please make sure that the overall brake/hydraulic system is depressurized during maintenance operations.
You may only assemble, operate and maintain the brake if you
•have carefully read through the operating/assembly instructions and understood them
•had technical training
•are authorized by your company
The brake may only be used in accordance with the technical data (see chapter 1). Unauthorized modifications on
the brake design are not admissible. We will not assume liability for any damage that may arise. In the interest of
further development we reserve the right for technical modifications.
The brake type M-xxx B-xx-xx described in here corresponds to the technical status at the time of printing of
these operating/assembly instructions.
2 Advice
2.1 General advice
2.2 Safety and advice symbols
2.3 General hazard warnings
2.4 Intended use

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
6 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
The brake is delivered in preserved condition and can be stored in a closed, dry place during 12 months.
With favourable storage conditions its properties remain unchanged for up to 12 months.
If the brake is stored over a longer period exceeding 12 months as well as after each transport the corrosion pro-
tection needs to be renewed and the brake has to be applied over the full braking distance in order to prevent the
gaskets from sticking together.
!
The storage rooms must not include any ozone-generating devices like e. g. fluorescent
light sources, mercury-vapour lamps or electrical high-voltage appliances.
Humid storage rooms are not suitable.
Please make sure that condensation is not generated. The best relative air humidity is less
than 65 %.
!
In order to avoid any injuries and any kind of damage please always make use of proper
transport and lifting equipment.
The brake is packed differently each depending on number and kind of transport. Unless otherwise contractually
agreed, packaging will follow the in-house packaging specifications of KTR.
The brake is supplied in pre-assembled condition. Before assembly the brake has to be inspected for completen-
ess.

The brake is generally supplied with the transport lock mounted.
The screw plug (component 1.20) is attached to the brake in bulk.

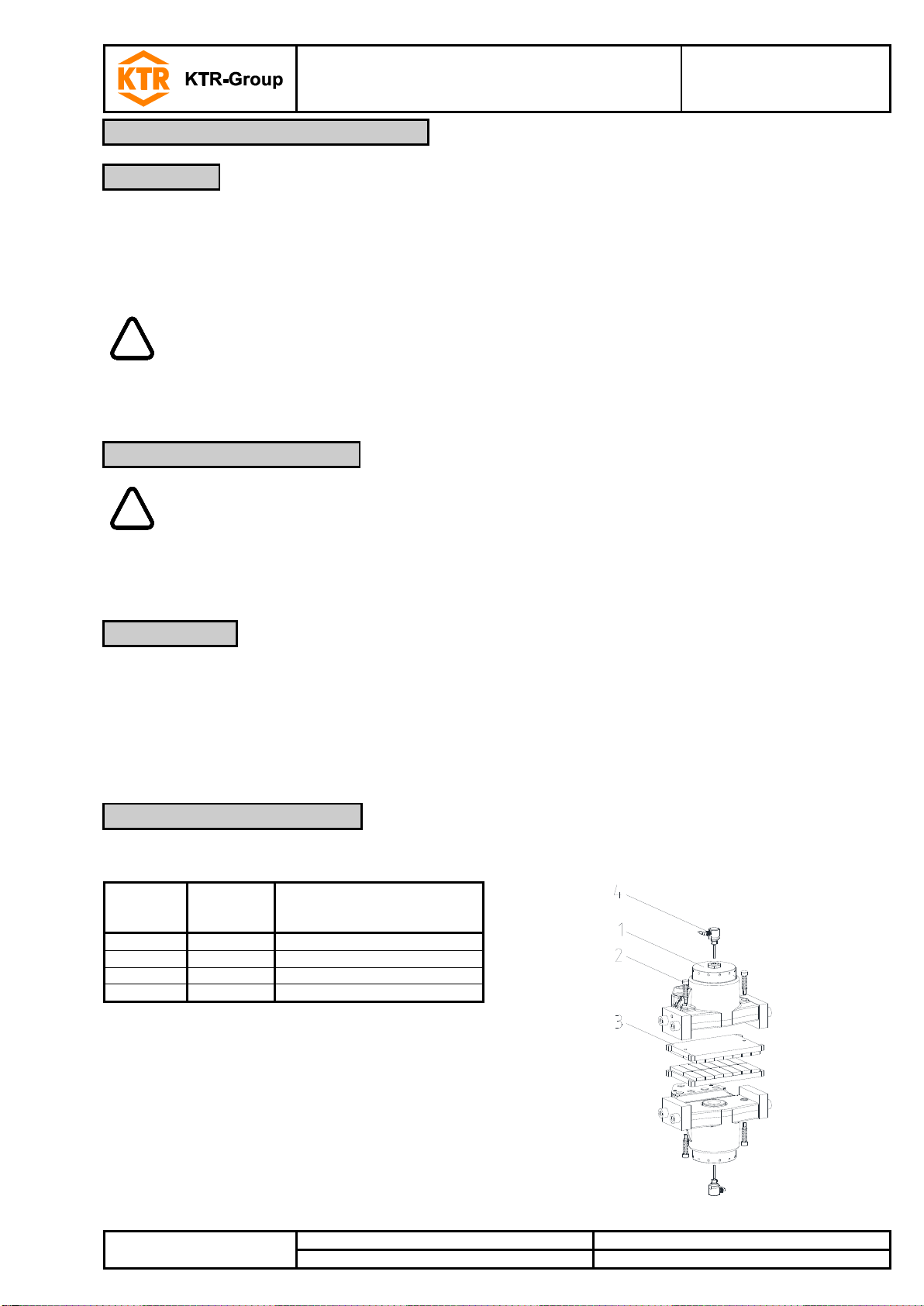

Components/component assemblies of brake –Type M-xxx B-xx-xx
Compo-
nent/suba
ssembly
Quantity
Description
1
2
Housing with components
2
4
Pad retraction set on fixed side
3
2
Brake pad
4
2 1)
Sensor
1) Optionally available
Illustration 3: Components/subassemblies of brake
3 Storage, transport and packaging
3.1 Storage
3.2 Transport and packaging
4 Assembly
4.1 Components of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
7 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:

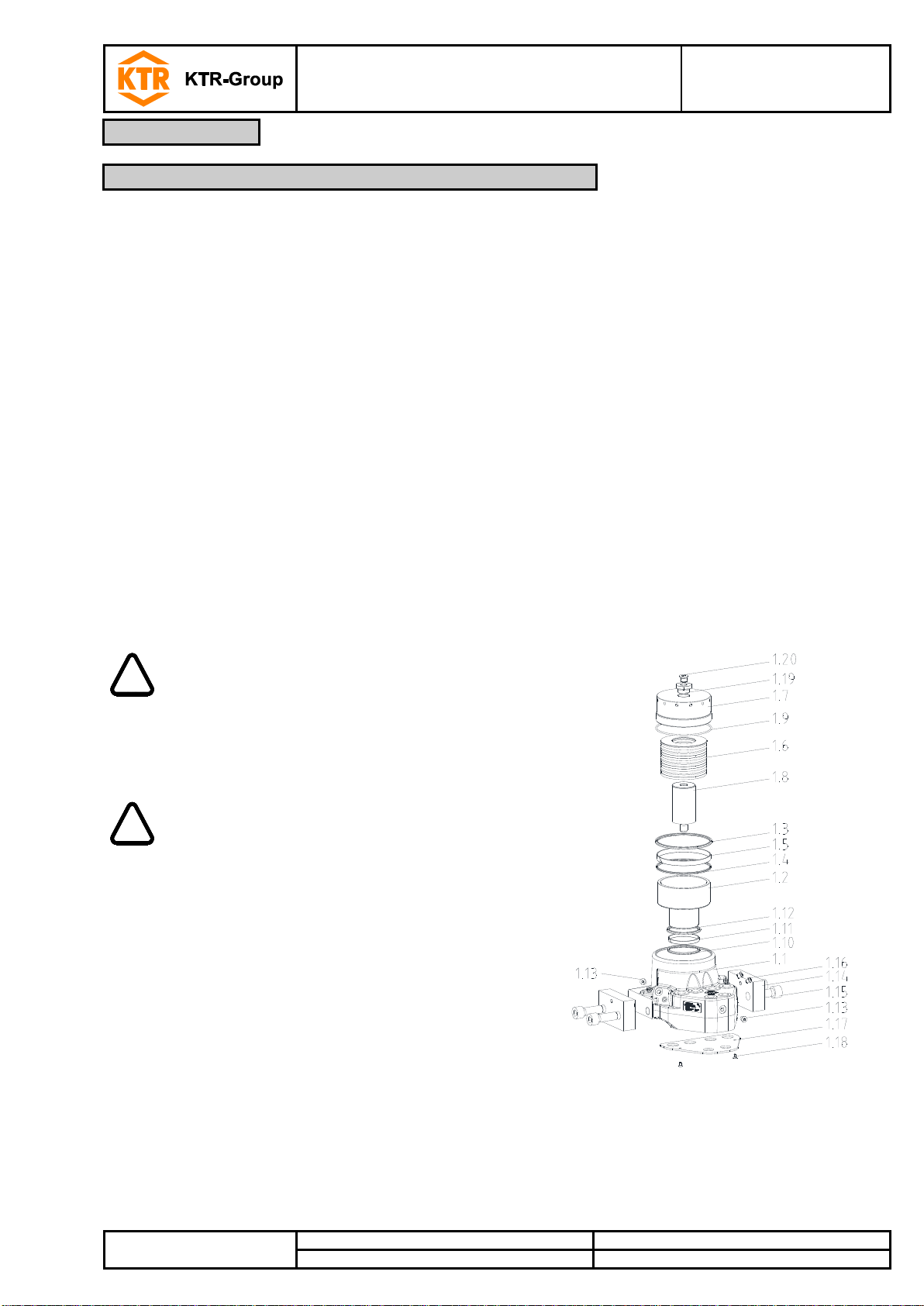

Component assembly 1: Housing with components
Compo-
nent
Quantity
Description
Illustration 4: Housing with single parts
1.1
1
Housing
1.2
1
Brake piston
1.3
1
Scraper
1.4
1
Gasket
1.5
1
Gasket
1.6
1
Set of disk springs
1.7
1
Setting nut
1.8
1
Centering pin
1.9
1
O-ring
1.10
1
Scraper
1.11
1
Gasket
1.12
1
Gasket
1.13
3
Screw plug VSTI (acc. to
DIN 908)
1.14
2
Pad retainer
1.15
2
Cap screw
DIN EN ISO 4762 - 10.9
1.16
1
Drain plug (nylon)
1.17
1
Distance plate
1.18
2
Countersunk screw
1.19
1
Connection adapter
1.20
1
Screw plug VSTI (acc. to
DIN 908)
Component assembly 2: Pad retraction sets
Compo-
nent
Quantity
Description
Illustration 5: Pad retraction set
2.1
1
Cap screw
DIN EN ISO 4762 - 10.9
2.2
1
Pressure spring
2.3
1
Sealing plug

To ensure the full braking power, the preparation for assembly needs to be carefully per-
formed.
•The connection plate or the stand for the brake as well as the brake disk have to be inspected for dimensional
accuracy. For that purpose investigate the connection dimensions, connection surfaces and tolerances as
specified in the drawing (see illustrations 1 and 2 and table 3).
•Clean and degrease the brake disk and mounting surfaces. Dirt can easily be removed by means of solvents.
4 Assembly
4.1 Components of the brake
4.2 Preparation of assembly

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
8 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:

The connection between connection surface and brake is defined as frictional contact. Any
residues of oil, dirt and corrosion protection reduce the coefficient of friction. As a result
the operation of the brake and the full braking power are no longer ensured.
!
Please observe the manufacturer’s instructions regarding the use of solvents.

KTR supplies brake pads free from asbestos and lead only.
If requested, we will provide you with the corresponding certificates.
The brake pads are each adapted to the application and delivered accordingly.
They can be distinguished as follows:
•organic material
•powder metal
!
Brake pads are highly sensitive to grease and oil which means that they cannot be cleaned.
Brake pads having such kind of dirt need to be replaced and disposed of.

We would recommend to store the brake pads in their package as long as possible to pro-
tect them from any kind of dirt.
!
Brake pads which have worn off to the wear limit have to be replaced immediately. Make
sure to replace by original parts only.
!
If one half of the brake has to be mounted under pressure (without transport lock) for
reasons of space, please consult with KTR.
STOP
In order to avoid any injuries please always make use of proper lifting equipment.
M12 threads are positioned in the pad retainer to fasten an eye bolt serving to use lifting tools. The eye bolt is to
be dismounted after assembly of the brake and stored in a safe place.
!
In order to avoid any damages on the brake, never twist a rope or another lifting tool around
damageable components.

Before you start with the assembly please check if a sensor has been mounted.
Please remove it before assembly in order to avoid any damages.
•Inspect the position of the setting nut (component 1.7). If necessary, set it to the right dimension (see illustrati-
on 12).
•Insert the brake pads (component 3) fully into the housing.
4 Assembly
4.2 Preparation of assembly
4.3 Brake pads
4.4 Assembly of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
9 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:

If you want to use brake pads after having assembled the brake, it is necessary to disas-
semble the pad holder (component 1.14 and 1.15) for that purpose (chapter 5.1).
•Mount the pad retraction sets (component assembly 2) by screwing the screw (component 2.1) with the pres-
sure spring (component 2.2) into the brake pad.
•Hand-tighten the screw.
•Insert the protective plug (component 2.3).

Secure the screw connection (component 2.1) on the brake pad additionally against working
loose, e. g. conglutinating with Loctite (average strength).
•Insert the first half of the brake (component 1) in the cor-
rect position towards the connection plate or stand,
respectively (see illustration 6).
•Insert one of the six connection screws into the brake
until the face of the connection screw is flush with the
rear connection plate respectively stand.
Illustration 6

You should preferably insert the connec-
tion screw marked with 1 in illustration 6.
•Insert the second half of the brake in the correct position
towards the connection plate or stand, respectively.
•Push the connection screw screwed in before through the
second half of the brake and align it symmetrically.
•Fasten the connection screw at the tightening torques
specified in table 4.
•Repeat this process until the total of 6 connection screws
have been mounted.

To facilitate the assembly it is possible to fix
the position of the brake by one connection
screw only first. Swing in the brake until the
balance of the screws can be assembled, too
(see illustration 6).
Table 4: Tightening torques of the connection screws
Screw size
Tightening torque TA [Nm] –10.9
untreated and oiled
Tightening torque TA [Nm] –10.9
greased with MoS2
M20
592
438
M24
1017
754
M27
1496
1100

In order to avoid any contact between the brake disk and the brake resulting from thermal
expansion, the distance of the brake according to table 3 needs to be observed.
!
Please make sure that the tolerances of the brake disk do not exceed the figures specified
in illustration 2.
4 Assembly
4.4 Assembly of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
10 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
•Connect the pressure oil line to one of the pressure ports of the brake (see illustration 7 and 8). For that pur-
pose remove the screw plug beforehand.
!
The hydraulic lines have to be rinsed before connecting to the brake to prevent any partic-
les from getting into the brake. If the lines are not rinsed sufficiently, the gaskets may be
damaged and the operation of the brake is no longer ensured.
•Mount a miniature measuring coupling with a miniature measuring hose to the venting hole (see illustration 7
and 8), for that purpose the screw plug needs to be removed beforehand. Discharge the end of the miniature
measuring hose in a suitable collection container.

The pressure ports on top serve for venting the brake. For a wash-up system please make
use of one of the pressure ports on top.

Always connect the brake consisting of two halves to a pressure line (see illustration 8),
since the brake disk is loaded with the full braking power on one side in case that one half
of the brake fails.
!
It is not recommended to use steel plugs for venting.
•Connect the drain line to the brake (see illustration 7 and 8). For that purpose remove the sealing plugs befo-
rehand.

If no drain line is connected, a vacuum may be generated inside the brake which will dama-
ge the gaskets.
!
Never give any pressure on the drain line. Gaskets and scrapers are destroyed in this way.

In order to locate a leakage immediately, it is recommended to use a transparent hose and
collection container. Since higher pressures (5 bar at the maximum) are not generated, a
pneumatic hose may be used, too. Please regularly inspect the brake for leakages.
!
Severe leakages have to be removed immediately. Oil which has escaped has to be comple-
tely removed, since oil remains may vaporize on hot components and ignite.

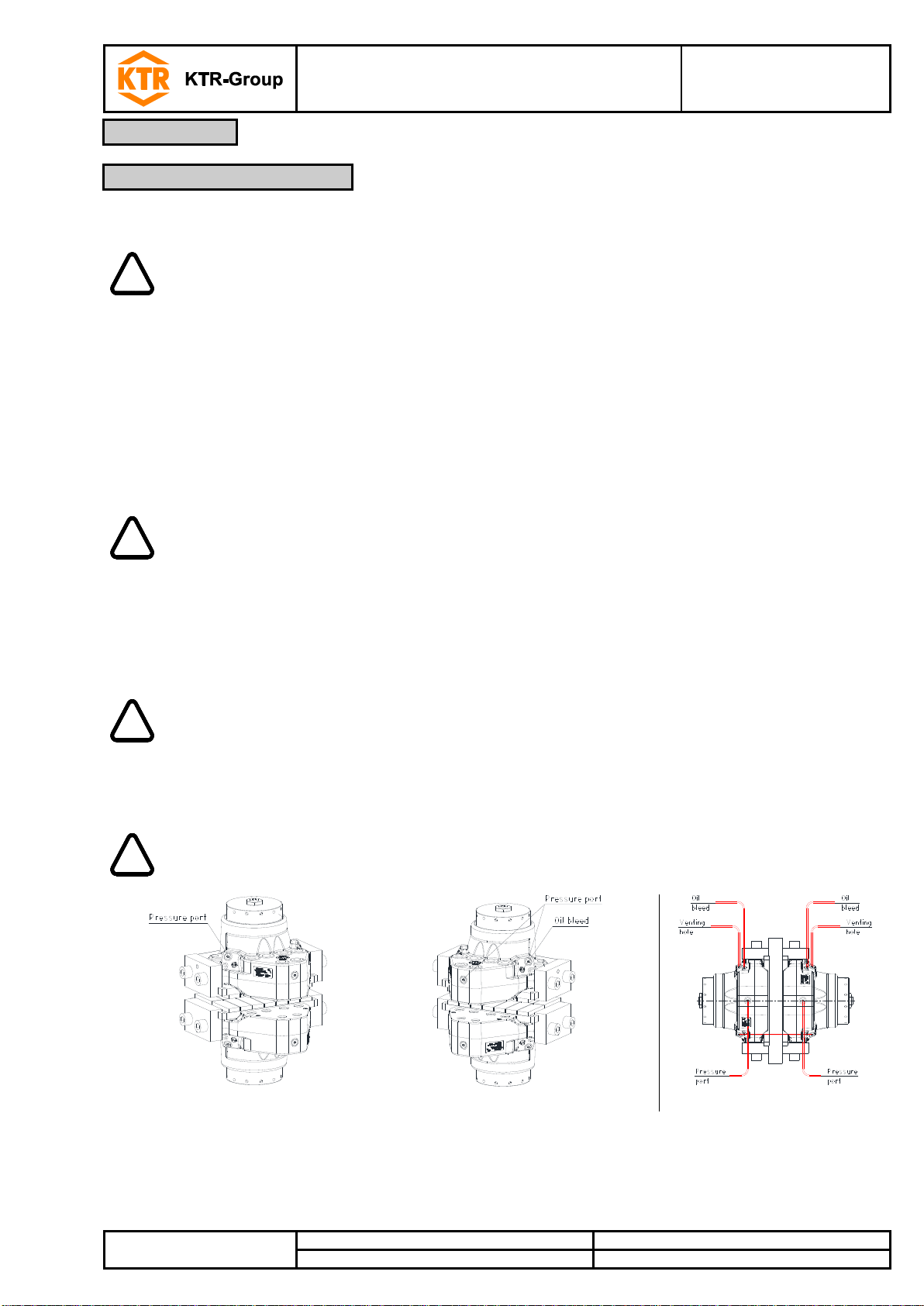

Illustration 7: Connections of the drain lines/pressure lines
Illustration 8: Pressure port of a brake

Please make sure that the connections and hoses are adapted to the brakes with regard to
pressure, flow rate, temperature and liquid.
Moreover, you have to use flexible hydraulic hoses in order to not limit the motions of the
brake. Any hoses which are located close to mobile components should be secured or
coated accordingly.
4 Assembly
4.5 Pressure port of a brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
11 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:

If several brakes are assembled we recommend to connect the pressure port for each brake
individually (in parallel) (see illustration 9).
Please note, if several brakes are connected in a series (see illustration 10), the braking
effect of all following brakes may become effective slightly delayed.
•Connect the pressure oil line to the pressure ports of
the brake (see illustration 8, 9 and 10). For that pur-
pose remove the screw plugs beforehand.
•Mount a miniature measuring coupling with a minia-
ture measuring hose to the venting hole (see illustra-
tion 8, 9 and 10), for that purpose the screw plug
needs to be removed beforehand. Discharge the end
of the miniature measuring hose in a suitable collec-
tion container.
!
The hydraulic lines have to be rinsed
before connecting to the brake to pre-
vent any particles from getting into the
brake. If the lines are not rinsed suffi-
ciently, the gaskets may be damaged
and the operation of the brake is no
longer ensured.
Illustration 9: Pressure port of
several brakes (in parallel)
Illustration 10: Pressure port
of several brakes (in a series)
!
The pressure port on top serves for venting the brake. For a wash-up system please make
use of one of the pressure ports on top.

Always connect the brake consisting of two halves to a pressure line (see illustration 9 and
10), since the brake disk is located with the full braking power on one side in case that one
half of the brake fails.
!
With the parallel connection of brakes (see illustration 9) each brake needs to be vented
individually.
!
It is not recommended to use steel plugs for venting.
•Connect the drain pipe to the brake (see illustration 8, 9 and 10). For that purpose remove the sealing plugs
beforehand.

If no drain line is connected, a vacuum may be generated inside the brake which will dama-
ge the gaskets.
!
Never give any pressure on the drain line. Gaskets and scrapers will be destroyed in this
way.

In order to locate a leakage immediately, it is recommended to use a transparent hose and
collection container. Since higher pressures (5 bar at the maximum) are not generated, a
pneumatic hose may be used, too. Please regularly inspect the brake for leakages.
4 Assembly
4.6 Pressure port of several brakes

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
12 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
!
Severe leakages have to be removed immediately. Oil which has escaped has to be comple-
tely removed, since oil remains may vaporize on hot components and ignite.

Please make sure that the connections and hoses are adapted to the brakes with regard to
pressure, flow rate, temperature and liquid.
Moreover, you have to use flexible hydraulic hoses in order to not limit the motions of the
brake. Any hoses which are located close to mobile components should be secured or
coated accordingly.

Before start-up and after each operation on the brake the hydraulic system has to be gene-
rally vented.
Repeat venting the brake several times a year, since any air in the hydraulic system may
affect the operation of the brake and the plant.
!
Please make sure that there is sufficient liquid in the hydraulic system during and after the
venting process (recommendation of liquid, see chapter 4.9).
•Switch on the hydraulic system for a short while to make sure that the brake is rinsed with hydraulic oil. Repeat
this process until a stream of clean oil dissipates from the miniature measuring hose.
•Remove the miniature measuring hose.

If the miniature measuring coupling is removed as well, the screw plug (component 1.13)
needs to be screwed in the venting hole (see illustrations 9 and 10).
•Dispose of the hydraulic oil of the collection container as per chapter 4.12.
•Put the opening pressure (see table 2) on the hydraulic system to relieve the assembly lock.
!
The hydraulic system must never be operated at a higher pressure than the figures spe-
cified in the type plate of the brake or table 1. If any figures or types/sizes are changed,
please consult with KTR.
!
Never keep your fingers between brake disk and brake when locking the brake in order to
prevent serious injuries of your hands. Before every maintenance operation please make
sure that the brake is fully secured against activating.
4 Assembly
4.6 Pressure port of several brakes
4.7 Start-up of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
13 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
•Remove the screw with the disk (assembly lock, see illustration
11) on both sides from the centering pin (component 1.8).

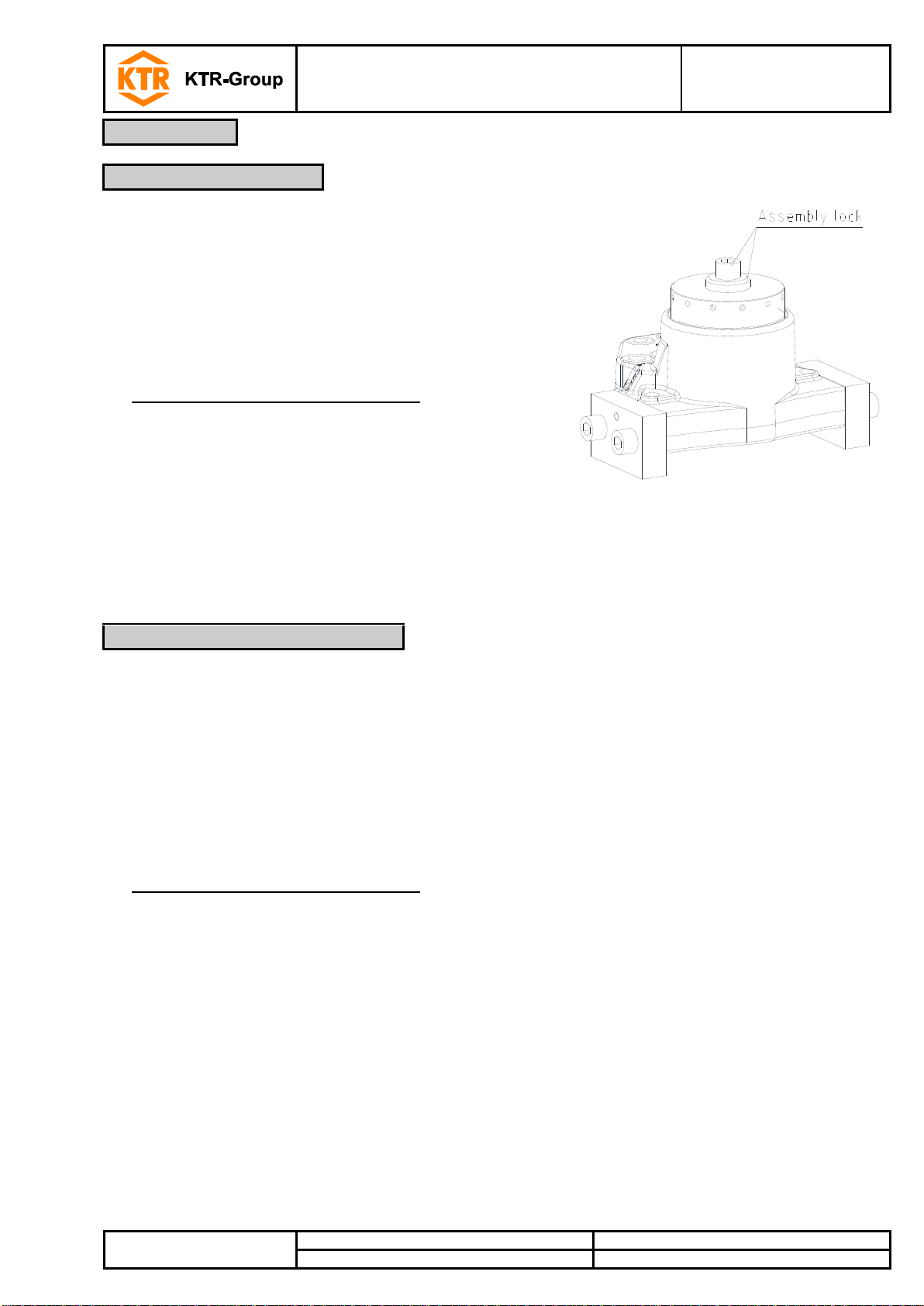

Bild 11: Assembly lock

Afterwards store the assembly lock (screw with
disk) in a safe place since it will be required
again later.
•Screw the screw plug (component 1.20) on both sides into the
setting nut (component 1.7).
•Applying with the use of a sensor only:
Mount the sensor (component 4) according to chapter 6.2
instead of the screw plug (component 1.20).
•The brake pads have to be ground in on the surface of the
brake disk to achieve the nominal coefficient of friction.

Please observe the instructions for grinding-in according to KTR-N.

The brake needs to be set with the initial assembly or after having replaced the brake pads
or single parts, respectively. Only in this way it is ensured that the brake has the clamping
force specified.

In case of wear of the brake pads the brake needs to be regularly reset. Before you reset the
brake, the centering system needs to be set first.
For that purpose repeat the complete chapters Setting/resetting of the centering system and
afterwards Setting/resetting of the brake.
•Remove the O-ring (component 1.9) and the screw plug on both sides (component 1.20).
•Applying with the use of a sensor only:
Remove the sensor (component 4).
•Put the opening pressure (see table 2) on the hydraulic system to make sure that the brake pads lift off the
brake disk.

Please note chapter 4.7 Start-up of brake.
4 Assembly
4.7 Start-up of the brake
4.8 Setting/Re-setting of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
14 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
•Screw the screw with the disk (assembly lock, see illustration
11) on both sides into the centering pin (component 1.8).
•Release the pressure from the hydraulic system.
•Measure the gap between the brake disk and the brake pad on
both sides via a feeler gauge.
•Set the gap to 1 mm on both sides by screwing the setting nut
either upwards or downwards.
•Applying for resetting of the brake only (wear of brake
pad):
With a wear of the brake pad (1 mm wear for each brake pad)
of 2 mm the setting nut needs to be screwed in by one revolu-
tion.
•Insert the O-ring (component 1.9) on both sides between the
housing and the setting nut.
Illustration 12: Setting of adjusting nut

The gap between brake disk and brake pad needs to be 1 mm on both sides to ensure the
brake power.
•Applying with the use of a sensor only:
Mount the sensor (component 4) according to chapter 6.2 instead of the screw plug (component 1.20).
4 Assembly
4.8 Setting/Re-setting of the brake

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
15 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
!
You may only use mineral hydraulic liquids meeting the specifications of DIN 51524. KTR
recommends those liquids corresponding to DIN 51524-3.
KTR recommends the following liquids (other manufacturers may be selected):
Manufacturer
Standard
Special
Mineral oil
- 20 °C to + 40 °C
(- 4 °F to 104 °F)
+ 10 °C to + 60 °C
(+ 50 °F to + 140 °F)
- 30 °C to + 20 °C
(- 22 °F to 68 °F)
+ 30 °C to + 70 °C
(+ 86 °F to + 158 °F)
Castrol
Hyspin HVI 32
Hyspin HVI 46
-
Hyspin HVI 68
Shell
Tellus S2 VX32
Tellus S2 VX46
Tellus S4 VX32
Tellus S2 VX68
Mobil
DTE 10 Excel 32
DTE 10 Excel 46
-
DTE 10 Excel 68

The permissible operating temperatures of brake components from - 20 °C to + 60 °C (- 4 °F
to + 140 °F) have to be observed. For deviating operating temperatures please consult with
KTR.
Viscosity
We would recommend a viscosity range from 20 to 220 mm2/s (cSt) of the hydraulic liquid with operating tempera-
ture. The viscosity during starting should not exceed 500 mm2/s and the viscosity during operation should not fall
below 12 mm2/s.
Filtration
When filling and re-filling the hydraulic system and replacing the hydraulic liquid, the oil needs to be filtered. For
that purpose use an offline filter or a respective fill unit. In addition we would recommend to use an inline filter.

The service life of the brake system is extended depending on the degree of purity of the oil.
As a standard the KTR basic power packs are equipped with a 10 µm inline filter.
In order to ensure the reliability of the system, only those oils originating from the following purity classes are
permitted:
•ISO 4406, class 18/16/13
Maintenance operations on the hydraulic system
In order to ensure a smooth operation of the overall system, the maintenance operations on the hydraulic system
(inspection of level and degree of dirt, replacing the hydraulic liquid or filter elements, etc.) have to be performed
as per the manufacturer's operating instructions.
The system has to be rinsed or vented after each replacement of the hydraulic liquid.
!
Adverse reactions may be generated by mixing different liquids or liquids of various manu-
facturers.

Please contact the manufacturer of mineral oils if you intend to replace the hydraulic liquid.
4 Assembly
4.9 Recommendation of liquids to be used

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
16 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
STOP
In order to avoid any personal injuries, protect the brake on both sides by means of the as-
sembly lock.
•Remove the screw plug (component 1.20) or the sensor (component 4) on both sides from the setting nut
(component 1.7).
•Put the opening pressure (see table 2) onto the hydraulic system.
•Hand-tighten the screw with the disk (assembly lock, see illustration 11) on both sides into the setting nut
(component 1.7).
•Release the pressure fully from the hydraulic system.
!
Please make sure that the entire brake/hydraulic system is depressurized.
STOP
Parts released or falling down may cause injury to persons or damage on the machine.
Secure the components before disassembly.
•Remove the screw plug located at the highest point (component 1.13) from the venting hole (see illustrations 9
and 10).
•Drain the hydraulic oil completely from the brake.
•Dispose of the hydraulic oil as per chapter 4.12.
•Disconnect the drain and pressure oil line from the brake.
•Screw the screw plugs (component 1.13) into all pressure ports or venting holes (see illustrations 7 to 10).
•Remove the 6-off connection screws serving for fixing the brake to the connection plate.
•Take out both halves of the brake.

If you intend to disassemble one half of the brake only, pull out the 6-off connection screws
until the faces of the connection screws are flush with the connection plate respectively
stand.
A basic requirement to ensure the readiness for use of the brake is a stock of the most important spare parts on
site.
Contact addresses of the KTR partners for spare parts and orders can be obtained from the KTR homepage at
www.ktr.com.

KTR does not assume any liability or warranty for the use of spare parts and accessories
which are not provided by KTR and for the damages which may incur as a result.
4 Assembly
4.10 Disassembly of the brake
4.11 Spares inventory, customer service addresses

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
17 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
In respect of environmental protection we would ask you to dispose of the products on termination of their service
life in accordance with the legal regulations and standards that apply, respectively.
•Metal or brake pads, respectively
Brake pads and any other metal parts have to be cleaned and disposed of by scrap metal.
•Gaskets
Gaskets can be disposed of by residual waste.
•Sensors
Electrical components have to be treated as electrical waste.
•Hydraulic oil
Hydraulic oils have to be collected in suitable tanks and disposed of by a waste disposal company.

Brake pads having a balance of pad height of less than 2 mm have to be replaced by return.

Replace the brake pads in both halves of the brake simultaneously.
STOP
Parts released or falling down may cause injury to persons or damage on the machine.
Secure the components before disassembly.
!
Never keep your fingers between brake disk and brake when locking the brake in order to
prevent serious injuries of your hands. Before every maintenance operation please make
sure that the brake is fully secured against activating.
•Remove the screw plug (component 1.20) or the sensor (component 4) on both sidesfrom the setting nut
(component 1.7).
•Put the opening pressure (see table 2) onto the hydraulic system.
•Hand-tighten the screw with the disk (assembly lock, see illustration 11) on both sides into the centering pin
(component 1.8).
•Release the pressure fully from the hydraulic system.
•Inspect the position of the setting nut (component 1.7) on both sides. If necessary, set it to the right dimension
(see illustration 12).
•Disassemble the pad holders (component 1.14) on both sides for one half.
•Remove the pad retraction sets (component 2) on both sides.
•Replace the brake pads that have worn off. Insert the brake pads (component 3) fully into the housing on both
sides.
•Hand-tighten the pad holders (component 1.14 ) on both sides by each 2-off cap screws (component 1.15)
first. Tighten the screws at the tightening torque TA= 890 Nm.
4 Assembly
4.12 Disposal
5 Maintenance
5.1 Replacement of brake pads

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
18 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
•Mount the pad retraction sets (component 2) on both sides by shifting the pressure spring (component 2.2)
onto the pin (component 2.1). Screw the pin with the pressure spring into the brake pad against a stop.

Secure the screw connection (component 2.1) on both sides on the brake pad additionally against
working loose, e. g. conglutinating with Loctite (average strength).
•Repeat chapter 4.8 Setting/re-setting of the brake
•Please make sure that the brake disk can rotate freely while not touching the brake pads or the housing.

Please note chapter 4.4 Assembly of the brake.
•Before you reactivate the brake, observe chapter 4.7 Start-up of the brake.

To ensure the full braking power, both disassembly and assembly have to be performed at
the highest level of purity.
•Disassemble the brake, please observe chapter 4.10 Disassembly of brakes.
•Remove the pad retracting sets (component 2) on both sides.
•Take out the brake pads (component 3).
Illustration 13: KTR-STOP®M-xxx B-xx-xx
5 Maintenance
5.1 Replacement of brake pads
5.2 Maintenance of the brake / replacement of single parts

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
19 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
•Remove the O-ring (component 1.9) on both sides.
•Put the opening pressure (see table 2) onto the hydraulic system.
•Remove the screw with the disk (assembly lock, see illustration 11) on both sides from the centering pin (com-
ponent 1.8).
•Release the pressure from the hydraulic system.
•Unscrew the setting nut (component 1.7) on both sides from the housing.
•Remove the set of disk springs (component 1.6) on both sides.

Please make use of a tool to ensure that you can provide for the same arrangement of disk
springs, disk and adjustment washer(s) with re-assembly of the brake.
•Press the brake piston (component 1.2) carefully out of the housing (if necessary, use some hydraulic oil).
•Remove the gaskets (component 1.4 and 1.5) and the scraper (component 1.3).

When removing the gaskets and scrapers make sure that the keyways in the housing are
not damaged.
•The components have to be cleaned from dirt, grease and corrosion protection. The components can easily be
cleaned by means of solvents. Afterwards dry the components.
!
Please observe the manufacturer’s instruc-
tions regarding the use of solvents.
Illustration 14: Housing with single parts
•Insert new gaskets (component 1.4 and 1.5) and
scrapers (component 1.3 and 1.19) on both sides into
the housing. For that purpose the components may be
heart-shaped (see illustration 15).
!
The gasket and scraper have to be instal-
led in the right direction (see illustration
16).

With a new assembly of the brake piston
basically new gaskets and scrapers have
to be used, since their operativeness is no
longer ensured due to wear and damages.
•Grease the gaskets and the scraper with hydraulic oil
(see illustration 16).
5 Maintenance
5.2 Maintenance of the brake / replacement of single parts

KTR-STOP®M-xxx B-xx-xx
Operating/Assembly instructions
KTR-N
Sheet:
Edition:
445102 EN
20 of 22
3
Please observe protection
note ISO 16016.
Drawn:
2020-03-25 Shg/Wie
Replacing:
KTR-N dated 2019-08-26
Verified:
2020-03-25 Shg
Replaced by:
!
Oils and greases containing molybdenum disulphite or zinc sulphite additives must not be
used.
Illustration 15: Assembly of gasket and scraper
Illustration 16
!
Inspect the surfaces of the brake piston and the hole of the housing to make sure that they
are neither scratched nor damaged, since the surfaces are either ground or polished. Such
kind of damages may cause earlier wear on the gaskets and scrapers and generate leaka-
ges.
•Insert the brake piston (component 1.2) into the housing and press it against a stop.
•Shift the set of disk springs (component 1.6) into the brake piston (component 1.2). Make sure that the disks
are located on top.

Grease the disk springs properly with Molykote MoS2.
Please make sure that the set of disk springs is mounted in the same arrangement as it was
supplied.
If a new set of disk springs is used, the condition of supply needs to be observed in detail.
•Screw the setting nut (component 1.7) into the housing and set it to the right dimension (see illustration 12).
•Put the opening pressure (see table 2) onto the hydraulic system.
•Hand-tighten the screw with the disk (assembly lock, see illustration 11) into the setting nut (component 1.7).
•Release the pressure from the hydraulic system.
•Insert a new O-ring (component 1.9) between the housing and the setting nut.
•Repeat chapters 4.2 to 4.8.
KTR-STOP®M-xxx B-xx-xx is a low-maintenance brake. We recommend to perform a visual inspection and an
operational testing on the brake at least once a year. Here you should put special emphasis on leakages, corro-
sion, wear of brake pads and the condition of the screw connections.

If you realize any irregularities, please perform repairs accordingly.
5 Maintenance
5.2 Maintenance of the brake / replacement of single parts
5.3 Maintenance and service
