ROTEX®
Torsionally flexible jaw-type couplings
AFN-SB spec.
and their combinations
for finish bored, pilot bored and unbored couplings

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
2 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
ROTEX®is a torsionally flexible jaw coupling. It is able to compensate for shaft misalignment, for
example caused by manufacturing inaccuracies, thermal expansion, etc.
Type AFN-SB spec. allows to replace the spider or brake disk without dismounting the driving or driven
machine.
1Technical data 3
2Advice 4
2.1 General advice 4
2.2 Safety and advice symbols 4
2.3 General hazard warnings 4
2.4 Intended use 5
2.5 Coupling selection 5
2.6 Reference to EC Machinery Directive 2006/42/EC 5
3Storage, transport and packaging 5
3.1 Storage 5
3.2 Transport and packaging 6
4Assembly 6
4.1 Components of the coupling 6
4.2 Advice for finish bore 7
4.3 Assembly of the coupling 8
4.4 Displacements - alignment of the couplings 9
5Start-up 10
6Breakdowns, causes and elimination 11
7Disposal 12
8Maintenance and service 13
9Spares inventory, customer service addresses 13
Table of contents

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
3 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:

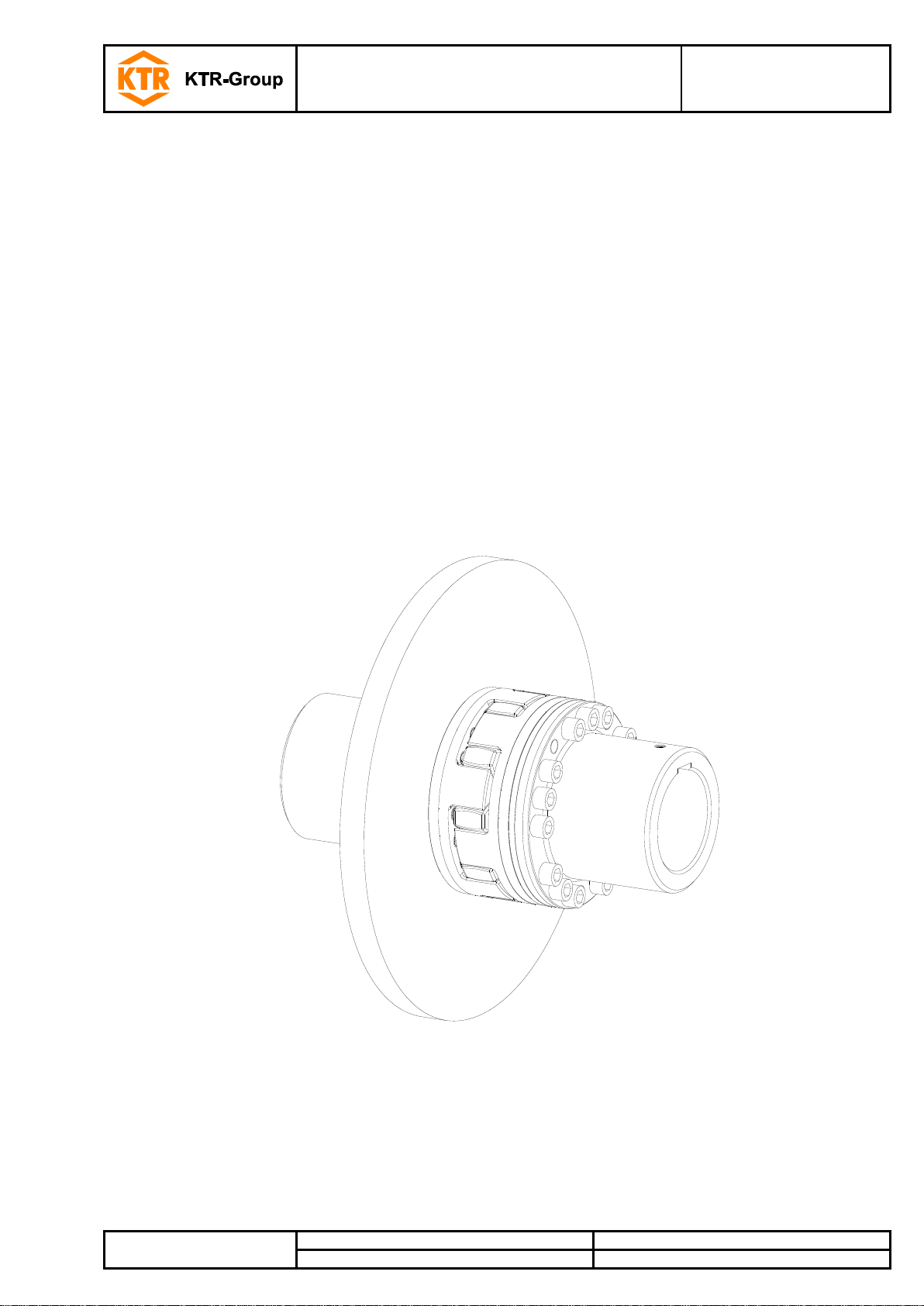

Illustration 1: ROTEX®, type AFN-SB spec.
Table 1: Dimensions and technical data
Size
Dimensions [mm]
d
DH
DF
D3
H7/h7
D4
dH
E
E1
b
s
M
z
Pitch
(z x angle)
TA
[Nm]
Min.
Max.
65
22
70
135
94
96
116
68
35
65
26
4.5
M10
12
16 x 22.5°
83
75
30
80
160
108
112
136
80
40
75
30
5.0
M12
15
20 x 18°
120
90
40
105
200
142
145
172
100
45
82
34
5.5
M16
295
100
46
115
225
158
165
195
113
50
97
38
6.0
110
60
130
255
178
180
218
127
55
103
42
6.5
M20
580
125
60
150
290
206
215
252
147
60
116
46
7.0
140
60
170
320
235
245
282
165
65
128
50
7.5
160
80
200
370
270
280
325
190
75
146
57
9.0
M24
1000
180
85
230
420
315
330
375
220
85
159
64
10.5
18
24 x 15°
Size
Spider 1) (component 2)
Torque [Nm]
Max. speed
[rpm]
Max. braking
torque 2) [Nm]
Dimensions [mm]
TKN
TKmax
l7
l10
l11
l12
l20
N
L
65
940
1880
3450
1880
16
112.5
113.5
166.0
135
150
344.5
75
1920
3840
3250
3840
19
131.5
133.0
166.5
135
150
374.5
90
3600
7200
3000
7200
20
164.0
165.5
206.5
175
190
454.0
100
4950
9900
2800
9900
25
153.5
155.0
206.5
175
190
458.5
110
7200
14400
2600
14400
26
201.5
203.5
212.5
180
195
518.5
125
10000
20000
2250
20000
30
198.5
200.5
212.5
180
195
528.5
140
12800
25600
1800
25600
34
244.5
247.0
252.5
220
235
627.5
210 3)
230 3)
160
19200
38400
1500
38400
38
226.5
229.0
252.5
220
235
627.5
210 3)
230 3)
180
28000
56000
1350
56000
40
195.0
198.0
252.5
220
235
609.5
1) Spider 98 ShA
2) The maximum braking torque must not exceed the maximum torque (TKmax) of the coupling.
3) Dimensions with a width of brake disk b1= 40 mm
Table 2: Selection of brake disk with coupling
Size
Brake disk ØA x b1
355 x 30
400 x 30
450 x 30
500 x 30
560 x 30
630 x 30
710 x 30
800 x 30
900 x 30
900 x 40
1000 x 40
65



75



90




100



110




125



140





160





180





1 Technical data

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
4 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
Please read through these operating/assembly instructions carefully before you start up the coupling.
Please pay special attention to the safety instructions!
The operating/assembly instructions are part of your product. Please store them carefully and close to the
coupling. The copyright for these operating/assembly instructions remains with KTR.
STOP
Warning of personal injury
This symbol indicates notes which may contribute to
preventing bodily injuries or serious bodily injuries that
may result in death.
!
Warning of product damages
This symbol indicates notes which may contribute to
preventing material or machine damage.

General advice
This symbol indicates notes which may contribute to
preventing adverse results or conditions.
Warning of hot surfaces
This symbol indicates notes which may contribute to
preventing burns with hot surfaces resulting in light to
serious bodily injuries.
STOP
With assembly, operation and maintenance of the coupling it has to be made sure that the
entire drive train is secured against accidental switch-on. You may be seriously hurt by
rotating parts. Please make absolutely sure to read through and observe the following
safety indications.
All operations on and with the coupling have to be performed taking into account "safety first".
Please make sure to switch off the power pack before you perform your work on the coupling.
Secure the power pack against accidental switch-on, e. g. by providing warning signs at the place of switch-on
or removing the fuse for current supply.
Do not reach into the operating area of the coupling as long as it is in operation.
Please secure the coupling against accidental contact. Please provide for the necessary protection devices
and covers.
2 Advice
2.1 General advice
2.2 Safety and advice symbols
2.3 General hazard warnings

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
5 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
You may only assemble, operate and maintain the coupling if you
have carefully read through the operating/assembly instructions and understood them
had technical training
are authorized by your company
The coupling may only be used in accordance with the technical data (see chapter 1). Unauthorized modifications
on the coupling design are not admissible. We will not assume liability for any damage that may arise. In the
interest of further development we reserve the right for technical modifications.
The ROTEX®AFN-SB spec. described in here corresponds to the technical status at the time of printing of these
operating/assembly instructions.
!
For a permanent and failure-free operation of the coupling it must be selected according to
the selection instructions (according to DIN 740 part 2) for the particular application (see
catalogue drive technology "ROTEX®").
If the operating conditions (performance, speed, modifications on engine and machine)
change, the coupling selection must be reviewed.
Please make sure that the technical data regarding torque refer to the spider only. The
transmittable torque of the shaft-hub-connection must be reviewed by the customer and is
subject to his responsibility.
For drives subject to torsional vibrations (drives with cyclic stress due to torsional vibrations) it is necessary to
perform a torsional vibration calculation to ensure a reliable selection. Typical drives subject to torsional vibrations
are e. g. drives with diesel engines, piston pumps, piston compressors etc. If requested, KTR will perform the
coupling selection and the torsional vibration calculation.
The couplings supplied by KTR should be considered as components, not machines or partly completed
machines according to EC Machinery Directive 2006/42/EC. Consequently KTR does not have to issue a
declaration of incorporation. For details about safe assembly, start-up and safe operation please refer to the
present operating/assembly instructions considering the warnings.
The couplings are supplied in preserved condition and can be stored at a dry and covered place for 6 - 9 months.
The features of the coupling spiders (elastomers) remain unchanged for up to 5 years with favourable storage
conditions.
!
The storage rooms must not include any ozone-generating devices like e. g. fluorescent
light sources, mercury-vapour lamps or electrical high-voltage appliances.
Humid storage rooms are not suitable.
Please make sure that condensation is not generated. The best relative air humidity is less
than 65 %.
2 Advice
2.4 Intended use
2.5 Coupling selection
2.6 Reference to EC Machinery Directive 2006/42/EC
3 Storage, transport and packaging
3.1 Storage

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
6 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
!
In order to avoid any injuries and any kind of damage please always make use of proper
transport and lifting equipment.
The couplings are packed differently each depending on size, number and kind of transport. Unless otherwise
contractually agreed, packaging will follow the in-house packaging specifications of KTR.
The coupling is generally supplied in individual parts. Before assembly the coupling has to be inspected for
completeness.
Components of ROTEX®, shaft coupling type No. 001
Component
Quantity
Description
1a
see table 1
Cap screws DIN EN ISO 4762 - Mxl
1b
see table 1
Cap screws DIN EN ISO 4762 - Mxl1
2
1
Spider
3Na
2
Driving flange N type A
4Nv
1
Coupling flange N lengthened
4Nx
1
Coupling flange N spec.
5
2
Setscrews DIN EN ISO 4029
15Nx
1
SB brake disk N
Illustration 2: ROTEX®, type AFN-SB spec.
Features of standard spiders
Spider hardness
(Shore)
98 Shore A
T-PUR®
(purple)
PUR
(red)
Marking
(colour)
3 Storage, transport and packaging
3.2 Transport and packaging
4 Assembly
4.1 Components of the coupling

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
7 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:

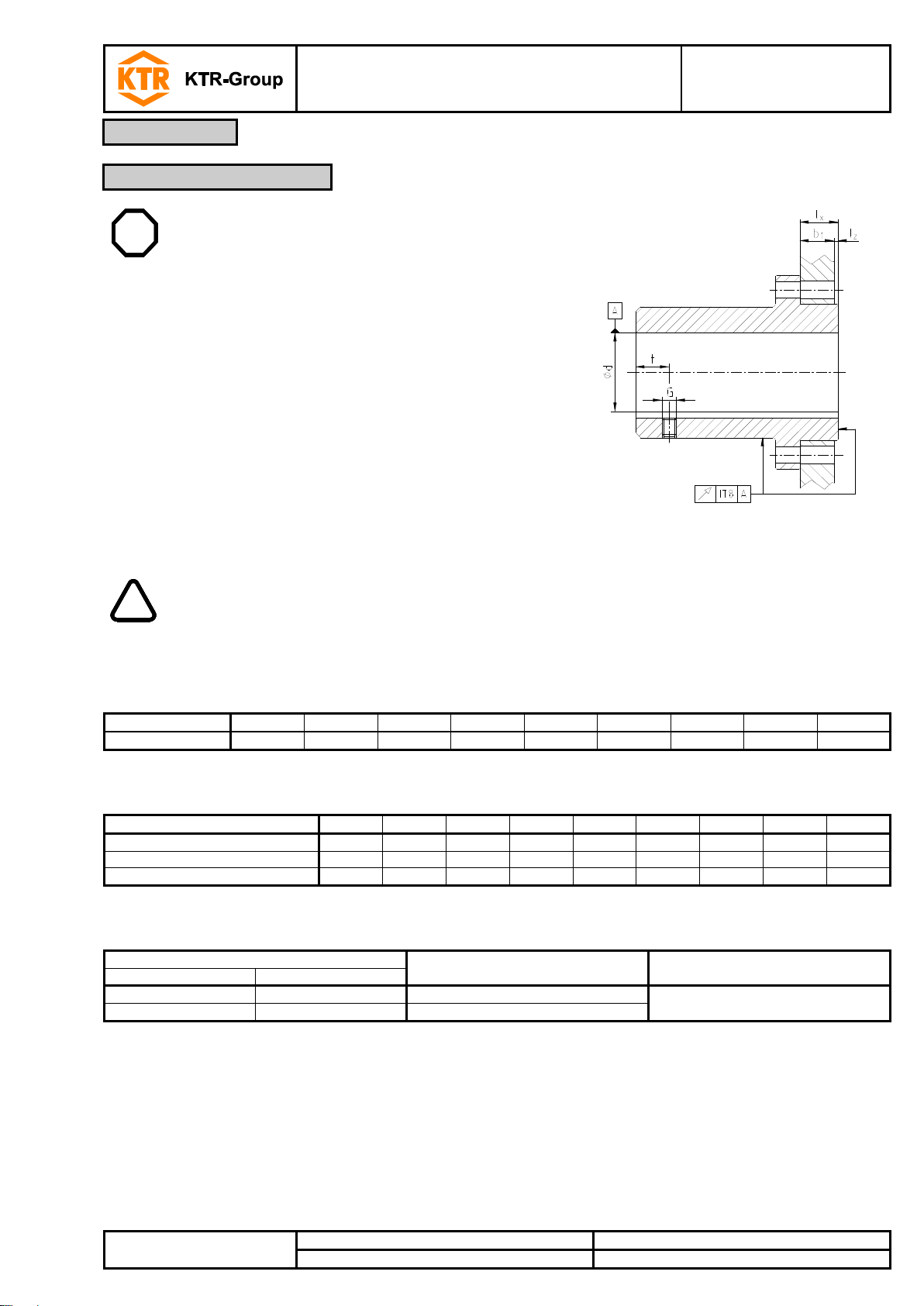

STOP
The maximum permissible bore diameters d (see
table 1 and 2 in chapter 1 - technical data) must
not be exceeded. If these figures are
disregarded, the coupling may tear. Rotating
particles may cause danger to life.
Bores on the coupling flange machined by the
customer have to observe concentricity or axial
runout, respectively (see illustration 3).
Please make absolutely sure to observe the
figures for Ø dmax.
Please review the length of the centering spigot lx
(see table 3). lx= b1+ lz
Carefully align the coupling flanges when the
finish bores are drilled.
Please provide for a setscrew according to
DIN EN ISO 4029 with a cup point or an end
plate to fasten the coupling flanges axially.
Illustration 3: Concentricity and axial runout
b1= width of brake disk
lz= pilot length of driving flange
!
The customer bears the sole responsibility for all machining processes performed
subsequently on unbored or pilot bored as well as finish machined coupling components
and spare parts. KTR does not assume any warranty claims resulting from insufficient
remachining.
Table 3: Dimensions lz
Size
65
75
90
100
110
125
140
160
180
Dimension lz
1.0 +0.2
1.5 +0.2
1.5 +0.2
1.5 +0.2
2.0 +0.2
2.0 +0.2
2.5 +0.2
2.5 +0.2
3.0 +0.2
Table 4: Setscrews DIN EN ISO 4029
Size
65
75
90
100
110
125
140
160
180
Dimension G
M10
M10
M12
M12
M16
M16
M20
M20
M20
Dimension t
20
25
30
30
35
40
45
50
50
Tightening torque TA[Nm]
17
17
40
40
80
80
140
140
140
Table 5: Recommended fit pairs acc. to DIN 748/1
Bore [mm]
Shaft tolerance
Bore tolerance
above
up to
50
k6
H7
(KTR standard)
50
m6
If a feather keyway is intended to be used in the hub, it should correspond to the tolerance ISO JS9 (KTR
standard) with normal operating conditions or ISO P9 with difficult operating conditions (frequently alternating
torsional direction, shock loads, etc.).
The transmittable torque of the shaft-hub-connection must be reviewed by the customer and is subject to his
responsibility.

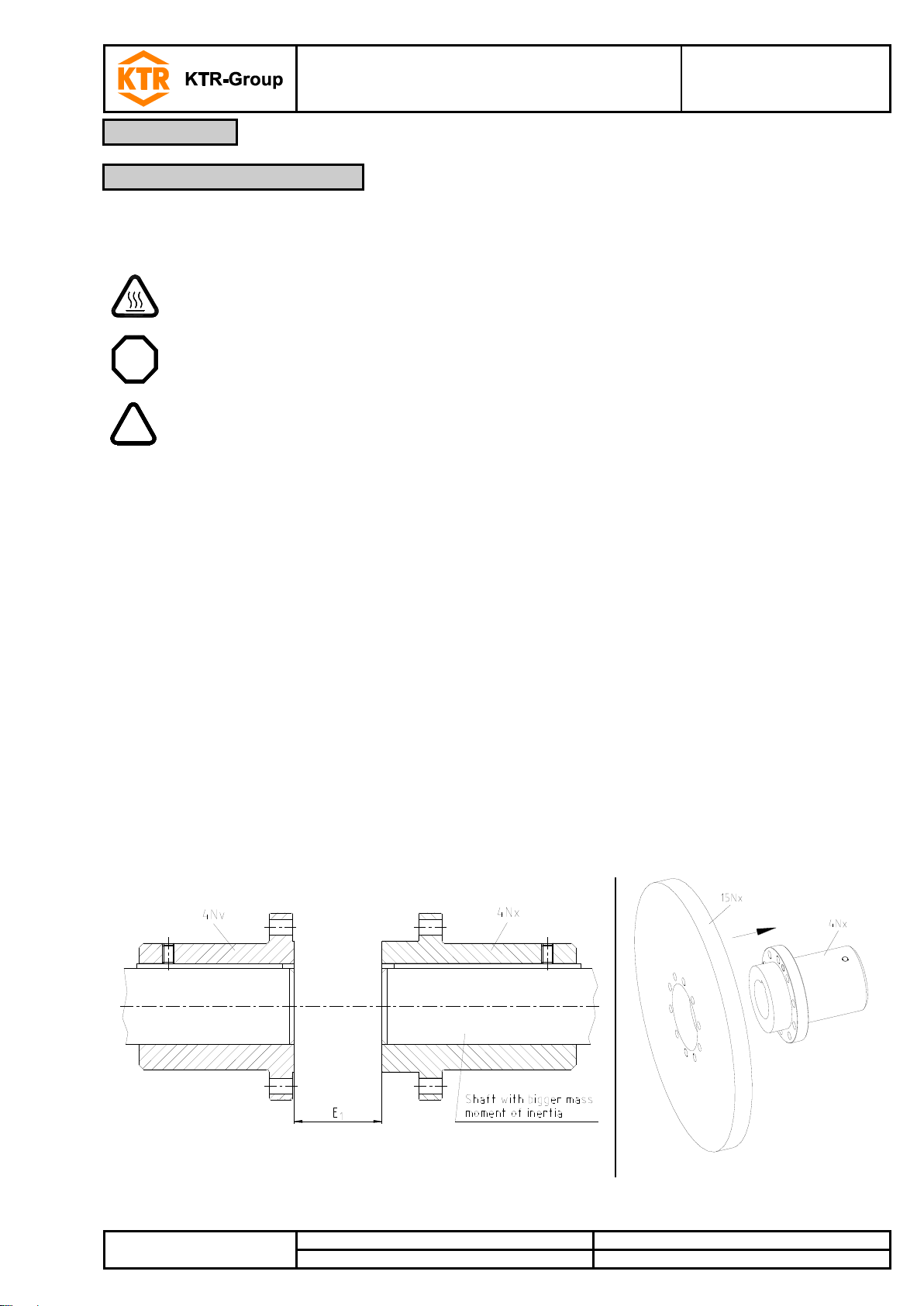

4 Assembly
4.2 Advice for finish bore

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
8 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:

We recommend to inspect bores, shaft, keyway and feather key for dimensional accuracy
before assembly.
Heating the coupling flanges lightly (approx. 80 °C) allows for an easier mounting on the
shaft.
STOP
Touching the heated coupling flanges causes burns.
Please wear safety gloves.
!
With the assembly please make sure that the distance dimension E or E1(see table 1) is
observed to allow for axial clearance of the spider when in operation.
Disregarding this advice may cause damage to the coupling.
Mount the coupling flanges (component 4Nv and 4Nx) onto the shaft of driving and driven side. The coupling
flange (component 4Nx) for the assembly of the brake disk (component 15Nx) has to be mounted to the shaft
end which has the bigger mass moment of inertia (see illustration 4).
The internal sides of the coupling flanges (component 4Nv and 4Nx) must be flush with the front sides of the
shafts (see illustration 4).
Shift the power packs in axial direction until the distance dimension E1is achieved (see illustration 4).
Fasten the coupling flanges (component 4Nv and 4Nx) by tightening the setscrews DIN EN ISO 4029 with a
cup point (tightening torque see table 4) or an end plate.
Mount the brake disk (component 15Nx) onto the centering shoulder of the coupling flange (component 4Nx)
(see illustration 5).
Stick the driving flanges (component 3Na) and the spider (component 2) together (see illustration 6).
Install the components sticked together between the coupling flanges (component 4Nv and 4Nx) (see
illustration 7) and hand-tighten the components with the cap screws (component 1a and 1b) first.
Tighten the screws at the tightening torques TAspecified in table 1 by means of a suitable torque key.
Center the spider (component 2) between the driving flanges (component 3Na) and check the dimensions E
and s (see illustration 1).
Illustration 4: Assembly of coupling flanges
Illustration 5
4 Assembly
4.3 Assembly of the coupling

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
9 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
Illustration 6
Illustration 7
!
Having started up the coupling, the tightening torque of the screws and the wear of spider
have to be inspected at regular maintenance intervals and the spider has to be replaced, if
necessary.
The displacement figures specified in table 6 provide for sufficient safety to compensate for external influences
like, for example, thermal expansion or foundation settling.
!
In order to ensure a long service life of the coupling, the shaft ends have to be accurately
aligned. Please absolutely observe the displacement figures specified (see table 6). If the
figures are exceeded, the coupling will be damaged.
The more accurate the alignment of the coupling, the longer is its service life.
Please note:
The displacement figures specified in table 6 are maximum figures which must not arise in parallel. If radial
and angular displacements arise at the same time, the permissible displacement values may only be used
proportionally (see illustration 9).
Please inspect with a dial gauge, ruler or feeler gauge whether the permissible displacement figures specified
in table 6 can be observed.
Angular displacements
Radial displacements
Axial displacements
Kw= L1max. - L1min. [mm]
Illustration 8: Displacements
Lmax = L + Ka[mm]
4 Assembly
4.3 Assembly of the coupling
4.4 Displacements - alignment of the couplings

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
10 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
Examples of the displacement combinations
specified in illustration 9:
Example 1:
Kr= 30 %
Kw= 70 %
Example 2:
Kr= 60 %
Kw= 40 %
Illustration 9:
Combinations of
displacement
Ktotal = Kr+ Kw100 %
Table 6: Displacement figures for 98 Shore A
Size
65
75
90
100
110
125
140
160
180
Max. axial displacement Ka [mm]
-1.0
-1.5
-1.5
-1.5
-2.0
-2.0
-2.0
-2.5
-3.0
+2.6
+3.0
+3.4
+3.8
+4.2
+4.6
+5.0
+5.7
+6.4
Max. radial displacement
Kr [mm] with
1500 rpm
0.42
0.48
0.50
0.52
0.55
0.60
0.62
0.64
0.68
3000 rpm
0.28
0.32
0.34
0.36
0.38
-
-
-
-
Kw [degree]
Max. angular displacement with n=1500 rpm
Kw [mm]
1.2
1.2
1.2
1.2
1.3
1.3
1.2
1.2
1.2
2.70
3.30
4.30
4.80
5.60
6.50
6.60
7.60
9.00
Kw [degree]
Max. angular displacement with n=3000 rpm
Kw [mm]
1.1
1.1
1.1
1.1
1.2
-
-
-
-
2.30
2.90
3.80
4.20
5.00
-
-
-
-
Before start-up of the coupling, inspect the tightening of the setscrews in the coupling flanges, the alignment and
the distance dimension E or E1and adjust, if necessary, and also inspect all screw connections for the tightening
torques specified, dependent on the type of coupling.

The setscrews to fasten the flange hubs as well as all screw connections must be secured
against working loose additionally, e. g. conglutinating with Loctite (average strength).
Finally the coupling protection against accidental contact must be fitted. It is required in accordance with
DIN EN ISO 12100 (Safety of Machinery) and must protect against
access with the little finger
falling down of solid foreign objects.
The cover may provide for openings intended for necessary heat dissipation. These openings have to comply with
DIN EN ISO 13857.
The cover must be electrically conductive and included in the equipotential bonding. Bellhousings (magnesium
share below 7.5 %) made of aluminium and damping rings (NBR) can be used as connecting element between
pump and electric motor. The cover may only be taken off with standstill of the unit.
4 Assembly
4.4 Displacements - alignment of the couplings
5 Start-up

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
11 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
During operation of the coupling, please pay attention to
different operating noise
vibrations occurring.
!
If you note any irregularities with the coupling during operation, the drive unit must be
switched off immediately. The cause of the breakdown must be specified by means of the
table „Breakdowns“ and, if possible, be eliminated according to the proposals. The potential
breakdowns specified can be hints only. To find out the cause all operating factors and
machine components must be considered.
The below-mentioned failures can lead to a use of the ROTEX®coupling other than intended. In addition to the
specifications given in these operating and assembly instructions make sure to avoid such failures.
The errors listed can only be clues to search for the failures. When searching for the failure the adjacent
components must generally be considered.
General failures with use other than intended:
Important data for the coupling selection were not forwarded.
The calculation of the shaft-hub-connection was disregarded.
Coupling components with damage occurred during transport are assembled.
If the heated coupling flanges are assembled, the permissible temperature is exceeded.
The fit of the components to be assembled is not coordinated with one another.
Tightening torques have been fallen below/exceeded.
Components are mixed up by mistake/assembled incorrectly.
A wrong or no spider is inserted in the coupling.
No original KTR components (purchased parts) are used.
Old/already worn out spiders or spiders stored for too long are used.
Maintenance intervals are not observed.
Breakdowns
Causes
Elimination
Different operating noise
and/or vibrations
occuring
Misalignment
1) Set the unit out of operation
2) Eliminate the reason for the misalignment (e. g. loose
foundation bolts, breaking of the engine mount, heat
expansion of unit components, modification of the
installation dimension E of the coupling)
3) For inspection of wear see item inspection
Wear of spider, short-term torque
transmission due to metal contact
1) Set the unit out of operation
2) Disassemble the coupling and remove remainders of the
spider
3) Inspect coupling components and replace coupling
components that have been damaged
4) Insert spider, assemble coupling components
5) Inspect alignment, adjust if necessary
Screws for axial fastening of hubs
working loose
1) Set the unit out of operation
2) Inspect alignment of coupling
3) Tighten the screws to fasten the hubs and secure against
working loose
4) For inspection of wear see item inspection
5 Start-up
6 Breakdowns, causes and elimination

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
12 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
Breakdowns
Causes
Elimination
Breaking of cams
Wear of spider, torque
transmission due to metal contact
1) Set the unit out of operation
2) Replace complete coupling
3) Inspect alignment
Breaking of the cams due to high
impact energy/overload
1) Set the unit out of operation
2) Replace complete coupling
3) Inspect alignment
4) Find out the reason for overload
Operating parameters do not
meet with the performance of the
coupling
1) Set the unit out of operation
2) Review the operating parameters and select a bigger
coupling (consider mounting space)
3) Assemble new coupling size
4) Inspect alignment
Operating error of the unit
1) Set the unit out of operation
2) Replace complete coupling
3) Inspect alignment
4) Instruct and train the service staff
Early wear of spider
Misalignment
1) Set the unit out of operation
2) Eliminate the reason for the misalignment (e. g. loose
foundation bolts, breaking of the engine mount, heat
expansion of unit components, modification of the
installation dimension E of the coupling)
3) For inspection of wear see item inspection
e. g. contact with aggressive
liquids/oils, ozone influence, too
high/low ambient temperatures
etc. causing physical modification
of the spider
1) Set the unit out of operation
2) Disassemble the coupling and remove remainders of the
spider
3) Inspect coupling components and replace coupling
components that have been damaged
4) Insert spider, assemble coupling components
5) Inspect alignment, adjust if necessary
6) Make sure that further physical modifications of the spider
are excluded
Ambient/contact temperatures
which are too high for the spider,
max. permissible
e. g. with T-PUR®
T4 = - 50 °C/
+ 120 °C
1) Set the unit out of operation
2) Disassemble the coupling and remove remainders of the
spider
3) Inspect coupling components and replace coupling
components that have been damaged
4) Insert spider, assemble coupling components
5) Inspect alignment, adjust if necessary
6) Inspect and adjust ambient/contact temperature (possibly
corrective by using other spider materials)
Early wear of spider
(liquefaction of material
inside the spider cam)
Vibrations of drive
1) Set the unit out of operation
2) Disassemble the coupling and remove remainders of the
spider
3) Inspect coupling components and replace coupling
components that have been damaged
4) Insert spider, assemble coupling components
5) Inspect alignment, adjust if necessary
6) Find out the reason for the vibrations (possibly corrective
by spider with lower or higher Shore hardness)
In respect of environmental protection we would ask you to dispose of the packaging or products on termination of
their service life in accordance with the legal regulations and standards that apply, respectively.
Metal
Any metal components have to be cleaned and disposed of by scrap metal.
Nylon materials
Nylon materials have to be collected and disposed of by a waste disposal company.
6 Breakdowns, causes and elimination
7 Disposal

ROTEX®
Operating/Assembly instructions
Type AFN-SB spec.
KTR-N
Sheet:
Edition:
40223 EN
13 of 13
5
Please observe protection
note ISO 16016.
Drawn:
2018-08-29 Pz
Replacing:
KTR-N dated 2017-07-18
Verified:
2018-09-07 Pz
Replaced by:
ROTEX®is a low-maintenance coupling. We recommend to perform a visual inspection on the coupling at least
once a year. Please pay special attention to the condition of the coupling spiders.
Since the flexible machine bearings of the driving and driven side settle during the course of load, inspect the
alignment of the coupling and re-align the coupling, if necessary.
The coupling components have to be inspected for damages.
The screw connections have to be inspected visually.
!
Having started up the coupling the tightening torques of the screws have to be inspected
during the usual inspection intervals.
A basic requirement to ensure the readiness for use of the coupling is a stock of the most important spare parts
on site.
Contact addresses of the KTR partners for spare parts and orders can be obtained from the KTR homepage at
www.ktr.com.

KTR does not assume any liability or warranty for the use of spare parts and accessories
which are not provided by KTR and for the damages which may incur as a result.
8 Maintenance and service
9 Spares inventory, customer service addresses
