Rotary Tillers
AP-SRT62, & AP-SRT76
321-095MK
Operator’s Manual
Printed 7/31/17
37802

Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to
the new manual.
If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that
were originally ordered, the weights and measurements are no longer accurate for your machine. Update the
record by adding the machine weight and measurements provided in the Specifications & Capacities Section
of this manual with the Option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
!
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Table of Contents
7/31/17 AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
© Copyright 2017 All rights Reserved
Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right
to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Kubota is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 6
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Section 1: Assembly & Set-up . . . . . . . . . . . . 7
Skid Steer Requirements . . . . . . . . . . . . . . . . . . . . 7
Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . 7
Rotary Tiller Lifting Points . . . . . . . . . . . . . . . . . . . . 7
Dealer Preparations . . . . . . . . . . . . . . . . . . . . . . . . 7
Depth Indicator Assembly . . . . . . . . . . . . . . . . . . . . 8
Spring Hose Loop Assembly . . . . . . . . . . . . . . . . . . 8
Hydraulic Hoses & Couplings . . . . . . . . . . . . . . . . . 9
Skid Steer Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hydraulic Hose Hook-ups . . . . . . . . . . . . . . . . . . . 10
Skid Steer Primary & Secondary Ports . . . . . . . . . 10
Section 2: Adjustments . . . . . . . . . . . . . . . . . 11
Tiller Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

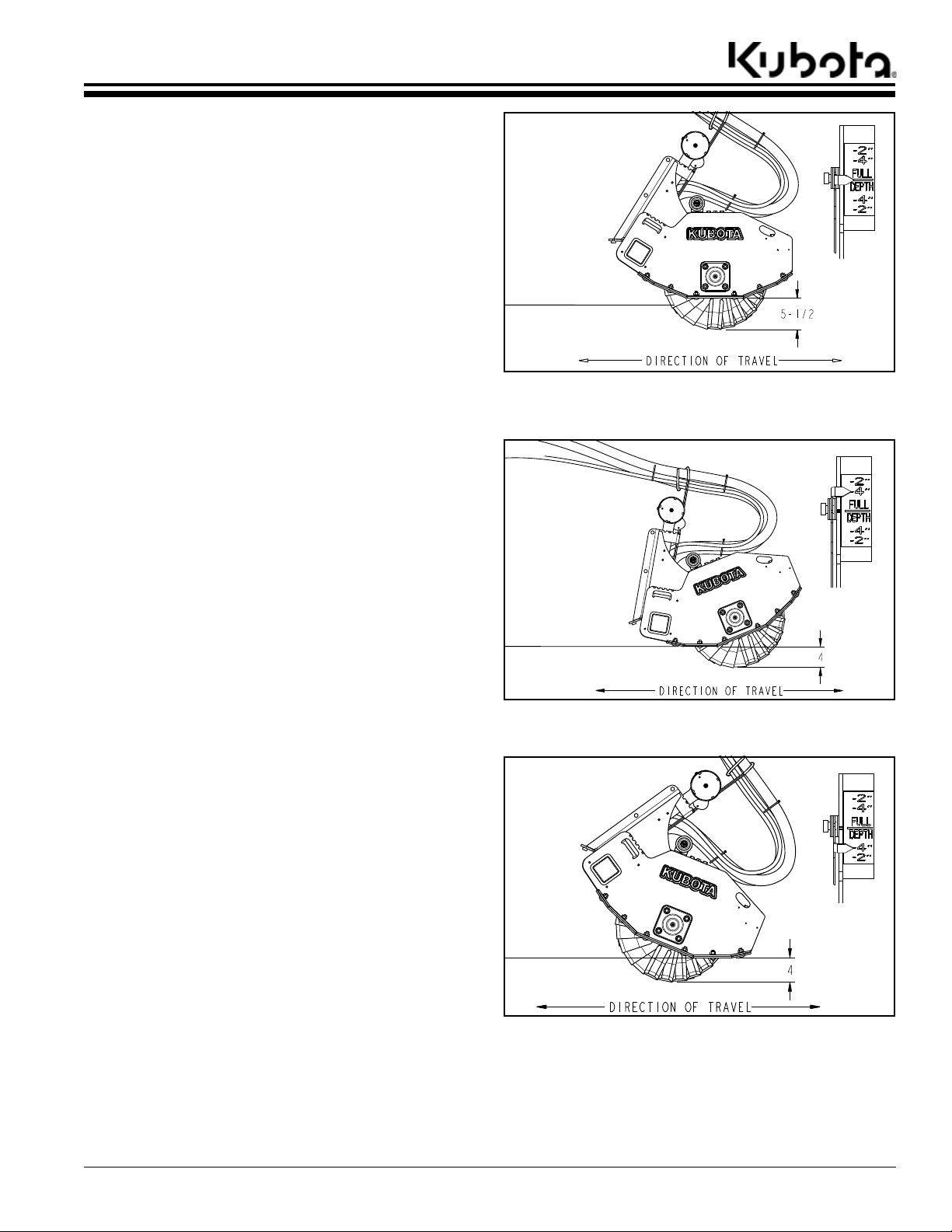

Full Depth Tilling, Tiller Rotated Level . . . . . . . . 11
4" Tilling Depth, Tiller Rotated Back . . . . . . . . . . 11
4" Tilling Depth, Tiller Rotated Forward . . . . . . . 11

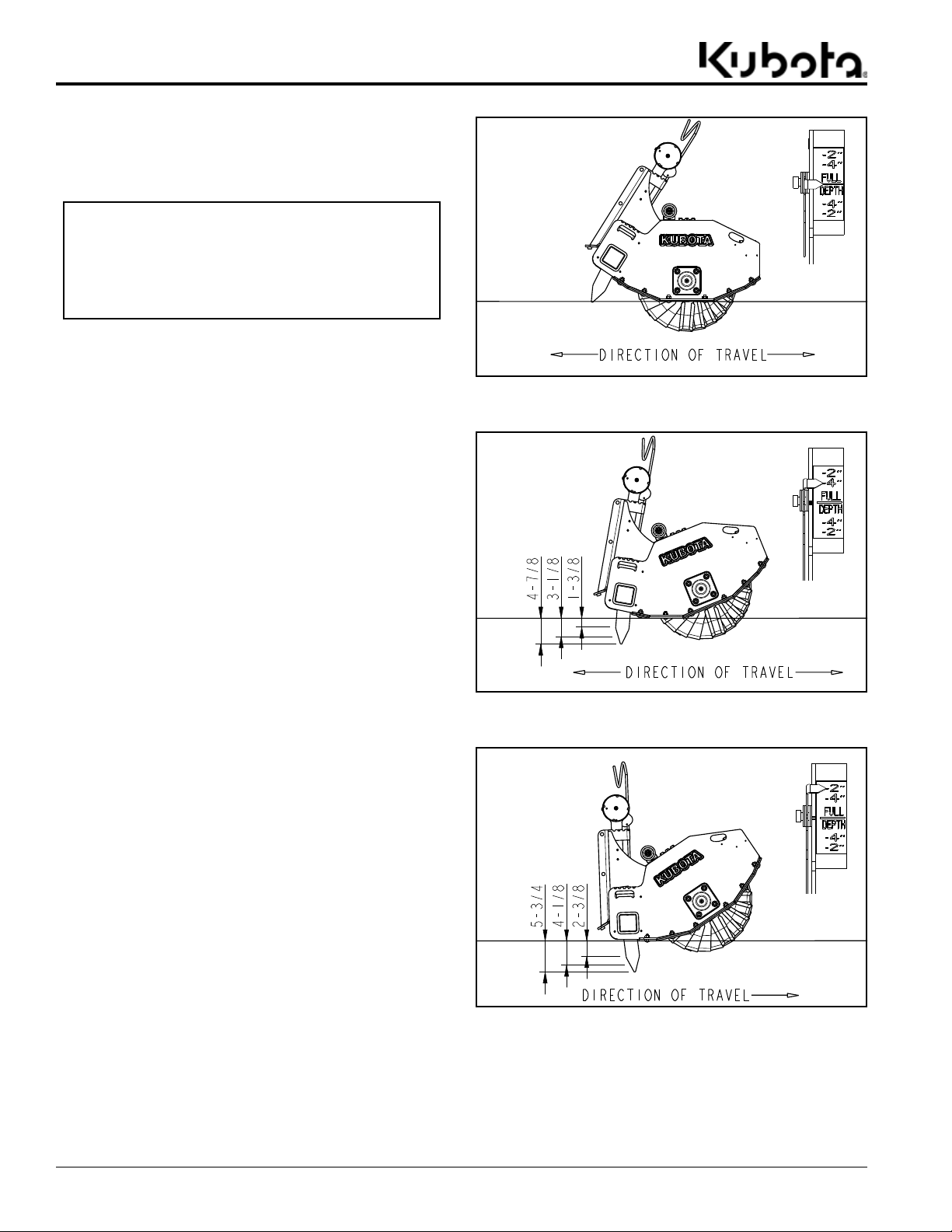

2" Tilling Depth, Tiller Rotated Back . . . . . . . . . . 12
2" Tilling Depth, Tiller Rotated Forward . . . . . . . 12
Shank Adjustments . . . . . . . . . . . . . . . . . . . . . . . . 13
Shank Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shank Settings When Tilling Full Depth . . . . . . . 14
Shanks Settings When Tilling 4" Deep . . . . . . . . 14
Shanks Settings When Tilling 2" Deep . . . . . . . . 14
Section 3: Operating Procedures . . . . . . . . . 15
Pre-Start Checklist . . . . . . . . . . . . . . . . . . . . . . . . 15
General Safety Information . . . . . . . . . . . . . . . . . . 15
Skid Steer Shutdown Procedures . . . . . . . . . . . . . 16
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adjust Shanks . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Direction of Travel . . . . . . . . . . . . . . . . . . . . . . . 17
Direction of Tine Rotation . . . . . . . . . . . . . . . . . 17
Operating the Rotary Tiller . . . . . . . . . . . . . . . . . 18
Unhook Rotary Tiller . . . . . . . . . . . . . . . . . . . . . . . 18
General Operating Instructions . . . . . . . . . . . . . . . 19
Section 4: Optional Equipment . . . . . . . . . . . 20
Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Flat Face Couplers . . . . . . . . . . . . . . . . . . . . . . . . 20
Operator Protective Door (Optional) . . . . . . . . . . . 20
Section 5: Maintenance & Lubrication . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Skid Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Tiller Tines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Replacing Tiller Tines . . . . . . . . . . . . . . . . . . . . . 22
Reversing Tiller Tines . . . . . . . . . . . . . . . . . . . . 22
Reverse All Tines on The Rotor 22
Reverse Tines on a Single Flange 22
Long-Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 23
Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bearing On Right End Of Rotor Shaft . . . . . . . . . 24
Section 6: Specifications & Capacities . . . . . 25
Section 7: Features and Benefits . . . . . . . . . 26
Section 8: Troubleshooting . . . . . . . . . . . . . . 27
Section 9: Torque & Tire Inflation Charts . . . 28
Section 10: Warranty . . . . . . . . . . . . . . . . . . . 29
Section 9: Legal Disclaimer . . . . . . . . . . . . . . 30

Table of Contents Continued
7/31/17
Parts Manual QR Locator
The QR (Quick Reference) code on the
cover and to the left will take you to the
Parts Manual for this equipment.
Download the appropriate App on your
smart phone, open the App, point your
phone on the QR code and take a picture.
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Kubota products. Refer to
Parts Manual QR Locator on
this page for detailed
instructions.
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
See previous page for Table of contents.

Important Safety Information
7/31/17 1
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.

Safety at All Times
Careful operation is you best
insurance against an accident.
All operators, no matter how much
experience they may have, should
carefully read this manual and
other related manuals before
operating the power machine and
this attachment.
It is the owner’s obligation to
instruct all operators in safe
operation.
Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
Do not operate the equipment
while under the influence of drugs
or alcohol as they impair the ability
to safely and properly operate the
equipment.
Operator should be familiar with all
functions of the skid steer and
attachment, and be able to handle
emergencies quickly.
Make sure all guards and shields
are in place and secured before
operating the attachment.
Keep all bystanders away from
equipment and work area.
Start skid steer from the driver’s
seat with steering levers and
hydraulic controls in neutral.
Operate skid steer and controls
from the driver’s seat only.
Never dismount from a moving
skid steer or leave skid steer
unattended with engine running.
Do not allow anyone to stand
between attachment and skid
steer while hooking-up.
Keep hands, feet, and clothing
away from power-driven parts.
While transporting and operating
equipment, watch out for objects
overhead and along side such as
fences, trees, buildings, wires, etc.
Store attachment in an area where
children normally do not play.
When needed, secure attachment
against falling with support blocks.
OFF
REMOVE
Safety Precautions for
Children
Tragedy can occur if the operator
is not alert to the presence of
children, Children generally are
attracted to attachments and their
work.
Never assume children will remain
where you last saw them.
Keep children out of the work area
and under the watchful eye of a
responsible adult.
Be alert and shut the attachment
and skid steer/track loader down if
children enter the work area.
Never carry children on the power
machine or attachment. There is
not a safe place for them to ride.
They may fall off and be run over
or interfere with the control of the
power machine.
Never allow children to operate the
power machine, even under adult
supervision.
Never allow children to play on the
power machine or attachment.
Use extra caution when backing
up. Before the power machine
starts to move, look down and
behind to make sure the area is
clear.
Skid Steer Shutdown
And Storage
If engaged, disengage hydraulics
to attachment.
Park on solid, level ground and
lower attachment until it is flat on
the ground.
Reduce engine speed, turn off
engine, and remove switch key.
Relieve all hydraulic pressure to
auxiliary hydraulic lines.
If included, raise lap bar(s) until
fully up and unbuckle seat belt.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
skid-resistant surfaces when
getting on and off the skid steer.
Detach and store attachment in an
area where children normally do
not play. Secure attachment by
using blocks and supports.
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control, and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of personnel involved in the operation,
transport, maintenance, and storage of equipment.
!
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates a hazardous situation that, if
not avoided, will result in death or
serious injury. This signal word is to be
limited to the most extreme situations.
! DANGER
Indicates a hazardous situation that, if
not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, could result in minor or
moderate injury.
!
WARNING
!
CAUTION

Important Safety Information
7/31/17
2
These are common practices that may or may not be applicable to the products described in
this manual.
Transport Safely
Comply with state and local laws.
Use towing vehicle and trailer of
adequate size and capacity. Secure
equipment towed on a trailer with
chocks, tie downs, and chains.
Sudden braking can cause a towed
trailer to swerve and upset. Reduce
speed if towed trailer is not equipped
with brakes.
Avoid contact with any over head
utility lines or electrically charged
conductors.
Always drive with load on end of
loader arms low to the ground.
Always drive straight up and down
steep inclines with heavy end of skid
steer on the “uphill” side.
Engage park brake when stopped on
an incline.
Maximum transport speed for an
attached equipment is 20 mph. DO
NOT EXCEED. Never travel at a
speed which does not allow
adequate control of steering and
stopping. Some rough terrains
require a slower speed.
As a guideline, use the following
maximum speed weight ratios for
attached equipment:
20 mph when weight of attached
equipment is less than or equal to
the weight of machine towing the
equipment.
10 mph when weight of attached
equipment exceeds weight of
machine towing equipment but not
more than double the weight.
IMPORTANT: Do not tow a load that
is more than double the weight of the
vehicle towing the load.
Dig Safe - Avoid
Underground Utilities
USA: Call 811
CAN: digsafecanada.ca
Always contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they may
mark the location of any
underground services in the
area.
Be sure to ask how close you can
work to the marks they
positioned.
Practice Safe Maintenance
Understand procedure before doing
work. Refer to the Operator’s Manual
for additional information.
Work on a level surface in a clean
dry area that is well-lit.
Lower attachment to the ground and
follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
Do not work under any hydraulic
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to work
under the equipment, securely
support it with stands or suitable
blocking beforehand.
Use properly grounded electrical
outlets and tools.
Use correct tools and equipment for
the job that are in good condition.
Allow equipment to cool before
working on it.
Disconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before welding
on equipment.
Do not grease or oil attachment
while it is in operation.
Inspect all parts. Make certain parts
are in good condition & installed
properly.
Replace parts on this attachment
with genuine Kubota parts only. Do
not alter this attachment in a way
which will adversely affect its
performance.
Remove buildup of grease, oil, or
debris.
Remove all tools and unused parts
from equipment before operation.
Tire Safety
Tire changing can be dangerous
and must be performed by
trained personnel using the
correct tools and equipment.
Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
Securely support the attachment
when changing a wheel.
When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Make sure wheel bolts have been
tightened to the specified torque.

Important Safety Information
7/31/17 3
These are common practices that may or may not be applicable to the products described in
this manual.
Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire
extinguisher handy.
Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Avoid High
Pressure Fluids Hazard
Escaping fluid under pressure
can penetrate the skin causing
serious injury.
Relieving all residual pressure
before disconnecting hydraulic
lines or performing work on the
hydraulic system.
Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
Use a piece of paper or
cardboard, NOT BODY PARTS,
to check for suspected leaks.
Wear protective gloves and
safety glasses or goggles when
working with hydraulic systems.
DO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately.
Any fluid injected into the skin or
eyes must be treated
within a few hours or
gangrene may
result.
Wear
Protective Equipment
Wear protective clothing and
equipment appropriate for the job
such as safety shoes, safety
glasses, hard hat, and ear plugs.
Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
Operating equipment safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.
Use Safety
Lights and Devices
Slow moving tractors, skid steers,
self-propelled machines, and
towed equipment can create a
hazard when driven on public
roads. They are difficult to see,
especially at night. Use the Slow
Moving Vehicle sign (SMV) when
on public roads.
Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Keep Riders Off
Machinery
Never carry riders or use the
machinery to lift or transport
individuals.
There is not a safe place for a
person to ride.
Riders obstruct operator’s view
and interfere with the control of
the power machine.
Riders can be struck by objects
or thrown from the equipment.
Use Seat Belt and ROPS
Kubota recommends the use of a
CAB or roll-over-protective-
structures (ROPS) and seat belt
in almost all power machines.
Combination of a CAB or ROPS
and seat belt will reduce the risk
of serious injury or death if the
power machine should be upset.
If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine
overturn.

4AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
838-293C
Warning: Read & Understand Manual
LP-818-858C
Warning: General Safety
Safety Labels
Your Rotary Tiller comes equipped with all safety labels in
place. They are designed to help you safely operate your
attachment. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Kubota dealer. To find your nearest dealer, visit
our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specifiedby Kubota. When ordering new componentsmake
sure the correct safety labels are included in the request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean surface area where label is to be placed.
b. Spray soapy water onto the cleaned area.
c. Peelbacking from label and press labelfirmly onto the
surface.
d. Squeeze out air bubbles with edge of a credit card or
with a similar type of straight edge.
37200
37802

5
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
838-107C
Warning: Thrown Object Hazard
858-772C
Danger: Rotating Parts Hazard
37802
37802
37802
37802
838-094C
Warning: High Pressure Fluid Hazard
840-107C
Anti-slip: 10" x 5"

6
Introduction
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Kubota welcomes you to the growing family of new
product owners. This Rotary Tiller has been designed
with care and built by skilled workers using quality
materials. Proper assembly, maintenance, and safe
operating practices will help you get years of satisfactory
use from this attachment.
Application
Kubota’s Skid Steer Rotary Tillers (SRT) allow you to
transform your skid steer into a versatile tillage tool for
landscaping, preparing seedbeds, and ripping virgin soil
with uses in residential and commercial applications.The
Kubota SRT is available in 62" and 76" widths and can be
offset 6" to the right for tilling next to fences, buildings,
and sidewalks.
The Kubota SRT features a bi-direction rotor that can
spin up to 245 RPM, depending on motor. The SRT62 is
offered with a low-flow motor (14 to 23 GPM) or high-flow
motor (23 to 40 GPM) to fit a wide range of skid steers.
The SRT76 is available with a high-flow motor.
The unique patent-pending depth indicator provides for
the operator a clear, visible indication of 2", 4" & 5 1/2"
tine depth. The C-shaped tilling tines, manufactured from
forged and hardened steel, feature bi-directional cutting
edges. Replaceable skid shoes protect end panel against
wear. Steel ripper-shanks, mounted in a 3/8" thick
channel, assist with breaking virgin ground.
See “Specifications & Capacities” on page 25 and
“Features & Benefits” on page 26 for additional
information and performance enhancing options.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual, contact
your authorized dealer.
Terminology
“Right” or “Left” as used in this manual is determined by
facing forward in skid steer seat unless otherwise stated.
Definitions
IMPORTANT: A special point of information related
to the following topic. Kubota’s intention is this
information must be read & noted before continuing.
NOTE: A special point of information that the
operator should be aware of before continuing.
Owner Assistance
The Online Warranty Registration should be completed
by the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
The parts on your Rotary Tiller have been specially
designed by Kubota and should only be replaced with
genuine Kubota parts. Contact a Kubota dealer if
customer service or repair parts are required.Your
Kubota dealer has trained personnel, repair parts, and
equipment needed to service the attachment.
Serial Number
Model No. _____________Serial No. ______________
For quick reference and prompt service, record model
and serial numbers in the spaces provided above and
again on the warranty page. Always provide model
number and serial number when ordering parts and in all
correspondences with your Kubota dealer. For location of
your serial number plate, see Figure 1.
Serial Number Plate Location
Figure 1
Further Assistance
Your Kubota dealer wants you to be satisfied with your
new attachment. After having carefully read these
instructions, you will realize that much of the routine
maintenance can be done by yourself. If for any reason
you do not understand any part of this manual or are not
satisfied with the service received, the following actions
are suggested:
1. Discuss the matter with your dealership service
manager making sure that person is aware of any
problems you may have and has had the opportunity
to assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem, and request assistance.
3. For further assistance write to:
Kubota by Land Pride
Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
[e-mail]
37803
Introduction

7
Section 1: Assembly & Set-up
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Skid Steer Requirements
The Rotary Tiller is designed to attach to skid steer
loaders with the following minimum requirements:
SAE lift capacity . . . . . . . . . . . . . . . . . . . . . . 1200 lbs.
Hitch type. . . . . . . . . . . . . . . . . Universal Quick Hitch
Hydraulic flow rates
SRT62 low flow . . . . . . . . . . . . . . . . . . 14 - 23 gpm
SRT62 & SRT76 high flow . . . . . . . . . .23 - 40 gpm
Hydraulic pressure rates (min. - max. psi)
SRT62 low flow motor . . . . . . . . . . . 2800 - 4500 psi
SRT62 high flow motor . . . . . . . . . . 2000 - 4500 psi
SRT76 high flow motor . . . . . . . . . . 2300 - 4500 psi
Hydraulic hoses . . . . . . . . . . . . . 2 - Hydraulic outlets
Case drain hose . . . . . . . . . . . . . . 1 - Hydraulic outlet
Skid steer weight . . . . . . . . . . . . . See warning below
!WARNING
To prevent serious injury or death:
Light weight power machines may need weights added to the
rear to maintain steering control and prevent tipping. Consult
your power machine Operator’s Manual to determine proper
weight requirements and maximum weight limitations.
Torque Requirements
See “Torque Values Chart” on page 28 to determine
correct torque values when tightening hardware.

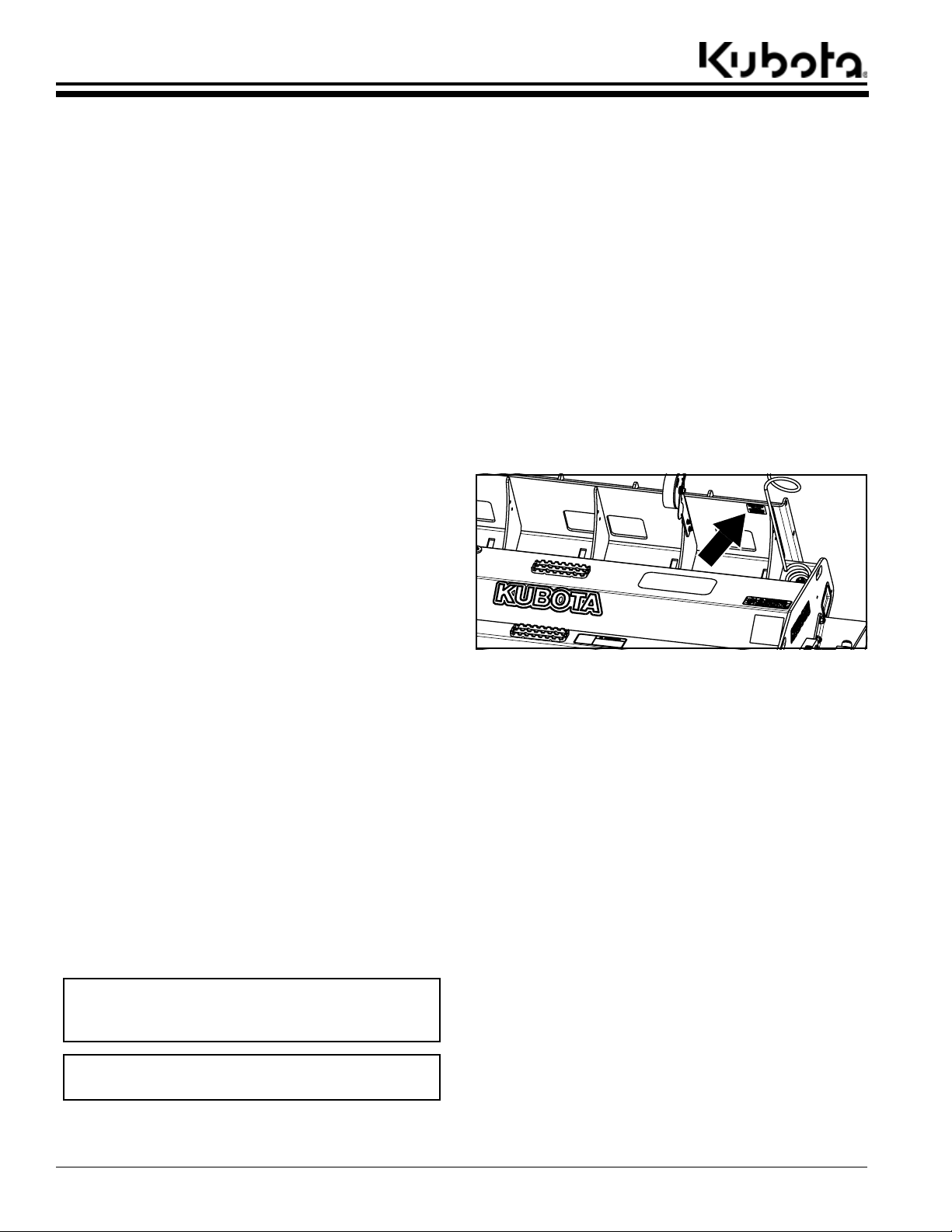

Rotary Tiller Lifting Points
Refer to Figure 1-1:
The tiller is provided with four lifting points to hook a sling
chain. See arrows in Figure 1-1 for location of lifting
points.
IMPORTANT: Skid steer must be equipped with a
case drain system.
IMPORTANT: The tiller is capable of throwing
product inside the cab when top of tiller hitch is
rotated forward to the 2" depth setting and tines are
set to operate rotating in the direction that will kick
product towards the cab. In this situation, Kubota
recommends using a protective door to protect
operator from thrown objects.
A universal Operator Protective Door is available
from Kubota or use a protective door provided by
your skid steer manufacture. Refer to “Operator
Protective Door (Optional)” on page 20 for
additional information.
Dealer Preparations
!CAUTION
To avoid serious injury:
Securely support tiller on jack stands or support blocks.
This tiller is shipped almost completely assembled. To
speed up assembly task and to make the job as safe as
possible, the following should be completed:
•Speed up assembly tasks and make the job safer by
having all needed parts and equipment readily at hand.
•Read and understand the Operator’s Manual. An
understanding of how it works will aid in the assembly
and setup.
•Go through the Pre-Assembly Checklist below
before assembling the Rotary Tiller.
Rotary Tiller Lifting Points
Figure 1-1
Pre-Assembly Checklist
Check Ref.
Make sure miscellaneous assembly tools are on hand.
Have a forklift or hoist with properly sized chains and safety
stands on hand capable of lifting 2500 lbs.
Have a minimum of two people available during assembly.
Check to see if ballast is needed for the skid steer.
See Specifications on page 26 for unit weights.
Make sure all major components and loose parts
are shipped with the attachment.
Operator’s
Manual
Double check to make sure all fasteners & pins
are installed in the correct location. Refer to the
Parts Manual if unsure.
NOTE: All assembled hardware from the factory
has been installed in the correct location.
Remember location of a part or fastener if
removed. Keep parts separated.
Operator’s
Manual
and
Parts Manual
Make sure working parts move freely, bolts are
tight and cotter pins are spread.
Operator’s
Manual
Make sure all grease fittings are in place and
lubricated. Page 24
Make sure all safety labels are correctly located
and legible. Replace if damaged.
Important
Safety
Information
37802
Section 1: Assembly & Set-up

8
Section 1: Assembly & Set-up
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17

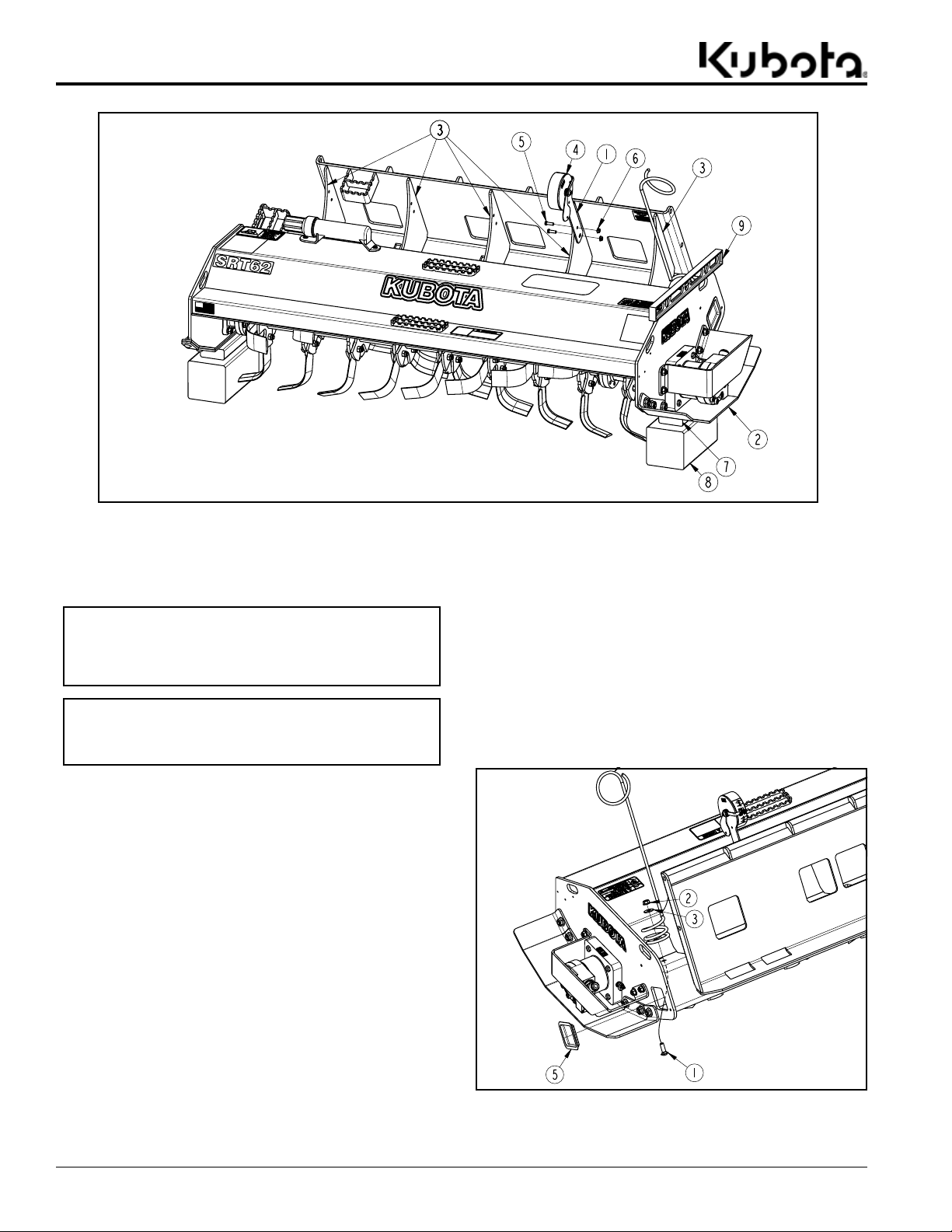

Depth Indicator Assembly
Refer to Figure 1-2:
1. Support tiller on a level surface with minimum 7" tall
supports (#7 & #8) under skid shoes (#2) at both
ends of unit. Supports at both ends should be of
equal height.
2. Verify tiller is level by placing a level (#9) across the
top of the unit as shown.
3. Attach depth indicator (#1) to one of the gussets (#3)
with 5/16"-18 x 1" GR5 bolts (#5) and hex whiz nuts
(#6). Gusset location is operator preference. Draw
hex whiz nuts (#6) up snug, do not tighten at this
time.
4. Rotate depth indicator (#1) about upper bolt until
indicator arrow (#4) points to “FULL DEPTH”.
5. Hold depth indicator in this position and tighten hex
whiz nuts (#6) to the correct torque.
IMPORTANT: In order for the depth indicator to be
accurately adjusted, the Rotary Tiller must be
parked on ground that is flat and level and resting on
a 7" or taller support at both ends as shown.
IMPORTANT: Depth indicator is shipped mounted to
the far left gusset (#3) and can be moved to any of
the other gussets (#3) to suit operator preference.
Spring Hose Loop Assembly
Refer to Figure 1-3:
1. Insert 1/2"-13 x 1 1/2" GR5 carriage bolt (#1) through
opening in end of tiller frame and up through square
hole as shown.
2. Attach spring hose loop (#4) to tiller frame with flat
washer (#3) and hex whiz nut (#2).
3. Tighten hex whiz nut (#2) to the correct torque.
4. Apply silicone caulk around end cap (#5) and press
end cap over hole in end of frame.
Spring Hose Loop Assembly
Figure 1-3
37804
Depth Indicator Assembly
Figure 1-2
37805

9
Section 1: Assembly & Set-up
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17

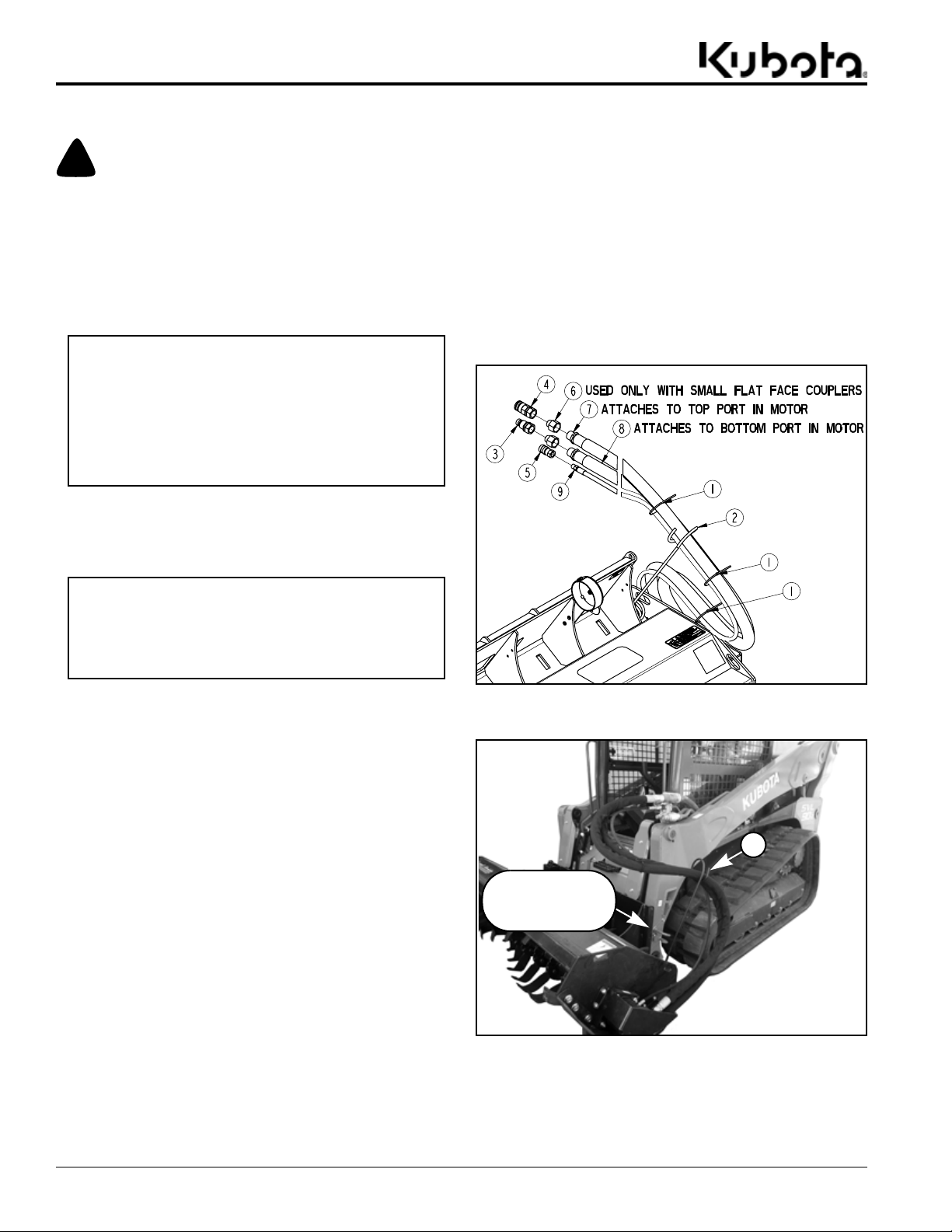

Hydraulic Hoses & Couplings
Refer to Figure 1-4:
1. If attaching small flat face couplers, screw
adapters (#6) to hydraulic hoses (#7 & #8) until tight.
2. Screw male coupler (#3) to hydraulic hose (#8) until
tight.
3. Screw female coupler (#4) to hydraulic hose (#7) until
tight.
4. If using case drain coupler (#5), wrap teflon tape
around pipe threads on end of hydraulic hose (#9)
and screw coupler (#5) to that hose until tight. If
coupler (#5) is not used, customer must supply all
fittings to complete the connection between the skid
steer sump and hydraulic hose (#9).
5. Thread hydraulic hoses (#7, #8, & #9) through spring
hose loop (#2).
6.Bundle hoses (#7, #8, & #9) together in three places as
shown with cable ties (#1).
Skid Steer Hook-up
Refer to Figure 1-5:
!DANGER
To avoid serious injury or death:
A Crushing Hazard exists when hooking-up equipment. Do
not allow anyone to stand between skid steer and attachment
while hooking-up to attachment. Do not operate hydraulics
while someone is near the skid steer or attachment.
!CAUTION
To avoid serious injury:
Make sure the skid steer hitch is properly attached to the
Rotary Tiller hitch. It must be secured under the tiller’s top
angle bars and lock handles must be locked down with locking
pins extending fully through bottom slots in the tiller hitch. An
improperly attached tiller can fall without warning.
NOTE: Quick couplers (#3 & #4) are optional and
can be purchased from Kubota in one of two sizes.
Options include small flat face couplers
(#3 & #4) with adapters (#6) or large flat face
couplers (#3 & #4) without adapters (#6).
NOTE: A 3/8" quick disconnect coupler (#5) is
included with case drain line (#9). If skid steer is not
equipped to receive this coupler, the customer will
need to supply any fittings required to complete the
connection between the 3/8" MNPT threads on case
drain line (#9) and the skid steer sump.
NOTE: Hooking up against the far right side of the
tiller hitch will center the tiller on the skid steer.
Hooking up against the far left side of the tiller hitch
will side shift the tiller to the right 6".
Hydraulic Hose & Couplings
Figure 1-4
Skid Steer Hook-up
Figure 1-5
1. Check for and remove all debris in the skid steer and
tiller hitch point areas.
2. Raise lock pins on skid steer hitch for hook-up.
3. See note-in-box above step #1. Drive skid steer
slowly to the far right or far left side of the tiller hitch
making sure the skid steer hitch plate is parallel with
the tiller’s top angle bar.
4. Rotate top of skid steer tilt arms slightly forward.
5. Position top of skid steer hitch plate under the top
angled bar and slowly raise loader arms up until its
hitch plate is seated under the top angle bar.
6. Rotate top of skid steer tilt arms back until skid steer
hitch plate makes full contact with tiller hitch plate.
7. Lower lock pins on skid steer hitch. Make sure lock
pins go through bottom slots in tiller hitch and are in
lock down position.
37204
37205

10
Section 1: Assembly & Set-up
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Hydraulic Hose Hook-ups
!DANGER
To prevent serious injury or death:
Hydraulic fluid under high pressure will penetrate skin. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. Use a piece of cardboard or wood
rather than hands when searching for leaks. If hydraulic fluid
is injected into the skin or eyes, it must be treated by a doctor
familiar with this type of injury within a few hours or gangrene
may result. DO NOT DELAY.
Refer to Figure 1-6:
1. Route hydraulic hoses (#7, #8, & #9) along the most
convenient path to access your skid steer couplings
and sump.
2. Clean quick connect couplers of dirt and then connect
hoses (#7 & #8) to the skid steer couplers.
3. Make sure quick connect couplers have fully engaged.
If not, check couplers to see if they are same size and
type. Also, make sure all hydraulic pressure to the
couplers has been released.
4. Connect case drain line (#9) to sump as follows:
a. If case drain line is fitted with a coupler, connect
case drain line to the sump coupler.
b. If case drain line is not fitted with a coupler:
•Wrap Teflon tape around 3/8" MNPT threads on
end of case drain line.
•Screw any customer supplied fittings to case
drain line (#9) and to sump port until tight.
IMPORTANT: Collect and dispose all oil spills and
leaks in an environmentally safe manner.
IMPORTANT: Hose routing is the responsibility of
the owner/operator of the tiller. Pinched and/or
stretched hoses are not covered under the warranty.
IMPORTANT: Make sure all coupler fittings are
clean before connecting them together.
NOTE: If attaching to a Kubota compact track loader
or skid steer loader, route hydraulic hoses as shown
in Figure 1-7. Be sure to thread hoses through
spring hose loop (#2). Do not use Kubota’s SVL or
SSV Hose Stay.
Skid Steer Primary & Secondary
Ports
Refer to Figure 1-6:
Hydraulic flow and pressure from the skid steer primary
and secondary ports may vary. The primary port usually
delivers more power than the secondary port. This
means the bi-directional tines will have more power when
driven by the primary port. If operator prefers to mainly
turn tines in one direction, then couplings (#3 & #4)
should be attached to the hydraulic hoses so that the
primary port on the skid steer is driving the tines in that
direction. Consult your skid steer Operator’s Manual to
know which port is the primary port.
Hydraulic Hose & Couplings
Figure 1-6
Kubota Compact Tract Loader or skid Steer Loader
(Kubota SVL Shown)
Figure 1-7
37204
37204
2
Do Not Use
SVL or SSV
Hose Stay

11
Section 2: Adjustments
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Tiller Depth
The tiller can be adjusted to five different positions,
3 depths (2", 4" & 5 1/2"), by rotating the skid steer hitch
plate forward or backward.
Definitions:
•Standard Rotation: Operating the rotor turning in
the same direction as the skid steer wheels turn.
•Reverse Rotation: Operating the rotor turning in
the opposite directions the skid steer wheels turn.
Full Depth Tilling, Tiller Rotated Level
Refer to Figure 2-1:
Retract or extend hydraulic cylinders at the front of the
skid steer loader arms until arrow on depth indicator
points to “FULL DEPTH” as shown in upper right corner
of illustration.
When using this depth setting, the tiller can be operated
in standard rotation or reverse rotation while traveling
forward or backing up.
4" Tilling Depth, Tiller Rotated Back
Refer to Figure 2-2:
From level position, retract hydraulic cylinders at the front
of the skid steer loader arms until arrow on depth
indicator points to the 4" mark above “FULL DEPTH” as
shown in upper right corner of illustration.
When using this depth setting, the tiller can be operated
in standard rotation or reverse rotation while traveling
forward or backing up.
4" Tilling Depth, Tiller Rotated Forward
Refer to Figure 2-3:
From level position, extend hydraulic cylinders at the front
of the skid steer loader arms until arrow on depth
indicator points to the 4" mark below “FULL DEPTH” as
shown in upper right corner of illustration.
When using this depth setting, the tiller can be operated
in standard rotation or reverse rotation while traveling
forward or backing up.
Tiller Rotated Level to Full Depth
Figure 2-1
Tiller Rotated Back to 4" Depth
Figure 2-2
Tiller Rotated Forward to 4" Depth
Figure 2-3
37812
37813
37814
Section 2: Adjustments

12
Section 2: Adjustments
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
2" Tilling Depth, Tiller Rotated Back
Refer to Figure 2-4:
From level position, retract hydraulic cylinders at the front
of the skid steer loader arms until arrow on depth
indicator points to the 2" mark above “FULL DEPTH” as
shown in upper right corner of illustration.
When using this depth setting, the tiller can be operated
in standard rotation or reverse rotation while traveling
forward only.
2" Tilling Depth, Tiller Rotated Forward
Refer to Figure 2-5:
From level position, retract hydraulic cylinders at the front
of the skid steer loader arms until arrow on depth
indicator points to the 2" mark below “FULL DEPTH” as
shown in upper right corner of illustration.
!CAUTION
To avoid serious injury:
Do not use reverse rotation when backing up with tiller
rotated forward to till 2" deep. The tiller can throw objects at
the operator causing serious injury.
When using this depth setting, the tiller should be
operated in standard rotation only while backing up.
IMPORTANT: Do not till backing up when tiller is
rotated back to till 2" deep. The skid shoes can dig
into the ground causing damage to the tiller.
IMPORTANT: Do not till traveling forward when tiller
is rotated forward to till 2" deep. The skid shoes can
dig into the ground causing damage to the tiller.
Tiller Rotated Back to 2" Depth
Figure 2-4
Tiller Forward Level to 2" Depth
Figure 2-5
37815
37816

13
Section 2: Adjustments
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Shank Adjustments
!DANGER
To prevent serious injury or death:
Make adjustments to the Rotary Tiller after it has been
properly attached to a skid steer and secured with solid
supports.Never work around or under equipment supported
by hydraulics. Hydraulics can drop equipment instantly if
controls are actuated or if hydraulic lines burst even when
power to hydraulics is shut off.
!CAUTION
To prevent serious injury:
Always keep your feet and legs out from under the shanks
while adjusting them. It is possible for the shanks to fall
causing injury to your feet and/or legs.
1. Park on level ground and engage park brake.
Refer to Figure 2-7:
2. Operate hydraulic cylinders at the front of the loader
arms to tilt top of skid steer hitch plate until pointer on
depth indicator points to “FULL DEPTH” as shown.
3. Lower tiller until tines are resting on the ground, turn
off engine, and remove switch key to prevent
unauthorized starting.
4. If included, raise seat bar and move controls until
both are locked.
5. Use steps, grab-handles, and anti-slip surfaces
when stepping on and off the skid steer.
See Figure 3-1 on page 16.
Refer to Figure 2-6:
6. Press top of shank spring retainer together with a pair
of pliers and pull retainer up out of the shank tube
slot. Be sure to keep shank notch caught in the tube
slot to keep it from falling while removing the spring
retainer.
7. Manually raise or lower shank as needed until one of
the three notches in the shank is seated in the top
slot. Refer to “Shank Settings” on page 14 for
detailed instructions.
8. Fasten shank in place with spring retainer clip by
inserting clip into the tube slot behind the shank until
its snaps into place.
Depth Indicator Function
Figure 2-7
37207

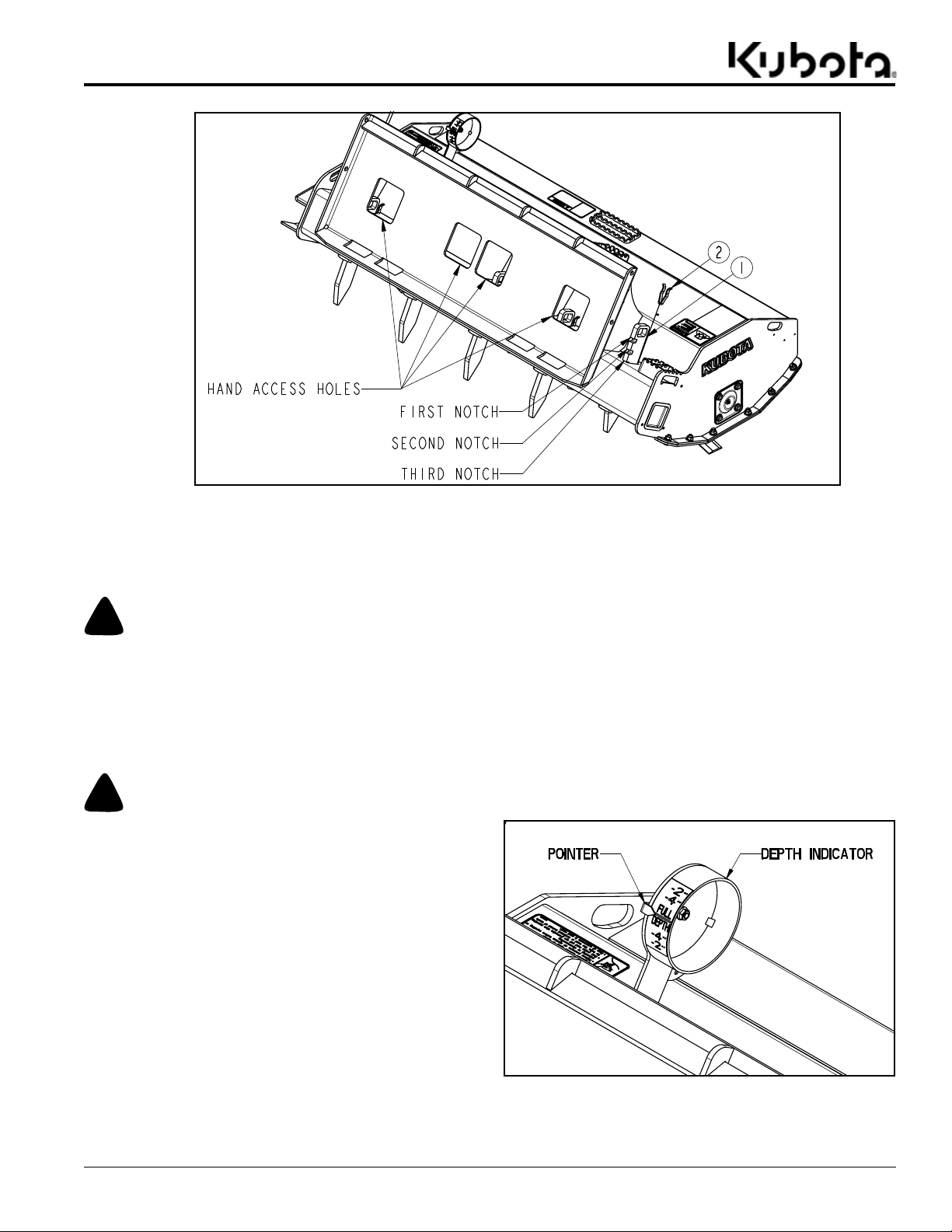

Shank Adjustment
Figure 2-6
37817

14
Section 2: Adjustments
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Shank Settings
The shanks can only be used with pointer on depth
indicator pointing at the 2" and 4" depths above “FULL
DEPTH”. Set shanks to dig in the ground as follows:
Shank Settings When Tilling Full Depth
Refer to Figure 2-8:
The shanks cannot be used when pointer on depth
indicator is pointing at “FULL DEPTH”. The same is true if
the pointer is pointing to 4" or 2" depths below “FULL
DEPTH”. The shanks are not long enough to penetrate
the ground at these settings.
Shanks Settings When Tilling 4" Deep
Refer to Figure 2-9:
With tiller rotated back and pointer on depth indicator
pointing at the 4" depth above “FULL DEPTH”, the
shanks will penetrate the ground 4 7/8" when set in the
first notch, 3 1/8" when set in the second notch, and
1 3/8" when set in the third notch.
The skid steer can travel forward or backward when tiller
is rotated back or forward to till 4" deep.
Shanks Settings When Tilling 2" Deep
Refer to Figure 2-10:
With tiller rotated back and pointer on depth indicator
pointing at the 2" depth above “FULL DEPTH”, the
shanks will penetrate the ground 5 3/4" when set in the
third notch, 4 1/8" when set in the second notch, and
2 3/8" when set in the first notch.
The skid steer should only travel forward when tiller is
rotated back to till 2" deep. If one was to travel backwards
while tilling, the skid shoes would dig into the ground.
NOTE: The shanks can be operated at a different
depth than noted below by raising the tiller off the
ground with the loader arms. This will also change
how deep the tiller is running. Know that the depth
indicator will not give an accurate reading with skid
shoes off the ground.
Shank Depths With Tiller Set to till Full Depth
Figure 2-8
Shank Depths With Tiller Set to till 4" Deep
Figure 2-9
Shank Depths With Tiller Set to till 2" Deep
Figure 2-10
37818
37818
37818

15
Section 3: Operating Procedures
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Pre-Start Checklist
Hazard control and accident prevention are dependent
on the awareness, concern, prudence, and proper
training involved in the operation, transport, storage, and
maintenance of the Rotary Tiller. Therefore, it is essential
that no one operates the Rotary Tiller without first having
read, fully understood, and become totally familiar with
the Operator’s Manual. Make sure operator has
completed the Operating Checklist below.
General Safety Information
!DANGER
To avoid serious injury or death:
Do not get pinned in the loader arms. Getting pinned in the
arms is the leading cause of fatal accidents with skid steers
and compact track loaders. Follow all safety guidelines:
•Always operate attachment while seated with seat belt
fastened.
•Keep your head, arms, and legs inside the cab while
operating the power machine and attachment.
•Never operate equipment from outside the cab.
•Before leaving the operator’s seat, lower attachment to the
ground and shutdown the power machine.
•Use the skid steer’s alternate emergency exit when exit
passage through the front is blocked.
•Do not use hand or foot controls for handholds or steps.
•Keep mud, snow, ice, and debris out of foot controls.
•If included, raise restraint bar and move controls until both
are locked and interlock system is activated.
•Inspect interlock control system regularly and perform
required maintenance to keep it operating properly.
•Never bypass or modify a safety device.
Operating Checklist
Check Ref.
Inspect skid steer safety equipment to make sure it
is in good working condition.
Skid Steer
Manual
Read and follow all safety information and decals.
Refer to “Important Safety Information”.Page 1
Make sure all guards and shields are secured and in
good working condition.
Refer to “Important Safety Information”.
Page 1
Read and follow hook-up instructions.
Refer to “Skid Steer Hook-up”. Page 9
Read and make all required adjustments.
Refer to “Section 2: Adjustments”. Page 11
Read and follow all operating procedures.
Refer to “Section 3: Operating Procedures”. Page 15
Read and follow all maintenance Instructions.
Refer to “Section 5: Maintenance & Lubrication”. Page 21
Read and follow all lubrication instructions.
Refer to “Lubrication Points”. Page 24
Check tiller initially and periodically for loose bolts
and pins. Refer to “Torque Values Chart”.Page 28
!DANGER
To avoid serious injury or death:
•Keep yourself and all others away from rotating tines and
drive train. Always disengage power take-off and lockout
power source before making adjustments or servicing the
tiller. A person’s body, hair, or clothing can become
entangled in rotating components causing serious bodily
injury or death.
•Never make contact with underground utilities such as
electrical power lines, gas lines, phone lines, etc. They can
cause serious injury or death from electrocution, explosion,
or fire. If in doubt, call your local utility companies before
digging so that they can mark the location of underground
services in the area. For contact information, see Dig Safe
in the “Important Safety Information” starting on page 1.
•Keep attachment away from overhead electrical power
lines. Place an orange warning sign under overhead
electrical power lines indicating type of danger above.
•Clear area of debris before tilling. Mark any potential
hazards that cannot be removed such as tree stumps, post,
rocks, holes, and drop-offs with a visible flag.
•Tine impact on objects can throw projectiles resulting in
bodily injury or death. Do not point discharge toward
people, animals, or buildings and keep people and animals
away from tiller during operation.
•Always stop hydraulics to tiller immediately after lifting
tiller above ground level. Never operate tiller in the raised
position. The tiller can discharge objects at high speeds
resulting in injury or death.
•Prevent serious injury or death from rotating tines. Do not
go near or under the tiller when tines are turning or engine
is running. Keep others away. Disconnect and lockout
power source before adjusting or servicing the tiller. Keep
hands, feet, hair, and clothing away from moving parts.
•Do not travel across inclines where the equipment could
slip or roll-over. Consult your power machine Operator’s
Manual for acceptable inclines they are capable of
crossing.
•Allow only persons to operate this attachment who have
fully read and comprehended this manual, who have been
properly trained in the safe operation of this attachment,
and who are age 16 or older. Serious injury or death can
result from the failure to read, understand, and follow
instructions provided in this manual.
•Do not allow bystanders to be near the attachment, loader
arms, and power machine during operation.
Section 3: Operating Procedures

16
Section 3: Operating Procedures
AP-SRT62, & AP-SRT76 Rotary Tillers 321-095MK
Table of Contents
7/31/17
Rotary Tiller Stepping Pads & Anti-slip Pad
Figure 3-1
!WARNING
To avoid serious injury or death:
•Refer to Figure 3-1:Use steps, grab-handles, and skid-
resistant surfaces when getting on or off the power machine.
Using unapproved surfaces and handles to mount and
dismount can result in a falling hazard and cause serious
injury or death.
•It is recommended that under most applications to operate
only power machines equipped with a certified Roll-Over
Protective Structure (ROPS) and seat belt. Keep folding
ROPS in the “locked up” position when appropriate. If the
ROPS is in the locked up position, fasten seat belt snugly
and securely to help protect against serious injury or death
from falling and machine overturn.
•Do not till after dark without sufficient lighting on the skid
steer. The tiller can hit objects and other vehicles can run
into the skid steer and/or tiller causing equipment damage
and serious bodily injury or death.
•Use Rotary Tiller for its intended purpose only. Do not use
tiller to lift or carry objects; to pull fence posts, stumps, or
other objects; or to tow other equipment. Doing so can
damage the tiller, cause serious bodily injury, or death.
•Never carry riders on the power machine or attachment.
Riders can obstruct the operator’sview, be struck by foreign
objects, pinched by moving components, thrown by sudden
shifts in movement, entangled in rotating components, and/
or fall causing serious injury or death.
•Check hitch fit-up frequently to make sure loader hitch is
properly positioned undertheattachment’stopanglebar(s),
lock handles are locked down with lock pins fully seated in
their notches, and attachment is in good operating
condition. An improperly attached unit can fall and be
thrown toward bystanders and/or operator.
37806
•Avoid hitting solid objects with this attachment. Solid
objects can damage equipment and throw operator forward
causing loss of control, bodily injury, or death. Always wear
the seat belt.
•Make sure safety labels are installed in their proper
location and are in good condition before operating the
attachment. Read and obey all instructions on the labels.
•Do not use attachment as a lifting device for people or a
work platform. It is not properly designed or guarded for
this use.
Skid Steer Shutdown Procedures
Before leaving the operator’s seat, the following steps
should be taken to shutdown the skid steer.
1. Reduce engine speed and shut-off all power to
attachment.
2. Park on solid, level ground and lower attachment until
it is flat on the ground or on support blocks.
3. Turn off engine, and remove switch key to prevent
unauthorized starting.
4. Relieve all hydraulic pressure to auxiliary hydraulic
lines.
5. If included, raise lap bar(s) until fully up and unbuckle
seat belt.
6. Wait for all components to stop before leaving the
operator’s seat.
7. Use steps, grab-handles and skid-resistant surfaces
when getting on and off the skid steer.
IMPORTANT: This tiller is designed to work in soil
only. Using tiller to grind up stumps, break-up
concrete/pavement, or till anything except soil can
damage the tines, deck, and drive components.
IMPORTANT: Stay clear of objects that can snag
and pull on the hydraulic hoses causing them to
stretch and break connections.
