WORKSHOP MANUAL
TRACTOR
L3130,L3430,L3830,
L4630,L5030
KiSC issued 02, 2007 A

TO THE READER
This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of KUBOTA Tractor L3130,
L3430, L3830, L4630 and L5030. It is divided into two parts, “Mechanism” and
“Servicing” for each section.
■Mechanism
Information on the construction and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.
Refer to Diesel engine / Tractor Mechanism Workshop Manual (Code No. 97897-
01872 / 97897-18200) for the one which has not been described to this workshop
manual.
■Servicing
The heading “General” includes general precautions, check and maintenance and
special tools. Other section, there are troubleshooting, servicing specification lists,
checking and adjusting, disassembling and assembling, and servicing which cover
procedures, precautions, factory specifications and allowable limits.
All information illustrations and specifications contained in this manual are based on
the latest product information available at the time of publication.
The right is reserved to make changes in all information at any time without notice.
November 2003
© KUBOTA Corporation 2003
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

1
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
BEFORE SERVICING AND REPAIRING
• Read all instructions and safety instructions in this
manual and on your machine safety decals.
• Clean the work area and machine.
• Park the machine on a firm and level ground, and set
the parking brake.
• Lower the implement to the ground.
• Stop the engine, and remove the key.
• Disconnect the battery negative cable.
• Hang a “DO NOT OPERATE” tag in operator
station.
SAFETY FIRST
This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on
the machine itself to warn of the possibility of personal injury. Read these instructions carefully.
It is essential that you read the instructions and safety regulations before you attempt to repair or use
this unit.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
■IMPORTANT : Indicates that equipment or property damage could result if instructions are not
followed.
■NOTE : Gives helpful information.
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

2
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS

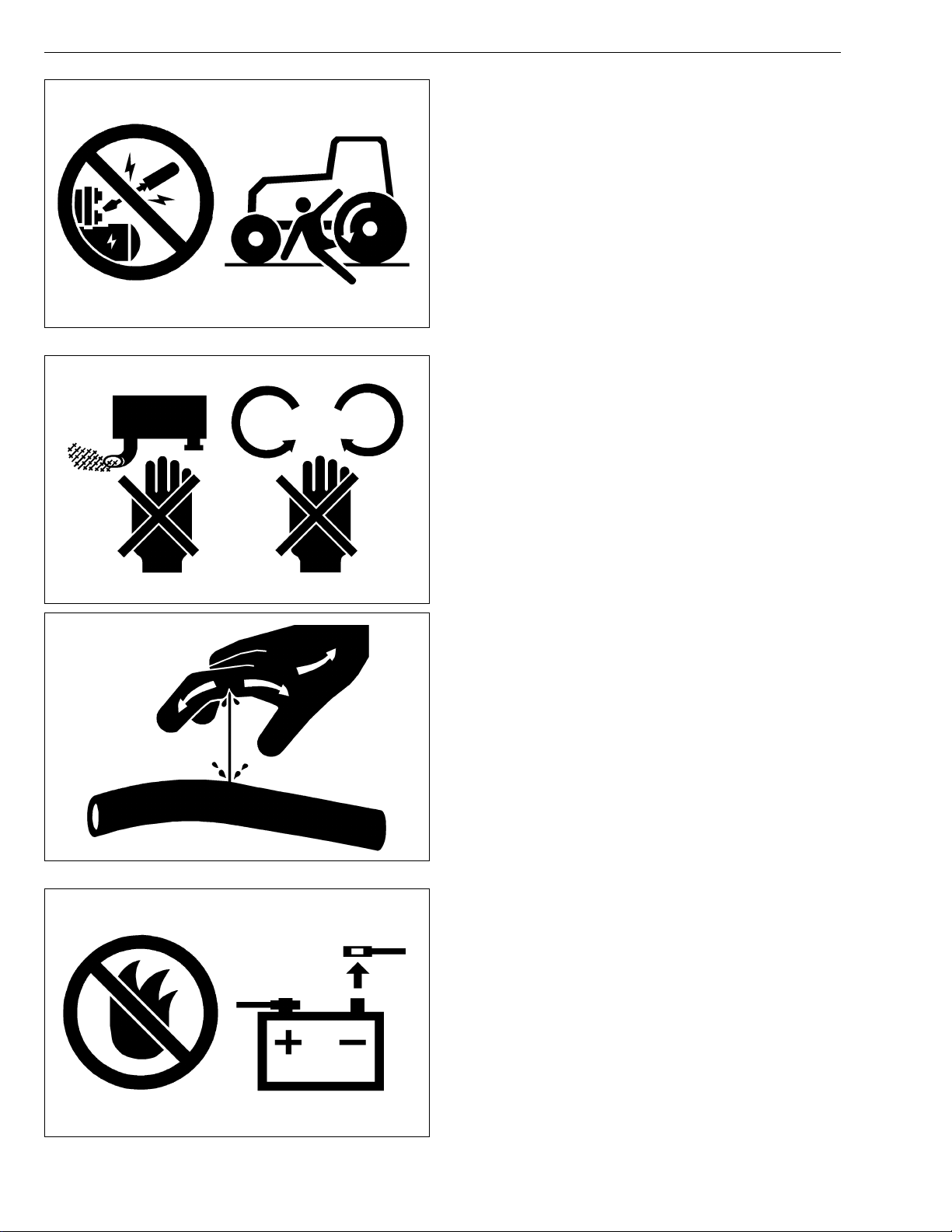

SAFETY STARTING
• Do not start the engine by shorting across starter
terminals or bypassing the safety start switch.
• Do not alter or remove any part of machine safety
system.
• Before starting the engine, make sure that all shift
levers are in neutral positions or in disengaged
positions.
• Never start the engine while standing on ground.
Start the engine only from operator’s seat.
SAFETY WORKING
• Do not work on the machine while under the influence
of alcohol, medication, or other substances or while
fatigued.
• Wear close fitting clothing and safety equipment
appropriate to the job.
• Use tools appropriate to the work. Makeshift tools,
parts, and procedures are not recommended.
• When servicing is performed together by two or more
persons, take care to perform all work safely.
• Do not work under the machine that is supported
solely by a jack. Always support the machine by
safety stands.
• Do not touch the rotating or hot parts while the engine
is running.
• Never remove the radiator cap while the engine is
running, or immediately after stopping. Otherwise, hot
water will spout out from radiator. Only remove
radiator cap when cool enough to touch with bare
hands. Slowly loosen the cap to first stop to relieve
pressure before removing completely.
• Escaping fluid (fuel or hydraulic oil) under pressure
can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines.
Tighten all connections before applying pressure.
AVOID FIRES
• Fuel is extremely flammable and explosive under
certain conditions. Do not smoke or allow flames or
sparks in your working area.
• To avoid sparks from an accidental short circuit,
always disconnect the battery negative cable first and
connect it last.
• Battery gas can explode. Keep sparks and open
flame away from the top of battery, especially when
charging the battery.
• Make sure that no fuel has been spilled on the engine.
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

3
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS

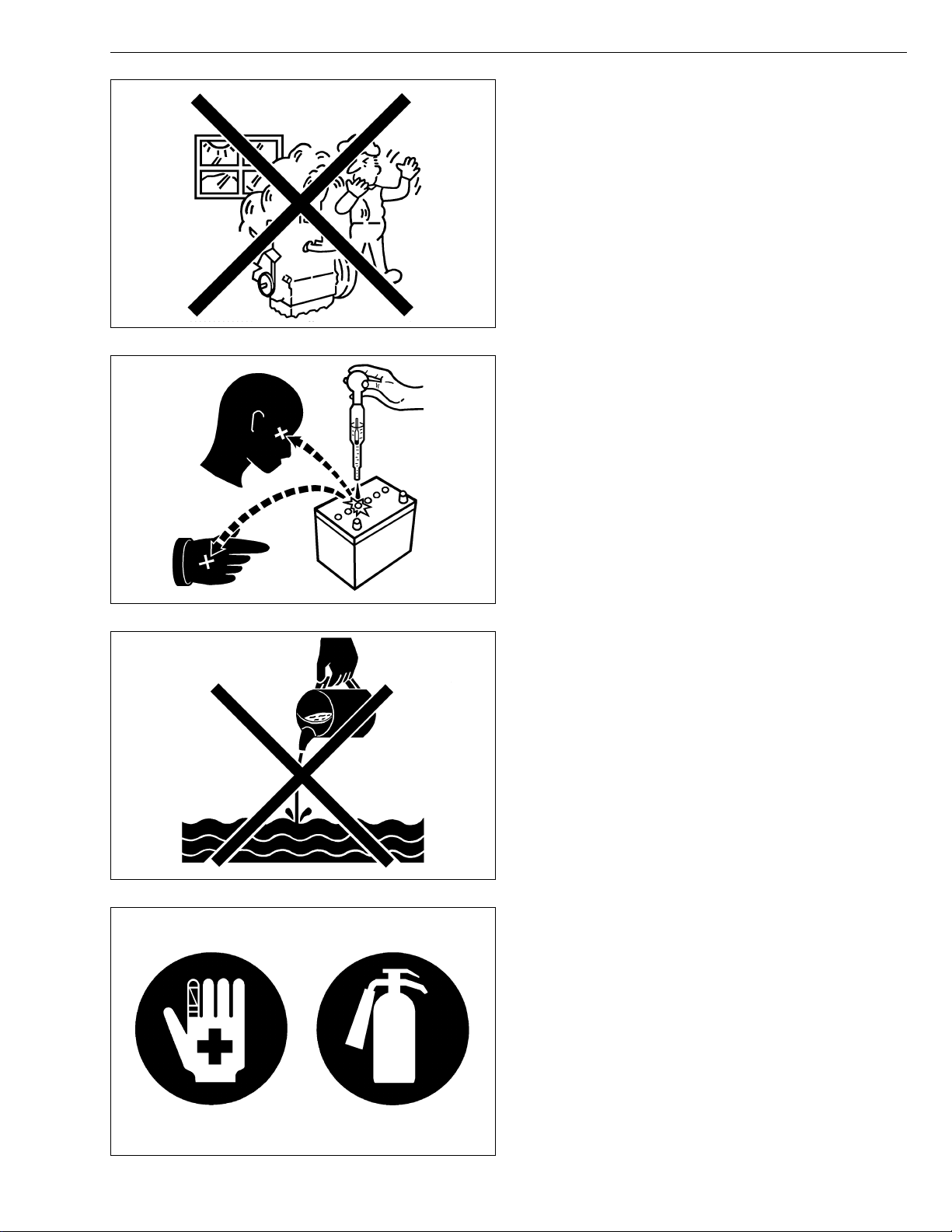

VENTILATE WORK AREA
• If the engine must be running to do some work, make
sure the area is well ventilated. Never run the engine
in a closed area. The exhaust gas contains poisonous
carbon monoxide.
PREVENT ACID BURNS
• Sulfuric acid in battery electrolyte is poisonous. It is
strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte
away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get
medical attention immediately.
DISPOSE OF FLUIDS PROPERLY
• Do not pour fluids into the ground, down a drain, or
into a stream, pond, or lake. Observe relevant
environmental protection regulations when disposing
of oil, fuel, coolant, electrolyte and other harmful
waste.
PREPARE FOR EMERGENCIES
• Keep a first aid kit and fire extinguisher handy at all
times.
• Keep emergency numbers for doctors, ambulance
service, hospital and fire department near your
telephone.
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

4
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS

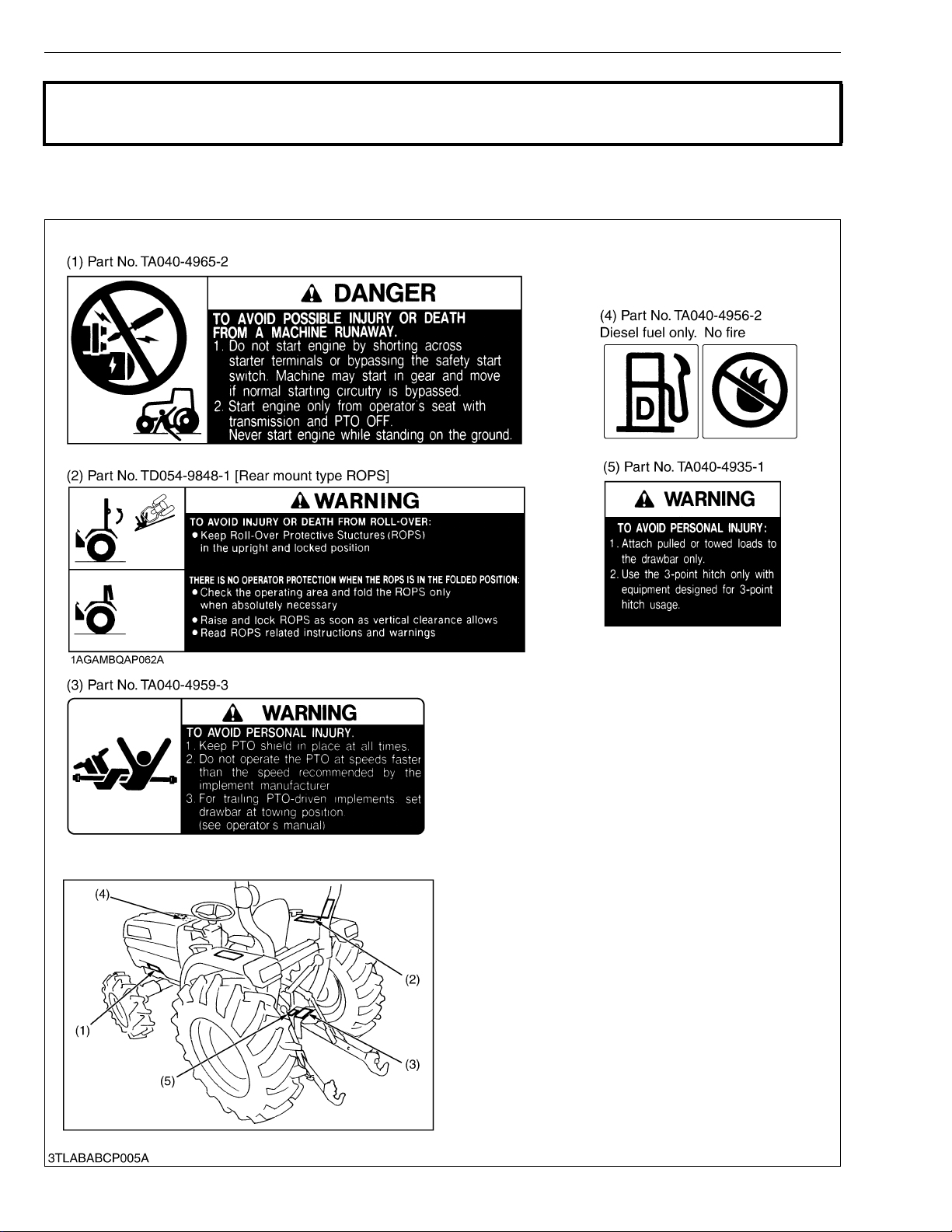

The following safety decals are installed on the machine.
If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in
the parts list.
SAFETY DECALS
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

5
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

6
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

7
L3130 · L3430 · L3830 · L4630 · L5030, WSM SAFETY INSTRUCTIONS
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

8
L3130 · L3430 · L3830 · L4630 · L5030, WSM SPECIFICATIONS
SPECIFICATIONS
ROPS Type
Note : * Manufacture’s estimate
The company reserves the right to change the specifications without notice. W10281170
Model L3130 L3430
Manual Transmission
Engine
Model D1503-MA-E-GST-EU D1703-MA-E-GST-EU
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 3
Total displacement 1.499 L (91.5 cu.in.) 1.647 L (100.5 cu.in.)
Bore and stroke 83 ×92.4 mm (3.3 × 3.6 in.) 87 ×92.4 mm (3.4 × 3.6 in.)
Net power 23.1 kW (31.0 HP)* 25.1 kW (33.6 HP)*
PTO power
(factory observe) 19.0 kW (25.8 HP)* / 2700 min−1(rpm) 21.3 kW (29.0 HP)* / 2700 min−1(rpm)
Maximum torque 102.9 N·m (10.5 kgf·m, 75.9 ft-lbs) 108.3 N·m (11.05 kgf·m, 79.9 ft-lbs)
Battery capacity 12 V, RC : 123 min, CCA : 490 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Capacities
Fuel tank 40 L (10.6 U.S.gals, 8.8 Imp.gals)
Engine crankcase
(with filter) 5.7 L (6.0 U.S.qts, 5.0 Imp.qts)
Engine coolant 6.0 L (6.3 U.S.qts, 5.3 Imp.qts)
Transmission case 42 L (11.1 U.S.gals, 9.2 Imp.gals)

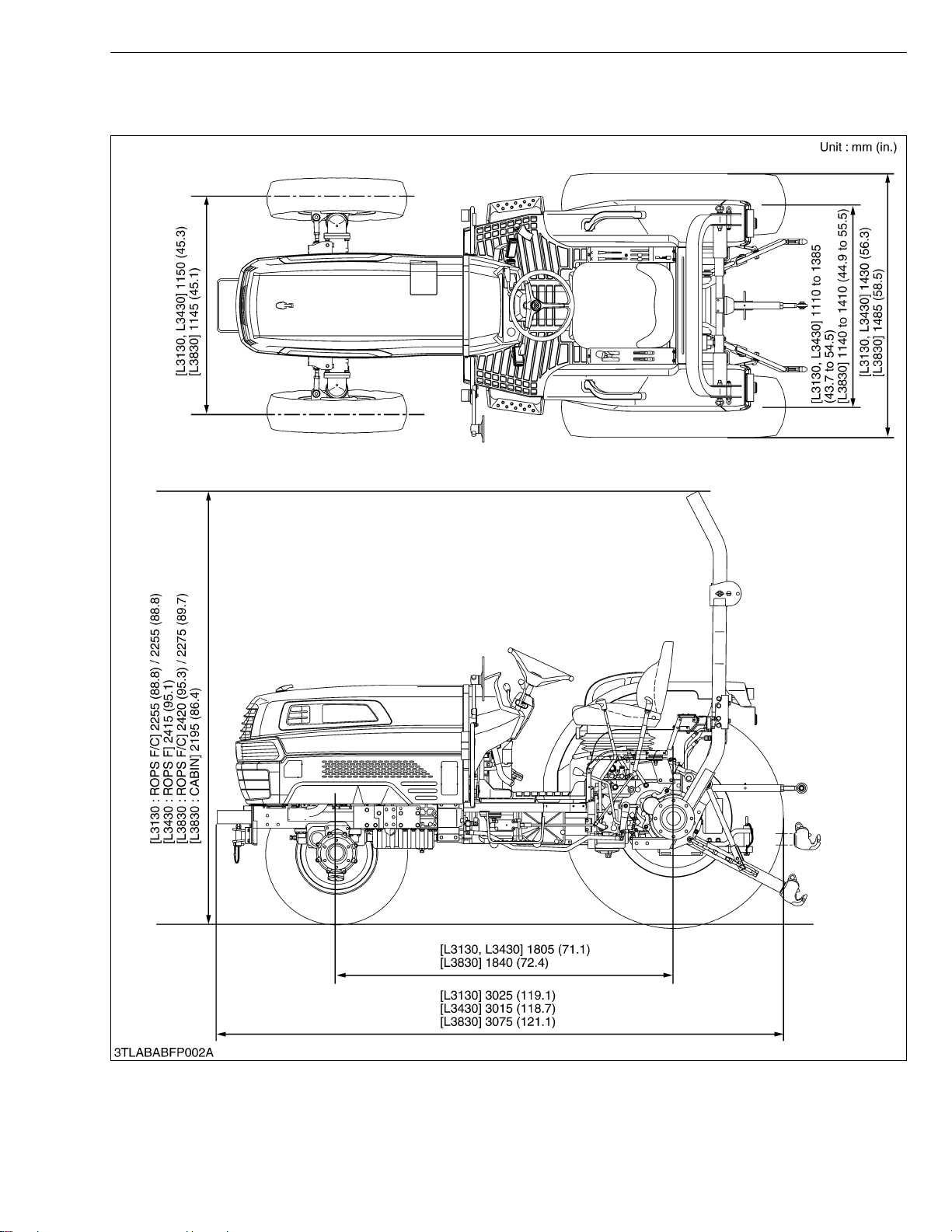

Dimensions
Overall length
(without 3P) 3025 mm (119.1 in.) 3015 mm (118.7 in.)
Overall width (min. tread) 1430 mm (56.3 in.)
Overall height
(with ROPS) 2255 mm (88.8 in.) 2415 mm (95.1 in.)
Wheel base 1805 mm (71.1 in.)
Min. ground clearance 370 mm (14.6 in.)
Tread Front 1150 mm (45.3 in.)
Rear 1110 mm (43.7 in.), 1205 mm (47.4 in.), 1300 mm (51.2 in.), 1385 mm (54.5 in.)
Weight (with ROPS) 1480 kg (3265 lbs) 1460 kg (3220 lbs)
Travelling
system
Standard
tire size Front 7-16
Rear 12.4-24
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission F8, R8 fully synchronized main and shuttle transmission
(with creep speed model : F16, R16 fully synchronized main and shuttle transmission)
Braking system Wet disk type
Min. turning radius
(with brake) 2.7 m (8.9 feet)
Hydraulic
system
Hydraulic control system Position control
Pump capacity 31.5 L (8.3 U.S.gals, 6.9 Imp.gals) / min.
Three point hitch SAE Category 1
Max. lift
force
At lift points 1700 kg (3750 lbs)
24 in. behind
lift points 1200 kg (2650 lbs)
System pressure 17.7 MPa (180 kgf/cm2, 2560 psi)
PTO Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min−1(rpm) / 2550 min−1(rpm), 750 min−1(rpm) / 2250 min−1(rpm)
KiSC issued 02, 2007 A
Find manuals at https://best-manuals.com

9
L3130 · L3430 · L3830 · L4630 · L5030, WSM SPECIFICATIONS
ROPS Type
Note : * Manufacture’s estimate
The company reserves the right to change the specifications without notice. W10359440
Model L3830 L4630
Manual Transmission
Engine
Model D1803-MA-E-GST-EU V2203-MA-E-GST-EU
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 3 4
Total displacement 1.826 L (111.4 cu.in.) 2.197 L (134.1 cu.in.)
Bore and stroke 87 ×102.4 mm (3.4 × 4.0 in.) 87 ×92.4 mm (3.4 × 3.6 in.)
Net power 27.9 kW (37.4 HP)* 33.3 kW (44.7 HP)*
PTO power
(factory observe) 23.9 kW (32.5 HP)* / 2700 min−1(rpm) 29.5 kW (40.1 HP)* / 2700 min−1(rpm)
Maximum torque 120.7 N·m (12.3 kgf·m, 89.0 ft-lbs) 146.2 N·m (14.9 kgf·m, 107.8 ft-lbs)
Battery capacity 12 V, RC : 133 min, CCA : 582 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Capacities
Fuel tank 40 L (10.6 U.S.gals, 8.8 Imp.gals)
Engine crankcase
(with filter) 6.7 L (7.1 U.S.qts, 5.9 Imp.qts) 8.2 L (8.7 U.S.qts, 7.2 Imp.qts)
Engine coolant 7.5 L (7.9 U.S.qts, 6.6 Imp.qts)
Transmission case 43 L (11.4 U.S.gals, 9.5 Imp.gals)
Dimensions
Overall length
(without 3P) 3075 mm (121.1 in.) 3170 mm (124.8 in.)
Overall width (min. tread) 1485 mm (58.5 in.)
Overall height
(with ROPS) 2420 mm (95.3 in.)
Wheel base 1840 mm (72.4 in.) 1895 mm (74.6 in.)
Min. ground clearance 400 mm (15.7 in.)
Tread Front 1145 mm (45.1 in.)
Rear 1140 mm (44.9 in.), 1210 mm (47.6 in.), 1310 mm (51.6 in.), 1410 mm (55.5 in.)
Weight (with ROPS) 1500 kg (3305 lbs) 1520 kg (3351 lbs)
Travelling
system
Standard
tire size Front 8-16
Rear 13.6-24
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission F8, R8 fully synchronized main and shuttle transmission
(with creep speed model : F16, R16 fully synchronized main and shuttle transmission)
Braking system Wet disk type
Min. turning radius
(with brake) 2.7 m (8.9 feet)
Hydraulic
system
Hydraulic control system Position control
Pump capacity 31.5 L (8.3 U.S.gals, 6.9 Imp.gals) / min. 37.0 L (9.8 U.S.gals, 8.1 Imp.gals) / min.
Three point hitch SAE Category 1
Max. lift
force
At lift points 1750 kg (3860 lbs)
24 in. behind
lift points 1250 kg (2760 lbs)
System pressure 17.7 MPa (180 kgf/cm2, 2560 psi)
PTO Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min−1(rpm) / 2550 min−1(rpm), 750 min−1(rpm) / 2250 min−1(rpm)
KiSC issued 02, 2007 A

10
L3130 · L3430 · L3830 · L4630 · L5030, WSM SPECIFICATIONS
CABIN Type
Note : * Manufacture’s estimate
The company reserves the right to change the specifications without notice. W10390020
Model L3830 L4630
Manual Transmission GST
Engine
Model D1803-MA-E-GST-EU V2203-MA-E-GST-EU
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 3 4
Total displacement 1.826 L (111.4 cu.in.) 2.197 L (134.1 cu.in.)
Bore and stroke 87 ×102.4 mm (3.4 × 4.0 in.) 87 ×92.4 mm (3.4 × 3.6 in.)
Net power 27.9 kW (37.9 HP)* 33.3 kW (45.3 HP)*
PTO power
(factory observe) 23.9 kW (32.5 HP)* / 2700 min−1(rpm) 29.5 kW (40.1 HP)* / 2700 min−1(rpm)
Maximum torque 120.7 N·m
(12.3 kgf·m, 89.0 ft-lbs) 146.2 N·m (14.9 kgf·m, 107.8 ft-lbs)
Battery capacity 12 V, RC : 133 min, CCA : 582 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2 [above −10 °C (14 °F)]
Capacities
Fuel tank 40 L (10.6 U.S.gals, 8.8 Imp.gals)
Engine crankcase
(with filter) 6.7 L (7.1 U.S.qts, 5.9 Imp.qts) 8.2 L (8.7 U.S.qts, 7.2 Imp.qts)
Engine coolant 8.7 L (9.2 U.S.qts, 7.7 Imp.qts)
Transmission case 43 L (11.4 U.S.gals, 9.5 Imp.gals)
Dimensions
Overall length
(without 3P) 3075 mm (121.1 in.) 3170 mm (124.8 in.)
Overall width (min. tread) 1485 mm (58.5 in.)
Overall height 2195 mm (86.4 in.)
Wheel base 1840 mm (72.4 in.) 1895 mm (74.6 in.)
Min. ground clearance 400 mm (15.7 in.)
Tread Front 1145 mm (45.1 in.)
Rear 1140 mm (44.9 in.), 1210 mm (47.6 in.), 1310 mm (51.6 in.), 1410 mm (55.5 in.)
Weight 1640 kg (3616 lbs) 1690 kg (3726 lbs)
Travelling
system
Standard
tire size Front 8-16
Rear 13.6-24
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission 16 forward and 16 reverse speeds 24 forward and 16 reverse
speeds
Braking system Wet disk type
Min. turning radius
(with brake) 2.7 m (8.9 feet)
Hydraulic
system
Hydraulic control system Position control
Pump capacity 31.5 L (8.3 U.S.gals, 6.9
Imp.gals) / min. 37.0 L (9.8 U.S.gals, 8.1 Imp.gals) / min.
Three point hitch SAE Category 1
Max. lift
force
At lift points 1750 kg (3860 lbs)
24 in. behind
lift points 1250 kg (2760 lbs)
System pressure 17.7 MPa (180 kgf/cm2, 2560 psi)
PTO
Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min−1(rpm) / 2550 min−1
(rpm), 750 min−1(rpm) /
2250 min−1(rpm)
540 min−1(rpm) / 2550 min−1(rpm)
KiSC issued 02, 2007 A

11
L3130 · L3430 · L3830 · L4630 · L5030, WSM SPECIFICATIONS
CABIN Type
Note : * Manufacture’s estimate
The company reserves the right to change the specifications without notice. W10399600
Model L5030
Manual Transmission GST HST
Engine
Model V2403-MA-E-GST-EU
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 4
Total displacement 2.434 L (148.5 cu.in.)
Bore and stroke 87 ×102.4 mm (3.4 × 4.0 in.)
Net power 37.3 kW (50.7 HP)*
PTO power
(factory observe) 32.8 kW (44.6 HP)* / 2700 min−1(rpm) 31.7 kW (43.1 HP)* /
2700 min−1(rpm)
Maximum torque 162.4 N·m (16.6 kgf·m, 119.8 ft-lbs)
Battery capacity 12 V, RC : 133 min, CCA : 582 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2 [above −10 °C (14 °F)]
Capacities
Fuel tank 43 L (11.4 U.S.gals, 9.5 Imp.gals)
Engine crankcase
(with filter) 8.2 L (8.7 U.S.qts, 7.2 Imp.qts)
Engine coolant 9.2 L (9.7 U.S.qts, 8.1 Imp.qts)
Transmission case 45 L (11.9 U.S.gals, 9.9 Imp.gals)
Dimensions
Overall length
(without 3P) 3245 mm (127.8 in.)
Overall width (min. tread) 1470 mm (57.9 in.)
Overall height 2275 mm (89.6 in.)
Wheel base 1915 mm (75.4 in.)
Min. ground clearance 425 mm (16.7 in.)
Tread Front 1135 mm (44.7 in.)
Rear 1125 mm (44.3 in.), 1225 mm (48.2 in.), 1325 mm (52.2 in.)
Weight 1840 kg (4057 lbs) 1860 kg (4101 lbs)
Travelling
system
Standard
tire size Front 9.5-16
Rear 13.6-28
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission 16 forward and 16 reverse
speeds 24 forward and 16 reverse speeds 3 speeds
Braking system Wet disk type
Min. turning radius
(with brake) 3.2 m (10.5 feet)
Hydraulic
system
Hydraulic control system Position control
Pump capacity 37.0 L (9.8 U.S.gals, 8.1 Imp.gals) / min.
Three point hitch SAE Category 1
Max. lift
force
At lift points 1750 kg (3860 lbs)
24 in. behind
lift points 1350 kg (2976 lbs)
System pressure 17.7 MPa (180 kgf/cm2, 2560 psi)
PTO Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min−1(rpm) / 2550 min−1(rpm) 540 min−1(rpm) /
2660 min−1(rpm)
KiSC issued 02, 2007 A

12
L3130 · L3430 · L3830 · L4630 · L5030, WSM TRAVELLING SPEEDS
TRAVELLING SPEEDS
[Manual Transmission Type]
The company reserves the right to change the specifications without notice. W1035065
Model L3130 L3830 - L4630
Tire size (Rear) 12.4-24 13.6-24
Shuttle shift
lever Rangegearshift lever Main gear shift lever km/h (mph) km/h (mph)
Forward
(At rated engine
rpm)
Low
1 1.81 (1.1) 1.68 (1.0)
2 2.56 (1.6) 2.38 (1.5)
3 4.16 (2.6) 3.86 (2.4)
4 6.14 (3.8) 5.71 (3.5)
High
1 9.13 (5.7) 8.49 (5.3)
2 12.91 (8.0) 12.01 (7.5)
3 20.96 (13.0) 19.49 (12.1)
4 30.96 (19.2) 28.78 (17.9)
Reverse
(At rated engine
rpm)
Low
1 1.51 (0.9) 1.40 (0.9)
2 2.13 (1.3) 1.98 (1.2)
3 3.46 (2.1) 3.22 (2.0)
4 5.11 (3.2) 4.76 (3.0)
High
1 7.61 (4.7) 7.07 (4.4)
2 10.76 (6.7) 10.01 (6.2)
3 17.47 (10.9) 16.24 (10.1)
4 25.80 (16.0) 23.99 (14.9)
KiSC issued 02, 2007 A

13
L3130 · L3430 · L3830 · L4630 · L5030, WSM TRAVELLING SPEEDS
[With Creep Speed Model]
The company reserves the right to change the specifications without notice. W1044901
Model L3130 L3830 - L4630 L5030
Creep gear shift lever High Low High Low High Low
Tire size (Rear) 12.4-24 13.6-24 13.6-28
Shuttle
shift lever
Range
gear shift
lever
Maingear
shift lever km/h (mph) km/h (mph) km/h (mph) km/h (mph) km/h (mph) km/h (mph)
Forward
(At rated
engine
rpm)
Low
1 1.81 (1.1) 0.20 (0.1) 1.68 (1.0) 0.19 (0.1) 1.77 (1.1) 0.20 (0.1)
2 2.56 (1.6) 0.29 (0.2) 2.38 (1.5) 0.27 (0.2) 2.51 (1.6) 0.28 (0.2)
3 4.16 (2.6) 0.47 (0.3) 3.86 (2.4) 0.43 (0.3) 4.07 (2.5) 0.46 (0.3)
4 6.14 (3.8) 0.69 (0.4) 5.71 (3.5) 0.64 (0.4) 6.02 (3.7) 0.68 (0.4)
High
1 9.13 (5.7) 1.02 (0.6) 8.49 (5.3) 0.95 (0.6) 8.95 (5.6) 1.00 (0.6)
212.91
(8.0) 1.45 (0.9) 12.01
(7.5) 1.35 (0.8) 12.66
(7.9) 1.42 (0.9)
320.96
(13.0) 2.35 (1.5) 19.49
(12.1) 2.19 (1.4) 20.54
(12.8) 2.31 (1.4)
430.96
(19.2) 3.48 (2.2) 28.78
(17.9) 3.23 (2.0) 30.34
(18.9) 3.41 (2.1)
Reverse
(At rated
engine
rpm)
Low
1 1.51 (0.9) 0.17 (0.1) 1.40 (0.9) 0.16 (0.1) 1.48 (0.9) 0.17 (0.1)
2 2.13 (1.3) 0.24 (0.1) 1.98 (1.2) 0.22 (0.1) 2.09 (1.3) 0.23 (0.1)
3 3.46 (2.1) 0.39 (0.2) 3.22 (2.0) 0.36 (0.2) 3.39 (2.1) 0.38 (0.2)
4 5.11 (3.2) 0.57 (0.4) 4.76 (3.0) 0.53 (0.3) 5.01 (3.1) 0.56 (0.3)
High
1 7.61 (4.7) 0.85 (0.5) 7.07 (4.4) 0.79 (0.5) 7.45 (4.6) 0.84 (0.5)
210.76
(6.7) 1.21 (0.8) 10.01
(6.2) 1.12 (0.7) 10.55
(6.6) 1.18 (0.7)
317.47
(10.9) 1.96 (1.2) 16.24
(10.1) 1.82 (1.1) 17.12
(10.6) 1.92 (1.2)
425.80
(16.0) 2.90 (1.8) 23.99
(14.9) 2.69 (1.7) 25.28
(15.7) 2.84 (1.8)
KiSC issued 02, 2007 A

14
L3130 · L3430 · L3830 · L4630 · L5030, WSM TRAVELLING SPEEDS
[GST Type (with creep speed model)]
The company reserves the right to change the specifications without notice. W1032246
[HST Type]
The company reserves the right to change the specifications without notice. W1034865
Model L4630 L5030
Creep gear shift lever High Low High Low
Tire size (Rear) 13.6-24 13.6-28
Shuttle shift
lever Main gear shift lever km/h (mph) km/h (mph)
Forward
(At rated engine
rpm)
1 1.68 (1.0) 0.19 (0.1) 1.77 (1.1) 0.20 (0.1)
2 2.38 (1.5) 0.27 (0.2) 2.51 (1.6) 0.28 (0.2)
3 3.07 (1.9) 0.35 (0.2) 3.24 (2.0) 0.36 (0.2)
4 3.86 (2.4) 0.43 (0.3) 4.07 (2.5) 0.46 (0.3)
5 4.54 (2.8) 0.51 (0.3) 4.78 (3.0) 0.54 (0.3)
6 5.71 (3.5) 0.64 (0.4) 6.02 (3.7) 0.68 (0.4)
7 6.75 (4.2) 0.76 (0.5) 7.12 (4.4) 0.80 (0.5)
8 8.49 (5.3) 0.95 (0.6) 8.95 (5.6) 1.00 (0.6)
9 9.55 (5.9) 1.07 (0.7) 10.07 (6.3) 1.13 (0.7)
10 12.01 (7.5) 1.35 (0.8) 12.66 (7.9) 1.42 (0.9)
11 19.49 (12.1) 2.19 (1.4) 20.54 (12.8) 2.31 (1.4)
12 28.78 (17.9) 3.23 (2.0) 30.34 (18.9) 3.41 (2.1)
Reverse
(At rated engine
rpm)
1 1.40 (0.9) 0.16 (0.1) 1.48 (0.9) 0.17 (0.1)
2 1.98 (1.2) 0.22 (0.1) 2.09 (1.3) 0.23 (0.1)
3 3.22 (2.0) 0.36 (0.2) 3.39 (2.1) 0.38 (0.2)
4 4.76 (3.0) 0.53 (0.3) 5.01 (3.1) 0.56 (0.3)
5 7.07 (4.4) 0.79 (0.5) 7.45 (4.6) 0.84 (0.5)
6 10.01 (6.2) 1.12 (0.7) 10.55 (6.6) 1.18 (0.7)
7 16.24 (10.1) 1.82 (1.1) 17.12(10.6) 1.92 (1.2)
8 23.99 (14.9) 2.69 (1.7) 25.28 (15.7) 2.84 (1.8)
Model L5030
Tire size (Rear) 14.9-26
Shuttle shift lever Range gear shift lever km/h (mph)
Forward
(At rated engine rpm)
L 0 to 6.10 (0 to 3.8)
M 0 to 11.80 (0 to 7.3)
H 0 to 28.60 (0 to 17.8)
Reverse
(At rated engine rpm)
L 0 to 5.50 (0 to 3.4)
M 0 to 10.60 (0 to 6.6)
H 0 to 25.70 (0 to 16.0)
KiSC issued 02, 2007 A

15
L3130 · L3430 · L3830 · L4630 · L5030, WSM DIMENSIONS
DIMENSIONS
[L3130, L3430, L3830]
KiSC issued 02, 2007 A

16
L3130 · L3430 · L3830 · L4630 · L5030, WSM DIMENSIONS
[L4630, L5030]
KiSC issued 02, 2007 A

G GENERAL
KiSC issued 02, 2007 A

CONTENTS
GENERAL
1. TRACTOR IDENTIFICATION ......................................................................... G-1
2. GENERAL PRECAUTIONS............................................................................ G-2
3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING.. G-3
[1] WIRING ..................................................................................................... G-3
[2] BATTERY................................................................................................... G-5
[3] FUSE.......................................................................................................... G-5
[4] CONNECTOR............................................................................................ G-5
[5] HANDLING OF CIRCUIT TESTER......................................................... G-6
4. LUBRICANTS, FUEL AND COOLANT ......................................................... G-7
5. TIGHTENING TORQUES ............................................................................. G-10
[1] GENERAL USE SCREWS, BOLTS AND NUTS................................. G-10
6. MAINTENANCE ............................................................................................. G-11
7. CHECK AND MAINTENANCE..................................................................... G-14
[1] DAILY CHECK........................................................................................ G-14
[2] CHECK POINTS OF INITIAL 50 HOURS........................................... G-15
[3] CHECK POINTS OF EVERY 50 HOURS........................................... G-19
[4] CHECK POINTS OF EVERY 100 HOURS........................................ G-22
[5] CHECK POINTS OF EVERY 200 HOURS......................................... G-27
[6] CHECK POINTS OF EVERY 400 HOURS......................................... G-31
[7] CHECK POINTS OF EVERY 600 HOURS......................................... G-31
[8] CHECK POINTS OF EVERY 800 HOURS......................................... G-31
[9] CHECK POINTS OF EVERY 1 YEAR................................................ G-32
[10]CHECK POINTS OF EVERY 2 YEARS.............................................. G-32
[11]OTHERS.................................................................................................. G-34
8. SPECIAL TOOLS.......................................................................................... G-39
[1] SPECIAL TOOLS FOR ENGINE .......................................................... G-39
[2] SPECIAL TOOLS FOR TRACTOR....................................................... G-47
9. TIRES............................................................................................................. G-55
[1] TIRE PRESSURE ................................................................................... G-55
[2] TREADS ADJUSTMENT ........................................................................ G-56
(1) Front Wheels...................................................................................... G-56
(2) Rear Wheels ...................................................................................... G-56
[3] TIRE LIQUID INJECTION...................................................................... G-58
KiSC issued 02, 2007 A
