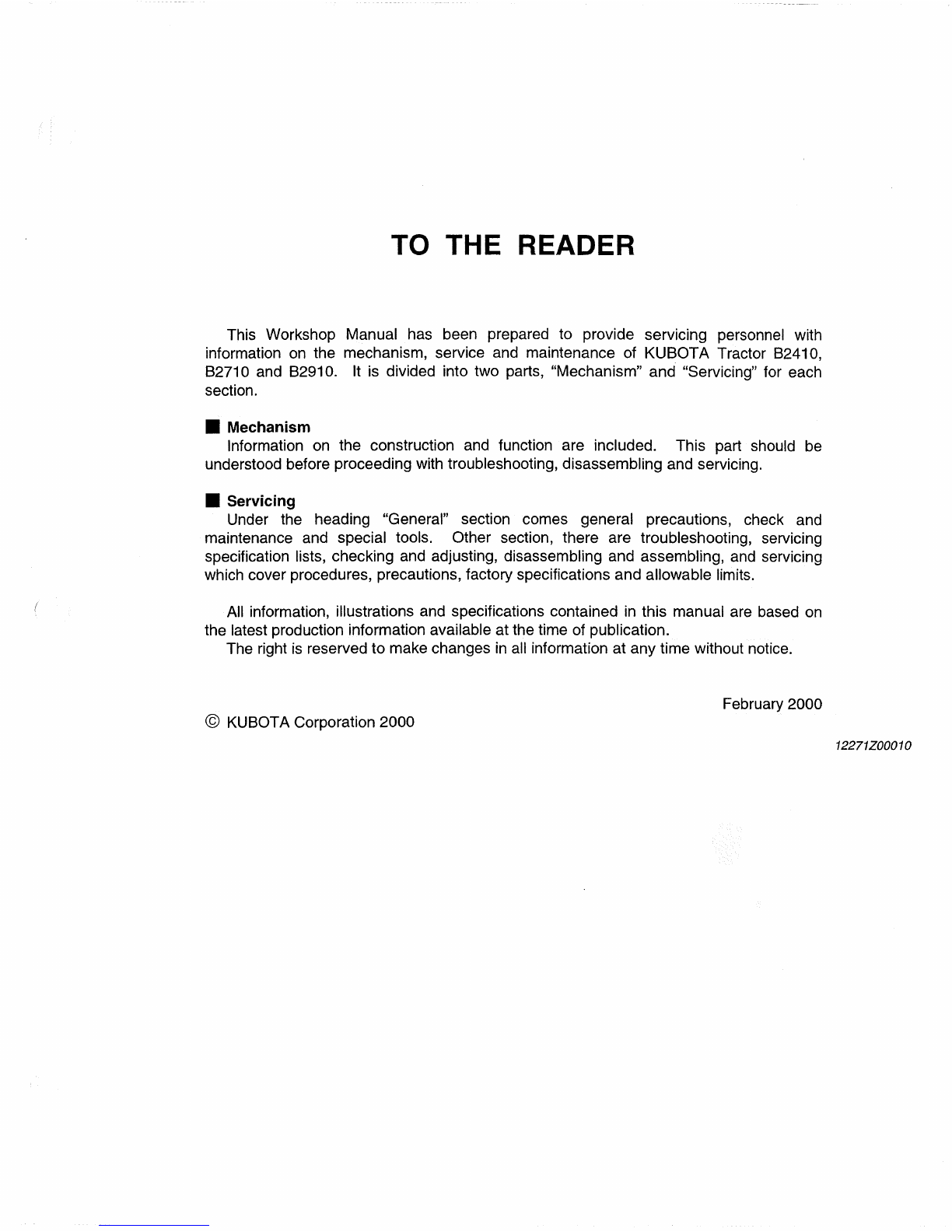

TO THE READER
This Workshop Manual has been prepared to provide servIcing personnel with
information
on
the mechanism, service and maintenance of KUBOTA Tractor B2410,
B2710 and B2910. It
is
divided into two parts, "Mechanism" and "Servicing" for each
section.
•Mechanism
Information
on
the construction and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.
•Servicing
Under the heading "General" section comes general precautions, check and
maintenance and special tools. Other section, there are troubleshooting, servicing
specification lists, checking and adjusting, disassembling and assembling, and servicing
which cover procedures, precautions, factory specifications and allowable limits.
All
information, illustrations and specifications contained
in
this manual are based
on
the latest production information available at the time of publication.
The right
is
reserved to make changes
in
all information at any time without notice.
February 2000
©KUBOTA Corporation 2000
12271Z00010

SAFETY INSTRUCTIONS
82410
•
82710
•
82910
WSM, 12271
~.u.u.u/.u.u/.u/.u'u/.uAW.u.u/H/'u//H////H/H////AWH//.u/'u//H/H/H/.u/////.u//.uH/////.u/HH/////H/////////H////HH~
~
ASAFETY FIRST
~
~
~
~
This
symbol,
the
industry's
"Safety
Alert
Symbol",
is
used
throughout
this
manual
and
decals
on
~
~
the
machine
itself
to
warn
of
the
possibility
of
personal
injury.
Read
these
instructions
carefully.
~
~
It
is
essential
that
you
read
the
instructions
and
safety
regulations
before
you
attempt
to
repair
or
.~
~
use
this
unit.
~
~~AWHhW/)W'u//hWhW/)WH/hW$.uD7HD'"'u//hW'u/.u'u/~HHAWD7HD'"/hW/U/~
ADANGER :
Indicates
an
imminently
hazardous
situation
which,
if
not
avoided,
will
result
in
death
or
serious
injury.
AWARNING:
Indicates
a
potentially
hazardous
situation
which,
if
not
avoided,
could
result
in
death
or
serious
injury.
ACAUTION :
Indicates
a
potentially
hazardous
situation
which,
if
not
avoided,
may
result
in
minor
or
moderate
injury
.
•IMPORTANT :
Indicates
that
equipment
or
property
damage
could
result
if
instructions
are
not
followed.
I•NOTE :
Gives
helpful
information.
I
----------------------------
OOOOOZ00010
OOOOOF00010
BEFORE SERVICING AND REPAIRING
(1)
Read all instructions and safety instructions
in
this
manual and on your machine safety decals.
(2) Clean the work area and machine.
(3) Park the machine on afirm and level ground, and set
the parking brake.
(4)
Lower the implement to the ground.
(5)
Stop the engine, and remove the key.
(6)
Disconnect the battery negative cable.
(7) Hang a
"DO
NOT OPERATE" tag
in
operator
station.
OOOOOZ00020
1

82410 •82710 •82910
WSM,
12271
OOOOOF00020

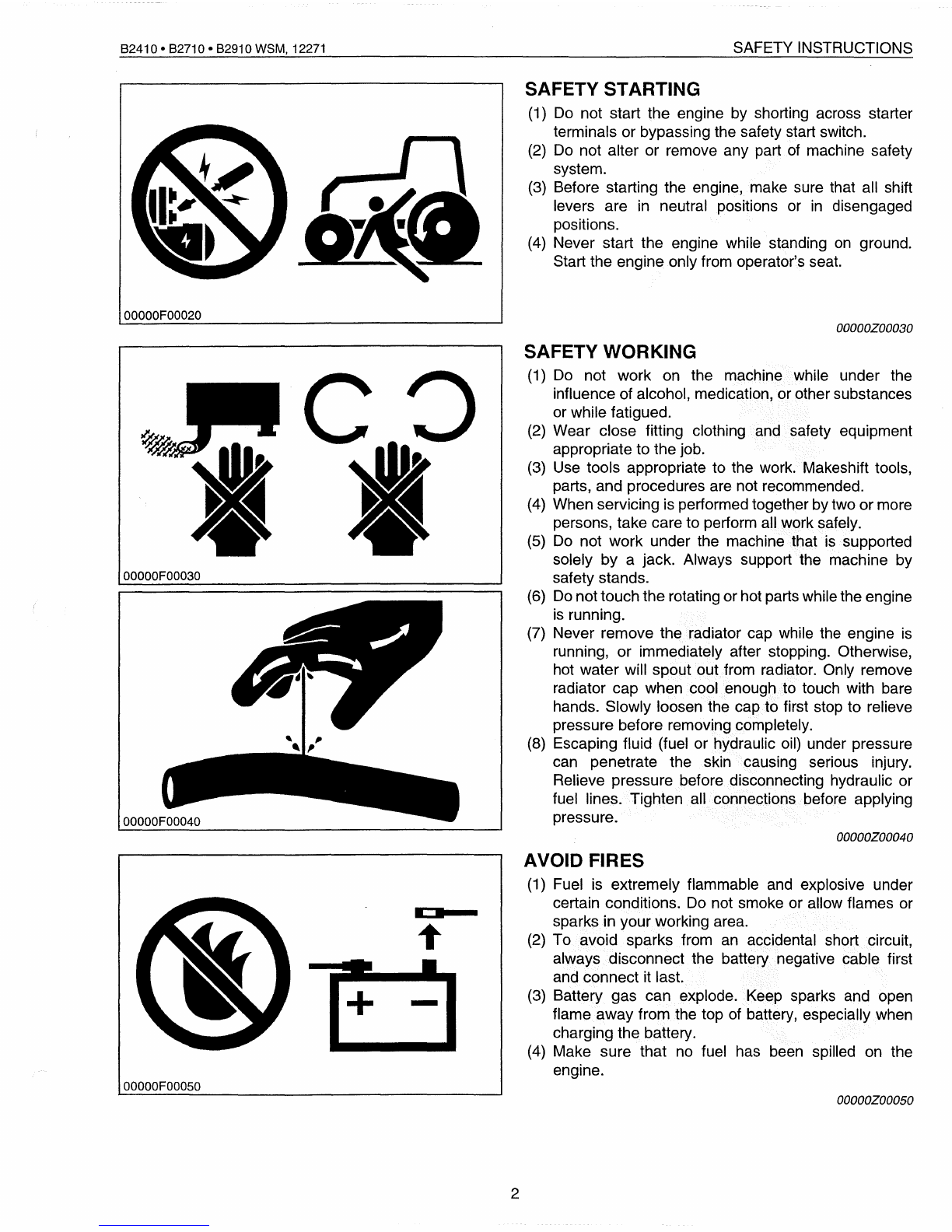

SAFETY INSTRUCTIONS
SAFETY STARTING
(1)
Do
not start the engine by shorting across starter
terminals or bypassing the safety start switch.
(2) Do not alter or remove any part of machine safety
system.
(3) Before starting the engine, make sure that all shift
levers are in neutral positions or
in
disengaged
positions.
(4) Never start the engine while standing
on
ground.
Start the engine only from operator's seat.
00000Z00030
OOOOOF00030
C~
•
SAFETY WORKING
(1) Do not work on the machine while under the
influence of alcohol, medication,orother substances
or while fatigued.
(2) Wear close fitting clothingiand safety equipment
appropriate to the job.
(3) Use tools appropriate to the work. Makeshift tools,
parts, and procedures are not recommended.
(4) When servicing is performed together by two ormore
persons, take care to perform all work safely.
(5) Do not work under the machine
that
is supported
solely by ajack. Always support the machine by
safety stands.
(6) Do nottouch the rotating or hot parts while the engine
is
running.
(7) Never remove the radiator cap while the engine is
running,
or
immediately after stopping. Otherwise,
hot water will
spoutouLfrom
radiator. Only remove
radiator cap when cool enough
to
touch with bare
hands. Slowly loosen the cap
to
first stop to relieve
pressure before removing completely.
(8) Escaping fluid (fuel or hydraulic oil) under pressure
can penetrate the
skini9ausing
serious injury.
Relieve pressure before disconnecting hydraulic or
fuel lines. Tighten all connections •before applying
pressure. 00000Z00040
OOOOOF00050
+
•
-
2
AVOID FIRES
(1) Fuel is extremely flammable and explosive under
certain conditions. Do not smoke or allow flames or
sparks in your working area.
(2)
To/avoid
sparks from an accidental short circuit,
always<disconnect the battery negative
cable.
first
and connect it last.
(3) Battery gas can
explode.Ke~p
sparks and open
flame away from the top of battery, especially when
charging
the.
battery.
(4) Make sure that no fuel has been spilled on the
engine.
00000Z00050

SAFETY INSTRUCTIONS
00000F00060
82410·
82710·
82910 WSM, 12271
VENTILATE WORK AREA
(1)
If the engine must
be
running to do some work, make
sure the area
is
well ventilated. Never
run
the engine
in
aclosed area. The exhaust gas contains
poisonous carbon monoxide.
00000200060
PREVENT ACID BURNS
(1)
Sulfuric acid
in
battery electrolyte
is
poisonous. It
is
strong enough to burn skin, clothing and cause
blindness
if
splashed into eyes. Keep
..
electrolyte
away from eyes, hands and clothing.
If
you spill
electrolyte on yourself, flush with water, and get
medical attention immediately.
00000200070
DISPOSE OF FLUIDS PROPERLY
(1)
Do not pour fluids into the ground, down adrain, or
into a
stream,pond,
or lake. Observe relevant
environmental protection regulations when disposing
of oil, fuel, coolant, electrolyte and other harmful
waste.
00000200080
00000F00090
3
PREPARE FOR EMERGENCIES
(1)
Keep afirst aid kit and fire extinguisher handy at
all
times.
(2)
Keep emergency numbers for doctors, ambulance
service, hospital and fire department•near your
telephone.
00000200090

82410 •82710 •82910
WSM,
12271
SAFETY INSTRUCTIONS
I
S_A_F_ET_Y_D_E_C_A_L_S
I
•The following safety decals are installed
on
the machine.
If
adecaLbecomes damaged, illegible
or
is
not
on
the machine, replace it. The decal part number
is
listed in the parts list.
(2) Part
No.
TA040-4959-3
(4) Part
No.
6C140-4744-1
(3) Part
No.
6C040-4741-2
No.
fire
(6) Part
No.
TA040-4958-1
Do not touch hot
surface like muffler, etc.
(5) Part
No.
6C150-4743-1
A
WARNING
TO
AVOID
PERSONAL
INJURY:
1.
Attach pulled
or
towed loads to
the drawber only.
2. Use the 3-polnt hitch only with equipment
designed for 3-point hitch usage.
12271F00010
AWARNING
4
12271Z00020

SAFETY INSTRUCTIONS 82410 •82710 •82910
WSM,
12271
[82710, 82910]
(1)
Part
No.
6C090-4965-1 (2) Part
No.
TA040-4959-3
ADANGER
TO
AVOID
POSSIBLE INJURY
OR
DEATH
FROM AMACHINE
RUNAWAY.
1.
Do not start engine by shorting across
starter terminals or bypassing the safety
start switch. Machine may start in gear and
move if normal starting circuitry
is
bypassed.
2.
Start engine only from operator's seat with
transmission and
PTa
OFF.
Never start engine while standing
on
the ground.
(3) Part
No.
6C040-4741-2
No.
fire
~
(4)
Part
No.
6C140-4744-1
(5)
Part
No.
6C150-4743-1
(6) Part
No.
TA040-4958-1
Do
not touch hot
surface like muffler, etc.
BEFORE
DISMOUNTING
TRACTOR:
1.
ALWAYS
SET
PARKING
BRAKE.
2.
PARK
ON
LEVEL
GROUND
WHENEVER
POSSIBLE.
If
parking
on
a
slope.
position
tractor
across
the
slope.
3.
LOWER
ALL
IMPLEMENTS
TO
THE
GROUND.
4.
STOP
THE
ENGINE.
6C140-47431
TO AVOID PERSONAL INJURY:
1.
Attach pulled or towed loads to
the drawbar
only.
2.
Use the 3-point hitch only with equipment
designed for 3-point hitch usage.
AWARNING
AWARNING
F-1
0892A,ar
12271
F00020
12271
Z00030
5

B2410 •B271 0 • B2910 WSM, 12271
[82410,82710,82910]
(7) Part
No.
TA040-4932-2
(9) Part
No.
6C040-4742-1
ACAUTION
TO AVOID PERSONAL INJURY:
1.
Read and understand the operator's manual before operation.
2.
Before starting the engine, make sure that everyone
is
at asafe distance
from the tractor and that the PTO is
OFF.
3.
Do
not allow passengers on the tractor at any time.
4.
Before allowing other people to use the tractor, have them red the
operator's manual.
5.
Check the tightness of
all
nuts and bolts regularly.
6.
Keep all shields in place and stay away from all moving parts.
7.
lock
the two brake pedals together before driving on the road.
8.
Slow down for turns, or rough roads, or when applying individual brakes.
9.
On
public roads use SMV emblem and hazard lights, if reqUired by local
traffic and safety regulations.
10.
Pull only from the drawbar.
11.
Before dismounting lower the implement. set the parking brake, stop the
engine and remove the
key.
(10)
Part
No.
6C040-5559-1
SAFETY INSTRUCTIONS
(8)
Part
No.
32751-4958-1
Stay clear of engine
fan and fanbelt.
DANGER EXPLOSIVE GASES
Cigarettes.
flames
or
sparks
could
cause
battery
to
explode.
Always
shield
eyes
and
face
from
battery.
Do
not
charge
or
use
booster
cables
or
adjus'-.Post
connections
without
Jlr~er
instruction
and
traininQ:..
KEEP VENT
CAP~
TIGHT AND
lEVt::l
POISON CAUSES SEVERE BURNS
Contains sulfuric acid.
Avoid
contact
with
skin,
eyes or clothing.
In
event
KEEdp<:>uufnOFtREA~H
PdFciC~{LDR~N
CARE
OF
DANGER,WARNING AND CAUTION LABELS
1. Keep danger, warning and caution labels clean and free from obstructing material.
2.
Clean danger, warning and caution labels with soap and water, dry with asoft cloth.
3.
Replace damaged or missing danger, warning and caution labels with new labels.
4.
If acomponent with danger, warning or'caution label
(s)
affixed is replace with new part, make sure new
label (s) is (are) attached
in
the same locations
(s)
as the replaced component.
5.
Mount new danger, warning and caution labels
by
applying
on
aclean dry surface and pressing any bubbles to
outside edge.
12271F00030
12271
Z00040
6

SPECIFICATIONS
B2410·
B2710·
B2910 WSM, 12271
SPECIFICATIONS (82410)
Note:
Manufacture sestimate the company reserves the right to change the specifications Without notice.
Model B2410HSDB TB2410HSD IB2410HSE
PTa
power 13.4 kW (18.0 HP)
Maker KUBOTA
Model D1105-E-D16
Type Indirect Injection. Vertical, water-cooled, 4-cycle diesel
Number of cylinders 3
Bore and stroke 78 x78.4
mm(3.07
x3.09 in.)
Total displacement 1123 cm3(68.5 cu.in.)
Engine Engine net power (DIN) 17.9 kW (24.0 HP)
Rated revolution (min-1)43.3 r/s (2600 rpm)
Maximum torque 67 N·m (50 ft-Ibs)
Battery 12
V,
RC:
79 min,
CCA:
433 A
Starting system Electric starting with cell starter 12
V,
1
.0
kW
Lubricating system Forced lubrication by trochoidal pump
Cooling system Pressurized radiator, .forced circulation with water pump
Fuel Diesel fuel No. 2-D [above
~1
0
'C
(14'F)],
Diesel fuel NO.1 [below
-1
O'C
(14 'F)]
Fuel tank 24
L.
(6.3 U.S.gals, 5.3
Imp~gal)
Engine crankcase (with filter) 3.0 L(3.2 U.S.qts, 2.6 Imp.qts)
Capacities Engine coolant 3.8
L(4.0
U.S.qts, 3.3 Imp.qts)
Transmission case
12.5L
(3.30 U.S.gals, 2.75 Imp.gals)
4.5
L<I>
>
•.
\3.1
LI
Front axle case (4.8 U.S.qts, 4.0 Imp.qts) .....(3.9U.S.qts, 3.3
Imp.qts)
Overall length (without
3P)
2330
rnm
(91.7 in.)
Overall width 1175 mm (46.3 in.)
Overall height (with RaPS) 1965 mm (77.4 in.)
Dimensions Overall height (top of steering wheel) 1372 mm (54.0 in.)
Wheel base 1500 mm (59.0 in.)
Minimum ground clearance 285 mm (11.2 in.) I325 mm (12.8 in.)
Front 835 mm (32.9 in.) I900 mm (35.4 in.)
Tread Rear 890 to 1064 mm (35.0 to 41.9 in.)
Weight (with
RaPS)
680
kg
(1500 Ibs) T670 kg (1477Ibs) I620
kg
(1367Ibs)
Clutch Dry single plate
Front 7-12 I6.5-10
Tires Rear 11.2-16
Steering Integral type power steering
Travelling Transmission Main-hydrostatic transmission, High-Low gear shift
(2
forward and 2reverse)
system Brake Wet disk type
Min. turning radius (with brake)
2.1
m(6.9 feet) I2.0 m(6.6 feet)
Differential Bevel gear
Hydraulic control system Position Control
Pump capacity 3P: 16.6 L(4.4 U.S.GPM, 3.7 Imp.GPM), PS: 9.8 L(2.6 U.S.GPM, 2.2 Imp.GPM)
Hydraulic Three point hitch SAE Category I
system At lift points 750 kg (1655 Ibs)
Max. lift force (24 in, behind lift
points) 590
kg
(1300 Ibs)
PTa
shaft SAE 1-3/8, 6splines
Rear Revolution 1speed (540 min-1(rpm) at 2584 engine min-1(rpm))
PTa
system
PTa
shaft USA
No.5
(KUBOTA 10-tooth) involute spline
Mid. Revolution 1speed (2537 min-1(rpm) at 2600 engine min-1(rpm))
*,..
12271200050
7

B2410 •B2710 •B2910 WSM, 12271 SPECIFICATIONS
SPECIFICATIONS
(82710·
82910)
12271Z00060
Note:
*Manufacture's estimate the company reserves the nghtto change the speCifications Without notice.
Model 82710HSD 82910HSD
PTO power 14.9 kW (20.0 HP) 16.4
kW
(22.0
HP)
Maker KUBOTA
Model V1305-E-D12 V1505-E-D16
Type Indirect Injection. Vertical, water-cooled, 4-cycle diesel
Number of cylinders 4
Bore and stroke 76 x73.6 mm (2.99 x2.90 in.) 78 x78.4 mm (3.07 x3.09 in.)
Total displacement 1335 cm3(81.5 cu.in.) 1498 cm3(91.5 cu.in.)
Engine Engine net power (DIN)
20.1
kW (27.0 HP) 22.3 kW (30.0 HP)
Rated revolution (min 1) 43.3 r/s (2600 rpm)
Maximum torque 79 N·m (59 ft-Ibs) 89 N·m (66 ft-Ibs)
Battery 12
V,
RC:
79 min,
CCA:
433 A
Starting system Electric starting with cell starter 12
V,
1.4 kW
Lubricating system Forced lubrication by trochoidal pump
Cooling system Pressurized radiator, forced circulation with water pump
Fuel Diesel fuel No. 2-D
[above-10
'C
(14 'F)], Diesel fuel
NO.1
[below-10
'c
(14 'F)]
Fuel tank 26 L(6.9 U.S.gals, 5.7 Imp.gal)
Engine crankcase (with filter)
4.1
L(4.3 U.S.qts, 3.6 Imp.qts)
Capacities Engine coolant 4.5 L(4.8 U.S.qts, 4.0 Imp.qts)
Transmission case 14.5 L(3.83 U.S.gals, 3.19 Imp.gals)
[B271 0Affected Serial No.: below 15496 14.0 L(3.70 U.S.gals, 3.08Imp.gals)]
Front axle case 4.5 L(4.8 U.S.qts, 4.0 Imp.qts)
Overall length (without 3P) 2520 mm (99.2 in.)
Overall width 1366 mm (53.8 in.)
Overall height (with ROPS) 1995 mm (78.5 in.)
Dimensions Overall height (top of steering wheel) 1365 mm (53.7 in.)
Wheelbase
1666 mm (65.6 in.)
Minimum ground clearance 370 mm (14.6 in.)
Front 935 mm (36.8 in.)
Tread Rear 1050 mm (41.3 in.)
Weight (with ROPS) 790 kg (1740 Ibs) 800
kg
(1763 Ibs)
Clutch Dry single plate
Front 7-12
Tires Rear 12.4-16
Steering Integral type power steering
Travelling Transmission Main-hydrostatic transmission, range-gear shift
(3
forward and 3reverse)
system Brake
Wet
disk type
Min. turning radius (with brake)
2.1
m(6.9 feet)
Differential Bevel gear
Hydraulic control system Position Control
Pump capacity 3P: 24.4 L(6.4 U.S.GPM, 5.4 Imp.GPM), PS: 11.7 L
(3.1
U.S.GPM, 2.6 Imp.GPM)
Hydraulic Three point hitch SAE Category I
system At lift points 750 kg (1655 Ibs)
Max. lift force (24 in, behind lift
points) 590 kg (1300 Ibs)
PTO shaft SAE
1-3/8,6
splines
Rear Revolution 1speed (540
min-
1(rpm) at 2584 engine
min-
1(rpm))
PTO system PTO shaft USA
No.5
(KUBOTA 10-tooth) involute spline
Mid. Revolution 1speed (2537
min-
1(rpm) at 2600 engine min-1(rpm))
..
8

TRAVELLING SPEED
82410·
82710·
82910 WSM,
12271
TRAVELLING SPEED
(At rated engine rpm)
Model
82410
82710,
82910
Tire size (Rear) 11.2-16 Farm 12.4-16 Farm
Range gear shift lever km/h mph km/h mph
Low oto 6.6 oto
4.1
oto 5.0 oto
3.1
Forward Middle --oto 8.6 oto 5.3
High
Oto16.5
oto 10.2 oto
19.1
oto 11.9
Low oto 5.3 oto 3.3 oto 4.0 oto 2.5
Reverse Middle --oto 6.9 oto 4.3
High oto 13.2 oto 8.2 oto 15.2 oto 9.4
..
The Company reserves the right to change the specifications without notice.12271
Z00070
9

(0(0
J\)J\)
""-J.J:>.
-"
-"
9!=?
(0-"
J\)01
<00
-,,0
0_
"OJ
-"<0
0)'
O)~
0)
en
01
~
I
• I --f---
(lHD
J\)J\)
:::t::
9!=?
(OJ\)
J\)W
<oW
-,,0
0-
..
<0
J\)-"
01'
J\)-:::!
o
<0
<0
~
c
OJ
l\J
.j::.
-
-'"
s:
0
-'"
.
l\J
OJ
l\J
82410 (2WD): 900 (35.4) m
l\J
j
j
'"T1
82410 (4WD): 835 (32.9) Z0
0.
0
82710, 82910: 935 (36.8) I
en
0
OJ
.j::.
l\J
0-
~
00
~
Z
CJ)
en
-~
-'"
l\J
l\J
j
o
o
s:
m
z
(f)
a
z
(J)
C
::J
;::;:
3
3
~
82410: 890 to 1064
(35.0 to 41.9)
82710, 82910: 1050 (41.3)
8241~
1175(46.3)
8271~
8291~
13G6(53.8)
82410: 1965(77.4)
82710,82910: 1995(78.5)
82410: 1343 (52.9)
82710,82910: 1365 (53.7)
~
~
~
a
a
~
II


GENERAL
CONTENTS
[1] FEATURES
G-1
[2] TRACTOR IDENTIFICATION G-2
[3] GENERAL PRECAUTIONS G-3
[4] HANDLING PRECAUTIONS
FOR
ELECTRICAL PARTS
AND
WIRING G-3
(1)
Wiring G-4
(2)
Battery G-5
(3)
Fuse G-6
(4)
Connector G-6
(5)
Handling of Circuit Tester G-7
[5] LUBRICANTS, FUEL AND COOLANT G-8
[6] TIGHTENING TORQUES G-9
(1)
General Use Screws, Bolts and Nuts ,G-9
(2)
Stud Bolts G-9
[7] MAINTENANCE
G-1
0
[8] CHECK AND MAINTENANCE
G-11
(1)
Daily Check
G-11
(2)
Check Points of Initial 50 Hours G-12
(3)
Check Points of Every 50 Hours G-16
(4)
Check Points of Every 100 Hours G-19
(5)
Check Points of Every 200 Hours.
'"
G-22
(6)
Check Points of Every 300 Hours ,
'"
G-24
(7)
Check Points of Every 400 Hours ,G-25
(8)
Check Points of Every 800 Hours G-26
(9) Check Points of Every 1500 Hours G-26
(10) Check Points of Every 3000 Hours G-26
(11) Check Points of Every 1
year.
G-26
(12) Check Points of Every 2years G-27
(13) Others G-28
[9] SPECIAL TOOLS
G-31
(1)
Special Tools for Engine
G-31
(2)
Special Tools for Tractor G-38
[10] TIRES
G-41
(1)
Tire Pressure
G-41
(2)
Tread
'"
G-41
(2)-1
Front Wheels G-42
(2)-2 Rear Wheels G-43
(3)
Tire Liquid Injection G-45
[11] IMPLEMENT LIMITATIONS G-47


B2410 •B2710 •B2910 WSM, 12271
[1] FEATURES
GGENERAL
12271F00050
(1) Integral Power Steering
(2) E-TVCS (Three Vortex Combustion System) Diesel
Engine
(3) Engine Key Shut-Off System
(4) Hydrostatic Transmission (HST)
(5) 3Range of Speed (B2710,
B291
0)
(6) Bi-speed Turn (B241 0Only)
(7) Cruise Control (B2910 Only)
(8)
Wet
Disc Brake
(9) Standard Mid-PTO
(10) Simultaneous Mounting of Both the Mid. Mount
Mower
and Front Loader
(11) Combination Panel of Easy Checker
(12) Large Hydraulic Pump
(13) Position Control Valve
(14) Hydraulic Block Type Outlet 12271G00010
G-1

GGENERAL
82410·
82710·
82910 WSM,
12271

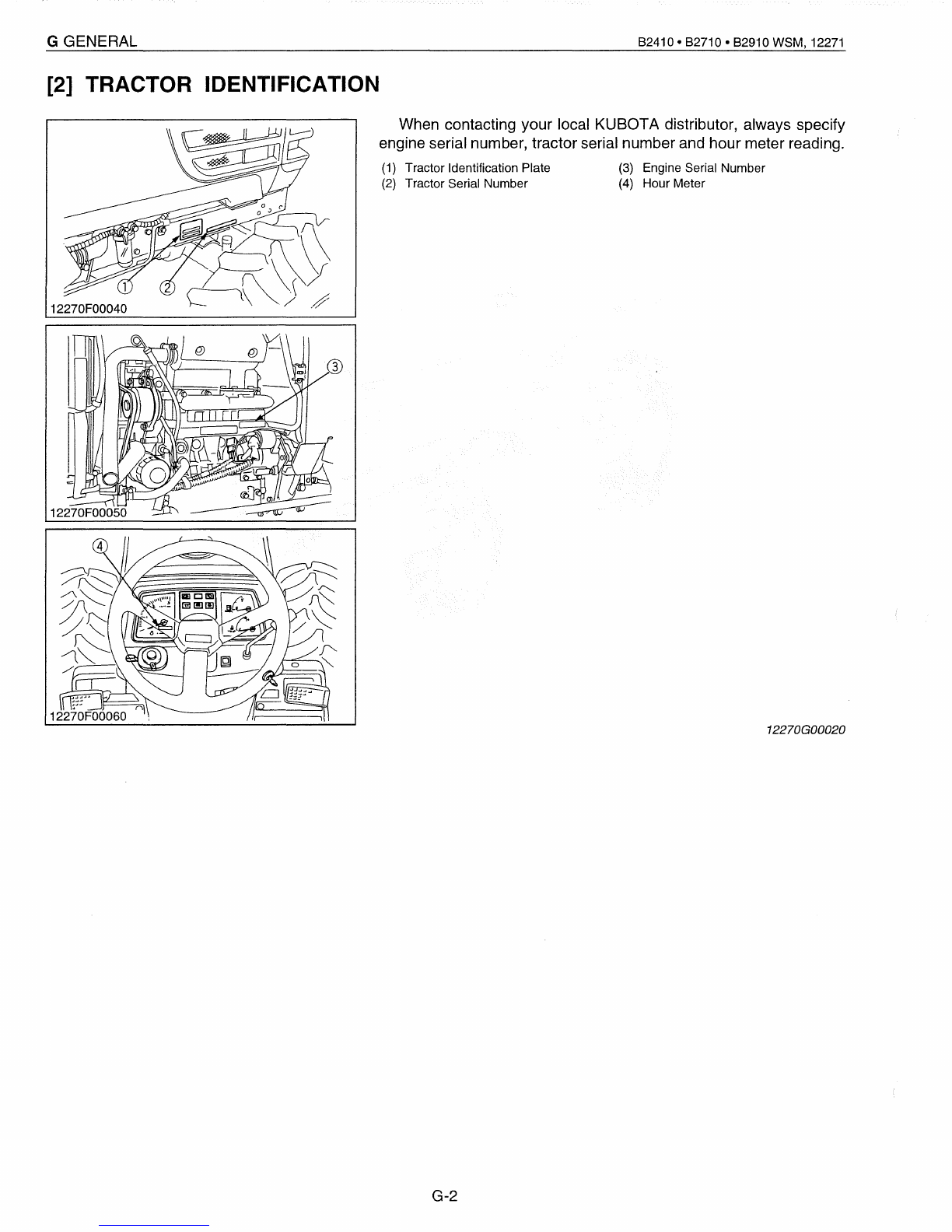

[2] TRACTOR IDENTIFICATION
1
12270F00040
When contacting your local KUBOTA distributor, always specify
engine serial number, tractor serial number and hour meter reading.
(1)
Tractor Identification Plate
(3)
Engine Serial Number
(2)
Tractor Serial Number
(4)
Hour Meter
12270
G00020
G-2

82410 •82710 •82910 WSM, 12271
[3] GENERAL PRECAUTIONS
GGENERAL
•During disassembly, carefully arrange removed parts
in
aclean
area to prevent confusion later. Bolts and nuts should be
installed
in
their original position to prevent reassembly errors.
•When special tools are required, use KUBOTA genuine special
tools. Special tools which are not frequently used should be
made according to the drawings provided.
•Before disassembling or servicing electrical wires, always
disconnect the ground cable from the battery first.
•Remove oil and dirt from parts before measuring.
•Use only KUBOTA genuine parts for parts replacement to
maintain tractor performance and to assure safety.
•Gaskets and O-rings must be replaced during reassembly.
Apply grease to new O-rings or oil seals before assembling.
See the figure left side.
•When reassembling external snap rings or internal snap rings,
they must be positioned so that sharp edge faces against the
direction from which aforce
is
applied. See the figure left side.
•When inserting spring pins, their splits must face the direction
from which aforce is applied. See the figure left side.
•To prevent damage
to
the hydraulic system, use only specified
fluid or equivalent.
(A)
(B)
(1)
Grease
(2)
Force
(3)
Sharp Edge
(4)
Axial Force
(5)
Rotating Movement
(A) External
Snap
Ring
(B) Internal
Snap
Ring
qopo
®
11790F00050 11790G00030

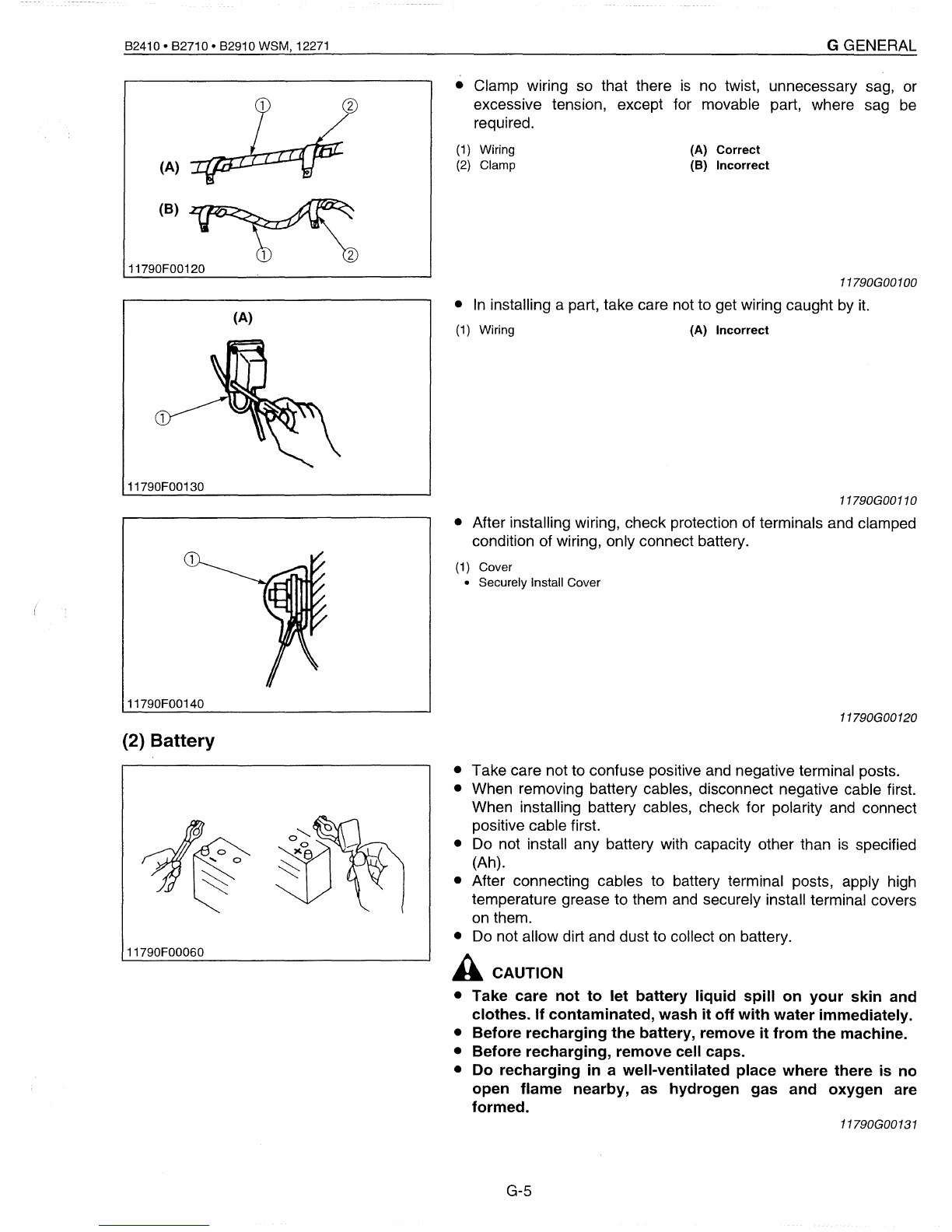

[4] HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING
11790F00060
To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.
•IMPORTANT
•
Check
electrical
wlrmg
for
damage
and
loosened
connection
every
year.
To
this
end,
educate
the
customer
to
do
his
or
her
own
check
and
at
the
same
time
recommend
the
dealer
to
perform
periodic
check
for
afee.
•Do
not
attempt
to
modify
or
remodel
any
electrical
parts
and
wiring.
•When
removing
the
battery
cables,
disconnect
the
negative
cable
first.
When
installing
the
battery cables,
connect
the
positive
cable
first.
(1)
Negative Terminal
G-3
(2)
Positive Terminal 11790G00041

GGENERAL
(1) Wiring
82410·
82710·
82910 WSM,
12271
•Securely tighten wiring terminals.
11790F00070
CD
(1)
Correct
(Securely Tighten)
(2)
Incorrect
(Loosening Leads
to
Faulty Contact)
11790G00050
11790F00080
•Do not let wiring contact dangerous part.
(1)
Wiring (Correct)
(3)
Dangerous Part
(2)
Wiring (Incorrect)
(4)
Dangerous Part
11790G00060
(A)
11790F00100
(B)
•Securely insert grommet.
(1)
Grommet (A) Correct
(B) Incorrect
11790G00080
11790F00110
•Securely clamp, being careful not
to
damage wiring.
(1)
Clamp
(3)
Clamp
•Wind Clamp Spirally
(4)
Welding Dent
(2)
Wire Harness
G-4
11790G00090

82410 •82710 •82910
WSM,
12271
GGENERAL
•Clamp wIring so that there
is
no twist, unnecessary sag, or
excessive tension, except for movable part, where sag be
required.
(A)
(B)
(1) Wiring
(2)
Clamp (A) Correct
(B) Incorrect
11790F00120
(A)
11790F00130
11790F00140
(2)
Battery
11790GOO1
00
•
In
installing apart, take care not to get wiring caught by
it.
(1)
Wiring (A) Incorrect
11790G00110
•After installing wiring, check protection of terminals and clamped
condition of wiring, only connect battery.
(1)
Cover
•Securely Install Cover
11790GOO120
11790F00060
•Take care not to confuse positive and negative terminal posts.
•When removing battery cables, disconnect negative cable first.
When installing battery cables, check for polarity and connect
positive cable first.
•Do not install any battery with capacity other than
is
specified
(Ah).
•After connecting cables to battery terminal posts, apply high
temperature grease to them and securely install terminal covers
on them.
•Do not allow dirt and dust
to
collect on battery.
ACAUTION
•Take care
not
to
let
battery
liquid
spill
on
your
skin
and
clothes.
If
contaminated,
wash
it
off
with
water
immediately.
•
Before
recharging
the
battery, remove
it
from
the
machine.
•
Before
recharging,
remove
cell caps.
•Do
recharging
in
awell-ventilated
place
where
there
is
no
open
flame
nearby,
as
hydrogen
gas
and
oxygen
are
formed.
11790G00131
G-5
