Kubota WSM L3540-II Instruction manual

L3540-II,L4240-II,L5040-II,
L5240-II,L5740-II
WORKSHOP MANUAL
TRACTOR
KiSC issued 02, 2015 A

TO THE READER
This Workshop Manual tells the servicing personnel about the mechanism, servicing and
maintenance of the L3540-II, L4240-II, L5040-II, L5240-II and L5740-II. It contains 4 parts:
"Information", "General", "Mechanism" and "Servicing".
Information
This section primarily contains information below.
• Safety First
• Safety Decal
• Specifications
• Dimensions
General
This section primarily contains information below.
• Engine Identification
• Model Identification
• General Precautions
• Maintenance Check List
• Check and Maintenance
• Special Tools
Mechanism
This section contains information on the structure and the function of the unit. Before you continue
with the subsequent sections, make sure that you read this section.
Refer to the latest version of Workshop Manual for diesel engine/ tractor mechanism that this manual
does not include.
• Booklet: Code No. 9Y021-01870/9Y021-18200
• PDF file in Kubota Web Site: Code No. 9Y011-01870/9Y011-18200
Servicing
This section primarily contains information below.
• Troubleshooting
• Servicing Specifications
• Tightening Torques
• Checking, Disassembling and Servicing
All illustrations, photographs and specifications contained in this manual are of the newest
information available at the time of publication.
KUBOTA reserves the right to change all information at any time without notice.
Since this manual includes many models, information or illustrations and photographs can show
more than one model.
February, 2015
© KUBOTA Corporation 2015
KiSC issued 02, 2015 A

I INFORMATION
KiSC issued 02, 2015 A

CONTENTS
1. SAFETY FIRST .............................................................................................................................. I-1
2. SAFETY DECALS .......................................................................................................................... I-4
3. SPECIFICATIONS.......................................................................................................................... I-7
[1] HST MODEL............................................................................................................................. I-7
[2] GST MODEL ............................................................................................................................ I-9
[3] MANUAL TRANSMISSION MODEL ...................................................................................... I-11
4. TRAVELLING SPEEDS................................................................................................................ I-13
[1] HST MODEL........................................................................................................................... I-13
[2] GST MODEL .......................................................................................................................... I-14
[3] MANUAL TRANSMISSION MODEL ...................................................................................... I-15

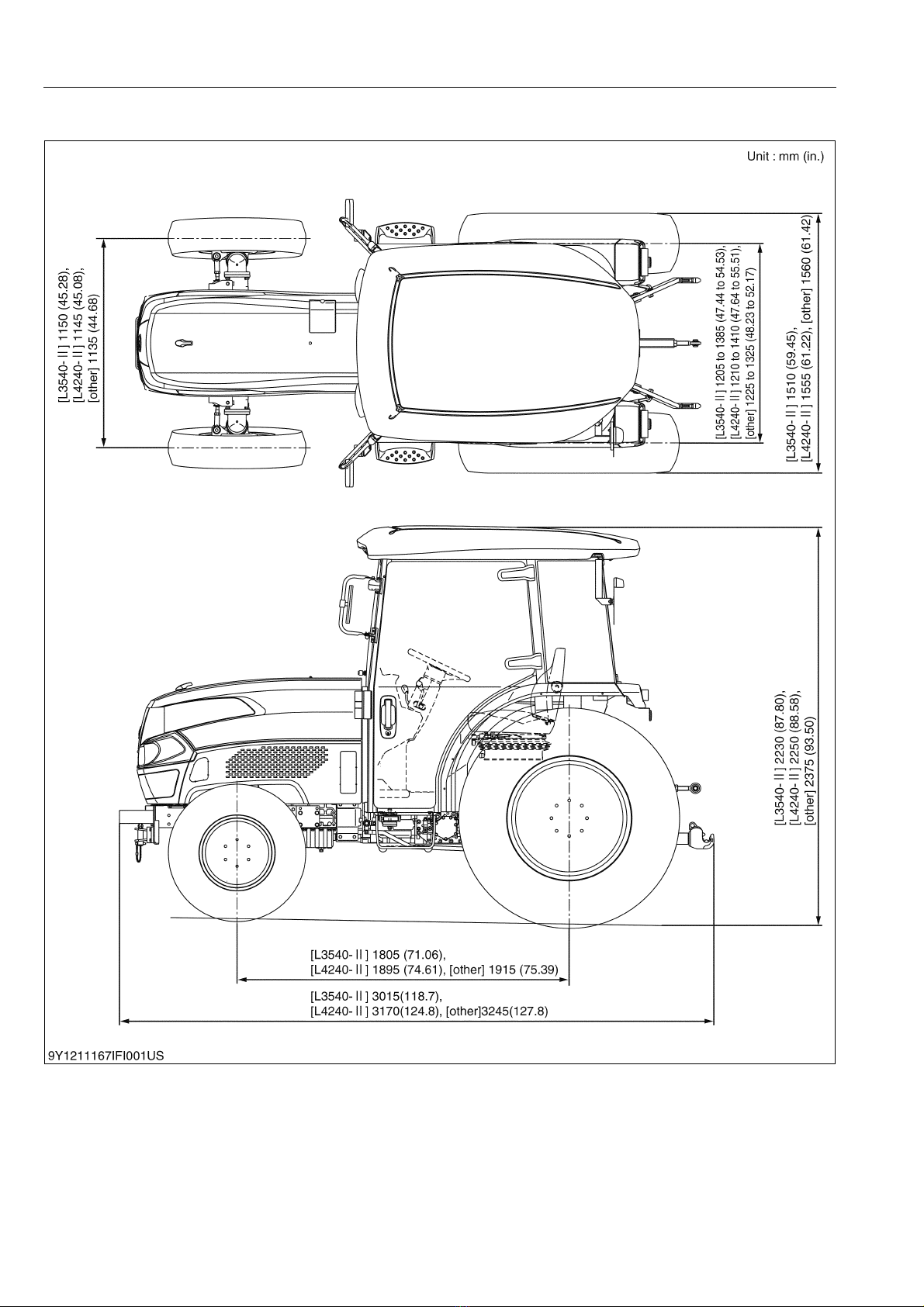

5. DIMENSIONS ............................................................................................................................... I-16
INFORMATION
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-1
1. SAFETY FIRST
WSM000001INI0001US1
BEFORE YOU START SERVICE
• Read all instructions and safety instructions in this
manual and on your machine safety decals.
• Clean the work area and machine.
• Park the machine on a stable and level ground, and
set the parking brake.
• Lower the implement to the ground.
• Stop the engine, then remove the key.
• Disconnect the battery negative cable.
• Hang a "DO NOT OPERATE" tag in the operator
station.
WSM000001INI0010US0
START SAFELY
• Do not do the procedures below when you start the
engine.
– short across starter terminals
– bypass the safety start switch
• Do not change or remove any part of machine safety
system.
• Before you start the engine, make sure that all shift
levers are in neutral positions or in disengaged
positions.
• Do not start the engine when you stay on the ground.
Start the engine only from operator's seat.
M00000002INI0001US1
SAFETY FIRST
• This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the
machine itself to warn of the possibility of personal injury. Read these instructions carefully.
• It is essential that you read the instructions and safety regulations before you try to repair or use this
unit.
DANGER
• Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
• Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
IMPORTANT
• Indicates that equipment or property damage could result if instructions are not followed.
NOTE
• Gives helpful information.
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-2
OPERATE SAFELY
• Do not use the machine after you consume alcohol
or medication or when you are tired.
• Put on applicable clothing and safety equipment.
• Use applicable tools only. Do not use alternative
tools or parts.
• When 2 or more persons do servicing, make sure
that you do it safely.
• Do not operate below the machine that only a jack
holds. Always use a safety stand to hold the
machine.

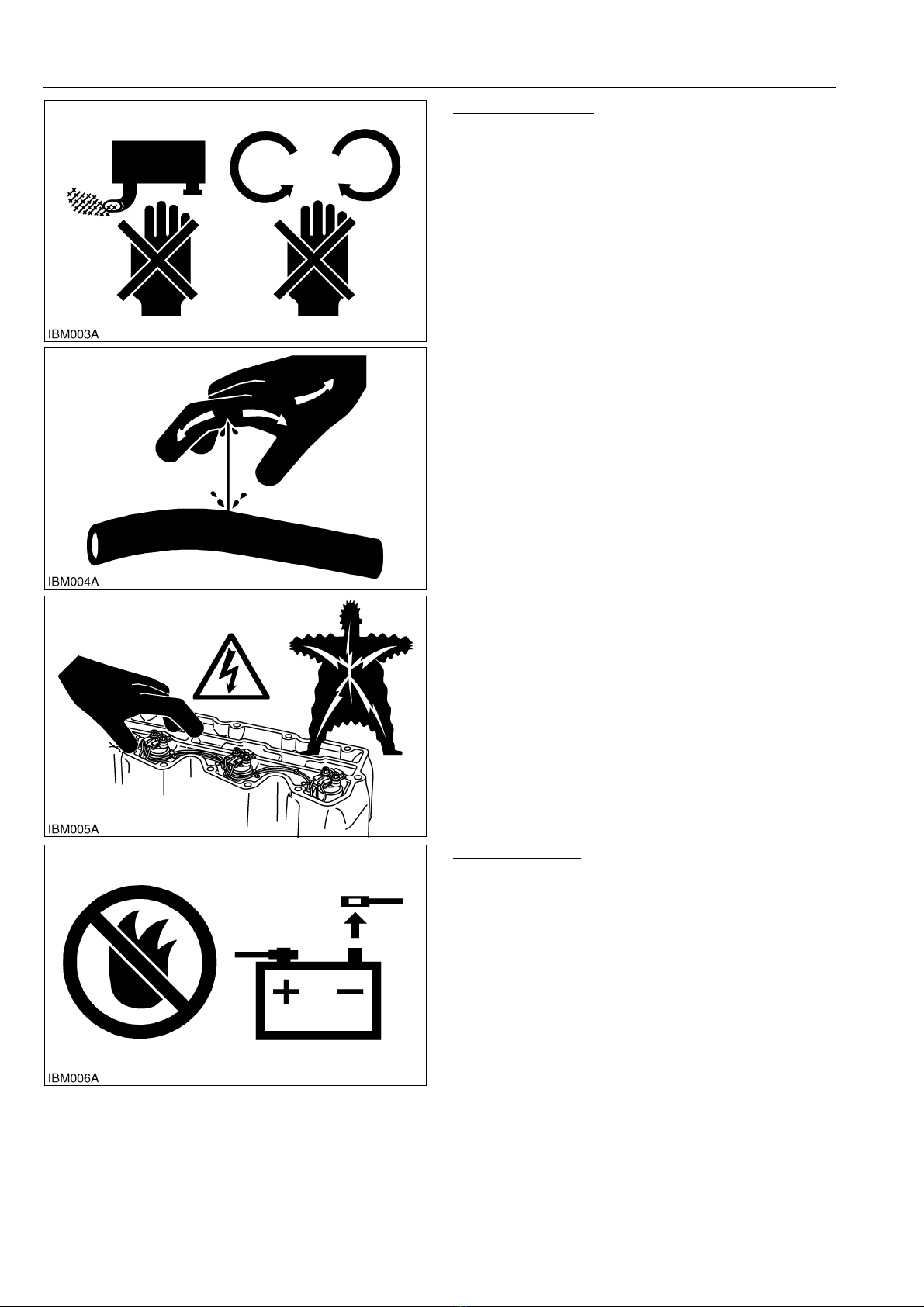

• Do not touch the hot parts or parts that turn when the
engine operates.
• Do not remove the radiator cap when the engine
operates, or immediately after it stops. If not, hot
water can spout out from the radiator. Only remove
the radiator cap when it is at a sufficiently low
temperature to touch with bare hands. Slowly loosen
the cap to release the pressure before you remove it
fully.
• Released fluid (fuel or hydraulic oil) under pressure
can cause damage to the skin and cause serious
injury. Release the pressure before you disconnect
hydraulic or fuel lines. Tighten all connections before
you apply the pressure.
• Do not open a fuel system under high pressure.
The fluid under high pressure that stays in fuel lines
can cause serious injury. Do not disconnect or repair
the fuel lines, sensors, or any other components
between the fuel pump and injectors on engines with
a common rail fuel system under high pressure.
• Put on an applicable ear protective device (earmuffs
or earplugs) to prevent injury against loud noises.
• Be careful about electric shock. The engine
generates a high voltage of more than DC100 V in
the ECU and is applied to the injector.
WSM000001INI0012US0
PREVENT A FIRE
• Fuel is very flammable and explosive under some
conditions. Do not smoke or let flames or sparks in
your work area.
• To prevent sparks from an accidental short circuit,
always disconnect the battery negative cable first
and connect it last.
• The battery gas can cause an explosion. Keep the
sparks and open flame away from the top of battery,
especially when you charge the battery.
• Make sure that you do not spill fuel on the engine.
WSM000001INI0005US0
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-3

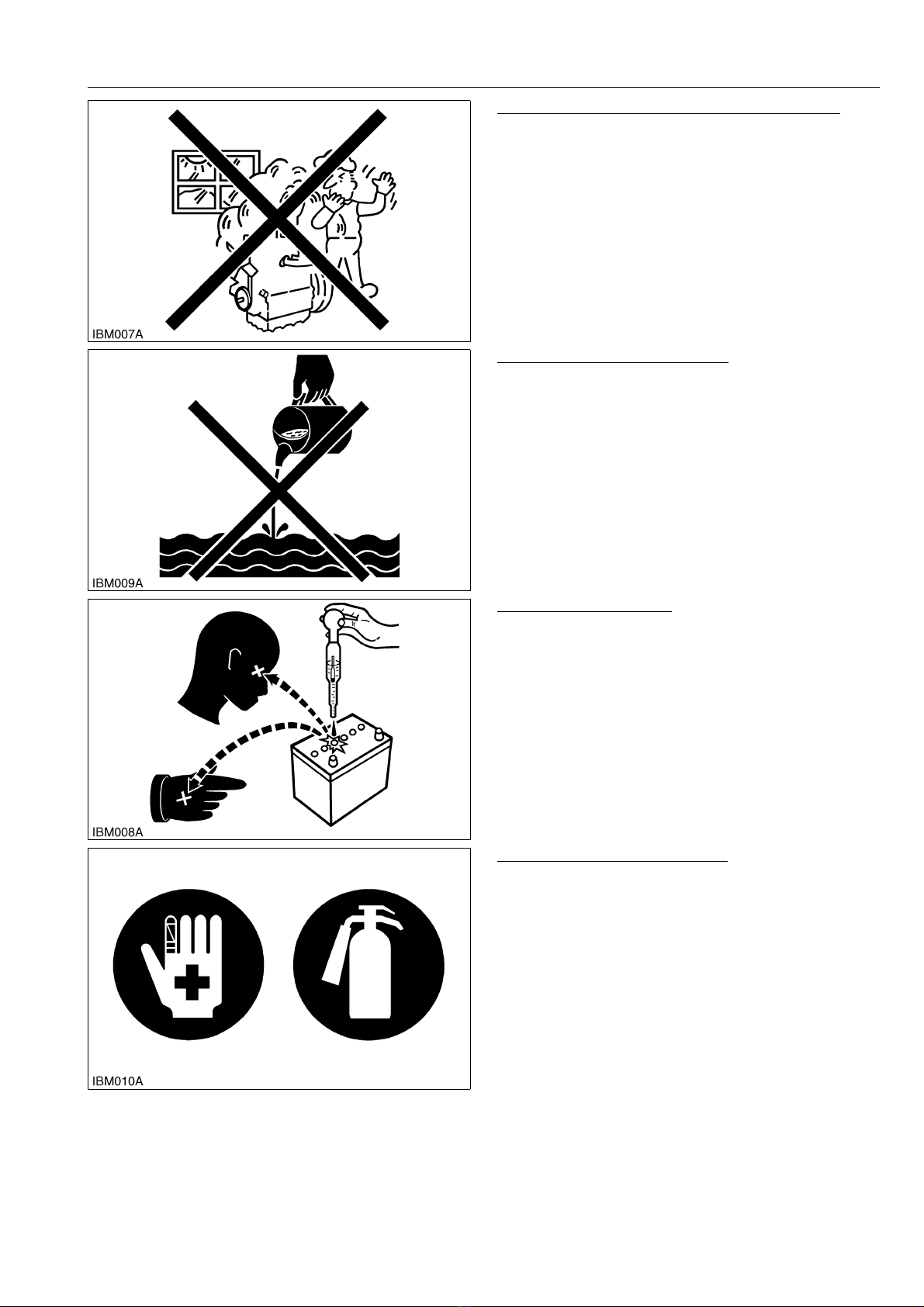

KEEP A GOOD AIRFLOW IN THE WORK AREA
• If the engine is in operation, make sure that the area
has good airflow. Do not operate the engine in a
closed area. The exhaust gas contains poisonous
carbon monoxide.
WSM000001INI0006US0
DISCARD FLUIDS CORRECTLY
• Do not discard fluids on the ground, down the drain,
into a stream, pond, or lake. Obey related
environmental protection regulations when you
discard oil, fuel, coolant, electrolyte and other
dangerous waste.
WSM000001INI0007US0
PREVENT ACID BURNS
• Keep electrolyte away from your eyes, hands and
clothing. Sulfuric acid in battery electrolyte is
poisonous and it can burn your skin and clothing and
cause blindness. If you spill electrolyte on yourself,
clean yourself with water, and get medical aid
immediately.
WSM000001INI0008US0
PREPARE FOR EMERGENCIES
• Keep a first aid kit and fire extinguisher ready at all
times.
• Keep the emergency contact telephone numbers
near your telephone at all times.
WSM000001INI0009US0
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-4

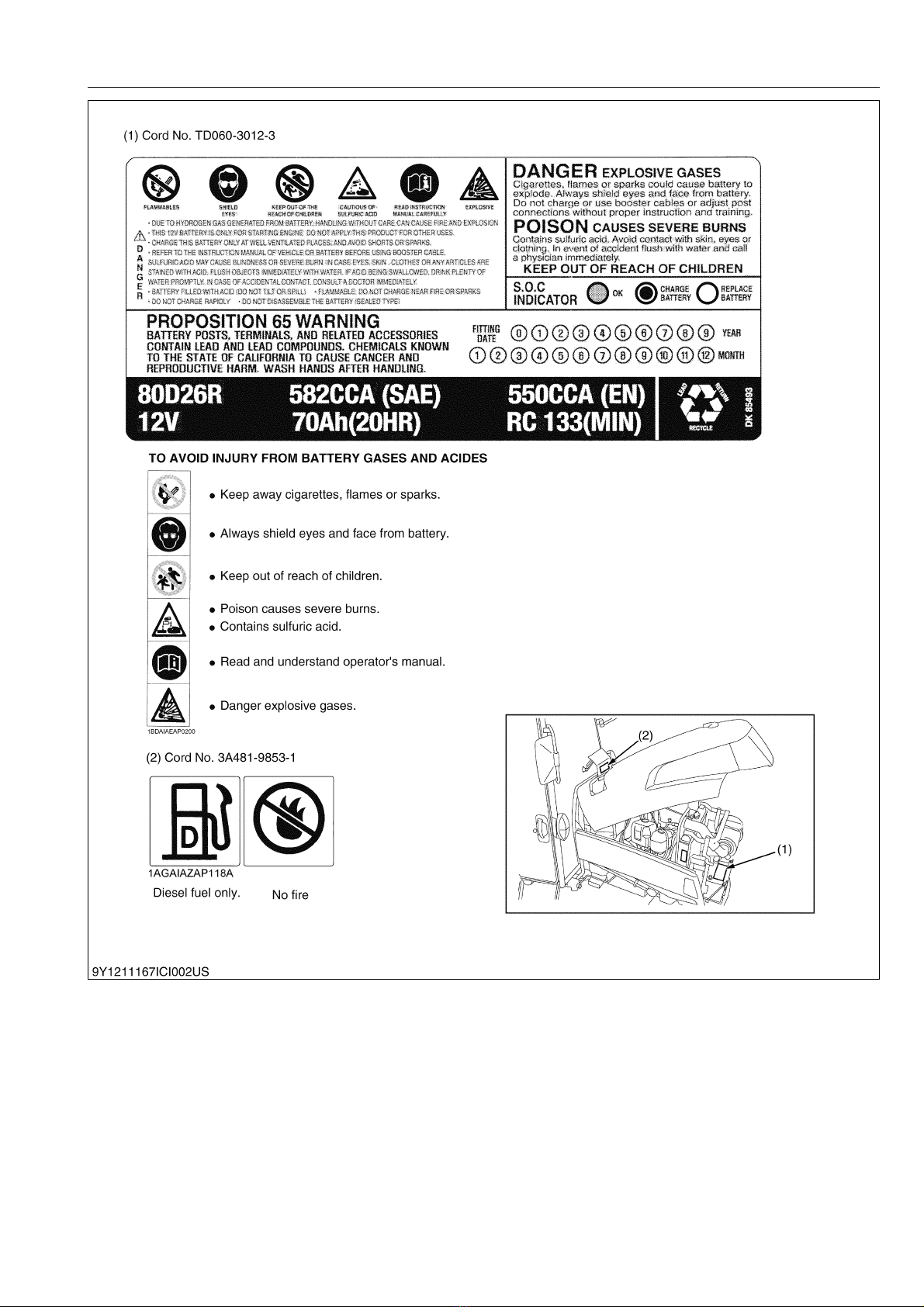

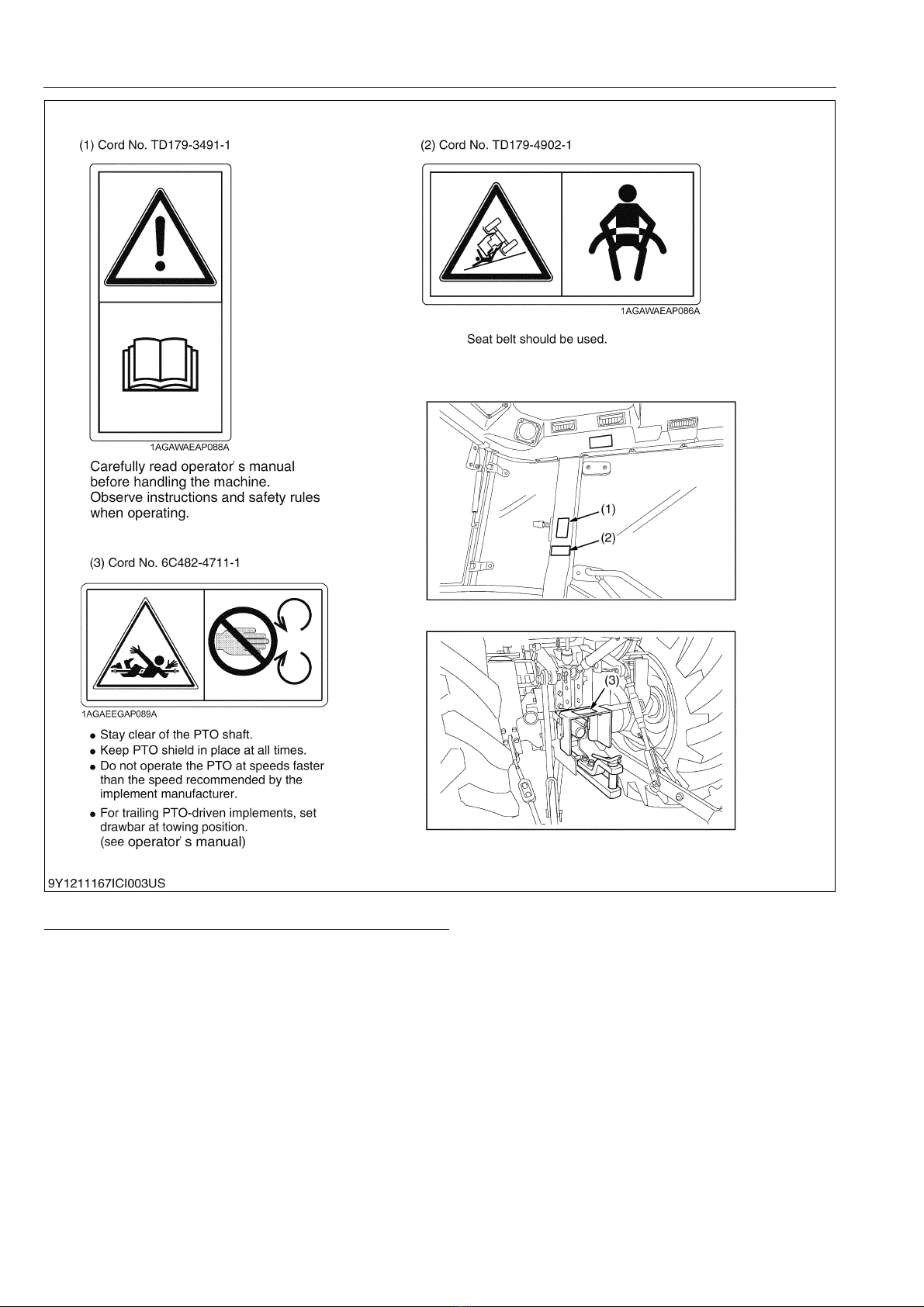

2. SAFETY DECALS
The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not
on the machine, replace it. The decal part number is listed in the parts list.
WSM000001INI0013US0
9Y1211167INI0001US0
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-5
9Y1211167INI0002US0
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-6
9Y1211167INI0003US0
CARE OF DANGER, WARNING AND CAUTION LABELS
1. Keep danger, warning and caution labels clean and free from obstructing material.
2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth.
3. Replace damaged or missing danger, warning and caution labels with new labels.
4. If a component with danger, warning and caution label(s) affixed is replace with new part, make sure new label(s)
is (are) attached in the same locations(s) as the replace component.
5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressure any bubbles to
outside edge.
9Y1211167INI0004US0
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-7
3. SPECIFICATIONS
[1] HST MODEL
(To be continued)
Model L3540-II L4240-II L5240-II L5740-II
Engine
Model D1803-ME2-EU2 V2203-ME2-EU1 V2403-MTE3-EU2 V2403-MTE3-EU3
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 3 4
Total displacement 1.826 L (111.4 cu.in.) 2.197 L (134.1 cu.in.) 2.434 L (148.5 cu.in.)
Bore and stroke 87 × 102.4 mm
(3.4 × 4.0 in.)
87 × 92.4 mm
(3.4 × 3.6 in.) 87 × 102.4 mm (3.4 × 4.0 in.)
Net power* 25.9 kW
(35.2 HP)
31.7 kW
(43.1 HP)
38.7 kW
(52.6 HP)
41.5 kW
(56.4 HP)
PTO power*
(factory observe)
20.9 kW (28.4 HP)* /
2700 min-1 (rpm)
26.1 kW (35.5 HP)* /
2700 min-1 (rpm)
33.6 kW (45.6 HP) /
2600 min-1 (rpm)
37.3 kW (50.7 HP) /
2700 min-1 (rpm)
Maximum torque
101.7 N·m
(10.4 kgf·m,
75.0 lbf·ft)
139.7 N·m
(14.2 kgf·m,
103.0 lbf·ft)
180.6 N·m
(18.4 kgf·m, 133.2 lbf·ft)
Battery capacity 12 V, RC: 133 min, CCA: 582 A
Capacities
Fuel tank 44 L (11.6 U.S.gals,
9.68 Imp.gals)
50 L (13.2 U.S.gals,
11.0 Imp.gals) 54 L (14.3 U.S.gals, 11.9 Imp.gals)
Engine crankcase (with filter)
6.7 L
(7.1 U.S.qts
5.9 Imp.qts)
8.2 L
(8.7 U.S.qts
7.2 Imp.qts)
9.4 L
(9.9 U.S.qts, 8.3 Imp.qts)
Engine coolant 7.5 L
(7.9 U.S.qts, 6.6 Imp.qts)
8.2 L
(8.7 U.S.qts, 7.2 Imp.qts)
Transmission case
40 L
(10.6 U.S.gals,
8.80 Imp.gals)
39 L
(10.3 U.S.gals,
8.58 Imp.gals)
41 L
(10.8 U.S.gals, 9.02 Imp.gals)
Dimensions
Overall length
(without 3 point hitch) 3015 mm (118.7 in.) 3170 mm (124.8 in.) 3245 mm (127.8 in.)
Overall width
(min. tread) 1510 mm (59.5 in.) 1555 mm (61.2 in.) 1560 mm (61.4 in.)
Overall height 2230 mm (87.8 in.) 2250 mm (88.6 in.) 2375 mm (93.5 in.)
Wheel base 1805 mm (71.1 in.) 1895 mm (74.6 in.) 1915 mm (75.4 in.)
Min. ground clearance 345 mm (13.6 in.) 360 mm (14.2 in.) 405 mm (15.9 in.)
Tread
Front 1150 mm (45.3 in.) 1145 mm (45.1 in.) 1135 mm (44.7 in.)
Rear
1205 mm (47.4 in.),
1300 mm (51.2 in.),
1385 mm (54.5 in.)
1210 mm (47.6 in.),
1310 mm (51.6 in.),
1410 mm (55.5 in.)
1225 mm (48.2 in.),
1325 mm (52.2 in.)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-8
(Continued)
The company reserve the right to change the specifications without notice.
NOTE
• *1 Manufacture's estimate
*2 According to EN 15695
*3 Measured according to Directive 2009/76/EC
*4 Measured according to Council Directive 2009/63/EC
*5 Measured according to Council Directive 78/764/EEC
9Y1211167INI0005US0
Model L3540-II L4240-II L5240-II L5740-II
Weight (with CAB) 1745 kg (3847 lbs) 1810 kg (3990 lbs) 1995 kg (4398 lbs)
Travelling
system
Standard
tire size
Front 7-16 8-16 9.5-16
Rear 12.4-24 13.6-24 13.6-28
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission Hydrostatic transmission (3 speeds)
Braking system Wet disk type
Trailer brake not applicable
Trailer brake coupler not applicable
Min. turning radius
(with brake) 2.7 m (8.9 feet) 3.2 m (10.5 feet)
Hydraulic unit
Hydraulic control system Position control
Pump capacity
31.5 L
(8.3 U.S.gals,
6.9 Imp.gals) / min.
37.0 L
(9.8 U.S.gals, 8.14 Imp.gals) / min.
3 point hitch SAE Category 1
Max. lift force
At lift points 1700 kg (3748 lbs) 1750 kg (3858 lbs)
24 in. behind
lift points 1200 kg (2646 lbs) 1250 kg (2756 lbs) 1350 kg (2976 lbs)
Remote control valve coupler ISO 5675
System pressure 17.7 MPa (180 kgf/cm2, 2570 psi)
PTO
Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min-1 (rpm) /
2685 min-1 (rpm)
540 min-1 (rpm) /
2640 min-1 (rpm)
540 min-1 (rpm) /
2590 min-1 (rpm)
The level of protection against hazardous
substances *2 Category 1
Noise at the operator's ear *3 82.3 dB (A) 82.7 dB (A) 80.6 dB (A)
Noise of the tractor in motion *4 79.7 dB (A) 79.0 dB (A) 81.3 dB (A)
Value of the
vibration level
*5
KAB
11/E6
11/P2
Light driver
(59 kg) 1.21 m/s2
Heavy driver
(98 kg) 1.05 m/s2
Grammer
MSG93/511
MSG93/521
Light driver
(59 kg) 1.19 m/s2
Heavy driver
(98 kg) 0.90 m/s2
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-9
[2] GST MODEL
(To be continued)
Model L5040-II
Engine
Model V2403-M-TE3-EU1
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 4
Total displacement 2.434 L (148.5 cu.in.)
Bore and stroke 87 × 102.4 mm (3.4 × 4.0 in.)
Net power* 36.0 kW
(48.9 HP)
PTO power*
(factory observe)
32.8 kW
(44.6 HP)* /
2600 min-1 (rpm)
Maximum torque 162.2 N·m
(16.5 kgf·m, 133.2 lbf·ft)
Battery capacity 12 V, RC: 133 min, CCA: 582 A
Capacities
Fuel tank 54 L (14.3 U.S.gals, 11.9 Imp.gals)
Engine crankcase (with filter) 9.4 L (9.9 U.S.qts, 8.3 Imp.qts)
Engine coolant 8.2 L (8.7 U.S.qts, 7.2 Imp.qts)
Transmission case 46 L (12.2 U.S.gals, 10.1 Imp.gals)
Dimensions
Overall length
(without 3 point hitch) 3245 mm (127.8 in.)
Overall width
(min. tread) 1560 mm (61.4 in.)
Overall height 2375 mm (93.5 in.)
Wheel base 1915 mm (75.4 in.)
Min. ground clearance 405 mm (15.9 in.)
Tread
Front 1135 mm (44.7 in.)
Rear 1225 mm (48.2 in.),
1325 mm (52.2 in.)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-10
(Continued)
The company reserve the right to change the specifications without notice.
NOTE
• *1 Manufacture's estimate
*2 According to EN 15695
*3 Measured according to Directive 2009/76/EC
*4 Measured according to Council Directive 2009/63/EC
*5 Measured according to Council Directive 78/764/EEC
9Y1211167INI0006US0
Model L5040-II
Weight (with CAB) 1960 kg (4321 lbs)
Travelling
system
Standard
tire size
Front 9.5-16
Rear 13.6-28
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission Glide shift transmission (12 forward and 8 reverse speeds)
Braking system Wet disk type
Trailer brake not applicable
Trailer brake coupler not applicable
Min. turning radius
(with brake) 3.2 m (10.5 feet)
Hydraulic unit
Hydraulic control system Position control
Pump capacity 35.6 L (9.4 U.S.gals, 7.83 Imp.gals) / min.
3 point hitch SAE Category 1
Max. lift force
At lift points 1750 kg (3858 lbs)
24 in. behind
lift points 1350 kg (2976 lbs)
Remote control valve coupler ISO 5675
System pressure 17.7 MPa (180 kgf/cm2, 2570 psi)
PTO Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min-1 (rpm) / 2550 min-1 (rpm)
The level of protection against hazardous
substances *2 Category 1
Noise at the operator's ear *3 80.6 dB (A)
Noise of the tractor in motion *4 82.1 dB (A)
Value of the
vibration level
*5
KAB
11/E6
11/P2
Light driver
(59 kg) 1.21 m/s2
Heavy driver
(98 kg) 1.05 m/s2
Grammer
MSG93/511
MSG93/521
Light driver
(59 kg) 1.19 m/s2
Heavy driver
(98 kg) 0.90 m/s2
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-11
[3] MANUAL TRANSMISSION MODEL
(To be continued)
Model L4240-II L5040-II
Engine
Model V2203-M-E2-EU2 V2403-M-TE2-EU1
Type Indirect injection vertical, water-cooled, 4-cycle diesel
Number of cylinders 4
Total displacement 2.197 L (134.1 cu.in.) 2.434 L (148.5 cu.in.)
Bore and stroke 87 × 92.4 mm
(3.4 × 3.6 in.)
87 × 102.4 mm
(3.4 × 4.0 in.)
Net power *1 31.7 kW
(43.1 HP)
36.0 kW
(48.9 HP)
PTO power *1
(factory observe) 27.2 kW (37.0 HP)* / 2700 min-1 (rpm) 32.8 kW (44.6 HP)* / 2600 min-1 (rpm)
Maximum torque 139.7 N·m (14.2 kgf·m, 103.0 lbf·ft) 162.2 N·m (16.5 kgf·m, 119.6 lbf·ft)
Battery capacity 12 V, RC: 133 min, CCA: 582 A
Capacities
Fuel tank 50 L (13.2 U.S.gals, 11.0 Imp.gals) 54 L (14.3 U.S.gals, 11.9 Imp.gals)
Engine crankcase (with filter) 8.2 L (8.7 U.S.qts, 7.2 Imp.qts) 9.4 L (9.9 U.S.qts, 8.3 Imp.qts)
Engine coolant 7.5 L (7.9 U.S.qts, 6.6 Imp.qts) 8.2 L (8.7 U.S.qts, 7.2 Imp.qts)
Transmission case 43 L (11.4 U.S.gals, 9.5 Imp.gals) 46 L (12.2 U.S.gals, 10.1 Imp.gals)
Dimensions
Overall length
(without 3 point hitch) 3170 mm (124.8 in.) 3245 mm (127.8 in.)
Overall width
(min. tread) 1555 mm (61.2 in.) 1560 mm (61.4 in.)
Overall height 2250 mm (88.6 in.) 2375 mm (93.5 in.)
Wheel base 1895 mm (74.6 in.) 1915 mm (75.4 in.)
Min. ground clearance 360 mm (14.2 in.) 405 mm (15.9 in.)
Tread
Front 1145 mm (45.1 in.) 1135 mm (44.7 in.)
Rear
1210 mm (47.6 in.),
1310 mm (51.6 in.),
1410 mm (55.5 in.)
1225 mm (48.2 in.),
1325 mm (52.2 in.)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-12
(Continued)
The company reserve the right to change the specifications without notice.
NOTE
• *1 Manufacture's estimate
*2 The models equipped with the telescopic lower links, however, can be switched between SAE Category 1 and 2.
*3 According to EN 15695
*4 Measured according to Directive 2009/76/EC
*5 Measured according to Council Directive 2009/63/EC
*6 Measured according to Council Directive 78/764/EEC
9Y1211167INI0007US0
Model L4240-II L5040-II
Weight (with CAB) 1775 kg (3913 lbs) 1960 kg (4321 lbs)
Travelling
system
Standard
tire size
Front 8-16 9.5-16
Rear 13.6-24 13.6-28
Clutch Dry type single stage
Steering Hydrostatic power steering
Transmission 8 forward and 8 reverse fully synchronized main and shuttle transmission
Braking system Wet disk type
Trailer brake not applicable
Trailer brake coupler not applicable
Min. turning radius
(with brake) 2.7 m (8.9 feet) 3.2 m (10.5 feet)
Hydraulic unit
Hydraulic control system Position control
Pump capacity 37.0 L
(9.8 U.S.gals, 8.14 Imp.gals) / min.
35.6 L
(9.4 U.S.gals, 7.83 Imp.gals) / min.
3 point hitch SAE Category 1
Max. lift force
At lift points 1750 kg (3858 lbs)
24 in. behind
lift points 1250 kg (2756 lbs) 1350 kg (2976 lbs)
Remote control valve coupler ISO 5675
System pressure 17.7 MPa (180 kgf/cm2, 2570 psi)
PTO
Rear PTO SAE 1-3/8, 6 splines
PTO / Engine speed 540 min-1 (rpm) / 2550 min-1 (rpm),
750 min-1 (rpm) / 2550 min-1 (rpm)
The level of protection against hazardous
substances *3 Category 1
Noise at the operator's ear *4 82.3 dB (A) 84.2 dB (A)
Noise of the tractor in motion *5 79.0 dB (A) 81.0 dB (A)
Value of the
vibration level
*6
KAB
11/E6
11/P2
Light driver
(59 kg) 1.21 m/s2
Heavy driver
(98 kg) 1.05 m/s2
Grammer
MSG93/511
MSG93/521
Light driver
(59 kg) 1.19 m/s2
Heavy driver
(98 kg) 0.90 m/s2
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-13
4. TRAVELLING SPEEDS
[1] HST MODEL
The company reserves the right to change the specifications without notice.
9Y1211167INI0008US0
Model L3540-II L4240-II L5240-II L5740-II
Tire size (Rear) 12.4-24 13.6-24 13.6-28
Speed control
pedal H-DS lever Range gear
shift lever km/h (mph) km/h (mph) km/h (mph) km/h (mph)
Forward
L
L 3.4 (2.1) 3.5 (2.2) 3.4 (2.1) 3.6 (2.2)
M 7.0 (4.3) 7.1 (4.4) 7.0 (4.3) 7.3 (4.5)
H 17.7 (11.0) 17.8 (11.1) 17.6 (10.9) 18.3 (11.4)
H
L 5.8 (3.6) 5.8 (3.6) 5.8 (3.6) 6.0 (3.7)
M 11.8 (7.3) 11.9 (7.4) 11.8 (7.3) 12.2 (7.6)
H 29.7 (18.5) 29.9 (18.6) 29.6 (18.4) 30.7 (19.1)
Reverse
L
L 3.1 (1.9) 3.1 (1.9) 3.1 (1.9) 3.2 (2.0)
M 6.3 (3.9) 6.4 (4.0) 6.3 (3.9) 6.6 (4.1)
H 15.9 (9.9) 16.0 (9.9) 15.8 (9.8) 16.5 (10.3)
H
L 5.2 (3.2) 5.2 (3.2) 5.2 (3.2) 5.4 (3.4)
M 10.6 (6.6) 10.7 (6.7) 10.6 (6.6) 11.0 (6.8)
H 26.7 (16.6) 26.9 (16.7) 26.6 (16.5) 27.7 (17.2)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-14
[2] GST MODEL
The company reserves the right to change the specifications without notice.
9Y1211167INI0009US0
Model L5040-II
Creep gear shift lever High Low
Tire size (Rear) 13.6-28
Shuttle shift
lever
Main gear
shift lever km/h (mph)
Forward
(At rated engine
rpm)
1 1.71 (1.06) 0.19 (0.12)
2 2.42 (1.50) 0.27 (0.17)
3 3.12 (1.94) 0.35 (0.22)
4 3.92 (2.44) 0.44 (0.27)
5 4.61 (2.86) 0.52 (0.32)
6 5.79 (3.60) 0.65 (0.40)
7 6.85 (4.26) 0.77 (0.48)
8 8.61 (5.35) 0.97 (0.60)
9 9.69 (6.02) 1.09 (0.68)
10 12.18 (7.57) 1.37 (0.85)
11 19.78 (12.29) 2.22 (1.38)
12 29.21 (18.15) 3.28 (2.04)
Reverse
(At rated engine
rpm)
1 1.42 (0.88) 0.16 (0.10)
2 2.01 (1.25) 0.23 (0.14)
3 3.27 (2.03) 0.37 (0.23)
4 4.83 (3.00) 0.54 (0.34)
5 7.18 (4.46) 0.81 (0.50)
6 10.15 (6.31) 1.14 (0.71)
7 16.48 (10.24) 1.85 (1.15)
8 24.34 (15.12) 2.73 (1.70)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-15
[3] MANUAL TRANSMISSION MODEL
The company reserves the right to change the specifications without notice.
9Y1211167INI0010US0
Model L4240-II L5040-II
Creep gear shift lever High Low High Low
Tire size (Rear) 13.6-24 13.6-28
Shuttle shift
lever
Range gear
shift lever
Main gear
shift lever km/h (mph)
Forward
Low
1 1.68 (1.04) 0.19 (0.12) 1.71 (1.06) 0.19 (0.12)
2 2.38 (1.48) 0.27 (0.17) 2.42 (1.50) 0.27 (0.17)
3 3.86 (2.40) 0.43 (0.27) 3.92 (2.44) 0.44 (0.27)
4 5.71 (3.55) 0.64 (0.40) 5.79 (3.60) 0.65 (0.40)
High
1 8.49 (5.28) 0.95 (0.59) 8.61 (5.35) 0.97 (0.60)
2 12.00 (7.46) 1.34 (0.83) 12.18 (7.57) 1.37 (0.85)
3 19.49 (12.11) 2.19 (1.36) 19.78 (12.29) 2.22 (1.38)
4 28.78 (17.88) 3.23 (2.01) 29.21 (18.15) 3.28 (2.04)
Reverse
Low
1 1.40 (0.87) 0.16 (0.10) 1.42 (0.88) 0.16 (0.10)
2 1.98 (1.23) 0.22 (0.14) 2.01 (1.25) 0.23 (0.14)
3 3.22 (2.00) 0.36 (0.22) 3.27 (2.03) 0.37 (0.23)
4 4.75 (2.95) 0.53 (0.33) 4.83 (3.00) 0.54 (0.34)
High
1 7.07 (4.39) 0.79 (0.49) 7.18 (4.46) 0.81 (0.50)
2 10.00 (6.21) 1.12 (0.70) 10.15 (6.31) 1.14 (0.71)
3 16.24 (10.09) 1.82 (1.13) 16.48 (10.24) 1.85 (1.15)
4 23.98 (14.90) 2.69 (1.67) 24.34 (15.12) 2.73 (1.70)
KiSC issued 02, 2015 A

INFORMATION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
I-16
5. DIMENSIONS
no caption
KiSC issued 02, 2015 A
