Kucht KUCHTNAPOLI Assembly instructions

www.kucht.com
APPLICABLE MODEL: KUCHTNAPOLI
INSTALLATION GUIDE AND USER MANUAL
BE A PRO IN YOUR KITCHEN
KUCHTNAPOLI
Outdoor Kitchen | Gas Pizza Oven

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. This appliance has been tested to and complies with the ANS
Z21.89/CSA1.18-2017, outdoor cooking gas appliance. When connecting to a fixed piping
system, the installation must conform to local codes or in the absence of local codes, to the
National Fuel Gas Code. ANSI Z223.1.NFPA 54; National Fuel Gas Code; National Gas and
Propane Installation Code, CSA B149.1; or Propane storage and Handing Code, CSA B149.2,
as applicable. This manual contains important information about the assembly, operation and
maintenance of this pizza oven. Keep this manual for future reference and to educate new users
of this product. This manual should be read in conjunction with the labeling on the product.
Safety precautions are essential when any mechanical or propane fueled equipment is involved.
These precautions are necessary when using, storing, and servicing. Using this equipment with
the respect and caution demanded will reduce the possibilities of personal injury or property
damage. The following symbols shown below are used extensively throughout this manual.
Always heed these precautions, as they are essential when using any mechanical or fueled
equipment.
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odour continues, keep away
from the appliance and
immediately call your gas
supplier or fire deparment.
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death. Read
the installation, operation and maintenance
instructions thoroughly before installing or
servicing this equipment.
Do not store or use gasoline, or
other flammable vapours and
liquids in the vicinity of this or any
other appliance. An LP-cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
For Outdoor Use Only.
DANGER DANGER
DANGER CARBON MONOXIDE
HAZARD
This appliance can produce
carbon monoxide
which has no odour. Using
it in an enclosed space
can kill you. Never use this
appliance in an enclosed
space such as a camper,
tent or home.
WARNING
WARNING
WARNING
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

3
SAFETY INFORMATION
DANGER
SAFETY INFORMATION
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
Failure to comply with the precautions
and instructions provided with this
pizza oven can result in death, serious
bodily injury and property loss or
damage from hazards of fire, explosion,
burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons
who can understand and follow the
instructions should use or service
this pizza oven.
DANGER
Certain materials or items, when stored under the
pizza oven, will be subjected to radiant heat and could
be seriously damaged.
Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
Carefully supervise young children when in the vicinity
of the pizza oven.
Do not hang clothing or any other flammable materials
from the pizza oven, or place on or near the pizza oven.
Replace any guard or protective device removed for
servicing the appliance prior to placing back in service.
Installation and repair should be done by a qualified
service person. The pizza oven should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary. It
is imperative that the control compartment, burners,
and circulating air passageway of the appliance be kept
clean.
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as
building materials, paper or cardboard,
a safe distance away from the pizza oven
as recommended by the instructions.
•Provide adequate clearances around air
openings into the combustion chamber.
• Never use the pizza oven in spaces
which do or may contain volatile or
airborne combustibles, or products such
as gasoline, solvents, paint thinner, dust
particles or unknown chemicals
• During operation, this product can
be a source of ignition. Keep pizza oven
area clear and free from combustible
materials, gasoline, paint thinner,
cleaning solvents and other flammable
vapours and liquids. Do not use pizza
oven in areas with high dust content.
Minimum pizza oven clearances from
combustible materials: 36 inches from
the sides and back.
• This product is fueled by propane gas. Propane
gas is invisible, odourless, and flammable. An
odourant is normally added to help detect leaks
and can be described as a “rotten egg” smell. The
odourant can fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many
feet away from the original leak. Use only propane
gas set up for vapor withdrawal.
• Store or use propane gas in compliance with
local ordinances and codes or with ANSI/NFPA 58.
Turn off propane when not in use.
DANGER
WARNING
WARNING
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

4
We cannot foresee every use which may be made of
our pizza oven.
Check with your local fire safety authority if you have
questions about pizza oven use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these. If no local
codes exist, follow National Fuel Gas Code, ANSI
Z223.1. In Canada, installation must conform to local
codes.
If no local codes exist, follow the current National
standards of CANADA CAN/CGA-B 149.2.
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage, injury or
death. Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
WARNING
WARNING
Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
Never leave pizza oven unattended when hot or in use.
Keep out of reach of children.
CARBON MONOXIDE HAZARD
This pizza oven is a combustion
appliance.
All combustion appliances produce
carbon monoxide (CO) during the
combustion process. This product
is designed to produce extremely
minute, non-hazardous amounts of CO
if used and maintained in accordance
with all warnings and instructions. Do
not block air flow into or out of the
pizza oven. Carbon Monoxide (CO)
poisoning produces flu-like symptoms,
watery eyes, headaches, dizziness,
fatigue and possibly death. You can't
see it and you can't smell it. It's an
invisible
killer. If these symptoms are present
during operation of this product get
fresh air immediately!
For outdoor use only.
Never use inside house, or other
unventilated or enclosed areas.
This pizza oven consumes air (oxygen).
DANGER
DANGER
Don’t burn solid fuels in this
appliance.
WARNING
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

5
WE WANT YOU TO ASSEMBLE AND USE YOUR PIZZA OVEN AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU
ASSEMBLE AND USE YOUR PIZZA OVEN.
WHEN YOU SEE THE SAFETY ALERT SYMBOL
PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR PIZZA OVEN.
DANGER: Indicates an imminently hazardous situa which, if not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instrucns are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION: Indicates a potenyhazardous situan which, if notavoided, may result in minor or moderate injury.
CALIFORNIA PROPOSITION 65 WARNING
This product contains chemicals, including lead in the brass of certain component parts that are known to the State of
California to cause cancer, and birth defects of other reproducve harm.
Wash hands aer handling. When used, this product emits fuel combuson chemicals that are known to the State of
California to cause cancer, and birth defects or other reproducve harm.
Follow all instrucons in this manual and use only in well venlated, outdoor area.
IMPORTANT SAFETY WARNINGS
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

6
GENERAL WARNINGS:
Leak test all connecons before rst use, even if pizza oven was purchased fully assembled and aer each tank rell. Check
the propane tank rubber seal for damage.
Always check the pizza oven and propane tank prior to each use as indicated in the‘Checking for Leaks’ &‘Pre start Check List’
secs of this manual.

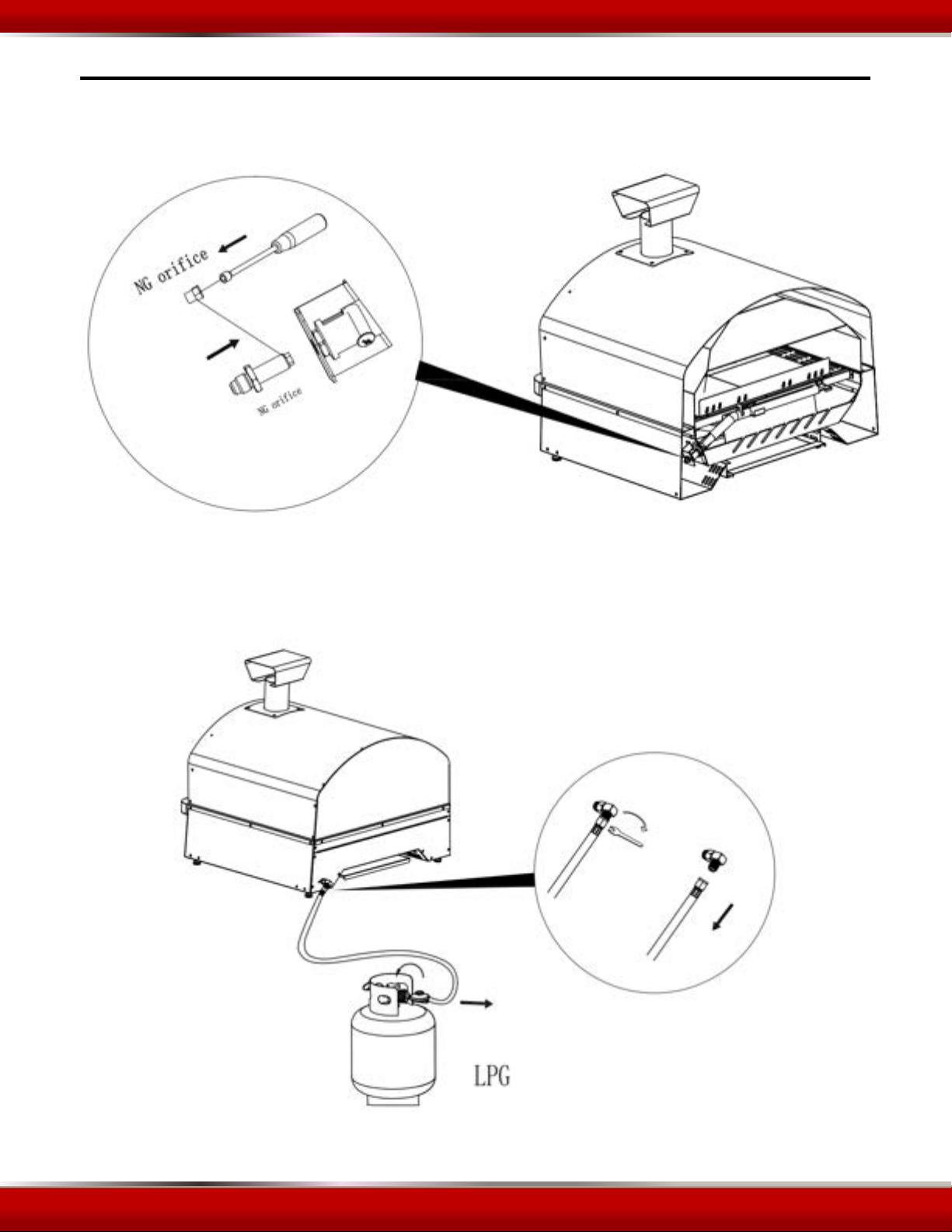

Never use natural gas in a unit designed for liquid propane gas.
Never use charcoal, lava rocks or wood briquees in a gas pizza oven. Flavoring chips must be contained in a metal smoking
box to contain ash and prevent res.
Ensure es come out of all burner ports during eachuse. Spiders and insects like to build nests in burner holes. Blocked
burner tubes can prevent gas ow to the burners and could result in a burner tube re or re beneath the pizza oven.
Never check tor leaks using a match or open e.
Never use or store gasoline, lighter ,paint thinner, or other ammable vapors and liquids or combusle materials in or
near your pizza oven.
DO NOT block venlaon areas in sides, back or cartcompartment of pizza oven.
DO NOT cover cooking grates or other components with aluminum foil, as this blocks venananddamage to pizza oven or
personal injury may occur.
Never place more than 15pounds on the side tables. DO NOT lean on the side tables, DO NOT lipizza oven using side tables.
Keep children and pets away from hot pizza oven. DO NOT allow children to use or play near this pizza oven.
DO NOT leave the pizza oven unad while ON or in use.
DO NOT allow the gas hose to come in contact with hot surfaces. Redirect the gas hose if necessary.
DO NOT allow grease or hot drippings to fall on hose andregulator assembly. If this occurs, turn gas supply OFF at once.
Empty grease gray/cup and clean the hose and regulator assembly and inspect for damage before use.
Never cook on the pizza oven without the grease cup/tray in posion.
DO NOT use water on a grease re. Closing the lid to exnguish a greasere is not possible. Use type BC dry chemical re
exnguisher or smother with dirt, sand or baking Soda.
DO NOT use while under the inuence of drugs or alcohol.
FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as garage, shed or Breezeway.
Poson your pizza oven outdoors on a non combusle level surface in a well venlated locaon, a safe distance 10
foot(3.2m) from combusle materials, buildings and overhangs.
Apartment dwellers: Check with management and follow the requirements and re codes for using an LP gas pizza oven in
your apartment complex. Only use outside on the ground (not on a balcony, pao, garage, etc.) with a 15 foot (4.6m)
minimum clearance on all sides from any wall, structure or combusle Material.
Maintain a minimum clearance of 36 inches (91cm) on all sides of pizza oven, check railings, walls or other combusble
material. Not adhering to these clearances may prevent proper venlaon and can increase the risk of a re and/or property
damage, which could also result in personal injury. DO NOT use pizza oven under overhead unprotected combuse
cons
DO NOT use or install this pizza oven in or on a recreaonal vehicle and/or boat.
DO NOT build this model pizza oven in any built in or slide in construcon.
If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on the cooking surfaces prior to
baking as loose bristles may aach to food.
DO NOT store items in cart that can catchre or damage your pizza oven(such as swimming pool supplies/chemicals, table
cloth).
Pizza oven is hot when in use. To avoid burns:
DO NOT aempt to move the pizza oven. Block the wheels so the unit does not accidentallymove. Wear protecve gloves or oven
mis.
DO NOT touch any hot pizza oven surfaces. DO NOT wear loose clothing or allow hair to come in contact with pizza oven.
Not for commercial use. DO NOT usethis pizza oven for anything other than its intended purpose.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS PIZZA OVEN. FAILURE TO ADHERE TO THE SAFETY
WARNINGS AND GUIDELINES IN THIS MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.SAVE THIS
MANUAL FOR FUTURE REFERENCE.

7
NO. Description QTY
1 Pizza oven chimney 1
2 Pizza stone 4
3 Pizza oven 1
4 Door handle 1
5 Door handle connector 1
6 Pizza oven door 1
7 Grease tray 1
8 LPG regulator and hose 1
9 hook 1
EXPLODED VIEW
PART LIST
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

8
ASSEMBLY INSTRUCTIONS
Before ge ng started with the assembly:
Select a level surface that does not have cracks or openings to avoid any small components or hardware from
geng lost.
Level surface must be smooth/soto avoid scratching or damaging any surface nish of all components.
Ensure the level surface is large enough to layout all components and hardware.
Tighten hardware and connecons by hand rst, then fully hten with screwdriver or wrench. Be cauous to not
over ghten which may damage surface or strip hardware.
Follow all steps properly when assembling your pizza oven.
Before star ng pizza oven operon:
Perform Leak Test
Fill the LP gas cylinder with type 1 cylinder valve.
A er baking:
Turn othe cylinder valve
Turn both burner control knobs to ‘OFF’posion.
Loading capacity
Maximum loading weight of side tables: less or equal to 15 lbs (6.8kg)
Maximum loading weight of warming rack: less or equal to 8.8 lbs (4kg)
Assembly
1.
2.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

9

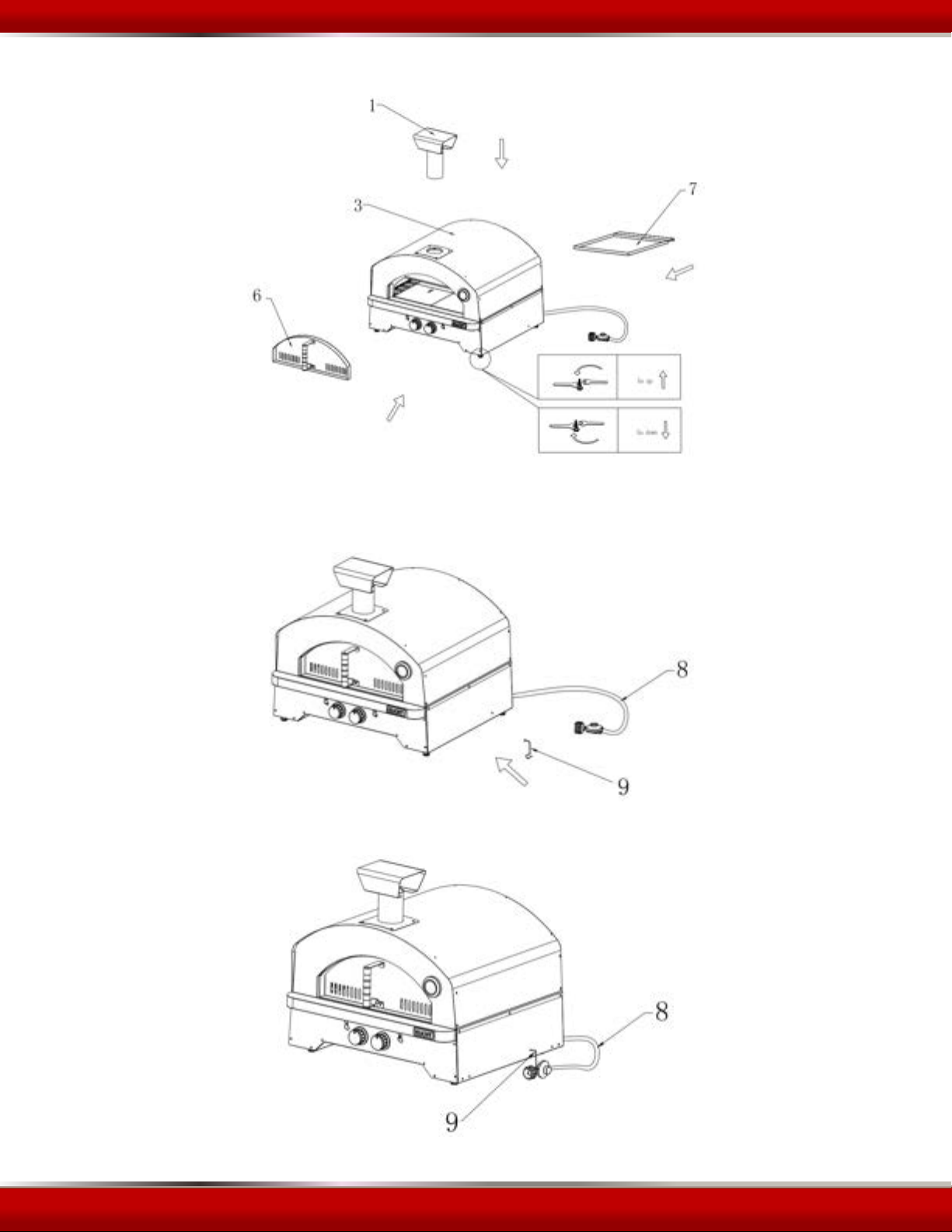

3.
4.
5.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

10
ASSEMBLY INSTRUCTIONS FOR NG
NG and LP conversion:
A.Change the orifice
B.Connect the natural gas gray pipe
Orifice size: NG Main burner=1.52mm, NG Rear burner=1.32mm
Propane Main burner=1.08mm, Propane Rear burner=0.95mm
LP TRANSFORMATION PART LIST NG TRANSFORMATION PART LIST
LP Main burner
1.08 mm orifice×1
14,000BTU
NG Main burner
1.52 mm orifice ×1
14,000BTU
(NOT INCLUDED)
LP Rear burner
0.95 mm orifice×1
10,000BTU
NG Rear burner
1.32 mm orifice×1
10,000BTU
(NOT INCLUDED)
LP hose assembly
NG hose assembly
(NOT INCLUDED)
Coversion Kit label
(NOT INCLUDED)
Inlet manifold pressure
For Propane-----11 inch water column
For NG-----7 inch water column
• This kit converts your pizza oven for natural gas use at 7 inch
water column supply pressure. Verify supply pressure with
your local gas company. If supply pressure is different than 7
inch, contact a certified plumber for assistance.
• Placing markings provided in the kit in the appropriate
location on the converted appliance.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

11
ASSEMBLY INSTRUCTIONS FOR NG
Caution: Before proceeding with the conversion, shut off the gas supply to the appliance
prior to disconnecting the electrical power."
Step 1
WARNING
FIRE, EXPLOSION, AND CARBON-MONOXIDE HAZARD
If the information in these instructions is not followed exactly, a fire, explosion, or
production of carbon monoxide may result causing property damage, personal injury,
or loss of life.
This conversion kit shall be installed by a qualified agency in accordance with the
appliance manufacturer's instructions and all applicable codes and requirements of
the Authority Having Jurisdiction. The qualified agency is responsible for the proper
installation of this kit. The installation is not proper and complete until the operation
of the converted appliance is checked as specified in the manufacturer's instructions
supplied with the kit.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

12

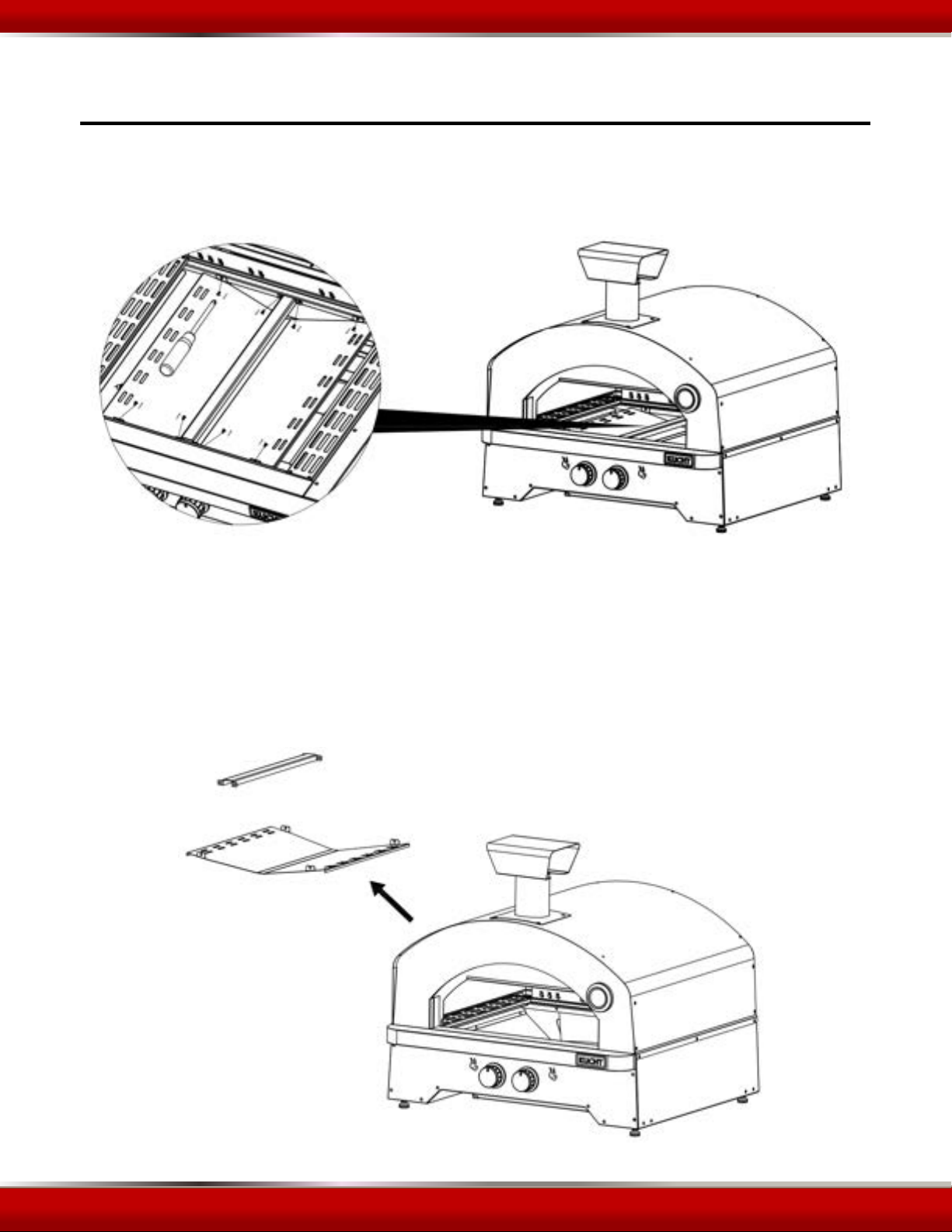

ASSEMBLY INSTRUCTIONS FOR NG
Step 2
Step 3
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

13

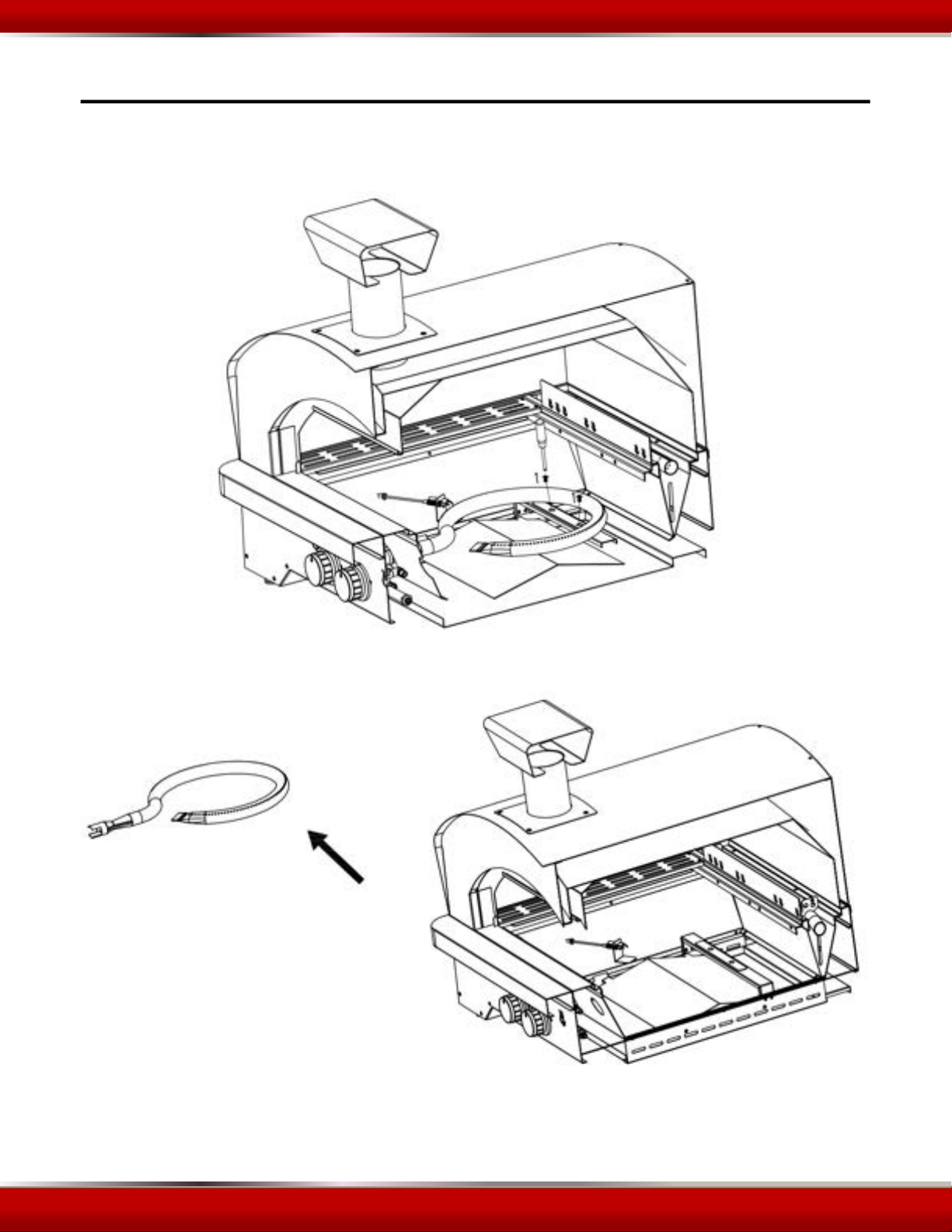

ASSEMBLY INSTRUCTIONS FOR NG
Step 4
Step 5
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

14

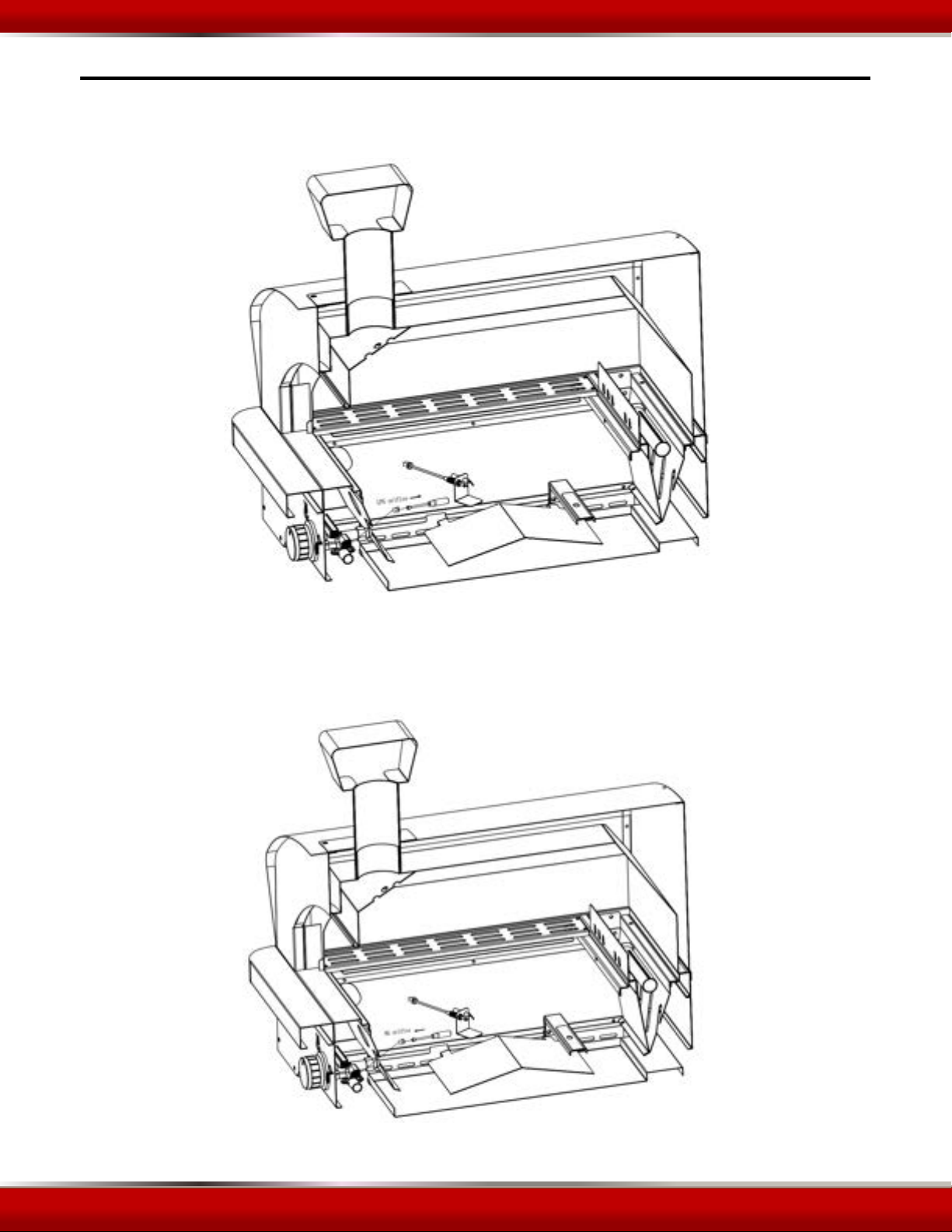

Step 6
Step 7
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
ASSEMBLY INSTRUCTIONS FOR NG

15
ASSEMBLY INSTRUCTIONS FOR NG
Step 8
Step 9
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

16
ASSEMBLY INSTRUCTIONS FOR NG
Step 10
Step 11
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

17
ASSEMBLY INSTRUCTIONS FOR NG
Step 12
Step 13
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

18

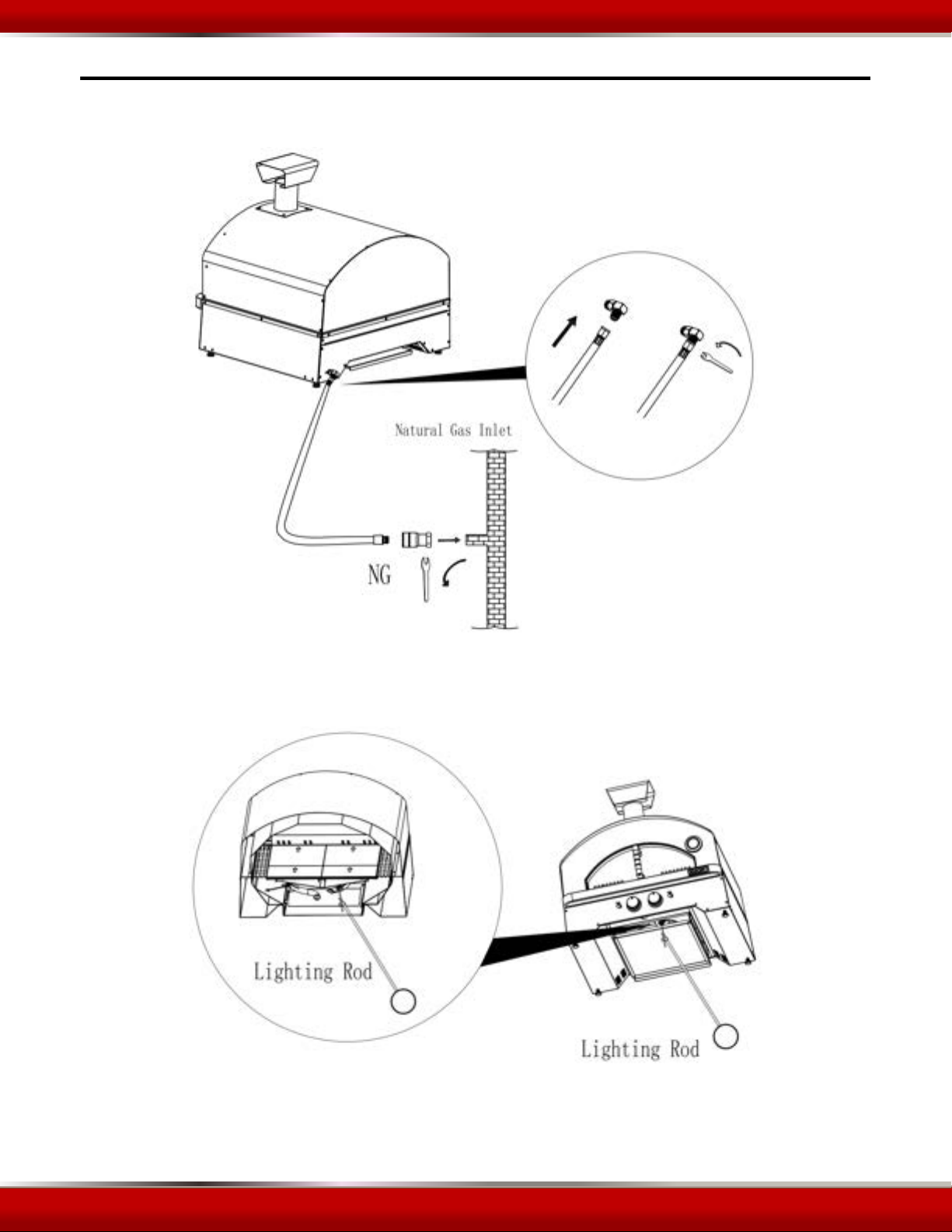

ASSEMBLY INSTRUCTIONS FOR NG
Step 14
LIGHTING ROD INSTRUCTION
Step 1
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

19
Step 2
LP GAS CYLINDER (TANK) SPECIFICATIONS AND INSTALLATION:
WARNING
DANGER
ONLY connect this pizza oven to a Type 1 cylinder valve. The Type 1 valve can be idened withthelarge external threads on the valve
outlet.
DO NOT connect to a propane cylinder exceeding a 20 lb. (9.1kg) capacity.
DO NOT connect to a cylinder that uses any other type of valve connecon device.
Inspectthe propane tank valve rubber seal for cracks, wear or deteriorn prior to use. A damaged rubber seal can cause a gas leak,
possibly resulg in an explosion, re or severe bodily harm.
Turn othe cylinder valve when your pizza oven is not in use.
Handle the tank with care.
Always secure the cylinder in an upright posin.
Neverconnect an unregulated LP gas cylinder to your pizza oven.
DO NOT expose LP gas cylinders to excessive heat or ignin sources.
DO NOT store a spare LP gas cylinder under or near your pizza oven.
Allow only quaed LP gas dealers to l or repair your LP gas cylinder.
DO NOT allow thecylinder to be ed beyond 80% capacity.
DO NOT store a spare LP gas cylinder (full or empty) under or near your pizza oven. This could cause excess pressure to be expelled
through the vapor relief valve resulg in re, explosion, or sever personal injury, including death.
Propane gas is heavier than air and will collect in low areas. Proper venan is extremely important. Keep the venaon opening(s)
of
the LP gas cylinder enclosure free and clear from obstrucons and debris.
DO NOT insert any foreign objects intothecylinder valve outlet as this could damage the rubber seal. Do not use propane tank with a
damaged rubber seal. A damaged rubber seal can cause a gas leak, possibly resulg in explosion, re, severe bodilyharm, or death.
Inspect rubber seal for cracks, wear or deteriorn prior to use.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM

20
LP GAS CYLINDER (TANK) SPECIFICATIONS:
LP gas cylinder (not supplied with this pizza oven)
The LP (Liquid Propane) gas cylinder specically designed to be used with this pizza oven must be 12” (30.5cm) diameter x 18” (45.7cm) tall and
have a 20 lb. (9.1kg) capacity incorporg a Type 1 cylinder valve and an overg protecn device (OPD).
This pizza oven is designed to t Worthington, Manchester or SMPS brand 20 lb. (9.1kg) cylinders. Other branded DOT cylinders may tthis pizza
oven if the cylinder has similar dimensions of the top and boom rings.
The installan of this appliance must be in accordance with:
All applicable local codes, or in the absence of local codes, either:
Na onal Fuel Gas Code ANSI Z223.1 NFPA 54 Natural Gas and Propane Installa on Code: CAN/CGA B149.1
Natural Gas Installa on Code: CAN/CGA B149.1(Canada) Propane Installa on Code: CAN/CGA B149.2(Canada)
To check your local codes, contact your local LP gas dealer or natural gas company. This pizza oven is not intended to be connected to a natural gas
supplyline. If an external electrical source is lized, it must be electrically grounded in accordance withlocal codes, or in the absence of local
codes, withthe Naal Electrical Code, NASI/NFPA 70, or the Canadian Electrical Code, CSA 22.1.
When purchasing or exchanging a cylinder for your gas pizza oven, it must be constructed and marked in accordance withthe specaons for LP
gas cylinders of the U.S. Department of Transportan(DOT) or the Nanal Standard of Canada, CAN/CSAB339 Cylinders, Spheres and Tubes for
Transportaon of Dangerous Goods; and Commission, as applicable; and provided with a listed over g prevenn device(OPD), and provided
with a cylinder connen device ewith conneon for outdoor cooking appliances.
The cylinder must also be equipped with:
Ashut ovalve termina in a
Type 1 gas cylinder valve outlet.
A Type 1 valve that prevents gas
w unl a posive seal is obtained.
An arrangement for vapor withdrawal.
Acollar to protect the cylinder shut ovalve.
Asafety relief device having direct
communicaon with the vapor space of the cylinder.
Alisted over lling prevenon device (OPD).
FILLING THE LP GAS CYLINDER(TANK):
WARNING
Allow only qued licensed LP gas dealers to properly l or repair your LP gas cylinder.
New tanks should be purged prior to lling; inform LP gas dealer if you are using a new tank.
DO NOT allow the cylinder to be d beyond 80% capacity. Over d tanks can create a dangerous condion.
Over  tankscan build up pressure and cause the relief valve to expel propane gas vapors. The vapor is
combusble and if it comes in contact with a spark source or me an explosion causing severe burns, bodily harm,
or death could occur.
Always use a protecve cylinder capwhen grill is not connected to cylinder.
If you exchange a cylinder with a qualied exchange program, the new cylinder must have a Type 1 valve and an
over lling prevenon device(OPD).
Inspect the propane tank valve rubber seal for cracks, wear or deterioran prior to use.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
