1200M 11AC dual band Gigabit
Wireless Router
KFR11AC-128R-16F
User Manual
Version 1.01

KFR11AC-128R-16F
1
Table of Content
Chapter 1 Introduction................................................................................................... 2
1.1 Features.............................................................................................................. 2
1.2 System Requirement .......................................................................................... 3
1.3 Package Contents............................................................................................... 3
Chapter 2 Hardware Installation ................................................................................... 4
2.1 Led indicators...................................................................................................... 4
2.2 Back Rear Panel................................................................................................. 4
2.3 Typical install....................................................................................................... 5
Chapter 3 Quick Installation Guide............................................................................... 7
3.1 Set the Network Configurations .......................................................................... 7
3.2 Getting Started.................................................................................................... 9
Chapter 4 Status........................................................................................................... 13
4.1 Status................................................................................................................ 13
4.2 Statistics............................................................................................................ 14

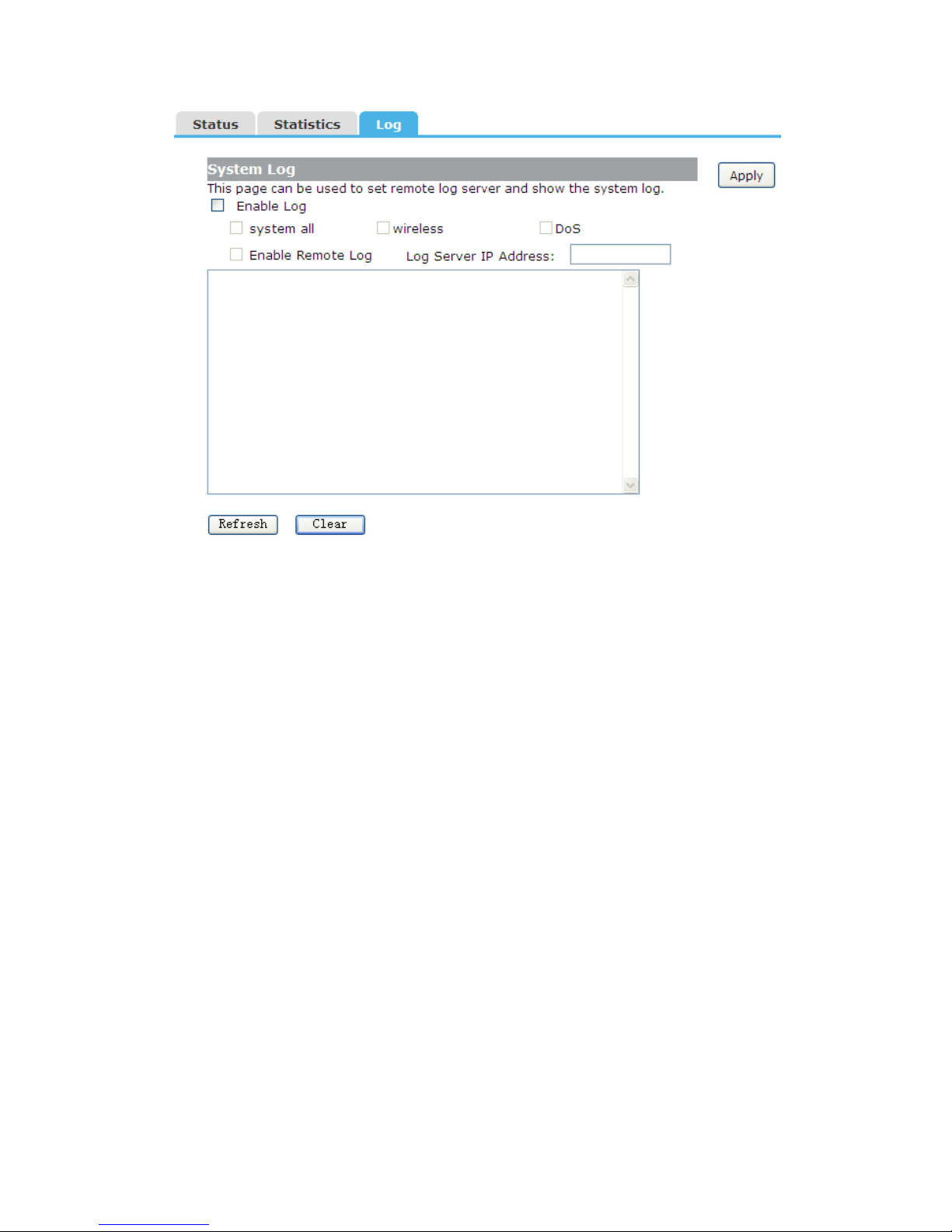

4.3 Log.................................................................................................................... 14
Appendix: Technical Specifications........................................................................... 16
FCC STATEMENT ......................................................................................................... 17

KFR11AC-128R-16F
2
Chapter 1 Introduction
Congratulations on your purchase of this outstanding 11ac Dual-Band Wireless Gigabit
Router. The Wireless Router using 2.4G and 5G dual-band concurrent technology,
support latest 802.11ac standards, backward compatibility IEEE802.11 a/b/g/n, 2.4GHz
and 5GHz wireless transmission rate up to 1167Mbps when concurrent operation,
Integrated router, Wi-Fi access point, 4 ports gigabit switch and fire wall functions in one.
Provide convenient and comprehensive network management functions, supports URL
filtering, MAC address filtering and the QoS bandwidth control function, can effectively
allocate the client's download rate. Supports wireless data encryption, and can guarantee
the security of data transmission in wireless network.
1.1 Features
Provides a 10/100/1000M WAN interface, can be connected to xDSL modem, Cable
modem and Ethernet.
Provides four 10/100/1000M LAN interface, can be connected to various Ethernet
device.
2.4G and 5G concurrent working wireless transmission rate up to 1167Mbps.
Supports the WPS one key encryption, easy to implementing network encrypted
connection.
Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, etc. encryption and
security mechanism.
Built-in Network Address Translation (NAT) supports virtual server, special
application and DMZ host.
Built-in DHCP server, and also supports static address allocation.
Supports the VPN pass - through, can build a VPN client.
Built-in firewall functions, supports domain and MAC address filtering.
Supports QoS bandwidth control function, can effectively allocate the client's
download rate.
Supports for dynamic DNS function, can provide domain name service for dynamic
IP address.
Built-in static routing function, can according to need to build special network
topology.
Supports access control based on MAC address, can effectively to control the
Intranet user Internet access permissions.
Supports remote Web management and software upgrades.

KFR11AC-128R-16F
3
1.2 System Requirement
An Ethernet-Based Cable or xDSL modem
An Ethernet Card on PC
TCP/IP network protocol for each PC
RJ45 Twisted-pair
Microsoft IE (or Firefox or Netscape)
1.3 Package Contents
Please unpack the box and check the following items:
One 11ac Dual-Band Wireless Gigabit Route
One Power Adapter
One User Manual

KFR11AC-128R-16F
4
Chapter2HardwareInstallation
2.1 Led indicators
The top panel contains LED indicators that show the status of the unit.
Name Status Indication
Power
Off Power is off.
On Power is on.
WAN
LAN(1-4)
Off There is no device linked to the corresponding port.
On There is a device linked to the corresponding port but
there is no activity.
Flashing There is an active device linked to the corresponding port.
2.4GHz
Off The wireless function is disabled.
Flashing The wireless function is enabled. The Router is working
on 2.4GHz radio band.
5GHz
Off The wireless function is disabled.
Flashing The wireless function is enabled. The Router is working
on 5GHz radio band.
SYS/WPS
Slow
Flashing The Router is working properly.
Fast
Flashing the LED flashes fast about two minutes during WPS working.
2.2 Back Rear Panel
The following parts are located on the rear panel.

KFR11AC-128R-16F
5
WAN: 10/100Mbps RJ45 port. The WAN port is where you will connect Cable/xDSL
Modem or other LAN.
LAN (1,2,3,4): These four LAN ports are where you will connect networked devices, such
as PCs, print servers, remote hard drives, and anything else you want to put on your
network. If you connect this product with the Hub (or Switchboard) correctly, the Router’s
corresponding LED and the Hub’s (or the Switchboard’s) must be illuminates.
WPS: With the Router powered on, press the button about 1 second, it is WPS function
and the WPS LED will flash two minutes.
RESET: With the Router powered on, use a pin to press and hold the button about 7
seconds, the Router will reset to default setting.
ON/OFF: The switch for the power.
POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this Router.
Wireless antenna: To receive and transmit the wireless data.
2.3 Typical install
Before installing the Router, make sure your PC is connected to the Internet through the
broadband service successfully. If there is any problem, please contact your ISP. After
that, please install the Router according to the following steps. Don’t forget to pull out the
power plug and keep your hands dry.
1. Make sure all devices, including your PCs, modem, and Router, are powered down.
2. Using an Ethernet network cable, connect the LAN or Ethernet network port of the
cable or DSL modem to the Router’s WAN port.
3. Power on the cable or DSL modem, and power on the PC you wish to use to configure
the Router.

KFR11AC-128R-16F
6
4. Connect the included power adapter to the Router. And connect the other end of the
adapter to an electrical outlet.

KFR11AC-128R-16F
7
Chapter 3 Quick Installation Guide
The chapter mainly presents how to enter the Router’s Web page and simple router
settings. After you have finished the hardware installation (Please refer to chapter 2), the
following steps will assist you to set the network configurations for you computer.
3.1 Set the Network Configurations
1. On your computer desktop right click "My Network Places" and select "Properties".
2. Right click "local Area Network Connection" and select "Properties".
3. Select "Internet Protocol (TCP/IP)" and click "Properties".

KFR11AC-128R-16F
8

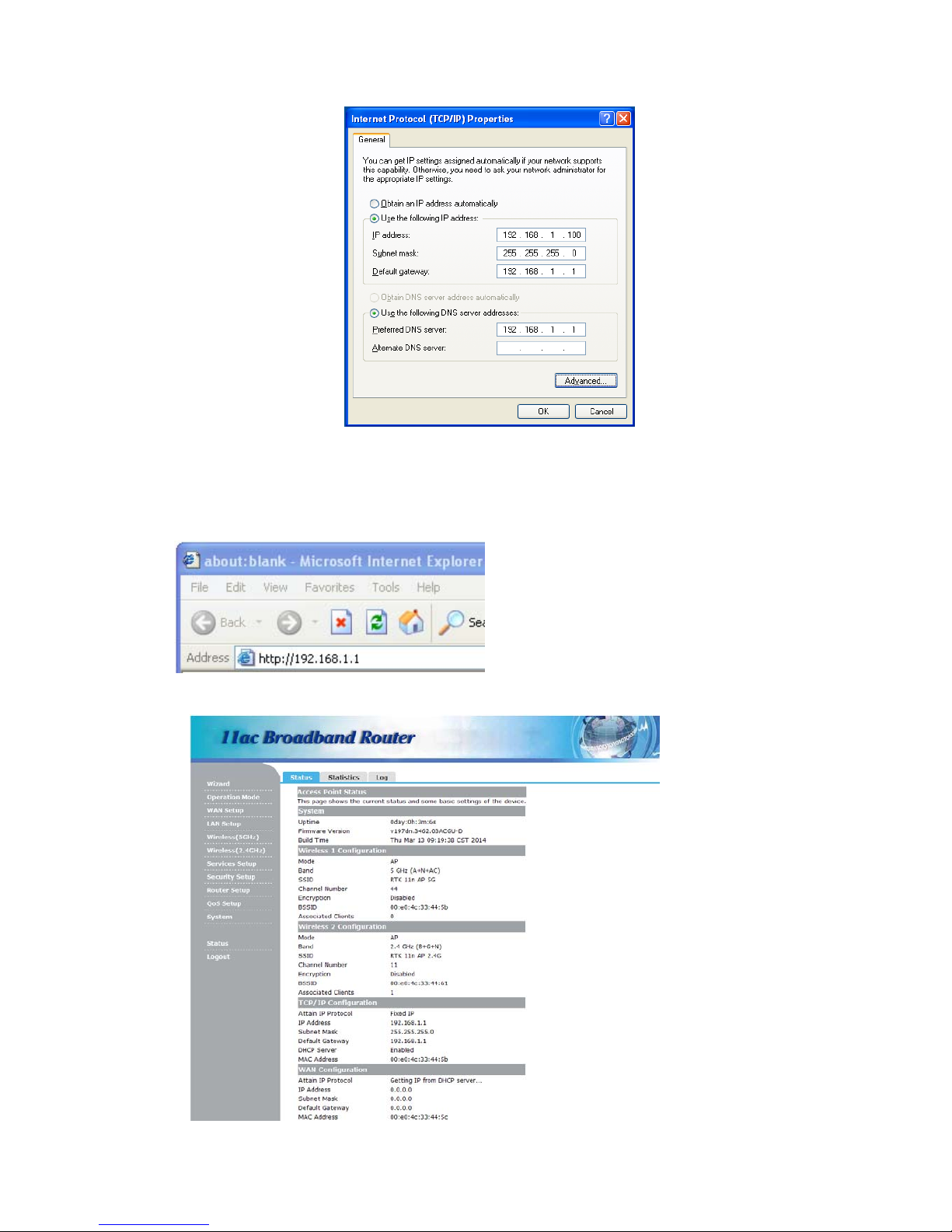

4. Select "Obtain an IP address automatically" or select "Use the following IP
address(S)".
A. Select "Obtain an IP address automatically" and "Obtain DNS server address
automatically". Click "OK".
B. "Use the following IP address (S)"
IP Address: 192.168.1.XXX: ( XXX is a number from 2~254)
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
DNS Server: You need to input the DNS server address provided by you ISP.
Otherwise, you can use the Router's default gateway as the DNS proxy server.
Tip: If you are not sure of the DNS server address, we recommend you to select
“Obtain an IP address automatically (O)” and “Obtain a DNS server address
automatically”.

KFR11AC-128R-16F
9
Click "OK" to save the configurations.
3.2 Getting Started
To access the configuration pages, open
a web-browser such as Internet Explorer
and enter the IP address of the router
(192.168.1.1).
The Default User/Password: admin
If successful, you can see the status page.

KFR11AC-128R-16F
10

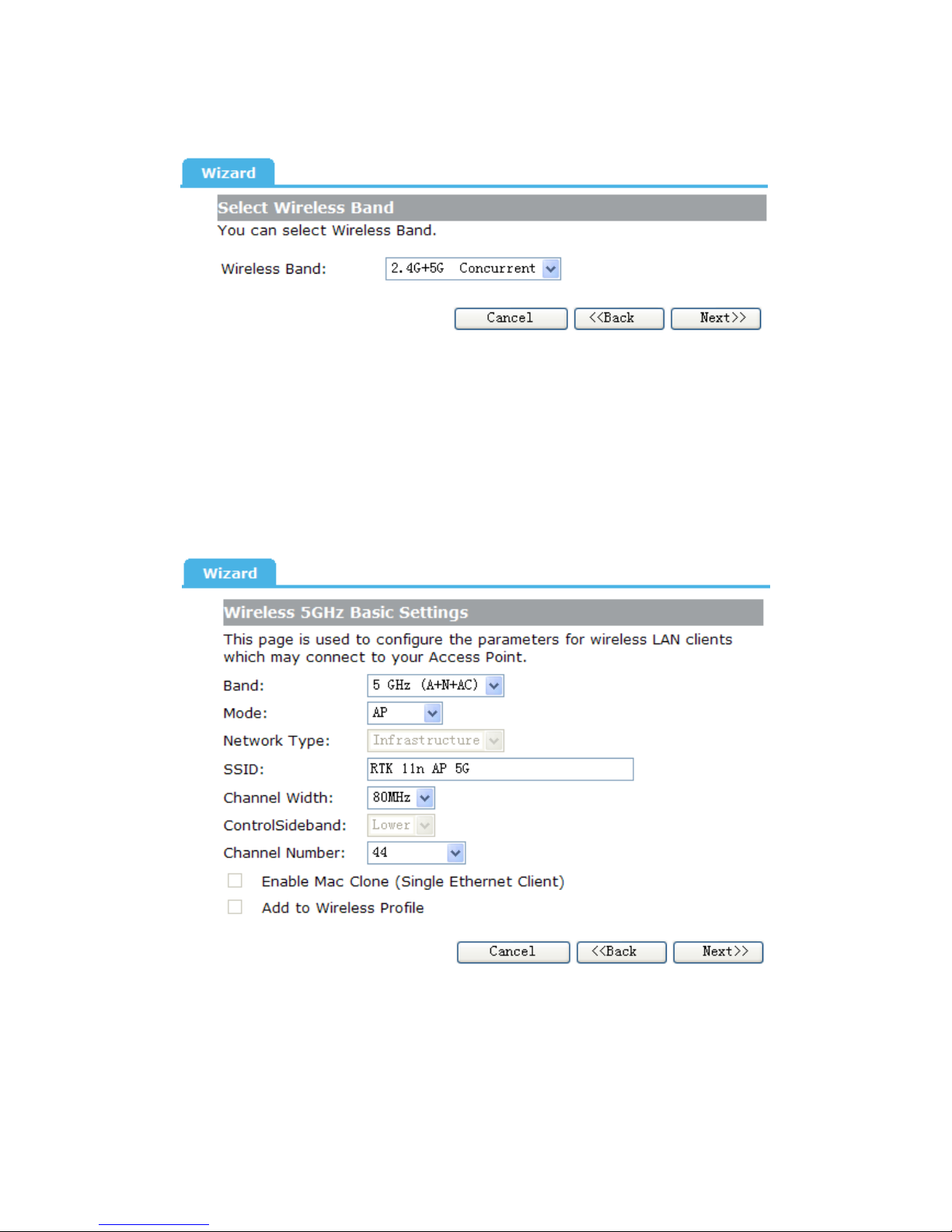

Select Wireless Band
You can select Wireless Band.
2.4GHz - You can use the 2.4GHz band to connect to many classic wireless devices like
gaming consoles, laptops, DVRs, ect.
5GHz - This band is less crowded and is used for time-sensitive music, video streaming
or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices
like cordless phones and microwave ovens.
Wireless 5GHz LAN Settings
For example, here we configure the basic parameters for 5 GHz wireless network as the
following screenshot:
Band: This filed determines the wireless mode which the Router works on.
5GHz (A) - Select if all of your wireless clients are 802.11a.
5GHz (N) - Select if all of your wireless clients are 802.11n.
5GHz (A+N) - Select if you are using both 802.11a and 802.11n wireless clients.
5GHz (AC) - Select if all of your wireless clients are 802.11ac.
5GHz (N+AC) - Select if you are using both 802.11n and 802.11ac wireless clients.

KFR11AC-128R-16F
11
5GHz (A+N+AC) - Select if you are using both 802.11a, 802.11n and 802.11ac
wireless clients.
Mode: Support AP, Client, WDS and AP+WDS mode.
Network Type: This type is only valid in client mode.
SSID: Service Set Identifier, it identifies your wireless network.
Channel Width: Select the channel width from the drop-down list.
ControlSideband: This relates to the channel number used for your wireless network. An
upper band represents higher channels and vice versa.
Channel Number: Indicates the channel setting for the router.
Enable Mac Clone: Enable or disable MAC clone option. (You can use the "Mac Clone"
button to copy the MAC address of the Ethernet Card installed by your ISP and replace
the WAN MAC address with this MAC address.)
Wireless 5GHz Security Setup
Secure your wireless network by turning on the WPA or WEP security feature on the
router. This section you can set WEP and WPA-PSK security mode.
The following picture shows how to set the WEP security.
Key Length: Specify the Length of the key, 64-bit or 128-bit.
Key Format: Specify the format of the key, ASCII or hex.
Key Setting: Enter the key here, its format is limited by the key format, ASCII or Hex.
The following picture shows how to set WPA-PSK security, you can select WPA (TKIP),
WPA2 (AES) and Mixed mode.

KFR11AC-128R-16F
12
Pre-Shared Key Format: Specify the format of the key, passphrase or hex.
Pre-Shared Key: Enter the key here, its format is limited by the key format.
Click “Next” to set the 2.4GHz wireless network by the same method, and then click
"Finish" button to complete the setting.
Through the wizard setup, you can complete the basic functions of a router settings to
achieve Internet access. If you need more advanced setting of the router, please refer to
the following chapters.

KFR11AC-128R-16F
13
Chapter4Status
There are three submenus under the Status menu: Status, Statistics, Log.
Click anyone, you will see the following status.

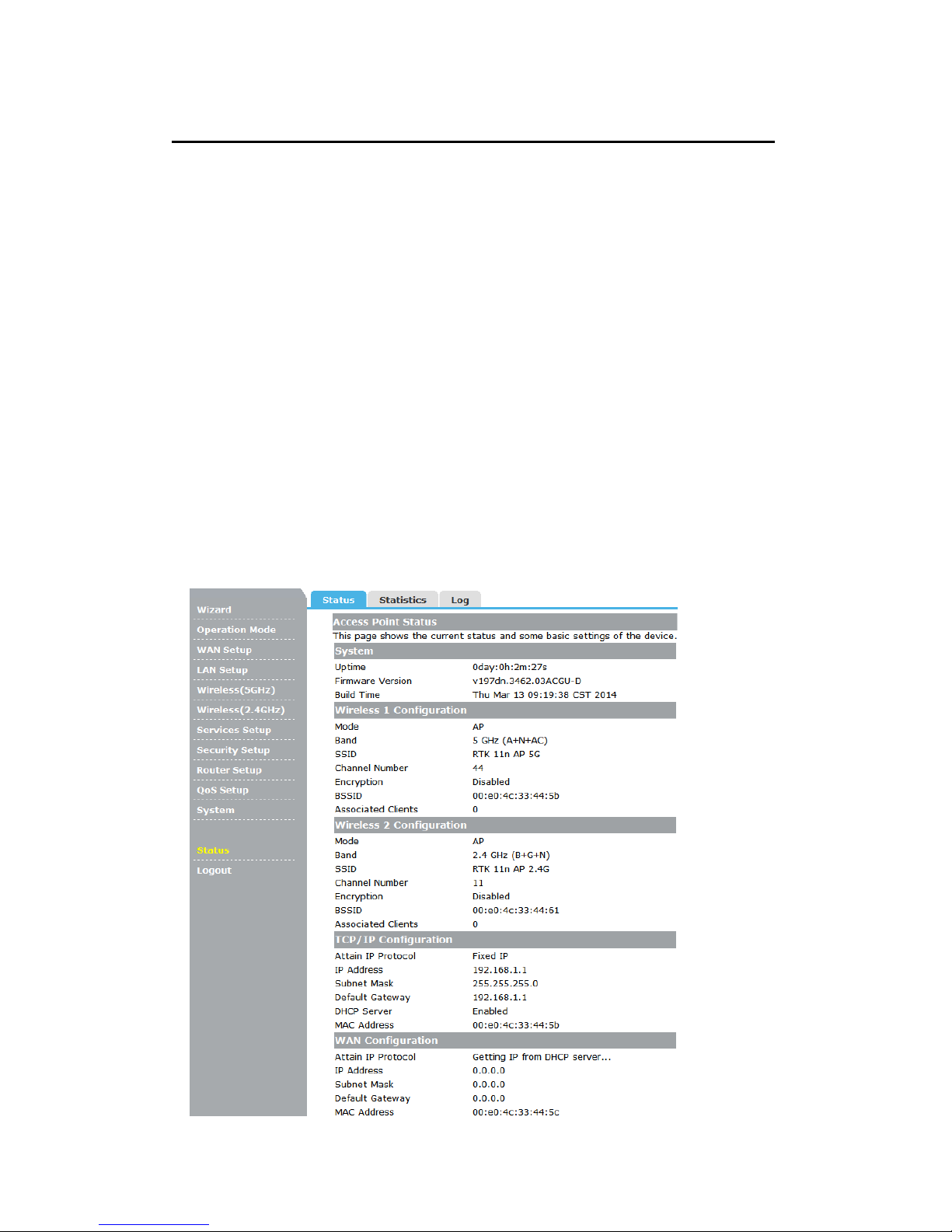

4.1 Status
The System Status provides you with a snapshot of your Router’s current connections
and settings.
The System Information section provides you with the router’s firmware version and build.
This is used to help our support department determine what firmware version your device
is running. The Current Date / Time is the setting for the system clock.
The Wireless Configuration shows the details of the 5.0GHz and 2.4GHz wireless
networks.
The TCP/IP Configuration displays the current configurations for local network IP address
and DHCP server settings.
The WAN Configuration displays the information from your Internet Provider. If for some
reason your Internet connection stops working, you may try running through the Smart
Setup Wizard again.

KFR11AC-128R-16F
14

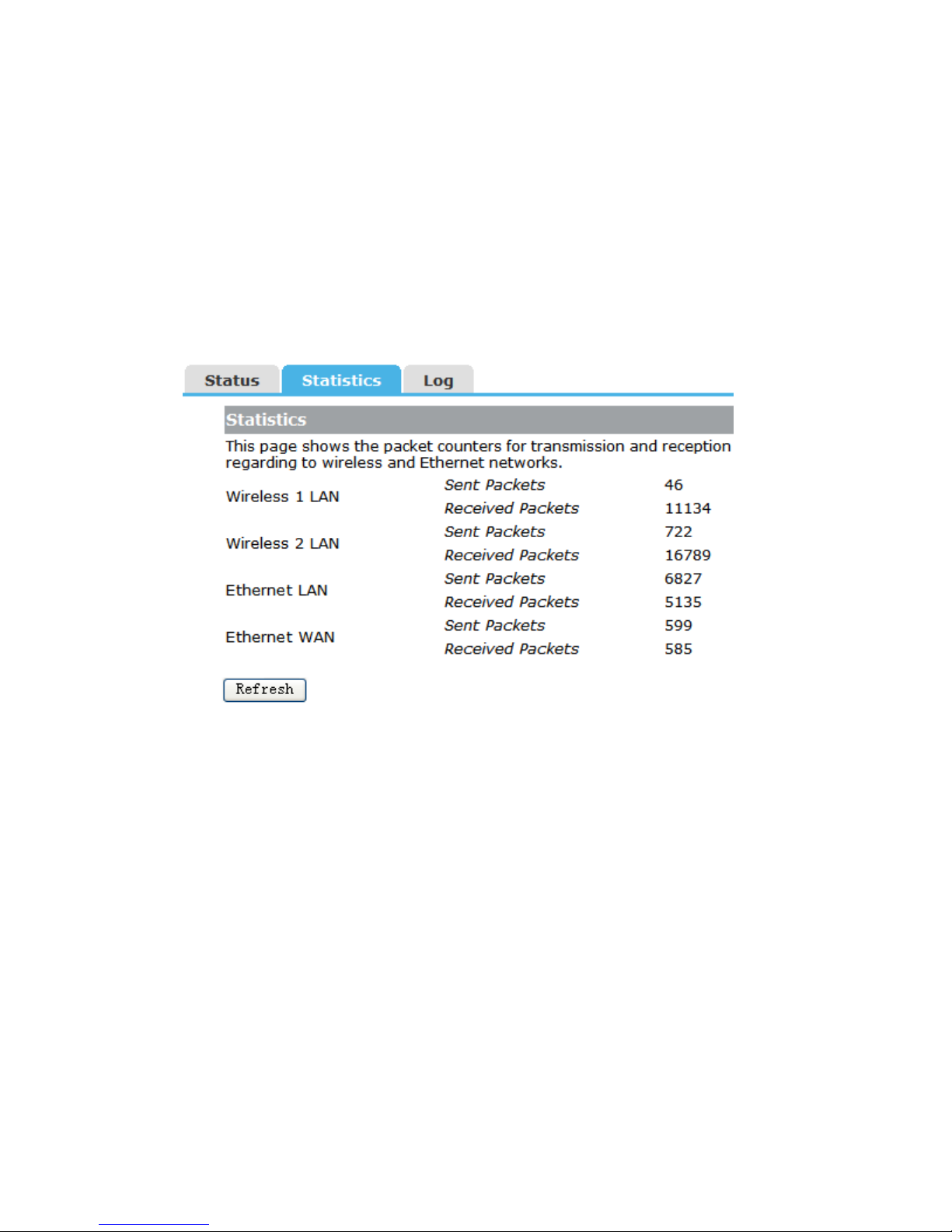

4.2 Statistics
This page shows the packet counters for transmission and reception regarding to
wireless and Ethernet networks.
The Wireless 1/2 LAN connection statistics shows all data activity for both the 5.0GHz
and 2.4GHz wireless networks separately.
The Ethernet LAN connection statistics shows all data activity for all users physically
connected to the wired ports on the Router.
The Ethernet WAN connection statistics shows the data activity for all upload and
download data over your Internet connection.
4.3 Log
The System Log is useful for viewing the activity and history of your Router. The System
Log is also used by Amped Wireless technicians to help troubleshoot your router when
needed. It is recommended that you enable logs in the event that troubleshooting is
required. Click the “Refresh” to update the log. Click “Clear” to clear all shown
information.

KFR11AC-128R-16F
15
Enable Log: Click this box to enable Log.

KFR11AC-128R-16F
16
Appendix: Technical Specifications
Standards IEEE802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g,
IEEE 802.11n
Interface Type LAN: 4 x 10/100/1000M RJ45 Ports(Auto MDI/MDIX)
WAN: 1 x 10/100/1000M RJ45 Port(Auto MDI/MDIX)
Radio Data Rate 5GHz: Up to 867Mbps(11ac)
2.4GHz: Up to 300Mbps(11n)
Frequency range
2.4 ~ 2.4835GHz
5.15 ~ 5.25GHz
5.725 ~ 5.85GHz
Antennas 2 X 2.4G/5G dual-band 5dBi non-removable omnidirectional
antennas
LEDs Power, WPS/System, WAN, LAN(4,3,2,1), WLAN1(2.4G),
WLAN2(5G), all the LED color is green.
Power adapter 12V,1A
Dimensions (W x D x
H) 159 x 127 x 26mm
Environment
Operating Temperature: 0 ~40℃℃
Storage Temperature: -40 ~70℃℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing

KFR11AC-128R-16F
17
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures: 
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver. 
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. 
—Consult the dealer or an experienced radio/TV technician for help. 

FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be
installed and operated in accordance with provided instructions and the antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions
and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

Caution! 

KFR11AC-128R-16F
18
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
