Huawei DN8245V-50 User manual

DN8245V-50
Quick Start
Issue 01
Date 2020-08-13
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2022. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://www.huawei.com
Email: [email protected]
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. i

Contents
1 Placing the Device................................................................................................................... 1
2 Connecting Cables................................................................................................................... 3
3 Indicator Description.............................................................................................................. 5
4 Ports and Buttons.................................................................................................................... 7
5 FAQs............................................................................................................................................ 9
DN8245V-50
Quick Start Contents
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. ii

1 Placing the Device
Do not install the DN8245V-50 outdoors or in an outdoor cabinet.
Keep 10 cm clearance on all sides to ensure adequate ventilation.
DN8245V-50
Quick Start 1 Placing the Device
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 1

It is recommended that the computer and DN8245V-50 be put far away from
electric appliances that generate strong magnetic or electric elds, such as
microwave ovens.
1. Mark the positions of two holes used for mounting the DN8245V-50, and
ensure that the two holes have the same spacing as the two mounting holes.
2. Select a proper drill according to the outer diameter of the screws. Use this
drill to drill the marked positions on the wall. Then, clean the wall and install
two expansion bolts.
3. Use a screwdriver to fasten the screws into the expansion bolts, leaving the
heads of the screws 10 mm over the wall. Then, install the DN8245V-50.
NO TE
● You can also place the DSL home gateway horizontally on the desk.
● The appearance shown in this document may be dierent from the actual appearance
of the product. The actual product provided by the carrier prevails.
DN8245V-50
Quick Start 1 Placing the Device
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 2

2 Connecting Cables
DSL upstream connection mode
1 Telephone jack on the
wall
2 Telephone 3 USB device
4 STB 5 Desktop computer 6 Power adapter
7 Laptop computer
DN8245V-50
Quick Start 2 Connecting Cables
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 3

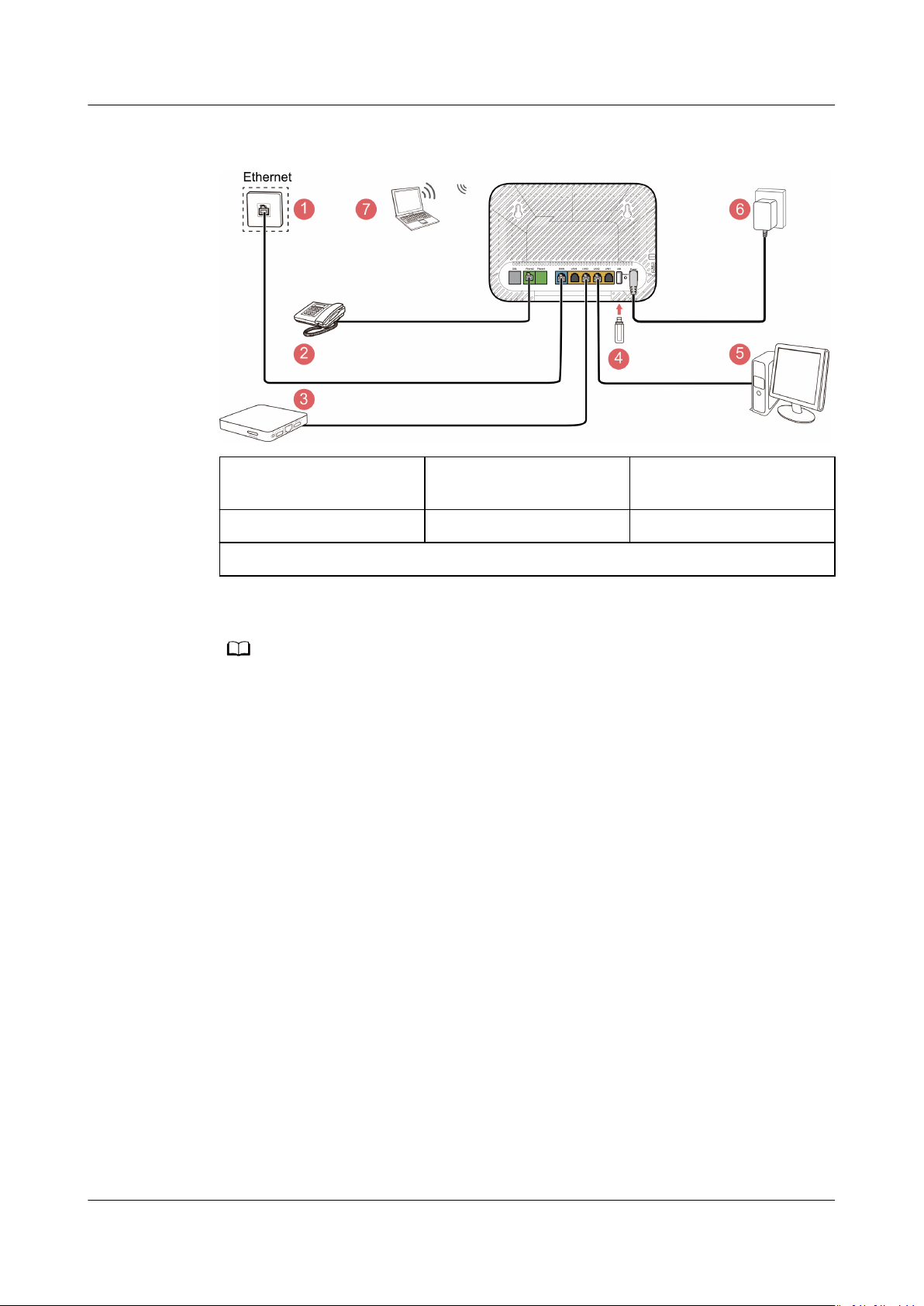

Ethernet upstream connection mode
1 Network port on the
wall
2 Telephone 3 STB
4 USB device 5 Desktop computer 6 Power adapter
7 Laptop computer
NO TE
● The DN8245V-50 supports two upstream connection modes: DSL and Ethernet. Select
one upstream transmission mode at a time.
● Some accessories are not delivered with the DN8245V-50. Prepare them by yourself.
DN8245V-50
Quick Start 2 Connecting Cables
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 4

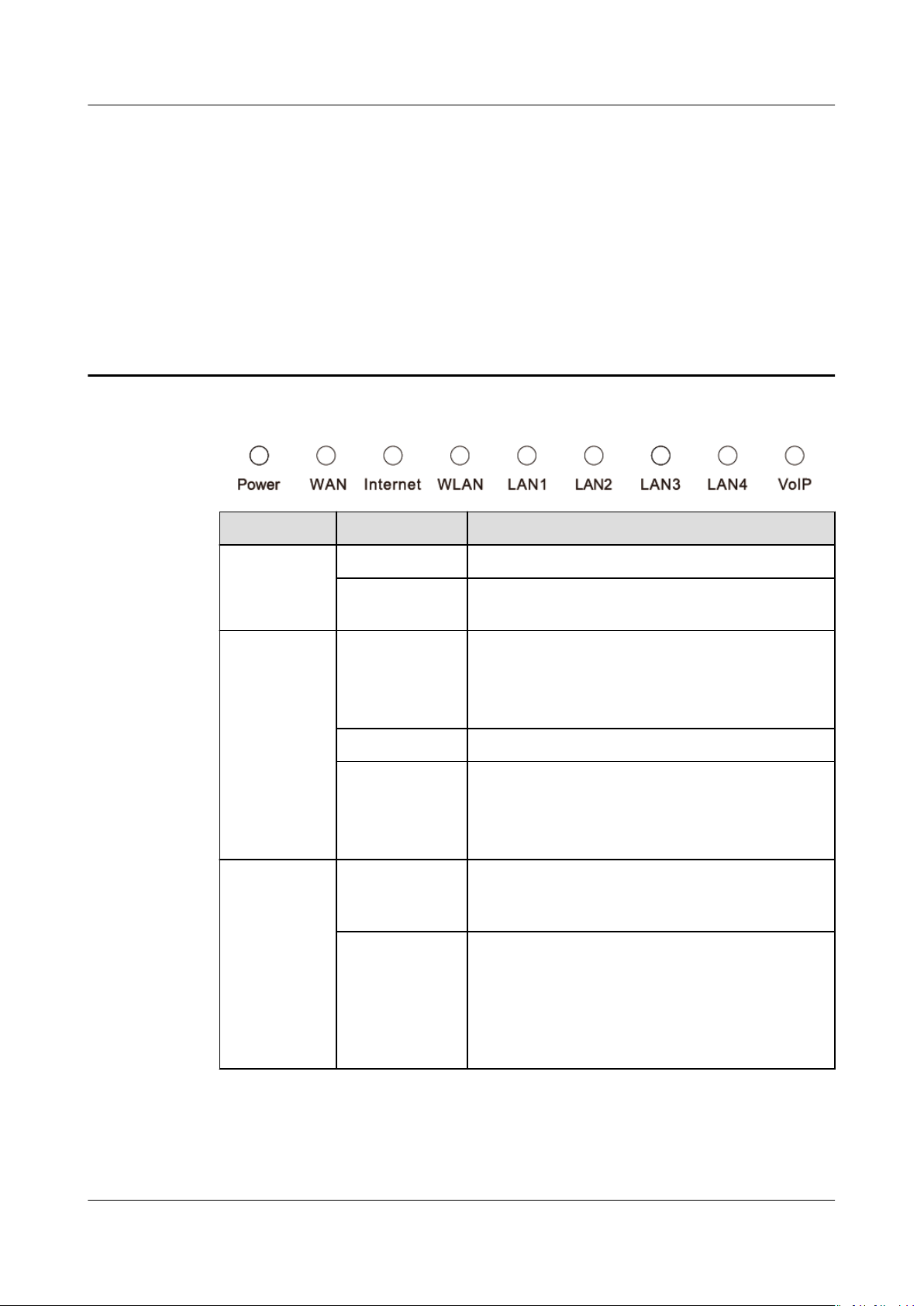

3 Indicator Description
Indicator Status Description
Power Steady green The DSL home gateway is powered on.
O The DSL home gateway is powered o or
faulty.
WAN Steady green ● DSL connection has been set up and
activated.
● The WAN port is connected to a network
cable.
Blinking green DSL connection is being activated.
O ● No DSL connection has been set up, or the
DSL connection is faulty.
● The WAN port is not connected to a
network cable.
Internet Steady green The DSL home gateway is connected to the
Internet in router mode, but no data is being
transmitted.
Blinking green ● The DSL home gateway is being connected
to the Internet in router mode. (Blinks 4
times per second.)
● The DSL home gateway is connected to the
Internet in router mode, and data is being
transmitted. (Blinks twice per second.)
DN8245V-50
Quick Start 3 Indicator Description
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 5

Indicator Status Description
O ● The WAN port is not connected to a
network cable.
● The DSL line is not activated.
● The DSL home gateway is in bridge mode.
● The DSL home gateway does not obtain the
IP address in router mode.
WLAN Steady green The WLAN function is enabled, but no data is
being transmitted.
Blinking green ● The WLAN function is enabled, and data is
being transmitted. (Blinks twice per
second.)
● The DSL home gateway is attempting to
connect to a wireless client over the WLAN
using the WPS function. The WLAN
indicator blinks for 120s. (Blinks once per
second.)
O The WLAN function is disabled.
LAN1–LAN4 Steady green The LAN port is connected to an Ethernet
device (such as a computer) with a network
cable, but no data is being transmitted.
Blinking green The LAN port is connected to an Ethernet
device with a network cable, and data is being
transmitted.
O The LAN port is not connected to any Ethernet
device.
VoIP Steady green The DSL home gateway is registered with an
SIP server, but no data is being transmitted.
Blinking green ● The DSL home gateway is being registered
with an SIP server. (Blinks twice per
second.)
● The DSL home gateway is registered with
an SIP server, and data is being transmitted.
(Blinks 4 times per second.)
O No VoIP service, or no VoIP WAN conguration
exists.
DN8245V-50
Quick Start 3 Indicator Description
Issue 01 (2020-08-13) Copyright © Huawei Technologies Co., Ltd. 6

4 Ports and Buttons
No. Item Description
1 DSL Connects to a DSL lter or telephone socket.
2 Phone1/2 Connects to a telephone.
3 WAN Connects to an Ethernet device that provides Internet
access, such as a modem or switch.
4 LAN1–LAN4 Connects to Ethernet devices, such as computers, set-top
boxes (STBs), and switches.
DN8245V-50
Quick Start 4 Ports and Buttons
