Intellinet 523776 User manual
GIGABIT
ETHERNET
MANAGED
SWITCH
USER
MANUAL
MODEL 523776
INT-523776-UM-0607-02
2
INTRODUCTION
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS
™
Gigabit Ethernet
Managed Switch, Model 523776.
With eight Gigabit ports that provide true Gigabit connectivity, this switch will instantly boost
friendly, Web-based management interface, which, in addition to eight copper ports, features
network usage; VLAN reduces the collisions caused by broadcasting; Port Aggregation
enlarges the bandwidth of the backbone connection; QoS secures the bandwidth for
applications like VoIP and video conferencing. Plus, the switch supports 802.3x and
The easy-to-follow instructions in this user manual help make setup and operation quick and
• Eight 10/100/1000 Mbps auto-sensing Auto-MDIX RJ-45 ports that automatically detect
optimal network speeds
• NWAY Auto-Negotiation support
• Store and forward switching architecture
• Full/half duplex operation
• Port Mirroring support
• Broadcast storm control
• 180 kBytes buffer memory
• Lifetime Warranty
FCC WARNING
against harmful interference in a commercial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at the user’s own expense.
CE
in which case the user may be required to take adequate measures.
3
INTRODUCTION
TABLE OF CONTENTS
1. INSTALLATION ............................................................................................................. 5
Front Panel .............................................................................................................. 5
Rear Panel............................................................................................................... 5
Placement................................................................................................................ 6
Description of Switch Functions .............................................................................. 7
2. MANAGEMENT............................................................................................................. 7
Switch Access ......................................................................................................... 7
........................................................................................................... 8
System.............................................................................................................. 8
Port ................................................................................................................... 8
VLAN ................................................................................................................
PVID ............................................................................................................... 10
Aggregation .................................................................................................... 10
..................................................................................11
Mirror ...............................................................................................................12
Storm Filter ......................................................................................................12
SNMP ..............................................................................................................13
Discovery.........................................................................................................13
Monitoring...............................................................................................................13
Statistics Overview..........................................................................................13
Detailed Statistics............................................................................................14
Maintenance ...........................................................................................................14
Restart .............................................................................................................14
Factory Default ................................................................................................14
Smart Boot.......................................................................................................14
Software Upload..............................................................................................14
3. ........................................................................................................15
section page
4
CONTENTS
1. INSTALLATION
Front Panel
The front panel of the Gigabit Ethernet Managed
Switch presents the LED indicators, as shown in
the image at right and described in the table below.
NOTE:
disables this corresponding copper port.
Rear Panel
The rear panel presents the eight ports, SFP slot, power receptacle and Restore button.
Port Operation
Auto-negotiation allows the ports to run in one of the following operational modes.
NOTE:
5
INSTALLATION
NOTE: The image depicts only the LED section of the front panel.
LED Status Indication/Operation
PWR Steady green The switch is on.
Blinking green The switch is off.
1000M Steady green The port is connected at 1000 Mbps.
Blinking green A valid link has been established, and there is data being
transmitted or received.
Off No valid link is currently established at this port; or the port
is connected at 10/100 Mbps.
10/100M Steady green The port is connected at 10/100 Mbps.
Blinking green A valid link has been established, and there is data being
transmitted or received.
Off No valid link is currently established at this port; or the port
is connected at 1000 Mbps.
Media Speed Duplex Mode
Half duplex
100 Mbps Full duplex
Half duplex
1000 Mbps Full duplex
Restore Default Button
You can use this button to reset the switch or restore it to its factory default settings. To reset
the switch, press the button once; to restore factory default settings, press and hold the button
in for three seconds.
Power Receptacle
To be compatible with electrical standards around the world, the Gigabit Ethernet Managed
your source of electricity is within this range.
rear panel of the switch and plug the male end into a wall socket or other electrical outlet.
Placement
The switch can be placed on your desktop or mounted in a rack. Prior to placement and
installation, however, be sure that
• the environment is well-ventilated – a minimum space around the unit of 25 mm is
recommended;
• the switch and relevant components are away from sources of electrical noise, such as
• the environment is protected from high levels of humidity.
Desktop Placement
Position the switch on a level surface that can support the weight of the unit and any relevant
components.
Rack Placement
Rack mounting enables orderly installation in cases where a number of networking devices
need to be installed in the same area. Brackets and screws are included with the switch.
1. Disconnect all cables from the switch.
3. Position one of the mounting brackets over the mounting holes on one side of the unit.
4. Screw the bracket securely in place.
5. Repeat this for the other side of the unit.
6. Slide the unit into the rack and secure it with suitable screws.
7. Reconnect all the cables.
Cable Connections
Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X
functionality. Either straight-through or crossover cables can be used to connect the switch
Category 3/4/5/5e UTP/STP cable: For a valid connection and optimal performance, it is
vital that appropriate cables be used that correspond to the different transmitting/receiving
speeds. To choose a suitable cable, refer to the following table.
6
INSTALLATION
Media Speed Wiring
instructions.
Description of Switch Functions
Jumbo Frame
The Gigabit Ethernet Managed Switch supports Jumbo Frames, which means that it can
transmit the same data in fewer frames. This helps to ensure fewer overheads, shorter
processing time and fewer interruptions.
NOTE:
Flow Control and Backpressure
can be enabled or disabled on a per-port basis.
Mirror
the packets that are transferred by the monitored port, the sniffer port receives all the packets
VLAN
This switch supports Virtual LAN, which means the network can be segmented into groups to
reduce collisions caused by wide broadcasting. The switch supports both port-based VLAN
and 802.1q tag-based VLAN. Port-based VLAN directs incoming packets to VLANs according
to their ingress ports; 802.1q-based VLAN adds a tag to the header of the packet to direct the
packet to the right VLAN.
Aggregation (Trunking)
The Trunk function groups several ports into one combined transmission channel. This
increases the bandwidth, which helps to boost backbone connectivity. The switch allows a
maximum of four groups, and eight members for each group.
Quality of Service (QoS)
demanding applications such as VoIP to get an unobstructed connection.
SNMP
monitored by an SNMP management station.
2. MANAGEMENT
Switch Access
The advanced management capabilities of the switch can be accessed using a standard
station with an IP address and subnet mask that are compatible with your switch.
The factory defaults are 192.168.0.254 for the IP address; 255.255.255.0 for the subnet mask.
1. Activate your Web browser and enter the
7
MANAGEMENT
2. Key in the username and password. The
factory defaults for the username and the
password are both “admin.”
Conguration
System
management functions.
most of these properties.
MAC Address:
S/W Version: This is the software version of this device.
IP Address: Set up the IP address of the switch.
Subnet Mask: Set up the subnet mask of the switch.
Gateway: Set up the gateway of the switch.
Management VLAN: This is the VLAN group that is allowed to access the Web-based
management interface.
Username:
Password:
System name: This is the name of the device.
NOTE: After applying a new IP address, a new login page will appear automatically. Log in
Port
8
MANAGEMENT
Link:
there is a valid connection on the port.
Mode: Select a speed for this port. “Auto Speed” enables auto-negotiation; “Disable” stops
the port from functioning.
Flow Control:
Max Frame:
updated status of the ports.
VLAN
VLAN divides the network members into groups
to reduce packet collisions and improve network
VLAN.
VLAN\Port column.
2. Select the ports for each VLAN group.
1. Remove the members of the VLAN group by
unchecking their corresponding boxes.
NOTE:
MANAGEMENT
automatically to this port. For example, when you make Port 3 of a VLAN part of VLAN ID 2,
the PVID “2” will be assigned automatically to Port 3.
Also, settings in VLAN, Port Aggregation and Mirror are co-dependent. Be sure the settings
PVID (from the VLAN screen)
When the VLAN-enabled switch
receives a tagged packet, the
packet will be sent to the port’s
default VLAN according to the
receiving port.
Port: Ports 1 – 8.
Egress: Select “Tagged” in the
drop-down menu to enable the
PVID checking and tag inserting
of one port; select “Untagged”
to cancel. For example, if an
Egress tagged port receives an
untagged frame, it will be
transmitted as a PVID tagged
frame. The table below presents
details of tagging status.
PVID:
Only tagged: “Enable” blocks all untagged packets from accessing this port; “Disable” allows
all packets to access this port.
Aggregation (Trunking)
To set up the port trunk groups, put the
selected ports’ numbers into the same
Aggregation group. You can choose up
settings.
There are three aggregation modes to
the packets.
10
MANAGEMENT
Untagged Tagged
Packet Frames In Packet Frames Out Packet Frames In Packet Frames Out
Quality of Service (QoS)
QoS enhances communication quality by
giving precedence to certain classes of
packets. This switch provides port-based,
Port-based QoS: This allows each port
priority.
1. Select “Port” in the Mode column for
those ports that are going to function as
a priority level.
Tag-based QoS: This assigns packet
priority according to the tags on the
packets.
1. Select “Tagged” in the Mode column for
those ports that are going to perform
Setting window appears
.
drop-down menu.
4. Set the priorities as either high or low for
each priority tag type.
11
MANAGEMENT
DSCP QoS: This assigns packet priority according to the types of the incoming packets,
distinguishing packets according to the “Delay,” “Throughput” and “Reliability” information
NOTE:
Mode column for the
ports that are to
Setting window appears
3. Set the priorities as
either high or low for
each precedence type.
execute.
Mirror
The Mirror function copies all the packets transmitted by the source port to the destination
1. Select those ports
to be monitored by
checking the boxes
in the Monitor Port
section.
menu in the Sniffer
Port section and
designate a port as
the administration port for monitoring those source ports.
Storm Filter
speed for each frame type.
12
MANAGEMENT
Bit 0 (Delay) Bit 1 (Throughput) Bit 3 (Reliability)
SNMP
The Gigabit Ethernet Managed Switch supports SNMP management, which allows network
1. Select “Enable” in the drop-down menu.
2. Specify a trap IP, the destination port for
sending trap information, which is usually
the IP address of network administrators.
row, which is the password for
accessing MIB with read-only authority.
row, which is the password for
accessing MIB with read/write authority.
Discovery
After installing a series of INTELLINET NETWORK SOLUTIONS switches, the discovery
management tool helps users search and access those switches within the LAN.
NOTE: The discovery tool lists a maximum of 16 devices for auto and manual modes.
To use the Auto Search
devices that are found.
hyperlink to access the
device.
Monitoring
Statistics Overview
This screen allows users to see the general transmitting and receiving status of each port.
13
MANAGEMENT
Detailed Statistics
This screen allows users to see the detailed transmitting and receiving status of each port by
Maintenance
Restart
To restart the system, click “Yes.”
The system restarts and shows the
authentication window. Enter the
username and password to continue.
Factory Default
To restore the factory default settings,
click “Yes.”
NOTE: The IP address of the device
.
Smart Boot
This screen allows users to select
“Active image number” shows the
.
Software Upload
NOTE:not selected
not
14
MANAGEMENT
3. SPECIFICATIONS
Standards
General
• Ports
- 8 x RJ-45 Gigabit Ethernet ports
slots
• Modes
- 8 x RJ-45 ports
transceiver module
button
Smart Features
- port-based
- tag-based
- enable/disable
- 10, 100, 1,000 Mbps or auto-negotiation
- full duplex or half duplex
• Port Mirroring
- enable/disable
- trap IP
- Broadcast Rate
- Multicast Rate
LEDs
• Power
• Link/Tx
• 10/100 Mbps
Power
Environmental
non-condensing
Package Contents
• Gigabit Ethernet Managed Switch
• Power cable
• User manual
15
SPECIFICATIONS
Please contact your INTELLINET NETWORK SOLUTIONS™dealer
with comments or questions.
SOLUTIONS
All products mentioned are trademarks or registered trademarks of their respective owners.
www.intellinet-network.com
Table of contents
Other Intellinet Network Router manuals
Intellinet

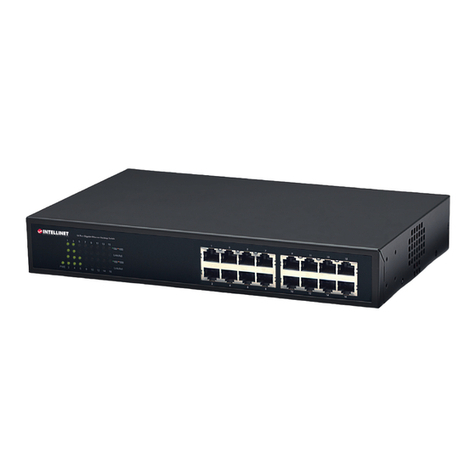

Intellinet 523523 User manual
Intellinet

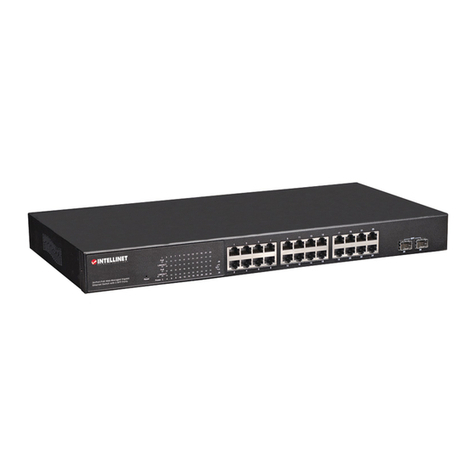

Intellinet 560535 User manual
Intellinet
Intellinet 505093 User manual
Intellinet
Intellinet 522625 User manual
Intellinet

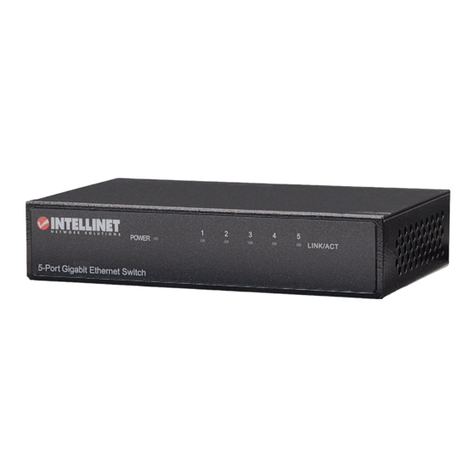

Intellinet 530347 User manual
Intellinet
Intellinet 560559 User manual
Intellinet

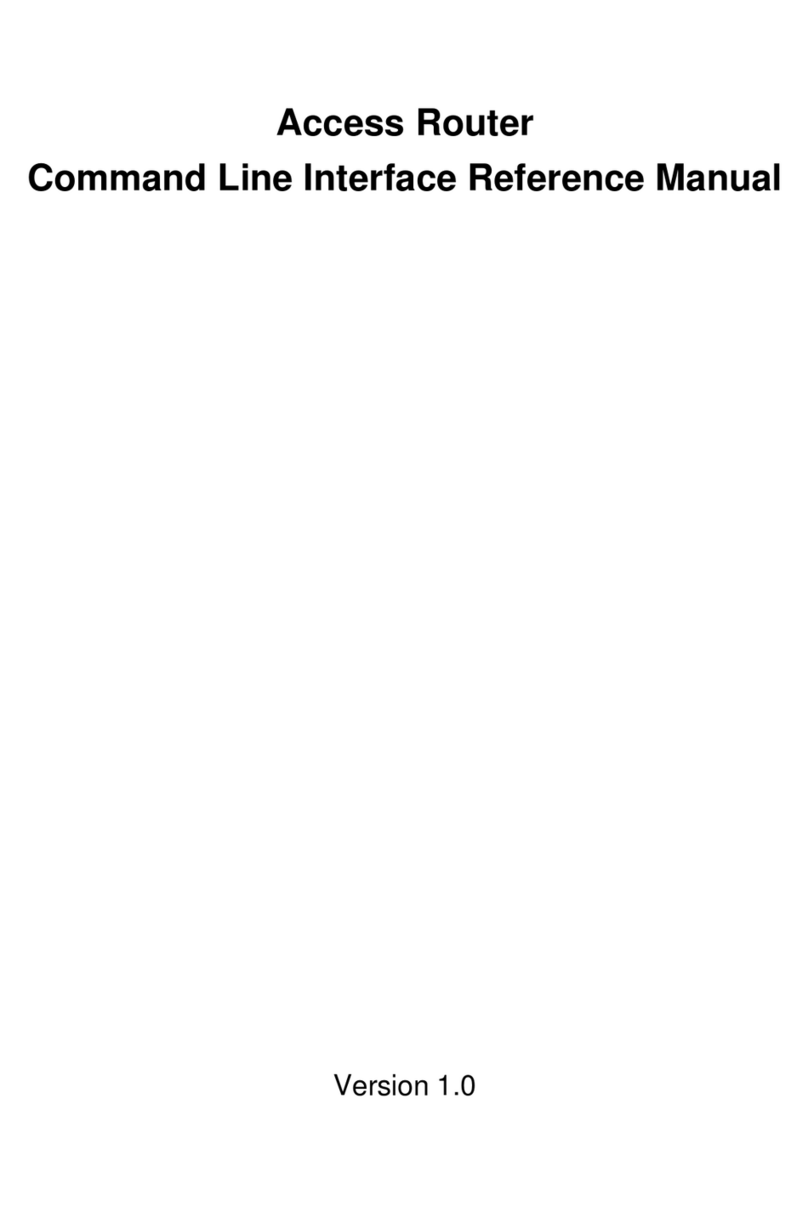

Intellinet 516204 User manual
Intellinet

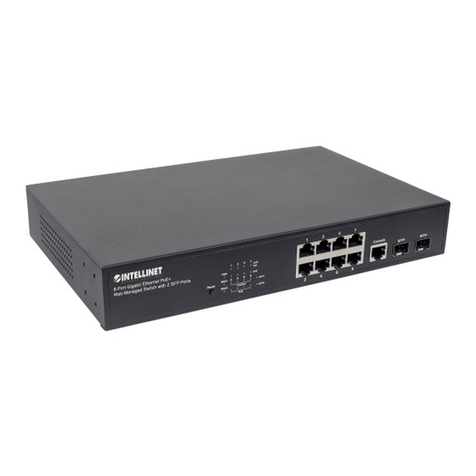

Intellinet 561051 User manual
Intellinet

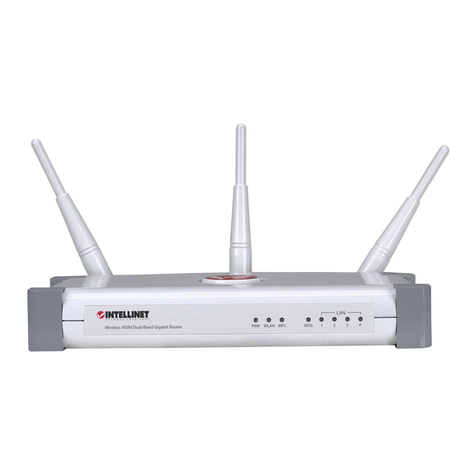

Intellinet 524988 User manual
Intellinet
Intellinet 524988 User manual
Intellinet
Intellinet 524377 (Annex b) User manual
Intellinet

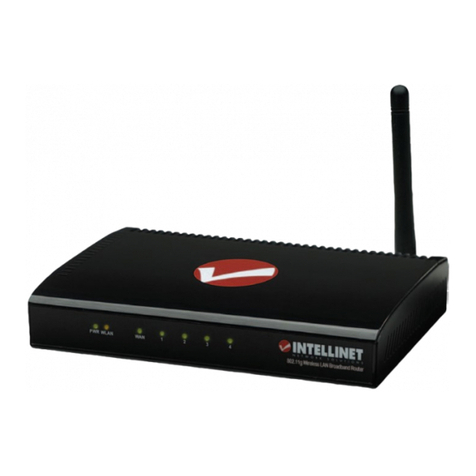

Intellinet 524636 User manual
Intellinet
Intellinet 522205 User manual
Intellinet
Intellinet 560559 User manual
Intellinet
Intellinet 530347 User manual
Intellinet
Intellinet 560535 User manual
Intellinet

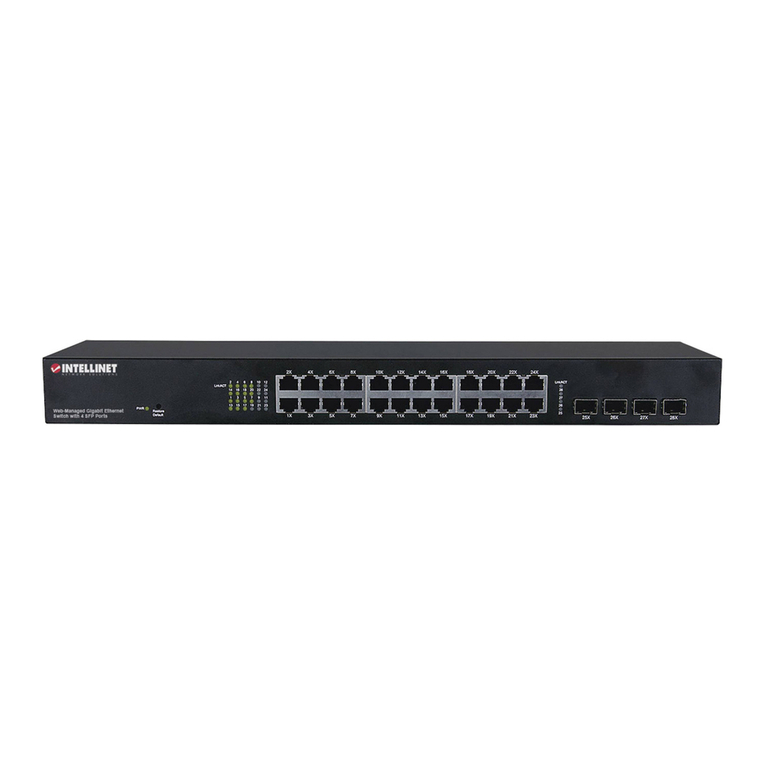

Intellinet 560801 User manual
Intellinet

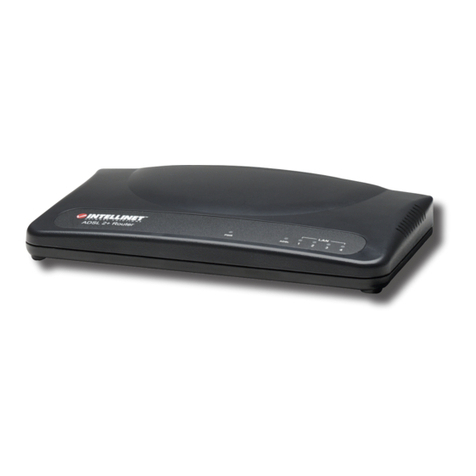

Intellinet Network Solutions 523462 User manual
Intellinet

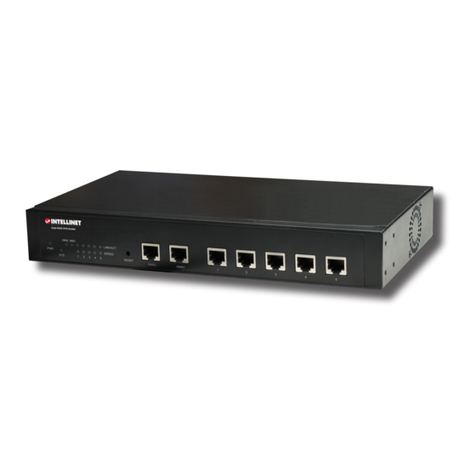

Intellinet 524049 User manual
Intellinet
Intellinet 560405 User manual
Popular Network Router manuals by other brands
TP-Link
TP-Link TL-ER6120 user guide
Jatontec
Jatontec AM4200T user manual
Comnet
Comnet CWFE8TX8MS Installation and operation manual
Cisco
Cisco 520-T1 - Small Business Pro SR Secure Router Software configuration guide
Comnet

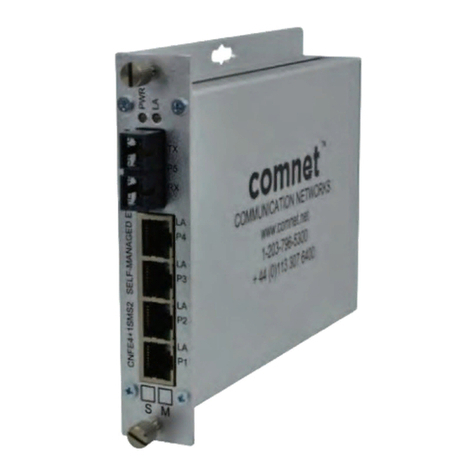

Comnet CNFE4+1SMSM2 Installation and operation manual
NETGEAR
NETGEAR DG632 - ADSL Modem Router installation guide
