Kudux Beam LED 360 User manual

Moving Head
Beam LED 360
User manual
! Please read the manual before installing and using this lighting

WWW.KUDUX.COM 2
Keep it for future reference
Thank you for purchasing our device.
We make every effort to ensure the best
quality of our products and to meet your
expectations.
If you have any remarks or comments,
please share them with us.
We will be grateful for any suggestions
that will help us make products that are
even better and devices that satisfy your
needs.
R&D Team

WWW.KUDUX.COM 3
Table of contents
Statement.................................................................................................................................. 4
Product introduction ................................................................................................................. 4
1. Size..................................................................................................................................... 4
2. Description ........................................................................................................................ 5
3. Safety information............................................................................................................. 6
4. Package.............................................................................................................................. 7
5. Install standard.................................................................................................................. 8
6. Power supply ..................................................................................................................... 9
7. Lamp .................................................................................................................................. 9
8. DMX Channels ................................................................................................................. 11
9. Contact: ........................................................................................................................... 13

WWW.KUDUX.COM 4
Statement
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.
Product introduction
Thank you for choosing this BEAM LED 360 products, this model is the moving head light which is
the latest development of the smart, efficient products, beautiful shape, smooth R & D, combined
with the advanced technology of today's stage lighting products with international advanced
electronic control technology and excellent user-friendly industrial design, fully comply with CE
standard, accepted international standard DMX512 signal mode.
•2 options for DMX 512
•Pan: Infinite rotation.
•Tilt: infinite rotation
•LCD screen,
•Beam angle: 4.5°. Mini size
This Moving head lights are widely used in television, disco, dance halls, nightclubs, performances
and other professional venues
1. Size

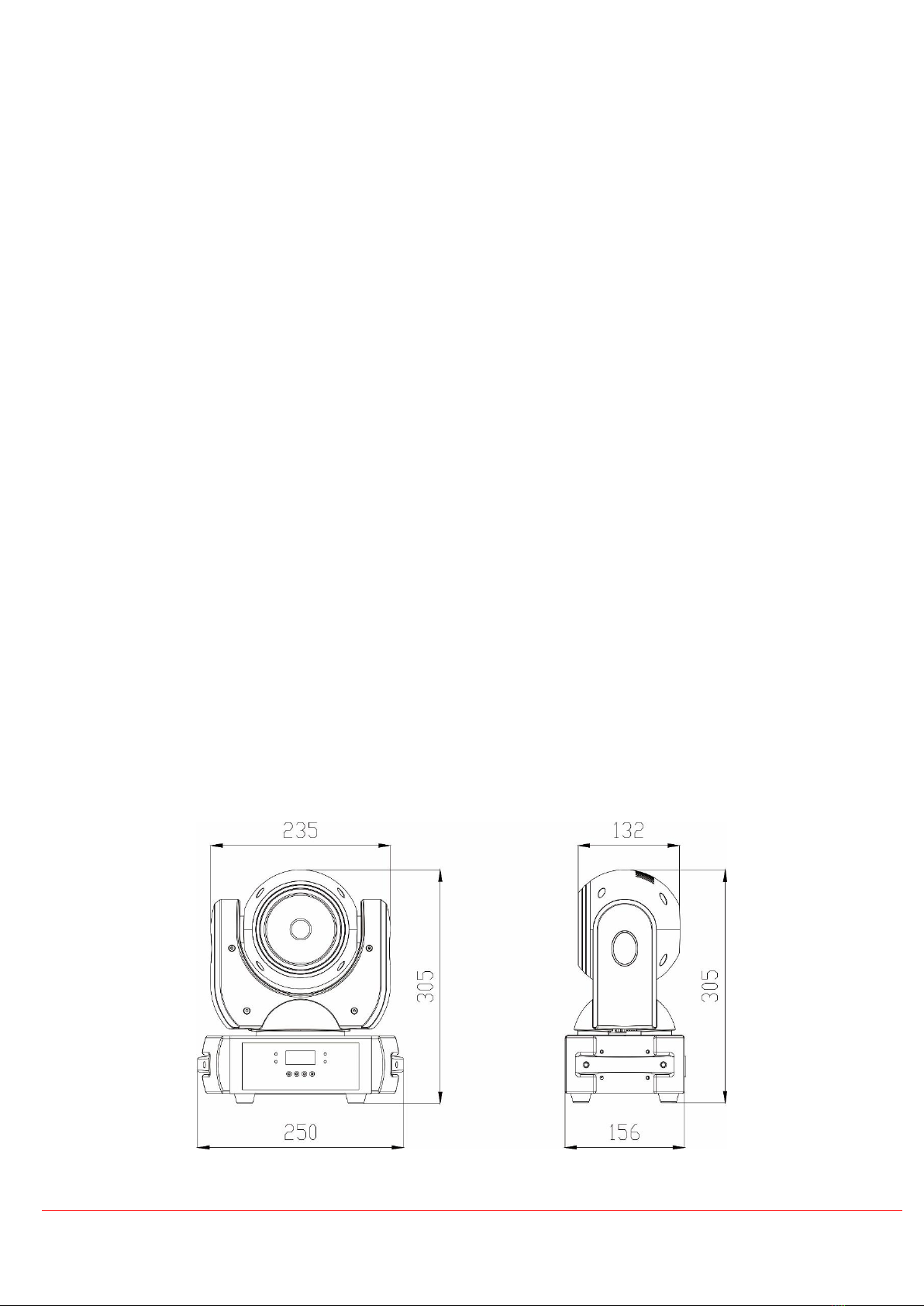

250（long ）×156（wide）×305（high）mm

WWW.KUDUX.COM 5
2. Description
01 — lens
02 — body
03 — hand
04 — handle
05 — bottom
01
02
01
02
03
04
01 — display
02 — button
01 — power output
02 — power input
03 —3pin dmx input
04 —3pin dmx ouput
02
01
05
03
04

WWW.KUDUX.COM 6
3. Safety information
Safety warning:
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible. This product is only suitable for indoor, IP20 protection class.
Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps
meet water or any other liquid. The use of this product should pay attention to: fire, heat, electric
shock, ultraviolet radiation, the lamp to explode or shedding caused serious or fatal injury. Need
to read the instructions before use energized or installing. Follow through the operation of
security methods and pay attention to the warning signs on the specification and equipment. If
you have any problem for how to safely operate the equipment. Please contact your dealer.
3.1. Anti-high temperature
ta=40°C
Please don’t use the equipment if the temperature above 40℃
3.2. Burst prevention
The lens should be changed if had damaged or any problems.
Don’t change the non-original manufacturer lens.
3.3. To prevent falling wounding
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to withstand
the weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and
insurance for the safety rope as auxiliary security fixed in other facilities will need to
verify before installation. Installing or removing the equipment, to make the pulley
below the work location
3.4. UV protection and the bulb explosion
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to
rupture.
3.5. Prevention of electric shock
The electrical connection must only be carried out with corresponding qualifications;

WWW.KUDUX.COM 7
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
3.6. To prevent burning or fire
•The fixture can’t be mounted directly on the surface of ordinary combustible material.
•Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
•The equipment must be installed away from inflammable and explosive materials.
•The equipment should be projected range of 0,5 meters away objects and projectiles
temperature less than 60 ° C;
•Fan or ventilation, at least in the range of 0.5 meters cannot be an obstacle.
•Do not place any object on the lens.
•Handling at least allow the device to cool for 20 minutes.
•Do not replace the non-original parts.
4. Package
4.1. Attachment
Beam LED 360 packed with fly-case of one in one, two in one, or carton box. Attach follow
accessory.
ACCESSORY
CONTENT
QUANTITY
USER MANUAL
1 pc.
FUSE
1 pc.
SIGNAL CABLE
1 pc.
4.2. About pack stage
•Before packed, make sure power is off, and wait for at least 20mins for cooling down.
•After packed by plastic bag, high-lift the fixture with two handles besides the product.
put the product into the fly-case up-side-down.
•After packed the product, put the accessory into the accessory case, then closed and
lock the fly-case.
•When packed with carton box, equipment should be put into the foam first, then set
into a carton, pay attention to the vertical position.
4.3. Unpacking
Note: Before unpacking check the damage is whether due to the transportation or not, if you
find any such damage, please do not use this item, and contact with the dealer or
manufacturer as soon as possible.
•Open the fly-case, and discover the inside plastic bag.
•High-lift the product by two handles beside the bottom base and move it out.

WWW.KUDUX.COM 8
5. Install standard
5.1. Install lock
Beam LED 360 can be placed on the stage, or mounted in an arbitrary direction of the truss.
Two fast locks system could fix the item easily.
5.2. Equipment fixed
•Before installation must verify the fast lock is keep in good state, and can withstand at
least 10 times the weight of product. Verify that the building can withstand at least 10
times of the total weight of the product and accessory equipment’s.
•Fix the hang fixture into the hole, which located on the base of the price.
•Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one
fastener
•in the same method.
•Using the safety cable which can withstand 10 times the weight of the equipment.
•Make sure the X, Y protect locks are opened, verify that within 3 meters there is no
combustibles.
WARNING
Fixture must use two fixing devices, and make sure the fixing device have locked! And only
fully clockwise rotate 90 ° can lock the hang fixture! Do remember plus a safety rope, and do
not connect the safety rope to plastic handle. It should be connected to the hole on the base!
5.3. Fixture connect

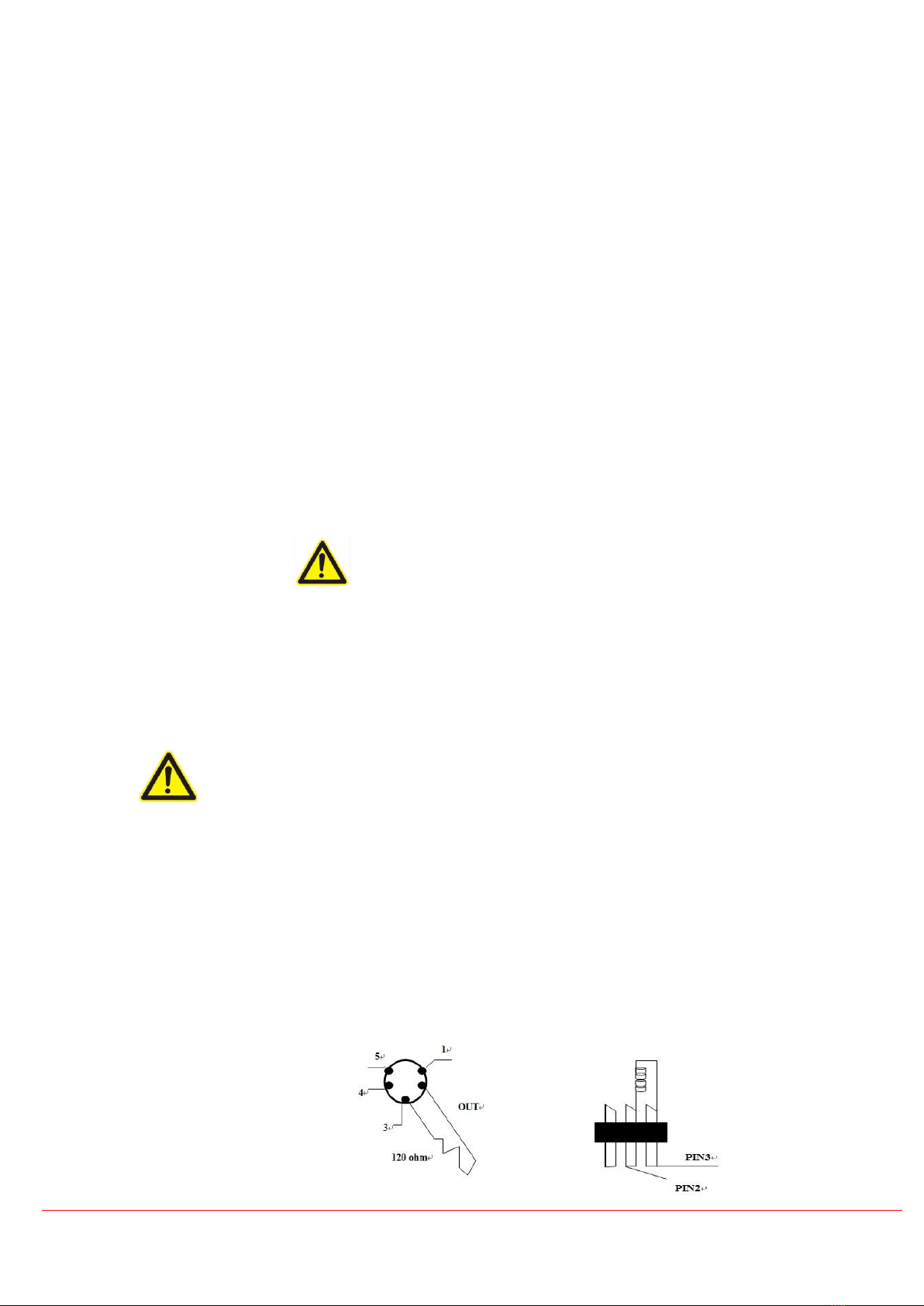

Attention! One product only can accept one input one output.
Beam LED 360 DMX cable include 3 contact pins:
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3
connected to the positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable; standard loudspeaker cable
is not reliable to control the long-range data. 24AWG cable is suitable for more than 300 meters
long-distance signal transmission and must add\ DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection to
branch, DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller, and
then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion as
following:

WWW.KUDUX.COM 9
6. Power supply
6.1. Voltage, power, fuse specification
Input Voltage
Total Power
Frequency
110~240V
130W
50/60Hz
Fuse voltage
Electronic current
Specification
250V
2,5A
5×20
6.2. Power protect
The equipment must be operated by professionals; Make sure that the voltage of
power supply must be comply with the voltage identified on the lamp, and must
have an overload or leakage electrical protection.
ATTENTION!
Factory has equipped the standard 3 pin plug socket. Connect the power supply as
below table.
If lamp cable is damaged, replacement should be operate by factory or qualified
staff. Any question, please contact professionals or talk to a qualified electrician.
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
7. Lamp
7.1. Lamp description
LAMP MODEL
POWER OF LAMP
LIFE/HOUR
COLOR TEMPERATURE
OSRAM 60W 4in1 LED
60W
20000 HOURS
8000K
8. control panel
Button 1： Menu Function ；Button 2： Downward The data of diminishing
Button 3： Upward , Increasing data Button 4： Enter
Display
screen
Buttom

WWW.KUDUX.COM 10
8.2 Menu operation
NO
MENU
FUNCTION OPTION
FUNCTION
1
Address
001-512
DMX
2
Run Mod
Slave
Master-salve
Auto
Auto
Sound
Sound
3
Chan Mod
15CH
15ch
17CH
17ch
4
Display
Light Off
Light
pylighton
1Min
Backlight delay 1 min to turn
off
2MIn
Backlight delay 2 min to turn
off
3Min
Backlight delay 3 min to turn
off
Menu Back
Off
Menu back to be off
1Min
Menu delay 1 min to return
2Min
Menu delay 2 min to return
3Min
Menu delay 3 min to return
LigtFlh
Off
backlit flicker turn off
On
backlit flicker turn on
5
Tool
Balance
White SW
White balance switch
Red (50—255)
White balance red
Green(50—255)
White balance green
Blue (50—255)
White balance blue
White(50—255)
White balance
Sund Hig
0-16
Sound sensitivity
DMX Clea
Off
No Dmx
On
No DXM O
DefCfig
Off
KEEP SET
On
Recover default set
6
PT Sett
Pan Cal
0-255
X 0 adjust
Tilt Cal
0-255
Y 0 adjust
On
Y reverse turn on
PT Opto
Off
optocoupler adjustion off
On
optocoupler adjustion on
Pan Rev
Off
X reverse turn off
On
X reverse turn on
Tilt Rev
Off
Y reverse turn off
Manual
Pan
0-255
Pan rotation

WWW.KUDUX.COM 11
Pan Fin
Pan fine rotation
Tilt Fin
X rotation fine tuning
PTS peed
PT speed
Pan Rot
X continuous rotation
Tilt Rot
Y continuous rotation
Red
Red
Green
Green
Blue
blue
White
White
Shutter
strobe
Dimmer
dimming
Color_M
Color model
Color_P
Color temperature
Dimm_P
Color dimming
Reset
Reset
8
Info
Run Time
0000-9999
Use time
Dis Vers
Vx.xx
Soft version
XY Vers
Vx.xx
XY drive soft version
M1 Vers
Vx.xx
Led drive soft version
Temp
0-125
LED aluminium base
temperature
8. DMX Channels
15CH
17CH
FUNCTION
DMX
DESCRIPTION
1
1
X
0-255
0~540
2
X
0 -255
X fine tuning
2
3
Y
0 -255
0~270
4
Y fine tuning
0 -255
Y fine tuning
3
5
XY speed
0 -255
From fast - slow
4
6
X infinite rotation
0-127
/
128-189
X rotation from fast to slow clockw
ise
190-193
Stop
194-255
X rotation from fast to slow
anticlockwise
5
7
Y infinite rotation
0-127
/
128-189
Y rotation clockwise from fast to slow
190-193
Stop
194-255
Y rotation anticlockwise from slow to
fast

WWW.KUDUX.COM 12
6
8
R dimming
0 -255
Red dimming dark - bright
7
9
G dimming
0 -255
Green dimming dark - bright
8
10
B dimming
0 -255
blue dimming dark - bright
9
11
W dimming
0 -255
White dimming dark - bright
10
12
Strobe
0 -31
strobe off
32 -63
Strobe on
64 -95
Strobe from slow - fast
96 -127
Strobe on
128-159
Pulse strobe from slow to fast
160-191
Strobe on
192-223
Random strobe from slow to fast
224-255
Strobe on
11
13
Master dimming
0 -255
Dimming from dark to bright
12
14
Color
0 -7
/
8 -39
Red to Yellow
40 -71
Yellow to Green
72 -103
Green to Cyan
104-135
Cyan to Blue
136-167
Blue to Magenta
168-199
Magenta to Red
200-231
Red to White
232-255
Color gradual change from slow to fast
13
15
Color
temperature
0 -4
/
5 -9
White2700K
10 -14
White3200K
15 -19
White4200K
20 -24
White5600K
25 -29
White6500K
30 -34
White8000K
35 -39
Yellow
40 -44
Magenta
45 -49
Cyan
50 -54
Salmon
55 -59
Turquoise
60 -64
Light Green
65 -69
Steel Blue
70 -74
Orange
75 -79
Straw
80 -84
Pale Lavender
85 -89
Pink
90 -94
Red
95 -99
Green
100-104
Blue

WWW.KUDUX.COM 13
105-109
White
200-255
/
14
16
Color dimming
0-255
From light to dark
15
17
Reset
0 -79
/
80 -84
Reset
85 -87
XY reset
88 -90
/
91 -93
/
94 -96
/
97 -99
/
100-119
Built-in effect 1
120-139
Built-in effect 2
140-159
Built-in effect 3
160-179
Built-in effect 4
180-199
Built-in effect 5
200-219
Built-in effect 6
220-239
Built-in effect 7
240-255
Built-in effect 8
9. Contact:
Please check who is our dealer in your country at our website
www.kudux.com
or write direct to us by email: [e-mail]
