Kuppersbusch cafe profi EKV 6600.0 Installation guide

Coffee machines

Page
7. EKV 6600.0 café profi coffee machine 4
7.1 Fundamental principles 4
7.1.1 Order reference for fully-automatic coffee machines 4
7.1.2 General 4
7.1.3 Structure and functioning of a fully-automatic coffee machine 5
7.1.4 Available functions 7
7.1.5 Steam appliances, semi-automatic, fully-automatic and pad machines 8
7.1.6 Keeping coffee hot 9
7.1.7 Where can I get the freshest coffee? 9
7.1.8 What is the difference between coffee and espresso? 9
7.1.9 How can I recognise a good espresso? 10
7.1.10 Initial operation 11
7.1.11 Deaerating the system 11
7.1.12 Making coffee 13
7.1.13 Adjusting filling quantities to cup sizes 13
7.1.14 Dispensing hot water 14
7.1.15 Dispensing steam 14
7.2 User settings 15
7.2.1 User settings 15
7.2.2 Grinding setting 17
7.2.3 AromaControl 18
7.3 Fittings 19
7.3.1 Flap panel (push & pull) 19
7.3.2 Water tank 21
7.3.3 Coffee bean box 21
7.3.4 Grinder 22
7.3.5 Brewing unit 22
7.3.6 AquaPrima water filter 23
7.3.7 Height and depth adjustable coffee dispenser 26
7.3.8 Two separate heating systems 26
7.3.9 Cup light-up 26
7.3.10 Accessories 27
Training manual Section 7 – Page 2
Coffee machines

7.4 Care and Maintenance 28
7.4.1 Water tank / bean box 28
7.4.2 Coffee dispenser 29
7.4.3 Nozzle 30
7.4.4 Drip tray / Coffee grounds container 31
7.4.5 Brewing unit 32
7.4.6 Coffee degreaser (cleaning cycle every 14 days or after 250 cups) 33
7.4.7 Descaling / automatic limescale indicator 34
7.5 Assembly / transport 38
7.6 Appendix 40
7.6.1 Carrying out minor repairs yourself 40
7.6.2 Technical data 41
7.6.3 Short lesson on coffee – coffee specialities 42
Training manual Section 7 – Page 3
Coffee machines

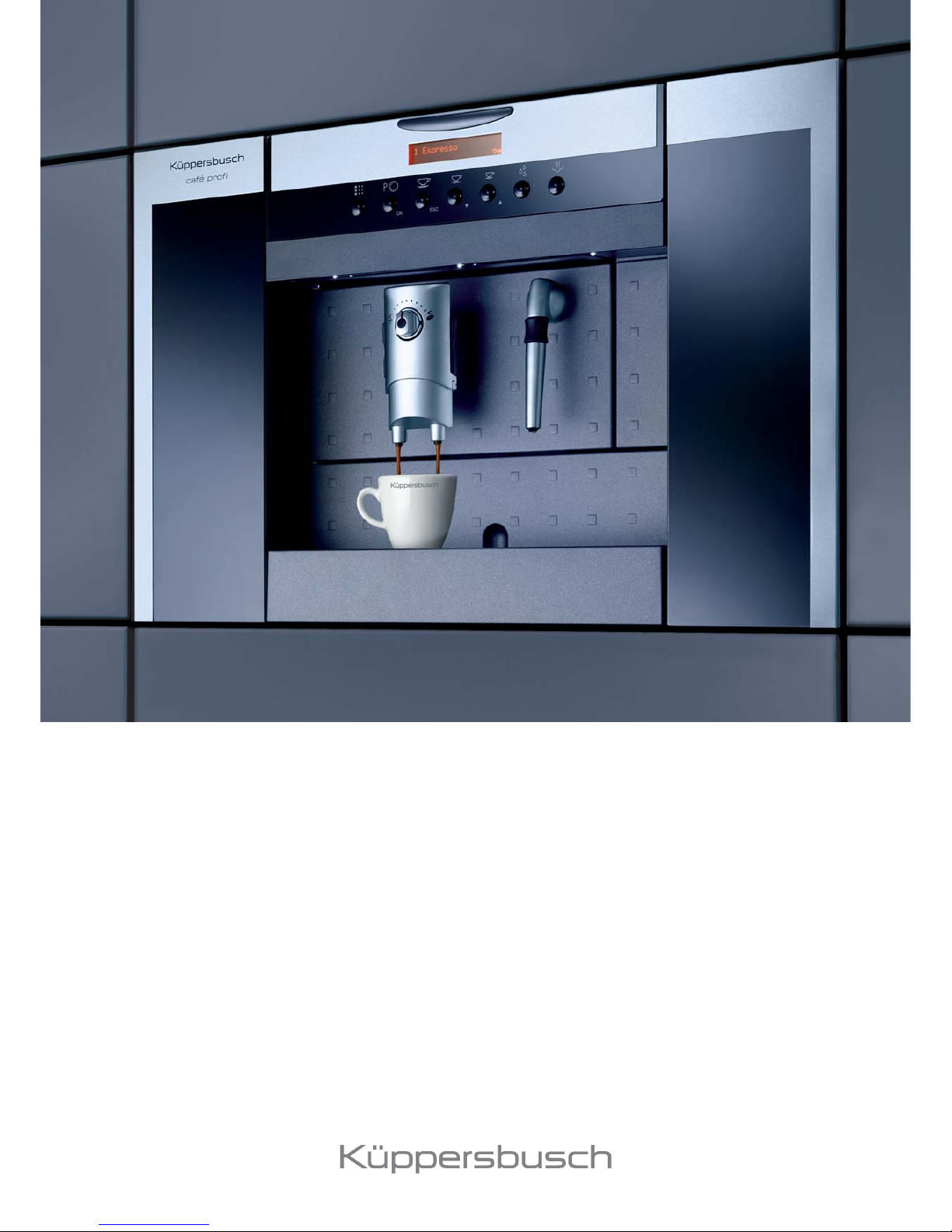

7. EKV 6600.0 café profi coffee machine
Whether as a café, espresso, late macchiato or simply with foamed milk – the type of coffee enjoyed
is a matter of personal taste. It’s a fact that the coffee bean brew has been the national beverage of
the European population since the beginning of the 19th century. Most people nowadays associate
drinking coffee with experiencing a unique flavour. The aroma and the diversity of selected coffee
beans will tempt you to a completely new culture of enjoyment. The sensuous enjoyment of coffee
hence expresses a personal awareness of life.
7.1 Fundamental principles
7.1.1 Order reference for fully-automatic coffee machines
The table enables you to break down the model identifier/designation and to recognise the design,
the size and the features of the appliances.
For fully-automatic coffee machines this is explained on the basis of model EKV 6600.0 M.
Model identifier Meaning Options:
EKV
EKV = Built-in
fully-automatic coffee
machine
6 Appliance width 6 = 60 cm wide
600 Fittings
The figures refer to the classification of the
coffee machine within the product line.
.0 Generation Modification options
M Design M = Metallic (stainless steel)
The appliance identifier hence means:
the EKV 6600.0 M is a fully automatic built-in coffee machine, 60 cm wide, a generation 0 appliance
in a stainless steel design.
7.1.2 General
The new Küppersbusch built-in fully automatic coffee machine makes coffee machines an integral
part of kitchens and attractive eye-catchers too. No valuable worktop space is wasted. Built-in fully-
automatic coffee machines offer more than extensive, convenient features. The elegant design is also
a real highlight. At home, in studio kitchens, in offices and in elegant business premises.
Training manual Section 7 – Page 4
Coffee machines

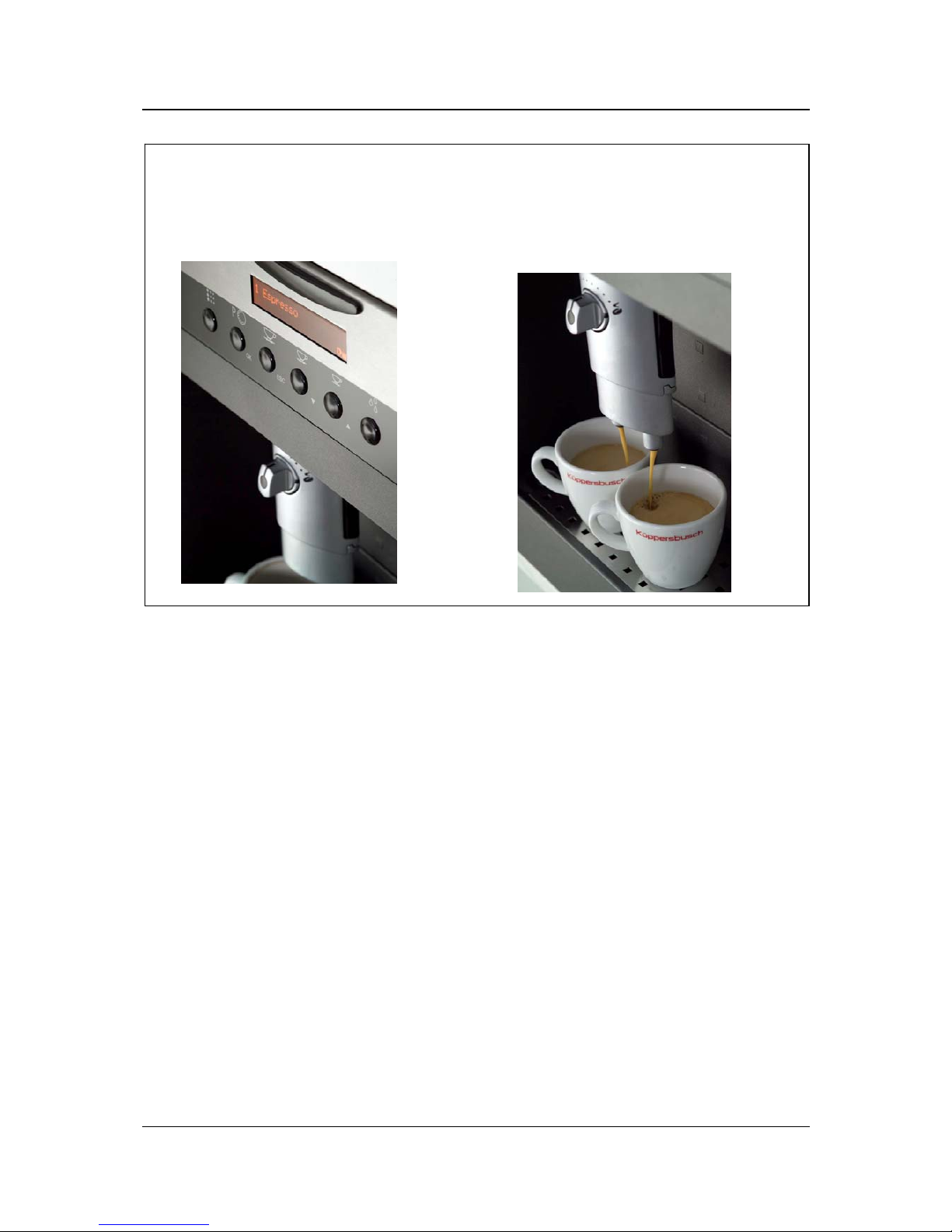

Control unit and coffee dispenser
The smart electronic system regulates complex brewing processes and the clear optical display
guides users through all of the new coffee machine programs, hence making operating and
programming the machine child's play, even for inexperienced coffee makers. The various settings,
such as setting the brewing temperature, pre-brewing time, volume of coffee beans to be ground
and water hardness provide the new product with all that it takes to develop individual flavours. The
new EKV 6600.0M coffee machine enables you to experience the special flavour of coffee specialities
such as espresso, latte macchiato, cappuccino and lungo.
7.1.3 Structure and functioning of a fully-automatic coffee machine
Operating the built-in fully-automatic coffee machines is quite simple since they are operated from
the front. They are ready to use in no time at all – it’s all so easy. The panel opens very easily when
the bar handle is pressed. The water tank which is filled from the front, the coffee bean box and the
main switch are all located behind the panel.
All of the functions of the fully-automatic coffee machine can be set on the control panel. The
brewing unit and the adjusting knob for the grinding setting are located behind the service flap.
The height and the general depth of the coffee dispenser can be adjusted at the bottom. The
AromaControl knob is used to adjust how strong the coffee is when it is poured out. The collecting
bowl collects anything that overflows or drips and is used to deposit the cups. The jet can be used for
hot water, for steam to froth milk or for warming up beverages.
Training manual Section 7 – Page 5
Coffee machines

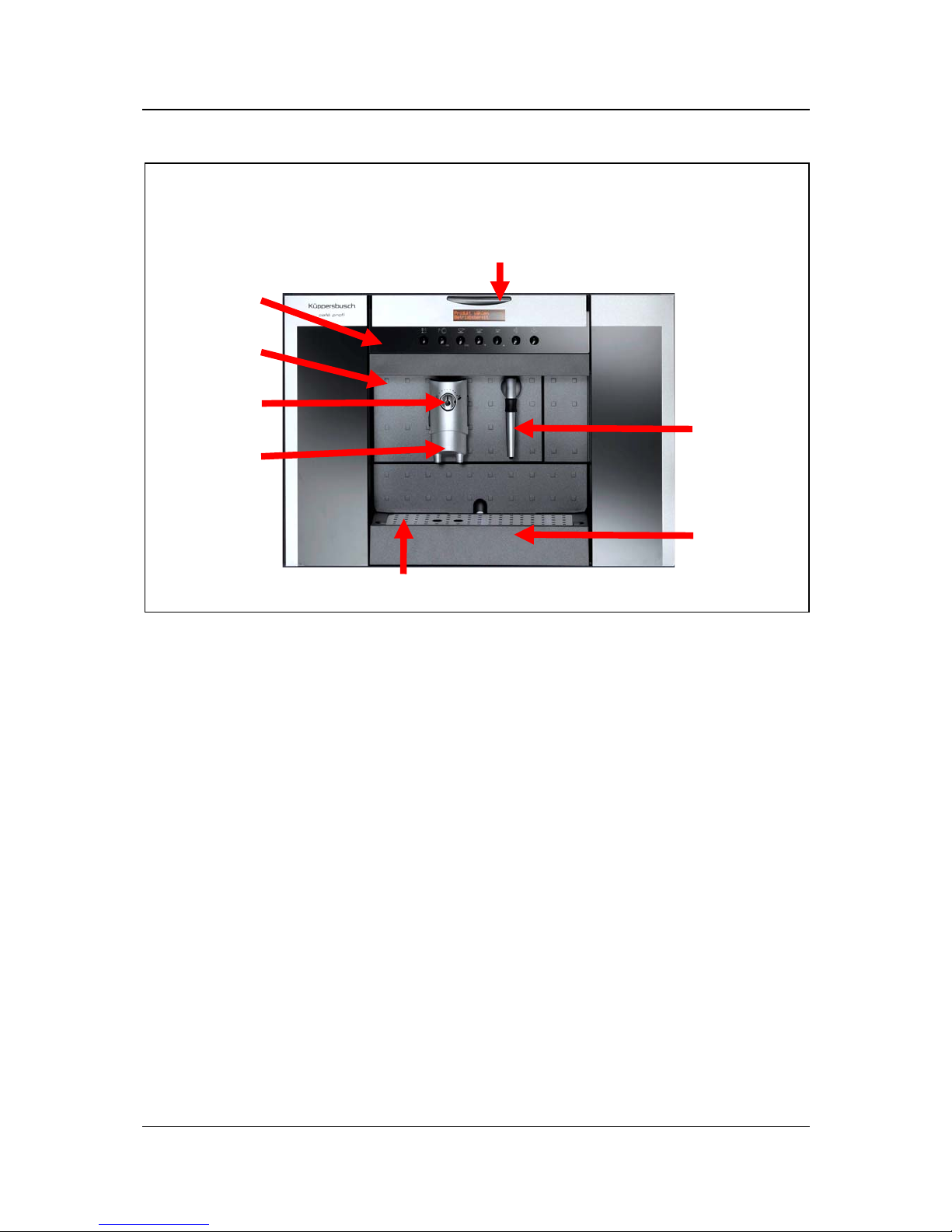

Overview EKV 6600.0 M
Bar handle
Control panel
Service flap
AromaControl
Nozzle
Coffee dispenser
Drip grid
Drip tray
Training manual Section 7 – Page 6
Coffee machines

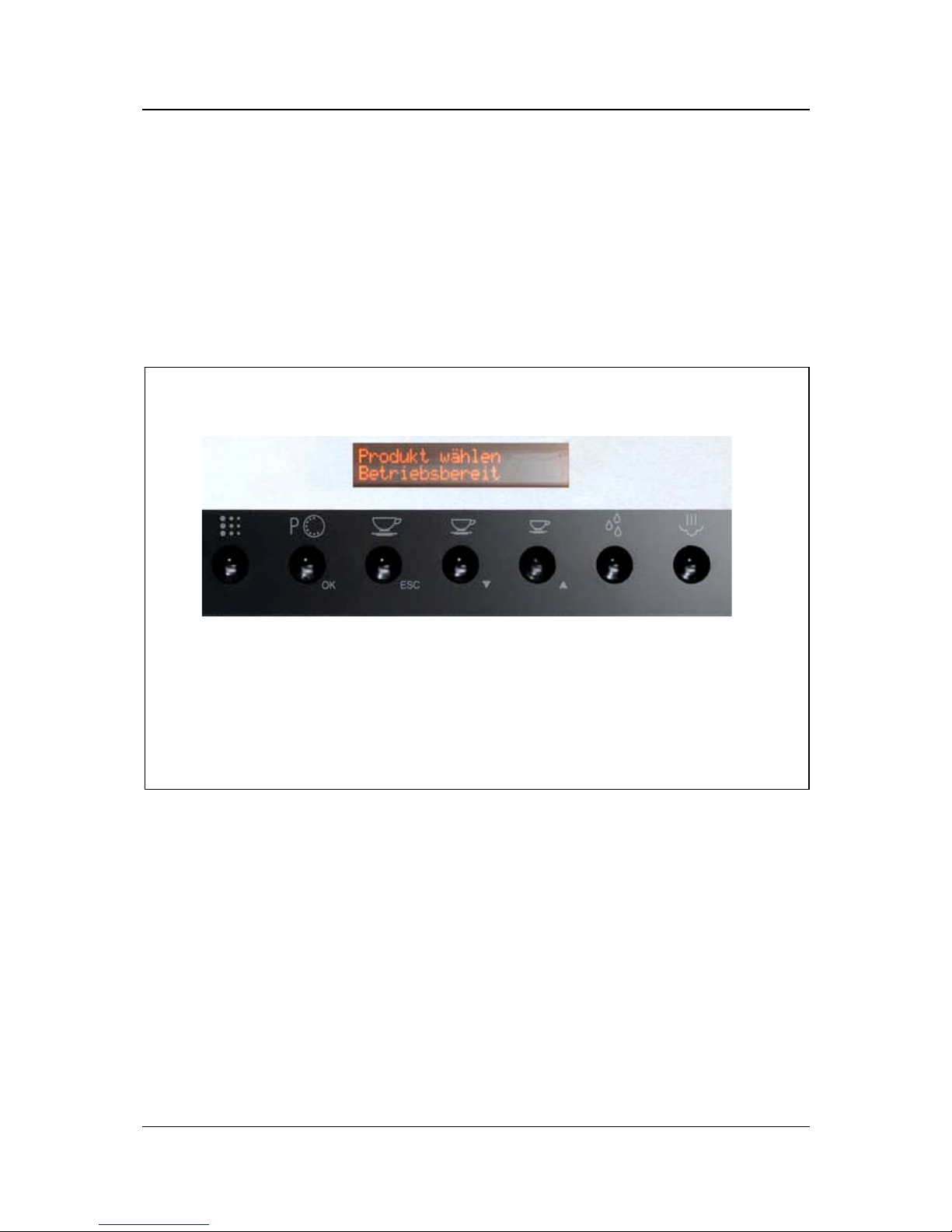

7.1.4 Available functions
The control panel is used to set a number of diverse functions.
User settings
Descaling
A descaling process will be started when this button is pressed for 5 seconds (see Section 7.4.7).
Programming, standby, settings
Personal user settings can be seen in Section 7.2.1.
Long coffee – coffee - espresso
The type of coffee or espresso required is poured out when the corresponding buttons are pressed.
Hot water
The hot water dispenser is activated when the button is pressed. Pressing the button again will stop
the dispensing process.
Steam
The steam dispenser is activated when the button is pressed. Pressing the button again will stop the
dispensing process.
Descaling Coffee big Espresso
Programming, standby, user
settings
Coffee Hot water
Clear text display
Steam
Training manual Section 7 – Page 7
Coffee machines

7.1.5 Steam appliances, semi-automatic, fully-automatic and pad machines
Numerous different systems for “coffee and espresso machines“ are available on the market. The
different methods of making coffee applied by the steam appliances and the semi-automatic, fully-
automatic and pad machines are described below.
Steam appliances
Water is heated up in a water tank for this standard type of espresso machine. Pressure builds up
when the water begins to boil. This pressure forces hot water through a sieve filled with espresso
powder. Disadvantage: the water that makes contact with the espresso power is very hot. This
releases bitter substances into the espresso, making it bitter and unenjoyable.
Portafilters /semi-automatic machines
With so-called semi-automatic machines or portafilter appliances a lot is automated, but not
everything. Espresso powder must be filled into the portafilter of the machine. Only then is the sieve
put into the machine. Water is automatically portioned with a pump at a temperature of more than
98°C, heated up and forced through the espresso powder at high pressure. Semi-automatic machines
need to be cleaned manually every time they are used, as oils contained in the espresso powder will
otherwise be deposited in the machine. They will become rancid with time and spoil the taste of
espresso.
Fully-automatic machine
Everything happens quite automatically here at the press of a button! Coffee powder is automatically
ground, apportioned and filled into the sieve (brewing chamber). The hot water is then forced
through the sieve and the coffee or espresso will be ready. The sieve will clean itself.
Pad machines
So-called pad machines are coffee machines that make coffee in cup-size portions. Coffee powder is
put into the machine as pre-filled pads. The advantage of this type of machine: no portioning is
required, since the pad that is put into the machine has already been filled with the right quantity of
powder. Disadvantage: the ground coffee in the pre-filled pads loses its aroma quickly if it is stored
for any length of time.
Training manual Section 7 – Page 8
Coffee machines

7.1.6 Keeping coffee hot
Coffee should not be kept hot on the hotplate of coffee machines or on a warmer. The reason: the
heat will cause the coffee to re-draw. This means that water will evaporate, resulting in the
evaporation of the fine coffee aroma. Coffee will not only lose its flavour; it will also taste bitter very
quickly.
7.1.7 Where can I get the freshest coffee?
Coffee bought at the small roasteries found in almost any larger town is freshest. These roasteries
generally sell high-quality beans which are roasted gently for a long time.
7.1.8 What is the difference between coffee and espresso?
Espresso and coffee are made from the same bean but the roasting times are different. Espresso is
roasted for longer than coffee. The result: espresso is tastier and has a stronger coffee flavour with a
lower acid content. Classic espresso generally comprises a mixture of Arabica and Robusta beans.
However, what distinguishes espresso and coffee most is the way they are made. Espresso is not
made in filter paper; it is made in a metal sieve. Within 10 to 12 seconds for automatic coffee
machines and within 25 to 35 seconds for espresso machines used on a cooker hotplate, water
heated up to 95°C is forced through this sieve. This means that the espresso powder only makes brief
contact with the hot water. All of the flavouring but only a little caffeine and few bitter substances
are dissolved in the powder. This is why an espresso, which is considered to be a black, particularly
strong beverage, only has half as much caffeine as a cup of coffee.
Training manual Section 7 – Page 9
Coffee machines

7.1.9 How can I recognise a good espresso?
Blend
Espresso experts swear by espresso blends which not only contain expensive Arabica beans, but also
comprise a 20% to 30% proportion of Robusta beans. This lends espresso a full flavour and a strong
aroma. The proportion of Robusta beans is also vital for the espresso crema. The high content of
ethereal oils in this bean makes the crema especially tasty and creamy. When buying, consumers
should make sure that the espresso has a robusta bean content of at least 20%. It will then have the
typical tart flavour and a super crema. The beans can be blended in specialised retail stores according
to personal preference.
Grinding setting
Espresso powder should not be too coarsely ground. The reason: the water would not make sufficient
contact with the powder for the flavours and aromas to develop properly. Espresso beans ground at
setting one or two are ideal.
Crema
What is also important for a good espresso is the ”crema“, i.e. the foam on top of espresso. It should
be a hazelnut brown colour and as thick as possible. A spoon of sugar will stay on top of a good
crema for two to three seconds and will only then submerge.
The crema is so important because it functions like a lid to protect the espresso. Precious aromas and
flavours do not evaporate so quickly. Instead they are contained in the espresso by the crema.
Temperature
A ready-made espresso should not be served colder than 80°C, as flavours and aromas will otherwise
not be able to develop their full potential. This is why connoisseurs drink their espresso quickly in two
or three sips as soon as it is served. This is how to get the most out of an espresso.
Training manual Section 7 – Page 10
Coffee machines

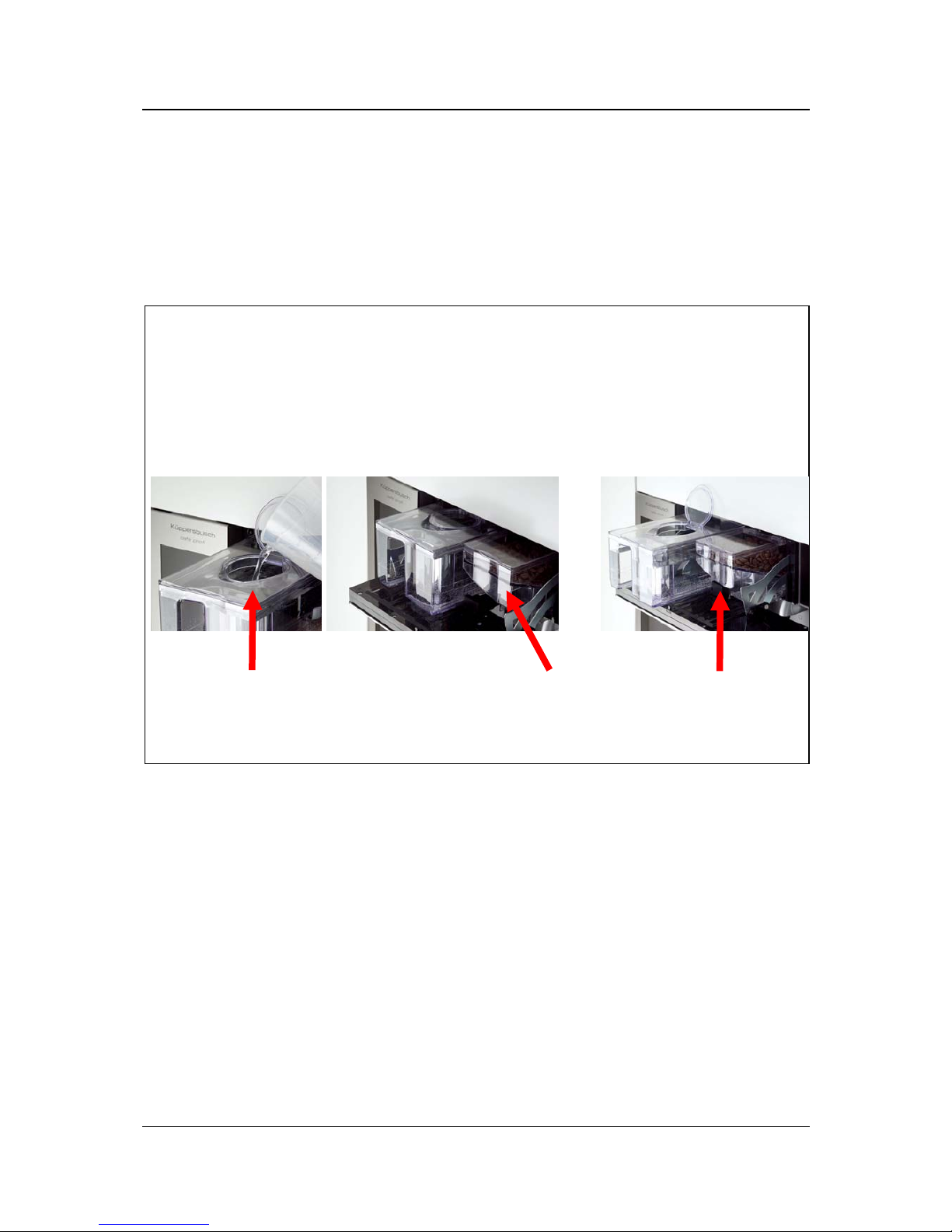

7.1.10 Initial operation
Before you enjoy your first coffee, open up the control panel with the bar handle and fill up the
water tank located behind it with a max. of 1.7 litres of water. The water filter enclosed may also be
used. A max. of 300 g of coffee beans must then also be filled into the bean box. Switch on the
appliance at the main switch and close the control panel. The clear text display will indicate
“deaerate”. The system must now be deaerated (see Section 7.1.11).
Initial operation
Fill-up the bean container Switch the machine on
Fill-up the watertank
Fill-up the
watertank
(max. 1,7 l)
Fill-up the bean
container
(max. 300 g)
Main switch

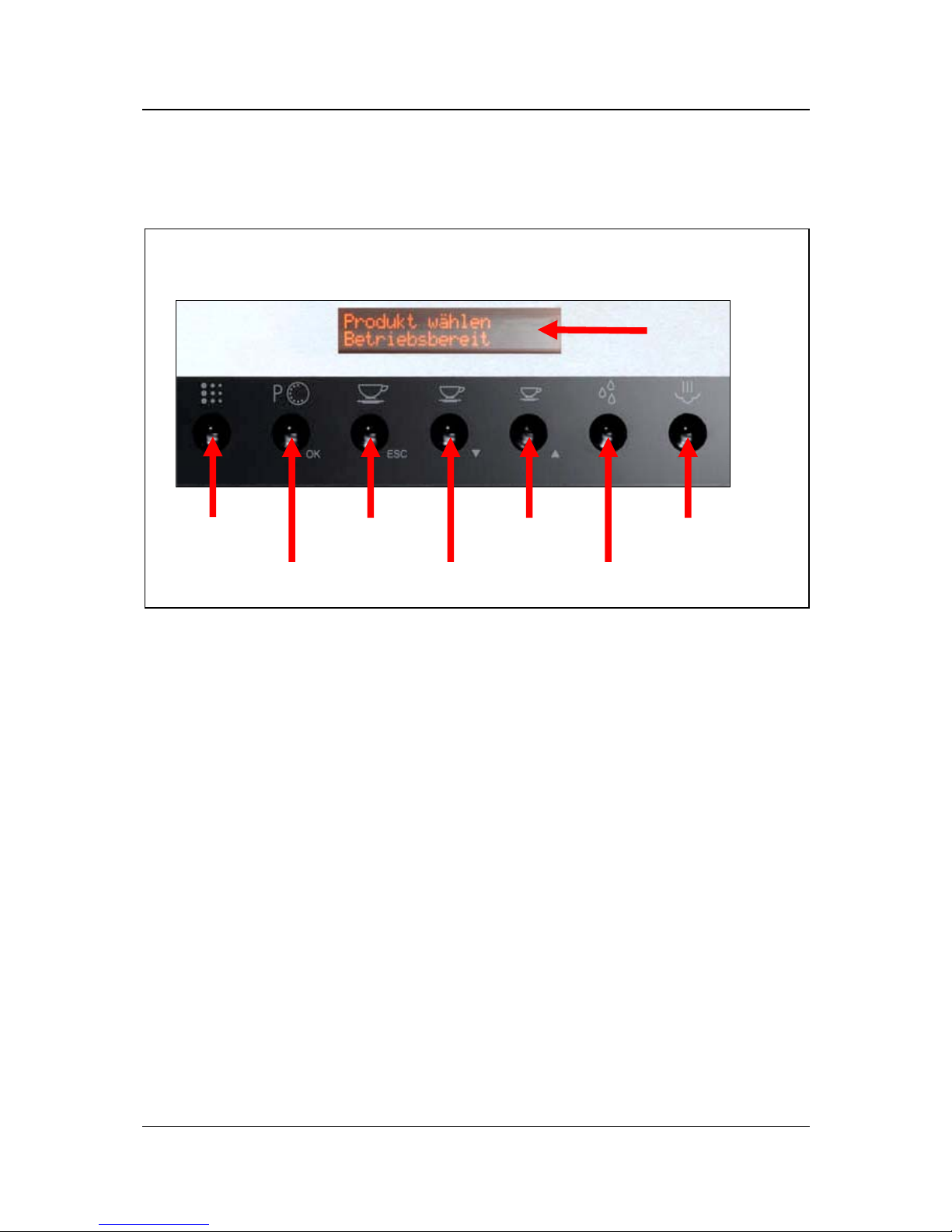

7.1.11 Deaerating the system
Place a high vessel under the nozzle. Touch the ”hot water“ button and allow hot water to flow until
you have a regular stream of water. Touch the button again and stop the flow of hot water. The clear
text display will show “select product” and “ready”.
Training manual Section 7 – Page 11
Coffee machines

Deaerating the system
`Place a high vessel under
the nozzle
`Touch and allow hot
water to flow until you
have a regular stream of
water
`Touch again and stop the
flow of hot water. The display
will show “select product” and
“read
y
”
Training manual Section 7 – Page 12
Coffee machines

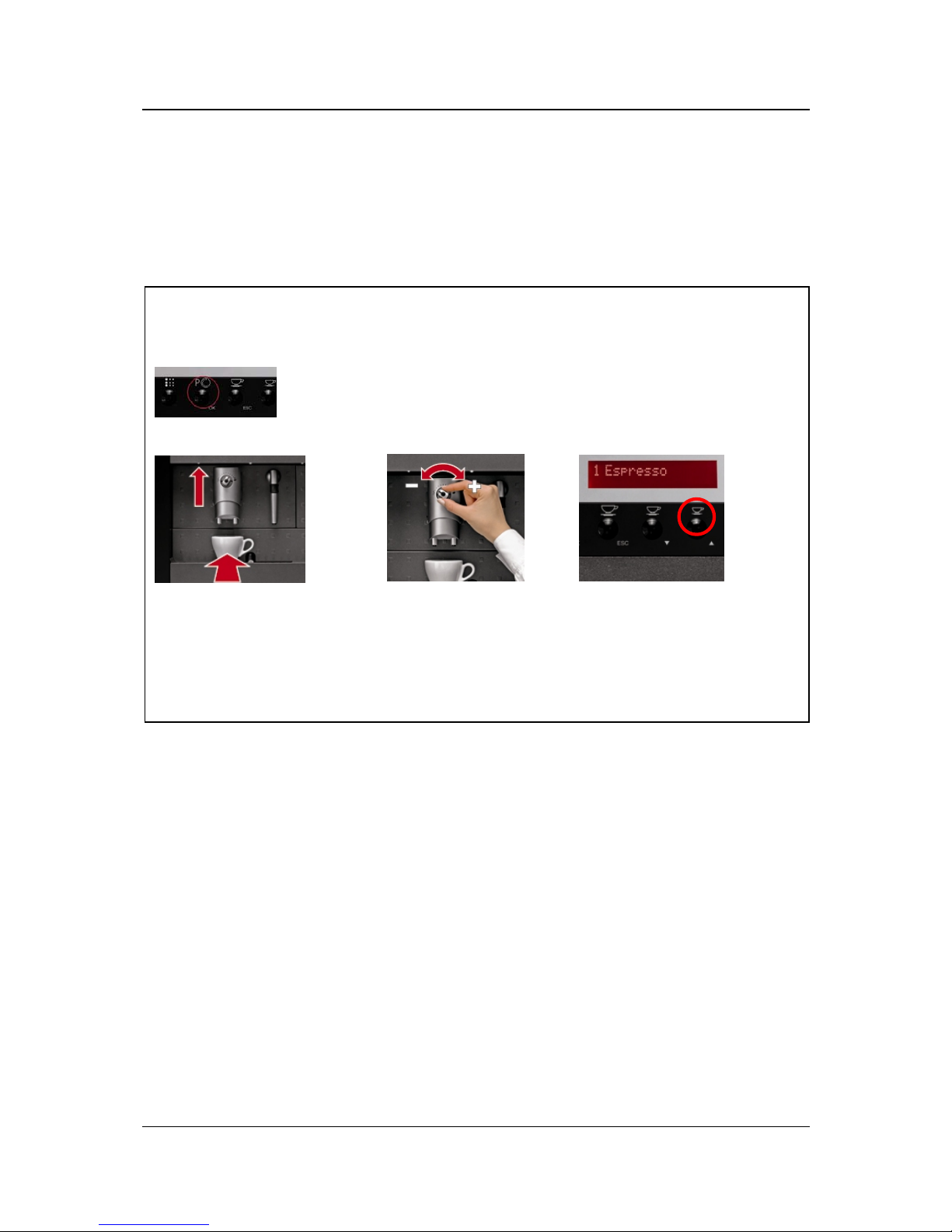

7.1.12 Making coffee
If the machine is in the standby mode this will firstly need to be cancelled with the “P” button. Then
place one or two cups under the coffee dispenser. Set how strong you want the coffee to be with the
AromaControl knob. Touch either the “coffee long“, “coffee“ or the “espresso“ button. For one cup
press the button once or press it twice for two cups.
Making coffee
Deactivate the standby mode
by touching button “P”
Place 1 or 2 cups under the Aroma Control Start brewing
`The quality of the coffee `Press the button of your
dispenser
`Cups may be pre-warmed can be set progressively
`Push the coffee dispenser
upwards for large cups
from mild to strong
choice (e.g. espresso)
1 cup = 1 x
2 cups = 2 x
Genuine fully-automatic two-cup coffee machine
Thanks to its professional brewing unit the built-in coffee machine is able to make two cups of coffee
at once. This saves time, especially when numerous guests are being catered for.
7.1.13 Adjusting filling quantities to cup sizes
Households have different sizes of cups for coffee and for espresso. The fill-up quantity can be
adjusted quickly to the respective cup size so that a cup is filled up with just the right amount. Simply
place a coffee cup or an espresso cup under the coffee dispenser and press the button for espresso
until the right quantity is in the cup. After this, each time the “espresso“ button is pressed an
espresso cup will be filled with the same quantity, until a new setting is made. This setting can
naturally also be made for the “coffee long” and “coffee” buttons.
Training manual Section 7 – Page 13
Coffee machines

7.1.14 Dispensing hot water
Place a cup under the nozzle. Touch the “hot water“ button and allow the required quantity of water
to be dispensed. Touch the button again to stop the flow of hot water.
Dispensing hot water / steam
Steam
Hot water
`Place a cup under the
nozzle
`Place a cup under the
nozzle
`Dispense hot water;
press button
`Start steam by pressing
button and heating
up the beverage with
circular movements
`When you have the
right quantity
press
`When you have the right
temperature press the
button
7.1.15 Dispensing steam
Place a full cup under the nozzle. Touch the “steam“ button to start the steam dispensing mode. Heat
up your beverage with circular movements or froth the milk. As soon as the required temperature
has been reached touch the button again and stop the steam dispensing process.
Training manual Section 7 – Page 14
Coffee machines

7.2 User settings
The clear text display dialogue system makes both operating and programming the machine easy,
even for those who are not familiar with it. The integrated rinsing, cleaning and descaling programs
are also remarkable - all it takes is the push of a button.
7.2.1 User settings
If the need arises you may make adjustments to the settings as follows with the “P = program,
standby, user settings”:
User settings
Available functions
`Timer`Standby `Lighting `Aroma Espresso
`Time-of-day`Rinsing `Water hardness `Aroma coffee
`Cleaning cycle`Language `Water filter `Aroma coffee big
`Contrast `Temperature `Pre-brewing
`Total coffee
`Factory settings
Standby
The machine switches into the power-down mode (3 – 4 W).
Rinsing
The cycle is automatically cleaned when the machine is switched on. Coffee is always made with
fresh water. A rinsing cycle is activated at a boiler temperature of below 40°C.
Language
Selecting a language on the clear text display. There is a choice of German, French, English, Spanish
and Dutch.
Training manual Section 7 – Page 15
Coffee machines

Contrast
The contrast setting for the clear text display can be made in 10 stages.
Lighting
Switching the lighting on and off.
Water hardness
There are 4 settings for the water hardness.
Water filter
Water filter present (yes – no): is only set the first time the water filter is used. “Reset” will then
need to be selected every time the filter is changed.
Temperature
Choosing the temperature for making coffee. There is a choice of low (88°C) – medium (90°C) – high
(92°C). A cold cup will cool down coffee being poured into it by approx. 10°C. The temperature of the
water used for brewing the ground coffee powder should be between 88°C and 92°C. Some of the
flavouring will not be released into the powder if the water is too cold. On the other hand, if the
water is too hot the coffee may taste somewhat bitter and burned.
Aroma Espresso
Choosing the quantity of ground coffee for espresso. There is a choice between mild – normal –
strong.
Aroma coffee
Choosing the quantity of ground coffee for coffee. There is a choice between mild – normal – strong.
Aroma coffee long
Choosing the quantity of ground coffee for coffee long. There is a choice between mild – normal –
strong.
Pre-brewing
The coffee is firstly moistened. This allows the flavour to fully develop. There is a choice between on
(approx. 1.5 sec.) – off – long (approx. 4 sec.).
Total coffee
The total number of coffee portions being dispensed is shown.
Timer
This is for setting the time after which the machine is switched into the standby mode. It is pre-set at
three hours.
Time-switch
The following may be selected:
Time-switch (on - off): setting whether the switch-on and switch-off times are to be activated.
Time of day: setting the current time of day:
Switching times: setting the switch-on and switch-off times.
Display time of day: activating or deactivating the time of day display.
Cleaning cycle
Setting the cleaning cycle. The cleaning cycle serves to degrease the brewing unit.
Training manual Section 7 – Page 16
Coffee machines

Factory settings
Re-setting all of the settings to the as-delivered state. There is a choice of no – yes.
7.2.2 Grinding setting
Setting the grinder as you wish to enable the selected coffee beans to develop their full flavour to
perfection is child's play. The adjusting knob for the grinding setting is located on top of the brewing
unit behind the service flap. The knob can be set from fine to course in 10 stages. When the grinding
setting is adjusted no coffee beans may be present in the grinder.
Which grinding setting is best for coffee?
The quantity of coffee is important for the flavour and the aroma of coffee as well as for how the
coffee agrees with you. As a matter of principle: the stronger you like your coffee, the finer it should
be ground. Finely-ground coffee turns out stronger than when it is coarsely-ground. You must
however be careful: if the beans are ground too finely the coffee will quickly taste too strong and too
bitter. Too much flavouring and in particular too many bitter substances are released when the coffee
is brewed. On the other hand, if too little powder is used, coffee will taste weak and bland.

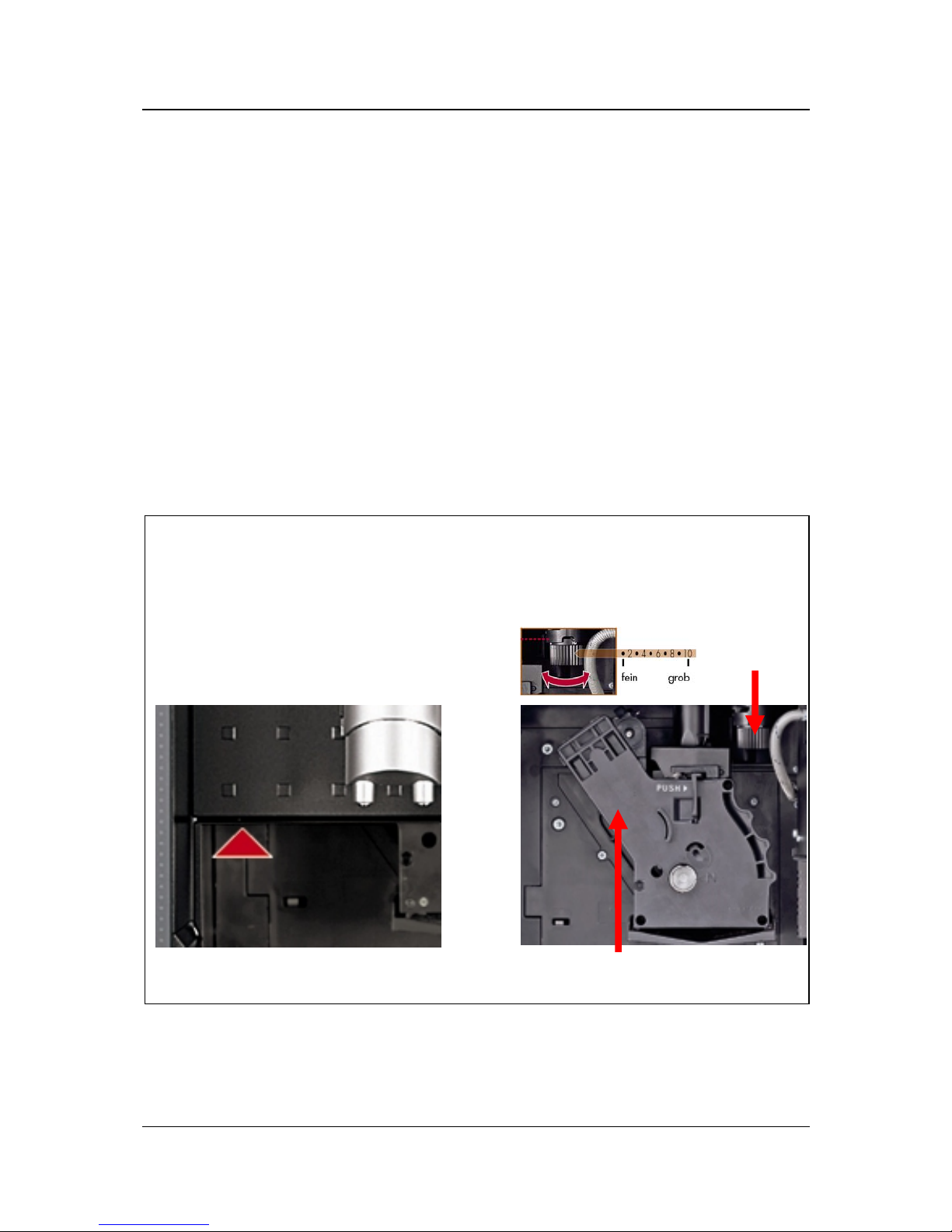

Grinding setting
Grinding
setting
`Open the service flap
(remove the collecting bowl and
press the lever on the back of the door)
Brewing unit
Training manual Section 7 – Page 17
Coffee machines

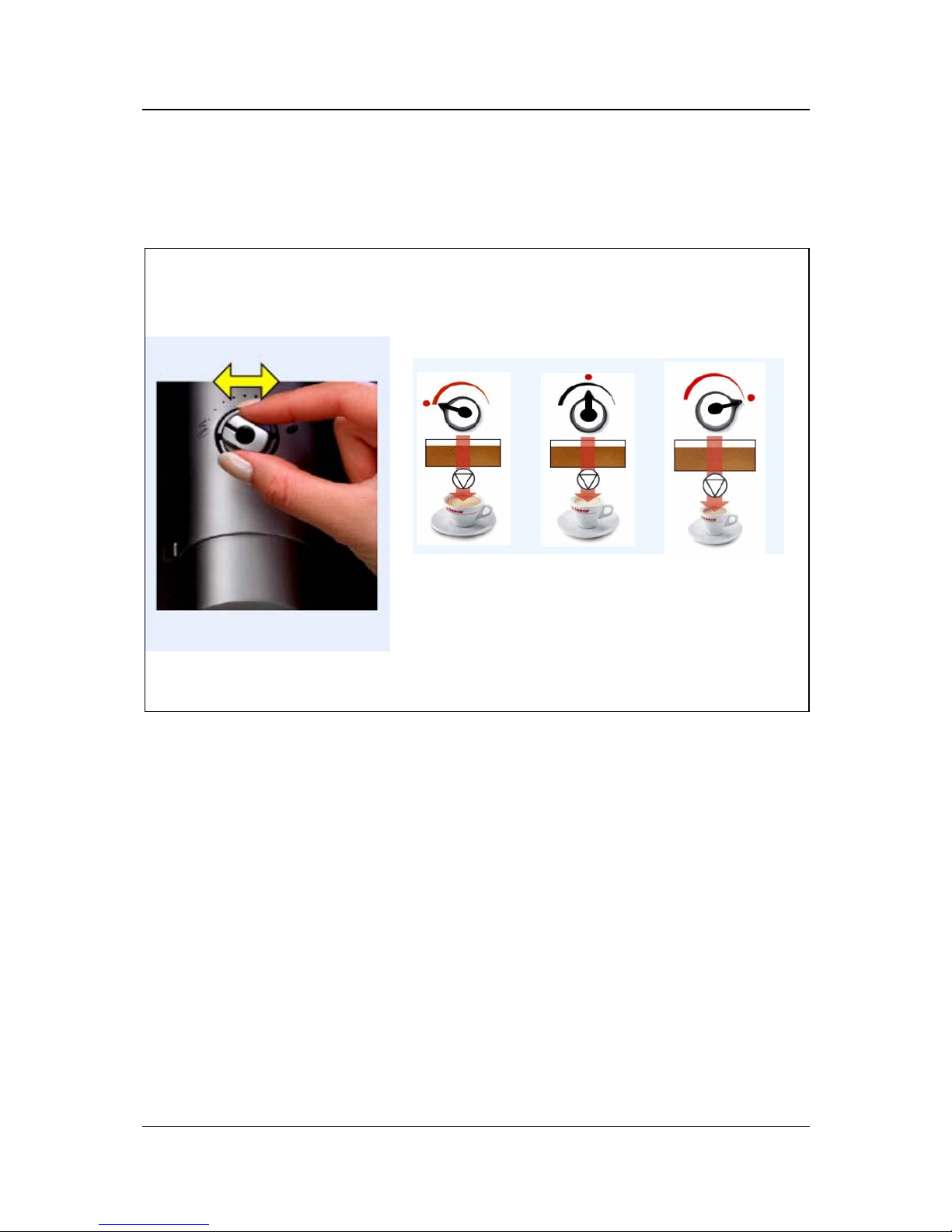

7.2.3 AromaControl
The AromaControl can be turned for a choice of flavours. Your personal taste will decide: from mild
American to strong Italian coffee.
AromaControl
(Operation with standard grinder setting)
Maximum setting
for mild coffee
Medium setting for
normal coffee
Minimum setting
for strong coffee
Type Café Crema Type Espresso Type Ristretto
- Fast brewing
process
- Slow brewing
process
- Slow brewing
process
- Optimal extraction
of flavour
- Good extraction of
flavour
- Optimal extraction
of flavour
- Low water pressure - High water pressure
- High water pressure
- Normal quantity of
water
- Low quantity of
water
- Low quantity of
water
With the AromaControl knob which is located at the coffee dispenser, the strength of coffee can be
variably-adjusted between mild coffee and strong coffee to suit any personal taste.
Training manual Section 7 – Page 18
Coffee machines

AromaControl
7.3 Fittings
7.3.1 Flap panel (push & pull)
The water tank and the coffee bean box, located behind the control panel, ensure that the coffee
machine is extremely easy and convenient to use. A light touch will open up the push and pull panel
of the coffee machine so that you can easily remove the individual filling units without having to go
to the trouble of driving out the appliance unit. Filling up water and coffee beans has never been
easier.

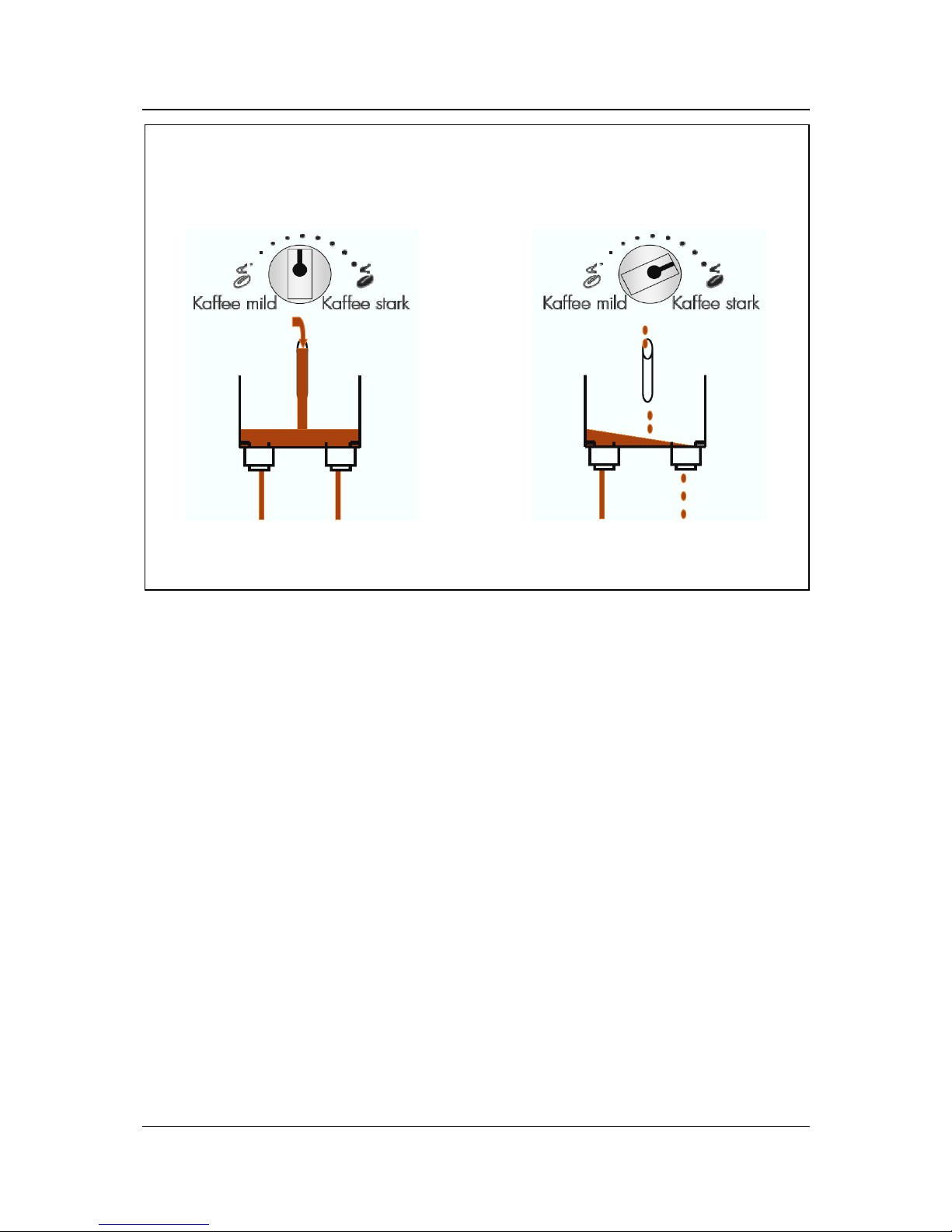

Normal flow rate Low flow rate
Optimal dispensing not guaranteed
Optimal dispensing
Training manual Section 7 – Page 19
Coffee machines

Easy-to-handle: The flap panel
`The water tank and the bean container are
concealed behind a push & pull flap and can
be operated from the front.
`The panel opens very easily
when the bar handle is pressed
`Watertank and filter,
1,7 litre capacity
`Bean container for 300 g
(20 – 30 cups)
Bean containerWatertank
Training manual Section 7 – Page 20
Coffee machines
