KUSSMAUL 091-9 AUTO-PUMP User manual

INSTRUCTION MANUAL
TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: [phone]
1 YEAR WARRANTY
BOOK# 091-9-3
KUSSMAUL ELECTRONICS CO., INC.
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
®
AUTO-PUMP
12VDC
AIR COMPRESSOR SYSTEM
NOTE :
The 091-9 Auto-Pump consists of
a 12volt motor driven compressor
INPUT :12 volt, 12 amp
OUTPUT :100 PSI MAXIMUM
MODEL #091-9

INTRODUCTION
The Auto-Pump Air Compressor system is a compact electric motor operated single cylinder
air compressor designed specifically for installation on vehicles with air brakes . During long
idle periods of the vehicle when even the slightest seepage can cause an air brake system
pressuretodropbelowthebrakelockuppressure,theAutoPumpautomaticallystartstomaintain
the pressure.
The Auto Pump motor is directly coupled to the compressor section eliminating all belts and
pulleys assuring long life and reliable operation . A heavy duty pressure switch is adjusted
to start the compressor when the system pressure drops below 75 psi and stops the compressor
when 95 psi is attained . The start up pressure is field adjustable - the pressure differential
between start up and stopping is fixed. Please read and follow the installation instructions
carefully . The Auto Pump requires no routine maintenance . A careful installation will assure
years of trouble free operation.

CAUTION
NO CONDENSATE OR
WATER MUST BE ALLOWED
TO ENTER OR ACCUMULATE
INTHE OUTPUT
OF THE AUTO PUMP.
ROUTE OUTPUT PRESSURE
LINE DOWNWARD FROM
AUTO PUMP TO PERMIT
MOISTURE TO DRAIN AWAY.
WATER IN THE PUMP
OUTLET WILL INDUCE
FAILURE !
WATER DAMAGE WILL
VOID WARRANTY

VEHICLE TUBING INSTALLATION
1. Mount all components in a suitable location, preferably in a high area above the air system .
Do not mount in engine compartment or near any source of heat or dirt . The system may be
connected to any point in the vehicle's air system .
2. Mount air compressor in a vertical position as shown.
3. CAUTION no condensate or water must be allowed to enter or accumulate in the output of the
AutoPump. RouteoutputpressurelinedownwardfromAutoPumptopermitmoisturetodrain
away . Water in the pump outlet will induce failure .
4. All connection for air lines are 1/4" NPT . Use Teflon tape, or equivalent on all connections to
insure no leakage of air.
5. The recommended installation of the Auto Pump air compressor system is shown below.
6. Mount the air compressor. Connect a suitable piece of flexible tubing from the outlet port of
compressor to the air tank . (Tubing and connectors are not supplied .)
7. Anoptionalwaterseparator(AutoClean091-9G)isavailabletotrapmoistureintheairlineand
stop the flow of moisture back into compressor .
8. An optional Mounting Plate 091-9H is available to reduce any vibration and noise from Auto
Pump and to simplify pump mounting.
NOTE: Compressor must be mounted above air
tank to assure that moisture will flow away from
compressor.

COMPRESSOR OUTPUT IS 100 PSI MAXIMUM. DO
NOT EXCEED 100 PSI OR YOU WILL VOID WARRANTY.
1. Remove cover of the Pressure Switch on the Auto Pump.
2. Wire the pressure switch to the battery and a good chassis ground, use #14 AWG WIRE
MINIMUM .
3. Reinstall cover of Pressure Switch .
4. The compressor is calibrated to cut-in at 75 PSI and cut-out at 95 PSI . For higher cut-in and
cut-out, turn the range nut clockwise . To lower cut-in turn range nut counterclockwise . Do
not exceed 100 PSI .
5. 091-9 AUTO PUMP can be wired to a positive or negative system vehicle .
6. Optionalswitchandfusecanbeinstalledasshown(use20ampratedswitchand15ampSLO-
BLOfuse).
VEHICLE WIRING INSTALLATION

TEMPLATE AUTO PUMP
5 3/16"
3 1/2"
1 3/4"
3/16" DIA. HOLE
3 PLACES

SPECIFICATION & OUTLINE AUTO PUMP
Input : 12 volts D.C. @ 12 Amperes
Weight: 6 lbs
Motor Horsepower: .10 HP
Motor Type: Permanent Magnet
Compressor Output: .30 SCFM @ 80 PSI
.35 SCFM @ 60 PSI
Pressure Switch: Adjustable Set Point-Factory
set to 75 PSI - Cut in
Switch Differential: 18 PSI Nominal
Outlet Connection: 1/4 NPT, Female
OUTLINE AUTO PUMP

AUTO PUMP REBUILDING KIT 091-9E IS AVAILABLE .

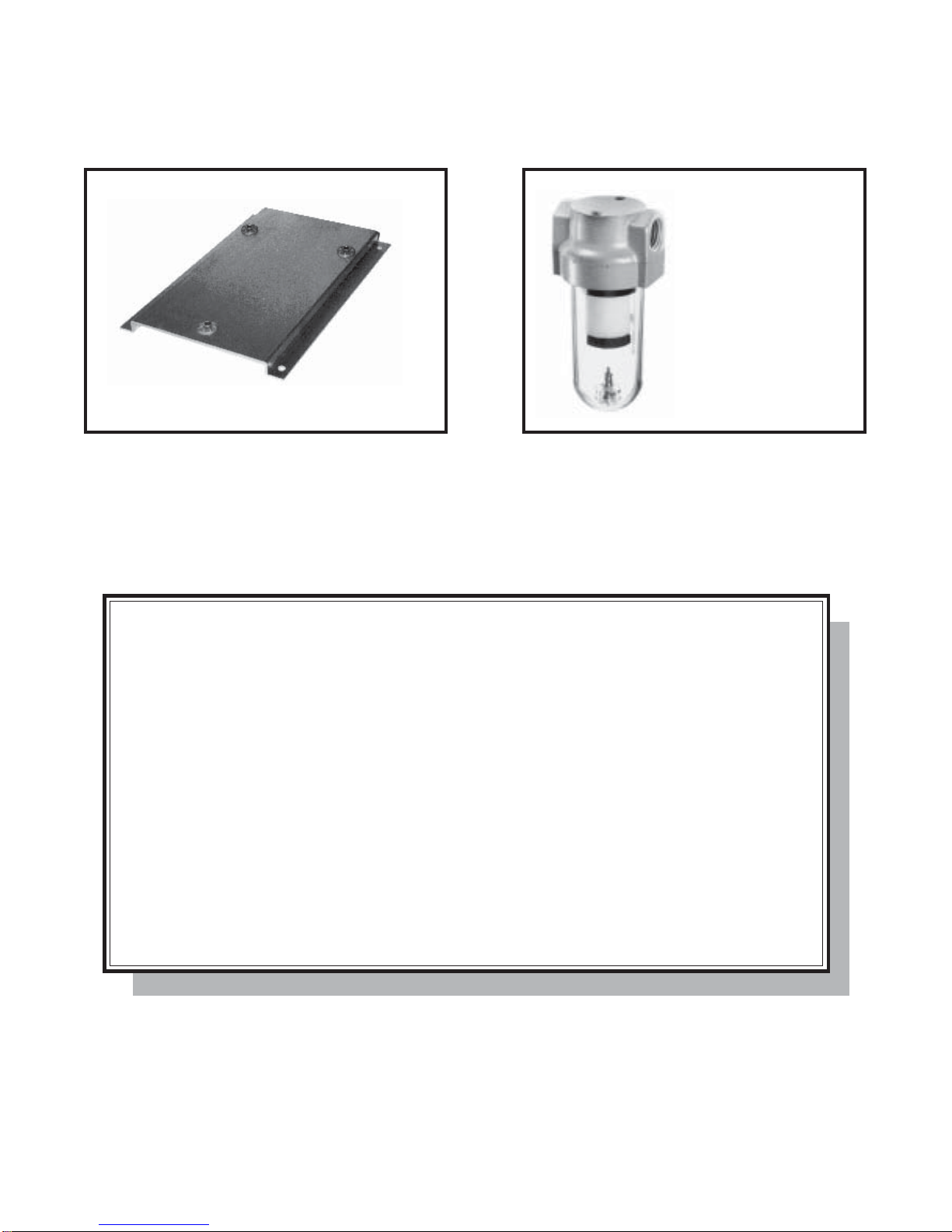

ACCESSORIES
AUTO CLEAN
MODEL # 091-9G
FOR SIMPLIFIED MOUNTING
MOUNTING PLATE
MODEL # 091-9H
A miniature air filter to
mount in the output pres-
surelineoftheAutoPump
to trap moisture . The
micron filter element re-
moves any contaminants
from the air line . A trans-
parent bowl permits easy
monitoring of water col-
lected and a manual
purge valve allows the
operator to conveniently
drain the bowl.
WARRANTY
All Auto Pumps of Kussmaul Electronics Company Inc. are warranted
to be free of defects of material or workmanship. Liability is limited to
repairing or replacing at our factory, without charge, any material or defects
which become apparent in normal use within 1 year from the date the
equipment was shipped. Equipment is to be returned, shipping charges
prepaid and will be returned, after repair, shipping charges paid.
KussmaulElectronicsCompany,Inc.shallhavenoliabilityfordamages
of any kind to associated equipment arising from the installation and /or use
ofthe Kussmaul ElectronicsCompany, Inc. products.The purchaser, bythe
acceptance of the equipment, assumes all liability for any damages which
may result from its installation, use or misuse, by the purchaser, his or its
employees or others.
CAUTION: WATER IN THE PUMP OUTLET
WILL INDUCE FAILURE
WATER DAMAGE OR OPERATING AUTO
PUMP OVER 100 PSI WILL VOID WARRANTY
