Product Data Sheet
Electronic Throttle Module
Chevy/GMC Fast Idle Speed Control for Chassis
Requiring Hardwired Parking Brake Switch
The ETM62 Electronic Throttle Controller provides five
modes of engine rpm control for Chevy & GMC trucks, vans,
and buses equipped with automatic transmissions and the
following engines:
4.8 L Vortec V8 Gas
5.3 L Vortec V8 Gas
6.0 L Vortec V8 Gas
8.1 L Vortec V8 Gas
6.6 L Duramax Diesel
This controller supports GM chassis that do not provide a
parking brake position sensor message on the engine data
bus. As the system requires the parking brake to be set
before the engine speed is increased, the ETM62 controller
must be wired to the chassis parking brake switch.
Five selectable modes of fast engine idle operation include
three preset fixed speeds, a variable speed control via a
external potentiometer, and Charge Protect, which will
automatically increase engine speed to maintain the battery
charge. Ten LED indicators are provided to display the
selected operating mode, system status, and error
conditions. The ETM62 controller module is compact,
measuring only 2 x 4 inches. Wiring terminations utilize 0.25
inch Faston (blade) terminals.
The ETM62 controller mounts under the dash and is supplied
with a three foot cable that plugs into the vehicle’s OBDII
Data Link Connector. A terminal is provided to wire into the
chassis parking brake position switch.
Applications
Key Features
Five modes of operation
Engine Control Module programming for
speed presets not required
No requirement for Chevy/GMC options
Direct interface to engine controller data bus
Encapsulated electronics for maximum
environmental protection
Requires wiring to the chassis parking brake
switch
LED status and troubleshooting indicators
Chevy/GMC Vortec Gas and Duramax
Diesel Truck Engines
Pumper Trucks
Aerial Trucks
Power Take-Off (PTO) Systems
Emergency Vehicles
Service and Rescue Trucks
Hydraulic Systems
Air Compressors
Power Inverter Systems
Preset RPM 1
Preset RPM 2
Preset RPM 3
Charge Protect
Variable RPM
Control
Ground
091-84-ETM62
Electronic Throttle
System Diagram
Customer Wiring
Customer
Interface
Wiring
Vehicle On Board
Diagnostic (OBDII)
Data Link Connector
System
DLC
Cable
RPM1
RPM2
RPM3
CHRG
VRPM
+12 V Ignition
PKBRK Parking Brake
Position Switch
0
1
0) Fully Released
1) Brake Applied
HIGH IDLE
MODEL # 091-84-ETM62

ETM62 Series Electronic Throttle Modules
Specifications
1.025
0.1875
2.05
3.50
4.00
0.50
All dimensions in inches. Not to scale.

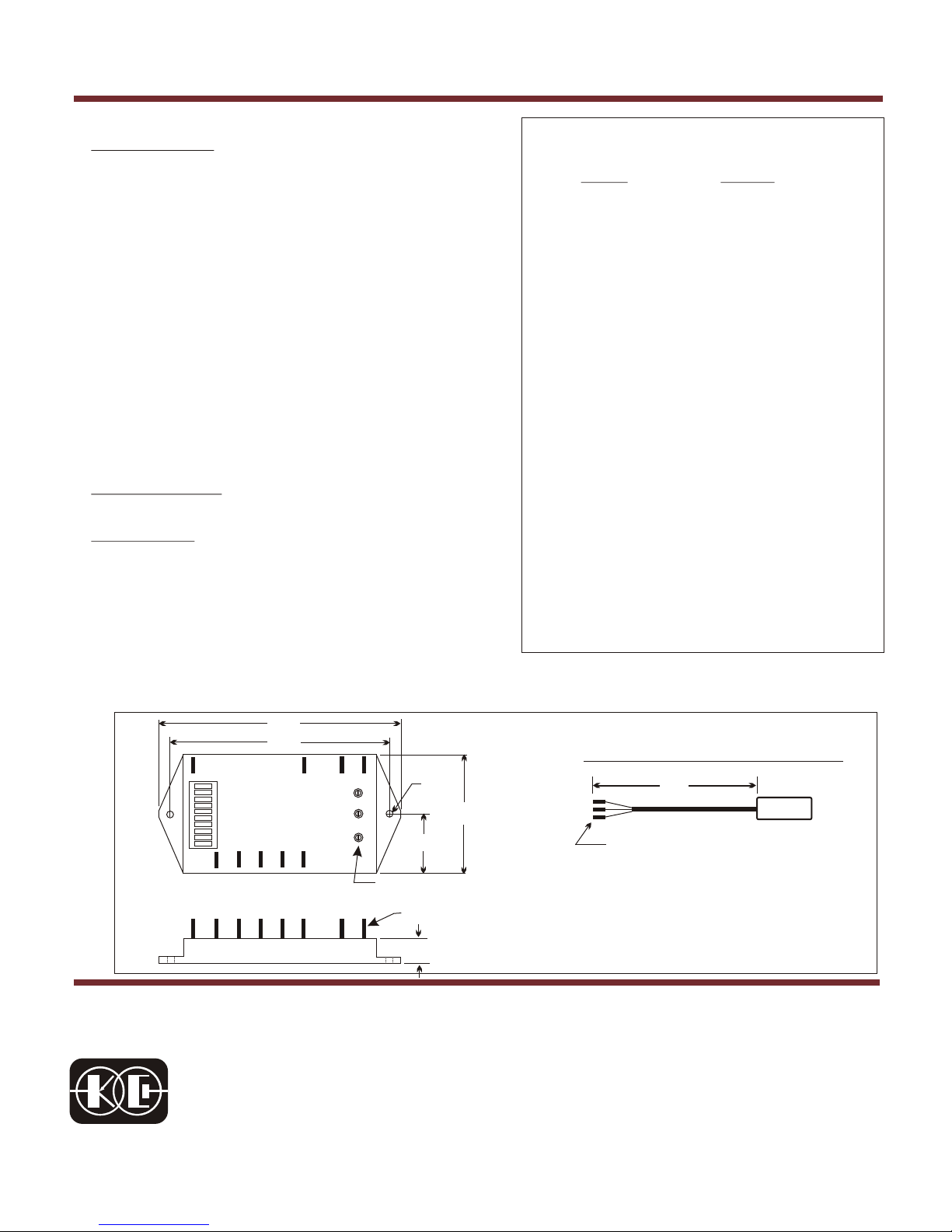

Mechanical Drawing
Modes of Operation
A. Preset RPM Modes
Function: Increases idle to a preset rpm
Number of presets: Three
Input identification: RPM1, RPM2 & RPM3
Activation: Apply +12 V to input to select mode
Range of calibration: 680 to 2000 rpm
Calibration method: Internal potentiometers (3)
B. Charge Protect Mode
Function: Varies rpm to maintain battery charge
Input identification: CHRG
Activation: Apply +12 V to input to select mode
RPM range: 680 to 1700 rpm
C. Variable RPM Mode
Function: Varies rpm as a function of external
resistance change
Input identification: VRPM
Adjustment: 10k Ohm potentiometer between
input terminal and ground
RPM range: 680 to 2000 rpm
Power Requirements
Input Voltage: 8 to 16 volts dc (from Ignition Switch)
Input Current: 30 milliamps
Safety Interlocks The following conditions must be met
before the ETM62 controller will
initiate a fast idle mode:
1. Engine running at idle speed*
2. No vehicle speed*
3. Automatic transmission in PARK*
4. Service brake not depressed*
5. Accelerator pedal not depressed*
6. Parking brake set (hardwired input)
* Sensed by the ETM62 controller via the engine data bus.
Chevy & GMC Engines and Chassis Supported*
(Model Years 2003, 2004 & 2005)
Engine Chassis
4.8 L Vortec Gas Silverado/Sierra 1500
Tahoe, Yukon
Express/Savana
5.3 L Vortec Gas Silverado/Sierra 1500
Express/Savana
Avalanche, Suburban,
Tahoe, Trailblazer EXT,
Envoy XL/UXL,
Yukon/XL Danali/XL
6.0 L Vortec Gas Silverado/Sierra 2500
Silverado/Sierra 3500
Express/Savana
Suburban, Yukon XL,
Yukon XL Danali
8.1 L Vortec Gas Silverado/Sierra 2500
Silverado/Sierra 3500
Avalanche, Suburban,
Yukon XL
Kodiac/Topkick C4500
Kodiac/Topkick C5500
Kodiac/Topkick C6500
Kodiac/Topkick C7500
Kodiac/Topkick C8500
6.6 L Duramax DieselSilverado/Sierra 2500
Silverado/Sierra 3500
Kodiac/Topkick C4500
Kodiac/Topkick C5500
* InPower is in the process of certifying that the above vehicles will
properly operate the ETM60 Series electronic throttles. Contact InPower
for the current list of certified vehicles.
System Data Link Connector (DLC) Cable
3 ft.
Connection to ETM62 Module (Faston terminals)
OBDII
Data Link
Connector
Preset speed calibration
potentiometers (3 places)
GND
+12V
BUSS
VRPM
CHRG
RPM3
RPM2
RPM1
RPM1
RPM2
RPM3
0.25 Inch Faston Terminals
BUS
GEAR
PK BRK
SR BRK
VSPEED
RPM1
RPM2
RPM3
CHRG
VRPM
PK BRK
170 CHERRY AVENUE WEST SAYVILLE, NY 11796-1221, TEL: [phone], FAX: [phone],
TOLLFREE 800-346-0857, WORLD WIDE WEB: http//www.kussmaul.com E-MAIL: [email protected]
ELECTRONICS CO., INC.
KUSSMAUL
Manufactured by InPOWER LLC
