Kuvings MASTICATING JUICER User manual

Extractor. E120511
INSTRUCTION MANUAL
Manuel d’utilisation
Carefully read and save these instructions
Household use only / US&CANADA use only (110/120V)
MASTICATING JUICER
Kuvings US Customer Service:
Phone [phone]
Email [email protected]
Headquarters:
NUC Electronics CO., Ltd
679, Chimsan-3Dong, Buk-gu, Daegu, 702-053, Korea
©2012 Kuvings All rights reserved

3
2
When using electrical appliances, basic safety precautions should always be followed including the following:
1. Read all instructions.
2. To protect against risk of electric shock, do not put the parts, such as the motor base, in water or other liquid.
3. Close supervision is necessary when juice extractor is used near children.
4. Unplug from outlet when not in use, before assembling or disassembling and before cleaning.
5. Avoid contact with moving parts.
6. Do not operate the juice extractor with a damaged cord or plug, after the juice extractor malfunctions or is
dropped or damaged in any manner.
Retum the juice extractor to the nearest authorized service facility for examination, repair, or electrical or
mechanical adjustment.
7. The use of attachments not recommended may cause re, electric shock, or injury.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of the table or counter.
10. Always make sure the juice extractor cover is clamped securely in place before motor is timed on.
Do not unfasten clamps while juice extractor is in operation.
11. Be sure to tum switch to o position after each use of your juice extractor.
Make sure the motor stops completely before disassembling.
12. Do not put your nger or the objects into the juice extractor opening while it Is in operation.
If food becomes lodged in opening, use food pusher or other piece of fruit or vegetable to remove the
remaining food.
13. Do not modify the plug in any way.
14. Do not place on or near a hot gas or electric bumer or in a heated oven.
15. Do not use appliance for other than intended use.
NEVER SUBMERGE THE MOTOR BASE IN WATER OR OTHER LIQUID
FOR HOUSEHOLD USE ONLY
Table of contentsImportant safeguards
02 Important safeguards
03 Table of contents
04 Features
05 Parts
06 How to assemble
07 How to use the juicer
08 How to care
10 Multi-purpose parts
13 Troubleshooting
14 Product specications

5
4

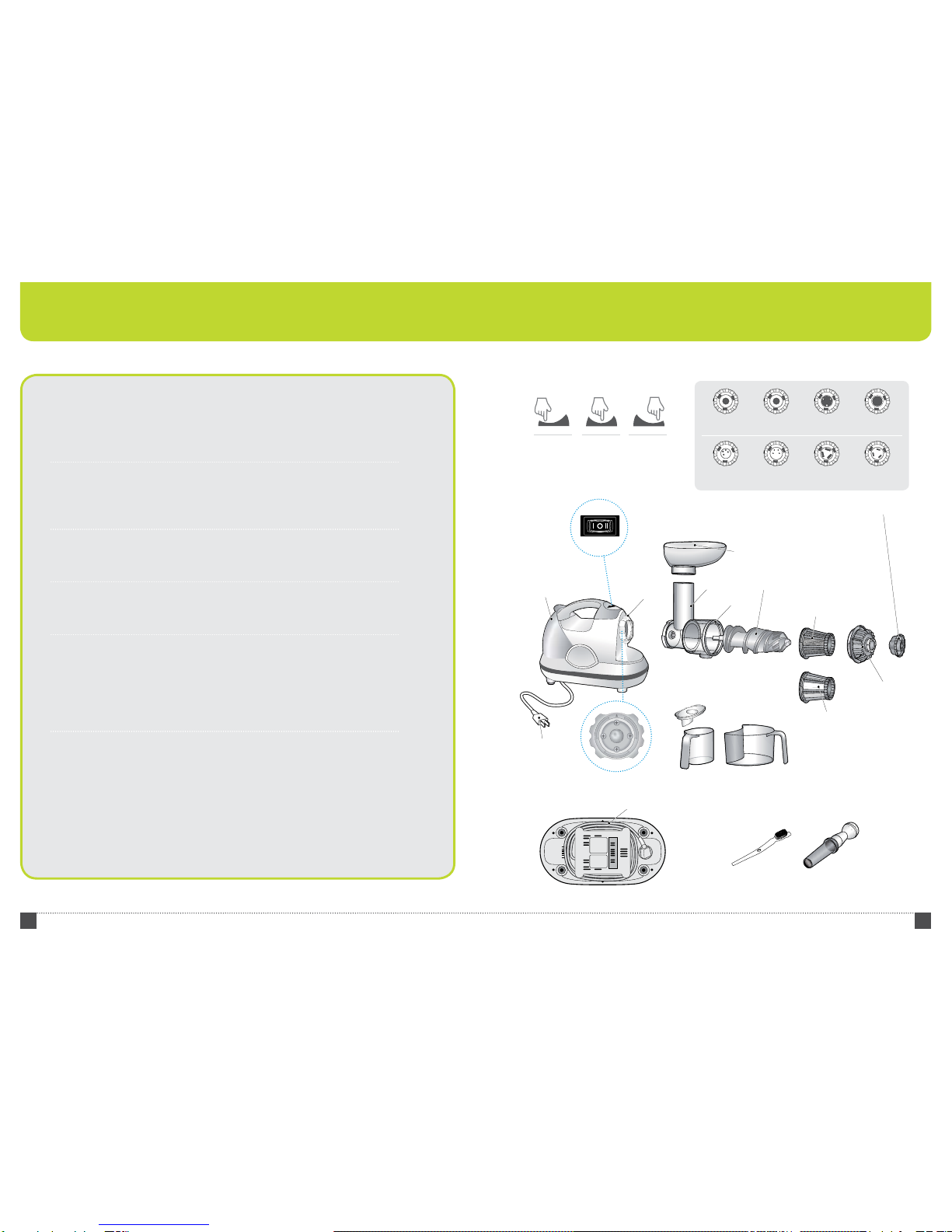

PartsFeatures
Cleaning Brush Pusher
<SWITCH>
FORWARD STOP REVERSE
Cap
Juice Cup Pulp Cup
Plug
Locking Clip
Base
Blank Screen
Strainer
Drum Cap
Hopper
Drum
Chute Auger
Power Cord
<NOZZLE>
Juicing Nozzle
Pasta Nozzle
(Round Large)
Juicing Nozzle
(Extra)
Pasta Nozzle
(Round Small)
Mincing Nozzle
Pasta Nozzle
(Flat Large)
Rice Cake Nozzle
Pasta Nozzle
(Flat Small)
Durable Masticating Type Design
The spiral auger, made with durable plastic materials, helps extract vitamins,
enzymes, and minerals from fruits and vegetables.
A Low Speed Gear
A low speed gear is utilized to reduce noise and vibration during operation so that
the machine can be used quietly at home.
Heavy-Duty Motor
Heavy-duty motor makes it possible to juice brous vegetables or fruits at low speed.
Easy to Use
Designed for easy assembly, disassembly and operation. Easy to clean after use.
Multi-Purpose
Juices vegetables including carrots, beets, celery, and peppers.
More juice options include leafy greens such as wheatgrass, cabbage, kale and fruits
such as apples, pears, etc.
Grinds coee beans and make homemade pasta in just minutes.
8 dierent nozzles
Includes 8 dierent nozzles for juicing, mincing, pasta, noodles, etc.

7
6

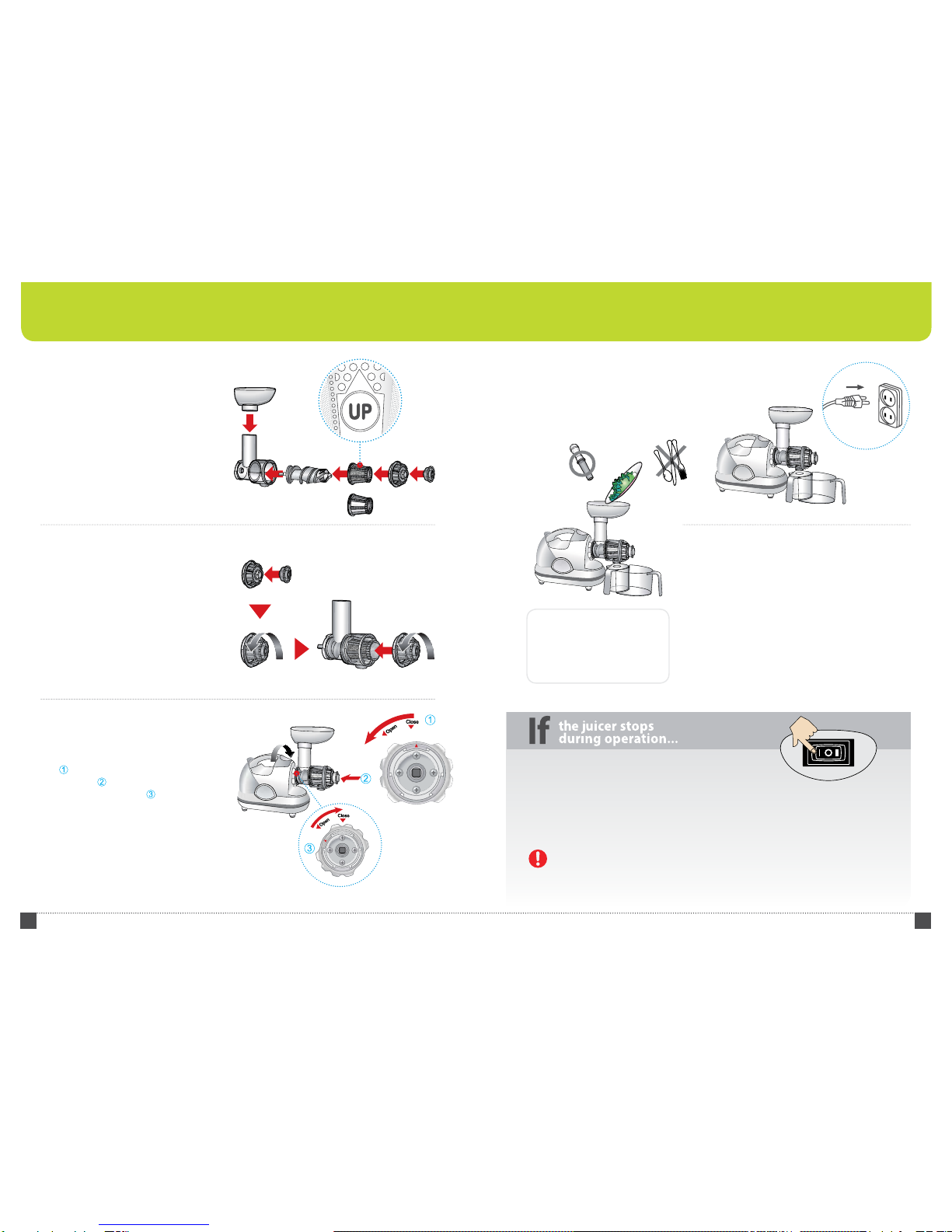

How to assemble How to use the juicer
2
Drum Cap and Nozzle
1. Attach the nozzle to the drum cap.
2. Turn the nozzle counterclockwise
to lock position.
3. Place the drum cap and turn
counterclockwise to lock position.
1
Auger & Strainer Assembly
Make sure that the strainer’s “UP”
position is assembled pointing up .
3
Base Assembly
Secure the drum and drum cap
assembly onto the base by
turning the locking clip to ‘OPEN’
position attaching the drum case
to the base unit and turning the
locking clip to‘close’position.
FORWARD STOP REVERSE
Place the juice cup and pulp cup securely under the
drum. Plug the power cord into the wall outlet and
trun on the start switch to‘Forward’.
Feed thoroughly cleaned and prepared juicing
ingredients into the chute opening at a steady pace.
Cut the ingredients to 4 to 6 inches long and 0.5
inches wide.
For leafy vegetables, such as celery, trim the stalks and
stems before juicing.
For best results, feed the ingredients one at a time at a
steady pace and do not force large amounts of ingredi-
ents into the chute with the pusher.
WARNING! Do not put n-
gers, chopsticks, spoons, or other
foreign objects into the feeding
chute while the juicer is operating.
Use pusher as needed instead.
First press‘STOP’ and then press‘REVERSE’ to cleare out the
clogged ingredients inside the auger assembly and press
‘FORWARD. (Repeat approximately 3 times to completely
clean out the clogged ingredients.)
If clogging persists, disassemble the unit and thoroughly clean the components.
(Reverse switch must be held pressed for continuous operation.)
ATTENTION! When switching operation mode from‘FORWARD’to ‘REVERSE’, be sure to
press‘STOP’before switching to‘REVERSE’. If the mode is switched directly to‘REVERSE’
while operating in‘FORWARD’mode the machine could be damaged.
2
1

9
8

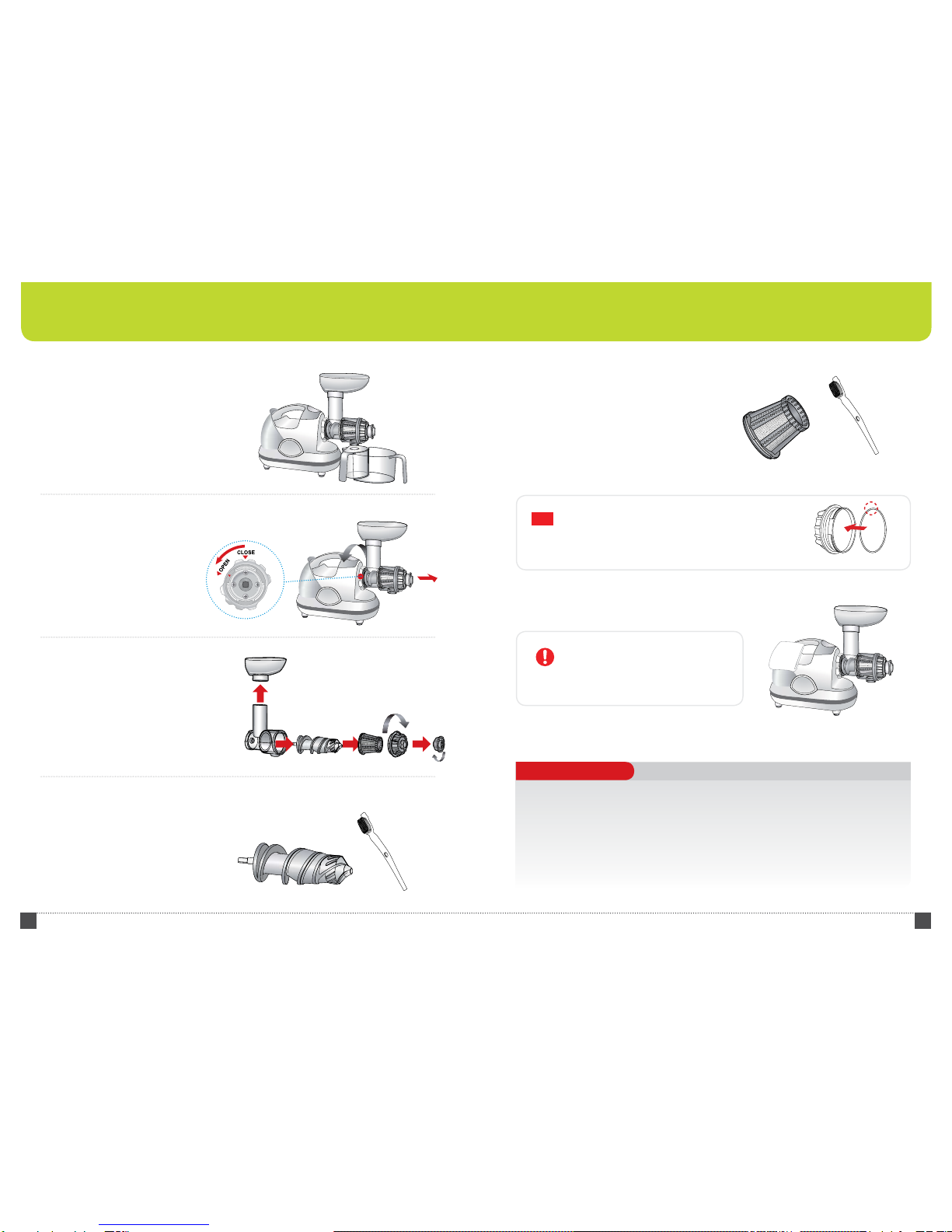

Make sure the machine is turned o
and unplugged before beginning
disassembly. Empty out the drum of all
the ingredients by keeping the machine
running for few extra seconds before
stopping.
Scrub the strainer with the soft brush
angled at a 45 degree angle.
Wipe the base unit with a soft, damp cloth.
Separate the drum and chute from
the base unit by turning the clip
counterclockwise.
Remove the nozzle and disassemble the
drum and auger as shown next.
Wash drum and auger with mild
detergent, using the soft brush.
Rinse with water and dry thoroughly.
15
6
2
3
4
TIP
When cleaning the drum cap, detach the rubber ring
and place it back on with its protruding part facing the
the front of the drum cap when nished cleaning.
. Most juicer parts are top shelf dishwasher safe, low temperature recommended.
For best results hand wash with a soft cloth using mild detergent and towel dry.
The juicing strainer is hand wash only (included cleaning brush or similar plastic
bristled dish brush is recommended).
. Do not wash any juicer parts with harsh or abrasive cleaners.
. Please wipe the exterior clean using a damp soft cloth. Do not wash or submerge the base.
For Cleaning
How to care Disassembly / Cleaning / Maintenance
ATTENTION! If the cloth is too wet water
may migrate into the machine causing
re, electric shock, or permanent damage.

11
10
To process Strainer Nozzle
Juicing apple, orange, grape,
strawberry,tomato, kiwifruit,
pineapple,melon, aloe, carrot, celery,
spinach, broccoli, wheat & other
grasses, yam, pine tree needles,
sprouts, olive leaves, ginger etc
Strainer Jucing Nozzle
Mincing frozen fruits, nuts, seeds,
dried & fresh fruits, sprouted grains,
herbs & seasonings
Blank
Screen Mincing Nozzle
Pasta Blank
Screen
Round (Small, Large) Pasta / Flat (Small, Large) Pasta
Rice cake Blank
Screen
Jucing Nozzle,
Rice Cake Nozzle
Slush, crushing ice, grinding Blank
Screen No nozzle
When juicer is making weird noises
-Turn o the juicer and check that the juicer parts are correctly assembled.
-Check the size of the food in the juicer.
When juicer does not turn on
-Check that it is plugged in correctly.
-Check that the juicer is assembled properly.
-Check than your household circuit or GFI outlet is not tripped.
-Turn o the juicer and wait 30 minutes to cool down the motor if the juicer will not turn on after
extended use. The juicer has built-in protection to prevent damage due to overheating.
How to use the multi-purpose parts
Juicer problems
Multi-purpose parts Notes

17
16
PROBLEM SOLUTION
When motor does not work Check that the unit is plugged in correctly and your
outlet has power.
When the auger stops during use Unplug and disassemble juicer to check to see any-
thing is clogged in the auger.
The auger is grinding/wearing Avoid running the juicer for long periods empty.
The strainer does not separate the juice
Adding ingredients too fast into the chute may clog
the strainer. Use the reverse button to unclog the food
and disassemble the unit to clean the strainer before
further use.
Amount of juice is less than normal
Juice production depends on how fresh the produce
is. Older produce tends to dry out and will yield less
juice. Increase yield with older produce by soaking it
water before juicing.
Juicer is yielding wet pulp
Combine produce with low fiber, like carrot, with high
fiber, like kale, to decrease the moisture content of the
pulp and increase juice yield. Try to avoid using the
pusher
Part of the drum cap is blocked during juicing This means that pulp is clogged in the drum cap. To
solve this, juice food with high fiber to unclog the pulp.
When juicing grapes, the skin is not ejected
Use the mincing nozzle for better results. The grape
skin may clog the strainer, so insert one or two pieces
of carrot to unclog during operation.
Juice is not being produced and pulp is backing up
Adding too much ingredients at once can cause this
problem. Stop adding produce and cycle the opera-
tion between 'FORWARD', 'STOP', and 'REVERSE' several
times to unclog. Add food more slowly to prevent this
problem.
Poor results when making noodles Make sure the dough is not too watery. Also try oiling
the auger.
Rice is not grinding well
There should be no moisture in the rice and it has to be
completely dry in order to work well. For best results
use a blender instead like our Kuvings Hybrid Blender
Product Juice Extractor
Model No. NJE-3520U, NJE-3530U, NJE-3540U
NJE-3570U, NJE-3580U, NJE-3590U
Voltage AC120V, 60Hz
Power Consumption 170W
Screw Speed 80RPM
Motor Single Phase Induction
Continuous Running Time 30min MAX
Product Size (L) 308mm X (H) 240mm X (W) 164mm
*Specications or features subject to change at any time without notice.
Troubleshooting Product specications
