LeCavist TAS36VXBI User manual

www.lecavist.com
MODEL: TAS36VXBI
WINE COOLER

TABLE OF CONTENTS
Additional information on products, accessories,
warranty, replacement parts and services can be
found at www.lecavist.com
2
www.lecavist.com
5. Operation ................................................
6. Wine storage ...............................
7. Care and maintenance...............................
8. Troubleshooting guide...............................
9. Environmental tips .....................................
9.1 Disposal considerations
5.1 Start operation
5.2 Control panel
7.1 Cleaning
7.2 Power cut
7.3 Out of service for a long time
7.4 Moving the appliance
9.2 Disposing your old appliance
10. Warranty and After sales ........................
10.1 Warranty
10.2 After sales service
10.3 Replacement of spare parts
1. General Information ................................. 03 07
08
08
09
09
03
04
04
05
07
1.1 Appliance information
2. General Safety Instructions .......................
2.1 General safety information
2.2 Safety instruction - Installation
2.3 Correction use & Operation ........................
2.4 Disassembling and Disposal
of the Appliance
2.5 Accessories and Spare parts
3. Product description ..............................
4. Installation ..................................
CAUTION
WARNING PROHIBITION
This symbol means that the safe operation
of the product and the personal safety of the
operator are concerned, and that the operation
must be performed in strict compliance with
the requirements as specified.
This symbol means that the
operator must pay attention
to the information as described.
This symbol means that
the behavior as
described is not allowed.
Installing the handle and reversing the
door swing
Correct Conditions of Use
The appliance is intended for use in the home and similar
environments only. It is not intended for commercial use.
The appliance is not suitable for outdoor use, non-stationary
installation.
Installation must comply with the valid standards,
regulations and laws. All safety and warning
information and the operating and installation
instructions must be complied with.
This wine cooler can be only used to store various types
of wines
Adherenceto the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhereto the requirements in this manual may result in
personal injury, property damage and affect your ability to
make a claim under the LeCavist manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual.
You may not be able to claim on the LeCavist
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.
CONGRATULATIONS
Congratulations and thank you for choosing
LeCavist for your wine storage solution.
This appliance complies with all relevant safety
requirements in Australia. Inappropriate use
can, however, lead to personal injury and
damage to property.
In order to operate the unit correctly and safely,
please read this instruction manual carefully
before installation and use. This user manual
which provides you with all required instructions
related to safety, installation, use and
maintenance of the appliance.
For future reference, please store this booklet in
a safe place and ensure that all users are familiar
with the contents. Pass them on to any future
owner of the appliance.
Record Model & Serial Number
Model:...........................................................................................
Serial Number ........................................................................
Register your product at www.lecavist.com

Cleaning & Maintenance
1. GENERAL INFORMATION
2. GENERAL SAFETY
A damaged appliance can be dangerous. If you find the
appliance is damaged or marked, you must report it within
7 days if you wish to claim for damage/marks under the
manufacturer’s warranty. This does not affect your statutory
rights. Do not use a damaged appliance.
The manufacturer's warranty will be invalidated if the
appliance is not repaired by a LeCavist approved service
technician.
Faulty components must only be replaced by genuine
LeCavist spare parts. The manufacturer can only guarantee
the safety of the appliance when LeCavist replacement
parts are used.
If the power cord is damaged, it must only be replaced by a
LeCavist
LeCavist
authorised service technician or suitably qualified
electrician in order to avoid a hazard.
ac nnot be held liable for non- compliance with
these instructions, resulting from incorrect or improper use
or operation.
1.1 Appliance Information
Unauthorised Modifications
Unauthorised modifications can cause the appliance to
pose risks. Do not conduct any modifications to the
appliance.
The device must be cleaned regularly. Dirt can lead to
damage or the build up of odours.
Always clean the appliance exactly as indicated in
the operating instructions.
Always ensure the appliance is switched off before
cleaning or replacing parts.
There is a risk of fire if cleaning is not carried out as
described in these operating instructions.
Make sure no water penetrates inside the device when
cleaning. Do not use a steam cleaning appliance to
clean this appliance. The steam could reach electrical
components and cause a short circuit.
In areas which may be subject to infestation by
cockroaches or other vermin, pay particular attention to
keeping the machine and its surroundings in a clean
condition at all times. Any damage which may be
caused by cockroaches or other vermin will not be
covered by the machine warranty.
2.1 General Safety Instructions
Children and People with Special Needs
2.2 Safety Instructions - Installation
The appliance is NOT suitable for use by children
without supervision.
Young children should be supervised near the appliance
to ensure they do not play with this appliance.
Children may be able to wrap themselves in packing
material or pull it over their heads with the risk of
suffocation. Keep children away from any packing
material.
In order to avoid any potential hazard, the installation
instructions must be followed.
Observe all regional regulations for the installation of
ventilation systems.
During installation, maintenance and repair work, the
appliance must be disconnected from the mains
electricity supply. It is only completely isolated from the
electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is
withdrawn from the socket.
Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains
electricity supply.
Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
3
The appliance complies with the stipulated safety
requirements in Australia. The user is responsible for
appliance cleaning and maintenance as well as its safe
use. Improper use can lead to personal injury and
damage to property.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabi-
lities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Extension leads are a fire hazard and do not guarantee
the required safety of the appliance.
Tampering with electrical connections or components
and mechanical parts is highly dangerous to the user
and can cause operational faults. Only open the housing
as described in the instructions given in “Installation”
section of this booklet. Under no circumstances should
any other parts of the housing be opened.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
After the wine cooler is installed in place, the plug shall
be easily accessible to facilitate the removal of the cooler
plug in case of any accident.
INSTRUCTIONS
www.lecavist.com
THIS APPLIANCE MUST BE PROPERLY EARTHED. It is
most important that this basic safety requirement is
present and tested regularly and, where there is any
doubt, the household wiring system should be inspected
by a qualified electrician.
LeCavist cannot be held liable for noncompliance with
these instructions, resulting from incorrect or improper
use or operation.

4
www.lecavist.com

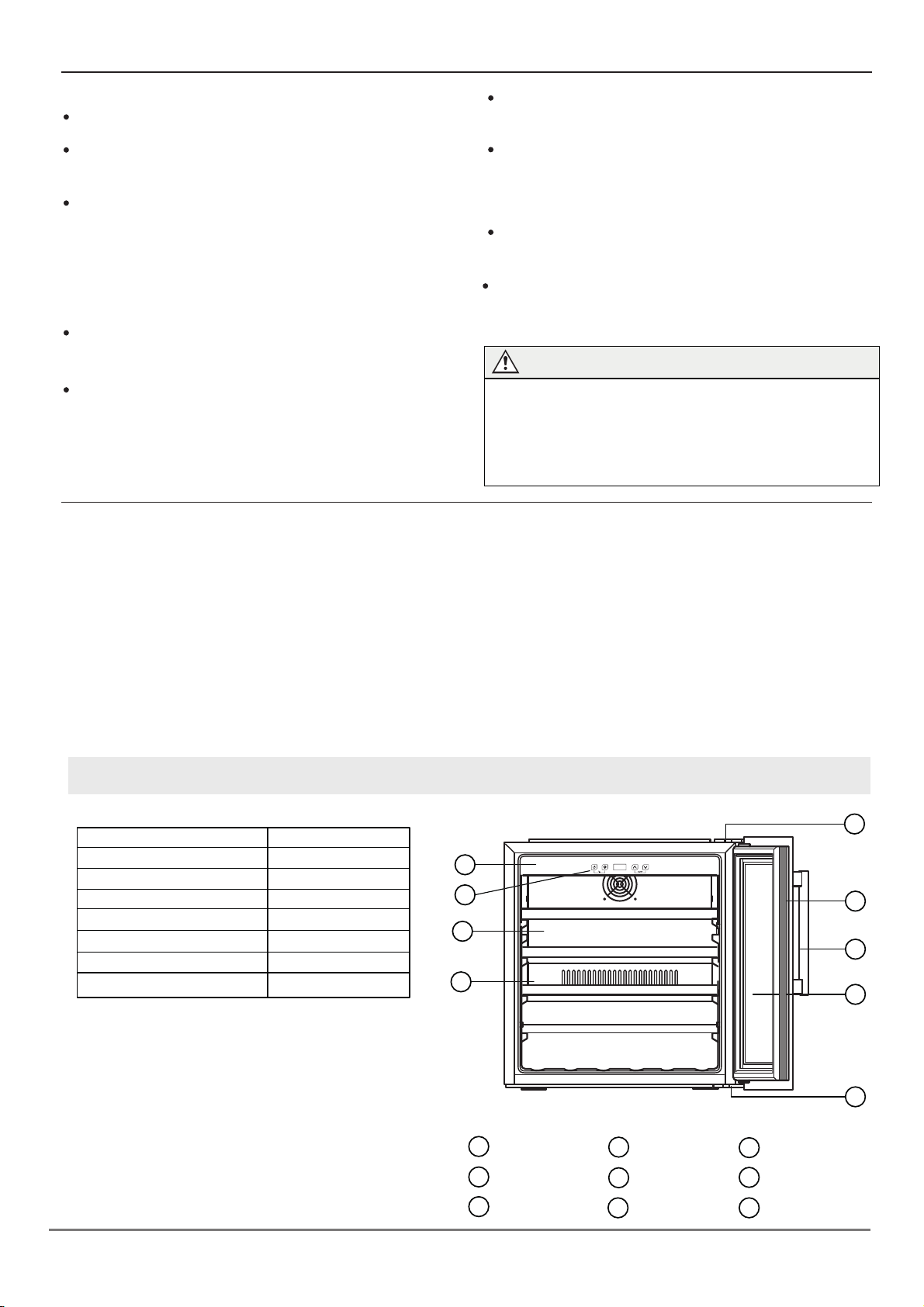

3.1 Technical data sheet 3.2 Accessories and name
3. PRODUCT DESCRIPTION
Product model
Voltage/frequency
Refrigerant/weight
Effective volume
Loading capacity
Net weight
Unit dimension (WxDxH)
Packing dimension (WxDxH)
TAS36tVXBI
220-240VAC, 50Hz
R600a/25g
85 L
36 bottles
33.2kg
590×563×595mm
650×650×655mm
5
9
1
1
2
3
4
5
Housing
Control panel
Shelf
Cover board
Lower hinge
Door
Handle
Door seal
Upper hinge
6
7
8
9
3
4
2
6
7
8
Remarks：
1. The net weight includes the shelves, and the unit
dimension is without the door’s handle.
2. The manufacturer reserves all the rights to change the
above parameters without prior notice. Please refer to
the nameplate of your appliance.
3. Loading capacity depends on the arrangement
and sizes of the bottles.
(standard Bordeaux with 750ml is applied here).
2.3 Correct use and Operation
For safety reasons, this appliance may only be used after
it has been installed.
Reliable and safe operation of this appliance can only be
assured if it has been connected to the main electricity
supply.
Before using the appliance, ensure that all packaging
materials are removed from the appliance and make
sure that the connection data on the data plate [voltage
(V) and frequency (Hz)] indicated on the appliance
corresponds to the voltage and frequency of the power
supply in your household. Consult a qualified electrician
if in doubt.
D
Cracks, fissures or fractures in the panels
Prevent water ingress. Never sprinkle or flush the cooler
using water, place the cooler in an area exposed to
moisture water sprinkling, or fill the cooler
with water, so as to avoid impairment of the electric
insulation of the cooler. Furthermore, failing to follow
such requirements may lead to electric shock and fire,
or other accidents.
After the cooler is put into operation, never touch its inner
surface, especially when your hand is wet; otherwise
the skin may stick onto the inner surface to get injured.
can damage the underlying electronics. Switch off and
disconnect the appliance immediately.
O NOT store or spray flammable materials in the
appliance or near this appliance while it is in operation
(e.g. aerosols). WARNING
Regularly clean surfaces that can come in contact with
food and accessible drainage systems. If the refrigerating
appliance is left empty for long periods, switch off,
clean, dry, and leave the door open to prevent mould
developing within the appliance.
Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
The refrigerant isobutane (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a
high level of environmental compatibility, which is
nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged.
2.4 Disassembling and Disposal of the
Appliance
2.5 Accessories and Spare parts
(see the “Environmental Tips” section for best practices on
disposing of this appliance).
The device must only be disassembled by trained
specialists who are familiar with and comply with the
standard national regulations and supplementary
regulations of the local utility companies.
Work on electrical components must only be conducted by
trained electrical personnel.
Incorrect components can lead to personal injury or
damage to the appliance. Only use original Lecavist
Lecavist
spare
parts for repairs.
Modifications, additions or alterations to the appliance
can lead to safety risks. If spare parts or accessories from
other manufacturers are used, the warranty will be
invalidated, and cannot accept liability.
Please check www.lecavist.com for more information.

www.lecavist.com 5
min. 200cm2
min. 200cm2
595
590
18
545
545
586
590
560-
568
550-560
4. INSTALLATION
Installing the handle
Reversing the door Swing
Do not lean the appliance over 45° when
moving it to position.
The appliance must be put on flat, firm &
dry floor or similar noncombustible pad;
do not use the package foam pad.
Do not use the appliance in the frozen place.
Do not use the appliance outdoor in case
of sunlight or rain.
The appliance is designed to be fully build into the cabinet.
Demonstration for building into the cabinet:
Attach the handle to the door frame.
The handle is delivered in a separated
package with screws together inside the box.
①Reveal two small holes on the door
frame from the inner side by gently
pulling out the door seal, enough
for the screw to be inserted.
②Aim the handle to the holes and
insert the screws from inside.
③
Screw them up with screw-driver.
Put back door seal to cover the screws.
Do not put the appliance in the wet place.
Our wine cooler is delivered with the door opening
from left to right. To reverse the opening direction.
Open the door at 90 degrees and keep it steady.
Loosen the M5x16screws ②, remove the right
upper hinge ③, and remove the door.[Figure 1].
1
1
4
3
2
Note 1: Shelves, door frame, handle and other accessories
could be different according to different models and
configuration. All photos in this manual are for reference.
The appliance you buy might not be exactly the same
as shown here. Please refer to the actual product.
Note 2: You can start storing wine bottles after operating
an hour or when you feel cooling inside.
1 2 3
234
