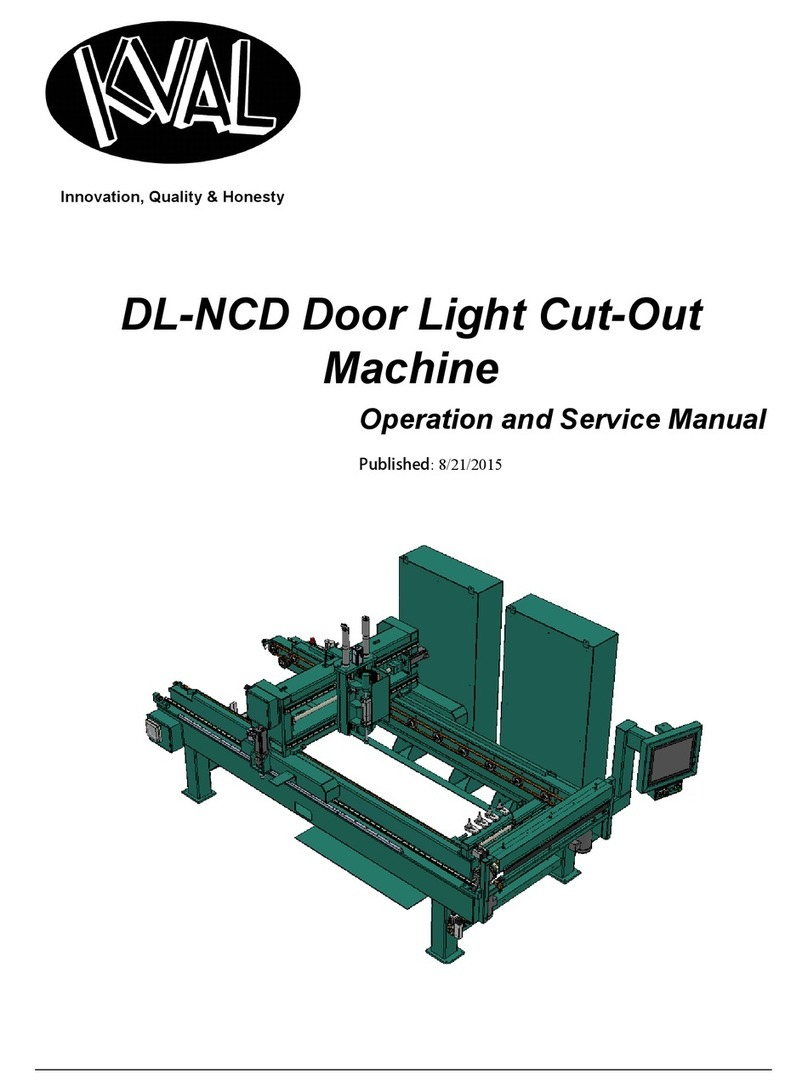

Kval DL-NCD User manual

Innovation, Quality & Honesty
Operation Manual
Published: October 21, 2019
DL-NCD Door Lite System
Operation
Operation Manual

KVAL DL-NCD
Proprietary Notice
This Manual is confidential and contains proprietary information and intellectual
property of KVAL Inc., and is to be used solely by Customer as an operating manual
for KVAL Inc. machines. Neither this Manual nor any of the information contained
herein may be reproduced or disclosed under any circumstances without the express
written permission of KVAL Inc. For authorization to copy this information, please
call Kval Customer Support at [phone] or fax [phone]. Outside the
U.S. and Canada, call [phone].
Manual Part Number: DOC-193-1-OPKvalCam
DL-NCD is trademark of Kval Incorporated.
Copyright 2019 Kval Incorporated. All rights reserved.
Beckhoff®, TwinCAT 2,TwinCat 3, and EtherCat®are registered trademarks and are
licensed by Beckhoff Automation GmbH
Windows ®is a registered trademark of Microsoft Corporation.
All other products are trademarks or registered trademarks of their respective holders,
all rights reserved. Reference to these products is not intended to imply affiliation with
or sponsorship of Kval Incorporated.
Contacting KVAL
Customer Service: For further information about this manual or other Kval Incorpo-
rated products, contact the Customer Support Department
• Mailing address:
Customer Support Department
Kval Incorporated
825 Petaluma Boulevard South
Petaluma, CA 94952
• Phone and Fax:
In the U.S and Canada, call [phone] or fax [phone]
Outside the U.S. and Canada, call [phone] or fax [phone]
• Business hours:
Technical Support:
6:00 AM to 4:00 PM Pacific Standard Time, Monday through Thursday
6:30 AM to 1:30 PM Pacific Standard Time, Friday
Parts & Service Sales:
6:30 AM to 4:00 PM Pacific Standard Time, Monday through Thursday
6:30 AM to 1:30 PM Pacific Standard Time, Friday
(Other sales related inquiries: http://www.kvalinc.com)
• Email: [email protected]

KVAL DL-NCD Operation Manual
KVAL DL-NCD
Your Feedback is Welcome: To help us design products that make your job easier
and your business more successful, we'd like to gain your perspective about your user
experience with our product - that is, the manual, the machinery, the software, etc.
What was easy or difficult to use or to learn? If you could change something about the
design, what would it be? Please email your comments and suggestions for improve-
ment to [email protected]. (NOTE: This is not a customer support email
link. For that, please refer to the Customer Service contact information above.) Thank
you!
http://www.kvalinc.com

KVAL DL-NCD
NOTICE OF OWNERSHIP OF KVALCAM SOFTWARE AND LIMITED LICENSE TO
USE
READ THIS NOTICE CAREFULLY BEFORE USING THE KVALCAM SOFTWARE WHICH OPERATES
KVAL MACHINERY. THIS DOCUMENT CONSTITUTES NOTICE TO YOU THAT YOU HAVE A LIMITED
LICENSE TO USE THE KVALCAM SOFTWARE ON THE TERMS AND CONDITIONS APPEARING BELOW.
BY USING THE KVALCAM SOFTWARE YOU ARE CONSENTING TO BE BOUND BY THIS LIMITED
LICENSE. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE, THEN DO NOT USE THE
KVALCAM SOFTWARE.
KVAL, Inc., is the owner of all rights in respect of the software and documentation (referred to as “Licensor”). You
are the purchaser of KVAL Machinery operated by the KVALCAM Software are the “Licensee”.
The computer program(s) and related documentation and materials (herein collectively referred to as “the KvalCAM
Software” and further defined herein) which are used in the operation of the KVAL Machinery are licensed, not sold,
to you for use only upon the limited terms of this license, and Licensor reserves any rights not expressly granted to
you. Licensor retains all ownership of the KvalCAM Software.
Title, ownership rights, and intellectual property rights in the KvalCAM Software shall remain with KVAL, Inc. The
KVALCAM Software is protected by copyright laws and treaties. Title and related rights in the content generated
through the KVALCAM Software are also the property of the Licensor and are protected by applicable law.
1. Definitions .
a.“KVALCAM Software” means the KVALCAM computer application installed in the KVAL
Machinery and written documentation and materials provided to you, as well as any res or
updates of such computer application and documentation.
b.“Install” means storing of the KVALCAM Software in the computer component of the KVAL
Machinery.
c.“Use” means executing the KVALCAM Software for purpose of operating the KVAL
Machinery and use of the documentation for properly operating KVALCAM Software.
2. Grant of License .
a.Licensor hereby grants Licensee a non-exclusive, non-transferable license to Use the KVAL-
CAM Software upon payment of all amounts due for the purchase of the related KVAL Machin-
ery.
b.Licensee will make no copies of the KVALCAM Software or alter the KVALCAM Software
in any way. Title to the KVALCAM Software will remain vested in Licensor, and nothing in this
License will give or convey any right, title or interest therein to Licensee except as a licensee.
c.Licensee agrees that it will use the KVALCAM Software or related documentation directly or
indirectly for the benefit of Licensee, and only pursuant to the scope of the grant of the License
set forth herein.
d.Licensee will not decode, alter, decompile, reverse engineer, perform reverse analysis on or
disassemble the KVALCAM Software.
e.This License will terminate automatically if Licensee fails to comply with the limitations
described above.

Table of Contents
KVAL DL-NCD Operation Manual
Chapter 1 Introduction to the DL-NCD
Chapter 1 at a Glance.............................................................. 1-1
Overview of the DL-NCD ......................................................... 1-2
About this Manual .................................................................................1-4
Safety Sheet Sign-Off Sheet.................................................................1-4
Safety First!.............................................................................. 1-5
Safety Sheet Sign-Off Sheet.................................................................1-5
Safety Terminology of Labels................................................................1-5
Safety Guidelines..................................................................................1-5
Lockout-Tagout Guidelines ...................................................... 1-9
Follow the P-R-O-P-E-R lockout rule of thumb.....................................1-9
Lockout Tagout Procedure....................................................... 1-10
Pre-Steps Before Lockout Tagout .......................................................1-10
Lockout Tagout Power ........................................................................1-10
Lockout Tagout Air Supply ..................................................................1-11
Start Maintenance...............................................................................1-11
Post Maintenance Steps .....................................................................1-11
Zero-Energy to Start-Up........................................................... 1-12
Getting Help from KVAL........................................................... 1-14
On-Line Help.......................................................................................1-14
Product Return Procedure..................................................................1-14
How to Download the Service Application ............................... 1-16
Download Application .........................................................................1-16
Safety Sign-Off Sheet .............................................................. 1-19
A Note to the Operator........................................................................1-19
Chapter 2 About KvalCAM
Summary of the KvalCAM Interface ........................................ 2-2
Libraries and Machine Line Screens ....................................................2-2
About the Libraries Screen ...................................................... 2-3
Distinguish between the Door Job and Features Group Libraries ........2-3
Library Screens.....................................................................................2-4
About the Feature Groups and Door Jobs............................................2-5
About the Library Buttons .....................................................................2-5
About Job Creation .................................................................. 2-6
About the Job Name Menu ...................................................................2-7
About the Door Data Menu...................................................................2-7

KVAL DL-NCD Operation Manual
Table of Contents
About the Feature Tree Menu...............................................................2-8
About the Selected Feature Details Menu ............................................2-9
About the Selected Feature Details Menu (Child Level).....................2-10
About the Control Buttons...................................................................2-11
About the Job Preview Screen (2D and 3D).......................................2-12
2 D Screen..........................................................................................2-12
3 D Screen..........................................................................................2-13
About the Machine Line Screen............................................... 2-14
Machine Line Screen ..........................................................................2-14
About Backing up Data and Checking the Revision Status ..... 2-18
Definitions ................................................................................ 2-19
Appendix: Job Preview Examples ........................................... 2-21
Door Face (Lock Preview) ..................................................................2-21
Door Edge (Lock Preview)..................................................................2-22
Door Edge (Hinge Preview) ................................................................2-23
Appendix: About Validation...................................................... 2-24
About the Validation Screen ...............................................................2-25
Outline ................................................................................................2-25
About the LiteCutout Feature Detail ........................................ 2-26
Process...............................................................................................2-26
About the LiteCutout Screen...............................................................2-29
About the Work Area Coordinates......................................................2-30
Sample Oval Cut.................................................................................2-30
Chapter 3 Operation of the Machine Line
About the DL-NCD................................................................... 3-2
About the DL-NCD Process..................................................... 3-3
Initial Powering Operations for the Machine Line .................... 3-4
Operator’s Station.................................................................................3-4
How to Power Up the Machine Line .....................................................3-5
Home the Machine Line........................................................................3-6
How to Power Down the Machine.........................................................3-6
About Emergency Shutdown and Recovery .........................................3-7
To Resume Normal Operation after an E-Stop .....................................3-7
Other Safety Controls ...........................................................................3-7
Machine Line Start Summary................................................... 3-8
About Machine Status Feedback ............................................. 3-10
About the DL-NCD Screens..................................................... 3-11

Table of Contents
KVAL DL-NCD Operation Manual
Screen Tabs........................................................................................3-11
About the Main Control Screen................................................ 3-12
About the Main Control Section ..........................................................3-12
............................................................................................................3-13
About the Width Adjust and Feed Control ..........................................3-14
About the DL-NCD Manual Servo Control Screen................... 3-16
Manual Control Operation...................................................................3-17
About Manual Tool Changer Control...................................................3-18
About the Main Control Section ..........................................................3-19
About Tool Usage .................................................................... 3-20
About the Tool Path Preview Test Tab ..................................... 3-21
About the Tool Config Tabs...................................................... 3-22
General Operating Controls................................................................3-22
Unlock the Tool Slot Configuration......................................................3-23
About the Tool Pop-up Screens ..........................................................3-23
About Tool Locations ..........................................................................3-24
About Using Tool Configuration ..........................................................3-25
Measuring Tool Length .......................................................................3-25
About Entering Data into the Pop-up Menu........................................3-26
About the Lock Block Tab ........................................................ 3-27
About the Status and Log Screens .......................................... 3-28
About the Status Screen .....................................................................3-28
About the Log Screen .............................................................. 3-29
Appendix: Description of the Six Light Panel .......................... 3-30
Appendix: About Backing up the Data ..................................... 3-31
Chapter 4 Calibration of the Machine Line
About Calibration ..................................................................... 4-2
About the Calibration Menus and the Calibration Reference Cut .........4-2
Before you Calibrate .............................................................................4-2
About the Calibration Tabs....................................................... 4-3
Access to the Calibration Adjustments .................................................4-3
Unlock the Calibration (Option).............................................................4-4
Enter a Positive or Negative Number? .................................... 4-5
Door Edge Axis Directions (Option)......................................................4-5
Door Face Axis Directions ....................................................................4-5
How to Enter Calibration Data ................................................. 4-6

KVAL DL-NCD Operation Manual
Table of Contents
About The Calibration Box....................................................................4-6
About Restore Points............................................................................4-7
About the DL-NCD Calibration Screen .................................... 4-8
DL-NCD Calibration Screen..................................................................4-8
Calibration Selections ...........................................................................4-8
About Calibration Sequence .................................................... 4-9
Calibrate the Length and Width ............................................................4-9
Process to Calibrate the Length and Width ..........................................4-9
Step 2: Calibrate the Face Tools.............................................. 4-11
Process to Calibrate the Face Tools ...................................................4-11
Step 3: Calibrate the Face Carriage ........................................ 4-12
Before Calibration ...............................................................................4-12
Face Carriage Axes Calibrations ........................................................4-12
Process to Calibrate the Face Carriage Head ....................................4-13
Face Axis Direction.............................................................................4-13
Step 4: Calibrate the Lock Edge Probe (Option)...................... 4-14
Lock Edge Probe ................................................................................4-14
Before Probe Depth Calibration..........................................................4-14
Process to Calibrate the Probe Depth ................................................4-15
Step 5: Calibrate Lock Edge Tools (Option)............................. 4-16
About the Edge Carriage Axis ............................................................4-16
Process to Calibrate the Lock Edge Tool............................................4-16
Step 6: Calibrate the Tool Holder............................................. 4-17
About the Manual Tool Change Mode ................................................4-17
............................................................................................................4-17
Axis Direction......................................................................................4-18
About the Step Sequence ...................................................................4-18
Process to Calibrate the Tool Holder ..................................................4-18
Step 7: Calibrate the Slug Knockout ........................................ 4-20
Process to Calibrate the Slug Knockout .............................................4-20
Step 8: Calibrate the Clamp..................................................... 4-21
Process to Calibrate the Clamp Assembly .........................................4-21
Step 9: Calibrate the Door Stop ............................................... 4-22
About the Stop 1 Calibration ...............................................................4-22
Appendix: Servo Motor Drive Assembly Locations.................. 4-23
Chapter 5 Tour of the DL-NCD
Top View .................................................................................. 5-2

Table of Contents
KVAL DL-NCD Operation Manual
Operator’s Station.................................................................... 5-3
About Side A and Side B ......................................................... 5-4
Around the Machine................................................................. 5-5
About Indicator Lights ...........................................................................5-5
Option A: About Air Nozzles .................................................................5-5
About Sensors ......................................................................................5-6
Homing and Limit Sensors....................................................................5-7
About the Door Stop System ................................................................5-8
About the Probes .................................................................... 5-9
About the Probe Assemblies ................................................................5-9
About the Cutter Head with Optional Side Drill Assembly ....... 5-10
About the Tool Holder Rack ..................................................... 5-11
Removing the Tool Holder from the Cutter Head..................... 5-12
Changing a Tool Bit and Using Tool-Change Tightening Fixture ........5-13
How to Change a Tool Bit ................................................................5-14
About Field Safety Scanners ................................................... 5-16
About the Drop-Out Area ......................................................... 5-17
Drop-Out: Slide Style ..........................................................................5-17
Drop-Out: Box Style ............................................................................5-17
About the Electrical Panels...................................................... 5-18
About the Frame Node .......................................................................5-20
About the Cutter Node........................................................................5-20

KVAL DL-NCD Operation Manual
Table of Contents

Chapter 1 at a Glance
KVAL Operation Manual 1-1
CHAPTER 1 Introduction to the DL-NCD
This chapter provides an overview of the KVAL DL-NCD machine and important safety information
to follow when operating the machine.
Chapter 1 at a Glance
Section Name Summary Page
Overview of the DL-NCD
System
This section provides an overview of the
machine. It includes a general descrip-
tion and a table of available options
page 1-2
Safety First! IMPORTANT safety information is
described in this section
page 1-5
Lockout-Tagout Guidelines Procedures describing Lockout Tagout. page 1-9
Zero-Energy to Start-Up Procedure to power up your machine for
the first time.
page 1-12
Getting Help from KVAL This section describes the method to
contact the KVAL service center for help.
The section includes how to get informa-
tion from the specification plate tor pro-
vide to KVAL, service center hours, and
return procedures
page 1-20
Safety Sign-Off Sheet A record to track operators that are
trained on the machine.
page 1-19

Overview of the DL-NCD
KVAL Operation Manual
1-2
Overview of the DL-NCD
The DL-NCD is a Numerically-Controlled Door Light Cut-Out Machine
equipped with AC servo control for all three axes of cutting, ‘X’
(Length of the door), ‘Y’ (width of
the door), and ‘Z’ (Depth into the face
of the door). The ‘Z’ axis servo
control makes it simple to pro-
gram for security locks where
the face bore is machined to a
precise depth and also allows the
operator to reduce the plunge
speed to minimize tearout in the
bottom face when machining
small diameter holes. When the DL-NCD is used as a
drill, deburring on the bottom face may be required.
The DL-NCD is equipped with an automatic feed and width
adjust system to automatically receive doors, position the door
against the stop, clamp the door and start the machining sequence if the instructions have been
downloaded.
The DL-NCD can process doors that vary in height from 6’-6” to 8’-0”, 12” to 3’-6” in width and
1-3/4” in thickness. Minimum distance from edge of cutout to edge of door is 1-1/2" on both
sides.The direct drive high frequency spindle motor for cutting the door is equipped with an
automatic tool changer and access to eight (8) additional tool holders placed in a fixture along
the fixed side of the machine. Programs can call for an automatic tool change to match the spec-
ified door cutting process.
RPM adjustment for wood, fiberglass or steel doors.
Individual door light patterns are created at the machine console, or remotely using a standard PC.
The DL-NCD includes an industrial PC with a standard Ethernet connection for file transfer and
library backup, as well as occasional internet support and updates from Kval.
With Purchase, the Customer may submit up to Eight(8) door specifications/cutout templates
which will be pre-programmed prior to shipment. Kval suggests the customer submit their more
difficult templates, such as ovals, for the Kval programmers to implement.
KvalCAM Architectural Door Software
KvalCAM, proprietary architectural door software, provides simple machinery programming and
automated G-Code creation. KvalCAM allows customers to easily create template files for a wide
variety of hardware (locks, closers, sweeps, hinges, etc.) by the shape, dimensions, and location of
the hardware cuts. Understanding G-Code machine-logic is no longer needed to develop pro-
grams for new templates.

Overview of the DL-NCD
KVAL Operation Manual 1-3
The unique feature of this powerful software is providing the capability to utilize one hardware
template for each piece of hardware even if it requires an array of face and edge detailing mor-
tises. KvalCAM integrates multiple machines and tools into a singular functioning unit with each-
machine communicating in unison pulling information from the same door file.
For example, a mortise lock that has five different size face holes (on both faces of the door), an
edge face plate, a mortise pocket, and an extended electrical wire pocket can be grouped as one
hardware template utilizing multiple machines and tools in-line.
Once hardware templates are created, the customer defines specific doors with all hardware and
location to be machined. This can be done with the KvalCAM software off-line, through a cus-
tomer’s database, or by the operator at the machine. When the door is loaded, KvalCAM checks
the tools and machines available, and automatically generates the G-Code and optimizes the
machining sequence for the entire process.
Furthermore, KvalCAM offers increased supportability and troubleshooting capabilities. Newly
developed error codes and code definitions quickly identify any problems to the operator or Kval
tech.
For more information regarding the full functionality and benefits of KvalCAM, please refer to
your Kval Sales Engineer.
All DL-NCD installations require that the integrated PC computer has access to broadband internet
for real-time diagnostics and program updates. On-board diagnostic programs allow the user to
determine the source of operating errors and failures, even after they have occurred.
A tool holder stand and torque wrench are included so tool changes may be done quickly and
accurately.
STANDARD ORIENTATION: Standing at the fixed fence, the DL-NCD feeds from left to right.
Entry doors are oriented sill end leading, with the lock side against the fixed fence. Doors are usu-
ally aligned so the lock side of the door is against the fixed fence to ensure the lock bore backset
is accurate.

Overview of the DL-NCD
KVAL Operation Manual
1-4
About this Manual
This manual is part of a package delivered with the machine line.
Integration Package includes the following:
Operation Manual includes the following:
Service Manual includes the following
Chapter Title Description
1Introduction Descriptions of Machine Line and
Safety Information.
2About KvalCAM Descriptions of the KvalCam user
interface.
3
Operation Inter-
face
Descriptions of how to power
machine line, and operator inter-
face user screens.
4Calibration Descriptions of Calibration Rou-
tines and how to use the interfaces
5Tour of DL-NCD Identification and descriptions of
the DL-NCD machine assemblies.
Chapter Title Description
1Introduction Safety Information.
2System IT Admin-
istration
Descriptions of the PLC system,
and computer system.
3Maintenance Maintenance steps for the
machine line
4Troubleshooting Troubleshooting tips and theory of
operation.
Safety Sheet Sign-Off Sheet
At the end of this chapter, there is a safety sign-off sheet. It lists personnel and machine safety cri-
teria to understand before operating the machine. It is highly recommended that personnel operat-
ing, working on a machine meet the criteria listed in this sheet. It is recommended the sheet be
signed and kept for records. See “Safety Sign-Off Sheet” on page 1-19.

Safety First!
KVAL Operation Manual 1-5
Safety First!
This machine is a powerful electro-mechanical motion control
system. You should test your motion system for safety under
all potential conditions. Failure to do so can result in dam-
age to equipment and/or serious injury to personnel.
Safety Sheet Sign-Off Sheet
At the end of this chapter, there is a safety sign-off sheet. It lists personnel and machine safety cri-
teria to understand before operating the machine. It is highly recommended that personnel operat-
ing, working on a machine meet the criteria listed in this sheet. It is recommended the sheet be
signed and kept for records. See “Safety Sign-Off Sheet” on page 1-19.
Safety Terminology of Labels
In addition to the nameplate, KVAL machines may have other warning labels or decals that pro-
vide safety information to operators. Safety labels should be clearly visible to the operator and
must be replaced if missing, damaged, or illegible.
There are three types of warning labels or decals:
• DANGER means if the danger is not avoided, it will cause death or serious injury.
• WARNING means if the warning is not heeded, it can cause death or serious
injury.
• CAUTION means if the precaution is not taken, it may cause minor or moderate
injury.
Safety Guidelines
In addition to the caution and warning labels affixed to this machine, follow the guidelines below
to help ensure the safety of equipment and personnel.
Ensure that all employees who operate this machine
are aware of and adhere to all safety precautions
posted on the machine and are trained to operate this
machine in a safe manner.
Training

Never operate the machine without proper eye and
ear protection.
Protective Gear
• Never reach hands beyond safety cage. Servo
motors can unexpectedly move quickly.
• Never clear screws or hinges out of the machine
while it is running.
• Never reach into the router area to retrieve a
hinge. The router may still be running down
after shut down.
• Never perform any maintenance unless machine
is at zero state.
• Never clean the machine while it is running.
• Never walk away from the machine while it is
running.
When the Machine is ON
The compressed air system connected to this
machine should have a three-way air valve
for shut-off and pressure relief.
All cylinders on machine are under high
pressure and can be very dangerous when
activated. Before performing any mainte-
nance or repairs on this machine turn off the
main air disconnect. Lockout and tagout
this connection.
See “Lockout Tagout Procedure” on
page 1-10.
Compressed Air
Safety First!
KVAL Operation Manual
1-6

Electrical circuitry on this
machine is protected by an
approved lockable disconnect
circuit. In addition to this equip-
ment, you must install an
approved disconnect for the
electrical power supplying this
machine.
When opening the cabinet you must first turn off the
disconnect switch. When the cabinet door is open there
is still power on the top side of the disconnect switch.
Some machines are powered by more than one supply
located at different locations. Before performing any repairs or mainte-
nance, lockout and tagout must be installed at all locations
All maintenance and repairs to electrical circuitry should only be per-
formed by a qualified electrician.
Still has power
in OFF position
Electrical
Prior to performing any maintenance, repairs,
cleaning or when clearing jammed debris, you
must disconnect, tag out, or lock out the electrical
and air pressure systems. This should be done in
accordance with applicable state and/or federal
code requirements.
Before Conducting Maintenance
Laser Warnings
On some machines, laser indicators are used to set boundaries. Follow the
manufacturers safety precautions.
Safety First!
KVAL Operation Manual 1-7

KVAL advises that you request an on-site state
safety review of your installation of this
machine. This is to ensure conformance to any
additional specific safety and health regula-
tions which apply in your geographic area.
Compliance with Codes and Regulations
Other Hazard Control Action
Report a Hazard
Before You Report an Accident
If you believe any part or operation of this machine is in
violation of any health or safety regulation, STOP pro-
duction. It is your responsibility to immediately protect
your employees against any such hazard.
Additional detailed safety guidelines are included in the
operating instructions of this manual. KVAL will be
pleased to review with you any questions you may have
regarding the safe operation of this machine
Follow Your Company’s Safety Procedures
In addition to these safety guidelines. Your company
should have on-site and machine specific safety proce-
dures to follow.
Safety First!
KVAL Operation Manual
1-8

Lockout-Tagout Guidelines
KVAL Operation Manual 1-9
Lockout-Tagout Guidelines
• Place a tag on all padlocks. On the tag, each
operator must put their own name and date.
(These locks are only to be removed by the
person who signs the tag)
• If more than one person is working on the
machine, each additional person places a lock
and tag on each disconnect.
• Only each operator may remove their own
lock and tag.
Important: When many people are all working
on the same machine you will need a multiple
lockout device, such as the one shown here.
Follow the P-R-O-P-E-R lockout rule of thumb.
P...... Process shutdown
R ...... Recognize energy type (electrical, pneumatic, mechanical, etc.)
O...... OFF! Shut off all power sources and isolating devices
P...... Place lock and tag
E...... ENERGY: Release stored energy to a zero-energy state
R ...... Recheck controls and test to ensure they are in the “OFF” state

Lockout Tagout Procedure
KVAL Operation Manual
1-10
Lockout Tagout Procedure
This policy is required by OSHA regulation 1910.147 and Cal OSHA’S
SB198 ruling of July 1991.
Use the following lockout procedure to secure this machine while it is
powered down. During a lockout, you disconnect all power and shut
off the air supply. Be sure to use the tagout guidelines noted below.
Pre-Steps Before Lockout Tagout
1. Evaluate the equipment to fully understand all energy sources (multiple electrical
supplies, air supply and pressure, spring tension, weight shifts, etc.).
2. Inform all affected personnel of the eminent shutdown, and the duration of the
shutdown.
3. Obtain locks, keys, and tags from your employer’s lockout center.
Lockout Tagout Power
4. Turn off machine. See Chapter 2 for power down and power up procedures.
5. Turn the disconnect switches on ALL electrical and frequency panels to the OFF
position. Then push the red tab to pop it out. Place a padlock through the hole.
Place your tag on the padlock, as per the tagout guidelines below. (see illustration
below).
Power
Note: When multiple people are working on the machine, each person needs to
have a lock on the handle in the extra holes provided.
Insert Lock into hole.
Turn Switch to the
OFF position
Lock and Tag out
