Kvarta SMART PENGUIN User manual

www.kvarta.net 1/ 18
1
SMART Penguin User Manual 1.01
SMART PENGUIN
KVARTA USER’S MANUAL

www.kvarta.net 2/ 18
2
SMART Penguin User Manual 1.01
Contents
1. INTRODUCTION ............................................................................................................................... 3
1.1. About KVARTA ......................................................................................................................... 3
1.2. About DVB ............................................................................................................................... 3
1.3. About IPTV............................................................................................................................... 3
2. SMART PENGUIN KVARTA ............................................................................................................... 4
2.1. INCLUDED ACCESSORIES ......................................................................................................... 4
2.2. GENERAL SPECIFICATIONS OF THE SMART PENGUIN ............................................................. 5
3. GETTING STARTED ........................................................................................................................... 7
3.1. Switching on the device........................................................................................................... 7
3.2. Display Interface...................................................................................................................... 8
4. CONFIGURATION AND OPERATION................................................................................................. 9
4.1. TV Measurements ................................................................................................................... 9
4.1.1. Configuration....................................................................................................................... 9
4.1.2. RF Measurements.............................................................................................................. 10
4.1.3. Constellation diagram ....................................................................................................... 11
4.1.4. MPEG Tables menu ........................................................................................................... 12
4.1.5. Installation menu............................................................................................................... 13
4.1.6. TV menu ............................................................................................................................ 14
4.2. IPTV Measurements .............................................................................................................. 14
4.3. Optical Power Meter ............................................................................................................. 15
4.3.1. About ................................................................................................................................. 15
4.4. Internet Speed Check ............................................................................................................ 16
4.5. General Info........................................................................................................................... 17
5. GLOSSARY ...................................................................................................................................... 18
* Depends on the model

www.kvarta.net 3/ 18
3
SMART Penguin User Manual 1.01
1. INTRODUCTION
1.1. About KVARTA
For more than 20 years, Kvarta has been developing products for Broadcasters and CATV providers.
Our devices are used by major radio and television broadcasters and regulatory agencies.
Broadcasting is our passion. We know what you want and we have designed many devices, which are
perfectly adapted to your needs. These include RDS encoders, FM Radio monitors and CATV systems.
KVARTA has a reputation for excellence and innovation among its clients and partners.
Our CATV, DVB Monitoring devices and RDS/RBDS encoders are growing in popularity due to their
reliability, quality and functionality at exceptional prices. All of our products have been designed for
professional broadcast use and fully meet the standards. Our devices incorporate embedded web
site and SNMP communication.
1.2. About DVB
Digital Video Broadcasting (DVB) is a suite of internationally accepted open standards for digital
television. DVB standards are maintained by the DVB Project, an international industry consortium
with more than 270 members, and they are published by a Joint Technical Committee (JTC) of
European Telecommunications Standards Institute (ETSI), European Committee for Electrotechnical
Standardization (CENELEC) and European Broadcasting Union (EBU).
Our comprehensive digital video system monitoring products ensure consistent, high-quality content
delivery by providing continuous logging and monitoring of multiple signal types in digital TV.
1.3. About IPTV
IPTV means Internet Protocol Television. It is a system of distribution for digital television under the
Internet Protocol that works over broadband data networks.
The main difference between traditional television and IPTV is that traditional television broadcasts
simultaneously all channels (the user selects one and ignores the rest). In IPTV, the receiver only
receives the channel selected. To change channel, the decoder sends a request to the content server,
which sends a new data stream to the client with the selected channel.
IPTV uses two transmission modes depending on the network: Multicast and Unicast.

www.kvarta.net 4/ 18
4
SMART Penguin User Manual 1.01
2. SMART PENGUIN KVARTA
2.1.INCLUDED ACCESSORIES
In your package, you should receive:
•Your Smart Penguin Portable Device
•Carrying bag
•Power Adapter – 2 Amp 12V
•Quick Start Guide

www.kvarta.net 5/ 18
5
SMART Penguin User Manual 1.01
2.2.GENERAL SPECIFICATIONS OF THE SMART PENGUIN
DVB-T/T2 Specifications
Standard
ETSI EN 300 744(DVB-T) ; ETSI EN 300 755(DVB-T2)
Frequency Range
46 MHz - 1004 MHz
Level
30dBuV - 100dBuV (±2dBuV)
CNR
19dB - 45dB (±2dB)
MER
19dB - 45dB (±2dB)
CBER
1E-1~ 1E-7
VBER
1E-1~ 1E-7
Constellations
QPSK/16/64/256QAM
Bandwidth
6MHz/7MHz/8MHz
Symbols rate
1MS/S-7MS/S
Video decoding
MPEG 1, MPEG-2, MPEG-4 AVC H.264
Audio decoding
MPEG 1, MPEG-2, AAC
DVB-S/S2 Specifications
Standard
ETSI EN 300 421(DVB-S) ; ETSI EN 302 307 (DVB-S2)
Frequency Range
46 MHz - 1004 MHz
Level
30dBuV - 100dBuV (±2dBuV)
CNR
5dB - 30dB (±2dB)
MER
5dB - 30dB (±2dB)
BER
1E-1~ 1E-7
SQI(Signal Quality Indicator)
Yes
Supported Code Rate
QPSK:1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10
8PSK:3/5,2/3,3/4,5/6,8/9,9/10
16APSK
32APSK
Maximum Symbol Rate
QPSK/LDPC/BCH : 45MSPS
8PSK/LDPC/BCH : 40MSPS
DVB : 1-45MSPS
Video decoding
MPEG 1, MPEG-2, MPEG-4 AVC H.264
Audio decoding
MPEG 1, MPEG-2, AAC
DVB-C Specifications
Standard
ETSI EN 300 429 and ITU J.83 Annex A/C
Frequency Range
46 MHz - 1004 MHz
Level
30dBuV - 100dBuV (±2dBuV)
CNR
19dB - 45dB (±2dB)
MER
19dB - 45dB (±2dB)
BER
1E-1~ 1E-7
Constellations
QPSK/16/32/64/128/256QAM
Bandwidth
6MHz/7MHz/8MHz
Symbols rate
1MS/S-7MS/S
Video decoding
MPEG 1, MPEG-2, MPEG-4 AVC H.264
Audio decoding
MPEG 1, MPEG-2, AAC

www.kvarta.net 6/ 18
6
SMART Penguin User Manual 1.01
Analogue Specifications
Frequency Range
46 MHz - 1004 MHz
Color scheme
NTSC, PAL/SECAM
Level
30dBuV - 100dBuV (±2dBuV)
SNR
19dB - 55dB (±2dB)
IPTV
IP
224.0.0.0 to 239.255.255.255
Ports
1024 to 65535
Maximum bitrate
65 Mbit/s
Measurements
CC, Delay, Bitrate
Optical Power Meter
Detector type
InGaAs
Wavelength Range
850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Power range
/-50 dBm ~ +6 dBm/ or /-30 dBm ~ +26dBm/
Power display units
dBm
Test time
6 seconds
Power measurement linearity
±0.1 dB2
Power measurement uncertainty
±0.35 dB2
Power measurement repeatability
< 0.10 dB2
Auto wavelength detection
Yes
Power Supply & Mechanical Aspects
Lithium ion battery
12V/3A
Battery life
Approx. 4 hours
Charge time
Approx. 4 hours 30 minutes
Voltage tolerance
+/- 10%
Main AC frequency
45-65 Hz
Display
7" Touchscreen LCD, 800x480 resolution
Height
135mm
Width
218mm
Depth
50mm
Net weight
1,5kg
Updates
Available

www.kvarta.net 7/ 18
7
SMART Penguin User Manual 1.01
3. GETTING STARTED
3.1. Switching on the device
•Switch on the device, from the power button
•A loading screen will appear while the operating system gets ready
•Wait until the loading screen finishes, and the device home page appears

www.kvarta.net 8/ 18
8
SMART Penguin User Manual 1.01

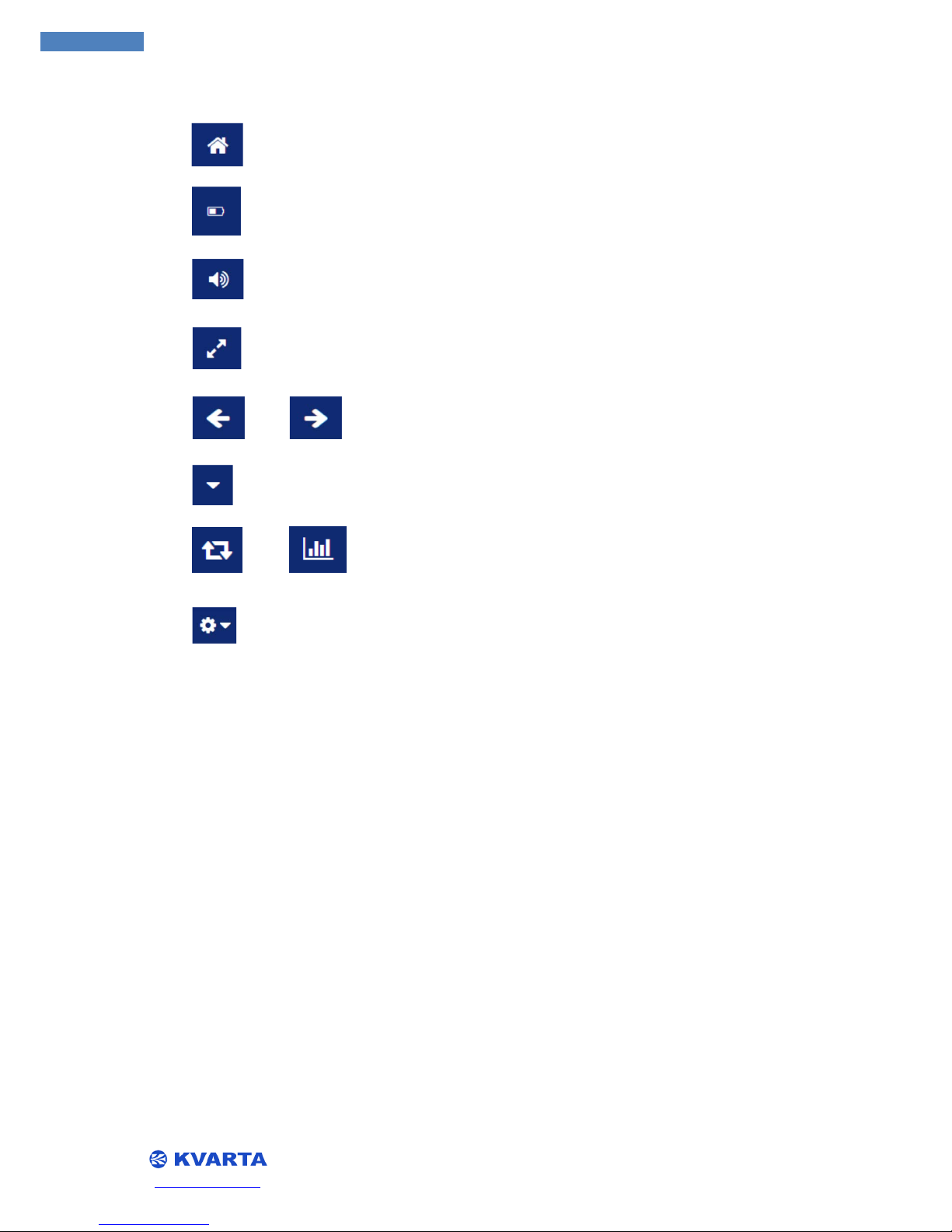

3.2. Display Interface
•- sends you back to the starting home page
•- the battery indicator
•- sound volume control
•- full screen button
•and are for tuning frequency left and right
•- select between the variations of a modulation(T or T2 ; S or S2)
•and - switch between SCAN ON and SCAN OFF
•- opens a drop-down menu, featuring several options for the currently selected
modulation or feature

www.kvarta.net 9/ 18
9
SMART Penguin User Manual 1.01
4. CONFIGURATION AND OPERATION
4.1. TV Measurements
The complex state of today’s video delivery chain makes troubleshooting more difficult and
monitoring more important than ever before. Effective monitoring will make sure that all broadcast,
cable, DSL, and telco operators can isolate and troubleshoot video signal problems before they
interfere with the viewer experience. Therefore, advanced signal monitoring technology is crucial for
delivering the absolute highest quality of experience (QoE) for audiences watching at home, on
computers, mobile devices and so on.
4.1.1. Configuration

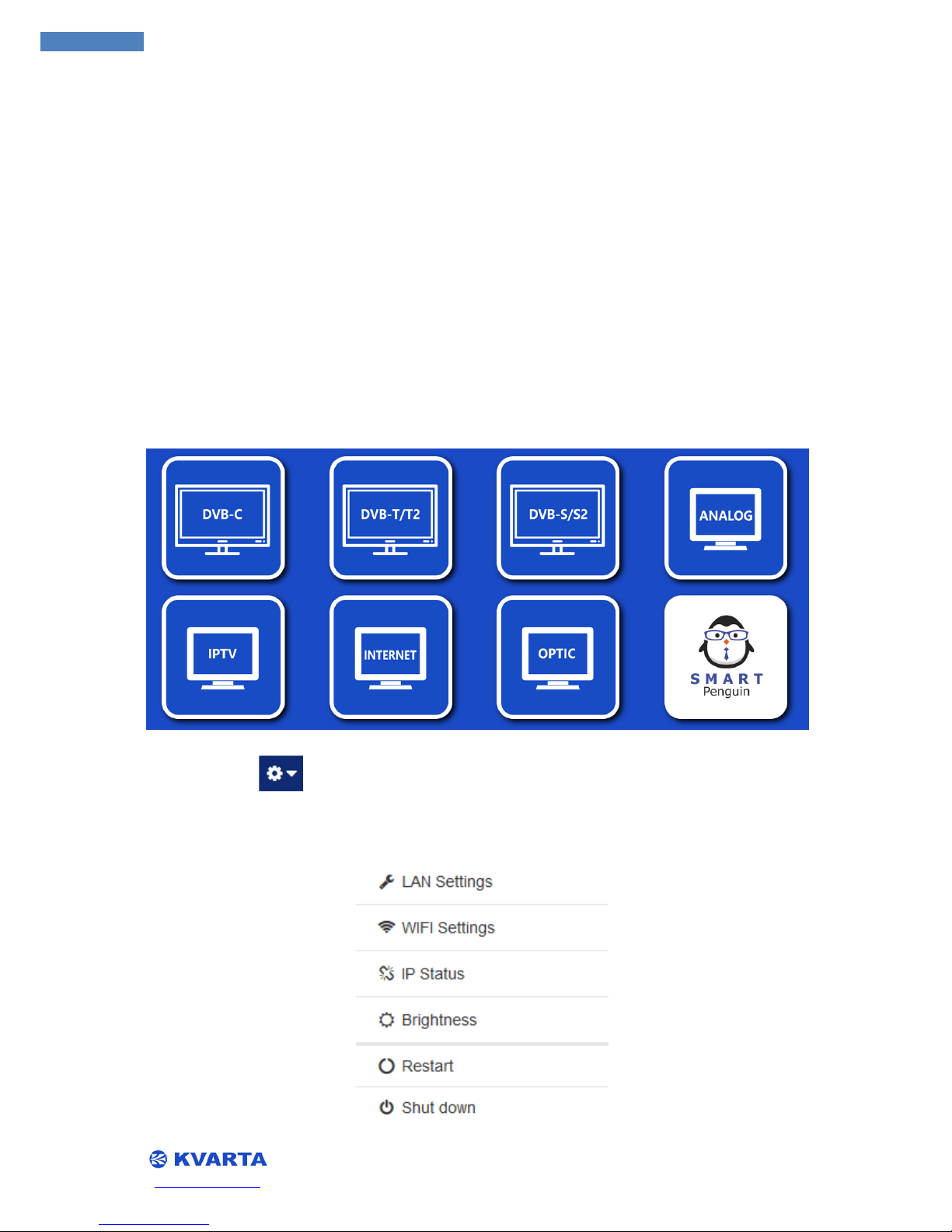

•After the device has finished loading, a menu displaying all available modulations will appear
•Select the modulation type, or any of the other features you wish to check:
DVB-C / DVB-T/T2 / DVB-S/S2 / Analog / IPTV / Internet / Optic / General Info
•Pressing from this page, reveals a few extra available menus, regarding the devices
IP, LAN, WIFI and Brightness settings
•You can also select to Restart or Shut down the device from here

www.kvarta.net 10 / 18
10
SMART Penguin User Manual 1.01
•After choosing a modulation the interface will change to display the measurements for the
selected modulation
4.1.2. RF Measurements
•Checking the status and measured values
•Press and select the Measurements menu
•This page constantly displays the measured RF parameters – Demodulator lock, Bitrate, SNR,
CNR, MER, BER, CBER, VBER and other measurements depending on the modulation type
