KW KLAB Series Operating instructions

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
1/33
USER AND MAINTENANCE
MANUAL
KW APPARECCHI SCIENTIFICI S.R.L.
SERIES KLAB –BBR
FRIGOEMOTECA
0051
D IRETTIVA 93/42/CEE S . M . I .(2007/47/CE)
CLASSE II A , REGOLA 2, ALLEGATO V
ISO 9001:2008 ISO 13485:2012 OHSAS 18001:2007 ISO14001:2004
Matricola. N°:………………………….
ORIGINAL INSTRUCTIONS
REV. 26092017

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
2/33
1
GENERAL........................................................................................................................................................5
2 TECHNICAL SPECIFICATIONS:SERIES DESCRIPTION KLAB-BBR...........................................................6
3 SECURITY AND SAFETY: ............................................................................................................................10
4 INASTALLATION INSTRUCTIONS AND START: ........................................................................................10
5 ISTRUCTIONS:..............................................................................................................................................14
6 DIAGNOSTICS AND ALLARMING................................................................................................................17
7 TROUBLESHOOTING...................................................................................................................................19
8 SCHEMES E PARAMETERS ........................................................................................................................19
9 CLEANING AND ORDINARY MAINTENANCE.............................................................................................20
10 C.A.T AUTHORIZED KW IN ITALY...........................................................................................................22
11 CHANGES .................................................................................................................................................22
12 WASTE DISPOSAL AND DEMOLITION OF THE MACHINE: ..................................................................23
13 TARGET CE ..............................................................................................................................................24
14 DECLARATION OF CONFORMITY TO EC MARK...................................................................................25
15 GUARANTEE CERTIFICATE ....................................................................................................................26
16 DIRECTIONS FOR THE TRANSPORTATION AND PACKAGING ..........................................................27

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
3/33
USER AND MAINTENANCE
MANUAL "KW"
0051
in compliance with the Directives 89/392-91/368-93/44-93/68
In the planning and construction equipment were essential requirements of EEC Dir 89/392 and subsequently
upgraded, with reference to the following standard rules: Law 791/77- EN 60204 / 1-CEI 66-5.
The KW APPARATUS Srl, bearing the famous brand "KW", whose creation and distribution since 1953, working
in the field of biomedical research and science.
Since 1979, the Company's management has concentrated all activities (commercial, administrative,
manufacturing and technology research laboratory) in the current headquarters located in Via della Resistenza
Le Badesse-119-53035-Monteriggioni Siena.
The company currently has a workforce of 20 staff, including technicians, clerks, workers, consultants,
engineering and biology and is present both in Italy and abroad with a sales network composed of scientific staff
and retailers, as well as a qualified service network.
The commitment of the KW in the realization of machines in the service of new biological techniques is
accomplished through the synergistic effect of innovations in manufacturing and marketing, the use of
microelectronics, constant investment in research in applied thermodynamics and control systems integrated
and this allows users to propose a range of products very ergonomic, high-tech, and have a highly dynamic
structure KW, with particular reference to:
- The quality of the product-safety
- Product reliability
- Eco-friendly product.
The company's business is the production, marketing and installation of products currently in the catalog, divided
into 5 distinct areas:
-1) Refrigeration
- T-freezers with temperature up to -130 °C, both horizontal and vertical, and suitable for storage of any
biological material used for cold tests of various kinds.
- Refrigerators (with T combined) for storage of sera, vaccines, various biological materials, drugs, etc..
- For refrigerators and chromatographic techniques gelfiltrazione cold.
- Blood banks
- Control units for cooling liquids
-2) T-controlled environments
- Stoves, range of T up to +250 °C
- Paraffin stoves
- Cabinets frigotermostatati forced circulation of air and water heat storage
- Chambers of T and photoperiod-controlled growth chambers and germination
- CO2 incubators with control% CO2 (air jacket and water jacket) and with flow meters and with electronic
analyzer TC

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
4/33
- Precision thermostatic baths
- Shaking water bath oscillating and linear
-3) Sterilization
- Dry sterilizers ventilated with automatic control of thermal cycle
- Glassware drying cabinets
- Cabinets for storing sterile
-4) Laboratory accessories
- Accessories to complete the above equipment: rack, pipette holder, tube rotators, rotators for bottles, etc..
-5)-Special equipment engineering
- Special equipment and systems on specific design certification for GMP, FDA, etc.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
5/33
1 GENERAL
The recommendations below should be read carefully by the user, as they provide important
information about safe installation, operation and maintenance and possible liquidation.
Also, before operating the equipment it is necessary that employees be trained on the
content of this instruction manual, use and maintenance.
Keep this booklet for future reference.
The perfect conservation and efficiency cooling equipment, primarily dependent on the strict observance of the
information contained herein.
For calibration, modification or attempted repair by unauthorized personnel, for mishandling, or if the installation
takes place in an environment with electrical system does not meet applicable standards of safety, the Company
assumes no responsibility.
After unpacking, check that the 'unit. If in doubt, do not use the appliance and contact your technical support
service center -tel.[phone] KW

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
6/33
2 TECHNICAL SPECIFICATIONS:SERIES DESCRIPTION KLAB-BBR
FRIGOEMOTECA SERIE KLAB
««««««««««««««««
« CFC FREE «
««««««««««««««««
Equipment free of chlorofluorocarbons and other substances harmful to the ozone layer and the environment.
In compliance with the Law n.549, 28.12.1993
KW offers one of the largest selection of refrigerators and freezers for medical, scientific research and industry.
They are for the storage of drugs, diagnostics, vaccines and serums, biological material in general and the
conservation of industrial products.
A wide range of models, capacities and technical functions you - you - the choice of the ideal model.
K-LAB products are the result of technological innovation, quality manufacturing and customer focus continues,
all in the tradition KW Scientific Instruments Ltd, acquired in half a century of activity.
All models are designed and built according to international quality system ISO 9001 and in accordance to
European safety standards CE and UNI-EN-61010 for lab equipment.
Refrigerators and freezers are built using K-LAB HFC refrigerants (CFC and HCFC free), Environmental
Protection Agency.
2.1 S ERIES K-LAB BBR
control panel with:
• mP digital electronic controller with LED display for the integrated management of all functions: refrigeration
compressor, defrost, alarm, internal fans evaporator, etc.
• Alarm T min / max, sound - visual, sound with silence
• Contacts for remote alarm signals
• hard disk recorder in the weekly cycle with its own power supply by battery

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
7/33
2.1.1 Technical Specifications
Modell Temperature Setting Capacity Doors Dravers Dim.est. Power ass. Net Weight
range liters n.° n.° LxPxH (cm) Watt (*) kg
BBR400C NF +4°C 0 +10°C 400 1 7 60x60x190 120 120
BBR400V NF +4°C 0 +10°C 400 1 7 60x60x190 120 125
BBR700C +4°C 0 +10°C 700 1 7 71x80x200 120 140
BBR700V +4°C 0 +10°C 700 1 7 71x80x200 130 150
BBR1500C +4°C 0 +10°C 1500 2 14 142x80x200 150 220
BBR1500V +4°C 0 +10°C 1500 2 14 142x80x200 150 240
BBR300V +4°C 0 +10°C 300 1 7 59X59X188 110 100
BBR300C +4°C 0 +10°C 300 1 7 59X59X188 110 100
BBR180V +4°C 0 +10°C 180 1 3 61x62x105 100 55
BBR180C +4°C 0 +10°C 180 1 3 61x62x105 100 55
BBR850V +4°C 0 +10°C 850 1 7 85x87x200 130 180
(*)that the power must be understood as the average power consumption when operating with the door always
closed, and vacuum unit with ambient temperature of 20 ° C ventilated.
Power 230V/1/50 All models are plastic or metal painted white inside - outside, all are available in stainless steel
AISI 304 interior - exterior, in which case the selection is based on an X finals.
Sample selection: R700C1X = R (COOLER) 700 (CAPACITY ') C (door closed) 1 (No. DOORS) X (inside-
STEEL) V (thermal insulated glass door with triple thick fog)
For some models it is possible to create system with alternating double. Code is added, then the suffix "TG"
(Twin-Group)
Modell Temperature Setting Capacity Doors Dravers Dim.est. Power ass. Net Weight
range liters n.° n.° LxPxH (cm) Watt (*) kg
BBR700V TG +4°C 0 +10°C 700 1 7 71x80x200 130 150
BBR1500V TG +4°C 0 +10°C 1500 2 14 142x80x200 150 240
BBR700V ADV TG +4°C 0 +10°C 700 1 7 71x80x200 130 150
BBR1500V ADV TG +4°C 0 +10°C 1500 2 14 142x80x200 150 240
One-piece structure, exterior and interior painted steel or white plastic, rounded corners, insulated with
polyurethane foam in situ high-density (40 kg / m³), 60mm thick, reversible doors with magnetic gaskets and
self-closing, adjustable feet stainless steel; grid shelves adjustable in height with ventilated refrigeration
temperature uniform hermetic air cooled, silent operation, auto defrost with automatic evaporation of
condensation; lock and key (on all branches), interior lighting ;

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
8/33
2.1.2 Accessories:
kit swivel casters and / or fixed
• grill extra chrome or plastic
• additional grid of stainless steel AISI 304
• additional drawer (perforated) removable stainless steel AISI 304, mounted on sliding rails and tilt (standard on
line Klab BBR, No. 7 for the BBR Klab 700V, No. 14 for BBR Klab 1500V)
• internal dividers (per tray) in plastic
• electronic strip-chart recorder with power 230V/1/50
• closing the control panel, plastic
• electrical outlet internal and external circuit breaker
• double room sensor type NTC
• Single or double room sensor type PT100 Ω
• battery on the controller (standard on line Klab BBR)
• hole inside - outside, with rubber cap
• control of angular velocity of the internal fan
• Provision for connection to a remote unit wardrobe
• Power 115V/1/60 on request
• running without internal electrical contacts
• refrigeration system with two cooling units are completely independent hydraulic circuits in which the electrical
circuit, with alternating operation
• version lined in stainless steel AISI 304 exterior and white
• remote alarm device
2.2 S ERIES K - LAB BBR ADV
Refrigerators +4 °C.
The Advanguard line ®, has many innovative features and is already projected in the near future, when
consumers and the environment will be regulated by laws and regulations more stringent, and when these
issues will be the maximum sensitivity of users.
This series of refrigerators +4 °C, brings together many of the goals of research and development that the KW
was placed on the containment of energy consumption:
• an average thickness of 75 mm standard. which in itself reduces power consumption compared to standard
KLAB series, with 60 mm. Insulation
• A cooling unit block, with:
- A capacitor with large surface area and high efficiency on the heat exchange, reducing the differential between
high (HP) and low (LP) pressure, with an increase in COP (Coefficient Of Performance) and lower energy
consumption;
- An evaporator is sized for a small T (for example, between 5 and 10 °C) and low pressure losses, all in order
to reduce the gap between high (HP) and low (LP) pressure, with increased COP;
- A reduced refrigerant charge, and running fully welded and sealed, in order to lower risk of environmental
impact, in case of leakage.
ADVANGUARD LINE ®, is also a very prestigious series, also to have as standard
- One-piece structure, insulated with polyurethane foam in situ
- Front panel hinged to allow easy access to electrical and refrigerant to the stove
- All internal and external surfaces of sheet stainless steel AISI 304.
- All rounded corners
- Removable magnetic strips for easy cleaning
- Removable racks for tropical plant coolant (up to +43 °C ambient temperature) all the other features common
to the line KLAB

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
9/33
2.2.1 Technical Specifications
Modell Temperature Setting Capacity Doors Dravers Dim.est. Power. Net Weight
range liters n.° n.° LxPxH (cm) Watt (*) kg
BBR700VX ADV +4°C 0 +10°C 700 1 7 76x83x211115 160
BBR700CX ADV +4°C 0 +10°C 700 1 7 76x83x211 110 170
BBR1500VX ADV +4°C 0 +10°C 1500 2 14 147x83x211 140 260
BBR1500CX ADV +4°C 0 +10°C 1500 2 14 147x83x211 140 240
(*)that the power must be understood as the average power consumption during operation with the door always
closed, and vacuum unit with ambient temperature of 20 °C ventilated.
Accessories
kit swivel casters and / or fixed
• grill extra chrome or plastic
• additional grid of stainless steel AISI 304
• Tray (perforated) removable stainless steel AISI 304, mounted on sliding and tipping
• internal dividers (per tray) in plastic
• hard disk recorder in the weekly cycle with its own power supply by battery
• electronic strip-chart recorder with power 230V/1/50
• electrical outlet internal and external circuit breaker
• double room sensor type NTC
• Single or double room sensor type PT100
• battery on the controller
• hole inside - outside, with rubber cap
• control of angular velocity of the internal fan
• Provision for connection to a remote unit wardrobe
• Power 115V/1/60 on request
• running without internal electrical contacts
• refrigeration system with two cooling units are completely independent hydraulic circuits in which the electrical
circuit, with alternating operation
• version lined in stainless steel AISI 304 exterior and white
• remote alarm device

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
10/33
3 SECURITY AND SAFETY:
a) The electrical safety of this equipment is ensured only if the equipment is properly
connected to an efficient earthing system, compliant with current electrical safety standards.
It 'necessary to verify this basic safety requirement and, if in doubt, ask for an accurate
control of the plant by skilled personnel. The KW App Science can not be held responsible
for any damage caused by the lack or inefficient grounded.
b) Verify the electrical capacity of power outlets and is suitable for the maximum power
indicated on the label. If in doubt, contact a qualified professionalmete.
c) The use of any electrical equipment requires the observance of some basic rules:
* Do not touch the appliance with wet hands or feet are wet or damp
* Do not use it with bare feet
* Do not use extension cords unless special care (and after notifying the department shall assist. TECHNICAL
CENTER).
* Do not pull the cord, or the device itself, to remove the plug from the socket
* Do not leave the equipment exposed to weather
* Do not allow the equipment to be used by persons who are unable, without supervision
* Fixed guards (guards fixed firmly connected to the frame) should remain in their seats, properly established
and operations of perfect integrity in all operations relating to normal operation. Before any cleaning or
maintenance, disconnect the unit from the mains supply by pulling the plug.
* In case of failure or malfunction of equipment contact your local authorized service: for the repairs require the
use of original spare parts. Failure to comply with the above may jeopardize the safety of the equipment.
4 INASTALLATION INSTRUCTIONS AND START:
4.1 PRELIMINARY NOTE:
If the equipment is not transported in a VERTICAL position must be taken to spend at
least twenty four hours in this position before starting.
Always contacted our customer service department for instructions regarding the
correct procedure for loading equipment.
4.2 GENARAL INFORMATION
The unit has taken for the normally closed remote alarm signal.
It is recommended to always use the system of remote alarm signal in this unit.
For the operation is necessary to repeat the signal in a room used as a case, (if custodial staff 24 h 24 h) or in
another room where they will remain constant with frequency in the 24 hours medical or paramedical staff, given
appropriate instructions ;
E 'can also connect the alarm system to a telephone dialer to notify remote users.
Be careful-the-counter work so that it remains open for a few minutes during the introduction and removal of
material;
MAKE SURE are closed correctly and DOING 'Always lock. The unit is supplied with two keys, one of which
should be placed in a safe place in case of loss of the other.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
11/33
It is advisable to equip the device with a recording with T an independent probe by the control unit (also in the
catalog KW in different versions more or less sophisticated), able to describe the behavior of T with no solution
continuity (as long as' checked periodically on the battery).
The user then needs to be aware of the need for continued monitoring of equipment (including during the night
and holidays) to have time to transfer the material to another device, in case of failure and / or to verify the
efficiency of CO2 backup system.
4.3 PLACE OF INSTALLATION
The device may be installed in a dry aerabile.
The place must not be exposed to direct sunlight and should not be near a heat source such as a heater, a
stove, another device heat sink (sterilizer, autoclave, etc.)..
Particular attention should be given to location:
leave a space of about 250 mm. at least, behind the chiller unit to allow air to circulate freely.
The heated air at the rear of the unit should be able to escape unhindered.
You should not obstruct, in any case, the space between equipment and wall ventilation or the ventilation grille.
The equipment must be installed in a fixed and flat.
4.4 SET
Make sure the furniture is in a convenient position on the shop floor level and record the state of leveling half of
the adjustable feet, making leveling, with the help of an instrument to bubble. Do not leave equipment on
wooden pallets.
4.5 GRID
Place the media inside the grid in the most suitable position for use, by inserting the tabs of the media in its
housing on the interior pillars.

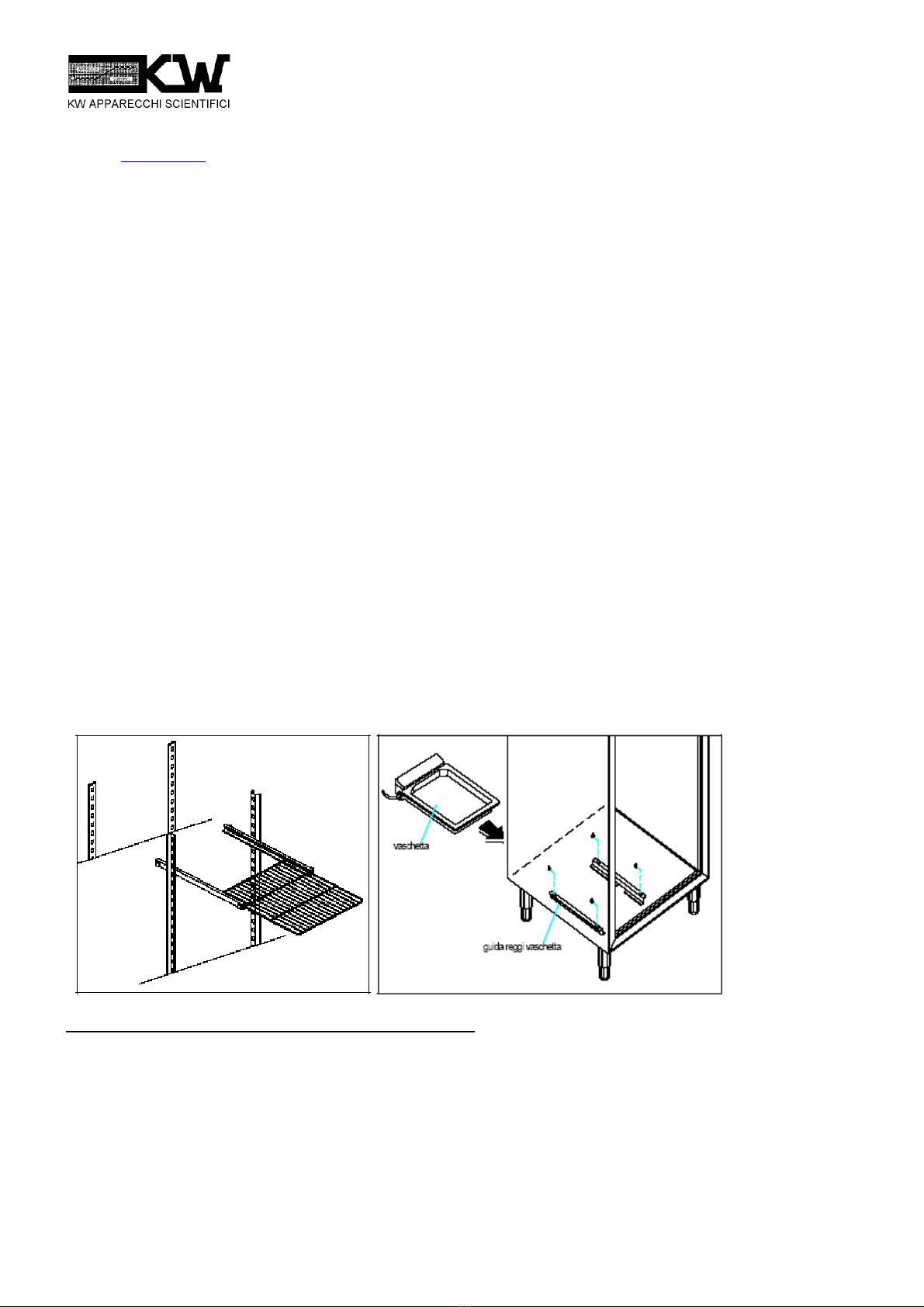

If present, mount the drain pan by inserting it into the guides in place under the machine and then insert the
electrical resistance in the hole under the tray itself.
The maximum temperature in the installation of the unit
should not exceed +30 C, +32 °C T max allowable,
but for limited periods, the device also works with T-top, but in thermodynamic conditions are difficult and not
guaranteed.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
12/33
The room is located where the instrument must have change of air, through a natural circulation or, better, a
forced circulation, where the T is close to +30 °C is necessary for the hottest periods, include the use of an air
conditioner / air conditioner capable of removing the heat of condensation of the freezer => variable from model
to model, the average value of reference about 700/800 W, this must be multiplied by the number of machines in
the same room or area.
The minimum temperature in the installer should not be less than 10 °C, otherwise the unit may not operate
properly and may result in failure to meet
4.6 ELECTRICAL CONNECTION:
Connect the power cord into an outlet protected and properly connected to the
ground according to current regulations.
The device is already ready to be powered by 220V/50Hz, with the use of
electric socket with 16 A (in the case of nominal power greater than 1 KW
installed, you must use a socket part, by blocking, in compliance with the law
force).
GROUNDING INSTALLATION AND 'A PROVISION OF SAFE AND ALSO ' required by law. LA NS.
COMPANY HAD PREPARED IN ACCORDANCE WITH THE RULES IN FORCE THIS CONNECTION,
DISCLAIMS ALL LIABILITY FOR ANY PERSONAL INJURY OR PROPERTY.
After placing the equipment in place designed carefully remove any adhesive films that can cover some parts of
steel or sheet metal.
If you remove glue residue remain with suitable materials, a low flammability.
! Never use abrasive cleaners!
The installation must be done according to the instructions of the KW App.Scientifici Srl by qualified
personnel. Incorrect installation can cause damage to people, animals or things, for which the Ap KW
Science can not be held responsible.
To disconnect the unit from the mains, switch off the power ON / OFF (0 / I), remove the plug from the
laboratory;
Do not pull the power cord or move the device without first removing the plug.
BREACH OF THE ABOVE MAY 'COMPROMISE AND SAFETY EQUIPMENT AS A RESULT OF STORED
PRODUCT AND USERS.
4.7 INTENDED USE OF EQUIPMENT
This equipment should be used only for the purposes it has been conceived: namely for the preservation, low T,
of biological material in general and other materials used in technical and scientific, but not flammable,
explosive, etc.
Any other use is considered improper and therefore dangerous.
The KW App Science can not be held liable for any damages caused by improper, erroneous and
unreasonable.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
13/33
4.8 NOISE
The mean noise level at 1 m. away (in front of the unit) and a height of 1.5 meters, is within 60 dB (A). This value
also depends on the fan status, the cleaning of heat exchangers for the air cooled etc.
4.9 WARNING
The recommendations below should be read carefully by the user, as they provide important information about
safe installation, operation and maintenance and possible liquidation.
Also, before operating the equipment it is necessary that employees be trained on the content of this
instruction manual, use and maintenance.
Keep this booklet for future reference.
After unpacking carry out a thorough cleaning of all equipment, for this operation to verify the procedures set out
in 11. PERIODIC MAINTENANCE (the unit is still clean and supplied with a series prepared for normal
operation).
ALSO:
1. Do not place the unit outside and do not expose it to rain: the maximum external environmental conditions
for the smooth operation of the unit are specified in the data plate located inside the refrigerator (see also 2.
ENVIRONMENTALLY).
2. The unit should be unpacked and installed by one person or by qualified personnel in order to avoid damage
to persons or property. After unpacking, check that the appliance. In case of doubt and / or damages, inform the
supplier immediately and do not operate the equipment.
3. All packaging materials used in the new apparatus can be disposed of without any danger. The board can be
crushed and used for waste paper; the blades are made of polystyrene and free from oil fluorocloridrici the
bandage is branded nylon: these substances can be recycled, if delivered on a collection center (ask for the
AMM. it local).
4. The device should be placed on a flat surface and the smooth functioning is essential that it is perfectly level:
to get this act on adjustable feet. Do not leave equipment on the pallet supply.
5. Place the unit in a ventilated place, away from heat sources (radiators, cookers) and not exposed to sunlight.
For the lighting of the area is positioning suggests the use of fluorescent lamps.
6. The equipment must be rested on a wall. If it should be moved, disconnect the power cord before handling the
plug socket.
7. The device has a lock on the door is closed. The lock keys should be kept out of reach of children and
unauthorized personnel and specially trained personnel.
8. The electrical safety of this equipment is ensured only if the equipment is properly connected to an efficient
earthing system, compliant with current electrical safety standards. It 'necessary to verify this basic safety
requirement and, if in doubt, ask for an accurate control of the plant by skilled personnel. The KW App Science
can not be held responsible for any damage caused by the lack or inefficient grounded.
9. Make sure the electric power plant and power outlets are adequate to absorb the maximum power indicated
on the label. If in doubt, consult a qualified professional.
10. Do not enter into the explosive materials or cans / containers of flammable substances, in contact with
electrical parts, any loss of gas (flammable) can be ignited.
11. Do not store other materials that are incompatible and / or not clearly separated or materials that require
different temperatures of storage.
12. It 'absolutely forbidden to touch the device with your hands or feet are wet.
13. E 'is forbidden to use the machine barefoot.
14. It 'absolutely forbidden to insert fingers above the top panel and in front of the rear of the unit.
15. Do not use extension cords unless special care (and after notifying the department shall assist. TECHNICAL
CENTER).
16. Do not pull the cord, or the device itself, to remove the plug from the socket

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
14/33
17. Do not allow the equipment to be used by people unable to be used and especially unsupervised; alarm
conditions have not been implemented (felt) in time, can lead to loss of the stored material on the inside and / or
may cause more damage to the equipment itself and cause a hazard to the user personnel.
18. In the event of failure or malfunction of the equipment, contact your local authorized service center.
19. Do not try to alter - in any way - the configuration parameters and adjustment of the instrument's electronic
control panel!
20. Do not change - in any way - the electrical wiring, or mechanical connections!
21. The fixed guards (guards fixed firmly connected to the frame) should remain in their seats, properly
established and in a state of perfect integrity in all operations relating to normal operation.
22. Before any cleaning or maintenance, disconnect the unit from the mains supply by pulling the plug.
23. Make sure that the door is closed and that the contact on the micro-switch is efficient.
24. Use the refrigerator at work in the range of values allowed.
25. In the event of failure or malfunction of equipment contact your local authorized service: for the repairs
require the use of original spare parts. Failure to comply with the above may jeopardize the safety of the
equipment.
26. Use only in the range of temperatures to which it is built and tested, not at different temperatures.
27. Do not try to alter - in any way, the configuration parameters and adjustment of the instrument's
electronic control panel!
28. Do not alter in any way-i-wiring or mechanical connections!
CAUTION:
DO NOT WET THE PARTIES SUBJECT TO THE PRESENCE OF MOBILE ELECTRICAL COMPONENTS.
DO NOT FORCE THE PARTIES SUBJECT TO THE PRESENCE OF REFRIGERANT CIRCUIT
COMPONENTS.
The unit is not 'SUITABLE FOR INSTALLATION IN AREAS AT RISK OF FIRE OR EXPLOSION OR
subjected to radiation.
4.10 RESPONSIBILITY
The KW is not responsible for any damage incurred in the use of this equipment to be produced or marketed, if
the recommendations made have not been observed so accurately and scrupulously by the user
.
5 ISTRUCTIONS:
5.1 START
The unit has already tested at the factory, and then, once in place and properly connected to the mains, can now
be turned on (unless the information previously reported).
• Remove from the envelope containing the instructions and the keys;
• remove the cap of the pen recorder temperature disk (if present);
• Connect the equipment into an appropriate outlet;
• press the "O / I" on the Controller;
• Set Power-on password (factory set to 255)
• confirm by pressing the "ENTER"
After a few moments you will see the screen, with its display of set temperature, indoor temperature, date and
time, and after about 60 seconds the machine starts to cool.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
15/33
We recommend you start using the device at least 12 hours after the first time.
If the device does not restart after being deprived of power by disconnecting the plug, wait 10 minutes before
reinserting the current, the device will resume normal operation.
5.1.1 FIRST START
When you first start, after following all warnings at the beginning of this manual, you must first take into account
the time set alarm in the unit. Depending on the model, in fact, and above all of the devices with negative
temperature, time to pull down can be higher than the alarm delay, so that the device will trip temperature (with
an indication on the display and operation of the buzzer). The customer must in this case, silence the buzzer by
pressing "ENTER", and the device automatically, the set temperature is reached, exit the alarm condition.
In the event that the unit reaches the set temperature after three to four hours, the customer is asked to
immediately notify the seller in order to intervene as soon as possible to repair any fault / defect.
5.2 R EGULAR T EMPERATURE
For each adjustment operation follow the instructions on the controller.
For simplicity here, however, also shows the variation of the set of operation - point:
Pressing the MENU 'you get the screen "CHANGE SETPOINT:
Now if you press the Enter key,you enter the mode of change setpoint
Message displayed on the LCD ->
By using the "- " and "+" you can change the value of the current set point "New Set";
Chose the the new setpoint pressing Enter to confirm the value set .
5.3 T EMPERATURE A LARMS
The alarms of T are already set (default values shown in the parameter list enclosed) to - ALL / ALH + °C above
set point and will intervene with a delay of ALD minutes.
To make changes in the settings of the alarms should request the intervention of the technical staff of KW.
5.4 C OLLING T IME
The chiller requires a few hours to get to temperature, do not use the device before it has reached the right
temperature.
4. E 'recommend a time of 12 hours at least for the first stabilization.
5.5 R ECOVERY TIME
The recovery time of the set temperature, after an opening 1-2 minutes, depending on the amount introduced by
the ambient temperature, T in September from the same;
5.6 S YSTEM WITH ADDITIONAL PROBE PANLEL PT100
In case this is an extra sensor PT100 with a cigarette in the back, their connections are:
- pin 1 red wire
NUOVO SET: -75°C
ATTUALE:
-
80°C
Menu 1
CAMBIA SETPOINT

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
16/33
- pole 2 wire white
- 3 pole thread
5.7 O PERATION
The chiller unit is designed to store products at low temperatures it has the ability to freeze (as they nor the F R
version that works at positive temperatures) the quantities introduced at room temperature, then dividing it to
introduce the material in quantities not greater than 1.2 kg at a time, if not to the T desired storage.
The control acts on the plant's refrigeration until it has reached the set temperature, the user can control the
operation by means of markings on a control panel LEDs.
You may check:
• voltage presence indicator on illuminated display →
• Indicator measure refrigeration (compressor on)
indication display "cool"
• Indicator off refrigeration (compressor stop)"
•
indication on the display "on hold"
The set point of the pre-coolers is factory set to +4 °C, while that of the freezers is factory preset to -20 °C. If
the value of hysteresis (differential T) for the ON / OFF control is pre-calibrated at the factory to ±2 °C and is
symmetric with respect to the set.
Refrigerator for example:
Tset = +4 °C; run (or start) to +5 °C, stop at +3 °C.
Freezer for example:
Tset = -20 °C run (or start) to -19 °C, stop at -21 °C.
The T in the room should not exceed +30 C;
the device also works with T-top, but in thermodynamic conditions very difficult.
WARNING: The minimum room temperature shall be not less than 10 °C,
otherwise the unit may not operate properly and may result in failure to meet
5.8 DEFROSTING:
There is no action being automatic defrost the evaporator static and insulated on the walls of the unit.
On the inner walls of all units, due to condensation moisture in the air, forming a layer of frost. This represents a
real thermal insulation and reduces the efficiency of the apparatus.
At certain intervals and whenever the frost layer exceeds 5 / 6 mm thick, must be removed using a plastic knife
or a stiff brush: Snow / ol 'water which is obtained must be removed.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
17/33
5.9 TEMPERATURE RECORDER ( OPTIONAL )
To operate this unit, refer to the manual.
5.1 V ERSION NO INTERNAL ELECTRICLA CONTACTS
A request is also available, without internal electrical contacts.
The device, in this case, has no internal fan, no lighting, and has a special unit that allows static evaporating the
best possible uniformity of temperature inside the compartment. In this version you can install the battery and /
or PT100 Ω.
6 DIAGNOSTICS AND ALLARMING
The list of alarms, how they and their availability on the remote connector is available in the manual attached to
the controller for New Ice Age KW.
It is derived from a reading of the manual of the controller, which contains all the alarms and related
reports.
The main ones are still reported even after
.
6.1 ALLARMING OF TEMPERATURE ( A RESET AUTOMATICO )
The device warns of a possible exit from the range of allowable temperatures and pre-calibrated at the factory (T
<Tset - ALL °CT> Tset + ALH °C, see list of parameters to the default values of ALL and ALH).
The indication is given on the display in the manner described in this manual annex on the controller.
6.1 ALLARMING OPEN DOOR
The unit is equipped with door open alarm that operates with a delay of several seconds (factory set to DOO
seconds, you see the list of parameters for the pres set value of DOO).
The tone of this type of alarm can be silenced if not closing the door.
CAUTION, do not use the sensor closing the door to silence the alarm or for other reasons.
NOTE: The delay time DOO seconds can be changed, but this parameter is not user-accessible;
To change this parameter is required to deal with the SERVICE ASSIST. CENTRAL TECHNICAL KW.
6.1 BACKUP BATTERY
The series KLAB-BBR provides a standard battery on the controller, this allows you to display the temperature
even in the absence of power for several hours, in addition to being work immediately the buzzer and remote
alarm signal.
Note, however, that the backup battery, Pb 12V 2Ah, has a life of about 2-3 years, beyond which no longer
guarantees its operation. The efficiency of the battery is checked continuously by the controller, and if the
voltage drops below a preset value of 7 V, the system will inform the user via the message "Battery Fault" in this
case it will be necessary replace the battery as soon as possible with a new one
.
6.2 REMATE ALARM
ALWAYS USE THE SYSTEM OF REMOTE ALARM SOUNDS, who throws the alarm panel, or is recommended
to repeat the signal in a room used as a case, (if custodial staff 24 hours to 24 hours) or in another room where
they will remain constant with frequency in the 24 hours medical or paramedical staff, given appropriate
instructions, or you can even connect your alarm system to a telephone dialer to notify remote users.
The user then needs to be aware of the need for continued monitoring of equipment (including during the night

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
18/33
and holidays) to have time to transfer the material to another device, in case of failure and / or to verify the
efficiency of CO2 backup system and / or LN2.
For other abnormalities refer to the manual of the controller and any attached request
assistance by reporting faults found with the manufacturer KW:
Phone [phone]
Fax [phone]
CAUTION
The KW is not responsible for any damage incurred in the use of this equipment to be produced or
marketed, if the recommendations made have not been observed so accurately and scrupulously by the
user.

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
19/33
7 TROUBLESHOOTING
The following table lists possible problems with other causes and remedies.
DISADVANTAGES CASES REMEDIES
The car will not start No power network Check that there is tension on the
power socket
Power cable terminated Check cable and that there are
internal interruptions
Blown fuses Check the fuses
The door will not close Icing on the linings Remove ice, record the hinges
(ASS KW)
Objects protruding excessively from
the inner case
Remove item
Poor cooling Ambient temperature> +30 °C Check the °T environment and
properly ventilate the room
Dirty condenser Clean the condenser
Excessive entry of hot material into
the unit
Wait a few hours, or remove the
material
In launching the device triggered the
switch QE
Short circuit in unit Search for the short call and the
Ass. KW
Earth leakage in the system Search losses and call the Ass. KW
The display indicates The electronic components are
damager
Call l’Ass. KW
Heavy equipment Unstable position of the mobile Check
Something is in contact with the
mobile
Check
The fans are dirty or damaged Check and replace if necessary
(abs KW)
The chart recorder is not working
properly
Does not scroll the paper Check and replace the battery
Do not write the °T Check and replace the pen
There is no movement Call l’ASS. KW
8 SCHEMES E PARAMETERS
Attached are given the diagrams and the parameter list

VIA DELLA RESISTENZA 119 – 53035 MONTERIGGIONI – SIENA-ITALIA
ASSISTENZA TECNICA TEL.[phone] Fax: [phone]
e-mail: [email protected]
T:\003_Apparecchi dal 04-2002\118_Manuali_rev_CE_2007(2010)\209_Manuali 93_42\KLAB_BBR_FRIGOEMOTECA_93_42\man serie KLAB-BBR VERS 1062010_ENG.doc
N.B.: The information and instructions contained in this manual refer to the models currently in production. KW reserves
itself the right to make any modifications deemed necessary for the technical improvement of the products at any time,
communicating said modifications only when reprinting this manual.
.
20/33
9 CLEANING AND ORDINARY MAINTENANCE
ATTENTION: ALL MAINTENANCE OPERATIONS TO BE CARRIED OUT BY A TECHNICIAN
Always unplug the appliance before cleaning it. Pull out
the plug and roll up the power cord.
Clean the inside and the external parts of the
appliance with tepid water, to which a small amount of
detergent has been added. Under no circumstances
should detergents, abrasive solutions or acid be used.
The use of a universal neutral pH detergent is
recommended.
It is forbidden to use water jets for cleaning.
The application of products to give brilliance is
advisable only on the external surface.
When cleaning use maximum caution in order to avoid water entering the electric components which may be
inside the refrigerated cabinet.
Dry the appliance with a cloth.
IMPORTANT: Avoid the use of abrasive paste, steel wool and normal steel brushes to clean the stainless steel,
since ferrous particles may be deposited and cause rust when oxidising.
9.1 CLEANING THE CONDENSATOR
The cleaning of the condenser is recommended at least twice a year when used in dusty should be conducted
more frequently (at times even monthly).
E 'appropriate to do so by technical staff (not covered by the warranty
anyway), use a ladder (a safety standard), removing the equipment
from the wall in advance (at least 80 cm.), the cleaning can be
performed using a brush with soft bristles and a vacuum cleaner, or
compressed air, taking care not to bend the fins on the capacitor.
In carrying out this operation is required to use protective gloves to
avoid cuts to hands, dust mask and goggles.
Clean the condenser, as well as ensuring a better operation.
EQUIPMENT, ALLOWS 'TO OBTAIN CONSISTENT REDUCTION IN
CONSUMPTION OF ELECTRICITY.
WARNING: Do not remove or damage the plate on the right side of the cabinet
N.B.: se l’apparecchio Do not remove or damage the plate on the right side of the
cabinet
NB: If the unit has been recently turned off some of the bodies may be hot, be careful
not to touch them with bare hands!
Once done cleaning, replace all the grids, replace the unit, reconnect the power supply.
Please note that the cooperation of machine cleaning, if performed by trained personnel, requires a few tens of
minutes, so it is not necessary, in general, the empty set. Keep in mind that the internal temperature at the end
of this operation, you may also climb a lot.
9.1 PACKING:
The seal of the lid or door must be checked from the point of view of the estate, if you remove it by thawing ice
forms, not to tear the gasket. The seal is necessary to keep it lubricated with silicone grease or other type of fat
