Kyocera TASKalfa 3050ci User manual

SERVICE
MANUAL
Published in March 2011
842LC112
2LCSM062
Rev. 2
TASKalfa 3050ci
TASKalfa 3550ci
TASKalfa 4550ci
TASKalfa 5550ci

CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
It may be illegal to dispose of this battery into the municipal waste stream. Check with your
local solid waste officials for details in your area for proper disposal.
ATTENTION
IL Y A UN RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN MODELE
DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES UTILISEES SELON LES
INSTRUCTIONS DONNEES.
Il peut être illégal de jeter les batteries dans des eaux d’égout municipales. Vérifiez avec les
fonctionnaires municipaux de votre région pour les détails concernant des déchets solides
et une mise au rebut appropriée.
Notation of products in the manual
For the purpose of this service manual, products are identified by print speed at A4 and
black and white modes.
TASKalfa 3050ci: 30 ppm model
TASKalfa 3550ci: 35 ppm model
TASKalfa 4550ci: 45 ppm model
TASKalfa 5550ci: 55 ppm model

Revision history
Revision Date Replaced pages Remarks
1 March 14, 2011 Safety precautions, 1-2-12 -
2 March 31, 2011 Contents, 1-1-1 to 1-1-4, 1-1-7, 1-2-2, 1-2-4 to 1-2-6,
1-2-12 to 1-2-15, 1-2-17 to 1-2-70, 1-3-2 to 1-3-10,
1-3-14, 1-3-18 to 1-3-25, 1-3-27, 1-3-28, 1-3-31,
1-3-32, 1-3-34 to 1-3-37, 1-3-39 to 1-3-55, 1-3-57 to
1-3-89, 1-3-93 to 1-3-100, 1-3-103 to 1-3-105,
1-3-113 to 1-3-118, 1-3-121, 1-3-124, 1-3-125,
1-3-130 to 1-3-135, 1-3-140, 1-3-143, 1-3-146,
1-3-148, 1-3-150 to 1-3-153, 1-3-155 to 1-3-157,
1-3-162, 1-3-163, 1-3-166, 1-3-169 to 1-3-171,
1-3-173, 1-3-174, 1-3-176 to 1-3-178, 1-3-181,
1-3-185, 1-3-187, 1-3-190, 1-3-191, 1-3-193,
1-3-198, 1-4-3 to 1-4-25, 1-4-28 to 1-4-49, 1-4-53,
1-4-59, 1-4-61, 1-4-62, 1-4-65 to 1-4-68, 1-4-73,
1-4-81, 1-4-82, 1-4-84, 1-4-89 to 1-4-92, 1-4-94,
1-4-100, 1-4-103 to 1-4-108, 1-5-3, 1-5-4, 1-5-10,
1-5-11, 1-5-15, 1-5-19, 1-5-20, 1-5-25, 1-5-30,
1-5-33 to 1-5-35, 1-5-39, 1-5-40, 1-5-41, 1-5-43,
1-5-45, 1-5-47, 1-5-49, 1-5-52, 1-5-54, 1-5-61,
1-5-62, 1-5-66, 1-5-68,1-5-69, 1-5-72, 1-5-74,
1-5-77, 1-5-81, 1-5-82, 1-5-86, 1-5-89, 1-5-90,
2-1-12, 2-1-13, 2-1-20, 2-1-21, 2-1-23, 2-2-1 to
2-2-6, 2-2-8 to 2-2-10, 2-3-6, 2-3-7, 2-3-12, 2-3-15,
2-3-17, 2-3-18, 2-3-20, 2-3-30, 2-3-33, 2-3-34,
2-3-40, 2-3-41, 2-3-44, 2-3-47, 2-3-58 to 2-3-60,
2-3-67, 2-3-71 to 2-3-74, 2-3-77, 2-3-85, 2-4-11 to
2-4-13, 2-4-16 to 2-4-21, 2-4-28 to 2-4-30
-

This page is intentionally left blank.

Safety precautions
This booklet provides safety warnings and precautions for our service personnel to ensure the safety of
their customers, their machines as well as themselves during maintenance activities. Service personnel
are advised to read this booklet carefully to familiarize themselves with the warnings and precautions
described here before engaging in maintenance activities.

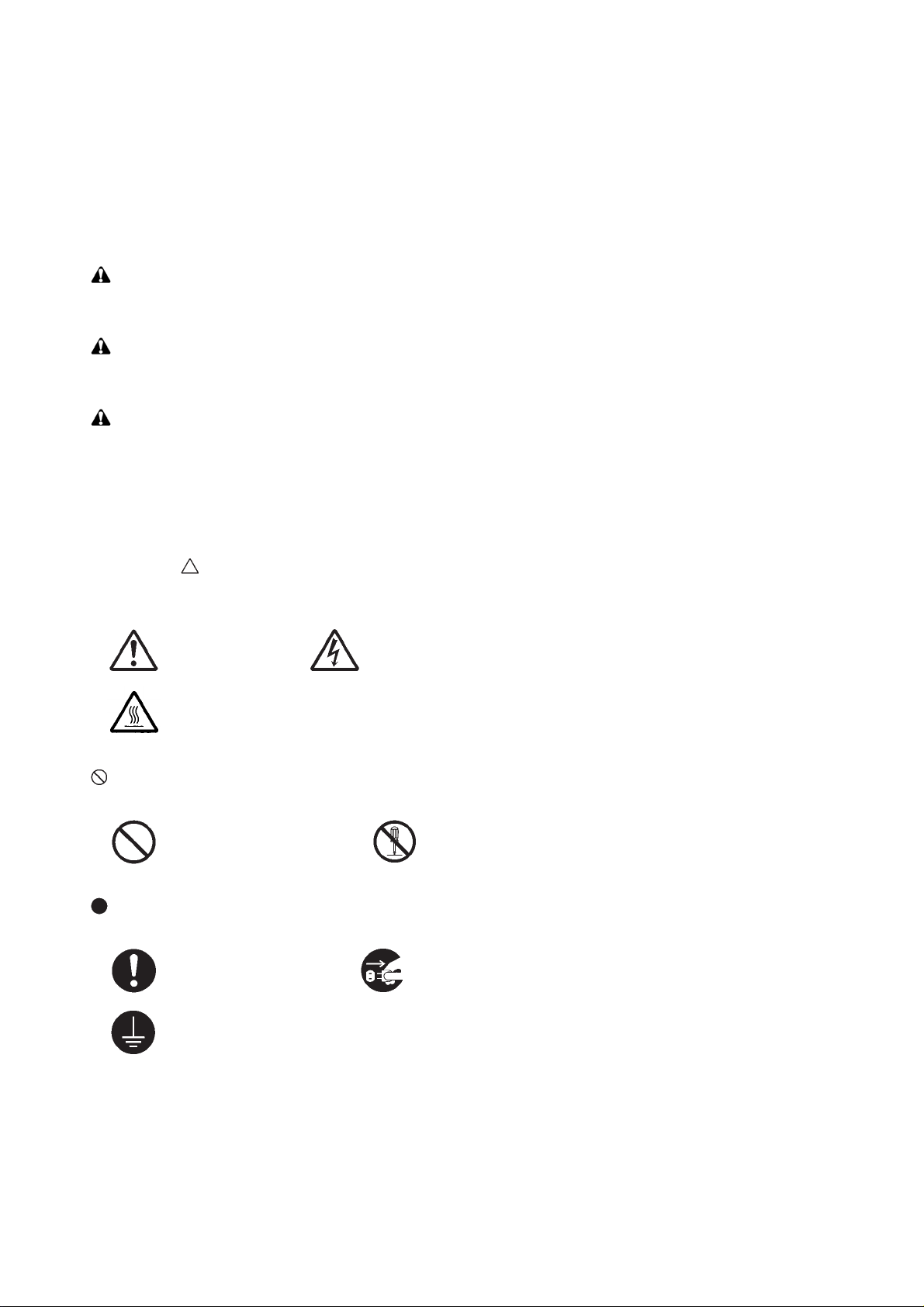

Safety warnings and precautions
Various symbols are used to protect our service personnel and customers from physical danger and
to prevent damage to their property. These symbols are described below:
DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect
compliance with warning messages using this symbol.
WARNING: Serious bodily injury or death may result from insufficient attention to or incorrect compliance
with warning messages using this symbol.
CAUTION: Bodily injury or damage to property may result from insufficient attention to or incorrect com-
pliance with warning messages using this symbol.
Symbols
The triangle ( ) symbol indicates a warning including danger and caution. The specific point of attention is
shown inside the symbol.
General warning. Warning of risk of electric shock.
Warning of high temperature.
indicates a prohibited action. The specific prohibition is shown inside the symbol.
General prohibited action. Disassembly prohibited.
indicates that action is required. The specific action required is shown inside the symbol.
General action required. Remove the power plug from the wall outlet.
Always ground the copier.

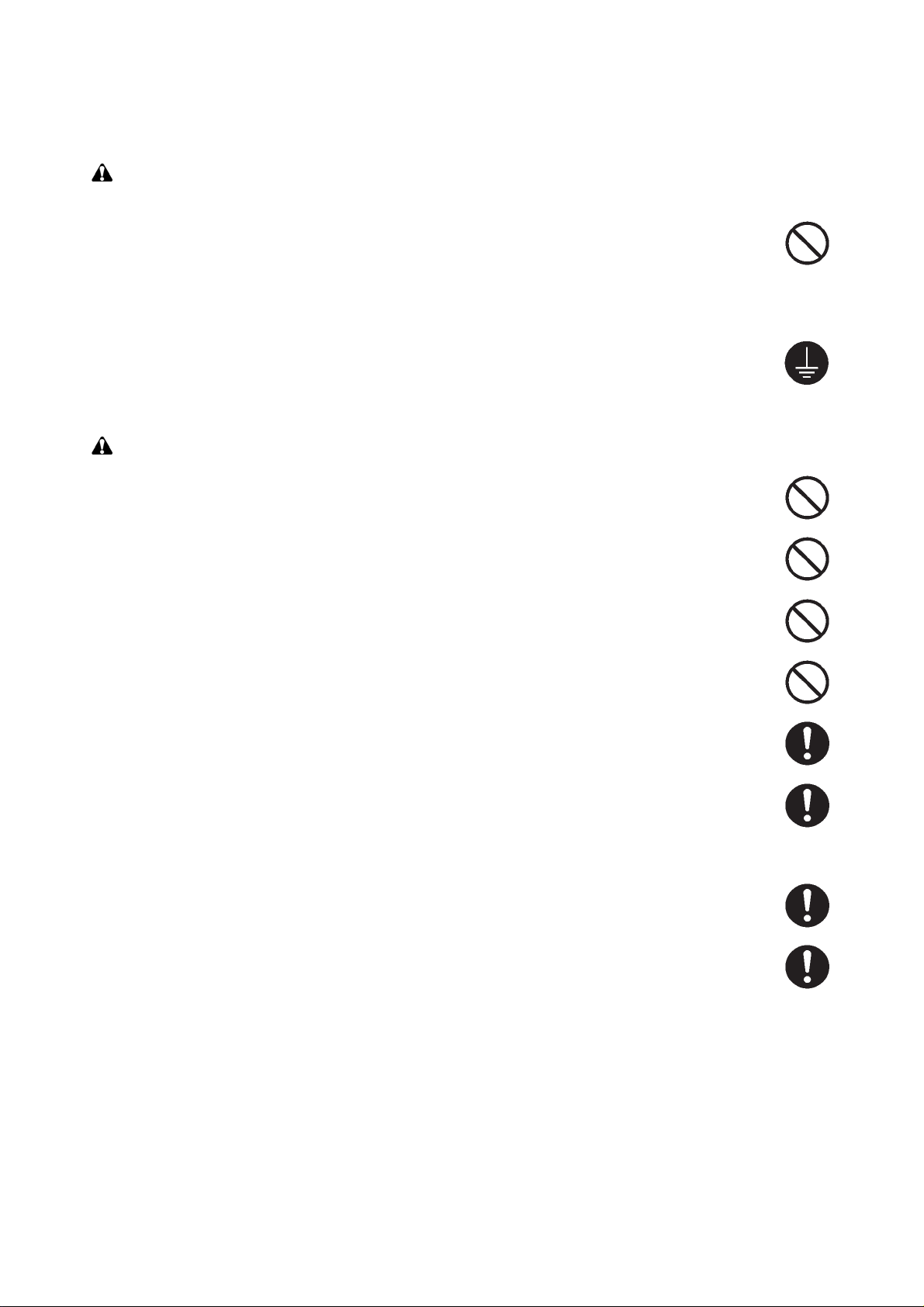

1. Installation Precautions
WARNING
• Do not use a power supply with a voltage other than that specified. Avoid multiple connections to
one outlet: they may cause fire or electric shock. When using an extension cable, always check that
it is adequate for the rated current. .....................................................................................................
• Connect the ground wire to a suitable grounding point. Not grounding the copier may cause fire or
electric shock. Connecting the earth wire to an object not approved for the purpose may cause
explosion or electric shock. Never connect the ground cable to any of the following: gas pipes, light-
ning rods, ground cables for telephone lines and water pipes or faucets not approved by the proper
authorities. ..........................................................................................................................................
CAUTION:
• Do not place the copier on an infirm or angled surface: the copier may tip over, causing injury. .........
• Do not install the copier in a humid or dusty place. This may cause fire or electric shock. .................
• Do not install the copier near a radiator, heater, other heat source or near flammable material. This
may cause fire. ...................................................................................................................................
• Allow sufficient space around the copier to allow the ventilation grills to keep the machine as cool
as possible. Insufficient ventilation may cause heat buildup and poor copying performance. ............
• Always handle the machine by the correct locations when moving it. .................................................
• Always use anti-toppling and locking devices on copiers so equipped. Failure to do this may cause
the copier to move unexpectedly or topple, leading to injury. ..............................................................
• Avoid inhaling toner or developer excessively. Protect the eyes. If toner or developer is accidentally
ingested, drink a lot of water to dilute it in the stomach and obtain medical attention immediately.
If it gets into the eyes, rinse immediately with copious amounts of water and obtain medical atten-
tion. .....................................................................................................................................................
• Advice customers that they must always follow the safety warnings and precautions in the copier’s
instruction handbook. .........................................................................................................................

2. Precautions for Maintenance
WARNING
• Always remove the power plug from the wall outlet before starting machine disassembly. ................
• Always follow the procedures for maintenance described in the service manual and other related
brochures. ..........................................................................................................................................
• Under no circumstances attempt to bypass or disable safety features including safety mechanisms
and protective circuits. ........................................................................................................................
• Always use parts having the correct specifications. ............................................................................
• Always use the thermostat or thermal fuse specified in the service manual or other related brochure
when replacing them. Using a piece of wire, for example, could lead to fire or other serious acci-
dent. ...................................................................................................................................................
• When the service manual or other serious brochure specifies a distance or gap for installation of a
part, always use the correct scale and measure carefully. ..................................................................
• Always check that the copier is correctly connected to an outlet with a ground connection. ...............
• Check that the power cable covering is free of damage. Check that the power plug is dust-free. If it
is dirty, clean it to remove the risk of fire or electric shock. .................................................................
• Never attempt to disassemble the optical unit in machines using lasers. Leaking laser light may
damage eyesight. ...............................................................................................................................
• Handle the charger sections with care. They are charged to high potentials and may cause electric
shock if handled improperly. ...............................................................................................................
CAUTION
• Wear safe clothing. If wearing loose clothing or accessories such as ties, make sure they are safely
secured so they will not be caught in rotating sections. ......................................................................
• Use utmost caution when working on a powered machine. Keep away from chains and belts. ..........
• Handle the fixing section with care to avoid burns as it can be extremely hot. ..................................
• Check that the fixing unit thermistor, heat and press rollers are clean. Dirt on them can cause
abnormally high temperatures. ...........................................................................................................

• Do not remove the ozone filter, if any, from the copier except for routine replacement. ......................
• Do not pull on the AC power cord or connector wires on high-voltage components when removing
them; always hold the plug itself. ........................................................................................................
• Do not route the power cable where it may be stood on or trapped. If necessary, protect it with a
cable cover or other appropriate item. ................................................................................................
• Treat the ends of the wire carefully when installing a new charger wire to avoid electric leaks. ..........
• Remove toner completely from electronic components. .....................................................................
• Run wire harnesses carefully so that wires will not be trapped or damaged. ......................................
• After maintenance, always check that all the parts, screws, connectors and wires that were
removed, have been refitted correctly. Special attention should be paid to any forgotten connector,
trapped wire and missing screws. .......................................................................................................
• Check that all the caution labels that should be present on the machine according to the instruction
handbook are clean and not peeling. Replace with new ones if necessary. .......................................
• Handle greases and solvents with care by following the instructions below: ......................................
· Use only a small amount of solvent at a time, being careful not to spill. Wipe spills off completely.
· Ventilate the room well while using grease or solvents.
· Allow applied solvents to evaporate completely before refitting the covers or turning the power
switch on.
· Always wash hands afterwards.
• Never dispose of toner or toner bottles in fire. Toner may cause sparks when exposed directly to
fire in a furnace, etc. ...........................................................................................................................
• Should smoke be seen coming from the copier, remove the power plug from the wall outlet immedi-
ately. ...................................................................................................................................................
3. Miscellaneous
WARNING
• Never attempt to heat the drum or expose it to any organic solvents such as alcohol, other than the
specified refiner; it may generate toxic gas. ........................................................................................
• Keep the machine away from flammable liquids, gases, and aerosols. A fire or an electric shock
might occur. ........................................................................................................................................

This page is intentionally left blank.

2LK/2LN/2LM/2LC-2
CONTENTS
1-1 Specifications
1-1-1 Specifications ........................................................................................................................ 1-1-1

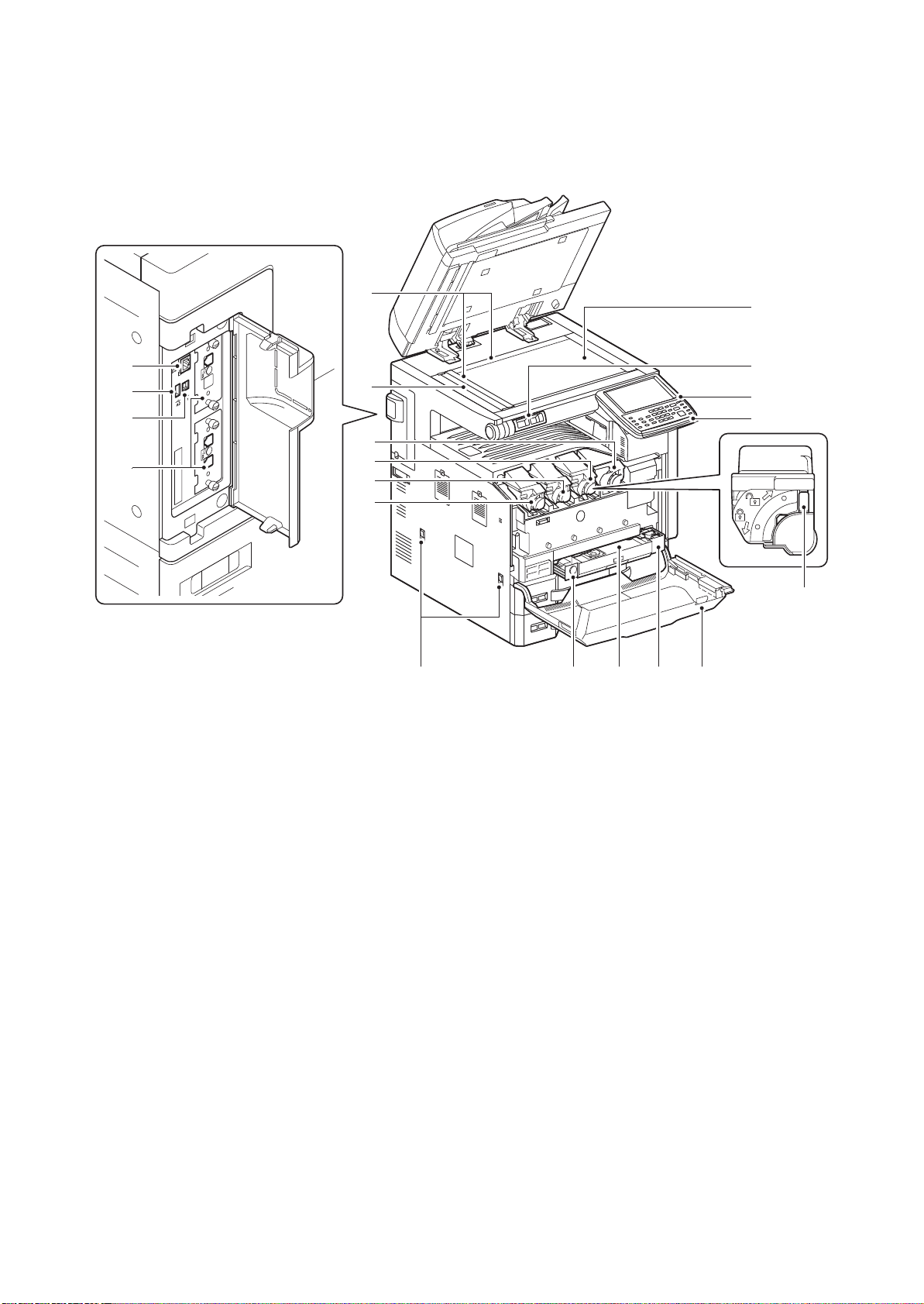

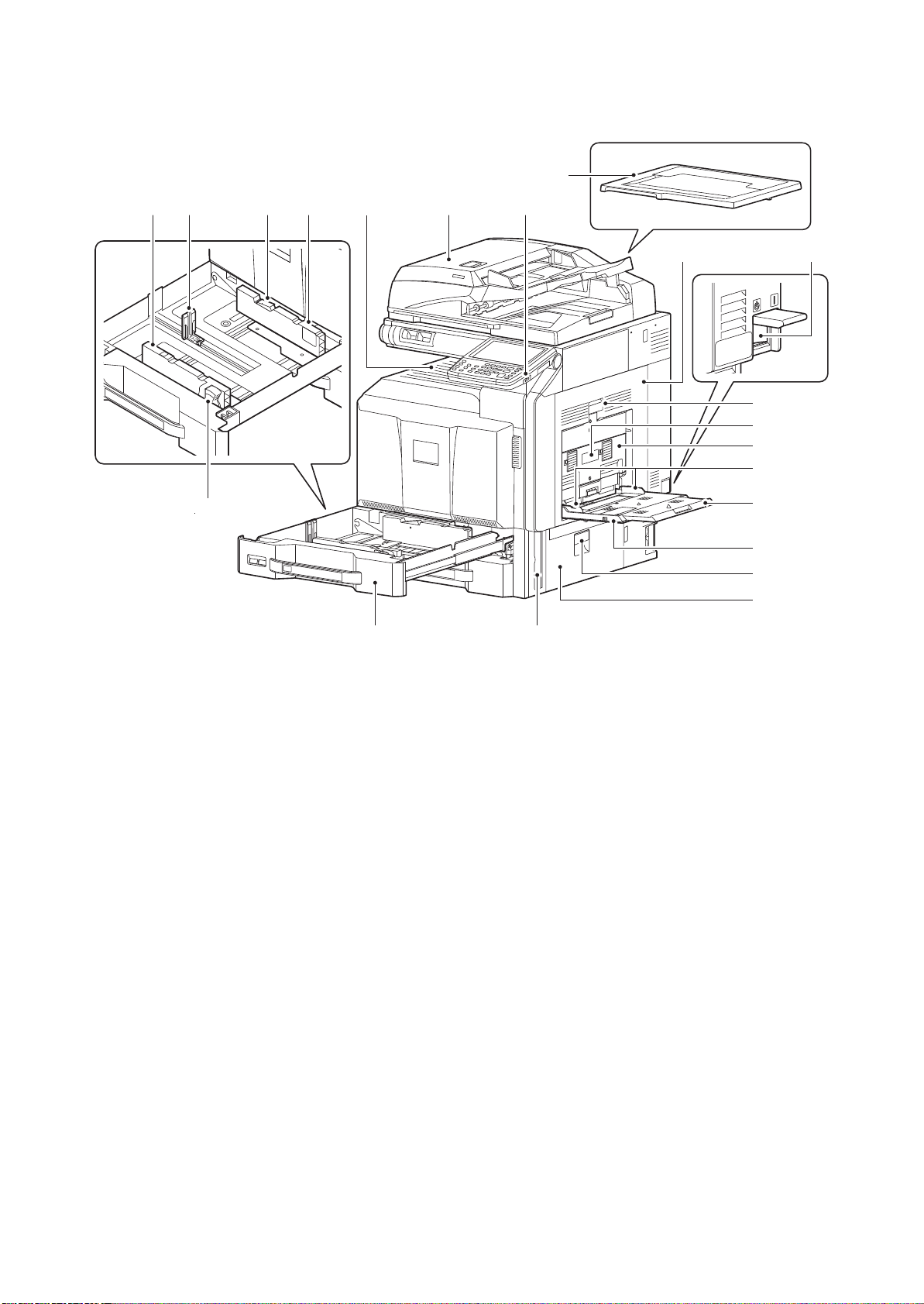

1-1-2 Parts names ..........................................................................................................................1-1-5
(1) Machine ............................................................................................................................1-1-5
(2) Option ............................................................................................................................... 1-1-7
(3) Operation panel ................................................................................................................1-1-8
1-1-3 Machine cross section ...........................................................................................................1-1-9
1-2 Installation
1-2-1 Installation environment.........................................................................................................1-2-1
1-2-2 Unpacking and installation.....................................................................................................1-2-2
(1) Installation procedure .......................................................................................................1-2-2
(2) Setting initial copy modes............................................................................................... 1-2-18
1-2-3 Installing the key counter (option)........................................................................................1-2-19
(1) Installing directly on the device.......................................................................................1-2-19
(2) Mounting on the document table ....................................................................................1-2-28
1-2-4 Installing the key card MK-2 (option for japan only).............................................................1-2-36
1-2-5 Installing the KMAS (option for japan only) .........................................................................1-2-50
1-2-6 Installing the coin vender (option for japan only) ................................................................. 1-2-59
1-2-7 Installing the cassette heater (option)..................................................................................1-2-64
1-2-8 Installing the gigabit ethernet board (option) .......................................................................1-2-68
1-3 Maintenance Mode
1-3-1 Maintenance mode ................................................................................................................1-3-1
(1) Executing a maintenance item .........................................................................................1-3-1
(2) Maintenance modes item list............................................................................................ 1-3-2
(3) Contents of the maintenance mode items ......................................................................1-3-11
1-4 Troubleshooting
1-4-1 Paper misfeed detection........................................................................................................1-4-1
(1) Paper misfeed indication ..................................................................................................1-4-1
(2) Paper misfeed detection condition ...................................................................................1-4-2
1-4-2 Self-diagnostic function .......................................................................................................1-4-27
(1) Self-diagnostic function .................................................................................................. 1-4-27
(2) Self diagnostic codes......................................................................................................1-4-28
1-4-3 Image formation problems...................................................................................................1-4-92
(1) No image appears (entirely white)..................................................................................1-4-93
(2) No image appears (entirely black).................................................................................. 1-4-94
(3) Image is too light. ...........................................................................................................1-4-95
(4) The background is colored. ............................................................................................ 1-4-95
(5) White streaks are printed vertically................................................................................. 1-4-96
(6) Black streaks are printed vertically. ................................................................................ 1-4-96
(7) Streaks are printed horizontally......................................................................................1-4-96
(8) One side of the print image is darker than the other. .....................................................1-4-97
(9) Spots are printed. ...........................................................................................................1-4-97
(10) Image is blurred..............................................................................................................1-4-97
(11) The leading edge of the image is consistently misaligned with the original. .................. 1-4-98
(12) The leading edge of the image is sporadically misaligned with the original. .................. 1-4-98
(13) Paper is wrinkled. ...........................................................................................................1-4-98
(14) Offset occurs. .................................................................................................................1-4-99
(15) Part of image is missing. ................................................................................................1-4-99

2LK/2LN/2LM/2LC-2
(16) Fusing is loose................................................................................................................1-4-99
(17) Image is out of focus. ...................................................................................................1-4-100
(18) Image center does not align with the original center. ...................................................1-4-100
(19) Unevenly repeating horizontal streaks in the printed objects.
Colored spots in the printed objects. ............................................................................1-4-100
1-4-4 Electric problems ...............................................................................................................1-4-101
1-4-5 Mechanical problems.........................................................................................................1-4-109
1-4-6 Send error code.................................................................................................................1-4-111
(1) Scan to SMB error codes .............................................................................................1-4-111
(2) Scan to FTP error codes .............................................................................................. 1-4-112
(3) Scan to E-mail error codes ...........................................................................................1-4-113
1-4-7 Error codes ........................................................................................................................1-4-114
(1) Error code.....................................................................................................................1-4-114
(2) Table of general classification ......................................................................................1-4-115
(2-1) U004XX error code table: Interrupted phase B ...................................................1-4-117
(2-2) U006XX error code table: Problems with the unit ...............................................1-4-117
(2-3) U008XX error code table: Page transmission error............................................. 1-4-117
(2-4) U009XX error code table: Page reception error .................................................. 1-4-117
(2-5) U010XX error code table: G3 transmission......................................................... 1-4-118
(2-6) U011XX error code table: G3 reception ..............................................................1-4-119
(2-7) U017XX error code table: V.34 transmission ......................................................1-4-120
(2-8) U018XX error code table: V.34 reception............................................................1-4-120
1-5 Assembly and disassembly
1-5-1 Precautions for assembly and disassembly...........................................................................1-5-1
(1) Precautions.......................................................................................................................1-5-1
(2) Drum.................................................................................................................................1-5-1
(3) Toner ................................................................................................................................1-5-1
(4) How to tell a genuine Kyocera Mita toner container......................................................... 1-5-2
1-5-2 Paper feed section.................................................................................................................1-5-3
(1) Detaching and refitting the primary paper feed unit.......................................................... 1-5-3
(2) Detaching and refitting the forwarding pulley, paper feed pulley and
separation pulley. [30 ppm model / 35 ppm model]..........................................................1-5-7
(3) Detaching and refitting the forwarding pulley, paper feed pulley and
separation pulley. [45 ppm model / 55 ppm model]........................................................ 1-5-10
(4) Detaching and refitting the MP tray paper feed unit .......................................................1-5-11
(5) Detaching and refitting the MP forwarding pulley, MP paper feed pulley and
MP separation pulley ...................................................................................................... 1-5-14
1-5-3 Optical section .....................................................................................................................1-5-19
(1) Detaching and refitting the exposure lamp .....................................................................1-5-19
(2) Detaching and refitting the ISU.......................................................................................1-5-22
(3) Detaching and refitting the LSU......................................................................................1-5-25
(4) Color registration adjustment.......................................................................................... 1-5-31
1-5-4 Image formation section ......................................................................................................1-5-34
(1) Detaching and refitting the inner unit.............................................................................. 1-5-34
(2) Detaching and refitting the developer unit and drum unit ...............................................1-5-36
(3) Detaching and refitting the charger roller unit................................................................. 1-5-38
1-5-5 Transfer section...................................................................................................................1-5-39
(1) Detaching and refitting the paper conveying unit ...........................................................1-5-39
(2) Detaching and refitting the transfer belt unit................................................................... 1-5-41
(3) Detaching and refitting the transfer roller .......................................................................1-5-43
1-5-6 Fuser section .......................................................................................................................1-5-45
(1) Detaching and refitting the fuser unit.............................................................................. 1-5-45

2LK/2LN/2LM/2LC-2
(2) Detaching and refitting fuser IH unit ...............................................................................1-5-47
1-5-7 PWBs................................................................................................................................... 1-5-49
(1) Detaching and refitting the main PWB............................................................................ 1-5-49
(2) Detaching and refitting the engine PWB......................................................................... 1-5-54
(3) Detaching and refitting the power source PWB..............................................................1-5-56
(4) Detaching and refitting the high voltage PWB 1 .............................................................1-5-59
(5) Detaching and refitting the high voltage PWB 2 .............................................................1-5-60
(6) Detaching and refitting the operation PWB ....................................................................1-5-61
(7) Detaching and refitting the fuser IH PWB....................................................................... 1-5-65
1-5-8 Drive section........................................................................................................................1-5-70
(1) Detaching and refitting the drum drive unit K and the drum drive unit MCY................... 1-5-70
(2) Detaching and refitting the main drive unit .....................................................................1-5-73
(3) Detaching and refitting the fuser drive unit, transfer drive unit and feed drive unit.........1-5-74
(4) Detaching and refitting the lift motor 1 and 2..................................................................1-5-80
1-5-9 Others..................................................................................................................................1-5-81
(1) Detaching the eject filter.................................................................................................1-5-81
(2) Detaching and refitting the toner filter.............................................................................1-5-82
(3) Detaching and refitting the fan filter................................................................................1-5-83
(4) Detaching and refitting the transfer belt filter.................................................................. 1-5-84
(5) Detaching and refitting the DU filter................................................................................ 1-5-85
(6) Detaching and refitting the left filter ................................................................................ 1-5-86
(7) Detaching and refitting the hard disk unit ....................................................................... 1-5-87
(8) Detaching and refitting the eject unit ..............................................................................1-5-89
(9) Direction of installing the principal fan motors ................................................................1-5-90
1-6 Requirements on PWB Replacement
1-6-1 Upgrading the firmware ......................................................................................................... 1-6-1
1-6-2 Remarks on main PWB replacement.....................................................................................1-6-2
1-6-3 Remarks on engine PWB replacement .................................................................................1-6-4
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section ...............................................................................................2-1-1
(1) Cassette paper feed section............................................................................................. 2-1-1
(2) MP tray paper feed section...............................................................................................2-1-3
(3) Paper conveying section .................................................................................................. 2-1-5
2-1-2 Drum section .........................................................................................................................2-1-8
2-1-3 Developer section................................................................................................................2-1-10
2-1-4 Optical section .....................................................................................................................2-1-12
(1) Image scanner section ...................................................................................................2-1-12
(2) Laser scanner section ....................................................................................................2-1-14
2-1-5 Transfer/Separation section ................................................................................................2-1-16
(1) Intermediate transfer unit section ...................................................................................2-1-16
(2) Secondary transfer roller section....................................................................................2-1-18
2-1-6 Fuser section .......................................................................................................................2-1-20
2-1-7 Eject/Feedshift section ........................................................................................................2-1-22
2-1-8 Duplex conveying section....................................................................................................2-1-24
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout ............................................................................................................2-2-1
(1) PWBs................................................................................................................................2-2-1
(2) Switches and sensors....................................................................................................... 2-2-4
(3) Motors...............................................................................................................................2-2-6
(4) Fan motors .......................................................................................................................2-2-8

2LK/2LN/2LM/2LC-2
(5) Others.............................................................................................................................2-2-10
2-3 Operation of the PWBs
2-3-1 Main PWB..............................................................................................................................2-3-1
2-3-2 Engine PWB ........................................................................................................................2-3-12
2-3-3 Power source PWB .............................................................................................................2-3-38
2-3-4 ISC PWB .............................................................................................................................2-3-46
2-3-5 Operation PWB 1.................................................................................................................2-3-51
2-3-6 Front PWB ........................................................................................................................... 2-3-56
2-3-7 Feed PWB 1 ........................................................................................................................2-3-65
2-3-8 Feed PWB 2 ........................................................................................................................2-3-75
2-3-9 Relay PWB ..........................................................................................................................2-3-81
2-3-10 Motor control PWB ..............................................................................................................2-3-87
2-3-11 LSU relay PWB.................................................................................................................... 2-3-91
2-4 Appendixes
2-4-1 Appendixes............................................................................................................................ 2-4-1
(1) Maintenance kits...............................................................................................................2-4-1
(2) Repetitive defects gauge ..................................................................................................2-4-3
(3) Firmware environment commands ................................................................................... 2-4-4
(4) Chart of image adjustment procedures .......................................................................... 2-4-11
(5) Wiring diagram ............................................................................................................... 2-4-13
INSTALLATION GUIDE
DOCUMENT PROCESSOR
PAPER FEEDER
LARGE CAPACITY FEEDER
SIDE DECK
SIDE MULTI TRAY
1000-SHEETS FINISHER
4000-SHEETS FINISHER
FINISHER ATTACHMENT KIT
CENTER-FOLDING UNIT
MAILBOX
PUNCH UNIT
INNER JOB SEPARATOR
RIGHT JOB SEPARATOR
FAX SYSTEM
DOCUMENT TABLE

2LK/2LN/2LM/2LC-2
1-1-1
1-1 Specific ations
1-1-1 Specifications
Machine
Item Specifications
30 ppm 35 ppm 45 ppm 55 ppm
Type Desktop
Printing method Electrophotography by semiconductor laser, tandem drum system
Originals Sheet, Book, 3-dimensional objects (maximum original size: A3/12 × 18")
Original feed system Fixed
Paper weight Cassette 60 to 220 g/m260 to 256 g/m2
MP tray 60 to 300 g/m2
Paper type
Cassette
Plain, Rough, Vellum, Recycled, Preprinted, Bond, Color (Colour),
Prepunched, Letterhead, Thick, High Quality, Custom 1 to 8
(Duplex: Same as simplex)
MP tray
Plain, Transparency (OHP film), Rough, Vellum, Labels, Recycled,
Preprinted, Bond, Cardstock, Color (Colour), Prepunched, Letterhead,
Thick, Coated, Envelope, High Quality, Custom 1 to 8
Paper size
Cassette A3, B4, A4, A4R, B5, B5R, A5R, Ledger, Legal, Letter, LetterR, Statement,
Oficio II, 12 × 18", Folio, 8K, 16K, 16KR
MP tray
A3, B4, A4, A4R, B5, ISO B5, B5R, A5R, B6R, A6R, Return postcard,
Postcards, Envelope DL, Envelope C5, Envelope C4, Envelope #10
(Commercial #10), Envelope #9 (Commercial #9), Envelope #6
(Commercial #6 3/4), Envelope Monarch, Youkei 2, Youkei 4, Ledger,
Legal, Letter, LetterR, ExecutiveR, Statement, Oficio II, 12 × 18", Folio,
8K, 16K, 16KR, Custom
Zoom level Manual mode : 25 to 400%, 1% increments
Auto mode : Preset zoom
Printing
speed
B/W
A4 : 30 ppm
Letter : 30 ppm
A4R : 21 ppm
LetterR : 21 ppm
A3 : 15 ppm
Ledger : 15 ppm
B4 : 18 ppm
Legal : 18 ppm
B5 : 30 ppm
A4 : 35 ppm
Letter : 35 ppm
A4R : 24 ppm
LetterR : 24 ppm
A3 : 17 ppm
Ledger : 17 ppm
B4 : 21 ppm
Legal : 21 ppm
B5 : 35 ppm
A4 : 45 ppm
Letter : 45 ppm
A4R : 31 ppm
LetterR : 31 ppm
A3 : 22 ppm
Ledger : 22 ppm
B4 : 27 ppm
Legal : 21 ppm
B5 : 45 ppm
A4 : 55 ppm
Letter : 55 ppm
A4R : 24 ppm
LetterR : 24 ppm
A3 : 27 ppm
Ledger : 27 ppm
B4 : 33 ppm
Legal : 21 ppm
B5 : 55 ppm
Color
A4 : 30 ppm
Letter : 30 ppm
A4R : 21 ppm
LetterR : 21 ppm
A3 : 15 ppm
Ledger : 15 ppm
B4 : 18 ppm
Legal : 18 ppm
B5 : 30 ppm
A4 : 35 ppm
Letter : 35 ppm
A4R : 24 ppm
LetterR : 24 ppm
A3 : 17 ppm
Ledger : 17 ppm
B4 : 21 ppm
Legal : 21 ppm
B5 : 35 ppm
A4 : 45 ppm
Letter : 45 ppm
A4R : 24 ppm
LetterR : 24 ppm
A3 : 22 ppm
Ledger : 22 ppm
B4 : 27 ppm
Legal : 21 ppm
B5 : 45 ppm
A4 : 50 ppm
Letter : 50 ppm
A4R : 24 ppm
LetterR : 24 ppm
A3 : 25 ppm
Ledger : 25 ppm
B4 : 30 ppm
Legal : 21 ppm
B5 : 50 ppm

2LK/2LN/2LM/2LC-2
1-1-2
First copy
time
(A4, feed from
cassette)
B/W 6.2 s or less 5.8 s or less 4.7 s or less 4.4 s or less
Color 8.1 s or less 7.4 s or less 6.0 s or less 5.7 s or less
Warm-up
time
(22 °C/71.6
°F, 60% RH)
Power on 25 s or less 25 s or less 30 s or less 30 s or less
Low Power 15 s or less 15 s or less 20 s or less 20 s or less
Sleep 20 s or less 20 s or less 30 s or less 30 s or less
Paper
capacity
Cassette 550 sheets (64 g/m2)
500 sheets (80 g/m2)
MP tray
A4/Letter or less
165 sheets (64 g/m2) 150 sheets (80 g/m2)
More than A4/Letter
55 sheets (64 g/m2) 50 sheets (80 g/m2)
Output tray
capacity
Inner tray 250 sheets (80 g/m2)
with inner
job separator
30 sheets (80 g/m2)
with right
job separator
100 sheets (80 g/m2)
Continuous copying 1 to 999 sheets
Light source LED
Scanning system Flat bed scanning by CCD image sensor
Photoconductor a-Si (drum diameter 30 mm)
Image write system Semiconductor laser
Charging system Charger roller
Developing system
Touch down developing system
Developer: 2-component
Toner replenishing: Automatic from the toner container
Transfer system Primary: Transfer belt
Secondary: Transfer roller
Separation system Small diameter separation, Separation electrode
Cleaning system Drum: Counter blade, Cleaning roller
Transfer belt: Fur brush
Charge erasing system Exposure by cleaning lamp (LED)
Fusing system
Belt fusing
Heat source: IH
Abnormally high temperature protection devices: thermostat
CPU PowerPC 750CL/600 MHz PowerPC 750GL/800 MHz
Main
memory
Standard 2048 MB
Maximum 2048 MB
Hard Disk 160 GB (standard) 320 GB (160 GB x 2) (standard)
Item Specifications
30 ppm 35 ppm 45 ppm 55 ppm

2LK/2LN/2LM/2LC-2
1-1-3
Printer
Interface
Standard
USB Interface Connector: 1 (USB Hi-Speed)
USB Port: 2 (Hi-Speed USB)
Network interface: 1 (10 BASE-T/100 BASE-TX/1000 BASE-T)
Option Fax slot: 2
Network interface: 1 (10 BASE-T/100 BASE-TX/1000 BASE-T)
Resolution 600 × 600 dpi
Operating
environment
Temperature 10 to 32.5 °C/50 to 90.5 °F
Humidity 15 to 80% RH
Altitude 2,500 m/8,202 ft or less
Brightness 1,500 lux or less
Dimensions
(W ×D ×H)
machine
only
668 × 767 × 747 mm
26 5/16 × 30 3/16 × 29 3/8”
with paper
feeder
668 × 767 × 1053 mm
26 5/16 × 30 3/16 × 41 7/16”
Space required (W ×D) 977 × 767 mm (using MP tray)
38 7/16 × 30 3/16” (using MP tray)
Weight 114 kg / 251.3 lb
Power source 120 V AC, 60 Hz, more than 12.0 A
220 - 240 V AC, 50/60 Hz, more than 7.2 A
Options
Document processor, Original cover, Paper feeder, Large capacity feeder,
Side deck, Side multi tray*, Side paper feeder*, Side large capacity feeder*,
1000-sheet finisher, 4000-sheet finisher, Center-folding unit, Mailbox,
Punch unit, Inner job separator, Right job separator, Key counter, Fax kit,
Expansion memory, Internet fax kit (A), Data security kit, Printed document
guard kit, Emulation option kit, Gigabit ethernet board and document table
*: 45 ppm/55 ppm model only
Item Specifications
30 ppm 35 ppm 45 ppm 55 ppm
Printing speed Same as copying speed.
Resolution 600 x 600 dpi
Operating system Windows XP, Windows Server 2003, Windows Vista, Windows 7, Windows
Server 2008, Apple Macintosh OS 10.x
Interface USB interface connector: 1 (USB Hi-speed)
Network interface: 1 (10BASE-T/100BASE-TX/1000BASE-T)
Page description language PRESCRIBE
Item Specifications
30 ppm 35 ppm 45 ppm 55 ppm

2LK/2LN/2LM/2LC-2
1-1-4
Scanner
*1 Available operating system: Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008,
Windows 7
*2 Available operating system: Windows Vista, Windows 7, Windows Server 2008
NOTE: These specifications are subject to change without notice.
Item Specifications
30 ppm 35 ppm 45 ppm 55 ppm
System requirements CPU: 600 Mhz or higher
RAM: 128 MB or more
Resolution 600 dpi, 400 dpi, 300 dpi, 200 dpi, 200 ×100 dpi, 200 × 400 dpi
File format TIFF, JPEG, XPS, PDF (MMR/JPEG compression), PDF (high compres-
sion)
Scanning speed
(A4 landscape,
300 dpi,
Image quality:
Text/Photo orig-
inal)
Simplex
B/W : 70 images/min
Color: 70 images/min
B/W : 80 images/min
Color: 80 images/min
Duplex
B/W : 100 images/min
Color: 80 images/min
B/W : 140 images/min
Color: 110 images/min
Interface Ethernet (10 BASE-T/100 BASE-TX/1000 BASE-T)
Network protocol TCP/IP
Transmission system
PC transmission
SMB Scan to SMB
FTP Scan to FTP, FTP over SSL
E-mail transmission
SNTP Scan to E-mail
TWAIN scan*1
WIA scan*2

2LK/2LN/2LM/2LC
1-1-5
1-1-2 Parts names
(1) Machine
Figure 1-1-1
7
12
16
8
11 13 14
3
4
5
6
10
9
1
2
18
19
20
17
15
1. Original size indicator plate
2. Slit glass
3. Toner container K
4. Toner container M
5. Toner container C
6. Toner container Y
7. Platen (Contact glass)
8. Clip holder
9. Operation panel
10. Indicators
11. Handles
12. Release button
13. Waste toner box
14. Waste toner tray
15. Front cover
16. Toner container release lever
17. Network interface connector
18. USB port
19. USB interface connector
20. Option interface

2LK/2LN/2LM/2LC
1-1-6
Figure 1-1-2
39
29
26 27 24
23
22
30
36
38
21
40
34
35
37
31
33
28 28
25
32
21. Inner tray
22. Document processor (option)
23. Original cover
24. USB port
25. Cassettes
26. Paper length guide
27. Guide lock lever
28. Paper width guide
29. Paper width adjusting tab
30. Paper conveying unit
31. Paper conveying unit lever
32. Duplex cover lever
33. Duplex cover
34. MP paper width guide
35. MP support Tray
36. MP (Multi-Purpose) tray
37. Paper conveying cover lever
38. Paper conveying cover
39. Handle
40. Main power switch
