Kyocera DuraSport 5G UW Assembly instructions

Hints & Tips
Hints & Tips on Kyocera’s DuraSport 5G Smartphone.
More details can be found in the User’s Guide.

Table of Contents: DuraSport 5G UW – Hints & Tips
Quick Settings ....................................................................................................................... 1
Programmable Key ............................................................................................................... 2
Wake Up Device .................................................................................................................... 2
Underwater Mode.................................................................................................................. 3
Video Bites ............................................................................................................................. 4
Camera Settings.................................................................................................................... 4
Multi Camera .......................................................................................................................... 6
Action Overlay Mode............................................................................................................ 7
Bike Mode ............................................................................................................................... 8
Disinfecting Your Phone ..................................................................................................... 9
Drying Your Phone ............................................................................................................... 9
Focus Mode (Digital Wellbeing)....................................................................................... 10
Covert Mode......................................................................................................................... 11
Mobile Hotspot .................................................................................................................... 12
Outdoor Portal ..................................................................................................................... 13
Rugged / MIL-STD-810H .................................................................................................... 14
Wet & Glove Touch Operation ......................................................................................... 15
System Navigation – 3-Button / Gesture ....................................................................... 15

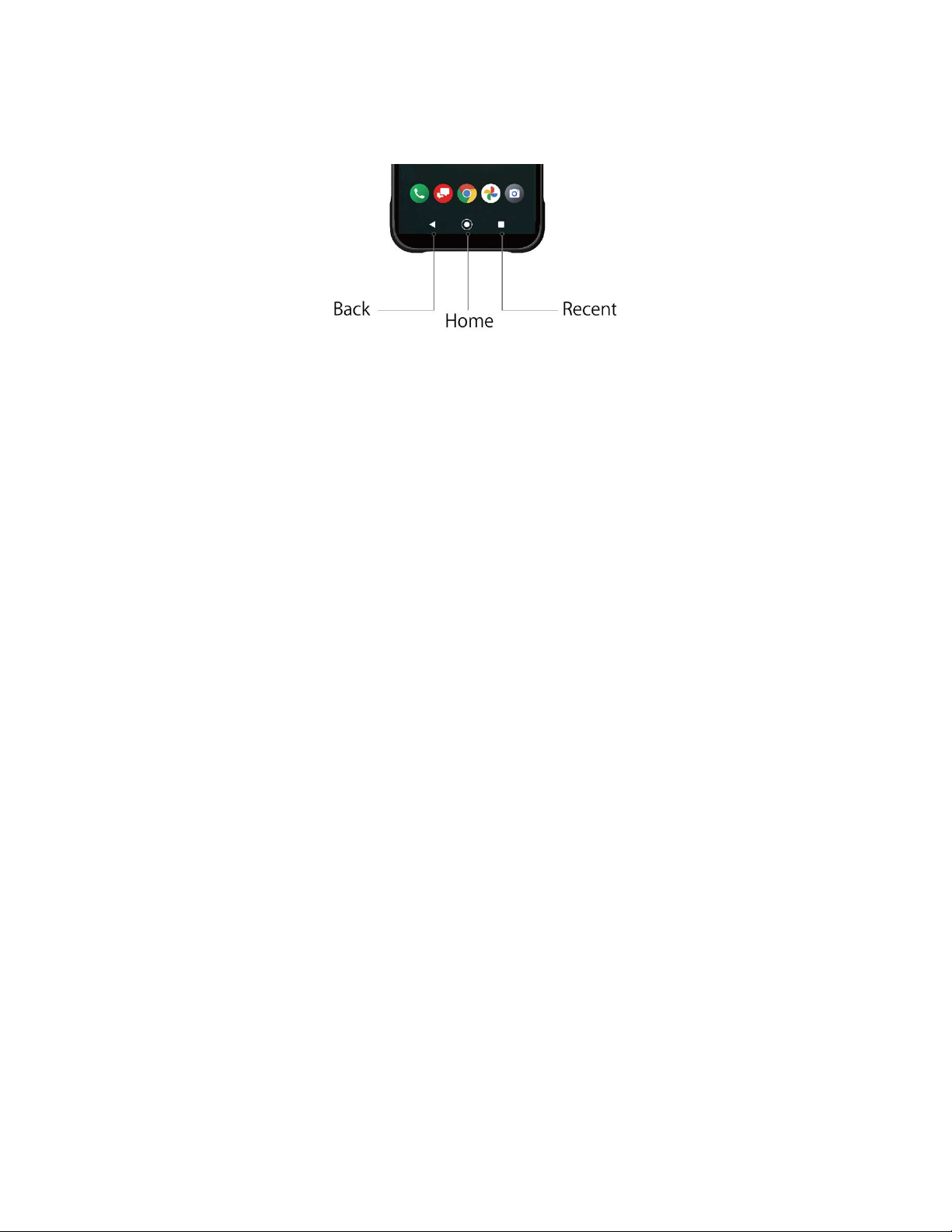

3-button Navigation:........................................................................................................... 16
Gesture Navigation:............................................................................................................ 16

1
Quick Settings
The quick settings screen allows you to quickly access useful menu items.
1. Slide the status bar down to the bottom of the touchscreen. To show more entries,
slide the Quick Settings panel down to the bottom.
2. Tap on a quick setting panel icon to enable or disable the feature.
•To change the positions of items, tap . Touch and hold the item you want to move,
and then drag it to a different location and release your finger.
•To adjust the screen brightness, drag the knob on the brightness slider left or right.
Quick Shortcuts
Touch and hold an application icon to display available Quick Shortcuts on the screen.
1. Touch and hold any application icon to display available Quick Shortcuts options.
2. Tap the desired shortcut on the menu to go directly to the selected option.
TIP: You can create a Home screen shortcut from the Quick Shortcuts by touching
and holding, then touch, hold and drag the shortcut and place it where you want.

2
Programmable Key
You can select what the PTT key does for a long press or double press.
To assign a function to the Programmable key:
1. From the Apps launcher, tap Settings > Programmable key.
2. Select Press and hold and/or Double press.
NOTE: The Programmable key when assigned to 3rd party apps such as Push to Talk
may require a subscription. Some apps may override the double press option.
3. Select an application you want to assign to the key. The assigned application
launches when you press the key as defined above.
−Tap Do nothing if you do not want to assign any function to the key.
NOTE: You can set the Programmable key to Answer and end calls up your phone by
tapping the on/off icon next to Answer and end call. You can set the Programmable
key to wake up your phone by tapping the on/off icon next to Wake up device.
Wake Up Device
If you turn this on and the screen is off, a long press on the Programmable key will turn
on the phone's screen. To open apps other than the camera requires the user to
unlock the device.

3
Underwater Mode
You can take a picture or record video in the water. Your phone is immersible in water
for up to 30 minutes at a depth not exceeding two meters (about 6.56 ft.). The Camera
menu bar provides various modes, slide to More to access Underwater.
WARNING: Avoid using the phone in saltwater. It is highly corrosive and can damage
internal components and degrade the audio performance over time.
TIP: You can change the modes on the menu bar from the Edit modes menu.
Underwater, Action Overlay, Bike and Multi camera are available under More.
1. From the Home screen, tap > More > Underwater.
2. In Underwater mode, the physical keys below are used instead of the touchscreen.
NOTE: The touchscreen is unavailable except the thumbnail area.
•For Viewfinder screen:
−Volume Up key to take photos.
−Volume Down key to record videos. (Long press to turn on the light.)
−Programmable key to switch between the Rear and Front Cameras. (Long press to exit
Underwater mode.)
WARNING: Before immersing your phone in the water, make sure all ports and covers are properly seated,
with no foreign objects obstructing the seals, to maintain the waterproof capability. The phone
should never be used under water if the SIM/microSD card tray cover, USB/Charger port cover or
headset jack cover is broken or open.
NOTE: After using your phone in the Underwater Mode, immediately rinse the phone gently in clean fresh
water. The phone should be dried using a very specific procedure. See Drying Your Phone.

4
Video Bites
Create short videos “bites” by pressing and holding the record button or programmable
key (as assigned). Releasing the key stops the recording. Enabling the pause function
while in Video bites will pause the recording when you release the record button or
programmable key. Press and hold to start recording again so you can create on movie
in multiple parts.
►From the Home screen, tap < < Video bites.
Camera Settings
Access camera settings by tapping . The following options are available:
Video
Video size: 1080p/60fps [16:9], 1080p/30fps [16:9], 1072p [1:1], 860p [20:9] & 720p [16:9].
Image stabilization: : On and Off.
Recording file format: H.264, H.265 (Capacity priority) & H.265 (image quality priority).
Recording type: Monoaural sound & Stereo sound.
Mute audio: On and Off.
Wind noise reduction: On and Off.
Disabling notifications: On and Off.

5
Common
Storage: Phone or SD card.
Add location information: On and Off.
Preserve last mode: On and Off.
Shutter sound: On and Off.
Useful features
Quick social media: On and Off.
Grid: On and Off.
Image correction
Wide camera distortion: On and Off.
Underwater distortion: On and Off.
Key settings
Volume key: Zoom, Shutter, Volume & Off.
Programmable key (long press): Same as programmable key setting or Toggle camera mode.
Other
Edit modes: Select camera modes and order to be shown in the camera scroll bar.
Choose theme: Light, Dark or System default.
Camera function guide: Access basic information for available camera features.
Reset settings: Resets all camera features to factory defaults.

6
Multi Camera
Provides the capability to enable both the front and rear cameras simultaneously
creating a picture in picture mode. This is great for capturing a video of an event and
being able to narrate the action. You can switch between cameras to set which is main
and which is the PiP (picture in picture). You can also change the size and shape of
the PiP to create a custom look.
►From the Home screen, tap > More > Multi camera.
Multi Camera Settings
Access Multi camera settings by tapping . The following options are available:
● Image stabilization: On and Off.
● Crop type: PiP shape – Rectangle, Rounded Rectangle or Circle.
● Add location information: On and Off.
● Wind noise reduction: On and Off.

7
Action Overlay Mode
You can take a photo or record a video with additional information such as elapsed
time, travel distance, speed, G-force, altitude, map, or weather.
WARNING: Do not operate the app while driving or riding a bicycle or motorcycle. If
necessary, stop moving first and operate the app with careful attention to your
safety.
►From the Home screen, tap > More > Action Overlay.
NOTE: Action Overlay mode uses location information. You will be prompted to enable
the Location settings if they are disabled.
Action Overlay Mode Settings
You can configure the Action Overlay mode settings by tapping .
The following options are available:
Screen settings:
● Screen rotation: Switch Screen rotation On and Off.
● Screen lock: Switch Screen lock On and Off.
Display settings:
● Altitude setting: Select Automatic acquisition(GPS), Automatic acquisition(Air
Pressure) or Direct input.
● Map display format: Select Around map, Route, Map (2D) + route, or
Map (3D) + route. Note: Map is not displayed until recording is started.
● Speedometer: maximum speed Select 25 mph, 50 mph, 100 mph, or 150 mph.
Select display data:
● Basic: Check or uncheck the checkbox for Speedometer, Elapsed time, Altitude,
G force, Distance, Place, Map, Date & time, Weather, Logo and TAG.
Units:
● Altitude: Select Feet (ft) or Meter (m).
● Distance: Select Mile (mi), Kilometer (km), or Nautical mile (nm).
● Temperature: Select Celsius (°C) or Fahrenheit (°F).
NOTE: Screen will lock after recording begins to avoid accidental operations.

8
Bike Mode
Provides additional capabilities to the Action Overlay that includes displaying Grade,
Heart Rate, Cadence and Power when connected to external sensors that support
ANT+.
►From the Home screen, tap > More > Bike.
NOTE: Bike mode uses location information. You will be prompted to enable the
Location settings if they are disabled.
Bike Mode Settings
In addition to the settings described for Action Overlay, you can configure the sensor
connections and set the bicycle tire size (Circumference) to calibrate the application.
You can access Bike mode settings by tapping .The following options are available:
Screen settings:
● Screen rotation: On and Off.
● Screen lock: On and Off.
● Screen is off while recording: On and Off.
Select display data: Allows selection of what elements are displayed in the overlay.
● Speedometer, Elapsed time (small), Elapsed time (big), Distance, Heart rate,
Cadence, Power, Place, Map, Date & time, G-force, Weather, Grade, Altitude,
Altitude graph, Logo & Tag.

9
Disinfecting Your Phone
1. Gently wipe the phone with a lint-free cloth moistened with alcohol (70% solution) *
or a cleaning wipe.
*Note: Use only ethanol or isopropyl alcohol (70% solution).
2. Remove any excess liquid with a dry lint-free cloth until it is completely dry.
Drying Your Phone
CAUTION! If your phone has been submerged in water, for example to use the camera
in Underwater Mode, rinse all surfaces of the phone thoroughly with clean, fresh water
before drying.
1. Wipe down all outside surfaces of your phone with a clean lint-free cloth.
2. Pat with a clean dry cloth to remove moisture from speakers, microphones and
earpiece. Repeat patting each area about 20 times.
3. After removing all the water, let the phone dry completely at room temperature.
CAUTION! Excessive heat may damage your phone; never use a hair dryer, an oven
or any other appliance to dry out your phone.
NOTE: If your phone still retains some moisture, audio quality and speaker
performance may be affected. Dry your phone completely before using it again.

10
Focus Mode (Digital Wellbeing)
Focus mode is one of the features of Digital Wellbeing that lets you pause distracting
apps so you can better focus your time. You can also set a schedule to turn on Focus
mode automatically and reduce distractions while you’re at work, school, or home.
1. From the Apps launcher, tap Settings > Digital Wellbeing & parental controls.
2. Select Show your data and scroll down to Focus mode.
3. Select applications you want to pause and set a schedule or Turn on now.
TIP: You can add Focus Mode to Quick Settings to turn on and off with a single tap.

11
Covert Mode
Covert mode makes your phone effectively unnoticeable even in silent and dark
environments by disabling all touch operation, display, lights, device audio and
vibrations. Audio through the USB-C port and Bluetooth can optionally be enabled.
NOTE: Sound and LEDs that originate from Bluetooth devices connected to the phone
may not be disabled even when Covert mode is on.
To enable Covert mode:
1. From the Apps launcher, tap Settings > Security > Covert mode.
2. Set Allow Covert mode to On. Go back and select audio options as needed.
3. Press and hold the power key to display the option menu and tap Covert mode.
4. Long press the power key to exit Covert mode.

12
Mobile Hotspot
Mobile Hotspot allows you to turn your phone into a Wi-Fi hotspot. The feature works
best when used in conjunction with 4G LTE or 5G data services.
Turn Wi-Fi Hotspot On or Off
Use the settings menu to enable or disable your phone’s Mobile Hotspot capabilities.
IMPORTANT: There may be charges for using Mobile hotspot depending on your
contract or plan. Contact your service provider for details.
1. From the Apps launcher, tap Settings > Network & internet > Mobile Hotspot &
tethering.
2. Tap Mobile Hotspot.
3. Tap the on/off icon to turn Mobile Hotspot on or off.
4. Follow screen prompts to connect other devices.
5. If necessary, change the name, password, or security.
The number of connected devices can be seen in the Mobile Hotspot menu and is
also visible on the status bar hotspot icon.
NOTE: A maximum of 10 devices can be connected simultaneously.
TIP: Hotspot is also available in Quick Settings to turn on and off with a single tap.

13
Outdoor Portal
The Outdoor Portal provides important and interesting information for your outdoor
activities. It also has shortcut buttons to access handy tools, such as compass,
barometer, altimeter and weather.
1. From the Home screen, swipe left and tap Outdoor Portal.
2. The following features are available:
Weather, Compass, Barometer, Barometer Weather, Tide, Fish Index,
Sunrise/Sunset, Moonrise/Moonset & Solunar.
•Weather: Displays the weather information in 6-hour increments.
•Barometer: Displays detailed Barometer information.
−Altimeter: Displays Altitude based on Barometric pressure.
−Weather: Displays detailed Barometer weather information.
Note: Measurement history can be tracked over time.
•Compass: Displays detailed Compass information.
−Clinometer: Displays the angle in degrees on an X-Y axis.
Weather/Compass:
Barometer:

14
Rugged / MIL-STD-810H
Drops: Most smartphone drops are from pockets. Drop it over and over outside onto
the sidewalk, no problem.
The DuraSport 5G was tested to meet the minimum criteria with drops of ~5ft (1.5m)
on to concrete.
Waterproof (IPX6/IPX8): use it in your pool (up to 6.5 feet (2m) for 30 minutes), take
some great pics. Kyocera has been doing waterproof for more than a decade. Other
devices may be water resistant, but Kyocera’s is designed to function (and thrive) in
water, rather than simply withstand water. Avoid saltwater, as it is corrosive. (User
Guide states to wash it immediately if exposed to saltwater)
Dust (IP6X): Certifies the devices is completely dust tight.
Shock, vibration, temperature extremes, blowing rain, low pressure, solar
radiation, salt fog, humidity, immersion, temperature shock and icing/freezing
rain.

15
Wet & Glove Touch Operation
Use it with gloves up to 3mm thick, even in sleet and snow. Extreme weather in the
field is no match for DURASPORT 5G. Wet touch means your screen remains
operational when your hands or device screen is wet. In Underwater mode, physical
keys are used instead of the touchscreen.
Note: Glove Touch is turned off by default and must be enabled for use.
Rain, snow and other wet and extreme conditions are no match for your smartphone’s
screen; keeping you connected wherever you are, whatever the weather.
Glove touch mode
Glove touch mode automatically detects when you are wearing gloves. In this mode
the sensitivity of the screen is increased to improve touch detection through the glove
material.
Pocket mode
Helps prevent unintended touch operation in your pocket or bag.
System Navigation – 3-Button / Gesture
You can navigate your phone in different ways. Learn how to choose an option, then
use that option to move between apps and other items.
Select how you prefer to get around:
Open your phone's Settings app.
Go to System > Gestures > System navigation.
Select your preference:
•Gesture navigation: No buttons.
•3-button navigation (Default): Three buttons for Home, Back, and Recent.

16
3-button Navigation: You will find a row of three buttons that let you perform
specific functions as below.
•Back - Tap to return to the previous screen, or close a dialog box, options menu,
the Notifications panel, or onscreen keyboard.
•Home - Tap to open the Home screen.
−Touch and hold to launch the Google Assistant.
•Recent - Tap to open a list of thumbnail images of screens you have worked with
recently. To open one, tap it. To remove a screen from the list, swipe it up. To close
all screens, tap CLEAR ALL.
Gesture Navigation: No buttons.
•Back - Swipe from the left or right edge of the screen.
•Home - Swipe up from the bottom of the screen.
•Recent - Swipe up from the bottom, hold, then let go.
−Close apps: Swipe up on the app image.
−Open an app: Tap its image.
•Switch between apps - At the very bottom of the screen, swipe left to right.
