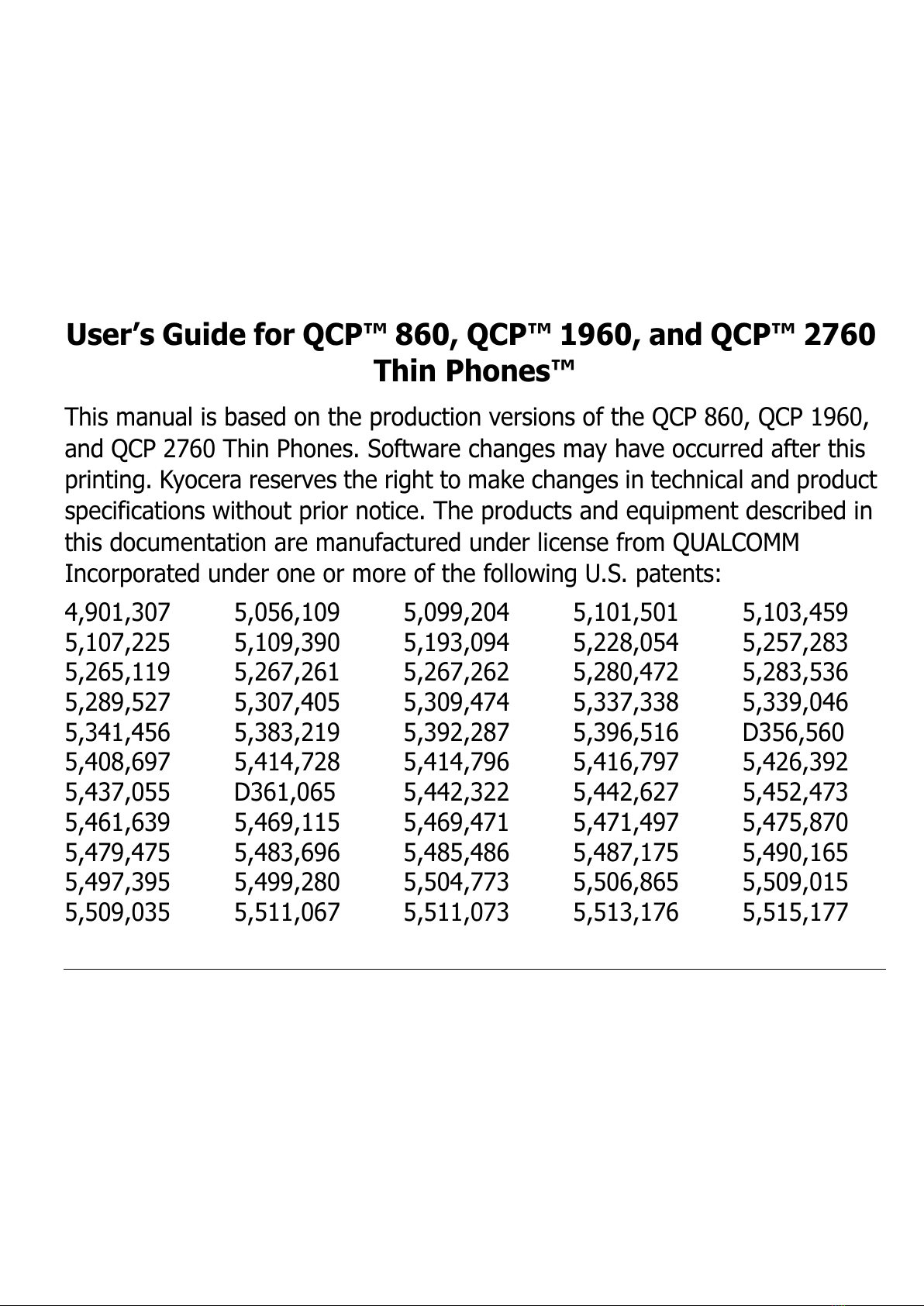

User’s Guide for QCP™ 860, QCP™ 1960, and QCP™ 2760
Thin Phones™
This manual is based on the production versions of the QCP 860, QCP 1960,
and QCP 2760 Thin Phones Software changes may have occurred after this
printing Kyocera reserves the right to make changes in technical and product
specifications without prior notice The products and equipment described in
this documentation are manufactured under license from QUALCOMM
Incorporated under one or more of the following U S patents:
4,901,307 5,056,109 5,099,204 5,101,501 5,103,459
5,107,225 5,109,390 5,193,094 5,228,054 5,257,283
5,265,119 5,267,261 5,267,262 5,280,472 5,283,536
5,289,527 5,307,405 5,309,474 5,337,338 5,339,046
5,341,456 5,383,219 5,392,287 5,396,516 D356,560
5,408,697 5,414,728 5,414,796 5,416,797 5,426,392
5,437,055 D361,065 5,442,322 5,442,627 5,452,473
5,461,639 5,469,115 5,469,471 5,471,497 5,475,870
5,479,475 5,483,696 5,485,486 5,487,175 5,490,165
5,497,395 5,499,280 5,504,773 5,506,865 5,509,015
5,509,035 5,511,067 5,511,073 5,513,176 5,515,177
All manuals and user guides at all-guides.com

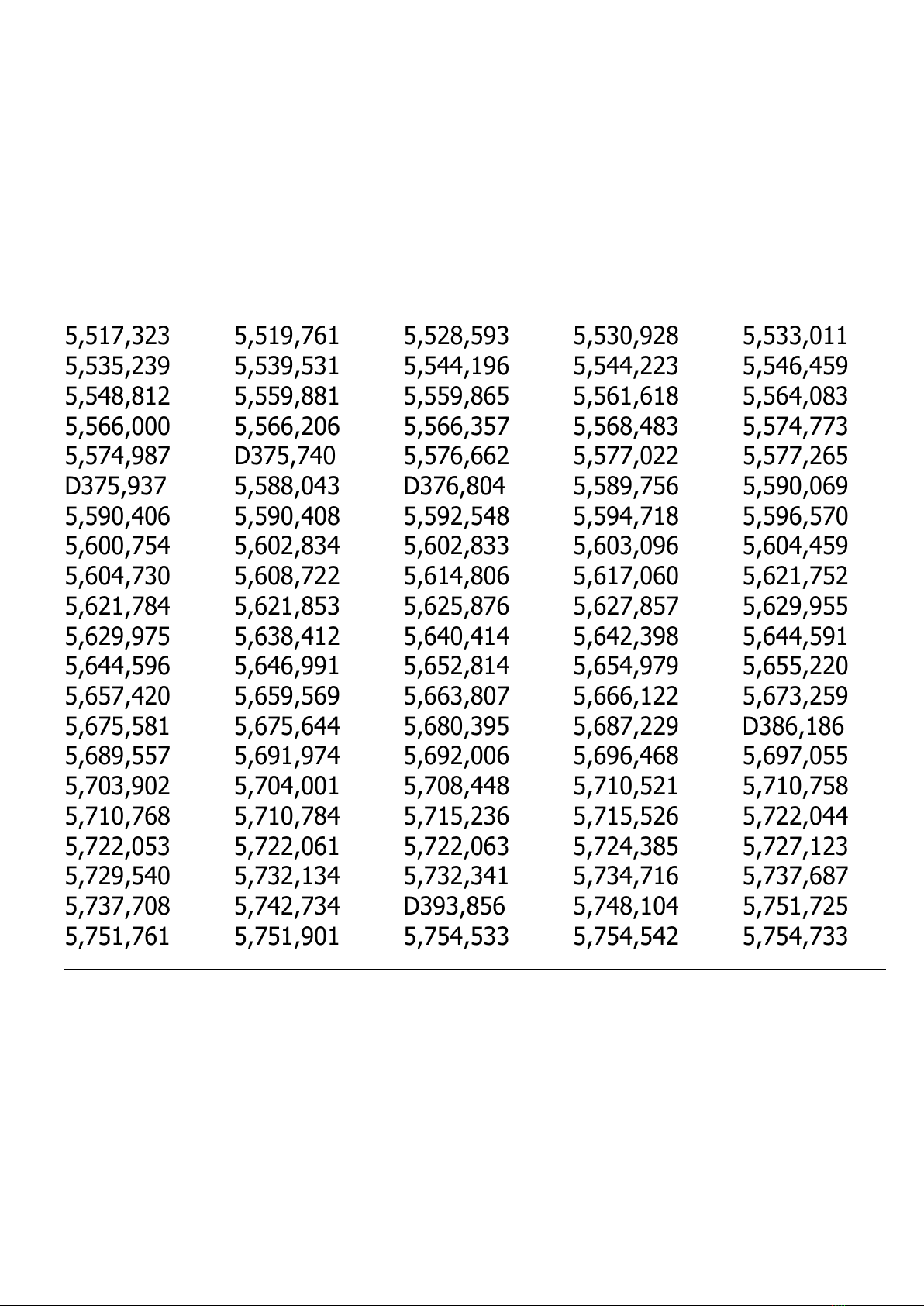

5,517,323 5,519,761 5,528,593 5,530,928 5,533,011
5,535,239 5,539,531 5,544,196 5,544,223 5,546,459
5,548,812 5,559,881 5,559,865 5,561,618 5,564,083
5,566,000 5,566,206 5,566,357 5,568,483 5,574,773
5,574,987 D375,740 5,576,662 5,577,022 5,577,265
D375,937 5,588,043 D376,804 5,589,756 5,590,069
5,590,406 5,590,408 5,592,548 5,594,718 5,596,570
5,600,754 5,602,834 5,602,833 5,603,096 5,604,459
5,604,730 5,608,722 5,614,806 5,617,060 5,621,752
5,621,784 5,621,853 5,625,876 5,627,857 5,629,955
5,629,975 5,638,412 5,640,414 5,642,398 5,644,591
5,644,596 5,646,991 5,652,814 5,654,979 5,655,220
5,657,420 5,659,569 5,663,807 5,666,122 5,673,259
5,675,581 5,675,644 5,680,395 5,687,229 D386,186
5,689,557 5,691,974 5,692,006 5,696,468 5,697,055
5,703,902 5,704,001 5,708,448 5,710,521 5,710,758
5,710,768 5,710,784 5,715,236 5,715,526 5,722,044
5,722,053 5,722,061 5,722,063 5,724,385 5,727,123
5,729,540 5,732,134 5,732,341 5,734,716 5,737,687
5,737,708 5,742,734 D393,856 5,748,104 5,751,725
5,751,761 5,751,901 5,754,533 5,754,542 5,754,733
All manuals and user guides at all-guides.com

5,757,767 5,757,858 5,758,266 5,761,204 5,764,687
5,774,496 5,777,990 5,778,024 5,778,338 5,781,543
5,781,856 5,781,867 5,784,406 5,784,532 5,790,589
5,790,632 5,793,338 D397,110 5,799,005 5,799,254
5,802,105 5,805,648 5,805,843 5,812,036 5,812,094
5,812,097 5,812,538 5,812,607 5,812,651 5,812,938
5,818,871 5,822,318 5,825,253 5,828,348 5,828,661
5,835,065 5,835,847 5,839,052 5,841,806 5,842,124
5,844,784 5,844,885 5,844,899 5,844,985 5,848,063
5,848,099 5,850,612 5,852,421 5,854,565 5,854,786
5,857,147 5,859,612 5,859,838 5,859,840 5,861,844
5,862,471 5,862,474 5,864,760 5,864,763 5,867,527
5,867,763 5,870,427 5,870,431 5,870,674 5,872,481
5,872,774 5,872,775 5,872,823 5,877,942 5,878,036
5,870,631 5,881,053 5,881,368 5,884,157 5,884,193
5,884,196 5,892,178 5,892,758 5,892,774 5,892,816
5,892,916 5,893,035 D407,701 5,898,920 5,903,554
5,903,862 D409,561 5,907,167 5,909,434 5,910,752
5,911,128 5,912,882 D410,893 5,914,950 5,915,235
5,917,708 5,917,811 5,917,812 5,917,837 5,920,284
5,920,834 D411,823 5,923,650 5,923,705 5,926,143
All manuals and user guides at all-guides.com

Kyocera is a registered trademark of Kyocera Corporation QCP, Smart Keys,
and Data on the Go are trademarks of Kyocera Wireless Corp QUALCOMM is
a registered trademark of QUALCOMM Incorporated Other product and brand
names may be trademarks or registered trademarks of their respective
owners
Copyright © 2000-2002 Kyocera Wireless Corp All rights reserved Printed in
the United States of America
80-B6337-2EN, Rev -
FCC/IC Notice
This device complies with part 15 of the FCC Rules Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation
To comply with FCC radiation exposure requirements, use of this device for
body-worn operational configurations is limited to accessories tested and
approved by Kyocera Wireless Corp Other accessories used with this device

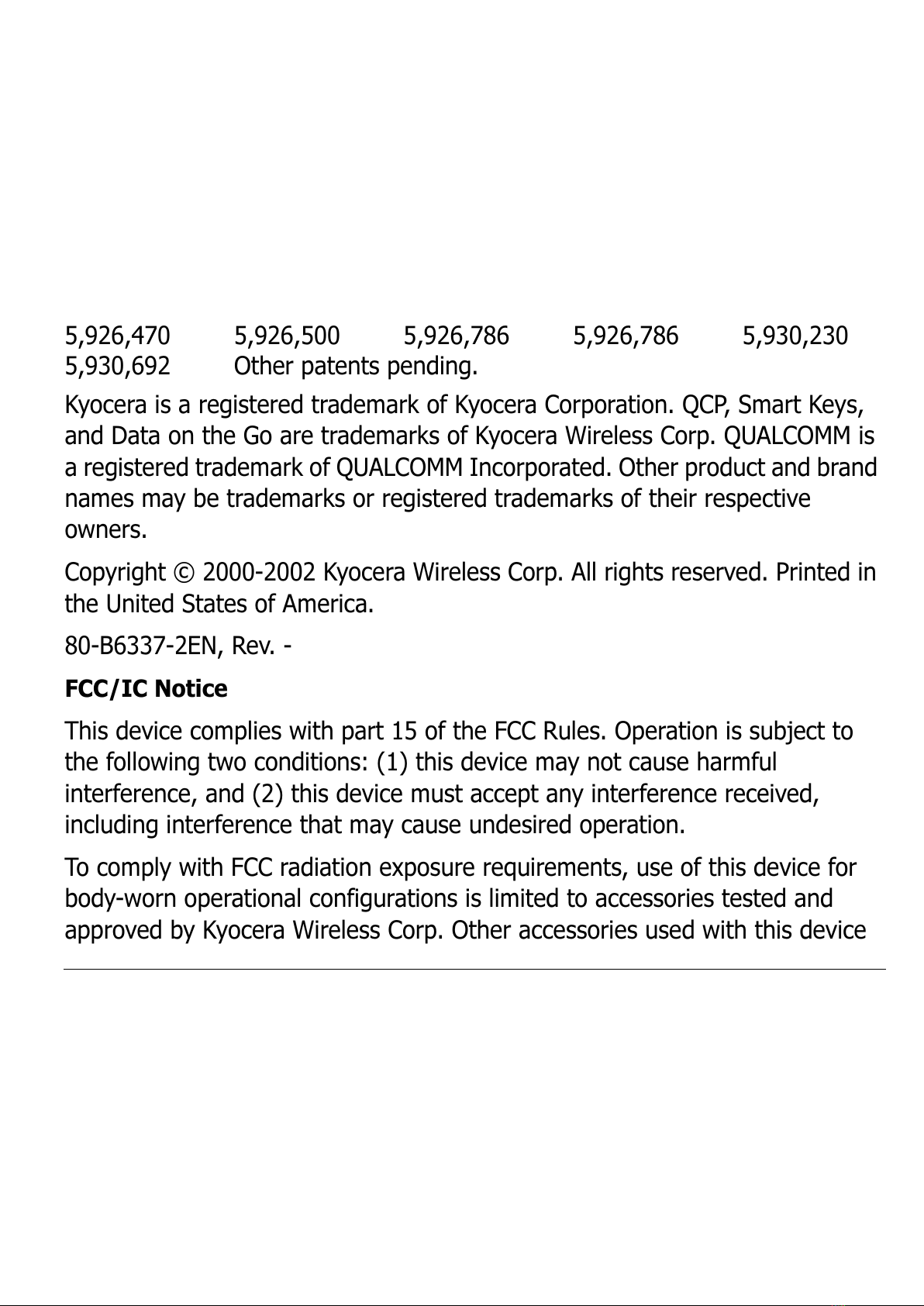

5,926,470 5,926,500 5,926,786 5,926,786 5,930,230
5,930,692 Other patents pending
All manuals and user guides at all-guides.com

for body-worn operations must not contain any metallic components and
must provide at least 22 75mm separation distance including the antenna and
the user’s body
Caution
The user is cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the warranty and user’s
authority to operate the equipment
All manuals and user guides at all-guides.com
all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones vii
Table of Contents
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting to Know Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys on your phone 5
Icons on the screen 7
Using Smart Keys 8
Turning the phone on and off 8
About standby mode 9
Viewing your phone number 9
Using keyguard 9
Locking the phone 10
Setting the banner 11
Charging the batteries 12
Accessories 16
All manuals and user guides at all-guides.com

viii
Making and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Calling 17
Redialing calls 18
Service provider features 20
Adjusting the volume 22
Setting the ringer type 23
Setting the backlight 24
Phone ook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Saving a number 25
Saving a name with a number 27
Entering pauses and hyphens 31
Dialing from the phone book 32
Changing the phone book 34
Searching the phone book 36
All manuals and user guides at all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones ix
Voice Mail, Pages, and Text Messages . . . . . . . . . . . . . . . . . . . . . . 38
Types of messages 38
Alerts 39
Voice mail 40
Pages and text messages 41
Internet and Data Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Accessing the Internet 45
Using the Internet browser 46
Navigating in the browser 48
Receiving Net Alerts 51
Sending or Receiving Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Data and voice transmissions 53
Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Menu items 58
All manuals and user guides at all-guides.com

x

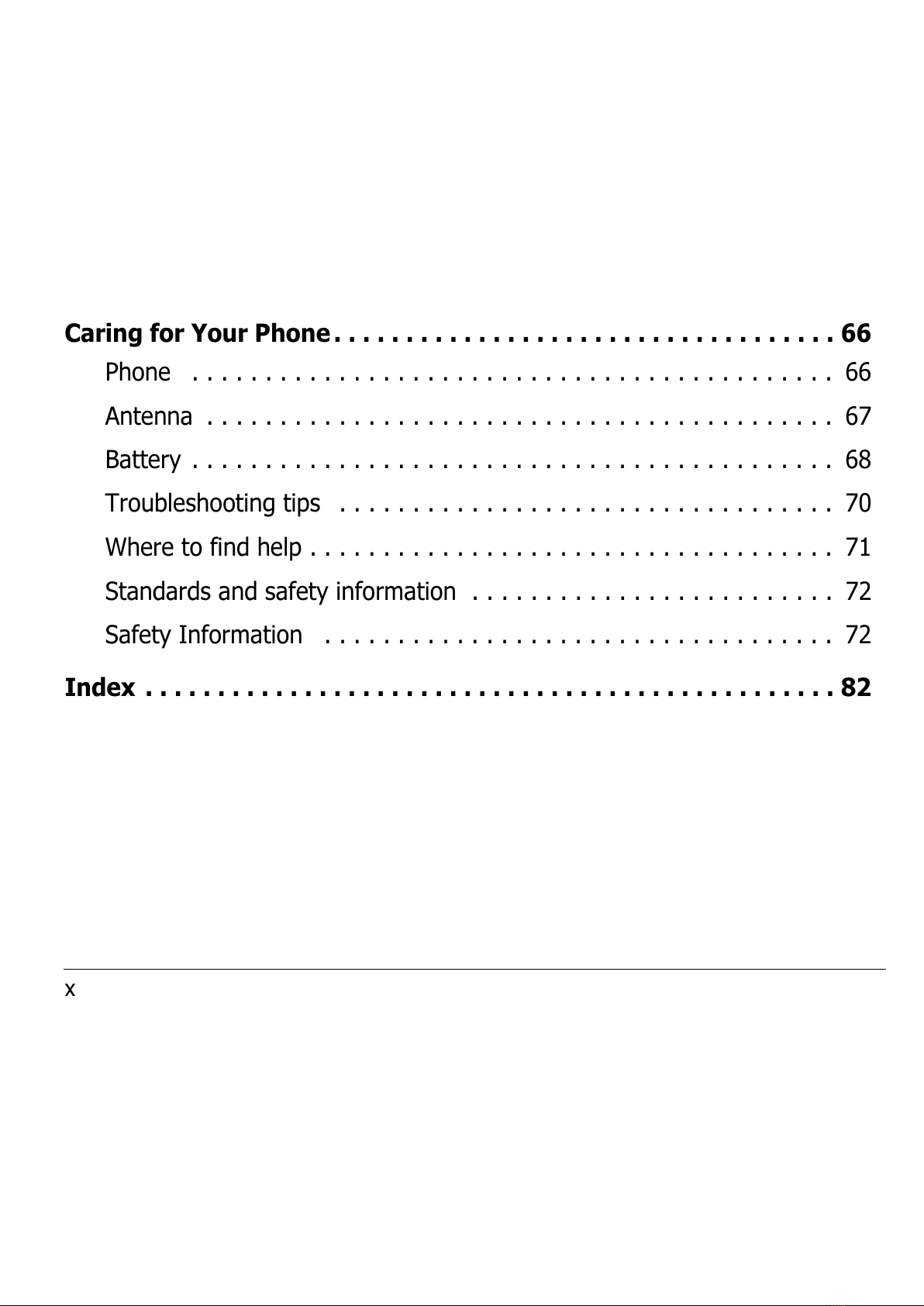

Caring for Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Phone 66
Antenna 67
Battery 68
Troubleshooting tips 70
Where to find help 71
Standards and safety information 72
Safety Information 72
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
All manuals and user guides at all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones 1
QUICK START
Your phone model
This user’s guide covers three models of QCP Thin Phones:
•QCP 860: dual-mode CDMA digital and analog cellular service (at
800 MHz)
•QCP 1960: CDMA digital PCS service (at 1900 MHz)
QCP 2760: dual-band CDMA digital PCS (at 1900 MHz) and analog cellular
service (at 800 MHz)
To turn on your phone
•Press or until the icon appears on the screen The phone
enters standby mode (its idle state).
To unlock your phone
• If your phone is locked, press or under [UNLOCK] and enter
your lock code The default lock code is usually either 0000 or the last four
digits of your phone number.
pwr
All manuals and user guides at all-guides.com
all-guides.com

2Quick tart

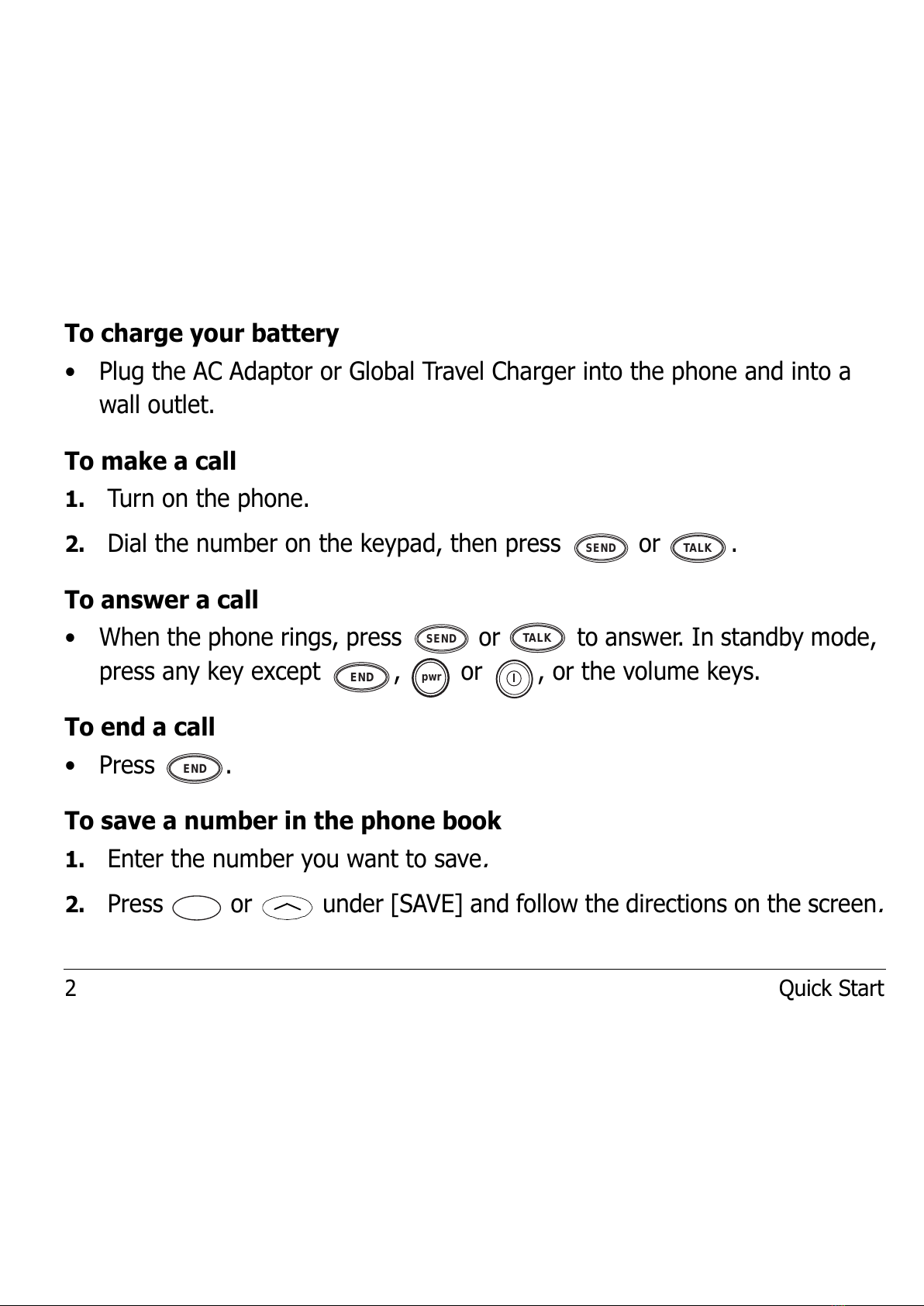

To charge your battery
• Plug the AC Adaptor or Global Travel Charger into the phone and into a
wall outlet
To make a call
1. Turn on the phone
2. Dial the number on the keypad, then press or
To answer a call
• When the phone rings, press or to answer In standby mode,
press any key except , or , or the volume keys
To end a call
•Press
To save a number in the phone book
1. Enter the number you want to save.
2. Press or under [SAVE] and follow the directions on the screen.
SEND TALK
SEND TALK
END pwr
END
All manuals and user guides at all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones 3
To speed dial a phone number
1. Enter a memory location from the phone book
2. Press or
To redial the last number called
•Press or
SEND TALK
SEND TALK
All manuals and user guides at all-guides.com

4Quick tart
Quick menu reference
• Press or under [MENU] to
enter the menu structure
•Press or or the volume
keys to scroll up or down through the
menus
•Enter the menu and menu item number
(such as 6 3 for Display > Banner) to
open a menu item
•Press to return to the previous
menu level without saving changes
•Press to exit the menus
QCP 860 and 1960 QCP 2760
C
END
All manuals and user guides at all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones 5

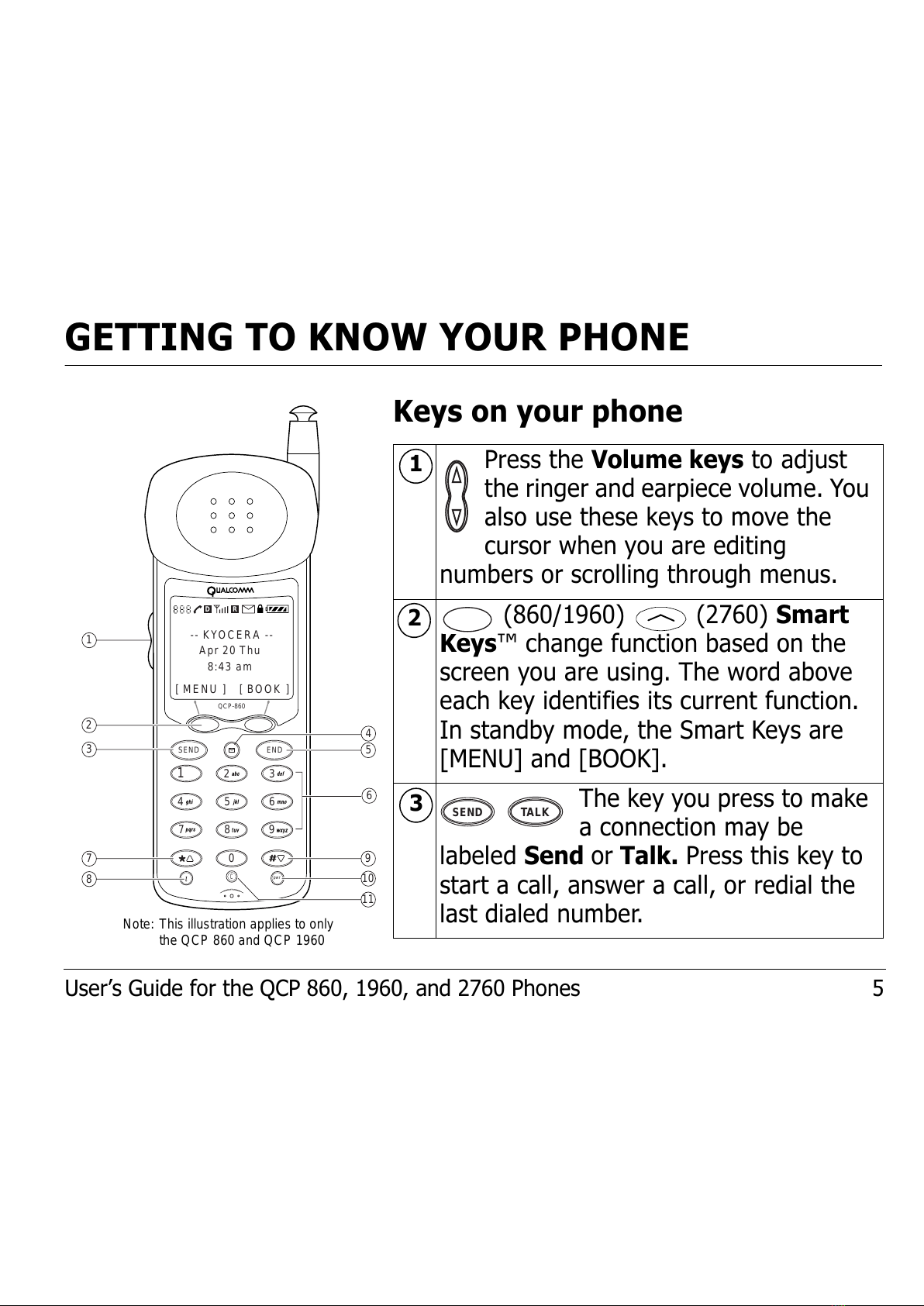

GETTING TO KNOW YOUR PHONE
Keys on your phone
Press the Volume keys to adjust
the ringer and earpiece volume. You
also use these keys to move the
cursor when you are editing
numbers or scrolling through menus.
(860/ 960) (2760) Smart
Keys™ change function based on the
screen you are using. The word above
each key identifies its current function.
In standby mode, the Smart Keys are
[MENU] and [BOOK].
The key you press to make
a connection may be
labeled Send or Talk. Press this key to
start a call, answer a call, or redial the
last dialed number.
0
QCP-860
3
1
SEND END
4
7
2
5
8
3
6
9
pwr
C
ι
-- KYOCERA --
Apr 20 Thu
8:43 am
D R
7
8
2
1
9
10
5
4
11
6
[ MENU ] [ BOOK ]
pwr
Note: This illustration applies to only
the QCP 860 and QCP 1960
1
2
3SEND TALK
All manuals and user guides at all-guides.com

6 Getting to Know Your Phone
Press the envelope to open text messages, pages, and voice mail
notifications
Press End to end a call or to silence the ringer during an
incoming call Press this key at any time to exit the current
screen and return to standby mode
Use the keypad to enter digits, letters, and punctuation marks,
or to select menu options
Press Scroll Up to scroll through menus and screens When
editing text, press it to move the cursor to the left
Press Information to see your phone number or enter
punctuation marks and pauses
Press Scroll Down to scroll through menus and screens When
editing text, press it to move the cursor to the right
(860/1960) (2760) Press and hold Power to turn the phone
on or off
Press Clear once to erase the last character Press and hold to
erase all characters In menus, press this key to return to the
previous menu level
4
5END
61
7
8
ι
9
10 pwr
11
C
All manuals and user guides at all-guides.com
all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones 7

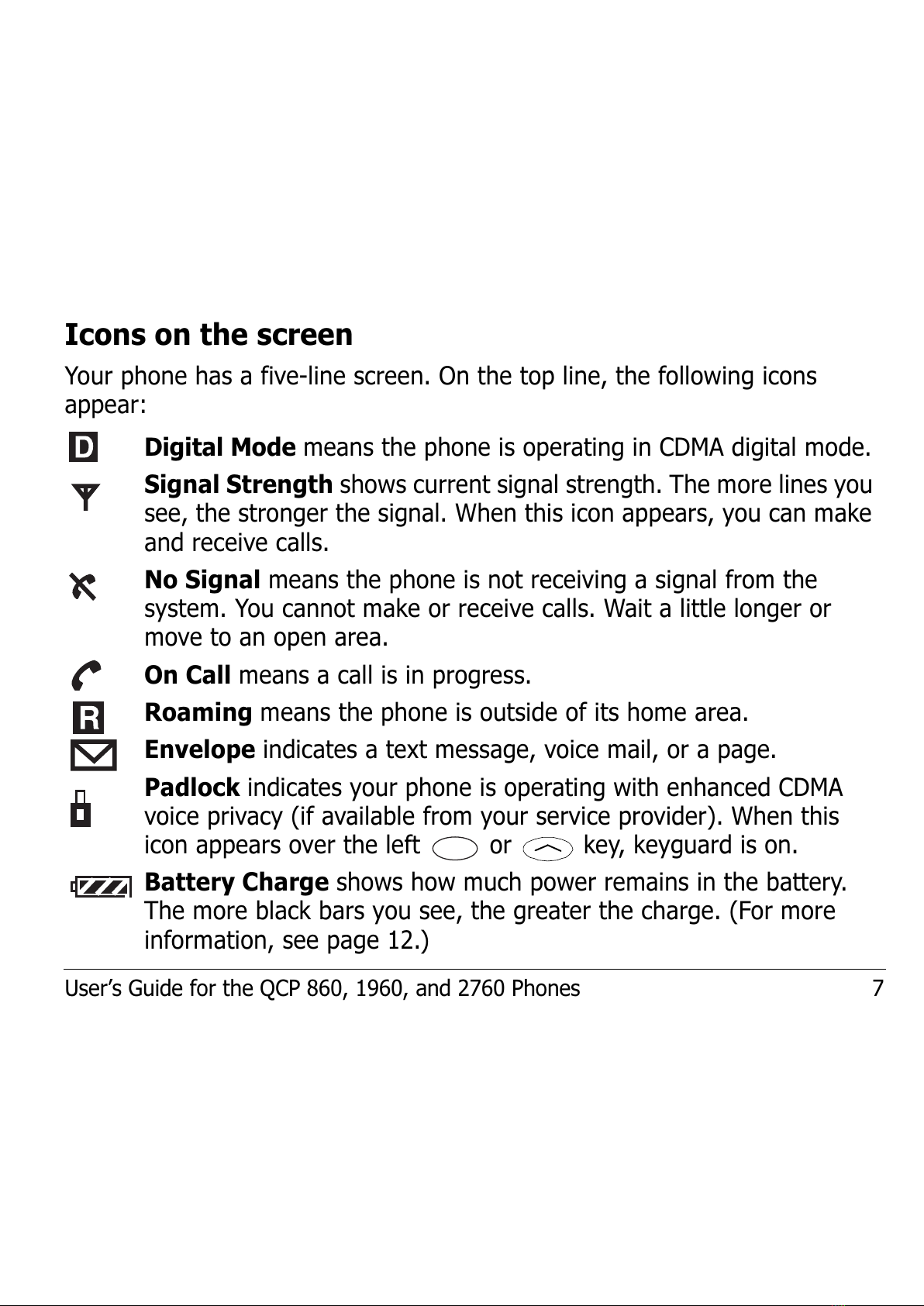

Icons on the screen
Your phone has a five-line screen On the top line, the following icons
appear:
Digital Mode means the phone is operating in CDMA digital mode
Signal Strength shows current signal strength The more lines you
see, the stronger the signal When this icon appears, you can make
and receive calls
No Signal means the phone is not receiving a signal from the
system You cannot make or receive calls Wait a little longer or
move to an open area
On Call means a call is in progress
Roaming means the phone is outside of its home area
Envelope indicates a text message, voice mail, or a page
Padlock indicates your phone is operating with enhanced CDMA
voice privacy (if available from your service provider) When this
icon appears over the left or key, keyguard is on
attery Charge shows how much power remains in the battery
The more black bars you see, the greater the charge (For more
information, see page 12 )
All manuals and user guides at all-guides.com

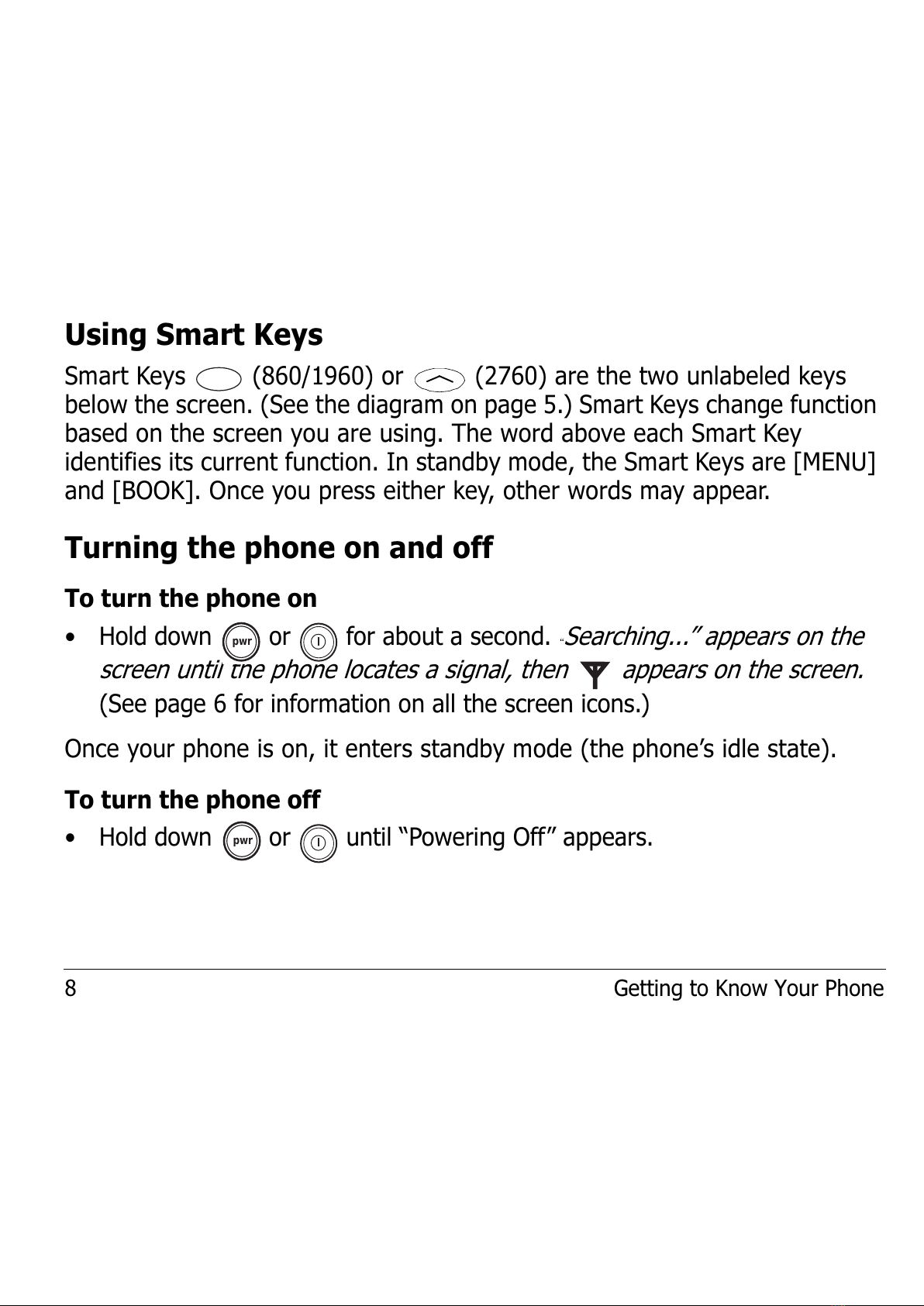

8 Getting to Know Your Phone
Usin Smart Keys
Smart Keys (860/1960) or (2760) are the two unlabeled keys
below the screen (See the diagram on page 5 ) Smart Keys change function
based on the screen you are using The word above each Smart Key
identifies its current function In standby mode, the Smart Keys are [MENU]
and [BOOK] Once you press either key, other words may appear
Turnin the phone on and off
To turn the phone on
• Hold down or for about a second “Searching...” appears on the
screen until the phone locates a signal, then appears on the screen.
(See page 6 for information on all the screen icons )
Once your phone is on, it enters standby mode (the phone’s idle state)
To turn the phone off
• Hold down or until “Powering Off” appears
pwr
pwr
All manuals and user guides at all-guides.com

User’s Guide for the QCP 860, 1960, and 2760 Phones 9
About standby mode
When the phone is turned on and ready to send or receive calls, it is in
standby mode (its idle state) From standby mode, you can dial a phone
number, save it in the phone book, or find it in the phone book if it is
already there Press at any time to return to standby mode
Important: If you press while on a call, you end the call To view the
date and time during a call, press
Viewin your phone number
• From standby mode, press Your phone number appears.
Usin key uard
Keyguard protects your phone against accidental keypresses when the
phone is turned on You can answer calls by pressing or
whether keyguard is turned on or not
To turn keyguard on
Turn keyguard on in one of these ways:
END
END
C
ι
SEND TALK
All manuals and user guides at all-guides.com

10 Getting to Know Your Phone
• Press and hold or under [MENU] for about two seconds
-or-
• Press or under [MENU], then press appears above
the left Smart ey.
To turn keyguard off
1. Press or under
2. Press
Lockin the phone
You can lock your phone using your four-digit lock code When the phone is
locked, you can only call emergency numbers or receive incoming calls
To lock the phone
1. Press or under [MENU]
2. Choose Security
3. Enter your four-digit lock code
1
1
All manuals and user guides at all-guides.com
