Introduction
Setting Guide

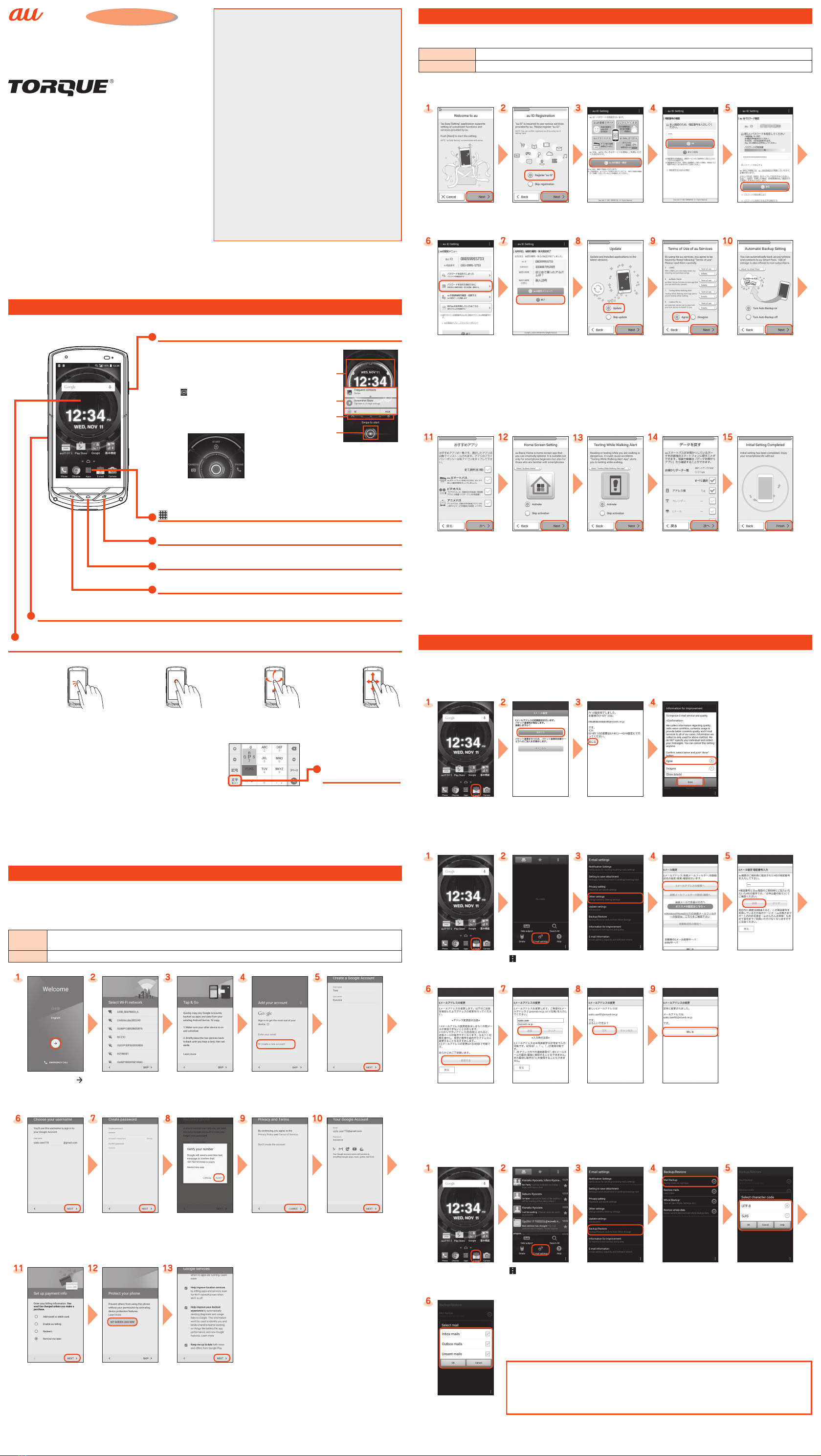

G02
Basic Operation
For detailed operations, refer to the "Basic Manual" application that can be used on the product.
FPower button
Power On
F(Long-touch at least 2 seconds)
Displaying the Home Screen from
the Start Screen
Touch " " and swipe (flick) toward
"START" to display the Home screen.
Swiping (flicking) toward
"CAMERA"/"PHONE" activates camera/
phone.
•If a description for the Home screen
appears, read the information and
tap "OK".
Widget
Indicator
Notification
display
Start icon
《Start screen》
•Widgets are displayed in the Start
screen. Swipe (flick) left/right or
press z(Direct button) to
switch between widgets.
Apps list
Display the Apps list.
NRecents button
Display the recently-used apps.
HHome button
Display the Home screen or use for canceling sleep mode.
CBack button
Tap to return to the previous screen.
zDirect button
Long-touch to use the function set from the Apps list →[Settings] →[Direct Button].
Display (Touch panel)
Operate directly touching with your finger.
Tap
Lightly touch a
screen and then
immediately
release your finger.
Long-touch
Keep touching a
screen.
Flick (swipe)
Touch the screen
and flick up/down/
left/right.
Slide
Slide your finger
across the screen
in a desired
direction to view
hidden content.
■Character Entry
Enter character by flick input or tapping key repeatedly.
Flick input
Long-touch a key to display input candidates for flick input as right
screen. Flick to the direction of character to enter.
《Character entry screen (10-key)》
Character entry mode
switch key
Tap to switch character
type.
■Silent Mode Setting
•Long-touch l(Volume DOWN button) on left side of the product to set Silent mode on/off.
•To change the Silent mode type, access the Apps list→[Settings] →[Sound & notification] →[Silent mode type] →[Vibrate]/[Mute]/
[Drive].
Initial Settings
When you turn on the product for the first time, follow the onscreen instructions to set the language, functions, services, etc.
■Setting Up a Google Account
Set up Google account to use Google apps such as "Gmail", "Play Store", "Hangouts".
Setting items are as below (besides the items below, register "First" name, "Last" name).
User name Register your Google account (user ID) and any character string for mail address. You can register a desired name, but a
registered name by another user cannot be set.
Password Register password for the Google account.
Select language,[ ] Set up the Wi-Fi network
to connect as required*1
Back up apps and data
as required*1
[Or create a new
account]*2
Enter your [First name]
and [Last name] →
[NEXT]
Enter a user name →
[NEXT]
Checking registration of
username starts.
Enter a password, and
reenter the password for
confirmation →[NEXT]
Confirm/change name
of country and phone
number →[NEXT] →
[VERIFY]*1
Check the contents,
then [I AGREE]
Check the contents,
then [NEXT]
Select whether to set
payment information →
[NEXT]
Here, tap "Remind me
later" and go to next step.
[SET SCREEN LOCK
NOW]*1 →Follow the
onscreen instructions
Check the contents,
then [NEXT]
*1 If you do not set up, tap "SKIP".
*2 If you already have a Google account, enter the e-mail address.
au Easy Setting
By setting au ID, you can use various services provided by au such as "au Simple Payment Service" which allows you to purchase
applications from the au スマートパス (au Smart Pass) or Google Play. Main setting items as follows.
au ID*Register your au phone number or any character string for au ID (user ID).
au ID password Register password for using au ID.
* "au ID" which is already used by another user cannot be set.
•If you skipped completing "au Easy Setting" after purchasing the product, you can set an au ID later. To set, either tap "Settings" →"au
Settings Menu" →"au Easy Setting", or tap the Apps list →"au ID Setting".
Welcome to au screen
→[Next]
[Register "au ID"]
→[Next]
[au IDの設定・保存
(Set/save au ID)]
Enter the security
code*1 →[OK]
Enter a security
password
→[設定 (Settings)]
[au ID 設定メニューへ
(To au ID settings
menu)] →[パスワード
を忘れた時のために
(When you forget your
password)]
Enter 生年月日 (Date of
birth), 秘密の質問
(Secret question),
答え (Answer)
→[入力完了 (Done)]
→[変更 (Change)]
→[終了 (Done)]
[Update] →[Next] Check the terms and
conditions (reading
required), [Agree]
→[Next] →[Agree]*2
Check the contents,
[Turn Auto Backup on]/
[Turn Auto Backup off]*3
→[Next]
To use the [Data Storage
App] application and
automatically store photos
and address book entries
to the auスマートパス (au
Smart Pass) server, select
[Turn Auto Backup on].
Select apps to install
→[次へ (Next)]
Check the contents,
[Activate]/[Skip
activation] →[Next]
To use au Basic Home,
select [Activate].
Check the contents,
[Activate]/[Skip
activation] →[Next]
To use the smartphoning
while walking app, select
[Activate].
Select type of data to
return*4 →[次へ (Next)]
[Finish]
*1 Default value is a four-digit number written at subscription.
*2 Setting beforehand is completed for Lookout for au as soon as you tap "Agree".
*3 When a screen different from that shown here appears, follow the onscreen instructions.
*4 If no data is stored to auスマートパス (au Smart Pass), this screen is not displayed.
E-mail
To use E-mail (@ezweb.ne.jp), subscription to LTE NET is required.
If you did not subscribe it when you purchased the product, contact an au shop or Customer Service Center.
Your E-mail address is determined automatically after initial setting. You can change the E-mail address later.
■Initial Settings
Home screen →[E-mail] Check the contents,
then [接続する
(Connect)]
Confirm e-mail address
→[閉じる (Close)]
Check the contents,
[Agree] →[Done]
■Changing Your E-mail Address
Home screen →[E-mail] [ ] →[E-mail settings] [Other settings]
→[接続する (Connect)]
[Eメールアドレスの変
更へ (To change E-mail
address)]
Enter the security code
→[送信 (Send)]
Check the contents,
then [承諾する
(I accept)]
Enter E-mail address →
[送信 (Send)]
[OK] [閉じる (Close)]
■Backing Up E-mail
You can back up E-mail.
Backed up data is saved on a microSD™ memory card (/storage/sdcard1/private/au/email/BU/) when a microSD™ memory card is
attached. If a microSD™ memory card is not attached, data is saved on the internal storage (/storage/emulated/0/private/au/email/BU/).
Home screen →[E-mail] [ ] →[E-mail settings] [Backup/Restore] [Mail Backup]
→Confirm the notes
and [OK]
Select a character code
to make backup data
→[OK]
Select a mail type to
back up →[OK]
Mail Settings Other Than E-mail
You can use mail addresses except for E-mail (@ezweb.ne.jp).
Use of other mail addresses requires accounts to be set. When using another mail address for the first
time, set the address as follows.
Apps list →[Gmail] →Follow onscreen instructions
Thank you for buying the "TORQUE G02" (simply called the
"product" from here on). In this guide, settings and
precautions for using the product are described.
For explanations of basic functions, refer to "Basic Manual".
Company names and product names referred to in this manual are
trademarks or registered trademarks of respective companies.
The TM, ® marks may be omitted in this manual.
Screen illustrations shown in this manual may look different from the
actual screens. In some cases, minor details or a part of a screen may
be omitted.
May 2015, 1st Edition
■Basic Operation
Describes the basic operations.
■Initial Settings
Make initial settings when you turn the power on for the first time.
■au Easy Setting
Sets au ID.
■E-mail
Make initial settings for @ezweb.ne.jp etc.
■Making a Call
Adds a contact as a new and makes a call.
■Receiving a Call
Describes how to receive a call.
■Importing/Exporting Contacts
Import/export contacts using a microSD™ or other memory card.
■Saving Battery Power
Describes the setting to save battery consumption using "Eco
Mode".
■Setting Wi-Fi®
Describes how to connect Wi-Fi®network.
■Viewing/Playing Data
Describes how to view and play still image and video data.
■How to Transfer Data with the au Settings Menu
You can return or store data from a previously used au phone to
the product using a microSD memory card or auスマートパス
(au Smart Pass) server.
Sold by: KDDI CORPORATION,
OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: KYOCERA Corporation

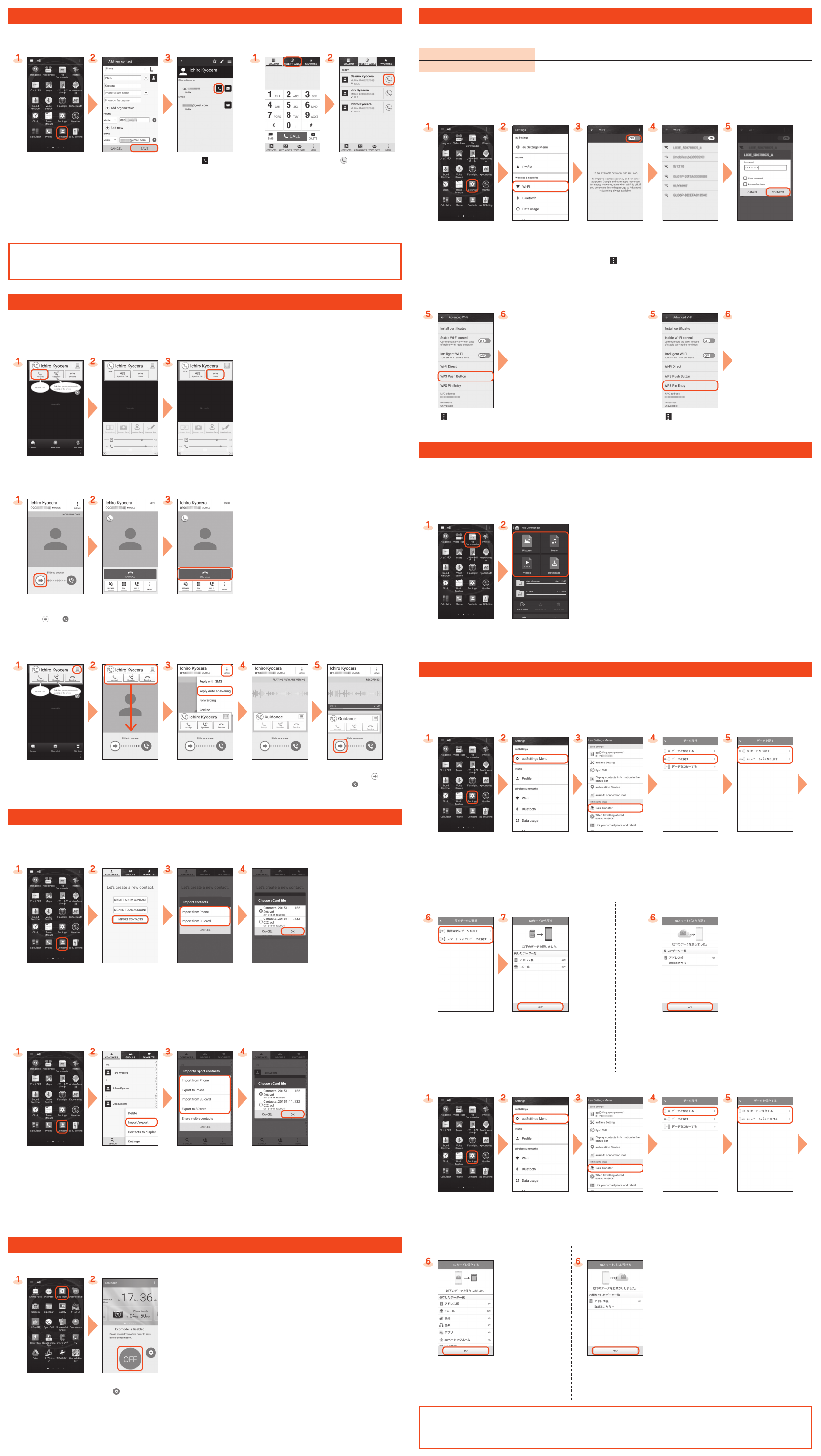

Making a Call
■Adding a New Contact and Making a Call ■Making a Call from Recent Calls
History
Apps list →[Contacts] [CREATE A NEW
CONTACT]*1*2
→[Phone]/[ADD NEW
ACCOUNT]*1
→Enter required items
→[SAVE]
[ ] Home screen
→[Phone] →Tap the
[RECENT CALLS] tab
[ ] of a party to call
*1 If you tapped "SIGN IN TO AN ACCOUNT"/"ADD NEW ACCOUNT", follow onscreen instructions to set an account.
If the contacts list is displayed, tap "ADD".
*2 If you tap "Import contacts", see the section "Importing/Exporting Contacts".
Checking your own phone number (Profile)
Operate as follow to check your own phone number.
Apps list →[Settings] →[Profile] →The profile screen is displayed.
Receiving a Call
When a call arrives, answer the call as follows.
* By default, the Sync Call "Display the popup on an incoming call" setting is "ON".
■Calling
If the Sync Call "Display the popup on an incoming call" setting is on.
Receiving screen
→[Accept]
Start calling To end the call, [END]
If in Silent mode, the Start screen is displayed, etc.
Receiving screen
→Slide to the right from
" " to " "
Start calling To end the call,
[END CALL]
■Answering with Answering Memo
Answer by the answering memo message and record a message of the party when you cannot answer calls.
Receiving screen
→[Phone Screen]
Drag the operation
panel down
[MENU] →[Reply Auto
answering]
The caller hears the
guidance
To answer the call, slide
to the right from " " to
" "
Importing/Exporting Contacts
You can import/export contacts from/to an au server/internal storage/microSD™ memory card.
•Depending on the contact, data may not be completely imported/exported.
■Importing (First Import after Purchase)
Apps list →[Contacts] [IMPORT CONTACTS] [Import from Phone]/
[Import from SD card]*1
→Select account to
register to*2
Tap the file to import
(vCard file) →[OK]
*1 If only one file to import (vCard file) is saved, importing starts.
*2 Can only be selected when an account is registered.
■Importing/Exporting (Contacts Already Registered)
Apps list →[Contacts] [MENU]
→[Import/export]
[Import from Phone]/
[Export to Phone]/
[Import from SD card]/
[Export to SD card]*1
→Select the account to
register to*2
Select file to import
(vCard file)/contacts to
export →[OK]
*1 If you tapped "Import from Phone"/"Import from SD card" and only one file to import (vCard file) is saved, importing starts.
*2 If you tapped "Import from Phone"/"Import from SD card", can only be selected when an account is registered.
Saving Battery Power
Use "Eco Mode" to adjust the sleep time of the backlight and the screen brightness or to enable/disable auto rotation of the screen so that
you can save battery power.
Apps list →[Eco Mode] [ON]/[OFF]
* Tap " " to confirm or
change energy-saving
options.
Setting Wi-Fi®
Use your home Wireless LAN (Wi-Fi®) or public wireless LAN to connect internet.
Main settings are as follows.
Select Wi-Fi®network for connection Search for and connect to an available Wi-Fi®network.
WPS system Use for registration of access point compatible with Wi-Fi Protected Setup™ with WPS mark.
* If you turn on wireless LAN (Wi-Fi®) function, battery consumption increases. You are recommended to turn wireless LAN (Wi-Fi®) function to OFF
when not using wireless LAN (Wi-Fi®) function.
■Selecting and
Connecting to a
Wi-Fi®Network
Apps list →[Settings] [Wi-Fi] [OFF] Available Wi-Fi®networks
are detected automatically
and their SSIDs appear in
the Wi-Fi®networks.
Select the Wi-Fi®
network to connect to*1
→[CONNECT]*2
*1 If the Wi-Fi®network you want to connect to cannot be detected, tap " " →"Add network" and add the network manually.
*2 To connect to a protected Wi-Fi®network, enter the password (security key) and tap "CONNECT". The password (security key) is set with the Wi-Fi®
network. For details, contact with the network administrator.
■Using a WPS System Access Point
WPS button WPS Pin Entry
[ ] →[Advanced]
→[WPS Push Button]
Keep pressing WPS
button of access point
to set to WPS mode.
An access point is
automatically detected
and registration starts.
[ ] →[Advanced]
→[WPS Pin Entry]
Enter displayed PIN
code for access point,
then registration starts.
Viewing/Playing Data
By transferring data from a previously used au phone to a microSD™ memory card, you can view or play* still images, videos, and other
data with "File Commander" on the product. The first time you start up the product, terms and conditions appear. Follow onscreen
instructions.
* Copyrighted data on the previously used au phone cannot be transferred to the product. However, some 着うたフル®, ビデオクリップ, 着うたフル
プラス®may be able to be transferred and played on the product with the same phone number by backing up with LISMO Port Ver 4.2 or later.
■Viewing/Playing Data
Apps list
→[File Commander]
Tap a category to be
displayed →Tap data
Data is played.
How to Transfer Data with the au Settings Menu
You can return or store data from a previously used au terminal to the product using a microSD memory card or auスマートパス (au Smart
Pass) server.
•To return/store data using an auスマートパス (au Smart Pass) server, you must set an au ID.
•To return data using a microSD memory card, save the data from the previously used au phone to the microSD memory card beforehand.
■Returning Data with the au Settings Menu
Apps list →[Settings] [au Settings Menu] [Data Transfer] [データを戻す (Return
data)]
Select method for
returning data
To return data from [auス
マートパスから戻す
(Return from au Smart
Pass)] (data stored on an
au Smart Pass server),
you must set an au ID.
[SDカードから戻す (Return from SD card)] selected [auスマートパスから戻す (Return from au Smart Pass)] selected
Select type of previously
used au phone
Checkmark the data to
return →[戻す (Return)]*
→[完了 (Done)]
Shown screen is for when
"スマートフォンのデータを
戻す (Return smartphone
data)" is selected.
Checkmark the data to
return →[戻す (Return)]*
→[完了 (Done)]
* If a confirmation screen appears, follow onscreen
directions.
■Saving Data with the au Settings Menu
Apps list →[Settings] [au Settings Menu] [Data Transfer]
The data transfer screen
is displayed.
[データを保存する
(Save data)]
Select where to save
To save data from [auスマー
トパスに預ける (Store to au
Smart Pass)] (store data to
an au Smart Pass server),
you must set an au ID.
[SDカードに保存する (Save to SD card)] selected [auスマートパスに預ける (Store to au Smart Pass)] selected
Checkmark the data to
save →[保存する
(Save)] →[完了 (Done)]
Checkmark the data to
store →[預ける (Store)]*
→Check the contents, and
follow onscreen instructions
→[完了 (Done)]
* If a confirmation screen appears, follow onscreen
directions.
Storing data automatically to auスマートパス (au Smart Pass)
To use the "Data Storage App" application and automatically store still images and address book entries to an auスマートパス (au
Smart Pass) server, set as follows.
Apps list →[Settings] →[au Settings Menu] →[Backup Setting] →[定期的に自動で預ける (Periodically store automatically)]
