Air Purifier
User Manual
Model No:EL-500L
Thank you for purchasing our products. Before operation, please
read this manual thoroughly and retain for future reference.

1
1. Recommend to use individual electric supply socket and not to use
an extension socket, in order to avoid the danger of overheating in the
outlet. Using inappropriate voltage and power outlet will damage and
harm others.
2. Do not place the electrical cord under cover. Place the cord in an
area where there are no any risks to stumble over.
3. Place the product on a flat, firm and safety place. Do not put it on
the table edge or on tilted area, in order to avoid dropping or damaging
the product accidentally.
4. Unpack all plastic bags of the filters before the product for the first
time. Always check whether all the filters are mounted correctly before
using the product.
5. Always switch off the product before attempting to open the back
cover and take the filter.
6. Do not block the air inlet and outlet to avoid damage due to
overheating. Keep 30cm away from product and keep away from soft
objects such as curtains.
7. To avoid shortening life span or damaging your product, do not use
the machine with parts or accessories that are not original. Otherwise,
warranty of the product will go invalid.
8. Never operate the product without supervision. Children should be
supervised by a responsible adult to ensure that they do not play with
the product.
9. Do not put your fingers or other objects into the air outlet, to avoid
injury and damage the product.
10. Periodically check the electric cable of the product. If the electric
cable is damaged, it must be replaced by after-sales service in order to
IMPORTANT SAFEGUARDS:
– To reduce the risk of electric shock, fire or injury to persons:
WARNING
Before using an electrical product, basic safety precautions should
always be observed, including the following:

3
2
avoid danger.
11. This product is not designed for outdoor use nor at humidity area
such as bathroom. It is designed for indoor use only.
12. Do not operate the product in area where gasoline, painting or
flammable liquids are around. Keep the product away from heat or hot
units, as it may cause explosion.
13. Only use this product as described in this manual.
14. Do not attempt to fix the product on your own when it is not
functioning. There are no user serviceable parts in yourappliance.
Unauthorised dismantling or servicingwill void the product warranty.If
you need maintenance, please send it back to the service centre for
assistance.
15. When unplugging the power cord, hold the plugtop, not the power
cord.
16. This product is not intended to use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervisionor
instruction concerning use of the appliance by aperson responsible for
their safety.
17. Before cleaning, repairing or moving the product, you must unplug
it. Do not use volatile liquids or hard cloth to clean the product, as to
prevent the product from scratching.
18. Do not immerse the appliance or the electrical cordor plug in
liquids.
19. When the product is not using, pack it back in the giftbox and store
it in a safe, cool and dry place that avoid direct sunlight.
20. Unplug the appliance from the mains supplywhen not in use, or
before cleaning any part of theappliance.
21. This appliance is for household use only.
CONTENTS
Parts Description…………………………………………..……………4
How to use …………………………….……………………………… 5-9
Remote Control Operation Instruction……………………….….10-12
Cleaning& Maintenance…………..………………………………..13-14
Troubleshooting………………………………………………………….15
Specification………………………………………………………………16
After-sales Service……………………………………………………….16

45
Ⅰ PARTS DESCRIPTION
1. Front panel
2. Filter
3. Dust sensor
4. Display indicator
5. Power on/off switch
6. Air out
1
23
4
5
6
7
8
9
10
3
7. Handle
8. Speed switch
9. Voc sensor
10. Filter ON/OFF
11. Filter lifting bracket
Ⅱ HOW TO USE
Power on/off switch
Speed setting / 3seconds to set kid lock/10seconds to
set magic switch
press both of them to reset filter timer
+
ICON INSTRUCTIONS
ICON ICON
Timer
Ion
Filter exchange alert
Auto mode
Air quality display
PM 2.5 display
VOC diaplay
CO alert
2
High Speed
INSTRUCTIONS INSTRUCTIONS

67
Attention: The product will not operate until the front cover is closed
properly.
1. Remove all the packing before use to avoid blocking the product to
operate.When using the product for the first time, please follow the
Chapter Ⅴ. Take out the front cover and remove all the plastic bags and
install all the filters according to their correct sequence. Do not operate
the unit without any filters.
2. Place the product on a firm, flat and safe area, and reserve at least
30cm distance from the wall for the product operate normally and
cooling down. Afterwards, plug in the product to the power socket and
keep it away from soft objects such as curtains.
3. Normal plug in, the buzzer sounds. Indicator light dim, air purifier
enters into standby status. sensors starts work.

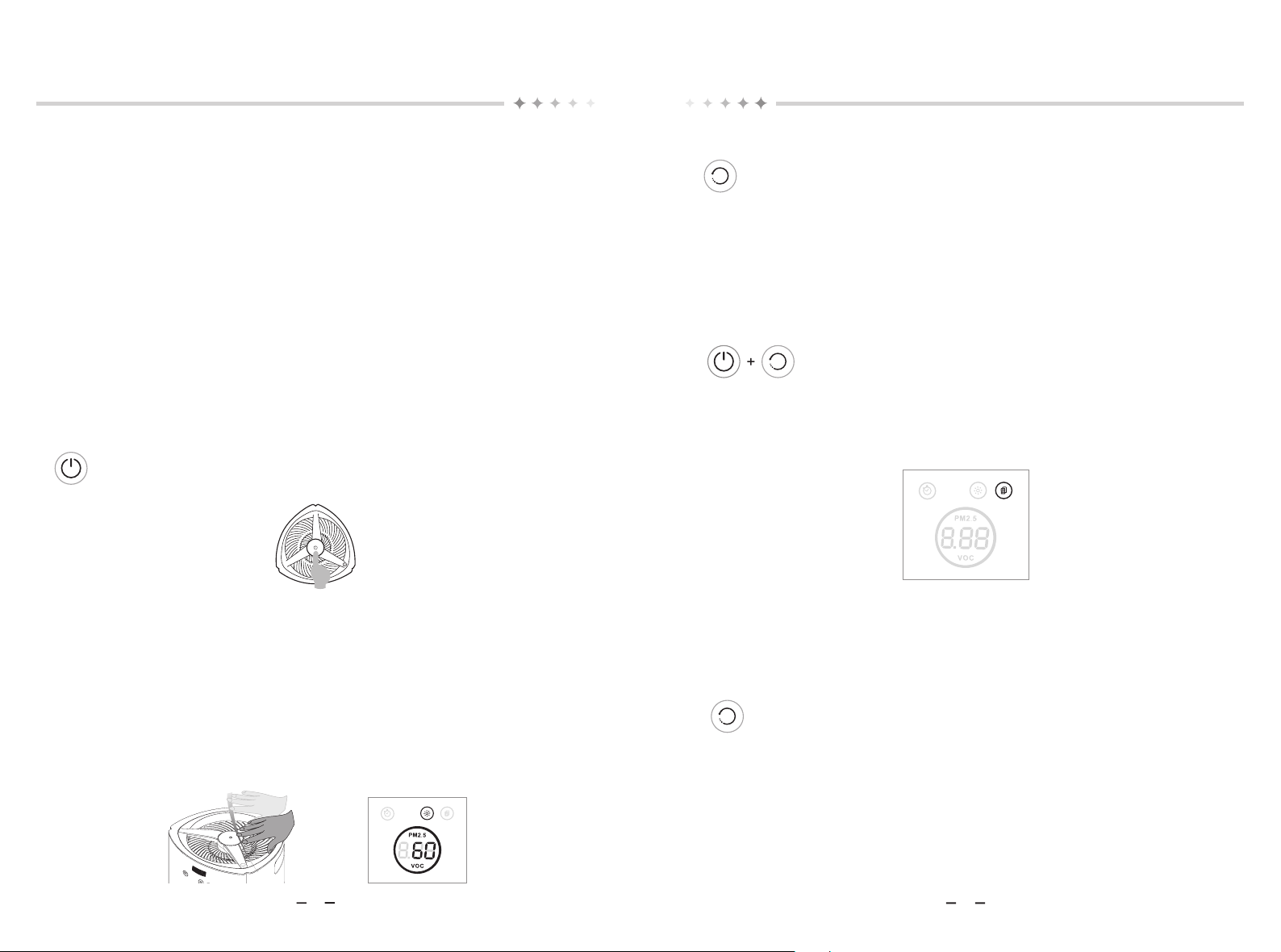

4. Two ways to Power on/off.
a) Touch the power button to turn on or turn off the unit,
b) Hand through the power on/off switch lightly by keeping 5-10 cm
isolation, the unit enters into the default functions, auto mode starts(
Letter "A" displayed in the middle of 888 indicator), turn to 1st speed,
negative ionizer, PM2.5 sensor, VOC sensor start work, filter
accumulative time working; Indicator light icons are: Power indicator
light on, negative ion, PM2.5 value displayed. Hand through the power
on/off switch lightly by keeping 5-10 cm isolation again, all function stop
working except WIFI function, the unit enters into standby mode, the
power indicator lights dim, make it cycle like this.
5. Kid lock function
On switch on mode, press the speed button for 3 seconds without
loosen finger, the buzzer sounds, the unit enters into kid lock mode. The
switch on/off indicator light flashing, 0.5seconds on and 0.5seconds off
by turn. At the same time, all button of remote control failed in operation
except power on/off switch. Release kid lock: press the speed button for
3 seconds without loosen finger again to release, switch on/off indicator
lights on normally.
6. Filter restart function
Touch the power on/off -switch and fan speed button for 3seconds
together without loosen finger, the buzzer sounds, then clean up filter
accumulative time, filter restart light flashing, open the panel to reset
filter.
7. Filter cumulativetime counting
Next time switch on the unit, continue to calculate filter time, after
2000hours using (<0.5 is seen as 0.5 hour, <1 hour is seen as 1hour.) ,
the filter indicator light 0.3 second on then 0.3 seconds off, indicate the
user to replace the filter.
8. Speed button
Press speed button by hand, the speed displayed in the middle of 888,
Press the button by turn, it turns to 123AUTO. When speed fixed, it will
be displayed for 5 seconds, and will turn to display PM2.5 value and
VOC automatically after 5 seconds, if user want to check the current
speed, press the speed button, and the current speed will be changed if
press speed button again. Exit from the hand mode state: just press the
Auto button or sleep button or fast removal button to exit.

89
9. Digital tube display
Touch the power-on/off switch, PM2.5 indicator lights on, PM2.5 value
displayed, after 5 seconds the TVOC indicator lights on, TVOC value
displayed.take turns alternately every 5 seconds.
VOC
PM2.5
Good
Fine
Dirty
COLOR
Green
Yellow
Red
SPEEDDISPLAY
000-075
076-150
>150
1
2
3
<0.60
0.61-1.00
>1.00
1
2
3
PM 2.5 display:
VOC diaplay
DISPLAY
COLOR
Green
Yellow
Red
SPEEDDISPLAY DISPLAY
Good
Fine
Dirty
10. How to know the quantity of CO2 in your room ?
will display orange color and blink means CO2 quantity more than
2000ppm , you need to open your window.
11. Optical sensing light auto on/off
When in dark light environment, the unit enters into sleep mode,
indicator lights dim. When in bright lightenvironment,the unit reverts to
previous mode.

11
10
Ⅲ REMOTE CONTROL OPERATION INSTRUCTION
POWER
HIGH SPEED
AUTO
ION
LIGHTS OFF
SLEEP
TIMER
KID LOCK
SPEED
1) Power-switch: Press power-switch for power on, press it again for
power off, make it cycle like this.
2) High speed button: Press high speed button, the unit enters into
high speed mode, "H" is displayed on the middle of 888 for 5 seconds,
and it will display PM2.5 value by turn after 5 seconds. Press high
speed button again to exit and the unit enters into auto mode instead,
"A" is displayed on the middle of 888.
3) Speed button: Press speed button, the speed displayed in the
middle of 888, Press the button by turn, it turns to 123AUTO. When
speed fixed, it will be displayed for 5 seconds, and will turn into PM2.5
value and VOC display automatically after 5 seconds, if user want to
check the current speed, press the speed button, and the current speed
can be changed if press speed button again. Quit from the hand mode
state: just press the Auto button or sleep button or fast removal button.
4) Sleep button: Press sleep button, the unit enters into sleep mode,
the power light dim, all other lights off, buzzer turns off, all keys are
failed in operation except power-on switch and sleep button when in
sleep mode. Press the button again,Exit from sleep mode, the unit
enters into auto mode.
5) Timer button: Press timer button to timing shutdown function, 0-
24hours are available to be timer, Countdown time by hours displayed
on the machine.
6) Kid lock function: Press the kid lock button, the buzzer sounds, the
unit enters into kid lock mode. The power-switch light flashing,
0.5seconds on and 0.5seconds off by turn. At the same time, all button
of remote control failed in operation except power switch. Release kid
lock, press the kid lock button again to release, switch on/off indicator
lights on normally.
7) Negative ion button: Press it to turn offion function, negative ion
indicator lights off, press it again, negative ion starts work, lights on.
8) AUTO button: Press Smart button, the unit enters into smart mode,

press it again to exit, the unit enters into manual mode.
9) lights off button: Press it, all indictor lights turn off, only power-
on/off switch lights dim, press it again to exit.

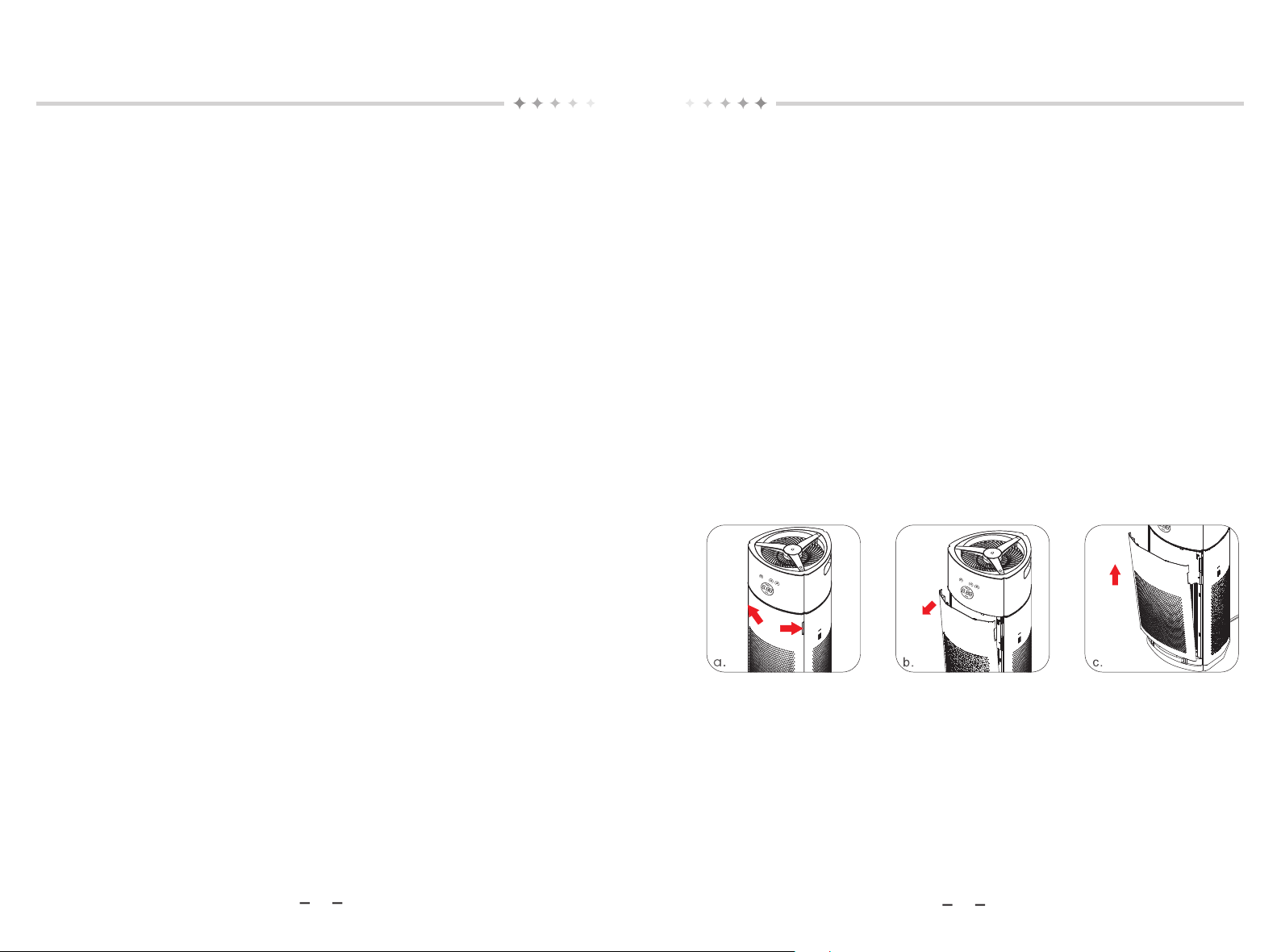

Both hands index finger gently press the arrow position and gently to
the outside force, to lift the front panel.
Ⅳ CLEANING& MAINTENANCE
Warning:
- Always unplug the product before cleaning, maintaining or moving it.
- Do not immerse the power cord, plug or the whole product in water.
- Caution - Do not use detergent, gasoline, benzene, thinner, or other
solvents to clean the product to avoid damage of the product.
- It is recommended to clean the product and to replace it with new
filters regularly for best air purifying performance.
- Switch off the product before maintaining it. Remove the plug from the
socket, and wait for 15 min for the fan to stop running

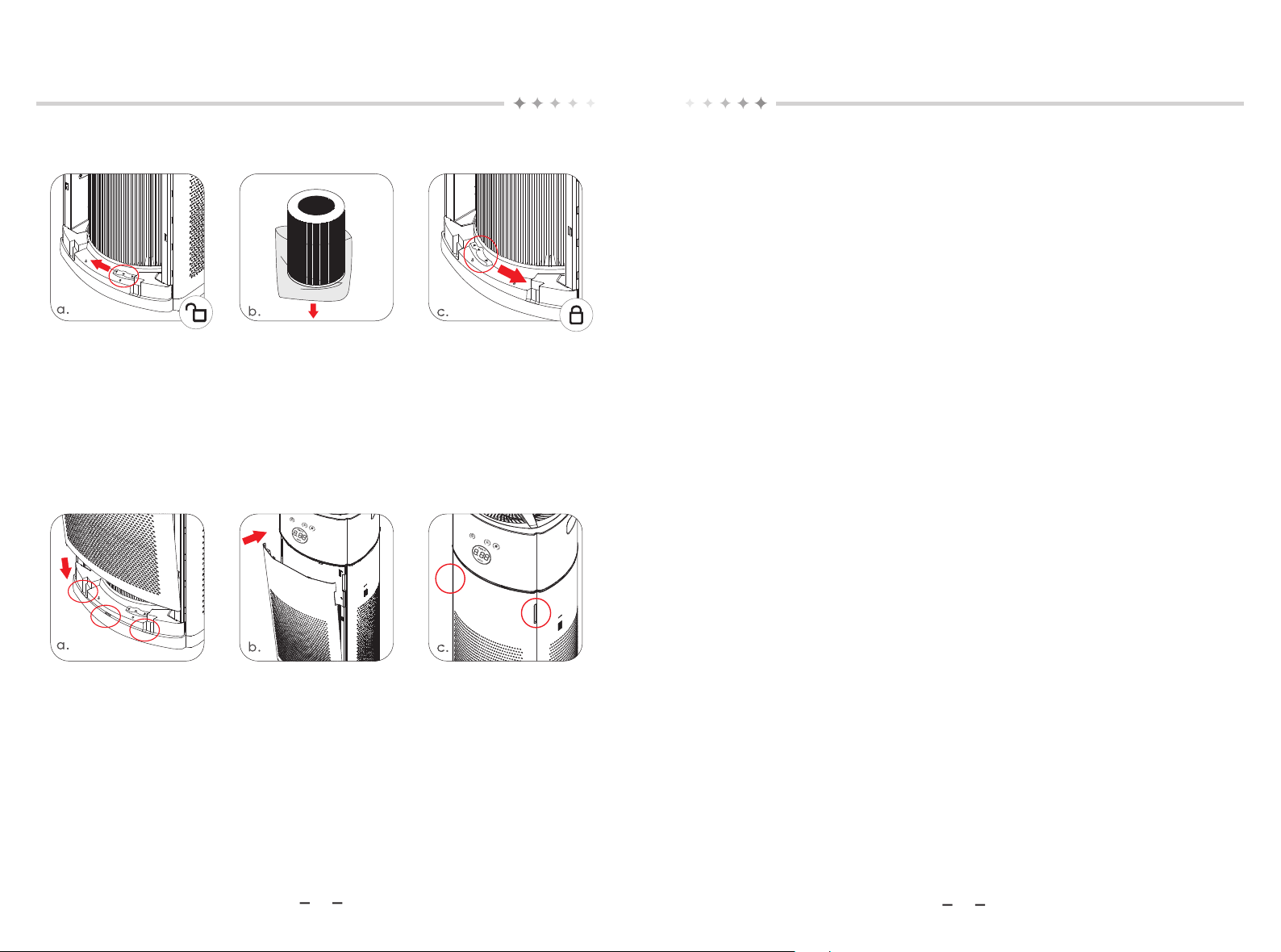

- Remove the filters from the product as below.
- After that, Drag the fixed switch of the filter to the left slide to unlock,
- the HEPA filter should be replaced after using for 6 to 12 months, and
- The product surface can be cleaned by damp cloth and dry up before
1. Take out the front cover
2. Exchange filter
remove the filter to replace.
the replacing time varies upon the using environment.
use.
13
12

14 15
3. Install front panel
- Dry up all the filters before assemble back to product and storage.
Please install the filters and front cover into sequence as per
instruction. The bottom three buttons are aligned with the card slot, and
the panel is pushed forward to fix the front panel.
Ⅴ TROUBLE SHOOTING
When the product failure, please refer to the below troubleshooting
method. If the faulty problems are out of below scopes, please do not
attempt to repair the product, bring it back to the service providers to
check and repair.
1.1. The safety device will not be activated if the front cover had not
been mounted properly.
1.2. Check the connection of power supply if it is well connected.
2.1. The filters are dirty.
2.2. The lifespan of the filters are over.
3.1. The product may have been overwhelming for long operating hours
or the air outlet is being blocked.
1.1.1. Switch off the product, and remount the front cover. Then refer the
1.2.1. Please connect power supply according to the “How to use”
2.1.1. Clean the filters according to the “Cleaning” Chapter.
3.1.1. Switch off the product immediately and unplug from the socket.
Problems
Possible Causes
Possible Solutions
1. Air Purifier cannot operate.
2. Air purification capacity decrease.
3. The product has abnormal phenomena, like making weird noise, bad
smells, too hot to touch, giving out smoke and etc.
Chapter “How to use” to install.
Chapter.
2.2.1. Replace the filters.
Then bring the product to the service centre for checking.

Model No : EL-500L
Rated Voltage/frequency: AC220-240V/50Hz
Rated Power: 55W
Net Weight: 8.8kg
Gross Weight: 10.2kg
CADR(Smoke): 280CFM
Dimension: 305*306*724mm
Ⅵ SPECIFICATION
Ⅶ AFTER-SALES SERVICE
Customer Appliances Service Limited
Eindec Singapore Pte Ltd
Tel: 1311 (Monday to Friday 9AM-5pm)
16
