L-Acoustics L-ISA PROCESSOR User manual

L-ISA
PROCESSOR
product information

Document reference: L-ISA Processor product information version 6.0
Distribution date: June 22, 2020
© 2020 L-Acoustics. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means without the
express written consent of the publisher.

[EN] Safety
[EN] Safety
Important safety instructions
Inspect the system before any deployment.
Perform safety related checks and inspections before any deployment.
Verify the electrical conformity and compatibility of the mains supply.
Only connect the product to an AC power outlet rated 100-240 V, 50-60 Hz.
WARNING: The product is of CLASS 1 construction and shall be connected to a mains socket outlet with a
protective connection to earth.
When the product is used in a three-phase circuit, verify the electrical conformity and
compatibility of the three-phase circuit.
Verify that the three phases work, and balance the loads between the three phases.
Verify that the neutral and earth work.
Never try to emulate a 230 V circuit connecting an apparatus to two live wires of a 120 V three-phase circuit.
Never try to emulate a 200 V circuit connecting an apparatus to two live wires of a 100 V three-phase circuit.
Electrical generator
You must power on the generator before powering on the product.
Verify that the product is turned off before powering on the generator.
Never incorporate equipment or accessories not approved by L-Acoustics.
Read all the related PRODUCT INFORMATION documents shipped with the products before
exploiting the system.
Intended use
This product is intended for use by trained personnel for professional applications.
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right
to change the specications of its products and the content of its documents without prior
notice.
Check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Do not use the product outside its operating temperature range.
The product operates at a room temperature between 0 °C / 32 °F and 50 °C / 122 °F.
Do not expose the product to direct sun.
Only use the product in a conformed electro-magnetic environment.
Conformed environments are: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio), as per EN55103-2 standards.
Avoid radio interference.
This product has been tested and complies with the limits indicated in the EMC directive (Electro Magnetic
Compatibility). These limits are designed to provide reasonable protection against harmful interference from
electrical equipment, but it cannot be guaranteed that interference will never occur.
Contact L-Acoustics for advanced maintenance.
Any unauthorized maintenance operation will void the product warranty.
Shipping
Use the original packaging for shipping the product.
Maintain this document as an integral part of the product.
Do not resell the product without this document.
L-ISA Processor product information version 6.0 3

[EN] Safety
Symbols
The following symbols are used in this document:
This symbol indicates a potential risk of harm to an individual or damage to the product.
It can also notify the user about instructions that must be strictly followed to ensure safe installation or operation of
the product.
This symbol indicates a potential risk of electrical injury.
It can also notify the user about instructions that must be strictly followed to ensure safe installation or operation of
the product.
This symbol noties the user about instructions that must be strictly followed to ensure proper installation or
operation of the product.
This symbol noties the user about complementary information or optional instructions.
Do not open unless authorized.
This symbol indicates the presence of electrical shock hazards.
It also indicates that no maintenance performed by the end user requires access to internal components.
4 L-ISA Processor product information version 6.0

Welcome
Welcome
Thank you for purchasing the L-ISA Processor. The shipping carton should contain:
• 1 L-ISA Processor
• 1 power cable
• 1 AES/Midi breakout cable
• 4 rubber feet
• 1 front panel lock key
Each product is tested and inspected before leaving the factory and should arrive in perfect condition.
After the careful opening of the shipping carton, check for any noticeable damage. If so, notify the shipping company or
the distributor immediately. Only the consignee may initiate a claim with the carrier for damage incurred during shipping.
Be sure to save the carton and packing materials to be inspected by the carrier.
Carefully read this document in order to become familiar with the product and to identify the external documents
containing essential information on installing and operating the product properly and safely. Product documents are freely
available on the L-Acoustics web site: www.l-acoustics.com
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to
change the specications of its products and the content of its document without prior notice. Please
check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Manuals and procedures
Power ON/OFF procedures
Power ON sequence
1. If the rear PSU power switch is OFF, turn ON the switch.
2. Use the front power button to power ON the device.
Power OFF sequence
Always perform a “soft” power OFF using the front button (or via the L-ISA Controller) before turning OFF the rear PSU
power switch.
Service and maintenance
In case of issues during operation, contact your L-ISA representative.
Do not open the chassis or attempt any maintenance operation.
L-ISA Processor product information version 6.0 5

EC declaration of conformity
EC declaration of conformity
L-Acoustics LTD, 67 Southwood Lane, London N6 5EG, United Kingdom, states that the L-Isa Processor is in conformity
with the provisions of:
Directives
• Electrical safety:
• Low Voltage Directive (LVD) 2006/95/EC
• General Product Safety Directive (GPSD) 2001/95/EC
• Electromagnetic Compatibility (EMC): EMC Directive 2004/108/EC
• ROHSII Directives: 2011/65/EU
General
Europe: Audio, Video And Similar Electronic Apparatus - Safety Requirements EN 60065:2010
RoHS
Europe: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of
hazardous substances EN 50581:2012
Electrical safety
• Europe
• Safety requirements for audio, video and similar electronic apparatus EN 60065
• Information technology equipment - Safety - Part 1: General requirements EN 60950-1:2006 + A11:2009
+ A1:2010 + A12:2011
• USA / Canada: UL60950-1:2007 / CSA C22.2- No. 60950-1-7:2007
• CB Report: IEC 60950-1:2005 (Second Edition) + Am 1:2009
EMC
• Europe
• Information technology equipment– Radio disturbance characteristics– Limits and methods of measurement EN
55022:2010 Class B
• Generic emission standard for industrial environments (Emission) EN 61000-6-4:2007
• Generic standards - Immunity for industrial environments (Immunity) EN 61000-6-2:2005
• Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions
related to human exposure to electromagnetic elds (10 MHz to 300 GHz) EN 62479
• USA: 47 CFR part 15
• Canada: ICES-003 Issue 4 :2004
Issued in London, United Kingdom, October 5, 2015.
Guillaume Le Nost, Head of Research & Development.
6 L-ISA Processor product information version 6.0

Network conguration
Network conguration
Use dedicated networks for LA NWM and L-ISA.
L-ISA Controller receives data on UDP port 8880. This is required to connect to the L-ISA Processor, L-ISA Plugins, or any
external control device (Desklink, Trackers, OSC).
For L-ISA Plugins to work, the hosting DAW and L-ISA Controller need to be able to use UDP port 9438 over multicast IP
address 239.255.139.81. If using managed switches, make sure that IGMP settings are properly congured for multicast
trafc.
For license activation, L-ISA Controller needs to be able to connect to an HTTPS server.
For L-ISA Processor based emergency activation, the L-ISA Controller and L-ISA Processor need to be able to use UDP port
11389 over multicast IP address 239.255.84.167.

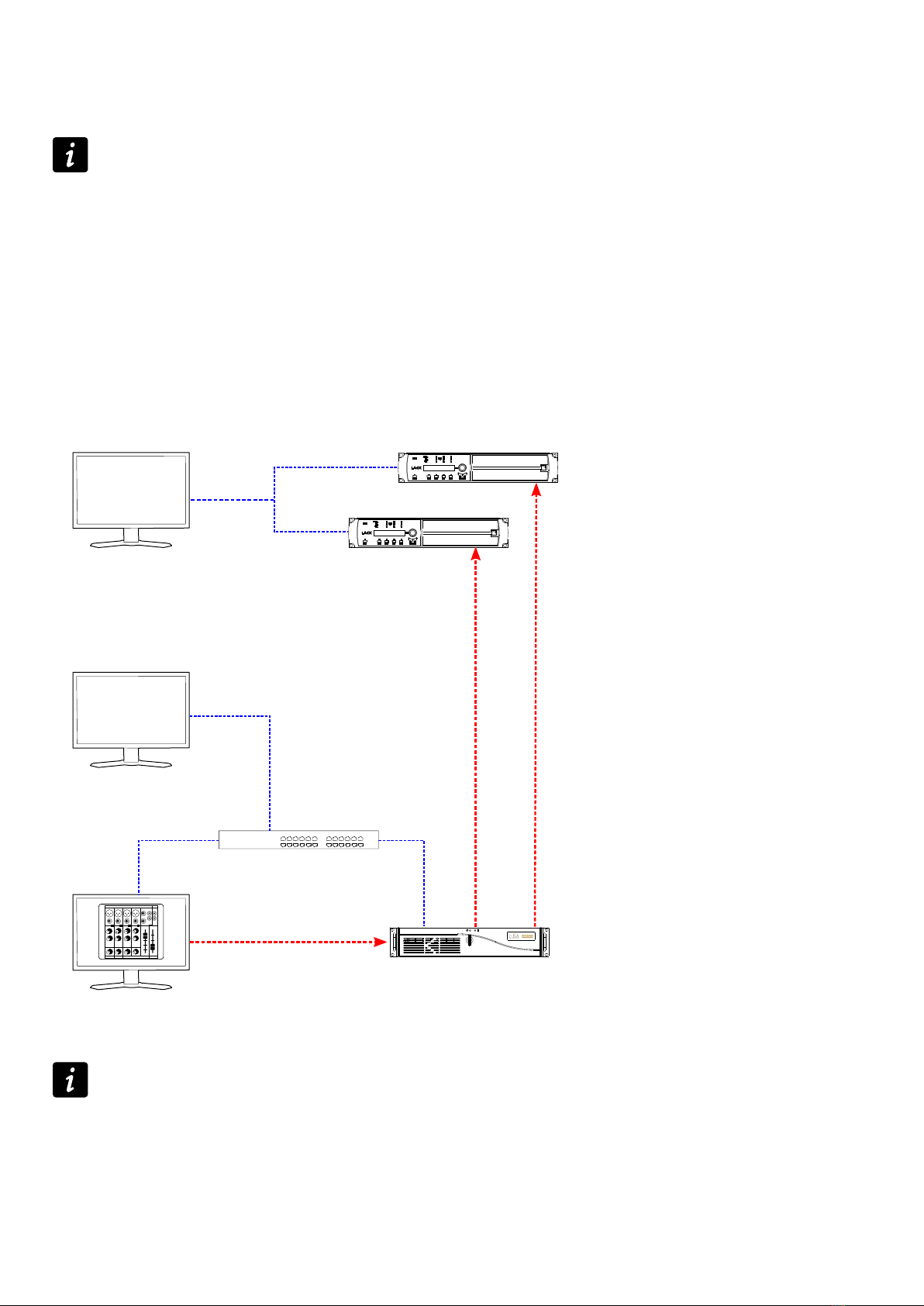

L-ISA network using DHCP
LA Network Manager
L-Isa Controller
DAW
L-Isa Source
Control Plugins
L-Isa Processor
audio
DHCP server
switch with
L-Acoustics amplified
controllers
fixed ip
fixed ip
fixed ip
DHCP
DHCP
DHCP
audio
The L-ISA Processor supports APIPA.
If there is no DHCP server, devices will automatically self-assign an IP address and the system will remain
operational. This process is called Automatic Private IP Addressing (APIPA).
The Internet Assigned Numbers Authority (IANA) maintains some special range of IP addresses (269.254.x.y)
solely for private use. They are guaranteed not to conict with routable addresses.
L-ISA Processor product information version 6.0 7

Network conguration
L-ISA network using xed IP
LA Network Manager
L-Isa Controller
DAW
L-Isa Source
Control Plugins
L-Isa Processor
audio
switch
L-Acoustics amplified
controllers
fixed IP
fixed IP
fixed IP
fixed IP
fixed IP
fixed IP
audio
The L-ISA Processor is set to DHCP as default.
To set a xed IP:
1. Set up a point to point connection from a DHCP enabled laptop to the L-ISA Processor.
2. Use the L-ISA Controller software and follow the instructions described in the Help menu.
8 L-ISA Processor product information version 6.0

L-ISA Processor specications
L-ISA Processor specications
Interfaces
front 2 x USB 2.0
installed board 1 x Gb RJ45
1x Displayport
2x USB 3.0
Power supply 100-240 V AC 400 W (80+)
Temperature
non-operating -20°C - + 70°C (-4°F - 154°F)
operating 0°C - + 50°C (32°F - 122°F)
Humidity 10-95 % rel humidity at 40 C° non condensing
Shock 15 g, 11 ms
Vibration 10-500 Hz, 1 g
Noise < 35 dBA at idle
Protection Class IP 20
Audio inputs
Sampling rate 44.1 kHz MADI optical 1: inputs 1 to 64
MADI optical 2: inputs 65 to 96
Sampling rate 48 kHz MADI optical 1: inputs 1 to 64
MADI optical 2: inputs 65 to 96
Sampling rate 96 kHz MADI optical 1: inputs 1 to 32
MADI optical 2: inputs 33 to 64
MADI BNC: inputs 65 to 96
Audio outputs 1-32 Redundant on MADI optical 1 / optical 2 / BNC
1 x stereo analog (6.3 mm TRS), automatic downmix
1 x stereo AES/EBU (XLR), automatic downmix
Sync sources Word Clock (IN BNC)
MADI coaxial
MADI optical
Indicators Powers LED
Drive LED
Remote control and
monitoring
RJ45 Gigabit for L-Isa controller
OSC compatibility for third party control tools
Weight 8.9 kg / 19.6 lb
L-ISA Processor product information version 6.0 9

L-ISA Processor specications
Dimensions
H/W/D
88 / 482.6 / 350.8 mm
2U / 19" / 13.78"
482.6 465.9
6.8
10.3
76,2
88
430
350,8
5
36,5
18
M4
87,8
38
164,8
111,5
60,7
39
88
10 L-ISA Processor product information version 6.0
