La Crosse Technology 330-2315 Operating and maintenance manual

Professional Weather Station
Instructional Manual
Model: 330-2315 DC:110316
Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903
For online video support:
http://bit.ly/LaxTechTalk

Page | 2330-2315 Professional Weather Station
Contents
Setup Preparation ..........................
Quick Setup ..................................
Buttons .......................................
Settings .......................................
Display Icons ................................
Wind Readings ..............................
Wind History .................................
Reset Wind Speed History ...............
Rain Readings | History ..................
Reset Rainfall Readings ..................
Temperature/Humidity HI | LO Readings
Set Weather Alerts .........................
Weather Alerts ..............................
Active Alert ..................................
Temperature/ Humidity Trend Arrows
Forecast Trend Arrows ....................
Weather Forecast Icons ...................
Seasonal Trees ..............................
3
3
4
4
6
7
7
7
8
8
9
10
10
11
11
11
12
12
Sensor Search .............................
TX233TH Temperature | Humidity ...
TX233RW Multi-sensor ..................
Mounting Instructions ...................
Replace Wind Cups .......................
Replace Directional Vane ...............
Clean Rain Sensor ........................
Position Weather Station ...............
Stand Alone Station .....................
Connected Station ........................
WiFi Icon ...................................
Visit Us on Social Media ................
Factory Restart ............................
Care and Maintenance ..................
Warranty and Support ...................
Specications ..............................
FCC Statement .............................
Canada Statement ........................
13
14
14
15
16
16
16
17
19
19
19
19
20
20
20
21
22
22

Page | 3330-2315 Professional Weather Station
Setup Preparation
Items you will need to setup your station (not included):
1. Phillips head screwdriver for assembly.
2. Fresh Batteries: 5 (ve) AA alkaline or lithium batteries for the sensors.
3 (three) AAA alkaline batteries for the station (optional).
For best results:
• Remove weather station and sensors from the package and place together on a table
or bench, within easy reach.
• Place batteries and screwdriver within reach of setup location.
• Keep sensors and weather station 5-10 feet for at least 15 minutes after installing
batteries, to allow the sensors and station to connect repeatedly.
Quick Setup

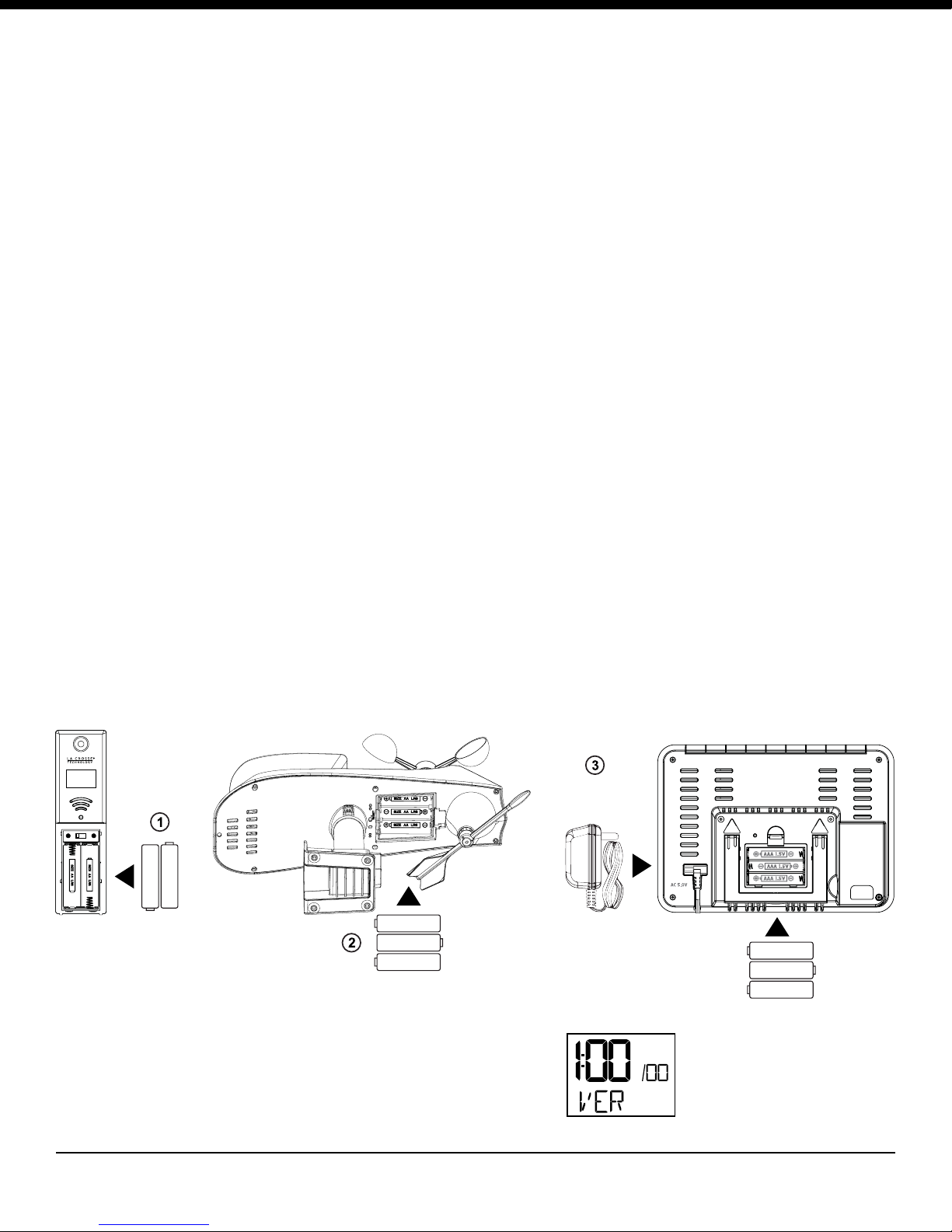

1. Power up. Insert 2-AA batteries into the outdoor Thermo-hygro sensor, 3-AA batteries
into the Multi-sensor. Then plug the power cable into the display.
2. Congure basic settings. Set Time, Date etc.
3. Place outdoor sensor in a shaded location after 5 minutes.
Optional: insert 3-AAA batteries into the weather station.
Note: Batteries are not included
TX °C/°F 1 2 3
Optional
Power
Cable
AAA
AAA
AAA
+
+
-
-
+
-
AA
AA
+
-
AA
+
-
+
-
AA AA +
-
+
-
When station is powered
on, the software version
will show for 2 seconds in
the lower left corner.
Thermo-hygro sensor
TX233TH
Multi-sensor
TX233RW
Weather Station
330-2315

Page | 4330-2315 Professional Weather Station
Settings
1. Hold the SET button for 3 seconds to enter time set mode.
2. Press and release the +or -buttons to adjust the values. Hold to adjust quickly.
3. Press and release the SET button to conrm and move to the next item.
Note: Press and release the LIGHT button any time to exit settings.
Settings order:
1. BEEP ON/OFF
2. Time zone (-12 to +12)
3. Auto DST ON/OFF
(Daylight Saving Time)
4. Hour
5. Minutes
6. 12h/24h hour format
7. Year
8. Month
9. Date
10. Temperature (C/F)
11. Wind degree or direction (letters) select
12. Wind speed select (mph/kmh)
13. Rainfall unit select (in/mm)
Note: North American Time Zones are negative
numbers. Setting the time zone for your
location assures the time will be correct.
North America
Time Zones
Atlantic
Eastern
Central
Mountain
Pacic
Alaska
Hawaii
-4h
-5h
-6h
-7h
-8h
-9h
-10h
Note: Auto DST settings mean your station will
automatically change into or out of Daylight
Saving Time when ON is selected.
Note: Press only one button at a time while setting time, date, etc.
Buttons
• Buttons are located on the top of the weather station.
• When entering a settings mode, hold the correct button (SET, ALERTS).
• Press and release the +/- buttons to change a setting.
• Press and release the correct button to view readings (Wind, Rain,Temp/Humidity).

Page | 5330-2315 Professional Weather Station
10. Fahrenheit | Celsius
11. Wind Direction
(degrees | letters)
12. Wind Speed (MPH | KMH)
13. Rain (INCH | MM)
• Press the LIGHT button at any time to exit.
• After 20 seconds with no button press, the station will default back to normal
time display.
4. Hours
5. Minutes
6. 12 | 24 Hour Format
7. Year
8. Month
9. Date
Note: The day of the week is set after Year, Month, and date are specied
To begin: Hold the SET button 3 seconds, then release:

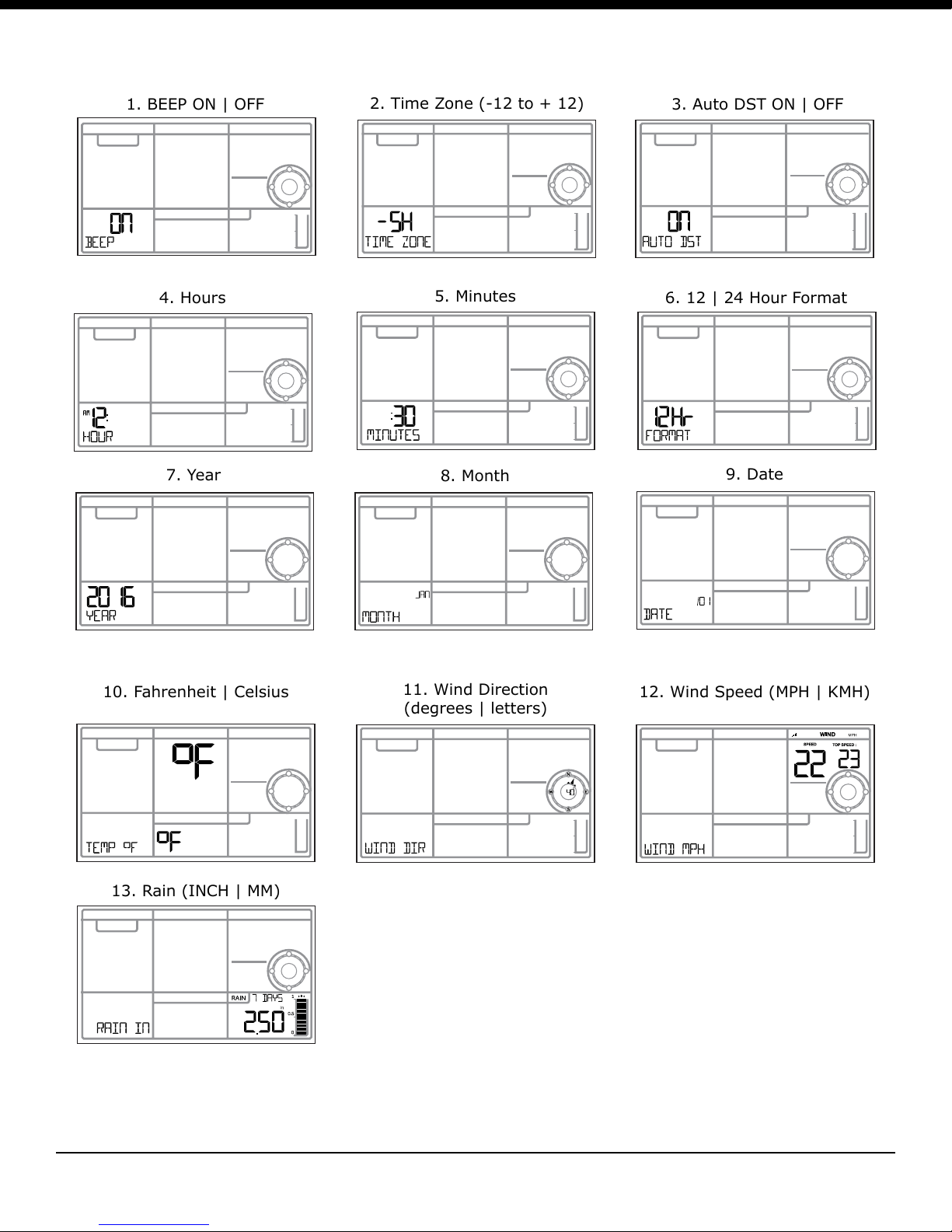

1. BEEP ON | OFF
2. Time Zone (-12 to + 12)
3. Auto DST ON | OFF

Page | 6330-2315 Professional Weather Station
WiFi Icon
Trend Arrows
Sensor Strength
HI | LO Alert
Fahrenheit | Celsius
Forecast Icon
Seasonal Trees
Temperature
Percent Humidity
Humidity Wind Direction
Wind Speed
Rainfall Graph
Display Icons
AM | PM

Page | 7330-2315 Professional Weather Station
Wind Readings
• Current Speed: Highest speed in the past 30 seconds
• Top Speed: Highest speed in the past hour
• Feels Like: Temperature | Humidity | Wind Speed
• Wind Direction: In letters or degrees
• History: Press and release the WIND button to view:

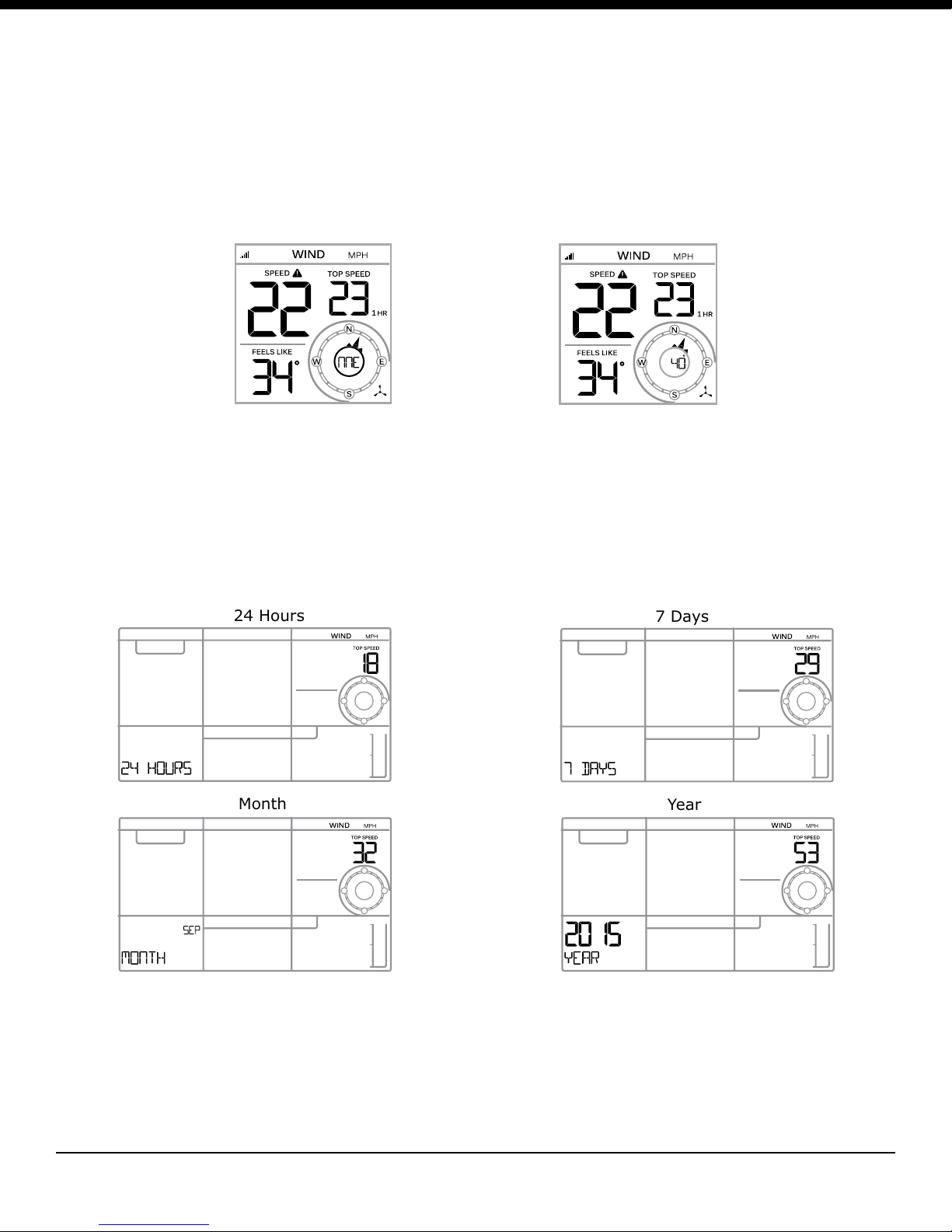

1 Hour (default) | 24 Hour | 7 Days | Month | Year
Wind History
Press and release the WIND button to view the maximum wind history values.
• One Hour: past 60 minute period (default Top Speed record, already shown)
• 24 hour: Past 24 hour period, from last record
• 7 Days: Past 7-day period, from last record
• Month: Dened by Calendar Month i.e. January 1 - January 31
• Year: Dened by Calendar Year i.e. January 1 - December 31
24 Hours
7 Days
Month
Year
Reset Wind Speed History
• Press the WIND button to view individual wind speed readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Wind speed reading will reset to current wind speed.

Page | 8330-2315 Professional Weather Station

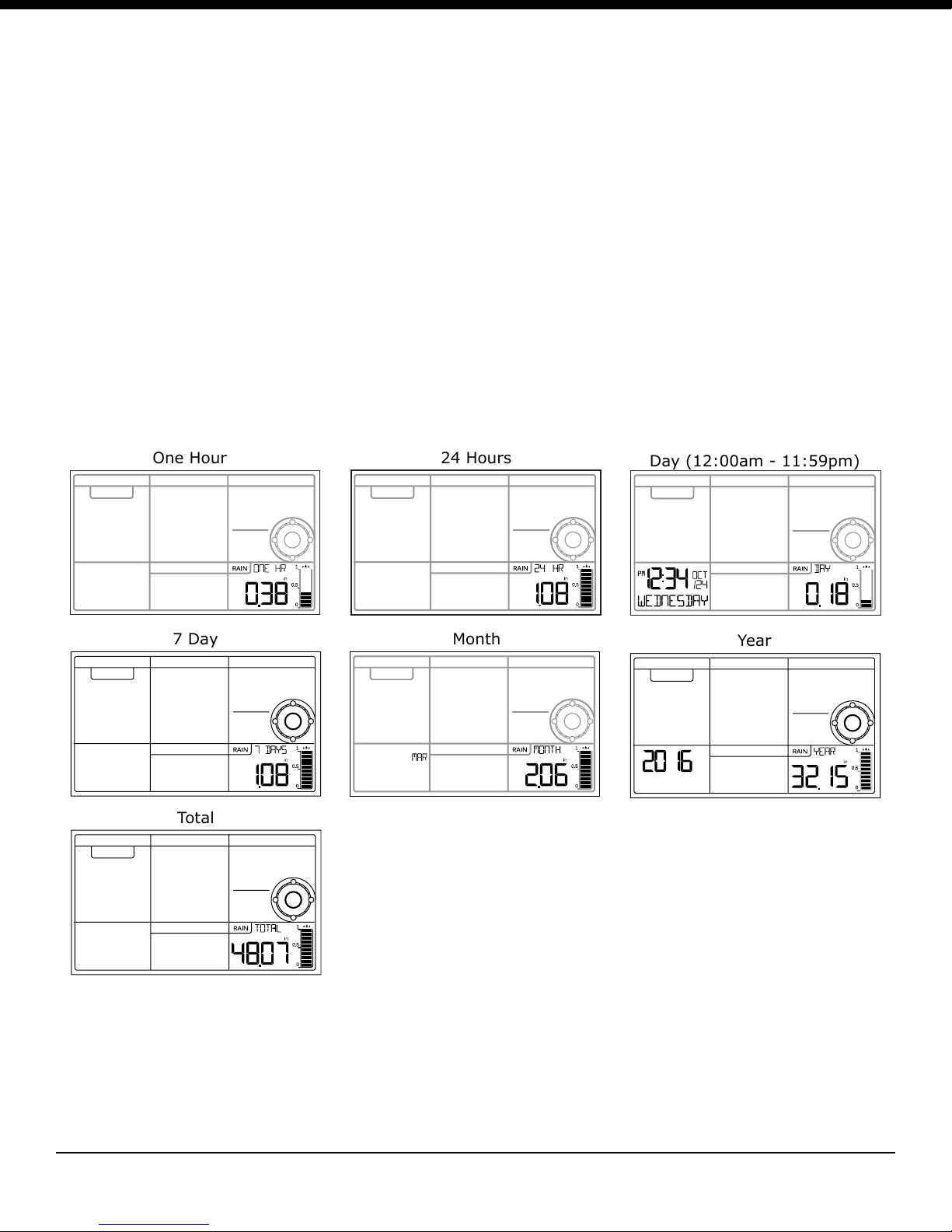

View Rain Readings | History
Press and release the RAIN button to view rain history.
One Hour
24 Hours
Day (12:00am - 11:59pm)
7 Day
Month
Year
Total
Reset Rainfall Readings (each resets individually):
• Press the RAIN button to view individual rain readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Individual rainfall reading will reset to 0.00
• ONE HR: past 60 minute periods, from last record
• 24 HR: Past 24 hour period, from last record.
• DAY: 24 hr period from 12:00am - 11:59pm. With current date
• 7 DAYS: Past 7-day period, from last record
• MONTH: Dened by Calendar Month i.e. January 1 - January 31.
• YEAR: Dened by Calendar Year i.e. January 1 - December 31.
• TOTAL: running total since station was powered up (no time stamp)
Note: After viewing a history record for 5 seconds, the station will return to the normal
time display and display the last rain record your viewed.

Page | 9330-2315 Professional Weather Station
Temperature/Humidity HI | LO Readings
Press and release the TEMP button to view HI/LO temperature and humidity readings
with time/date stamp.
• Outdoor temperature HIGH • Feels like HIGH
• Outdoor temperature LOW • Feels Like LOW
• Outdoor humidity HIGH • Dew Point
• Outdoor humidity LOW
• Indoor temperature HIGH Note: Feels Like and Dew Point are not
• Indoor temperature LOW time/date stamped.
• Indoor humidity HIGH
• Indoor humidity LOW
Outdoor Temp HI
Outdoor Temp LO
Outdoor Humidity HI
Outdoor Humidity LO
Indoor Temp HI
Indoor Temp LO
Indoor Humidity HI
Indoor Humidity LO
Feels Like HI
Feels Like LO
Dew Point
Reset Temperature/Humidity Readings:
• Press the TEMP button to view individual rain readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Individual readings will reset to 0.00

Page | 10330-2315 Professional Weather Station
Set Weather Alerts
Hold the ALERTS button for 2 seconds to enter alert set mode. Outdoor Low Temperature
alert OFF will show.
Alert ON:
1. Press the +/- buttons to arm the alert.
2. Press the ALERTS button and the alert value will ash
3. Press the +/- buttons to set the alert value (Hold to set quickly).
4. Press ALERTS button to move to next alert.
Alert OFF:
1. Alerts are OFF unless armed. If you do not wish to set an alert, simply press the
ALERTS button again to move to the next alert.
Weather Alerts
There are 10 programmable weather alerts on this weather station. Here is the setting
order in the alerts menu.
• Outdoor LOW Temperature ON/OFF
• Outdoor LOW Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor HIGH Temperature ON/OFF
• Outdoor HIGH Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor LOW Humidity ON/OFF
• Outdoor LOW Humidity Value 10%RH-99%RH
• Outdoor HIGH Humidity ON/OFF
• Outdoor HIGH Humidity Value 10%RH-99%RH
• Indoor LOW Temperature ON/OFF
• Indoor LOW Temperature Value 32°F-122°F (0°C-50°C)
• Indoor HIGH Temperature ON/OFF
• Indoor HIGH Temperature Value 32°F-122°F (0°C-50°C)
• Indoor LOW Humidity ON/OFF
• Indoor LOW Humidity Value 10%RH-99%RH
• Indoor HIGH Humidity ON/OFF
• Indoor HIGH Humidity Value 10%RH-99%RH
• 24-hour Rainfall ON/OFF
• 24-hour Rainfall Value 0-393 inches (0-99.9mm)
• High Wind Speed ON/OFF (CURRENT wind)
• High Wind Speed Value 0-111.8 (0-180kph) (CURRENT wind)

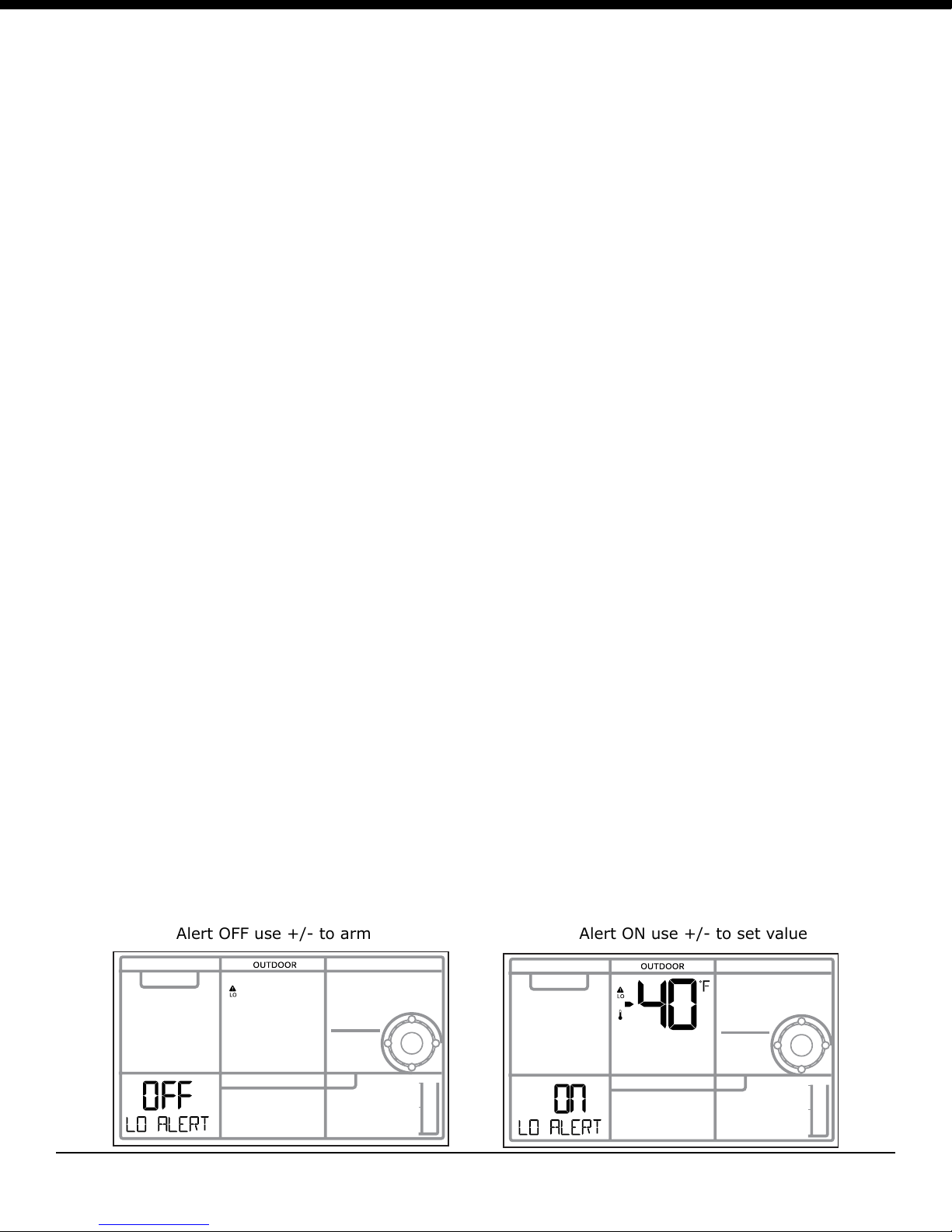

Alert OFF use +/- to arm
Alert ON use +/- to set value

Page | 11330-2315 Professional Weather Station
Temperature | Humidity Trend Arrows
• The temperature and humidity trend arrows update every 15 minutes. The trend reects changes
(2°F and 3% humidity) over the past 1 hour. E.g.: At 1:00 - compare to 12:00 data; at 1:15
compare to 12:15: at 1:30 - compare to 12:30 ….. etc
Up Arrow: Risen in past hour Down Arrow: Fallen in past hour
Active Alert
• When armed alert value is reached, station will beep 5 times each minute, until
out of alert range.
• The ashing alert icon will indicate if is a LOW or HI alert.
• Press any button to stop the alert sound.
• The alert icon will ash while value is in alert range.
Disarm Alert:
1. Hold the ALERTS button 2 seconds to enter alert set mode.
2. Press and release ALERTS button until you see the alert you wish to disarm.
3. Press the +/- buttons to disarm the alert.
4. Press the LIGHT button to exit.

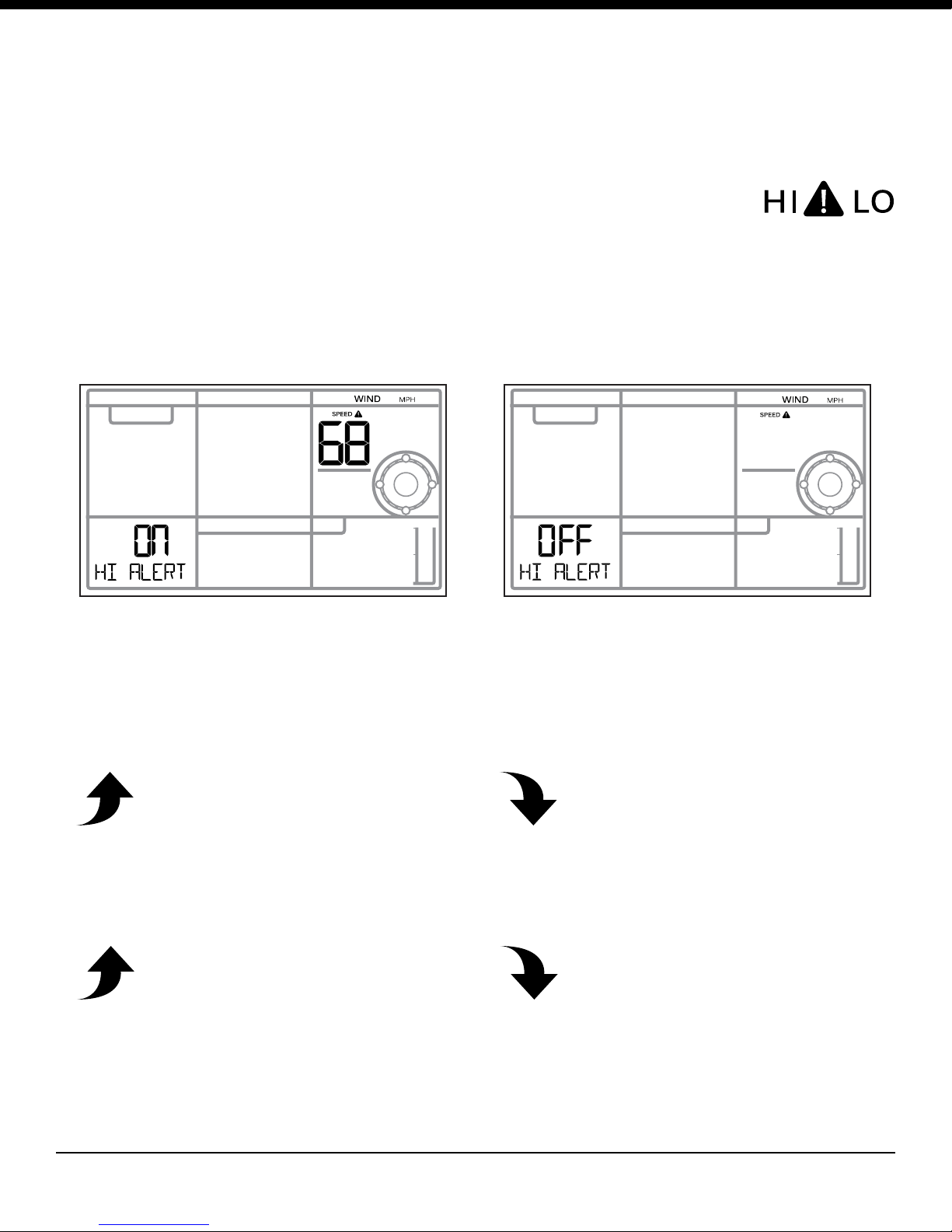

Alert ON Alert OFF
Forecast Trend Arrows
Forecast trend arrows indicate the rise and fall of barometric pressure.
Up Arrow: Pressure is rising.
Weather will improve.
Down Arrow: Pressure is falling.
Weather may worsen.

Page | 12330-2315 Professional Weather Station

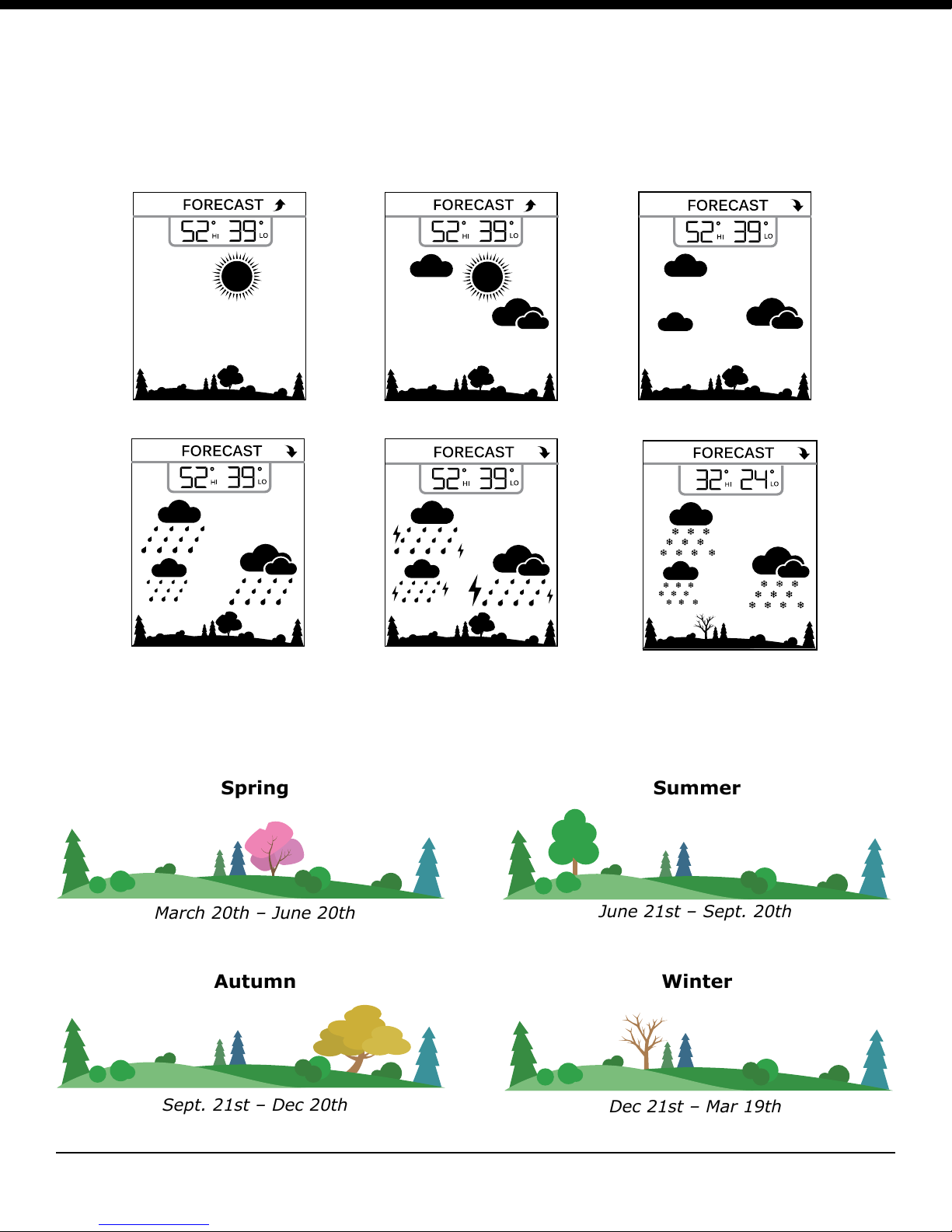

Seasonal Trees
• The trees and foliage color will change seasonally. The dates are programmed into the weather
station for the scene to change automatically.
March 20th – June 20th
Spring
Autumn
Summer
Winter
June 21st – Sept. 20th
Sept. 21st – Dec 20th
Dec 21st – Mar 19th
• The forecast icons are determine by the barometric pressure sensor.
• When Outdoor temperature is below 32˚F and the forecast is RAIN or T-STORM, the
LCD will display SNOW.
Weather Forecast Icons
SUNNY PARTLY CLOUDY CLOUDY
RAIN T-STORM SNOW

Page | 13330-2315 Professional Weather Station
Each sensor has a unique ID and will be synced to the correct sensor location on the
weather station until manually deleted.
• If sensor loses connection to the weather station for any reason, the weather station
will show dashes after 30 minutes.
• The weather station will search for 5 minutes every hour to reconnect with sensor.
1. In normal mode press and release the SENSOR button to view individual sensor ID’s
for up to 15 seconds.
2. Press and release the + button to search for the sensor, who’s ID is shown.
Sensor Search
TH Sensor ID
Multi-sensor ID
TH Sensor Deleted
3. The strength signal icon will animate until the sensor signal is received, or for 3
minutes if no signal available.
Delete Sensor:
1. Press the SENSOR button to view
individual sensor ID.
2. Hold the - button for 5 seconds
to delete the sensor and ID.
Add or Replace Sensor:
1. Install batteries in sensor.
2. Press and release the SENSOR
button to view sensor area (dashes).
3. Press the + button to search.
4. Press the TX button on sensor.
5. When sensor connects, its ID and
readings will show on the display.

Page | 14330-2315 Professional Weather Station
Fahrenheit/Celsius
Transmission
Icon
Temperature
& Humidity
Alternate
TX °C/°F 1 2 3
F/C on Sensor
Channel Selector to
to mitigate interference
TX button
(Transmission)
LED
Channel
Indicator
TX °C/°F 1 2 3
Note: At temperatures below 14°F (-10°C) the sensor display will
turn off to protect the LCD. Sensor will still transmit data.
TX233TH Temperature | Humidity
TX233RW Multi sensor
RESET
Drain vents
for rain sensor
Reset
button
Red LED
Light
Drain holes for
multi sensor
Rain funnel
(collector)
Wind cups
Battery
compartment
Directional
Vane
The Multi sensor provides wind speed, wind direction
and rainfall readings.

Page | 15330-2315 Professional Weather Station

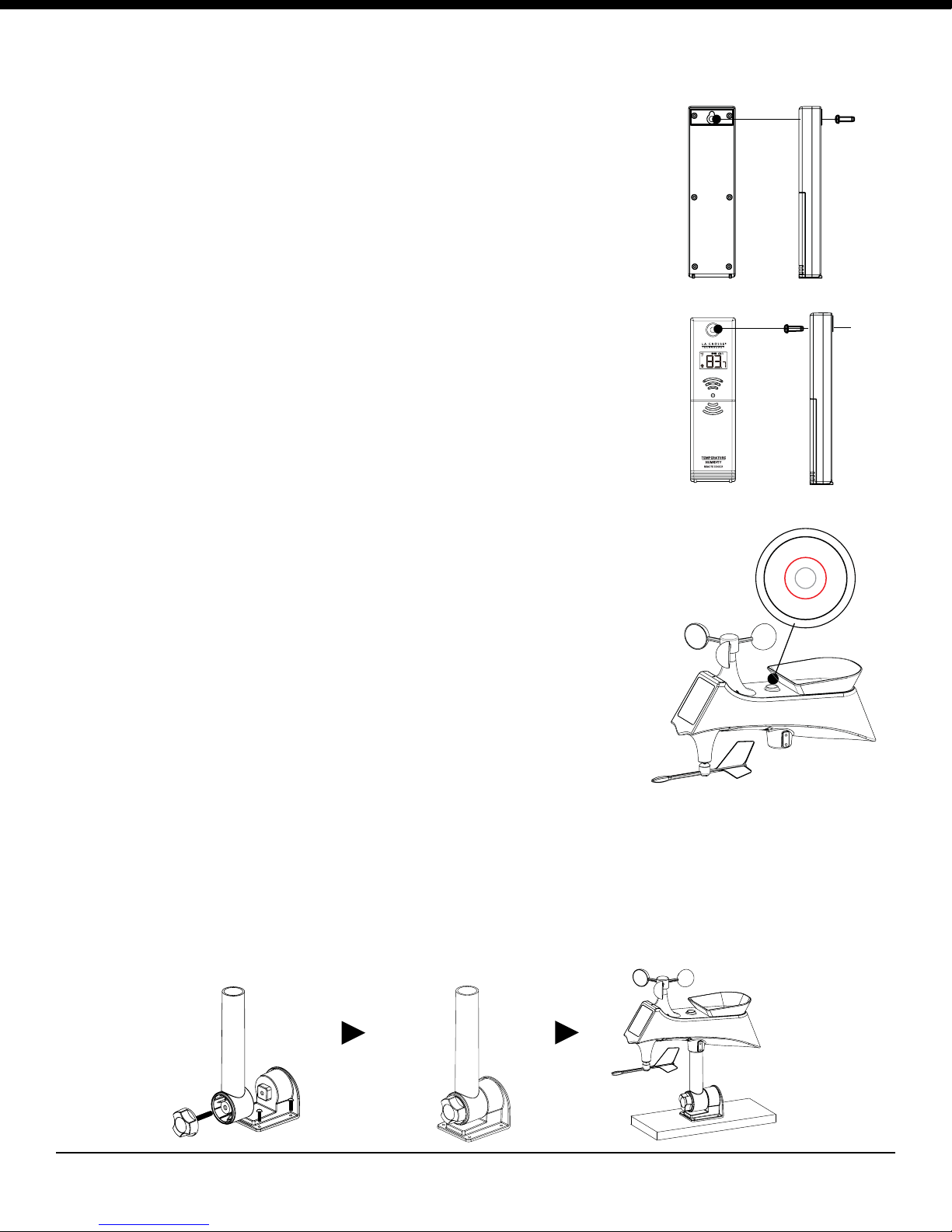

Mounting Instructions
TX233TH Temperature/Humidity Sensor
Option 1:
• Install one mounting screw into a wall.
• Place the transmitter onto the screw.
Option 2:
• Insert the mounting screw through the front of the
sensor and into the wall.
• Tighten the screw to snug (do not over tighten).
• Mount the temperature/humidity sensor on a
north-facing wall or in any well shaded location.
Sun will make it read high.
• Under an eave or deck rail is preferred.
• Be sure the outdoor sensor is mounted vertically to
drain moisture.
• The maximum wireless transmission range to the
weather station is over 330 feet (100 meters) in open
air, not including walls or oors.
TX233RW Multi-sensor
• Mount in an open area clear for 50 feet in all directions.
• Mount with the solar panel facing south, so the wind
direction is correct. See N, S, E W, embossed on the top
of the sensor.
• Use the bubble level on the top of the sensor to ensure
it is level, for accurate rainfall readings.
• The maximum wireless transmission range to the station
is over 330 feet (100 meters) in open air, not including
walls or trees.
• Cups should be on the top of the sensor.
• Attach to mounting surface with screws through the
mounting bracket.
• The sensor can be mounted from the bottom or from
the side.
Alternatively:
• Insert your own mounting pole into the sensor base.
• Tighten screws
• Mounting bracket would not be used.
Bubble
Level

Page | 16330-2315 Professional Weather Station

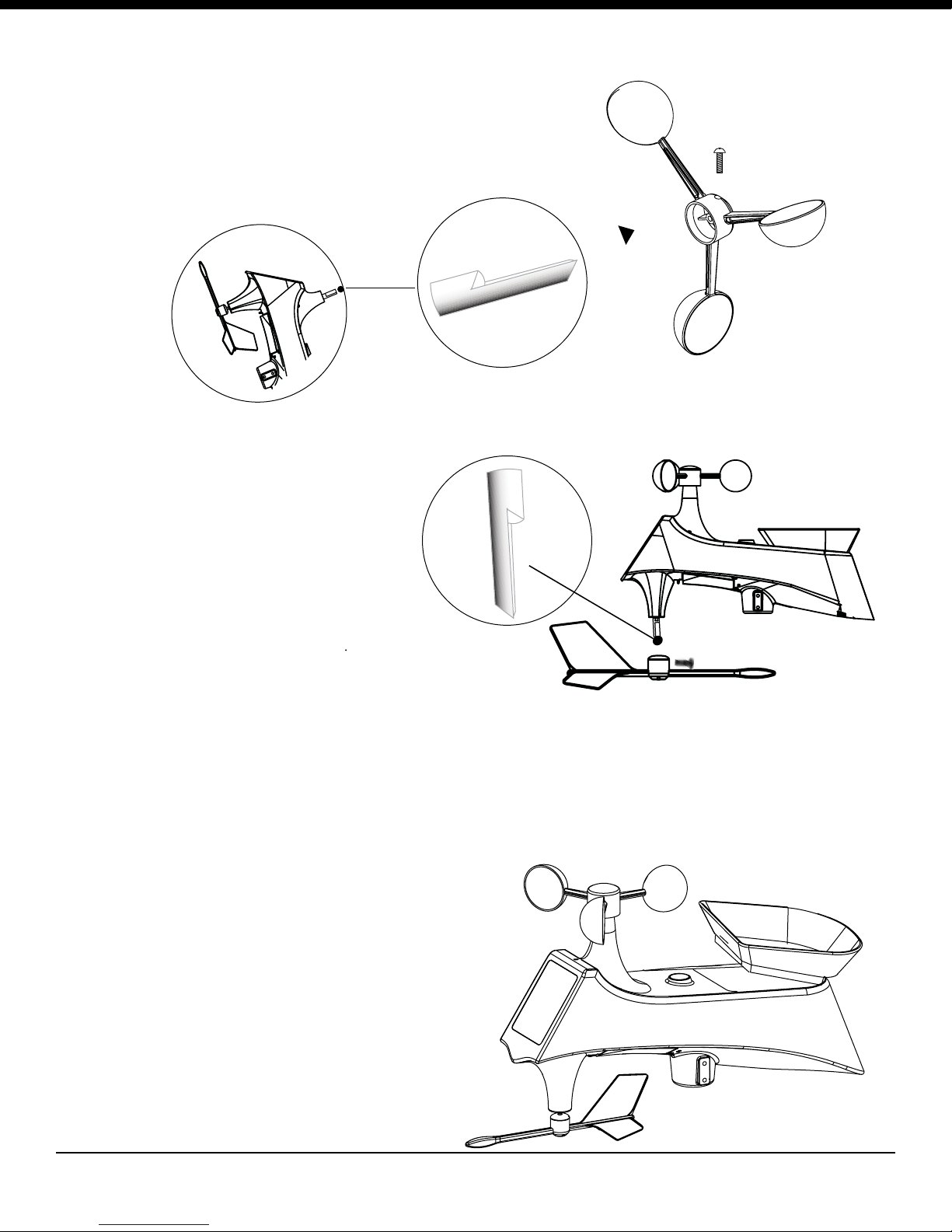

Replace Wind Cups
1. Loosen the screw on side of cups
2. Remove cups
3. Install new cups
4. Tighten screw
Replace Directional Vane
1. Loosen the screw on side of vane
2. Remove direction vane
3. Install new vane
4. Tighten screw
Clean Rain Sensor
1. Remove rain funnel (pull at side rmly upward).
2. Gently remove debris or insects inside the rain sensor.
3. Clear debris from drain vents.
4. Clear debris from the rain funnel.
5. Reinstall the rain funnel.
Note: Do not oil the rain sensor.

Page | 17330-2315 Professional Weather Station
Position Weather Station
1. Wall mount with the two convenient mounting holes on the back of the station.
2. Place station on a surface with the adjustable stand.
- Stand has two adjustment settings.
- Flip down the leg extensions for two more viewing angles.
Wall Mount
Stand
Flip down leg extensions
Stand Alone Station
• Stand Alone: Receive your backyard Wind, Rain, Temperature and Humidity from your
sensors to your color weather station.
• This station operates fully as a stand alone station.
Connected Station
• Use your existing WiFi to connect your weather station to Weather Underground with
the Weather Connect App.
• View your backyard weather on your mobile device.
• Invite friends and family to view your weather station information on
Weather Underground.
• Time and Date will come from the Internet when connected.
Requirements:
• Weather Underground account with Personal Weather Station (PWS) ID and Password,
(you can set this up separately in advance of downloading the Weather Connect App).
• Mobile device with WiFi service (do not use 3G or 4G network)
• High speed Internet service and router
Mobile Application (free available online):
• iOS App Store, search: Weather Connect
• Android Play Store, search: Weather Connect
IMPORTANT:
• The WiFi for your mobile device must be on the same network as your weather
station. Check the Wi setting on your mobile device.
• During setup, weather station and mobile device must be in close proximity.
• Weather station must be powered with AC adapter for the WiFi to work.

Page | 18330-2315 Professional Weather Station
Note: Weather Underground will show your station's information on their website.
• In addition they have an App you can download to view your backyard weather on
your mobile device without opening your browser.
• Download the Weather Underground App and search for your weather station with
your Personal Weather Station (PWS) ID number.
• Weather Underground can take up to 24 hr. to start showing your weather station's
data on the Weather Underground App (Your station will show on their website
sooner).
Get Connected: Download and Launch the Weather Connect App and follow the
on-screen instructions. App will prompt for required information.
Weather Connect
Note: The Weather Connect
App is only for connecting
your weather station to
Weather Underground
Tips:
• For your security, this app will only work on protected WiFi networks.
• Open public networks that require a browser sign in will not work.
Lost connection:
• If WiFi signal or power to the station is lost, hold the PLUS and MINUS buttons
together for 3 seconds to reconnect to the same WiFi network.
Never connected: If the station has not uploaded its data to Weather Underground try:
• First, move the station and mobile device to a different network, and check to be sure
it is a protected WiFi network.
• Complete a Factory Restart to clear the station.
Factory Restart: Hold the LIGHT and ALERTS buttons together for 5 seconds until the
station resets. For more information on the factory reset, see page 20.
Snowbirds:
If you have been using the app to view your weather at your summer home. When you
move the station and sensors to your winter home, reconnect your app though the WiFi
network at your new location.
1. Start the Weather Connect app and enter the password for the new WiFi network.
2. Hold the PLUS and MINUS buttons on the station for 3 seconds to search for the
network.
3. Enter Weather Underground station ID and password.

Page | 19330-2315 Professional Weather Station
Visit Us on Social Media
WiFi Icon
• The WiFi icon will ash while station is searching for WiFi connection.
• It will ash up to 1 hour before stopping due to no connection opportunity.
• The station must operate on AC power for the WiFi to work.
Slow Flash - No WiFi network connection-check connection
Fast Flash - Congure Weather Connect App
Solid - WiFi Connected to Internet
(Note: Does not indicate connection to Weather Underground, only that
station is connect to the Internet via Weather Connect App).
Not displayed -Not connected to WiFi router-check router
http://bit.ly/LaxTech_Facebook
http://bit.ly/LaxTech__Twitter
http://bit.ly/LaxTech_YouTube
http://bit.ly/LaxTech_Pinterest
For personalized interaction
Join the conversation
Latest video content
Pin and share

Page | 20330-2315 Professional Weather Station
Care and Maintenance
• Do not mix old and new batteries
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time
• Promptly remove expired batteries.
Warranty and Support
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of
purchase) on this product relating to manufacturing defects in materials & workmanship.
Before returning a product, please contact our friendly customer support with questions
or visit our online help:
Phone: [phone]
Online Product Support and Registration: www.lacrossetechnology.com/support
View full warranty details online at: www.lacrossetechnology.com/warranty_info.pdf
The factory reset will return the weather station to its default settings.
IMPORTANT: This will clear all previous recorded history, so you may want to write down
data before taking this step.
1. Bring the Multi-sensor and Thermo-hygro sensor in close to the weather station.
2. Hold the LIGHT and ALERTS buttons together for 5 seconds to reset the weather
station, clear all records, and return all settings to default.
2. The weather station will fully populate, then return to a normal display and search for
outdoor sensors.
3. While searching for the outdoor sensors the Wind Speed, Outdoor
Temperature/Humidity and Rainfall totals will show dashes.
4. Once connected to the outdoor sensors (allow 3 minutes) the Wind Speed, Outdoor
Temperature/Humidity, and Rainfall will show current readings.
Factory Restart
