La Crosse Technology S85807 Operating and maintenance manual

Professional Weather Station
Instructional Manual
Model: S85807 DC:110316
Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903
For online video support:
http://bit.ly/LaxTechTalk

Page | 2S85807 Professional Weather Station
Contents
Setup Preparation ..........................
Quick Setup ..................................
Buttons .......................................
Settings .......................................
Display Icons ................................
Wind Readings ..............................
Wind History .................................
Reset Wind Speed History ...............
Rain Readings | History ..................
Reset Rainfall Readings ..................
Temperature/Humidity HI | LO Readings
Set Weather Alerts .........................
Weather Alerts ..............................
Active Alert ..................................
Temperature/ Humidity Trend Arrows
Forecast Trend Arrows ....................
Weather Forecast Icons ...................
Seasonal Trees ..............................
3
3
4
4
6
7
7
7
8
8
9
10
10
11
11
11
12
12
Sensor Search .............................
TX233TH Temperature | Humidity ...
TX233RW Multi-sensor ..................
Mounting Instructions ...................
Replace Wind Cups .......................
Replace Directional Vane ...............
Clean Rain Sensor ........................
Position Weather Station ...............
Stand Alone Station .....................
Connected Station ........................
WiFi Icon ...................................
Visit Us on Social Media ................
Factory Restart ............................
Care and Maintenance ..................
Warranty and Support ...................
Specications ..............................
FCC Statement .............................
Canada Statement ........................
13
14
14
15
16
16
16
17
19
19
19
19
20
20
20
21
22
22
Back
to
Top

Page | 3S85807 Professional Weather Station
Setup Preparation
Items you will need to setup your station (not included):
1. Phillips head screwdriver for assembly.
2. Fresh Batteries: 5 (ve) AA alkaline or lithium batteries for the sensors.
3 (three) AAA alkaline batteries for the station (optional).
For best results:
• Remove weather station and sensors from the package and place together on a table
or bench, within easy reach.
• Place batteries and screwdriver within reach of setup location.
• Keep sensors and weather station 5-10 feet for at least 15 minutes after installing
batteries, to allow the sensors and station to connect repeatedly.
Quick Setup

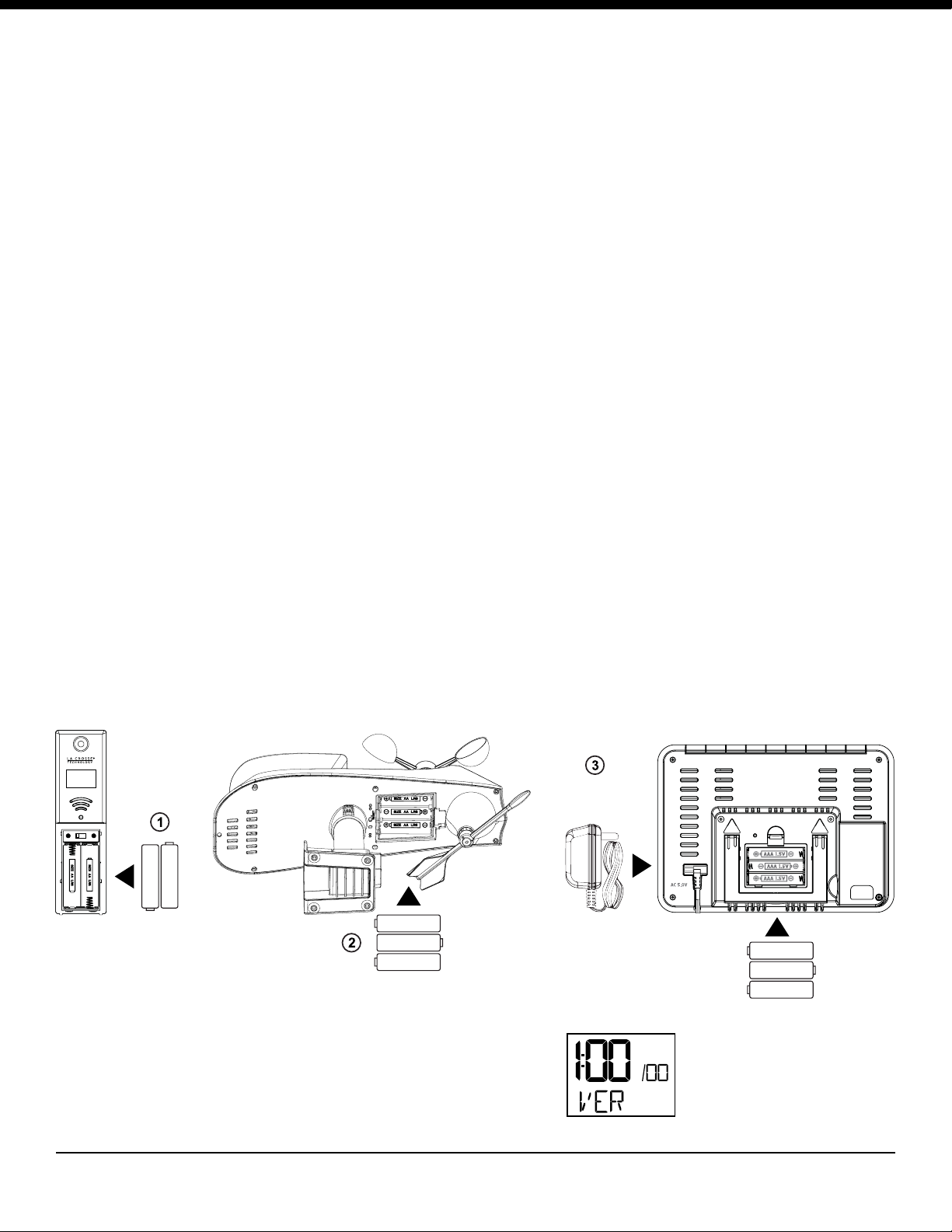

1. Power up. Insert 2-AA batteries into the outdoor Thermo-hygro sensor, 3-AA batteries
into the Multi-sensor. Then plug the power cable into the display.
2. Congure basic settings. Set Time, Date etc.
3. Place outdoor sensor in a shaded location after 5 minutes.
Optional: insert 3-AAA batteries into the weather station.
Note: Batteries are not included
TX °C/°F 1 2 3
Optional
Power
Cable
AAA
AAA
AAA
+
+
-
-
+
-
AA
AA
+
-
AA
+
-
+
-
AA AA +
-
+
-
When station is powered
on, the software version
will show for 2 seconds in
the lower left corner.
Thermo-hygro sensor
TX233TH
Multi-sensor
TX233RW
Weather Station
S85807
Back
to
Top

Page | 4S85807 Professional Weather Station
Settings

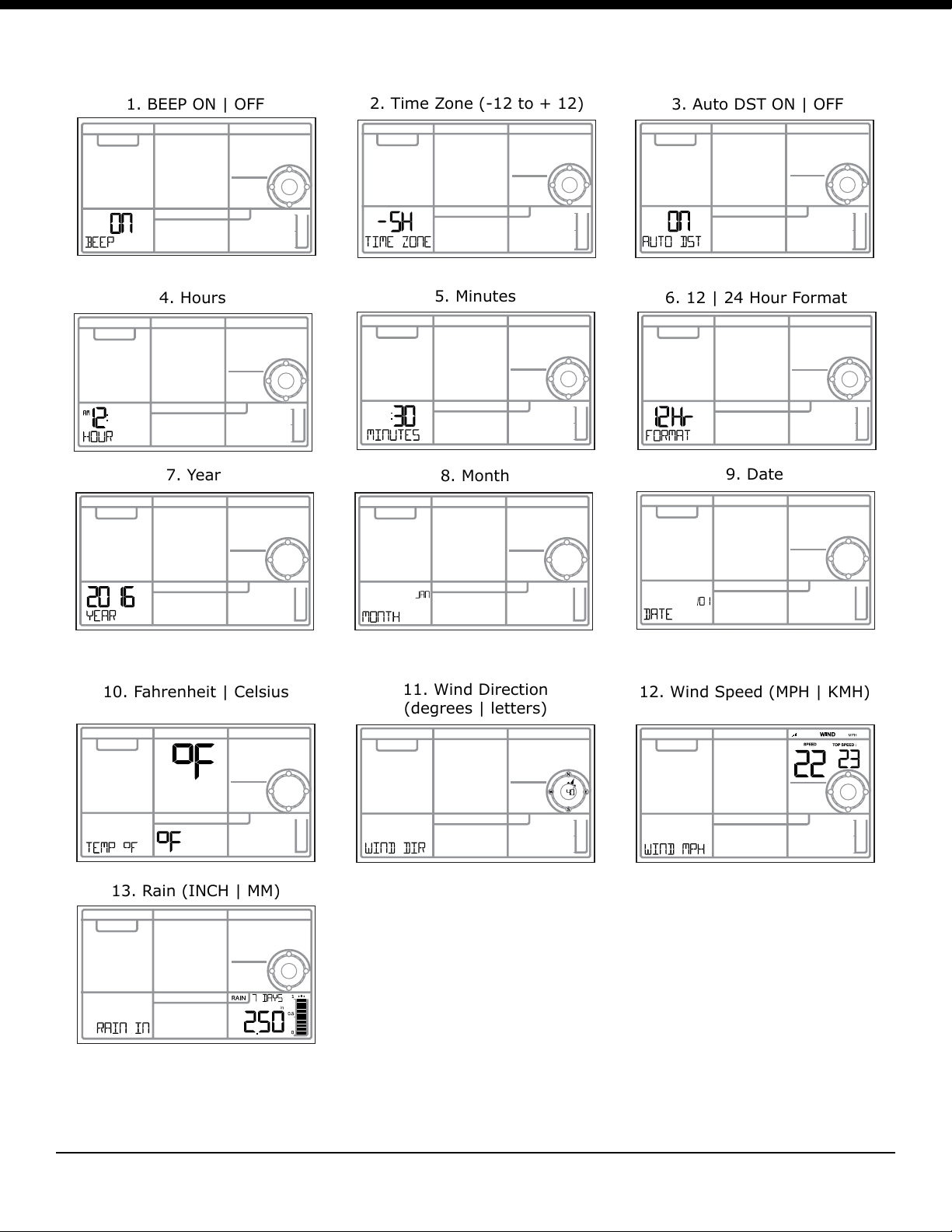

1. Hold the SET button for 3 seconds to enter time set mode.
2. Press and release the +or -buttons to adjust the values. Hold to adjust quickly.
3. Press and release the SET button to conrm and move to the next item.
Note: Press and release the LIGHT button any time to exit settings.
Settings order:
1. BEEP ON/OFF
2. Time zone (-12 to +12)
3. Auto DST ON/OFF
(Daylight Saving Time)
4. Hour
5. Minutes
6. 12h/24h hour format
7. Year
8. Month
9. Date
10. Temperature (C/F)
11. Wind degree or direction (letters) select
12. Wind speed select (mph/kmh)
13. Rainfall unit select (in/mm)
Note: North American Time Zones are negative
numbers. Setting the time zone for your
location assures the time will be correct.
North America
Time Zones
Atlantic
Eastern
Central
Mountain
Pacic
Alaska
Hawaii
-4h
-5h
-6h
-7h
-8h
-9h
-10h
Note: Auto DST settings mean your station will
automatically change into or out of Daylight
Saving Time when ON is selected.
Note: Press only one button at a time while setting time, date, etc.
Buttons
• Buttons are located on the top of the weather station.
• When entering a settings mode, hold the correct button (SET, ALERTS).
• Press and release the +/- buttons to change a setting.
• Press and release the correct button to view readings (Wind, Rain,Temp/Humidity).
Back
to
Top

Page | 5S85807 Professional Weather Station
10. Fahrenheit | Celsius
11. Wind Direction
(degrees | letters)
12. Wind Speed (MPH | KMH)
13. Rain (INCH | MM)
• Press the LIGHT button at any time to exit.
• After 20 seconds with no button press, the station will default back to normal
time display.
4. Hours
5. Minutes
6. 12 | 24 Hour Format
7. Year
8. Month
9. Date
Note: The day of the week is set after Year, Month, and date are specied
To begin: Hold the SET button 3 seconds, then release:
1. BEEP ON | OFF
2. Time Zone (-12 to + 12)
3. Auto DST ON | OFF
Back
to
Top

Page | 6S85807 Professional Weather Station
WiFi Icon
Trend Arrows
Sensor Strength
HI | LO Alert
Fahrenheit | Celsius
Forecast Icon
Seasonal Trees
Temperature
Percent Humidity
Humidity Wind Direction
Wind Speed
Rainfall Graph
Display Icons
AM | PM
Back
to
Top

Page | 7S85807 Professional Weather Station
Wind Readings
• Current Speed: Highest speed in the past 30 seconds
• Top Speed: Highest speed in the past hour
• Feels Like: Temperature | Humidity | Wind Speed
• Wind Direction: In letters or degrees
• History: Press and release the WIND button to view:
1 Hour (default) | 24 Hour | 7 Days | Month | Year
Wind History
Press and release the WIND button to view the maximum wind history values.
• One Hour: past 60 minute period (default Top Speed record, already shown)
• 24 hour: Past 24 hour period, from last record
• 7 Days: Past 7-day period, from last record
• Month: Dened by Calendar Month i.e. January 1 - January 31
• Year: Dened by Calendar Year i.e. January 1 - December 31
24 Hours
7 Days
Month
Year
Reset Wind Speed History
• Press the WIND button to view individual wind speed readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Wind speed reading will reset to current wind speed.
Back
to
Top

Page | 8S85807 Professional Weather Station
View Rain Readings | History
Press and release the RAIN button to view rain history.
One Hour
24 Hours
Day (12:00am - 11:59pm)
7 Day
Month
Year
Total
Reset Rainfall Readings (each resets individually):
• Press the RAIN button to view individual rain readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Individual rainfall reading will reset to 0.00
• ONE HR: past 60 minute periods, from last record
• 24 HR: Past 24 hour period, from last record.
• DAY: 24 hr period from 12:00am - 11:59pm. With current date
• 7 DAYS: Past 7-day period, from last record
• MONTH: Dened by Calendar Month i.e. January 1 - January 31.
• YEAR: Dened by Calendar Year i.e. January 1 - December 31.
• TOTAL: running total since station was powered up (no time stamp)
Note: After viewing a history record for 5 seconds, the station will return to the normal
time display and display the last rain record your viewed.
Back
to
Top

Page | 9S85807 Professional Weather Station
Temperature/Humidity HI | LO Readings
Press and release the TEMP button to view HI/LO temperature and humidity readings
with time/date stamp.
• Outdoor temperature HIGH • Feels like HIGH
• Outdoor temperature LOW • Feels Like LOW
• Outdoor humidity HIGH • Dew Point
• Outdoor humidity LOW
• Indoor temperature HIGH Note: Feels Like and Dew Point are not
• Indoor temperature LOW time/date stamped.
• Indoor humidity HIGH
• Indoor humidity LOW
Outdoor Temp HI
Outdoor Temp LO
Outdoor Humidity HI
Outdoor Humidity LO
Indoor Temp HI
Indoor Temp LO
Indoor Humidity HI
Indoor Humidity LO
Feels Like HI
Feels Like LO
Dew Point
Reset Temperature/Humidity Readings:
• Press the TEMP button to view individual rain readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Individual readings will reset to 0.00
Back
to
Top

Page | 10S85807 Professional Weather Station
Set Weather Alerts
Hold the ALERTS button for 2 seconds to enter alert set mode. Outdoor Low Temperature
alert OFF will show.
Alert ON:
1. Press the +/- buttons to arm the alert.
2. Press the ALERTS button and the alert value will ash
3. Press the +/- buttons to set the alert value (Hold to set quickly).
4. Press ALERTS button to move to next alert.
Alert OFF:
1. Alerts are OFF unless armed. If you do not wish to set an alert, simply press the
ALERTS button again to move to the next alert.
Weather Alerts
There are 10 programmable weather alerts on this weather station. Here is the setting
order in the alerts menu.
• Outdoor LOW Temperature ON/OFF
• Outdoor LOW Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor HIGH Temperature ON/OFF
• Outdoor HIGH Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor LOW Humidity ON/OFF
• Outdoor LOW Humidity Value 10%RH-99%RH
• Outdoor HIGH Humidity ON/OFF
• Outdoor HIGH Humidity Value 10%RH-99%RH
• Indoor LOW Temperature ON/OFF
• Indoor LOW Temperature Value 32°F-122°F (0°C-50°C)
• Indoor HIGH Temperature ON/OFF
• Indoor HIGH Temperature Value 32°F-122°F (0°C-50°C)
• Indoor LOW Humidity ON/OFF
• Indoor LOW Humidity Value 10%RH-99%RH
• Indoor HIGH Humidity ON/OFF
• Indoor HIGH Humidity Value 10%RH-99%RH
• 24-hour Rainfall ON/OFF
• 24-hour Rainfall Value 0-393 inches (0-99.9mm)
• High Wind Speed ON/OFF (CURRENT wind)
• High Wind Speed Value 0-111.8 (0-180kph) (CURRENT wind)
Alert OFF use +/- to arm
Alert ON use +/- to set value
