La Hacienda Leopold 58287 User manual

User Instructions - Please keep for future reference
Leopold Gas Firepit
58287
V1.0
Produced in PRC for La Hacienda Ltd
Hangar 27, Site C, Aston Down Airfield, Nr Stroud, Glos, GL6 8HR, UK
www.lahacienda.co.uk
IMPORTANT! – Carefully remove any packaging before use, but retain the safety instrucons.
These instrucons form part of the product. Please take note of all the safety warnings listed in these instrucons.
Please read these instrucons in their enrety and retain them for future reference.
These instrucons should be stored with the product.
This product is for domesc use ONLY and should not be used commercially or for contract purposes.
Failure to adhere to these instrucons could result in property damage, personal injury or death.
This appliance is intended for heang purposes ONLY, you should NOT cook on this appliance.
For Outdoor use ONLY!
User Instructions - Please keep for future reference
1x AAA Battery Required (not included)
No tools required
58287 (HF-35401AA)
0359-17

2
Care and safe use guidelines
carry out the service and checks periodica
ATTENTION: This appliance is fied with flexible gas rubber pipe and clamps that must be used; never use a
different type. These components should be periodically checked for deterioraon, this is very important; if
holes occur in the components, this could cause a gas explosion. Always get a cerfied gas engineer to
lly.
The LPG cylinder is not included and must be purchased (Recommended 5kg)
WARNING:
• Do not modify the appliance.
• Do not move the appliance during use.
• Turn off the gas supply at the LPG cylinder aer use.
• Accessible parts may be very hot. Keep young children away.
• The appliance should not be used indoors.
• The appliance must only be used for space heang.
• THIS APPLIANCE HAS A NAKED FLAME; A SUITABLE GUARD SHOULD BE USED FOR
THE PROTECTION OF YOUNG CHILDREN, THE ELDERLY AND THE INFIRM.
• CARBON MONOXIDE HAZARD
DO NOT use this appliance in confined spaces or indoors as it can kill you.
SPECIFICATION
Product Name
Leopold
Model
58287 (HF35401AA)
Gas Type
LPG gas mixture
Butane at
(28~30)mbar/
Propane at
37mbar
LPG gas
mixture
LPG gas
mixture
Gas Category
I
3+
I
3B/P(30)
I
3B/P(37)
I
3B/P(50)
Heat input (Hs)
13 kW(946g/h)
13 kW(946g/h)
13 kW(946g/h)
13 kW(946g/h)
Gas pressure
G30 at 28-30mbar
G31 at 37mbar
G30/G31
at 30mbar
G30/G31
at 37mbar
G30/G31
at 50mbar
Injector diameter (Ø) and No.
1.84 mm
1.84 mm
1.74 mm
1.59mm
Destination countries
BE,CH,CY,CZ,ES,
FR,GB,GR,IE,IT,LT
,LU,LV,PT,SK,SI
BE,
CY,DK,EE,FI,F
R,HU,IT,LT,NL,
NO,SE,SI,SK,
RO,HR,TR,BG
,IS,LU,MT
PL
DE, AT, CH,
SK
Gas regulator
Certified regulator according to EN 12864 (flow rate: max. 1.5kg/h)
Gas hose
Certified gas hose according to applicable EN-standard (max1.5m)
Gas cylinder
Standard gas cylinder (recommend to use 4.5kg ~ 15kg)
Primary air regulation
Fix - not adjustable
Appliance mass:
50 kg

3
Care and safe use guidelines
GAS FIREPIT SAFETY WARNINGS
IF YOU SMELL GAS:
1.Shut off gas supply to the firepit.
2.Exnguish any open flame.
3.Do not try lighng the appliance.
4.Follow the gas supplier’s instrucons.
5.If you cannot reach your gas supplier, call the fire department.
FOR OUTDOOR USE ONLY- DO NOT SIT OR STAND ON UNIT
Warning - For your safety
IMPORTANT NOTICE: Read and understand all warnings and precauons prior to assembly and use of your gas
firepit.
• Minimum clearance from unit to combusble material:
2m from the top; 2m from all sides.
Do not locate this appliance under over-head unprotected combusble surfaces. Avoid using near or under overhanging
trees or shrubs.
• Improper installaon, adjustment, alteraon, service or maintenance can cause injury or property damage. Read
the installaon, operaon and maintenance instrucons thoroughly before installing or servicing this
equipment.
• Do not operate appliance below 5 ˚C
• Keep these instrucons for future reference. If you are assembling this unit for some-one else, give this manual
to them to read and keep for future reference.
• This gas firepit should ONLY be used outdoors in a well-venlated space and should NOT be used inside a
building, garage, or any other enclosed area.
• Do NOT use this outdoor gas firepit for indoor heang. TOXIC carbon monoxide fumes can accumulate and cause
asphyxiaon.
• Never LEAVE this gas firepit unaended when in use.
• Children and adults should be alerted to the hazards of high surface temperatures and kept at a safe distance
while the firepit is in use to avoid burns or clothing ignion.
• Gloves are recommended to be used while moving this appliance to protect your hands.
• Any sealed parts supplied by manufacturer must not be altered by the user.
• Do not store or use petrol or other flammable vapours and liquids within 8 meters of this or any other appliance.
• Do NOT store any combusble materials in the base enclosure.
• The use of alcohol, prescripon or non-prescripon drugs may impair an individual’s ability to properly assemble
or safely operate this firepit.
• Do not use in an explosive atmosphere. Keep gas firepit area clear and free from combusble materials, petrol
and other flammable vapours and liquids.
• This outdoor firepit is NOT to be operated by children. Young children should be closely supervised when near
this outdoor firepit.
• This outdoor firepit is not to be installed or used in or on recreaon vehicles, caravans and/or boats.
• Always use in accordance with all applicable guidelines, contact your council for details on outdoor fires.
• Use the same precauons you would with any open fire with this outdoor firepit.
WARNING
Failure to follow the Dangers, Warnings and Cauons contained in this Instrucon Manual may result
in a serious explosion causing damage to property, injury or even death.

4
Care and safe use guidelines
• This firepit is supplied with lava rocks, Do NOT burn solid fuels such as: wood, charcoal briquees, lump
charcoal, manufactured logs, driwood, leaves, paper, cardboard, plywood, painted or stained or pressure
treated wood in this outdoor firepit.
• Do NOT alter this outdoor firepit in any way.
• Do NOT use this outdoor firepit unl it is COMPLETELY assembled and all parts are securely fastened and
ghtened.
• Do NOT store another LPG tank within 3.5 meters of this outdoor firepit while it is in operaon.
• Do NOT use this outdoor firepit near vehicles.
• Always use this outdoor firepit on a hard, level, non-combusble surface such a concrete, rock or stone. An
asphalt or tarmac surface may not be acceptable for this purpose.
• Do NOT use this outdoor firepit, if any part has been under water. Immediately call a cerfied engineer to
inspect the firepit and to replace any part or control system and any gas control which has been under water.
• Do NOT wear flammable or loose clothing when operang this outdoor firepit.
• Do NOT hang or place clothing or other flammable materials on or near the gas firepit.
• Do NOT use in windy condions.
• Keep all electrical cords away from a hot outdoor firepit.
• Certain areas of this outdoor firepit will become too hot to touch during and aer use. Do not touch hot surfaces
unl the unit has cooled unless you are wearing protecve gear such as heat resistant gloves to avoid burns.
• Any guard or other protecve device removed for servicing the firepit must be re-placed prior to operaon.
• Do NOT aempt to move or store this outdoor firepit unl all parts are cool.
• Do NOT lean over this outdoor firepit when lighng or when in use.
• Use only the regulator and hose assembly provided. Use only replacement regulator and hose assemblies
specified by the manufacturer.
• Storage of this outdoor firepit indoors is permissible, only if the LPG cylinder is disconnected, removed from the
outdoor firepit and properly stored outdoors.
• Do not aempt to disconnect the gas regulator from the tank or any gas fitng while the outdoor firepit is in
use.
• Always shut offgas supply at the cylinder valve and disconnect regulator from the cylinder when the firepit is
not in use.
• Do not throw anything onto the fire when the unit is in operaon.
• Lava rocks get very hot when the product is in use; please keep children and pets at a safe distance from the
product.
• It is essenal to keep the outdoor firepit valve compartment, burners, and circulang air passages clean. Inspect
outdoor firepit for debris before each use.
• Prior to each gas firepit operaon, check the hose for evidence of excessive abrasion or wear. If the hose is
damaged, cut or cracked, it must be replaced before using the gas firepit. The hose assembly can only be
replaced by a hose assembly specified by the manufacture.
• Before each use, remove the lava rocks. Examine the burner and its components. If dirty, clean with a sobrush
and wipe with a damp cloth. Also examine the area around the burner. Any dirt or foreign material, such as
spider webs or nests in this area should be removed. If it is evident that the burner is damaged then you must
not use the firepit.

5
Care and safe use guidelines
LIQUID PROPANE GAS (LPG) WARNINGS
• LPG is flammable and hazardous if handled improperly.
• Propane Characteriscs:
Propane is extremely flammable, explosive under pressure, heavier than air, and seles in pools in
low areas.
In its natural state, propane has no odour. For your safety, an odorant is typically added. Contact
with propane could burn the skin.
LPG WARNINGS:
• Cylinders must be stored outdoors in a well-venlated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs ghtly installed and must not be in a building,
garage or any other enclosed area.
• Never use an LPG cylinder with a damaged body, valve, collar, or foong.
• Dented or rusted LPG cylinders may be hazardous and should be checked by your supplier prior to use.
• The LPG cylinders should not be dropped or handled roughly.
• LPG cylinders must be stored outdoors out of the reach of children. Do NOT store in a building, garage, or
any other enclosed area.
• Never store your LPG cylinder where temperatures can reach over 50°C.
• Do not store the LPG cylinder in direct sunlight or near a source of heat or combuson.
• Never keep a filled LPG cylinder in a hot car. Heat will cause the gas pressure to increase, which may open
the relief valve and allow gas to escape.
• Do not store a spare LPG cylinder under or near this appliance.
• LPG cylinders should be filled only by a cerfied LPG dealer.
• Never aempt to aach this appliance to the self-contained LPG system of a camper trailer, caravan, motor
home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect to a LPG
cylinder. Never connect to an unregulated LPG supply.
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not try to
repair it. Call a cerfied gas engineer. The use of force or any self-aempted repair may result in a fire or
explosion.
• Use only the type of gas and the type of LPG cylinder specified by the manufacturer.
• Appliance is fied with gas regulator, flexible gas rubber pipe and clamps according the current regulaons.
• Care must be taken when handling the flexible gas rubber pipe, avoiding any twisng. Never use a damaged
gas regulator.
• Never connect this appliance to an unregulated LPG source (gas regulator supplied mandatory).
• When the appliance is not in use, turn the LPG cylinder to the “OFF” posion.
• Never use a damaged gas regulator.
• Always perform a leakage test on gas connecons whenever a LPG cylinder is connected. If bubbles form in
the leakage test soluon, do not use it. Never use a flame to test for leakages. It is strictly forbidden and
dangerous!
•
•

6
Assembly diagram
1
2
4
7
8
9
5
3
6
10
11
Components list:
Item Descripon
1 Wind barrier
2 Burner
3 Gas supply to burner
4 Excess gas release
6 Orange flexi hose
7 Regulator
8 Igniter supply wires
9 Gas valve
10 Igniter buon
11 Firepit body
5Valve assembly
Product Name
Leopold
Model
58287 (HF35401AA)
Gas Type
LPG gas mixture
Butane at
(28~30)mbar/
Propane at
37mbar
LPG gas
mixture
LPG gas
mixture
Gas Category
I3+
I3B/P(30)
I3B/P(37)
I3B/P(50)
Heat input (Hs)
13 kW(946g/h)
13 kW(946g/h)
13 kW(946g/h)
13 kW(946g/h)
Gas pressure
G30 at 28-30mbar
G31 at 37mbar
G30/G31
at 30mbar
G30/G31
at 37mbar
G30/G31
at 50mbar
Injector diameter (Ø) and No.
1.84 mm
1.84 mm
1.74 mm
1.59mm
Destination countries
BE,CH,CY,CZ,ES,
FR,GB,GR,IE,IT,LT
,LU,LV,PT,SK,SI
BE,
CY,DK,EE,FI,F
R,HU,IT,LT,NL,
NO,SE,SI,SK,
RO,HR,TR,BG
,IS,LU,MT
PL
DE, AT, CH,
SK
Gas regulator
Certified regulator according to EN 12864 (flow rate: max. 1.5kg/h)
Gas hose
Certified gas hose according to applicable EN-standard (max1.5m)
Gas cylinder
Standard gas cylinder (recommend to use 4.5kg ~ 15kg)
Primary air regulation
Fix - not adjustable
Appliance mass:
50 kg

7
Installation
Components list:
Set up
This Gas Firepit must be installed on flat, stable surface, away from any combusble materials or construcon.
1. Remove firepit from the packaging, place on a level, non-combusble surface.
2. Place the 3.5kg lava rocks (B) around the burner (2) evenly ensuring you do not cover the burners.
3. Unscrew the igniter switch (10), insert 1 x AAA baery (not provided) negave end first, then screw the igniter
switch back on.
CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.
Instrucon for connecng gas circuit to LPG cylinder:
•Before assembly, make sure all protecon packing material has been removed
•You need to purchase one LPG cylinder (recommended 5kg).
•Be careful: do not kink flexible gas rubber pipe (6).
1. Make sure the appliance gas knob is turned "OFF" before assembling the gas.
2. Connect the regulator inlet to the top of the LPG cylinder by hand.
OPERATING INSTRUCTIONS
Lighng
Before igning the appliance, perform “Leakage Tesng” in a well-venlated area (outdoor).
1. Turn the cylinder valve on the gas tank counter clockwise to open the gas supply.
2. Close the storing door on the body for the gas cylinder.
3. Press and hold the electric igniter (10).
4. Push and turn the control knob counter clockwise to the "LOW" posion.
5. Keep pushing the control knob to light the burner.
6. Aer ignion, release the electric igniter.
7. Connue to push and hold the control knob for 45 seconds.
8. If ignion does NOT take place in seconds, push and turn the control knob clockwise to "OFF". Wait 5 minutes,
then repeat the lighng procedure as above.
Note: Flame should be yellow/blue colour.
To Exnguish
1. Turn appliance control knob clockwise up to “OFF” posion.
2. Turn the LPG cylinder valve to the “OFF” posion.
3. Allow the appliance to cool before moving it (at least 1hr).
Re-Lighng
1. Turn control knob to “OFF” posion.
2. Wait at least 5 minutes, to let gas dissipate, before aempng burner re-light.
3. Repeat the “Lighng” steps.
Item Descripon Quanty
A Firepit 1 pc
B Lava rocks 3.5 kg
C Rain cover 1pc
Screen
DO NOT PLACE
LAVA ROCKS ON
THE SCREEN, KEEP
SCREEN CLEAR
WARNING
WARNING
The screen must be clear and free
of any obstructions at all times to
ensure proper operation.
The burner of the firebowl must be
covered by lava rocks completely.
Otherwise the flame may be
extinguished. See the figure for
the CORRECT and INCORRECT
methods for reference. CORRECT INCORRECT

8
Care and safe use guidelines
LEAKAGE TESTING
Never check for gas leakages with a flame or while smoking. This appliance needs to be periodically checked
for leakages and an immediate check is required if the smell of gas is detected.
• Make a soap soluon using 1 part of liquid dish-washing
soap to 3 parts water. The soap soluon can be applied with
a spray bole or brush to the leakage test points shown in
the figure beside.
• The valve of the LPG cylinder should be in the “OFF” posion
at this point of the leakage test. Once the soapy soluon is
applied to the gas connecons, the valve of the LPG cylinder
needs to be turned to the “ON” posion.
• Soap bubbles will begin to form in the soapy soluon if any
leakage is present.
• In the event of gas leakage, the appliance shall not be used
or if alight, the gas supply shall be shut-offand the appliance
shall be invesgated and recfied before it is used again.
Tighten any leaking fings, then turn on gas supply and
recheck.
• If necessary, substute gasket (according to EN 549 Class B2)
or material used to guarantee ghtness (according to EN
751-1 Class I).
MAINTENANCE AND CLEANING
To enjoy years of outstanding performance from your appliance, regular services of the appliance is mandatory
as followings:
• The appliance should be inspected at least once a year by a qualified service engineer only. More frequent
cleaning may be required according to the use of the appliance.
• Any guard or other protecve device removed for servicing the appliance must be replaced before operang it.
• Keep exterior surfaces clean, free and clear from combusble materials.
• Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents. While washing your unit
makes sure to keep the area around the burner assembly dry at all mes. If the gas control is exposed to water
in any way, DO NOT try to use it. It must be replaced.
• Airflow must be unobstructed. Keep controls, burner and circulaon air passageways clean.
Signs of possible blockage include:
• Gas odour with extreme yellow pping of flame / Appliance glow is excessively uneven / Appliance makes
popping noises.
• Spiders and insects can nest in burner, this can damage the appliance and render it unsafe for use. Clean burner
holes by using a hoover, sobrush or compressed air to help clear away smaller parcles.
• Carbon deposits may create a fire hazard. If any carbon deposits develop, clean with warm soapy water.
• Aer the burner and lava rocks are completely cooled down, remove it from the bowl and use a sobrush to get
rid of the mild stains, loose dirt and soil. Wipe with a socloth.
• Clean the bowl and put the lava rocks back in proper posion (ensuring they are not covering the burners).
• For proper cleaning, a vacuum cleaner can be used.
Note: In a salt-air environment (such as near the sea), corrosion occurs more quickly than normal. Frequently check
the corroded areas and repair them promptly (by a cerfied gas engineer). Stubborn stains, discoloraon and
possibly rust ping can occur from exposure to harsh outdoor condions.
Over me, some discoloraon can occur, this is normal.
Make sure both gas supplies are in OFF posion before changing baery.
Please refer to the process of assembling baery.
Please contact the Manufacturer for informaon regarding replacement hoses, regulators and lava rocks.
Aenon: Never use unauthorized parts or component for this appliance.
Use only original equipment replacement spare parts and components.

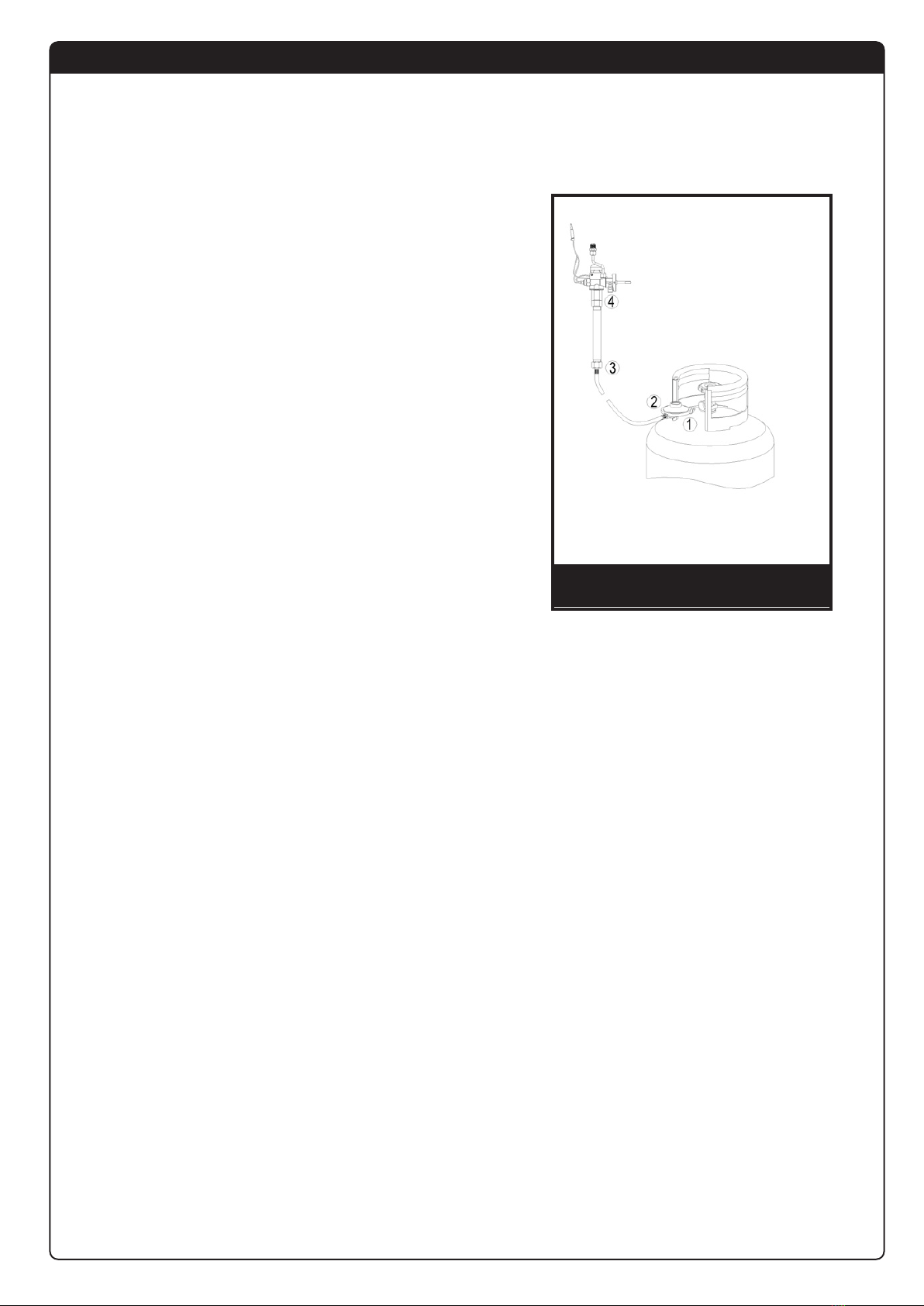

Leakage Test Point
①
②
③
④

9
Care and safe use guidelines
STORAGE (aer use)
1. Turn control knob on the unit to the “OFF” posion.
2. Disconnect LPG cylinder and move to a secure, well venlated locaon outdoors. DO NOT store in a locaon
that will exceed 50 °C.
3. Store the appliance in a cool dry place away from direct sunlight; store it upright in an area sheltered from
direct contact with inclement weather.
4. Cover appliance to protect exterior surfaces and to prevent build up in air passages.
Note: Wait unl appliance is cool before covering.
TROUBLESHOOTING
Problem: Condion: Soluon suggested:
Burner won’t light
Control knob is not in Maximum posion.
Turn control knob in Maximum posion.
LPG cylinder valve is closed / Empty.
Open the valve / Replace LPG cylinder with a new one.
Blockage in the injector.
Clean or replace injector (Cerfied gas Engineer only).
Air in the gas circuit.
Open gas line and bleed it (pressing control knob in) for
no longer than 45 seconds or unl you smell gas.
Low gas pressure. Replace LPG cylinder with a new one.
Igniter fails.
Use a long handled lighter to light burner; change baery
or obtain new ignite and replace it (speak to
manufacturer)
Burner won’t
stay lit
Build-up of dirt/debris around burner.
Clean dirty around the burner using a so brush.
Low flames or poor ignion on burner
circumference
Flame spreader holes parally closed; clean the burner.
Thermocouple is not operang correctly. FSD failure (speak to manufacturer)
Low gas pressure.
Replace LPG cylinder with a new one.
Burner flame is
low
Note: Do not
operate appliance
below 5 ˚C
Outdoor temperature is greater than 5 ˚C
and LPG cylinder is less than 25 % full. Replace LPG cylinder with a new one.
Gas pipe is bent or kinked. Straighten hose and perform leakage test on gas pipe.
Control knob is at the maximum posion.
Turn control knob to” OFF" posion, let cool to room
temperature and check burner and orifices for
blockage.
Carbon build-up
Dirt or film on burner.
Clean burner using a so brush.
Flash back (flame
inside burner) Burner ports are blocked.
Switch OFF the appliance. Close LPG cylinder valve. Wait
2 minutes, following the ignion procedure. Ignite
burner. If problem connuous, switch-off. Contact your
dealer.
Thick black smoke Blockage in the burner.
Turn control knob to "OFF" posion, let the appliance
to cool at room temperature and remove blockage
and clean burner inside and outside.
