Lab companion UCP-02/10/20 User manual

ULTRASONIC CLEANER
OPERATING
MANUAL
ULTRASONIC CLEANER
Model : UCP-02/10/20
UCS-05/10/20
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
Content
1. Caution ········································································· 3
2. Specification ·································································· 6
A. UCP Series
B. UCS Series
3. Operation ································································ 8
A. Function Key
B. Starting Method
4. Cleaning Method ··················································· 10
A. Direct Cleaning
B. Indirect Cleaning
C. Effective Cleaning
5. Trouble Shooting ························································ 11
6. Warranty ···················································································· 11
7. Membrane ········································································ 12
A. UCS Series
B. UCP Series
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
1. Caution
Thank you very much for purchasing our ultrasonic cleaner.
Please read and fully understand the following instruction in order to prevent
accidents from happening and clean the works cleanly before operating ultrasonic
cleaner.
And mis-operation of ultrasonic cleaner could result in serious personal injury
or cleaner.
⊙Explanation about warning indication
This manual marks following warning indication for you to do not hurt and for
property to do not damage.
Ignore this expression and user makes
contents that danger of death or serious
injury can happen in case of use wrong.
Ignore this expression and user makes
contents that danger of death or serious
injury can happen in case of use wrong.
Ignore this expression and makes
possibility that user is injured in case of
use wrong and damage can happen.
This symbol is marked to prohibit.
This symbol is an indication that you have to run.
!DANGER
!WARNING
!ATTENTION
!
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER

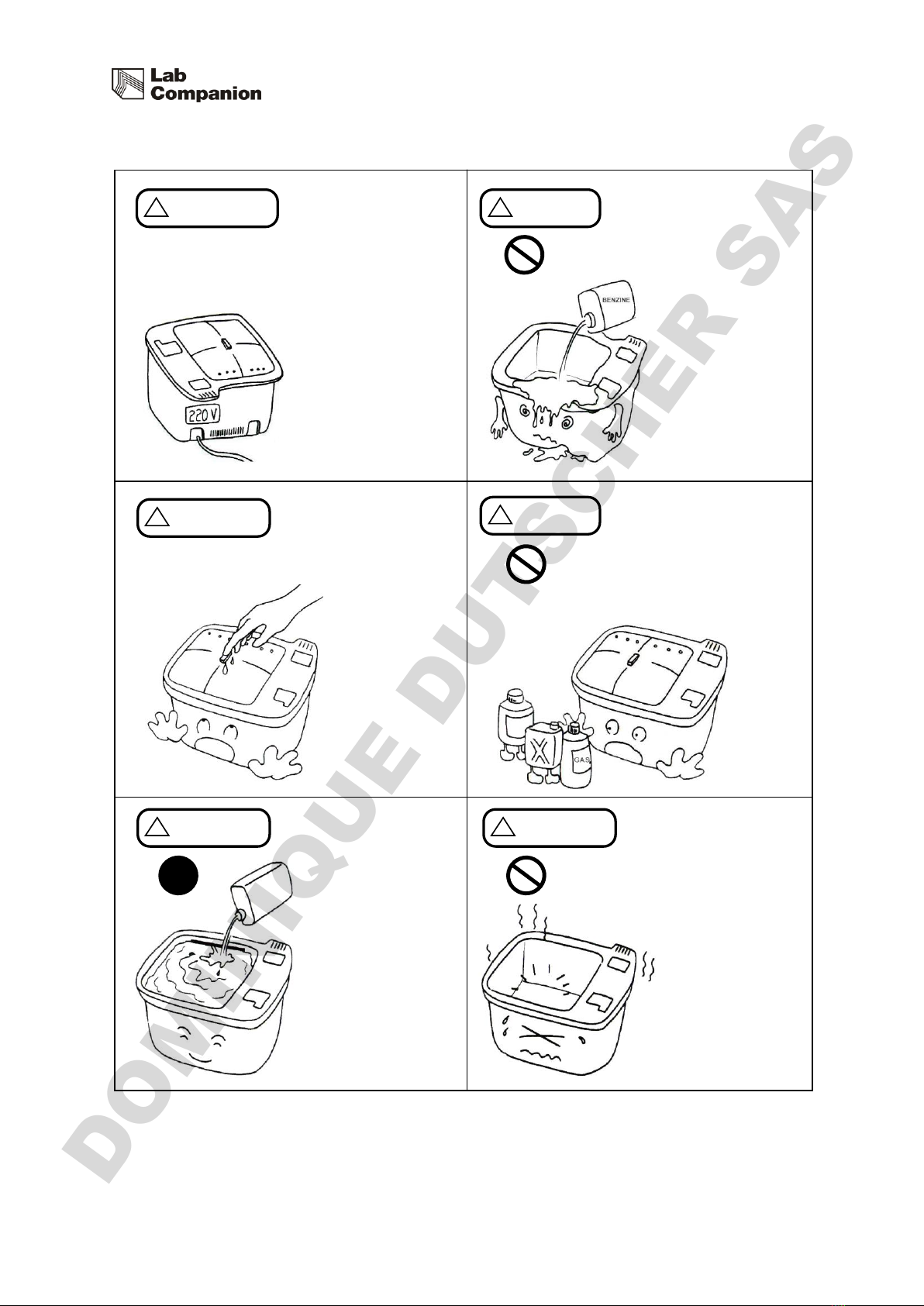

[Caution]
!
!Danger
!Danger
!Warning
!Warning !Warning
!Attention
Make sure you check the proper
voltage on sticker before plugging
in. Otherwise, it may result in damage
to the product.
Do not pour solvent in the bath.
Otherwise, it may cause the
damage to the
cleaner.
Do not operate the cleaner with wet
hands.
Make sure of pouring
solution up to the
indicating level.
Otherwise, it may
cause the overheat
of heater.
Do not operate the cleaner
without solution. Otherwise,
it may cause the overheat of
heater and trans-
ducer disorder.
Do not pour the flammable
solution in the tank.
(fire danger)
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER

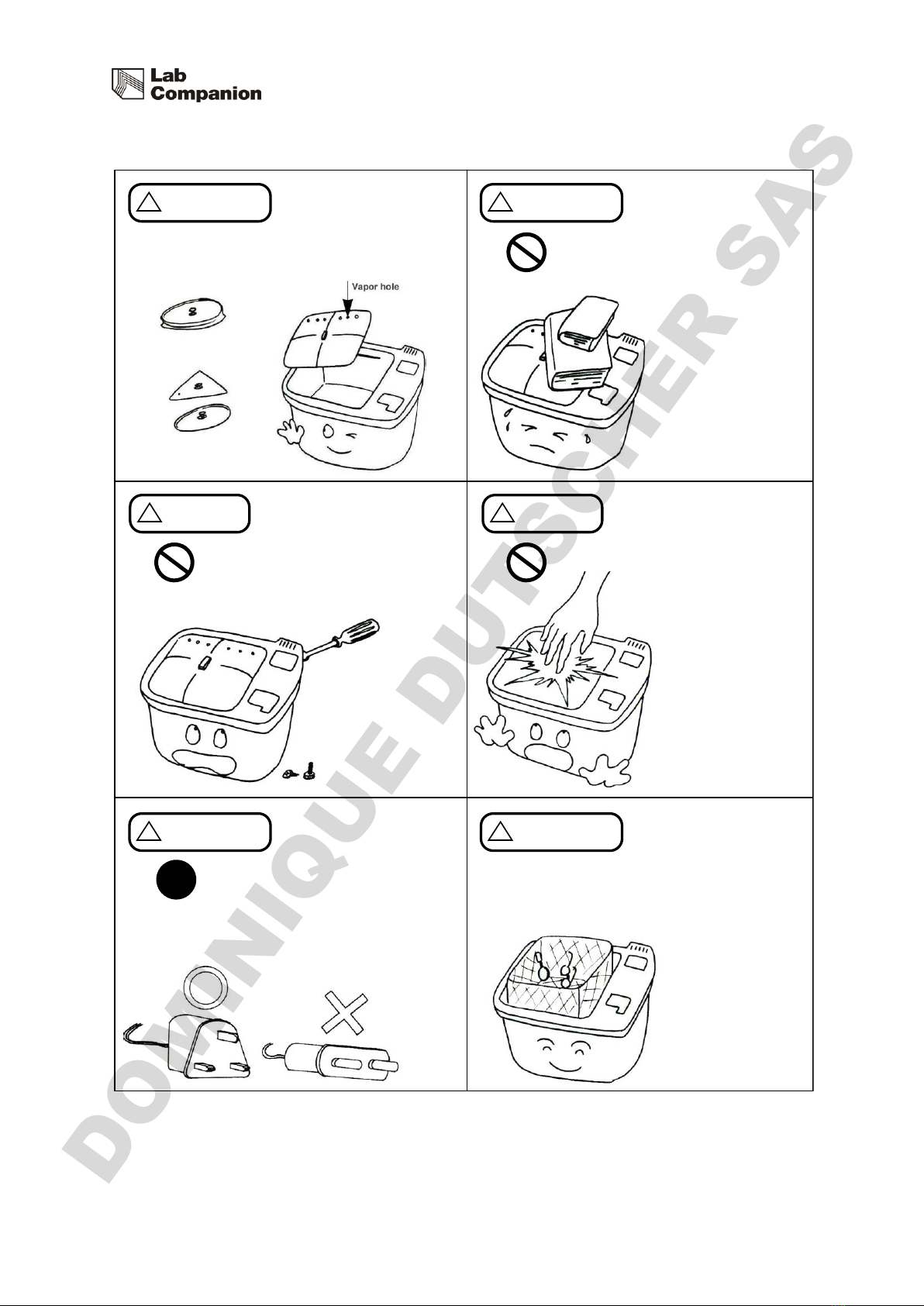

[Caution] - Continue
!
!Danger !Danger
!Attention
!Attention !Attention
!Attention
Do not use the unventilated cover
except for cover or having vapor holes.
Do not attempt to take the cleaner
apart to repair it while power is
being supplied. Otherwise, it may
result in electrical shock.
Make sure of using the plug
connected to the ground.
Do not clean with placing the works
directly on the bath bottom.
(Use a basket or a tray)
Do not put your hands in
the bath in operating,
particular never clean
your dusty hands.
(ultrasonic shock)
Keep the controller part clean
and dry and do not place the
things on the cover.
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
2. Specification
A. UCP Series
-. Dimension
Name
UCP Ultrasonic Cleaner
Model
UCP-10
UCP-20
UCP-02
Capacity
10 Liter
20 Liter
2 Liter
Tank Size
(WxDxH)
295x240x160
500x290x160
142x132x104
Overall Size
(WxDxH)
490x368x297
721x451x297
290x240x200
Temp. Range
Amb. ~ 70 ℃
-
Time Range
1 ~ 99 min, 4 hour
1~99 min
Transducer
BLT Type
Ultrasonic Freq.
40 KHz
Input Power
AC230V, 50/60Hz or AC120V, 60Hz
Body Material
ABS
Ultrasonic
Power(Max)
300W
500W
100W
Heater Power
190W
320W
-
Weight
11 Kg
17 Kg
2 Kg

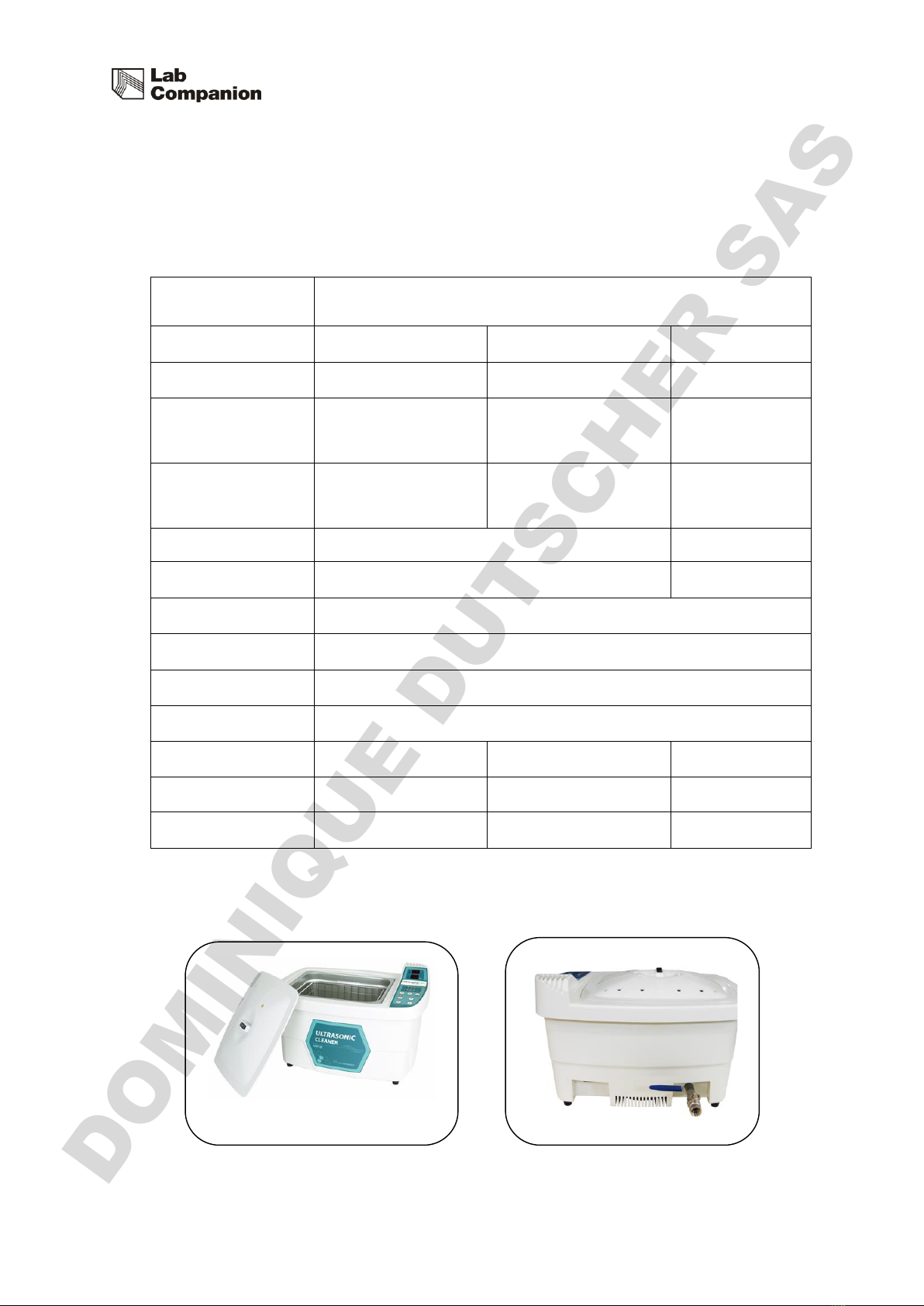

-. Image of front and rear of the product (Except UCP-02)
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
B. UCS Series
-. Dimension
Name
UCS Series Portable Ultrasonic Cleaner
Model
UCS-05
UCS-10
UCS-20
Capacity
5.7 Liter
10 Liter
20 Liter
Transducer
BLT TYPE
Ultrasonic
Power (Max)
200W
300W
500W
Heater
Power
150W
190W
320W
Ultrasonic
Freq.
40 KHz
Input Power
AC230V, 50/60Hz or AC120V, 60Hz
Temp.
Range
Amb. ~ 70 ℃
Time Range
1 ~ 99 min, 4 hour
Body
Material
SUS-304
Control
Microcontroller Control Method
Tank
Size(mm3)
295x160x160
295x240x160
500x290x160
Overall
Size(mm3)
325x230x320
325x330x320
530x330x297
Weight
9 Kg
11 Kg
15 Kg
-. Image of front and rear of the product
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
3. Operation (except for UCP-02)

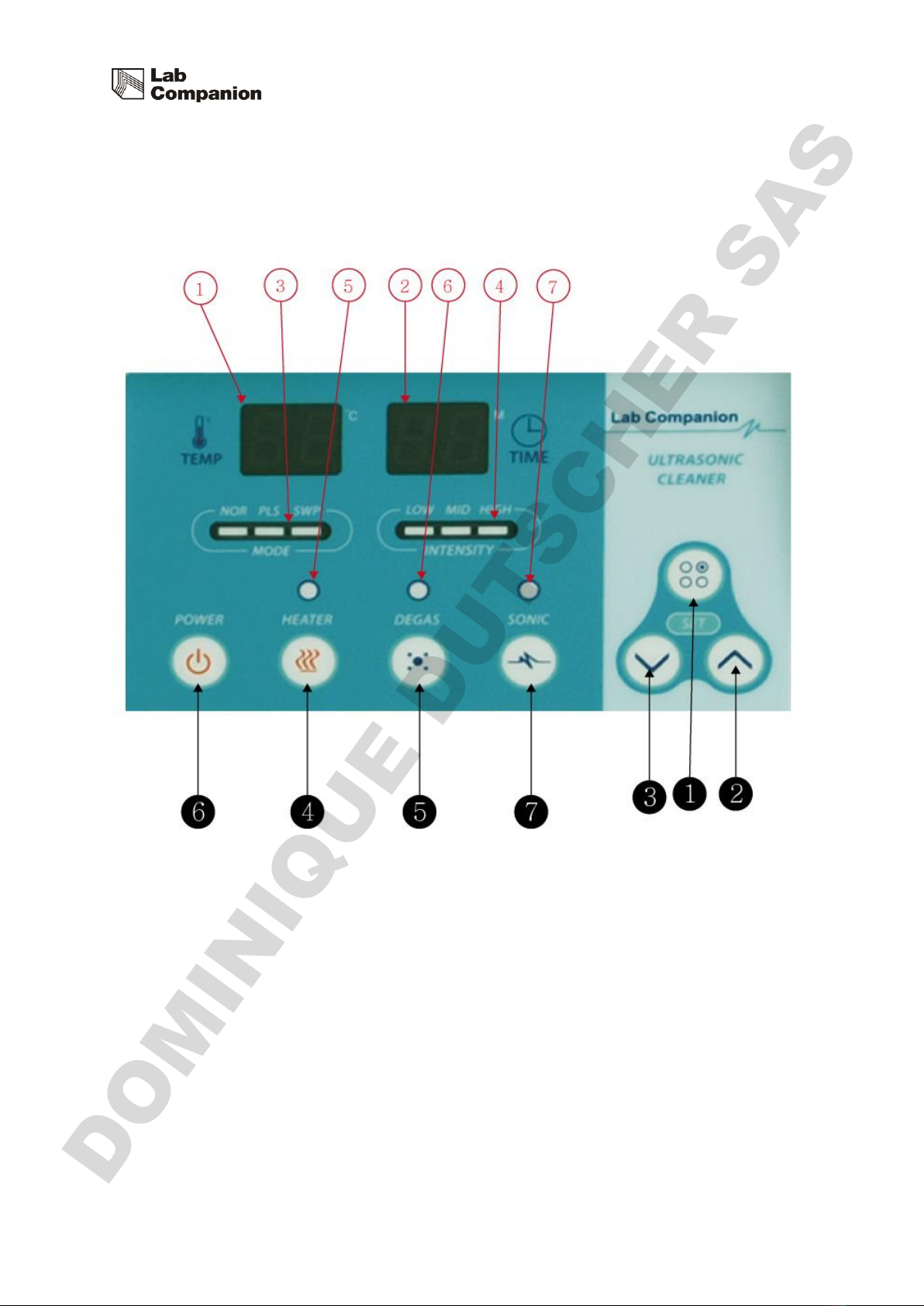

A. Function Key
[ DISPLAY ]
FND-TEMP : Display of Temperature.
FND-TIME : Display of Operation Time(Displays the remaining time
in minutes)
Display of Operation Mode : Normal, Pulse, Sweep
Display of Ultrasonic Power : Low, Middle, High
Display whether to use Heater : Press Heater Key, ONOFF /OFFON
is repeatedly. If water temperature is lower than set temperature, it shows
that turn on the heater. Actual operation of Heater is displayed as DOT
LED on FND-TEMP window.
Display whether to operate DeGAS.
Display whether to generate ULTRASONIC.
[ KEY ]
SET KEY : Operated as NORMAL TEMP TIME OP MODE 
POWER NORMAL. Selected FND or LED is blink.
In selected Mode, Down Key
In selected Mode, Up Key
HEATER Operation Selection Key. In state ON, when water temperature
is lower than set temperature, Heater is ON automatically. In contrast, the
higher the Heater is OFF.
DeGAS Key : DeGAS ON/OFF Key. Operates only if the sonic off.
POWER Key : POWER ON/OFF Key.
SONIC Key : Ultrasonic output ON/OFF Key. Operates only if the
DeGAS off.
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
B. Starting Method
i. If you have basket, put in the sump.
ii. Put cleaning stuff into sump.
iii. Put liquid into sump until going to indication line.
iv. POWER ON. LED and FND test and then wait to be ready to operate.
v. Press SET KEY once and set temperature of liquid. (TEMP SET MODE).
1. If press SET KEY first time, FND-TEMP is blink. UP/DOWN Key to
set the desired temperature can be used.
2. Heater lamp is automatically ON/OFF, compared with the current
temperature and the set temperature.
vi. In TEMP SET MODE, press SET KEY once more and then FND-TIME is
blink. In same way, set cleaning time by pressing UP/DOWN KEY.
(TIME SET MODE).
vii. In TIME SET MODE, press SET KEY once more and the selected MODE
LED is blink, changing into Operation Selection Mode. UP/DOWN Key
to select the proper mode can be used. (OPERATION SELECTION
MODE).
viii. In OPERATION SELECTION MODE, press SET KEY once more again and
then goes into POWER SELECTION Mode. The selected POWER LED is
blink. UP/DOWN Key to select the power can be used. (OUTPUT
POWER SELELCTION MODE)
ix. In OUTPUT POWER SELECTTION MODE, if press SET KEY. Every setting
is finished and changed into NORMAL Operation MODE. All of the
selected are stored. Even though POWER is OFF, it is maintained.
x. Press SONIC ON/OFF, SONIC LED lights up and begins to ultrasonic
cleaning.
xi. Cleaning time is displayed in minutes in subtraction mode while
ultrasonic cleaning. Namely, remaining time is displayed by MIN.
xii. If you want to stop cleaning before settled time, press SONIC KEY.
xiii. The ultrasonic cleaning time is set to 00, four hours of continuous use
is possible.
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
4. Cleaning Method
A. Direct Cleaning
i. It is to clean the works directly by putting the works in bath. It is easy
and good detergency.
ii. Pour Cleaning solution up to the indication line(When works are put)
iii. Put the works in the perforated Basket or Pallet, and put it in the
bath. And then Ultrasonic ON.
iv. Put the works in the bath hung on wire or string. And then Sonic ON.
v. After cleaning, you need to rinse the works away with water to keep
clean. Because the residue is remained in the bath.
vi. High concentrations of acid, alkaline cleaning solution may corrode
the internal surface of the tank.
B. Indirect Cleaning
i. It is to clean the works put in the beaker in the bath. The inspection
of cleaning result, filtering and disposal are simple.
ii. Pour water up to the indication line.(When the beaker are put)
iii. Pour the solution to a beaker or several one containing the works.
iv. Put the beaker containing the works in the bath and clean it.
v. When putting the beaker in the bath, take care that not to enter
water into the beaker by ultrasonic wave.
C. Effective Cleaning
i. Pour cleaning solution up to indication line. (When the works are put)
Or otherwise, it causes overheat of heater.
ii. Put the works in the basket or pallet in the bath. Using the basket or
pallet is easy to put or take out.
iii. Temp. of solution in the bath is proper at 40℃. (except for UCP-02)
iv. Do not use the highly Volatile Solution.(ex, Solvent, Thinner etc.)
v. Strong acid, strong alkali solution should be avoided because it may
cause corrosion.
vi. After cleaning, rinse well in water, allowed to dry out.
vii. After using the Ultrasonic Cleaner, discharge the solution through the
drain, rinse with clean water and wipe clean with a towel or tissue.
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
5. Trouble Shooting
Troubles
Causes
Solutions
Cleaner is not
powered.
1. Bad connection Power Plug
2. Power inlet Fuse is bad
3. Fuse unit in generator is
bad.
1. Check the power inlet
2. Replace Fuse
3. Request A/S
Key doesn’t
operate
1. Key pad defective
1. Check the key
2. Request A/S
The temp. of
solution doesn’t
rise
1. Heater is not set properly
2. Heater disconnected
1. Check the Heater Set
2. Request A/S
Time function
doesn’t operate
1. PROGRAM abnormal
1. Check Time Set
2. Request A/S
Cleaning power is
weakened
1. Solution is old, pollution
level is high.
2. Solution is insufficient
3. Residue on bath bottom is
solidified
4. The works are too much put
in the bath
1. Replace Solution
2. Add Solution
3. Clean the Bath
4. Adjust the amount of
the works until
cleaning power is
normal
Temperature
display as the ER.
1. Temp. sensor is damaged
1. Replace temp. sensor
2. Request A/S
6. Warranty
A. The warranty period is 1 year from the date the product was purchased.
B. During this period, damage caused by defects is repaired freely.
C. Damage resulted from mis-operation is responsible for the end-user.
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
7. Membrane
A. UCS Series
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
B. UCP Series
DOMINIQUE DUTSCHER SAS

ULTRASONIC CLEANER
Technical assistance
International Sales Head Office (Korea)
#1005, Byucksan Digital Valley 6-cha, 219, Gasan digital 1-ro, Geumcheon-gu, Seoul,
Korea, 153-704
Tel: [phone] E-mail: [e-mail]
FAX: [phone]
The Americas (U.S.A. Branch)
19 Alexander Road, unit#7, Billerica, MA 01821, U.S.A.
Tel: [phone] E-mail: [email protected]
FAX: [phone]
Europe (U.K. Branch)
Unit 3, Tower Industrial Park, Chalgrove, Oxfordshire, OX44 7XZ, United Kingdom
Tel: [phone] E-mail: [e-mail]
FAX: [phone]
China (Shanghai Branch)
A-2113 Oriental International Plaza, 85 LouShanGuan Rd, Changning District,
Shanghai, China 200336
Tel: [phone] E-mail: [e-mail]
FAX:[phone]
South East Asia (Malaysia Branch)
No 57-59, Jalan Adenium 2G/6, Pusat Perniagaan Adenium, 48300 Bandar
Bukit Beruntung, Selangor Darul Ehsan , Malaysia
Tel: [phone] E-mail: [e-mail]
FAX: [phone]
The contents of this manual can be changed or upgraded without prior notice.
The copyright of this manual is reserved by Jeio Tech.
DOMINIQUE DUTSCHER SAS
