Labnet Enduro E0303 User manual

11/13/06
300 Volt
Electrophoresis Power Supply
Catalog Number
E0303 110Volt
E303-230V 230Volt

11/13/06
Table of Contents
FCC Warning 3
Safety Information 3
Package Contents 4
Product Specifications 5
Overview 6
Description of Buttons and Switches 6
Getting Started 7
Important Guidelines 8
Operation 8
Choosing Limiting Parameter Settings 9
Troubleshooting 11
Repair and Maintenance of 300V Power Supply 12
APPENDIX 13
Ohm’s Law Conversions 13

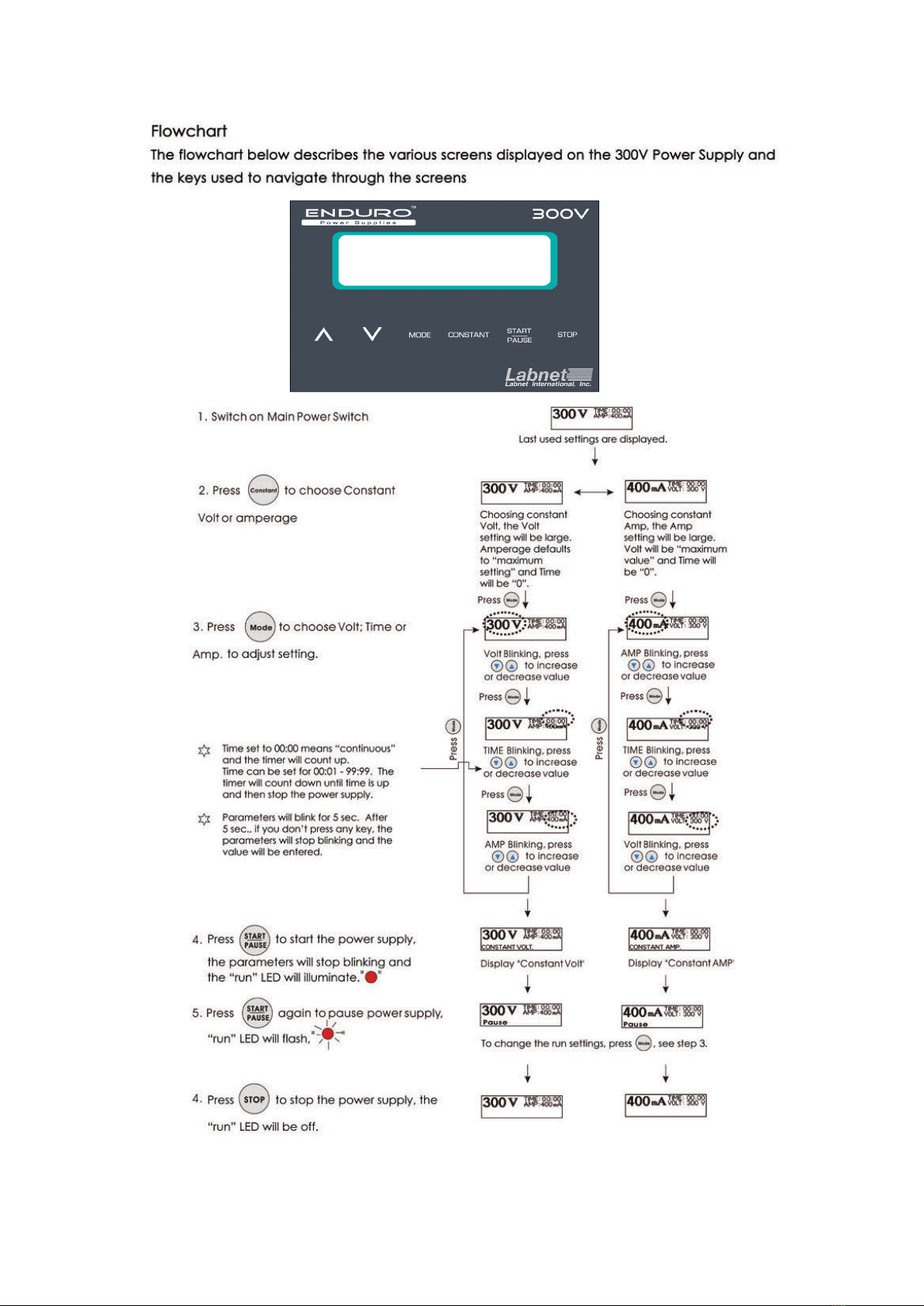

Flowchart 14
Technical Service 15
Warranty 15
Equipment Disposal 16

11/13/06
Warning
Federal Communications Commission Advisory
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at their expense. Changes or
modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Safety Information
Avoiding Electrical Shock
The ENDURO 300 Volt Power Supply produces an output of up to 300 volts which are
electrically isolated from ground to reduce the risk of electrical shock to the user. Please
follow the guidelines below, and read this manual in it’s entirety to ensure safe operation
of the unit.
The ENDURO 300 Volt Power Supply has been designed for use with electrophoresis gel
box systems with shielded banana plugs thus minimizing any potential shock hazard to
the user. Always use gel box systems that are compatible with the Power Supply, have
been designed for your specific applications, and are suitable for the voltage and current
range of the Power Supply. Always use gel box systems that have safety lids to prevent
accidental electric shocks to the user. Labnet International recommends against the
use of gel box systems and/or power leads that have unshielded banana plugs.
To avoid electrical shock:
1. NEVER connect or disconnect wire leads from the power jacks when the red indicator
light at the Start/Stop key is on or when “RUNNING” is displayed on the screen.
2. WAIT at least 5 seconds after stopping a run before handling output leads or
connected apparatus.
3. ALWAYS make sure that hands, work area, and instruments are clean and dry before
making any connections or operating the power supply.
4. ONLY connect the power supply to a properly grounded AC outlet.

11/13/06
Avoiding Damage to the Instrument
1. For proper ventilation, leave at least 10 cm of space behind the instrument, and at
least 5 cm of space on each side.
2. Do not operate the power supply in high humidity environments (> 95%), or where
condensation may occur.
3. To avoid condensation after operating the power supply in a cold room, seal the unit
in a plastic bag and allow at least 2 hours for the unit to equilibrate to room temperature
before removing the bag and operating the unit.
Symbols
Used on the ENDURO 300 Volt Power Supply to indicate an area where a
potential shock hazard may exist.
Package Contents
Component Quantity
ENDURO 300 Volt Power Supply 1 each
Instruction Manual 1 each
Extra Fuse 1 each
Power Cord 1 each
Warranty Card 1 each
Quick Reference Card 1 each
Upon Receiving the Instrument
Examine the unit carefully for any damage incurred during transit. Any damage claims
must be filed with the carrier. The warranty does not cover in-transit damage.
To ensure safe, reliable operation, always operate the ENDURO 300 Volt
Power Supply in accordance with the manufacturer’s instructions.
Always wear protective gloves and safety glasses when working in a
laboratory environment. See Safety Information and Warranty
Information in this manual.

11/13/06
Product Specifications
300V Power Supply Specifications
Input Power (switchable) 110 VAC, 50-60 Hz
230 VAC, 50-60 Hz
Fuses One 4A/250V, one extra fuse is provided
Output power in watts 90 watts
Output voltage range 2~300V
Output current range 4~500 mA
Duration Limits Time ~99.99 hr/min
Terminal pairs 4(4 positive voltage and 4 negative voltage)
Operating Modes
Constant Voltage 1V increment settings
Constant Current 1 mA increment settings
Crossover Automatic
Display type Backlit LCD Graphic type
Display size 53.64 x 15.64 mm (W x H)
Pause function Yes
Safety features No Load Detection
Load Change Detection
Overload Detection
Ground Leak Detection
Auto Restart
Stackable Yes
Housing material Flame retardant ABS
Housing size 200 x 290 x 70 mm (W x D x H)
Operating temp. 0°C-40°C
Environmental condition85% RH, 75 KPa-106 Kpa, Altitude not to exceed 2000 meters
Weight 1.2 kg
Certifications CE; TUV; CUL
Warranty 3 years

11/13/06
Overview
The ENDURO 300 Volt Power Supply is a microprocessor-controlled power supply
designed to meet most electrophoresis needs in a single, easy to use unit. The power
supply is capable of running constant voltage / constant current applications
concurrently. This instrument is ideal for DNA/RNA electrophoresis, SDS-PAGE, native
PAGE, and second-dimension SDS-PAGE applications. With four sets of output jacks
that can be used simultaneously, the ENDURO 300 Volt Power Supply is designed to
efficiently handle multiple electrophoresis gel tanks and use a small amount of lab space.
The ENDURO 300 Volt Power Supply offers two modes, Constant Voltage or Constant
Current Mode. This manual describes the setup and operation of the ENDURO 300 Volt
Power Supply including important information on safety and maintenance of the unit.
Description of Buttons and Switches

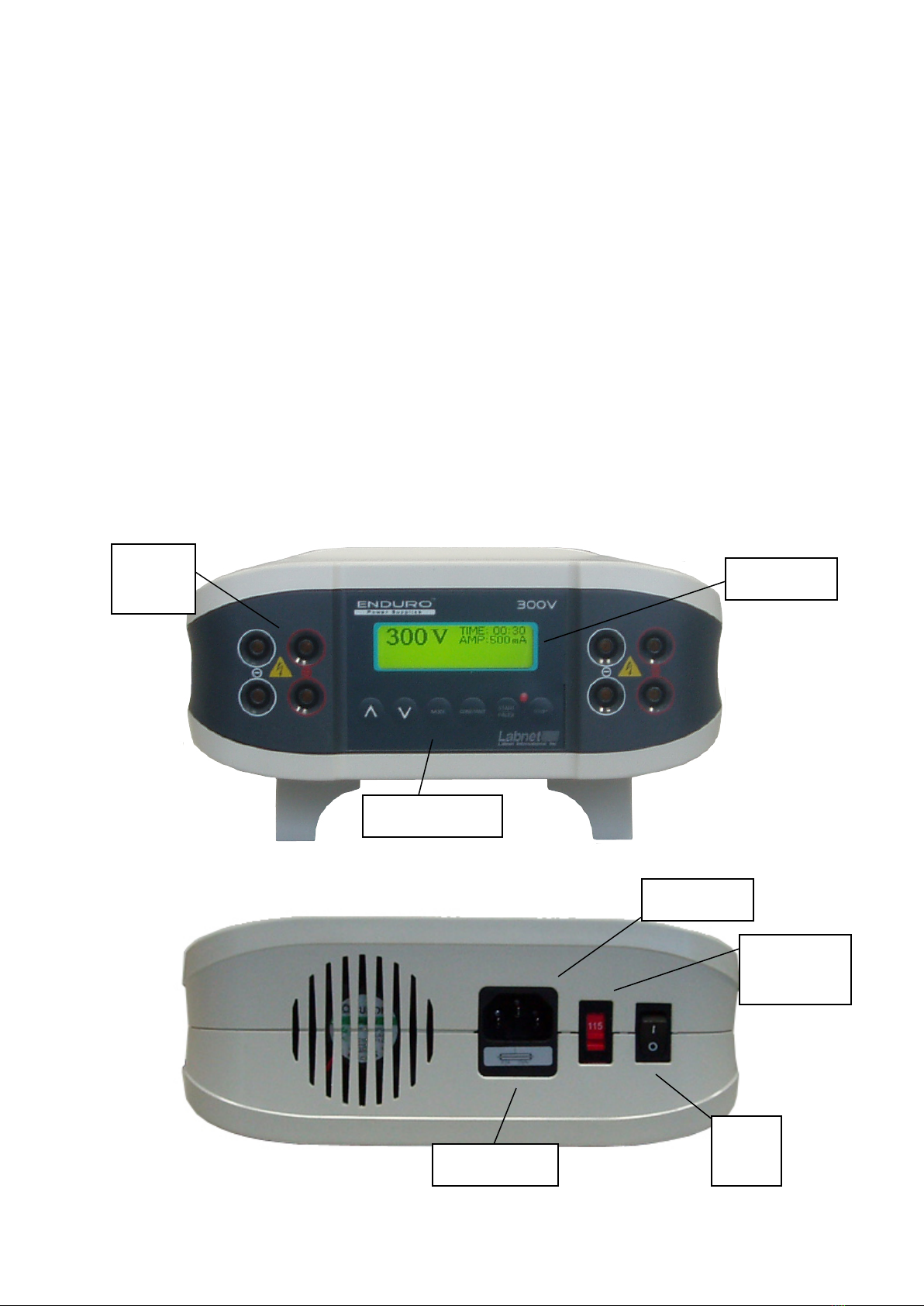

Front View of ENDURO 300 Volt Power Supply
Rear View of ENDURO 300 Volt Power Supply
Control Buttons
LCD Display
Output
Jacks
Power Inlet
Voltage
Selector
Power
Switch
Fuse Drawer

11/13/06
Operational keys
Key Functions
STOP key: Used to stop operation from the Running Screen
START/PAUSE key: Used to start operation / temporarily interrupt power
to an operation in progress without terminating electrophoresis and to
resume power after pausing without resetting the timer.
CONSTANT key: Used to set up constant voltage or current values
MODE key: Used to choose either Constant Voltage or Constant Current
mode
Down Arrow key: Used to move cursor down between parameters and to
decrease numeric values
Up Arrow key: Used to move cursor up between parameters and to
increase numeric values
Getting Started
Installing the ENDURO 300 Volt Power Supply
1. Check the label located near the AC inlet to ensure that the unit is compatible with
locally provided voltage.
2. Place the ENDURO 300 Volt Power Supply on a level laboratory bench. Keep the area
around the power supply clear to ensure proper ventilation of the unit.
3. For your safety: Position the unit properly such that the On-Off switch and the AC
inlet located on the rear of the unit are easily accessible.
4. Ensure the AC power switch is in the Off position.
5. Attach the power cord to the AC inlet. Use only properly grounded AC outlets and
power cords.
6. Connect the leads from the electrophoresis unit; insert the red lead (+) into the red
output jack, and the black lead (-) into the black output jack.
MODE
CONSTANT
START
PAUSE
STOP

11/13/06
Important Guidelines
Important guidelines for operating the ENDURO 300 Volt Power Supply are provided in
this section. We recommend that you carefully review these guidelines before operating
the instrument.
Important: For best results, do NOT use the ENDURO 300 Volt Power Supply at its
maximum electrical load limits. Variations in buffer conditions can result in exceeding
the power supply’s maximum voltage, current, or power output capacity and produce
undesirable variations in electrophoretic separations.
General Operating Instructions
Follow the instructions below to operate the ENDURO 300 Volt Power Supply.
• Turn on the ENDURO 300 Volt Power Supply by pressing the power switch on the rear
side of the instrument. Upon start-up, the Display Screen on the front of the
instrument will illuminate.
• Use the START/PAUSE and STOP keys to switch on and off the power to the output
jacks.
Recommendation
The duration of electrophoresis can be defined in time (hours/minutes). When using this
or any electrophoresis product, we recommend that you adhere to the time protocols
provided in protocol and application manuals.
Important: For best results, follow these important guidelines when running
multiple gels and electrophoresis units concurrently.
• Avoid running samples with differing buffer salt concentrations at the same time.
Note: Variations in conductivity due to differences in buffer salt concentrations can affect the run
of all the samples run at the same time.
Operation
The ENDURO 300 Volt Power Supply is designed to operate under two modes, Constant
Voltage Mode or Constant Current Mode, depending upon your electrophoresis
application.
Use the Constant Voltage / Current Mode for applications that require only one specific
voltage limit or current limit during the entire duration of electrophoresis.

11/13/06
Display Screen
The Display Screen illuminates after turning on the power to your instrument and the
factory default settings (or last settings used) will be displayed.You can choose the
operational Mode (Constant Voltage or Constant Current Mode) by pressing the
“constant”button.
• On the Display Screen:
• The chosen constant parameter (Voltage or Current) is displayed in bold on the left side of
the display.
• The Timer is the first line on the right-top, and the non-constant value is
displayed in the second line on the right side of the display screen.
Choosing Limiting Parameter Settings
The ENDURO 300 Volt Power Supply is capable of operating at limiting voltage, or
limiting current. We recommend operating the 300Volt Power Supply at limiting voltage
for most applications. See below for more details.
Voltage Limiting
For most electrophoresis methods,resistance increases during the run. Limiting the
voltage provides the following advantages:
• The same voltage setting can be used regardless of the number or thickness of gels
being processed.
•Current and power output decrease throughout the run, providing a greater margin of
safety over time.
Current Limiting
Discontinuous buffer systems and, to a lesser extent, continuous systems increase
resistance during the run. If you use the current limiting setting on the 300V Power
Supply, the voltage will increase as resistance increases to satisfy Ohm’s law (V=IR). If
no voltage limit is set and a local fault condition occurs, such as a poor connection, very
high local resistance may cause the voltage to increase to the maximum capacity of the
power supply. This may lead to local overheating and damage to the electrophoresis
running tank or create unsafe conditions. When operating under constant current
conditions, set a voltage limit on the power supply at or slightly above the maximum
expected voltage.

11/13/06
Basic Constant Operation Protocol
The Constant Voltage and Constant Current Modes allow you to specify a voltage limit,
and current limit to be used continuously during the entire duration of electrophoresis.
Review the guidelines provided in this manual before starting electrophoresis.
A basic Constant Voltage / Current Mode operating procedure of the 300Volt Power
Supply is provided on the below. We recommend reading the guidelines provided in this
manual for best results before starting an operation.
1. Use the power switch on the rear side of the instrument to turn on the 300V Power
Supply. The Display Screen will illuminate.
2. Press the CONSTANT key to select either Constant Voltage Operation or Constant
Current Operation from the Display Screen.
3. Use the Up Arrow / Down Arrow keys to set either voltage (V) or current (mA)
parameters to the appropriate values.
4. Press the MODE key to choose the TIME parameter, and use the Up Arrow / Down
Arrow keys to set the duration (hours/minutes) of the electrophoresis run.
5. Press START/PAUSE key to start electrophoresis.
6. Press the START/PAUSE key again to temporarily interrupt power. The red “Run”LED
will flash to indicate that the electrophoresis run is paused. Pressing the START/PAUSE
key again will restart the electrophoresis run.
7. Press the STOP key to permanently stop the electrophoresis run (the timer will reset).
8. To change the limits (Voltage or Amperage) of the electrophoresis run in progress:
Press the Mode key. Enter the changes using the Up Arrow / Down Arrow keys, and
then press START/PAUSE key once again to restart your operation.
Note: After stopping (using the STOP key) and restarting an operation, the timer resets and does
not take into account the time that electrophoresis was in progress before it was stopped.

11/13/06
Troubleshooting
Review the information in the table below to troubleshoot operating problems.
Problem Cause Solution
The LCD screen
remains blank and
the fan does not run
when the power is
turned on
AC power cord is not connected Check AC power cord connections at both ends.
Use the correct cords.
The fuse has blown Replace the fuse
Operat
ion stops with
alarm: The screen
displays “NO
LOAD”
Electrophoresis leads are not
connected to the power supply or
to the electrophoresis unit(s), or
there is a broken circuit in the
electrophoresis cell
Check the connections to the power supply and on
your electrophoresis cell to make sure the
connection is intact; check condition of wires in
electrophoresis unit. Close the circuit by
reconnecting the cables. Press START/PAUSE to
restart the run.
High resistance due to tape left on
a pre-cast gel, incorrect buffer
concentration, or incorrect buffer
volumes in the electrophoresis cell
Correct the condition by making sure the tape is
removed from the pre-cast gel, buffers are prepared
correctly, and the recommended
volume of buffer is
added to the electrophoresis unit.
High voltage application is set to
run on a very low current
DISABLE No Load alarm on the Display Screen
Operation stops with
alarm: Display shows
“OVER VOLTAGE”
Circuit is interrupted
• Verify that the running buffer is correct.
• Verify the all cables are attached correctly
• Turn the Power switch off and on again; restart
application.
• If you cannot restart the instrument, turn off the
power, disconnect the power cord from the outlet,
and contact Technical Service.
Operation stops wi
th
alarm: Display shows
“LEAKAGE”
Ground leak detected during run Check the electrophoresis system for improper
grounding. Restart the power supply by turning the
Power switch off and on.
Operation stops with
alarm:
Display shows
“OVER TEMP”
Power supply is overheating
• Turn off power supply. Check for sufficient airflow
around the power supply fan. After cooling down,
restart the power supply by turning the Power
switch to the on position.
• If you cannot restart the instrument, turn off the
power, disconnect the power cord from the outlet,
and contact Technical Service.

11/13/06
Repair and Maintenance of 300V Power Supply
The ENDURO 300 Volt Power Supply requires no periodic maintenance program with the
exception of an occasional dry wipe-down of the instrument.
Encountering Problems
1. Check the troubleshooting section.
2. Contact Labnet’s Technical Service Department.Their contact information in your
area can be found at www.labnetlink.com.
3. If the unit must be shipped back for repair, contact your distributor for a Return
Authorization Number and shipping instructions. The unit will be repaired as quickly
as possible and returned to you.
Replacing the Fuse
One extra fuse is supplied with the 300Volt Power Supply. For additional fuses, contact
Labnet’s Technical Service department.
To replace the fuse:
1. Turn off the main power switch at the rear of the 300V Power Supply and
detach the power cord.
2. Open the fuse compartment located inside the Power Entry Module by inserting a
small flat blade screwdriver into the slot below the ON/OFF switch. Turn the
screwdriver to gently pry open the fuse compartment.
Note: The fuse compartment will not open with the power cord in place.
3. Pull the fuse holder out of the compartment and inspect the fuse. If the fuse is burned
or there is a break in the fuse element, replace the fuse with an identical type of fuse
(4A/250V) as provided in the fuse holder (see figure below).
4. Place the fuse holder back into the compartment.
5. Snap the cover closed.

11/13/06
APPENDIX - Common Errors found with Electrophoresis Power Supplies
No load
•The electrophoresis system is not connected to the power leads, check the power
leads
•The electrophoresis system has a short, the Pt wire is broken or the banana
connectors are damaged
•Buffer concentration too low
•Buffer volume too low
•Short in power cord
•Current has dropped below acceptable rating (4 mA)
Short circuit
•Load exceeds 500 mA
•Blown fuse in the power supply
•Incorrect input voltage (check input voltage switch near power inlet)
Change in load
•Electrophoresis systems were added or removed during a run
•Buffer leaking in a connected system
•Excessive temperature increase
•Excessive buffer evaporation
•Loose connection in a connected system
•Amperage set to low
Change in constant mode
•Voltage changes to amperage
1. Amperage set too low. Ceiling hit and constant mode changed from voltage to
amperage. Increase amperage to 500 mA.
•Amperage changes to voltage
1. Voltage set too low. Ceiling hit and constant mode changed from amperage to
voltage. Increase voltage to 300 volts
The 300 volt system has automatic cross over, set voltage or amperage, and preset wattage.
During the electrophoresis process only one parameter is limiting at a time. The limiting
parameter, together with the conductivity in the electrophoresis system, and the values for the
other parameters determine the maximum output.

11/13/06
Ohm’s Law Conversions
Electrophoresis is the migration of a charged particle under the influence of an electrical
field. The power supply output parameters voltage, current, and power are related by the
following two equations:
Voltage (V) = Current (I) x Resistance (R); (V=IR)
Power (W) = Current (I) x Voltage (V); (W=IV)
Resistance
Resistance of the assembled electrophoresis cell is dependent on the conductivity of the
gel buffer, the thickness of the gel, and the number of gels being run. Although the
resistance is determined by the gel system, the resistance can vary over the course of an
electrophoretic separation.
Voltage
The velocity with which an ion moves in an electric field will vary in proportion to the
field strength (volts per unit distance). The higher the voltage the faster an ion will move.
Current
Current is a function of the number of ions passing a given cross-section of the circuit at
a given time. For a given gel/buffer system, at a given temperature, current will vary in
proportion to the field strength (voltage) and/or cross-sectional area (number and/or
thickness of the gels).
Power
The power in Watts, or the rate of heat generated by the system, is directly proportional
to voltage and current (W=IV).

11/13/06

11/13/06
Technical Service
Web Resources
Visit the Labnet’s website at www.labnetlink.com for:
• Complete technical service contact information.
• Access to Labnet’s Online Catalog, and information about accessories and related
products.
• Additional product information and special offers.
Contact Us For information or technical assistance contact your local Labnet Dealer or
visit. www.labnetlink.com.
Legal Address of Manufacturer
United States Europe
Labnet International Labnet International
31 Mayfield Ave 31 Mayfield Ave
Edison, NJ 08837 Edison, NJ 08873
800-932-5000 732-417-0700
http://www.labnetlink.com http://www.labnetlink.com
Warranty
Labnet International, Inc. warrants that this product will be free from defects in
material and workmanship for a period of three (3) years from date of purchase. If a
defect is present, Labnet International will, at its option, repair, replace, or refund the
purchase price of this product at no charge to you, provided it is returned during the
warranty period. This warranty does not apply if the product has been damaged by
accident, abuse, misuse, or misapplication, or from ordinary wear and tear.
For your protection, items being returned must be insured against possible damage or
loss. This warranty shall be limited to the replacement of defective products. IT IS
EXPRESSLY AGREED THAT THIS WARRANTY WILL BE IN LIEU OF ALL WARRANTIES OF
FITNESS AND IN LIEU OF THE WARRANTY OF MERCHANTABILITY.
For research use only. Not intended for any animal or human therapeutic or diagnostic use.

11/13/06
Equipment disposal
This equipment is marked with the crossed out wheeled bin symbol to indicate that this
equipment must not be disposed of with unsorted waste.
Instead it's your responsibility to correctly dispose of your equipment at lifecycle -end by
handling it over to an authorized facility for separate collection and recycling. It's also your
responsibility to decontaminate the equipment in case of biological, chemical and/or
radiological contamination, so as to protect from health hazards the persons involved in the
disposal and recycling of the equipment.
For more information about where you can drop off your waste of equipment, please contact
your local dealer from whom you originally purchased this equipment.
By doing so, you will help to conserve natural and environmental resources and you will
ensure that your equipment is recycled in a manner that protects human health.
Thank you
Other manuals for Enduro E0303
1
This manual suits for next models
1
Table of contents
Other Labnet Power Supply manuals
