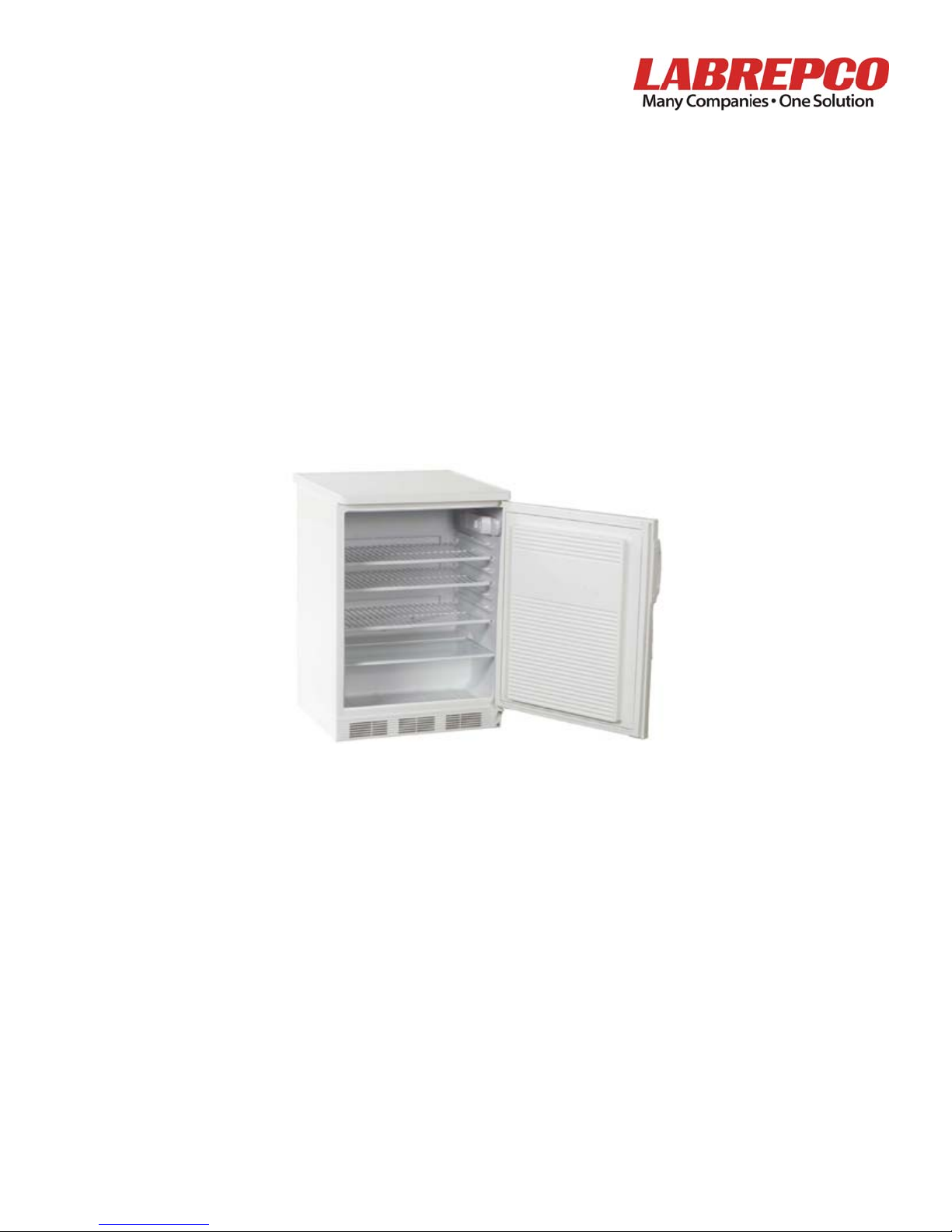

LabRepCo FUTURA Silver LABS-7UCRL User manual





INSTRUCTIONSMANUALFOR:

LABS‐7UCRL
FUTURASilverSeriesUndercounterRefrigerator




































LABREPCO,Inc
101WitmerRoad,Suite700
Horsham,PA19044
USA
Tel:1‐800‐521‐0754
Fax:215‐442‐9202
www.labrepco.com
[email protected]


2|Page

TableofContents

ApplianceSafety..................................................................................................................................3

InstillationInstructions……….…..........................................................................................................3‐5

ApplianceUse……..............................................................................................................................5‐6

ApplianceOperation.........................................................................................................................6‐7

ApplianceCare………………………………………………………………………………………………………………………………..8

TemperatureSelection…………………………………………………………………………………………………………….….8‐10

KeyLock……………………………………………………………………………………………………………………………………..…10

AlarmInstructions……………………………………………………………………………………………………………………10‐11

InstructionsforBuilt‐inApplications……………………………………………………………………………………..…11‐12

InstructionsforFreestandingUse………………………………………………………………………………………………….12

InstallingPanel…………………………………………………………………………………………………………………………..…12

BeforeCallingforService…………………………………………………………………………………………………………......13

TroubleshootingGuide.................................................................................................................13‐14

Warranty............................................................................................................................................15


3|Page

ApplianceSafety

Yoursafetyandthesafetyofothersareveryimportanttous.
Therearemanyimportantsafetymessagesinthismanualandonyourappliance.Alwaysread
andobeyallsafetymessages.
Youcanbekilledorseriouslyinjuredifyoudonotfollowtheseinstructions.
Allsafetymessageswilltellyouwhatthepotentialhazardis,tellyouhowtoreducethechance
ofinjury,andtellyouwhatcanhappeniftheinstructionsarenotfollowed.






Plugintoagrounded3prongoutlet.
Donotremovegroundprong,norusea3/2adapter
Donotuseanextensioncord.
Usecarenottoplugintooutletscontrolledbywallswitches.
Disconnectpowerbeforeservicing.
Afterservicing,replaceallpartsandpanelsbeforeoperating.
Usenonflammablecleaners.
Keepflammablematerialsandvapors,suchasgasoline,awayfromappliances.
Usetwoormorepeopletomoveandinstallappliance.
Drawerrefrigeratorsareprovidedwithanti‐tipbrackets.Alwaysinstallpriortouse.

ProperDisposalofYourOldAppliance
Oldappliancescanrepresentasuffocationhazardtochildren
Removedoorsfromyouroldappliance.
Leaveshelvesinplace.
Ifanoldappliancecontainsrefrigerants;itmustberecycledbyalicensedservice
ordisposalcompany.

InstillationInstructions

UnpackingExcessiveWeightHazard!*Usetwoormorepeopletomoveandinstall
yourappliance.Failuretodosocanresultinbackorotherinjury.

ALLOWAPPLIANCETOSITUPRIGHTFOR24HOURSBEFORETURNINGON,TOALLOWTHE
COMPRESSORLUBRICANTTODRAIN.
1. RemovePackagingMaterials
2. Removetapeandglueresiduefromsurfacesbeforeturningontheappliance.Ruba
smallamountofliquiddishsoapovertheadhesivewithyourfingers.Rinsewithwarm
wateranddry.
IMPORTANTSAFETYINSTRUCTIONS!
WARNING:Toreducetheriskoffire,electricshock,orinjurywhen
usingyourrefrigerator/freezer,followthesebasicprecautions:

4|Page

3. Donotusesharpinstruments,rubbingalcohol,flammablefluids,orabrasivecleanersto
removetapeorglue.Theseproductscandamagethesurfaceofyourappliance.
4. WhenMovingYourAppliance:
Yourapplianceisheavy.Whenmovingtheapplianceforcleaningorservice,besure
toprotectthefloor.Alwayspulltheappliancestraightoutwhenmovingit.Donot
wiggleor“walk”theappliancewhentryingtomoveit,becausefloordamagecan
occur.
5. CleanBeforeUsing
Afteryouremoveallofthepackagingmaterials,cleantheinsideofyourappliance
beforeusingit.Seethecleaninginstructionsin“ApplianceCare.”
6. Alluprightmodelshavelevellegsinthefrontandmanyalsohavethemintherear.Levelas
necessaryforbestoperation.
7. Ifyourappliancehascasters,aftermovingintoplace,lockthebrakesonthosecasters
suppliedwithbrakes.Alwaysunlockbeforemovingtheapplianceforcleaning.

Keepflammablematerialsandvapors,suchasgasoline,awayfromappliances.Failure
todosocanresultinexplosion,orfire.

LocationRequirements
IMPORTANT:Donotinstalltheappliancenearanoven,radiator,orotherheatsource,
norinalocationwherethetemperaturewillfallbelow45°F(7°C).Donotplaceindirect
sunlight.
Checkthestrengthofthefloorbeforeinstallingyourappliance.Itshouldholdtheweight
ofafullyloadedappliance.Allowatleast1”(2.5cm)ofairspaceatthetopandonboth
sidesoftheapplianceand1”(2.5cm)betweenthebackoftheapplianceandthewall.If
theapplianceisgoingtobeplacedagainstawall,ifpossible,leaveextraspaceonthe
hingesidesothedoorcanopenwiderthanitswidth(tomakeiteasiertoremoveshelves
orstoragebins).
NOTE:Thisappliancemaybeinstalledsidebysidewithanotherappliance.Allowfora3’’
(7.5cm)clearanceatthetopandsides,anda¼”(0.64cm)clearancebetweenthe
appliances.
Thegreatertheairflowandventilationyouprovideforyourappliance—thehigherits
energyefficiencyandperformancewillbe.

ChoosingtheRightPlace
Placetheapplianceinadryandregularlyventilatedplace.Itisrecommendedthat
thisappliancealwaysbeoperatedinanambienttemperatureofatleast60°Fand
under85°F.Theappliancemaybeexposedtolowerorhighertemperaturesbutonly
forashortperiodoftimeandthetemperatureshouldneverbelowerthan45°F.
Neverplacetheappliancenearheatemittingdevices(e.g.cooker,radiator,water
heaterorsimilardevices)anddonotexposeittodirectsunlight.

RecommendedGroundingMethod
A115Volt,60Hz.AConly15‐or20‐ampfusedorcircuitbreaker,grounded
electricalsupplyisrequired.Itisrecommendedthataseparatecircuitservingonly

5|Page

yourappliancebeprovided.Useoutletsthatcannotbeturnedoffbyaswitchorpull
chain.Connectthisappliancetoa3prongpowersupplysocketoutlet(whichhasa
groundterminal).Ifyouonlyhaveatwoprongoutlethaveitreplacedbyaqualified
technicianwithanoutletthatmeetsthelocalcodes.DONOTUSEANEXTENSION
CORD.Requirednominalvoltageandfrequencyareindicatedontheratingplate.
Theconnectiontothepowersupplyandgroundinghastobemadeaccordingto
currentstandardsandregulations.Theapplianceresiststemporaryvoltage
tolerancefrom‐15to10%.

NEVERUSEINDOORRATEDAPPLIANCESOUTDOORS.

EnergySavingTips
Themoreairflowyoucanprovidearoundanappliance,thelessenergyitwill
use.
Ifyourapplianceneedsdefrosting,keepicebuild‐uptolessthan1/2inch.
Keepdoorsordrawersopenaminimumoftime,andshutsecurely.

LevelingYourAppliance
1. Locatethetwofrontlevelinglegstapedamongthepackingmaterials.Inmostmodels
theselegsarealreadymountedintotheundersideoftheappliance.
2. Screwtheselegsintothefrontholesonthebottomoftheappliance.Thebackofthe
appliancerestsontwofixedsupports.(Built‐inmodelsalsohaverearlevellegsthatcan
providemorepreciseleveling).
3. Adjustthefrontlegsjustenoughtoliftthecabinetupoffofthefloor.
4. Placealevelingtoolontopoftheappliance:firstsidetoside,thenfronttoback.Turnleg
counterclockwisetoraiseacorner.Turnlegclockwisetoloweracorner.
5. RepeatStep4untilapplianceislevel.
6. Afterapplianceisfullyloaded,recheckwithlevelasinStep4.
7. Ifyourapplianceisequippedwithcasters,thetwofrontcastershavebrakestoprevent
rolling.Keepbrakeslocked,andunlockformovingonly.

ApplianceUse

Inordertoensurepropertemperature,youneedtopermitproperairflowintheappliance.Do
notblockanyairvents.Iftheventsareblocked,airflowwillbeprevented,andtemperature
andmoistureproblemsmayoccur.Alwayspositioncontentstoallowsomeairflowbetween
shelvesorbaskets.
Allowtheappliancetocoolatleast6to8hoursbeforeaddingcontents.Allow24hoursfor
temperaturetostabilize.
NOTE:Whentheapplianceisfirststarted,thecompressorwillrunconstantlyuntilthe
applianceiscold,Itmaytakeupto6or8hours(orlonger),dependingonroomtemperature
andthenumberoftimestheappliancedoorisopened.Aftertheapplianceiscooled,the
compressorwillturnonandoffasneededtokeeptheapplianceatthepropertemperature.
Theoutsideofyourappliancemayfeelwarm.Thisisnormal.Theappliance’sdesignandmain
functionistoremoveheatfromitemsandairspaceinsidetheappliance.Theheatis

6|Page

transferredtotheroomair,makingtheoutsideoftheappliancefeelwarm.Insomemodelsthe
condenserthatgetswarmisinsidethesidewalls,makingthesewallswarmtothetouch.

ReversingtheDoorSwing(Selectedmodels)
Ifyoufindthedirectionofopeningthedooronyourapplianceinconvenient,onsome
modelsyoucanchangeit.Holesontheoppositesidehavealreadybeenpreparedinthe
factory.

ToReverseYourDoor
Takeofftheupperhingecoverfromthedoorandremovethescrewsthatholdthe
tophinge.
Liftthehingestraightuptofreethehingepinfromthesocketinthetopofthedoor.
Liftthedoorupawaytofreeitsbottomsocketfromthehingepin.
Removethescrewstothebottomhinge.
Removethedecorativecapsfromoppositesideandplugtheholesfromoriginalside
withthedecorativecaps.
Movethebottomhingetotheoppositesideandtightenthescrews.Useanylock
washersornutsiftheywereinstalledintheoriginalinstallation.
Replacedoorontothehingepinonthebottomhinge.Placetophingepinintodoor.
Insertscrewsintothetophingeandtighten.
Ifyounoticethedoornothangingstraight—loosenthetophinges,adjustthedoor
untilitislevelandtightenthescrews.








ApplianceOperation

BaseGrill(somemodelsonly)
ToRemoveandReplacetheBaseGrill:
1. Opentheappliancedoorandremovethebasegrillbypullingdownandoutfrom
thetop.
2. Replacethebasegrillbyputtingtheclipsintheopeningsintheappliancepanel.
Pushinuntilthebasegrillsnapsintoplace.
Anoptionalstainlesssteelgrillisavailable.ContactyourLABREPCOrepresentative
ore‐mail[email protected]tofindmoreinformation.

Changingthelightbulb(somemodelsonly)
NOTE:Notallappliancebulbswillfityourappliance.Besuretoreplacethebulbwithone
ofthesamesize,shape,basesizeandwattage.



7|Page

1. Unplugapplianceordisconnectpower.
2. Removethelightshield.Mostmodelsdonotrequiretools.
3. Replacethelightbulbwithanappliancebulbofthesamewattage.
4. Replacethelightshield.
5. Pluginapplianceorreconnectpower.

LossofPower
Afterthepowerisrestored,unplugtheappliancefor30minutes,toallowthe
refrigerationsystemtoequalize.Duringthistimekeepthedoorclosedwhenever
possible.
REMEMBER:Afullappliancestayscoldlongerthanapartiallyfilledone.

MovingCare
1. Removeallcontainers.
2. Unplugtheappliance.
3. Cleanitthoroughly.(seeappliancecareforcleaninginstructions)
4. Tapetheapplianceshutandtapetheelectricalcordtothecabinet.

Whenyougettoyournewlocation,refertothe“InstallationInstructions”and
“ApplianceUse”sectionsforinformationoninstallationandsettingthecontrols.

Whentransportingappliances,itisrecommendedthatyoutransportitupright.Ifitis
necessarytolayitdown,layonitsside—neverthefrontorback—andbesuretocheckfor
waterinthepanontopofthecompressorbeforemoving.

DefrostSystem,OperationandShelfAdjustment
Thisrefrigeratorunitcomeswithnofreezercompartmentandanauto‐defrostsystem.
Duringthecompressoroperation,icewillbuildalongtherearcoldwall(theevaporator
plateisbehindthewall).Duringthecompressor’soff‐cycle,icewillmelt,dripdown,
collectinthetroughatthebottomanddrainthroughthesmallholeintoatrayabovethe
compressor;wherethecompressor’sheatwillevaporatethewater.Ifyounotice
excessiveicebuild‐upontherearwall,trysettingthethermostattoaslightlywarmer
setting;besurethatthegasketissealingwell–thatthereisnoobstructionofthedrain
holeinthebottomrearoftheseunits.
Allmodelshaveremovableeasilyadjustableshelves.Toremoveashelf,simplyliftthe
rearoftheshelfoutofitslockingpositionandslidetheshelvesforward.Replaceshelves
thesameway,beingsuretheylockintoplace.
Thethermostatoftheseunitsislocatedontherighthandsidetop,asyoufacethe
refrigerator.Turnclockwiseforcolderoperation,andcounterclockwisetosaveenergy
andincreasethetemperature.
Modelswithglassdoorsandflatdoorlinershavearockerswitchtomanuallyturnthe
lightonoroff.Thelightshouldbekeptoffwhenthedoorisclosedtosaveenergyand
helpkeepinteriortemperatureslower.



8|Page

ApplianceCare
CleaningYourFrost‐FreeRefrigerator;Usenonflammablecleaners.
Frost‐freemeansthatyoudonothavetodefrostyourappliance.Frostisremovedbyair
movingandcollectinganymoistureanddepositingitonthecoolingcoil.Thecoolingcoil
periodicallywarmsupenoughtomeltthefrost,andthewaterthenflowsdowntothe
drainpan(locatedbehindthebasegrill)whereitisevaporated.
Completecleaningshouldbedoneatleastonceayear.
1. Unplugapplianceordisconnectpower.
2. Removeallsubstances.
3. Washtheinsidewallswithasolutionofmilddetergentinwarmwateror2tbs.(26
mg)bakingsodato1qt(0.95L)warmwater.
Donotuseabrasiveorharshcleanerssuchaswindowsprays,scouring
cleansers,flammablefluids,cleaningwaxes,concentrateddetergents,bleaches
orcleanserscontainingpetroleumproductsonplasticparts,interioranddoor
linersorgaskets.Donotusepapertowels,scouringpads,orotherharsh
cleaningtools.Thesecanscratchordamagematerials.
4. Rinsewellandwipedrywithacleansoftcloth.
5. Usetheappropriatecleaningmethodforyourexteriorfinish.
Paintedmetal:Washexteriorswithacleanspongeorsoftclothandamild
detergentinwarmwater.Donotuseabrasiveorharshcleaners,orcleaners
designedforstainlesssteel.Drythoroughlywithasoftcloth.Foradditional
protectionagainstdamagetopaintedmetalexteriors,applyappliancewax(or
autopastewax)withaclean,softcloth.Donotwaxplasticparts.
6. Pluginapplianceorreconnectpower.
7. Replaceallcontainers.
Stainlesssteel:Cleanstainlesssteelwithspecialstainlesssteelcleanersonly.
Donotusebleachoranyabrasivecleaners.

CleaningYourCycleDefrostorManualDefrostRefrigerator
Cycledefrostmodelsutilizeasystem,whereicebuildsupontherearwallandmelts
whenthecompressorisoff.Manualdefrostmodelscontinuallybuildiceoninnerwalls.
NEVERUSEAMETALOBJECTTOREMOVEICEFROMTHEREARWALL.IFNEEDED,
USEAPLASTICICESCRAPERORAHAIRDRYER.
Cleansurfaces,usingthesameinstructionsasforfrost‐freemodels.
Forcompletelystainlesssteelmodelsormodelswithstainlesssteeldoorsandhandles;
pleaseuseonlycleanersespeciallymadeforstainlesssteel.

TemperatureSelection
Yourappliancemayhaveamechanical(dial)ordigitalthermostat.Instructionsforboth
areasfollows:

MechanicalThermostatInstructions

9|Page

Therefrigeratoriscontrolledwithathermostatknoblocatedinsidetheunit,towardsthe
upperright‐handcorner.TurntheknobclockwisefromtheSTOP(0)positiontowardthe
highernumbersforcoldertemperatures.


TemperatureControls
Highersettingsontheknob(highernumbers)meanlower
temperatures(colder)inallcompartmentsoftheappliance.
Onthecoldestsettingstemperaturesinsomespotsofthe
interioroftheappliancemayevendropbelow32°F.Use
higherthermostatsettingsonlywhenrequiredor
recommended.Whentheambienttemperatureisnormal,
werecommendthemediumsetting.
Changesoftheambienttemperatureaffecttemperatureintheinteriorofthe
appliancesochooseacorrectsettingofthethermostatknob,dependingonyour
ambientconditions.
IntheSTOP(0)positiontheappliancedoesnotoperate(thecoolingsystemis
switchedoff),yetpowersupplyisnotinterrupted(thelightison,whenyouopen
therefrigeratordoor).
Thetemperatureintherefrigeratorandinthefreezercompartmentalsodependon
howoftenyouopenthedoor.
Inallsmallrefrigeratorsandfreezerswithoutinteriorfans,temperaturesare
coldestnearthebottom,andoccasionallyneartherear.Placecontents
accordingly.Itisbestnottooperatetheseunitsmostlyempty.Iftemperatures
areerratic,tryputtingsomewaterbottlesorfreezerpacksinsidetocreatea
loadforthecompressor.

DigitalThermostatInstructions
Ifyoufindthatitisnecessarytochangethetemperaturesettingforyourdigital
thermostatcontrolledappliance,pleaserefertothefollowinginstructions.Thefront
panelofthethermostatisillustratedhere:

ToseetheSETPOINT:
PushandimmediatelyreleasetheSETkey‐thedisplaywillshowtheSETpointvalue.
Wait5secondsandtheprobevaluewilldisplayagain.

TochangetheSETPOINT:
PushandholdtheSETkeyformorethan3secondstochangethesetpointvalue;
Thevalueofthesetpointwillbedisplayed,andthe“snowflake”LEDwillstart
blinking.

TochangetheSETvalue:
Pushtheupordownarrowstothedesiredsetting;thenewsettingwillbe
memorizedafter15seconds,providednootherkeysarepushed.


10|Page

Note:Theminimumandmaximumrangeofyourthermostatispresetandlockedby
us;soitcannoteasilybeaccidentallymovedbetweenfreezerandrefrigerator
temperatures.Toresetthisrangelock,eithercallusorfindinformationonour
websiteundertroubleshooting.

KeyLock(optionalonmostmodels)

FrontLock
Yourlockhasafeaturecalledautomatickeyeject.Tolockorunlocktheappliance,you
mustpushandholdthekeyinthelockwhileturning.Thelockisspringloaded,sothe
keycannotbeleftinthelock.
Ifthekeyislost,contactyourLABREPCOrepresentativeore‐mail[email protected]
topurchaseareplacement.Alwaysgivethemodelandserialnumberofyourappliance
whenrequestingareplacementkey.

*NEVERKEEPKEYSWITHINTHEREACHOFCHILDREN

AlarmInstructions(alarmsareoptionalonmostmodels)

SettingtheHigh/LowAlarm
1. PresstheMODEbuttonuntilunitisintheALARMDISPLAY
MODEindicatedbythedisplayofcurrenttemperatureand
HIandLOalarmsettings.
2. TosettheHIGHtemperaturealarmlimitpresstheHIbutton,
toadvancethedisplayin1°increments,untilthedesired
hightemperatureisdisplayed.PressandholdtheHIbuttontorapidlyadvancethe
displayin5°increments.
3. TosettheLOWtemperaturealarmlimitpresstheLO
button,toadvancethedisplayin1°increments,untilthe
desiredlowtemperatureisdisplayed.Pressandholdthe
LObuttontorapidlyadvancethedisplayin5°increments.

Alarm
TheunitwillsoundthealarminbothNORMALDISPLAYMODEandALARMDISPLAY
MODEDISPLAYMODE.SlidetheALARMON/OFFswitchtoON.Whenthecurrent
temperaturedisplayrisesabovetheHIsetpoint,orfallsbelowtheLOsetpoint,the
alarmwillsoundfor1minuteandissuea3secondrepeaterbeepeveryminute
thereafter,forupto12hours.Thealarmwillcontinuetosoundevenifthecurrent
temperaturedisplayreturnstoan“inrange”condition.
TotemporarilysilencethealarmpresseithertheHIorLObuttononthebackoftheunit.
Theunitisstillactiveandthealarmwillsoundagainifthetemperaturegoesoutof
range.Topermanentlysilencethealarm,slidetheALARMON/OFFswitchtoOFF
position.


11|Page

OperationModes
Thesealarmshavetwooperatingmodes:NORMALANDDISPLAY
DISPLAYMODEandALARMDISPLAYMODE.Tochangefromonemodetoanother
presstheMODEbuttononce.
NORMALDISPLAYMODE‐isindicatedbythedisplayofcurrenttemperatureandthe
MIN(minimum)andMAX(maximum)temperatures.Thesetemperaturesrelateto
external(probe)temperatureiftheprobeispluggedin,andtoambient
temperatureifthesensorprobeisremoved.
ALARMDISPLAYMODE‐isindicatedbythedisplayofcurrenttemperatureandthe
HIandLOalarmsettings.Thesetemperaturesrelatetoexternal(probe)
temperatureiftheprobeispluggedin,andtoambienttemperatureifthesensor
probeisremoved.

ResettingtheUnit
UseapointedobjecttopushtheRESETbuttononthebackoftheunit.Itisnecessaryto
resettheunitwheneverachangeismadeto°C/°Ftemperature,FAST/NORMALsampling
rate,ortheprobesensorispluggedinorremoved.
NOTE:HI/LOtemperaturealarmsettingsandMIN/MAXmemorieswillbeclearedafter
resettingtheunit.

SelectingtheSampleRate
Toselectnormalsamplingrate(60seconds)orfastsamplingrate(10seconds)slide
theswitchonbackofunittoNORMALorFAST
NOTE:Theunitmustberesetafterchangingthesamplingrate.UsingtheNORMAL
samplingratewillextendbatterylife.

ResettingMin/MaxMemories
Therearetwowaystoresetthememories:
1. Toresetbothminimumandmaximummemories‐pressMEMORYCLEARbutton.
2. Toresetindividualminimumandmaximummemories‐presseithertheMINorMAX
button(onbackofunit)oncetoresettherespectivememory.Theothermemory
willremainunaffected.

NOTE:YoumustbeinNormalDisplayModetoresetthememories.

InstructionsforBuilt‐InApplications

Note:Thedirectionsbelowareforinstallationunderacabinetina24inchcutoutspace.
Ifyouwillbeusingthisproductinafreestandingapplication,pleaseskipbelow,and
beginwithstepA1inlowerhalfofpage.
1. Removedoorfromchassisbyunscrewing3screwsintophingeand2screwsinbottom
hinge.Keepscrews,discardhinges.
2. Removetopandbottomhingebushings.
3. Removeframefromdoor.
4. Attachcustomersuppliedhandletodoorpanelusingcountersunkscrews.

12|Page

5. Screwdoorpaneltoframeusing14screws.
6. Slideframeoverrefrigeratordoorandattachwith
1screwoneachsideoncenterofdoor.
7. Attachtopbracetoframewith1screwoneach
side.Attachbottombraceinthesamemanner.
8. Drillaholethroughthetopandbottompanelusing
thebracesasaguidewitha1/8”drillbit.Install
screwstofinishattachingthetopandbottom
bracessecurelytotheframe.
9. Drillaholeintothedoorpanelfromthetopand
bottomusingthebracesasaguidewith1/4”drill
bit.Donotexceed5/8”deep.Thisistheholethat
thedoorwillpivoton.
10. Remountthedoorusingthesuppliedtopandbottomhinges.

InstructionsforFreestandingUse

A1. Removedoorfromchassisbyunscrewing3screwsin
tophingeand2screwsinbottomhinge.Keepscrews,
discardhinges.
A2. Removetopandbottomhingebushings.
A3. Removeframefromdoor.
A4. Attachcustomersuppliedhandletodoorpanelusing
countersunkscrews.
A5. Screwdoorpaneltoframeusing14screws.
A6. Slideframeoverrefrigeratordoorandattachwith3
screwoneachside
A7. Installtopandbottomhingebushings.
A8. Remountthedoorusingthesuppliedtopandbottom
hinges.

INTEGRATEDFRAMESAREOPTIONALONALLMODELS.

InstallingaPanel
(optionalonmostcounterheightmodels)

Yourrefrigeratororfreezerisfullyfinishedanddoesnotneedafrontpanel.However,ifyou
haveorderedamodelwithouroptionalframe,followthedirectionsbelowtoinstallyour
panel.
1) Prepareyourpanel.Panelsizeis231/8”Wx281/8”Hby1/4”thickattheedges)
2) Carefullylaytherefrigerator(itmustbeempty)onitsback.
3) Unscrewthesmallpieceofframefromthebottom.Forathinmetalpaneluseabacking
pieceofcardboard
4) Slidepanelintoframeandreplacethebottomframeandreattachthescrews.
5) Liftrefrigeratoruprightcarefully.


13|Page

BeforeCallingforService

Beforecallingforassistanceorservice,pleasecheck“Troubleshooting.”Itmaysaveyouthe
costofaservicecall.Ifyoustillneedhelp,followtheinstructionsbelow.
Whencalling,pleaseknowthepurchasedateandthecompletemodelandserialnumberof
yourappliance.Thisinformationwillhelpustobetterrespondtoyourrequest.
1) Checktheplug,fuseand/orcircuitbreaker.
2) Testtheoutletwithalamp
3) Makecertainthattheoutletusedisnotcontrolledbyawallswitch.Thisismorecommonin
outdoorkitchens.
4) Besurethecontrolisnotsetto0(OFF).
5) Onoutdoorunits,checkthattheGFCIswitchonthelinecordison.Ifnecessarypressthe
resetbutton.
6) Readthemanual,especiallytheitemsundertroubleshooting.Youmayfindtheanswerto
yourquestion.

Ifyoudon’tfindtheanswertoyourquestioninthismanual,contactyourLABREPCO
representativeore‐mail[email protected].

IfYouNeedReplacementParts
Ifyouneedtoorderreplacementparts,contactyourLABREPCOrepresentativeore‐
mail[email protected].

Troubleshooting
Trythesolutionssuggestedherefirsttoavoidthecostofanunnecessaryservicecall...

Yourrefrigeratororfreezerwillnotoperate:
Hasahouseholdfuseblownorcircuitbreakertripped,oristheoutletnotreceiving
powerorswitchcontrolled?
Replacethefuseorresetthecircuitbreaker.Checktheoutletwithasmall
applianceyouknowworks.
Istherefrigeratororfreezerdefrosting(onsomemodels)?
Rechecktoseewhethertheapplianceisoperatinginafewhours.Itmay
regularlyrunanautomaticdefrostcycle.

Thereiswaterinthedefrostdrainpan(onsomemodels):
Istheappliancedefrosting?
Thewaterwillevaporate.Itisnormalforwatertodripintothedefrostpan.
Isitmorehumidthannormal?
Whenitishumid,expectthatthewaterinthedefrostpanwilltakelongerto
evaporate.

Themotorseemstoruntoomuch:
Isthereexcessivefrostorapackagepreventingthedoorfromclosing?

14|Page

Defrostandcleantheappliance,ormovethepackagesothedoorcloses
properly.
Istheroomtemperaturehotterthannormal?
Themotorwillrunlongerunderwarmconditions.Atnormalroom
temperatures,yourmotorwillrunabout40%to80%ofthetime.Under
warmerconditions,itwillrunevenmore.
Hasalargeamountoffoodjustbeenaddedtotheappliance?
Addingalargeamountoffoodwarmstherefrigeratororfreezer.Themotor
normallywillrunlongertocooltheappliancebackdown.
Isthedoorclosedcompletely?
Pushthedoorfirmlyshut.Ifitwillnotshutalltheway,see“Thedoorwillnot
closecompletely”laterinthissection.
Arethecondensercoilsdirty(onsomemodels)?
Thispreventsairtransferandmakesthemotorworkharder.Cleanthe
condensercoils.
Isthedoorgasketsealedallthewayaround?
Contactaqualifiedtechnician.

NOTE:Iftheproblemisnotduetoanyoftheabove,rememberthatthe
compressoronyournewappliancewilloperatelongerthanyouroldoneduetoits
high‐efficiencymotor.

Theinteriortemperatureistoowarm:
Aretheairventsblocked?
Thispreventscoldairmovement.Moveobjectsawayfromtheairvents.See
“EnsuringProperAirCirculation”forairventlocations.
Isthedooropenedoften?
Beawarethattherefrigeratororfreezerwillwarmwhenthisoccurs.Inorderto
keeptheappliancecool,trytogeteverythingyouneedoutofitatonce,keep
foodorganizedsoitiseasytofind,andclosethedoorassoonasthefoodis
removed.
Hasalargeamountoffoodjustbeenadded?
Addingalargeamountoffoodwarmstherefrigeratororfreezer.Itcantake
severalhourstoreturntothenormaltemperature.

Thedoorwillnotclosecompletelyorisdifficulttoopen:
Arefoodpackagesblockingthedoor?
Rearrangecontainerssothattheyfitmoretightlyandtakeuplessspace.
Aretheshelvesandbasketoutofposition(onsomemodels)?
Puttheshelvesandbasketbackintotheircorrectpositions.


*Specificationsaresubjecttochangewithoutnotice.*

15|Page

Warranty

CallcustomerservicetollfreeintheU.S.A.@1‐800‐521‐0754;MondaytoFriday8:30am.‐5:00p.m.(ET).

ONE‐YEARLIMITEDWARRANTY
Withinthe48contiguousUnitedStates,foroneyearfromthedateofpurchase,whenthisapplianceis
operatedandmaintainedaccordingtoinstructionsattachedtoorfurnishedwiththeproduct,
warrantorwillpayforfactory‐specifiedpartsandrepairlabortocorrectdefectsinmaterialsor
workmanship.Servicemustbeprovidedbyadesignatedservicecompany.Outsidethe48states,all
partsarewarrantedforoneyearfrommanufacturingdefects.Plasticparts,shelvesandcabinetsare
warrantedtobemanufacturedtocommerciallyacceptablestandards,andarenotcoveredfrom
damageduringhandlingorbreakage.

5‐YEARCOMPRESSORWARRANTY
Thecompressoriscoveredfor5years.
Replacementdoesnotincludelabor.

ITEMSWARRANTORWILLNOTPAYFOR:
Servicecallstocorrecttheinstallationofyourappliance,toinstructyouhowtouseyourappliance,to
replaceorrepairfusesortocorrectwiringorplumbing.
Servicecallstorepairorreplaceappliancelightbulbsorbrokenglassshelves.Consumableparts(such
asfilters)areexcludedfromwarrantycoverage.
Damageresultingfromaccident,alteration,misuse,abuse,fire,flood,actsofGod,improper
installation,installationnotinaccordancewithelectricalorplumbingcodes,oruseofproductsnot
approvedbywarrantor.
ReplacementpartsorrepairlaborcostsforunitsoperatedoutsidetheUnitedStates.
Repairstopartsorsystemsresultingfromunauthorizedmodificationsmadetotheappliance.
Expensesfortravelandtransportationforproductserviceinremotelocations.
Theremovalandreinstallationofyourapplianceifitisinstalledinaninaccessiblelocationorisnot
installedinaccordancewithpublishedinstallationinstructions.


DISCLAIMEROFIMPLIEDWARRANTIES;LIMITATIONOFREMEDIES
CUSTOMER’SSOLEANDEXCLUSIVEREMEDYUNDERTHISLIMITEDWARRANTYSHALLBEPRODUCTREPAIRAS
PROVIDEDHEREIN.IMPLIEDWARRANTIES,INCLUDINGWARRANTIESOFMERCHANTABILITYORFITNESSFORA
PARTICULARPURPOSE,ARELIMITEDTOONEYEAR.WARRANTORSHALLNOTBELIABLEFORINCIDENTALOR
CONSEQUENTIALDAMAGES.SOMESTATESDONOTALLOWTHEEXCLUSIONORLIMITATIONOFINCIDENTALOR
CONSEQUENTIALDAMAGES,ORLIMITATIONSONTHEDURATIONOFIMPLIEDWARRANTIESOFMERCHANTABILITY
ORFITNESS,SOTHESEEXCLUSIONSORLIMITATIONSMAYNOTAPPLYTOYOU.THISWARRANTYGIVESYOU
SPECIFICLEGALRIGHTSANDYOUMAYALSOHAVEOTHERRIGHTS,WHICHVARYFROMSTATETOSTATE.

LABREPCO,Inc
101WitmerRoad,Suite700
Horsham,PA19044USA
Tel:1‐800‐521‐0754
Fax:215‐442‐9202
www.labrepco.com

Forpartsandaccessoryordering,
troubleshootingandhelpfulhints,visit:
http://www.labrepco.com/inforequest.php
