Lacon L-EMM100CO User manual

ManagedMediaConverterChassisSystem
1 UserManual
Preface
The Managed Media Converter Chassis System supports the Media Converter Chassis to
monitor the each Media Converter ( CO ) or Chassis Manager status and to configure
advanced function of the Managed Converter Chassis. Through Out-band management
via Web Browser utility to monitor/configure the Managed Media Converter Chassis
System.
This manual describes how to configure all Media Converter ( CO ), Chassis Manager and
each Managed Converter Chassis, which features eight slots of Meida Converters ( CO or
Chassis Manager ) in one Managed Converter Chassis, as well as the Remote side /
TerminalMediaConverter( CPE).
The system allow to have 4 Managed Converter Chassis on one Managed System by
using IN/OUT Port for stacking, all you require to do is simplyslide in one Chassis Manager
toanyof Managed ConverterChassis inorder tomanage thesystem..
To get the most out of this manual, you should have an understanding of networking
concepts such as bridging, IEEE 802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX
FastEthernetandlocalarea networks(LANs).
Formore informationabout thesetopics, pleasereferto theAppendix.

ManagedMediaConverterChassisSystem
2 UserManual
Table of Contents
Preface 1
Table of Contents 2
Chapter Overview 3
Technical Specifications 3
System Configuration 3
Application and Connector Pinouts 3
Technical Specification 4
Chassis Manager 4
Media Converter ( MC ) as CO side 6
Media Converter ( Terminal ) as CPE side 8
8 Slot Managed Converter Chassis 9
SystemConfiguration 11
Connecting to Power 11
Chassis Stacking 11
Web-Based Browser Interface 12
Logging on to The Managed Media Converter Chassis System12
Main Menu 12
1.SystemChange 13
2. IPConfiguration 14
3.Chassis 14
4.Monitor 22
5.SNMPConfiguration 26
6.Alarm 27
7.Save 29
8.Default 31
9.Update Firmware 32
Appendix A - Connector Pinouts 33

ManagedMediaConverterChassisSystem
3 UserManual
Chapter Overview
Technical Specifications
Thischaptercontains thefollowing models:
1.ChassisManager
2.MediaConverter (MC )as COside
3.MediaConverter (Terminal)as CPEside
4.8SlotManaged Converter Chassis
System Configuration
This chapter provides network managers and system administrators with information about
howtoconfigure theManaged MediaConverterChassis Systemvia theWebBrowser.
The reader of this document should be knowledgeable about network devices, device
configuration, network management, and Internet browers. The user is assumed to be
networkadministrator ormanager withanunderstandingof networkoperations.
Application and Connector Pinouts
SeeAppendixA for moreinformation.

ManagedMediaConverterChassisSystem
4 UserManual
Technical Specification
Chassis Manager
KeyFeatures
zOne-channelmedia conversionbetween 10/100Base-TX and 100Base-FX.
zSupportAUTO-Negotiationand AUTO-MDIXfor10/100Base-TX Port.
zFibermediaallows:
Multi-modefiberusing SC,ST, VF-45,MT-RJ, orLC connector
Single-modefiberusing SCor ST connector
WDMsingle-fiber( bi-direction )transceiver: Single-modeWDM fiberUsing SC
connector.
Atype:WDM single-fiber(bi-direction )transceivertransmitswith1310nm
wavelengthandreceiveswith1550nm wavelength.
Btype:WDM single-fiber(bi-direction )transceivertransmitswith1550nm
wavelengthandreceiveswith1310nm wavelength.
zBuilt-in128Kbits RAMfor databuffer.
zBuilt-inCPU with2M BytesFlash& 8M BytesSDRAM
zStatusLEDs.
zUsedwitha Managed Chassis.
zHot-swappable whenused with a managedchassis.
zSystem Change – Device Name, New Password, Old Password, Version, MAC
address
zIPConfiguration– DHCP, IP address,Netmask,DefaultGateway
zChassis Hardware Monitor – Temperature, Supply Voltage Value, Fan Status,
ActiveMC,Uptime
zCO MC Status – Operation Status, Link Status, Receive Count, Drop Count,
CollisionCount
zCO MC Control – Forwarding Mode, Remote Control, Link Fault Pass Through,
Port Mode, Flow Control, MDIX, Output Rate, Input Rate, Informing Way for
ReceivingOff

ManagedMediaConverterChassisSystem
5 UserManual
zCPEMCAuto Report
zCPE MC Status – Status of power, Status of receiving optical power, Terminal link
status, MC status, Informing way for optical receiving power off, Status of loopback
test, Notification of link status for the terminal, Terminal link speed, Duplex for the
terminal, Capability of auto-negotiation for the terminal, Number of interface in
Terminal
zCPE MC Control - Forwarding Mode, Remote Control, Link Fault Pass Through,
Port Mode, Flow Control, MDIX, Output Rate, Input Rate, Informing Way for
ReceivingOff
zLoopbackTest
zMCHardware Monitor – Temperature,SupplyVoltage
zSNMP Configuration - System Contact, System Location, Get Community, Set
Community
zAlarm – Alarm Configuration, Hardware Alarm Configuration, Alarm Mail-Trap,
AlarmSNMP-Trap
zTFTPClient forSoftware Upgrade
zTelnet,SNMPV1 & V2, WebBrowser,andTFTP Management
zEnterprise MIB
zUsedaswith a Managed Chassis.
zHot-swappablein anySlot when used witha managedchassis.
zAbletoManage upto 32CPE Converters.
TechnicalSpecification
LED:PerUnit – PW/FA(Power, Failure Alarm)
Per Port – Console:Activity(LeftLED), Full-duplex/Collision(Right LED)
10/100TX:LK/AT(Link/Activity),FD/CL (Full-duplex/Collision)
100FX:LK/AT (Link/Activity)
Ethernet Standards: IEEE802.310Base-T,IEEE802.3u 100Base-TX,100Base-FX
Cable: 10Base-T2-pair UTP Cat.3,4, 5, up to100m (328ft)

ManagedMediaConverterChassisSystem
6 UserManual
100Base-TX2-pairUTP Cat.5, upto 100m(328ft)
100Base-FX50 or62.5/125um Multi-modefiber optic cable
9or10/125umSingle-mode fiber optic cable
Switching Method: Store-and -Forward
Forwarding Rate:14,880pps for10Mbps;148,810pps for 100Mbps
Power Consumption: 4.2WMax.
PhysicalSpecification
Power:0.35A@ 12VDC Power Supply
OperatingTemperature:0℃ ~45℃ ( 3 2℉ ~ 11 3℉)
StorageTemperature:-10℃~70℃ ( 14 ℉ ~ 1 58 ℉)
Humidity: 5~95%,non-condensing
Emission&Compliance:CEMarkClass A, FCCPart 15Class A
Dimensions:80mm (W) x124mm (D) x 20mm (H)
(3.15” (W)x 4.88” (D)x 0.79” (H))
NetWeight: 160g(0.35lb.)
Media Converter ( MC ) as CO side
KeyFeatures
zOne-channelmedia conversionbetween 10/100Base-TXand100Base-FX.
zSupportAUTO-Negotiationand AUTO-MDIXfor10/100Base-TX Port.
zFibermediaallows:
Multi-modefiberusing SC,ST, VF-45,MT-RJ, orLC connector
Single-modefiberusing SCor ST connector
WDMsingle-fiber( bi-direction )transceiver: Single-modeWDM fiberUsing SC
connector.
zBuiltin128K bitsRAM fordatabuffer.

ManagedMediaConverterChassisSystem
7 UserManual
zStatusLEDs.
zUsedwitha Managed Chassis.
zHot-swappable whenused with a managedchassis.
TechnicalSpecification
LED:PerUnit – PW/FA(Power,FailureAlarm)
PerPort – 10/100TX: LK/AT(Link/Activity),FD/CL (Full-duplex/Collision)
100FX:LK/AT (Link/Activity)
Ethernet Standards: IEEE802.310Base-T,IEEE802.3u 100Base-TX,100Base-FX
Cable: 10Base-T2-pair UTP Cat.3,4, 5, up to100m (328ft)
100Base-TX2-pairUTP Cat.5, upto 100m(328ft)
100Base-FX50 or62.5/125um Multi-modefiber optic cable
9or10/125umSingle-mode fiber optic cable
Switching Method: Store-and -Forward
Forwarding Rate:14,880pps for10Mbps;148,810pps for 100Mbps
Power Consumption: 3WMax.
PhysicalSpecification
Power:0.25A@ 12VDC Power Supply
OperatingTemperature:0℃ ~45℃ ( 3 2℉ ~ 11 3℉)
StorageTemperature:-10℃~70℃ ( 14 ℉ ~ 1 58 ℉)
Humidity: 5~95%,non-condensing
Emission&Compliance:CEMarkClass A, FCCPart 15Class A
Dimensions:80mm (W) x124mm (D) x 20mm (H)
(3.15” (W)x 4.88” (D)x 0.79” (H))
NetWeight: 160g(0.35lb.)

ManagedMediaConverterChassisSystem
8 UserManual
Media Converter ( Terminal ) as CPE side
Key Features
zOne-channelmedia conversionbetween 10/100Base-TXand100Base-FX.
zSupportAUTO-Negotiationand AUTO-MDIXfor10/100Base-TX Port.
zFibermediaallows:
Multi-modefiberusing SC,ST, VF-45,MT-RJ, orLC connector
Single-modefiberusing SCor ST connector
WDMsingle-fiber( bi-direction )transceiver: Single-mode WDM fiberUsingSC
connector.
zBuiltin128K bitsRAM fordatabuffer.
zStatusLEDs.
zWall-mountable.
zExternalPower Adapter (0.25A@ 12VDC)
Technical Specification
LED:PerUnit – PW/FA(Power,FailureAlarm)
PerPort – 10/100TX: LK/AT(Link/Activity),FD/CL (Full-duplex/Collision)
100FX:LK/AT (Link/Activity)
Ethernet Standards: IEEE802.310Base-T,IEEE802.3u 100Base-TX,100Base-FX
Cable: 10Base-T2-pair UTP Cat.3,4, 5, up to100m (328ft)
100Base-TX2-pairUTP Cat.5, upto 100m(328ft)
100Base-FX50 or62.5/125um Multi-modefiber optic cable
9or10/125umSingle-mode fiber optic cable
Switching Method: Store-and -Forward
Forwarding Rate:14,880pps for10Mbps;148,810pps for100Mbps
Power Consumption: 3WMax.

ManagedMediaConverterChassisSystem
9 UserManual
Physical Specification
Power:0.25A@ 12VDC Power Supply
OperatingTemperature:0℃ ~45℃ ( 3 2℉ ~ 11 3℉)
StorageTemperature:-10℃~70℃ ( 14 ℉ ~ 1 58 ℉)
Humidity: 5~95%,non-condensing
Emission&Compliance:CEMarkClass A, FCCPart 15Class A
Dimensions:80mm (W) x124mm (D) x 20mm (H)
(3.15” (W)x 4.88” (D)x 0.79” (H))
NetWeight: 160g(0.35lb.)
8 Slot Managed Converter Chassis
Key Features
zEachChassisHouses 8Slots(Converters)
zSlim1UHeight 19” Designto SaveSpace
zStackableupto Four Chassis(up to 32 Converters)
zHotSwappable
zSupportsPower Redundancy
Technical Specifications
LED:PWR1– ForAC Power status
PWR2–ForDCPowerstatus
Fan1 / Fan 2 –ForFan status.
STKIN/ STK OUT –For stackport status
Stacking Port: RJ-45
Stacking Cable: Cat5 withMax Lengthof1 Meter
Terminal Block: ForRedundantPower (2.67A @12VDC)

ManagedMediaConverterChassisSystem
10 UserManual
Environmental Specifications
Power:AC Input: 100-240V
DCInput:2.67A @ 12VDC
OperatingTemperature:0℃ ~45℃ ( 3 2℉ ~ 11 3℉)
StorageTemperature:-10℃~70℃ ( 14 ℉ ~ 1 58 ℉)
Humidity: 5~95%,non-condensing
Emission&Compliance:CEMarkClass A, FCCPart 15Class A
Dimensions:440mm (W) x235mm (D) x 44mm (H)
(17.32” (W)x 9.25” (D)x 1.73” (H))
NetWeight: 3Kg(6.6lbs.)

ManagedMediaConverterChassisSystem
11 UserManual
System Configuration
Connecting to Power
The chassis system is equipped with two power connectors. When the chassis is
connectingwithtwopowers, you canhavetheredundant function.

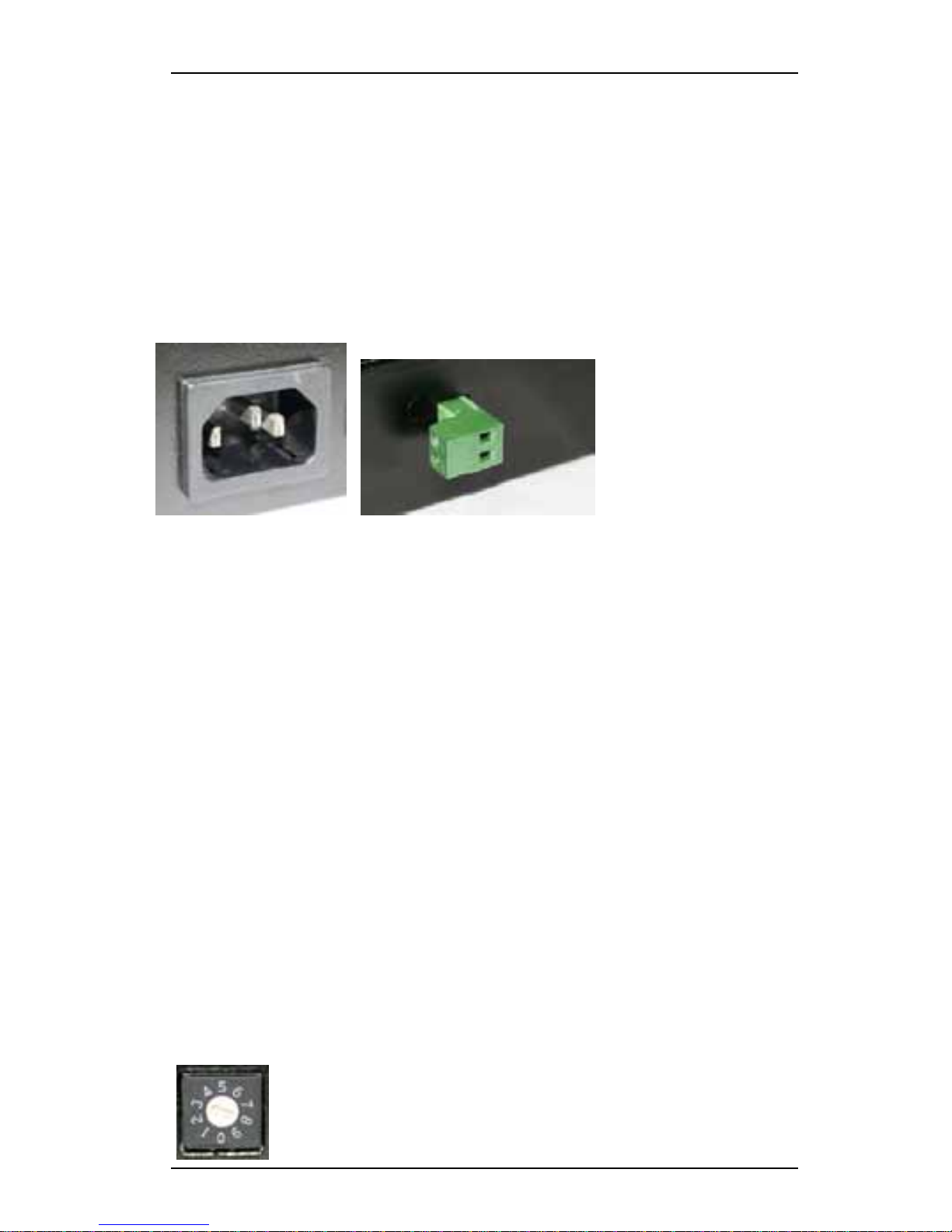

ACpowerconnector DCpower connector
AC100V~ 240V 2.67A@ 12VDC
Chassis Stacking
The Stacking function allows up to four chassis to be interconnected via their Stacking ports.
This forms a four chassis stack that can then be managed and configured as thought the
entire stack were a single chassis manager. The chassis stack is then accessed through a
singleIPaddress.
The stacking ports are marked IN and OUT. The RJ45 compliant cable must be connected
from an IN port on one Switch to an OUT port on the next Switch in the stack. The last two
Switches (at the top and bottom of the stack) must also be connected from the IN port on
one Switch to the OUT port on the other Switch. In this way, a loop is made such that all of
the Switches in the Switch stack have the IN stacking port connected to another Switch’s
OUT stackingport.
< NOTE > : chassis number is configured using the front panel switch.

ManagedMediaConverterChassisSystem
12 UserManual
Web-Based Browser Interface
The Managed Media Converter Chassis System is accessible using a Web browser ( IE
explorer, Netscape Communication, etc. ) to open up the Managed Converter Chassis
moniteringSystem.
Logging on to The Managed Media Converter Chassis System
The default IPAddress for the Systemis ‘192.168.1.10 ’, and thereis no needto type inboth
‘Loginname ‘and ‘password‘ asdefault,justsimplypress ‘OK‘ tostart the Main Screen.
Main Menu

ManagedMediaConverterChassisSystem
13 UserManual
1. System Change
There are five items in the System Change menu : ‘ Device Name ‘, ‘ New Password ‘, ‘ Old
Password‘,‘Version ‘ and‘ MacAddress‘.
1.1. DeviceName :
Thissectionisto set yourown‘ DeviceName ‘.
1.2. NewPassword:
Thissectionis to setyour own‘ NewPassword ‘.
1.3. OldPassword :
Thissectionis to verifytheold password you setbefore.
1.4. Version :
Thisisan indication ofthe Softwareversion forreference.
1.5. Mac Address:
Thisisthe informationof Mac Addressof yourDevice.
< NOTE >: After configuring the Device, need to press the ‘ Apply ‘ botton to save the
setting.

ManagedMediaConverterChassisSystem
14 UserManual
2. IP Configuration
There are 4 items in the IP Configuration: ‘ DHCP ‘, ‘ IP Address ‘, ‘ Netmask ‘ and ‘ Default
Gateway‘.
2.1. DHCP :
Tosetthe DHCP ‘ Enable‘ or‘Disable ‘.
2.2. IP Address:
To allocate an IP Address for the Managed Converter Chassis, the default IP is
‘192.168.1.10‘.
2.3. Netmask :
Tosetthe Netmask, the defaultis‘ 255.255.255.0‘.
2.4. Default Gateway:
Tosetthe default Gatewayaddressis‘ 192.168.1.254‘.
<NOTE> :After configurationset, needto pressthe‘ Apply‘button tosave the setting.
3. Chassis
3.1.ChassisHardwareMonitor
Thissectiondivide to 4different Managed Converter Chassis withNo. oneach Chassisunit.

ManagedMediaConverterChassisSystem
15 UserManual
Chassis => Chassis# 0~3 => Chassis H/WMonitor
Thissectionyoucan seethe Chassis# 0~3Hardware Monitor :
Temperature.
SupplyVoltageValue (12 Volts ): Suggestthe normalcondition 12Volts ( +/-10% ).
FanStatus: Thereare2Fans inChassis( Status: ‘ On‘ or‘ Off‘ ).
Active MC: There are 8 slots for Media Converter or Chassis Manager ( Status: ‘ Active ‘ or
‘Inactive‘ ).
Uptime.
< NOTE >: This menu can also be read simply point the Left hand side of ‘ Managed
Converter Chassis‘ on the top graphic of Chassis # 0~3 where the ‘ Chassis Hardware
Switch‘is.
3.2. COMC Status
Thissection youcan seethe MediaConverter#1~8 insideof Chassis #0~3

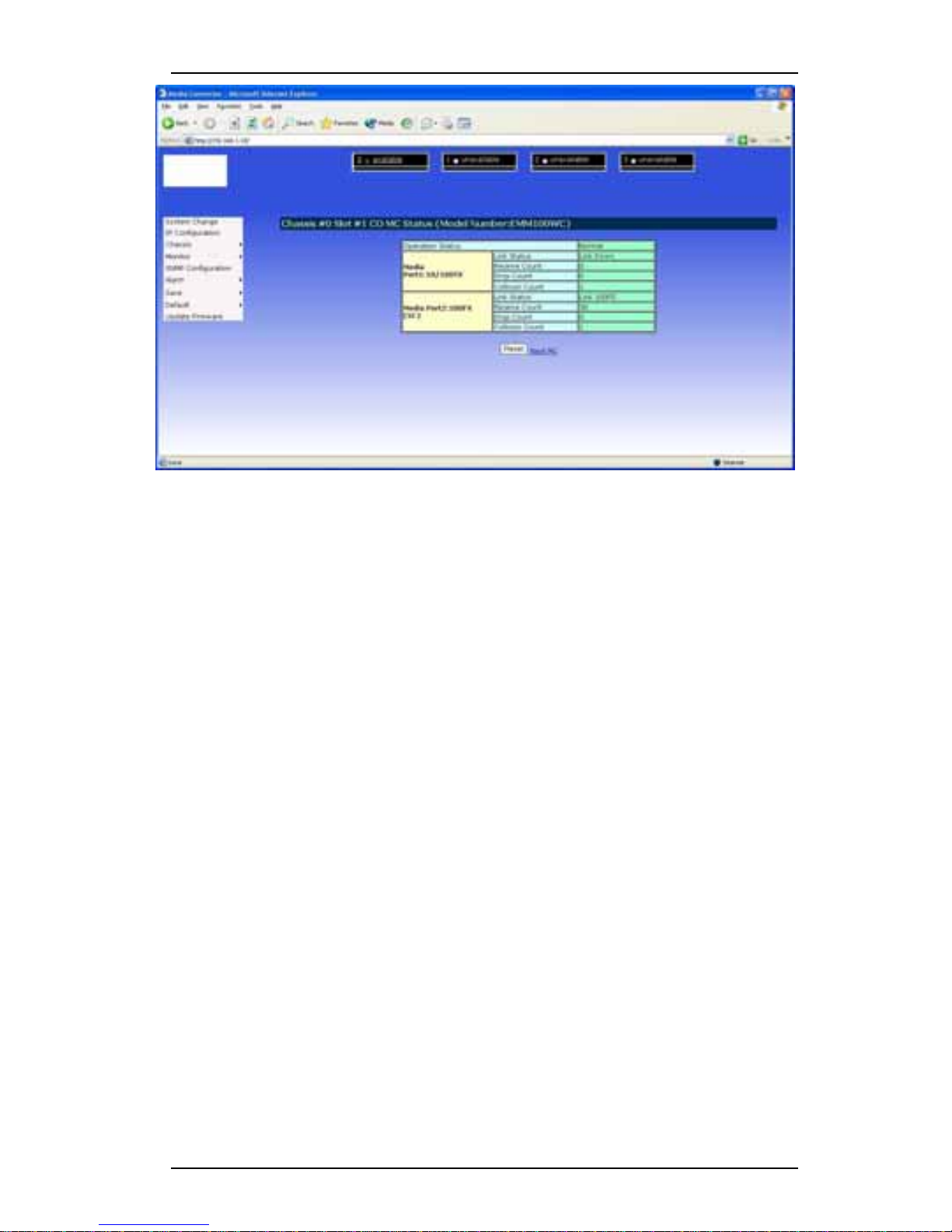

Chassis => Chassis#0~3 => MC #1~8 => CO MC Status

ManagedMediaConverterChassisSystem
16 UserManual
Operation Status: ‘ Normal ‘ or ‘ Local loop test ‘or ‘ Far end fault ‘or ‘ Hardware fault ‘or
‘Softwarefault ‘.
Media Port 1 ( Type: Current Model ): ‘ Link Status‘, ‘ Receive Count ‘, ‘ Drop Count ‘, and
‘CollisionCount ‘.
Media Port2 ( Type : Current Model ): ‘ Link Status ‘, ‘ Receive Count ‘, ‘ Drop Count ‘, and
‘CollisionCount ‘.
< NOTE > : If the Status needs to be calculated from fresh, please press the ’ Reset ‘ botton
torestartthe counting.
< NOTE >: This menu can also be read simply point the Left hand side of ‘ Managed
Converter Chassis ‘ on the top graphic of Chassis # 0 where the ‘ Chassis Hardware Switch
is.
3.3.COMCControl

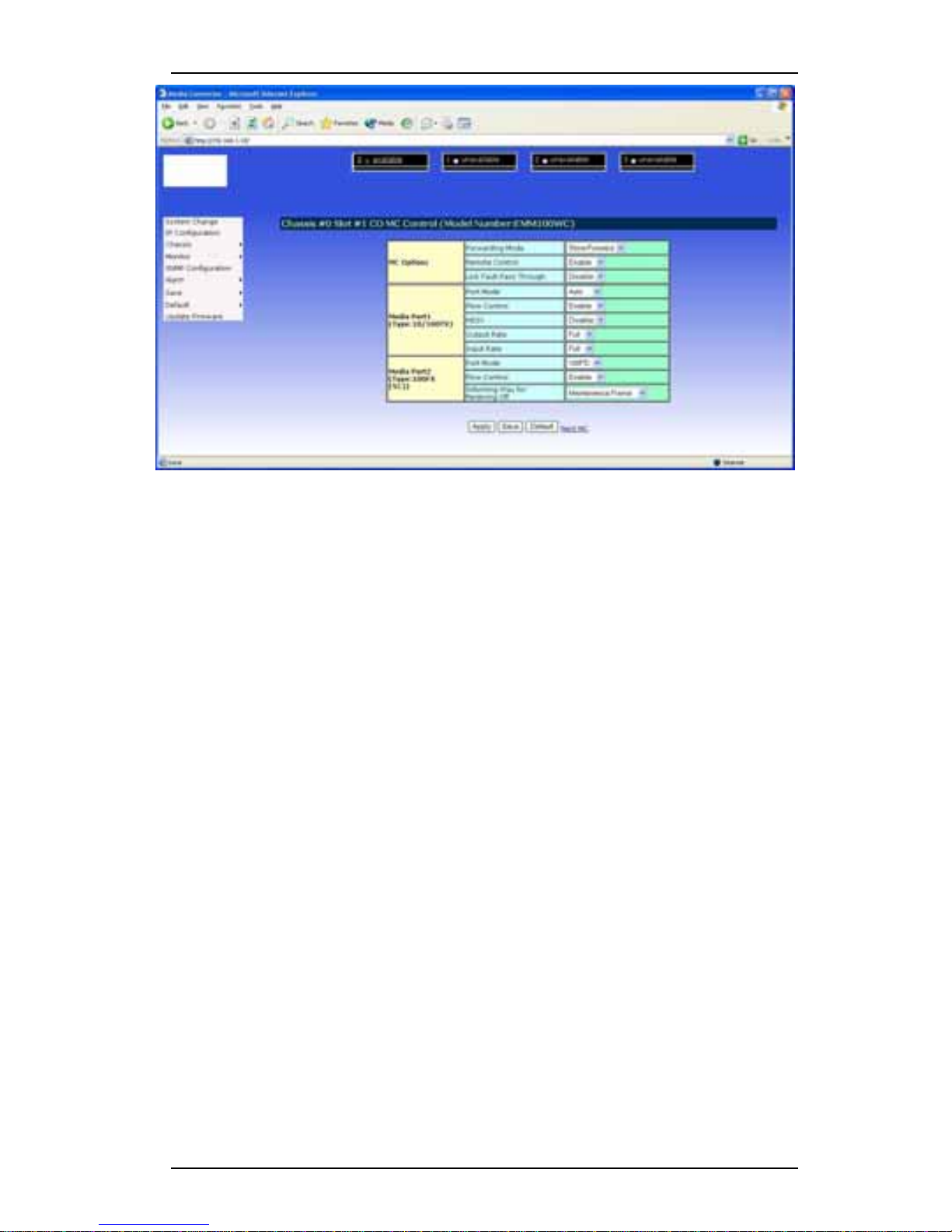

Chassis => Chassis# 0~3 => MC #1~8 => CO MCControl

ManagedMediaConverterChassisSystem
17 UserManual
MCOptions:
ForwardingMode : ‘ Store-Forward‘ or ‘ Cut–Through‘or ‘Repeater ‘or ‘ Auto-Change ‘.
RemoteControl: ‘Disable‘ or ‘Enable ‘.
LinkFaultPass Through : ‘Disable‘ or‘ Enable ‘.
MediaPort1 ( Type: Current Model) :
PortMode: ‘Auto ‘or‘ 10HD‘ or ‘10FD ‘or ‘100HD‘ or‘ 100FD‘.
FlowControl : ‘Disable‘ or‘ Enable ‘.
MDIX:‘ Disable‘ or‘Enable ‘.
OutputRate: ‘ Full‘ or ‘25%‘ or‘50% ‘ or‘ 75% ‘.
InputRate: ‘Full ‘or ‘25% ‘ or‘ 50%‘or ‘ 75% ‘.
MediaPort2 ( Type: Current Model) :
PortMode: ‘100HD ‘ or ‘100FD ‘.
FlowControl : ‘Disable‘ or‘ Enable ‘.
InformingWayfor Receiving Off :‘ MaintenanceFrame ‘ or‘ Far-End-Fault Pattern‘.
< NOTE >: After configuration set, need to press the ‘ Apply ‘ and ‘ Save ‘ buttons to save
thesetting.

ManagedMediaConverterChassisSystem
18 UserManual
3.4.CPEMC AutoReport

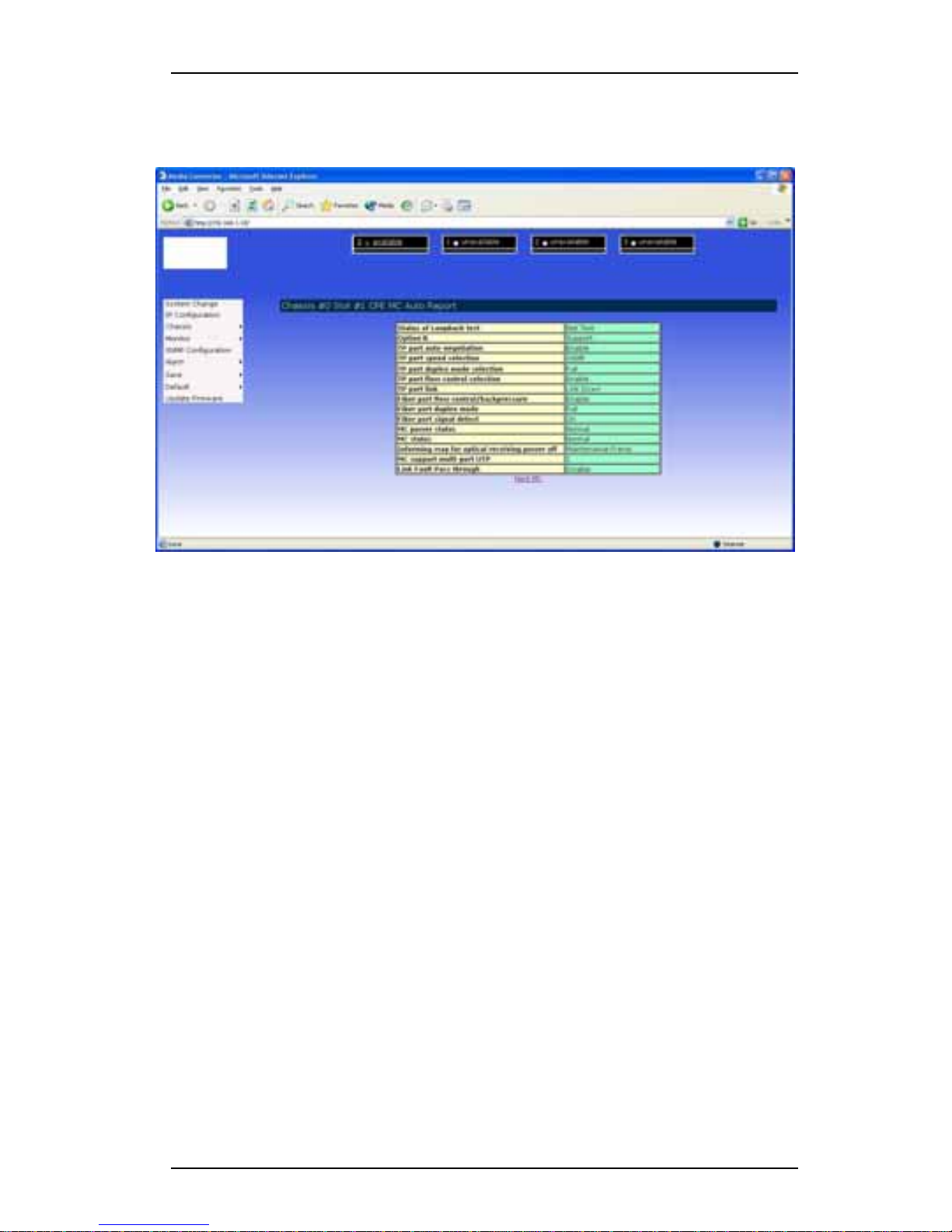

Chassis => Chassis# 0~3 => MC # 1~8 => CPEMC AutoReport
StatusofLoopback test:‘ NotTest ‘ or‘ Test‘.
Option B :‘Support ‘ or‘ NotSupport ‘.
< Note >: If the Option B is support by Terminal side, which can inform speed, duplex,
andauto-negotiation interminal, our defaultsetting is‘Support ‘.
TPportauto-negotiation: ‘ Enable‘or ‘Disable‘.
TPportspeed selection: ‘100M‘ or‘ 10M ‘.
TPportduplexmodeselection: ‘Full‘ or‘ Half ‘.
TPportflowcontrolselection: ‘ Enable‘or ‘Disable‘.
TPportlink : ‘LinkUp ‘or‘ LinkDown‘.
Fiberportflowcontrol/backpressure :‘ Enable‘ or‘Disable ‘.
Fiberport duplexmode :‘ Full‘or ‘ Half‘.
Fiberportsignal detect : ‘ On‘ or‘ Off‘.
MCpowerstatus :‘ Normal‘ or‘Fault ‘.
MCstatus: ‘Normal ‘or‘ Fault‘.

ManagedMediaConverterChassisSystem
19 UserManual
Informing way for optical receiving power off: ‘ Far-End-Fault Pattern ‘ or ‘ Maintenance
Frame‘.
MCsupportmulti-portUTP : ‘1 ‘or‘ MoreThan 1‘.
LinkFaultPass Through : ‘Disable‘ or‘ Enable ‘.
3.5. CPEMC Status
Chassis => Chassis# 0~3 => MC #1~8 => CPE MCStatus
Statusofpower:‘‘Power On ‘ or‘ PowerOff ‘.
Statusofreceivingoptical power: ‘ Normal‘ or ‘Fault‘.
Terminallinkstatus: ‘LinkUp ‘or ‘ LinkDown ‘.
MCstatus: ‘Normal ‘or‘ Fault‘.
Informing way for optical receiving power off : ‘ Far-End-Fault Pattern ‘ or ‘ Maintenance
Frame‘.
Statusofloopback test:‘ Normal‘or ‘Fault ‘.
Notificationoflink status forthe terminal: ‘Support‘ or‘ Not Support ‘.
Terminallinkspeed: ‘ 100M ‘or ‘10M‘.
Duplexfor theterminal :‘ Full‘or ‘Half ‘.

ManagedMediaConverterChassisSystem
20 UserManual
Capabilityofauto-negotiationfor the terminal :‘Enable ‘ or‘ Disable‘.
Numberofinterfacein terminal: ‘ 1‘or ‘More Than1 ‘.
<NOTE> :If you wishto get themost recentremote status,please pressthe ‘ Apply‘ button
forthestatus.
3.6.CPE MC Control
Chassis => Chassis# 0~3 => MC #1~8 => CPE MCControl
MCOptions:
ForwardingMode : ‘ Store-Forward‘ or ‘ Cut–Through‘or ‘Repeater ‘or ‘ Auto-Change ‘.
RemoteControl: ‘Disable‘ or ‘Enable ‘.
LinkFaultPass Through : ‘Disable‘ or‘ Enable ‘.
MediaPort1 ( Type:CurrentModel) :
PortMode: ‘Auto ‘or‘ 10HD‘ or ‘10FD ‘or ‘100HD‘ or‘ 100FD‘.
FlowControl : ‘Disable‘ or‘ Enable ‘.
MDIX:‘ Disable‘ or‘Enable ‘.
OutputRate: ‘ Full‘ or ‘25%‘ or‘50% ‘ or‘ 75% ‘.
InputRate: ‘Full ‘or ‘25% ‘ or‘ 50%‘or ‘ 75% ‘.
