Laguna Tools DAKE SE-810 Operating and maintenance manual

Dake Corporation
1809 Industrial Drive www.dakecorp.com
Grand Haven MI, 49417
DAKE DUAL MITERING BANDSAW
SE-810
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow safety
instructions and labels could result in serious injury.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
2
983113
REV112020
TABLE OF CONTENTS
DAKE STANDARD LIMITED WARRANTY .................................................................... 3
RETURN & REFUND POLICY....................................................................................... 5
SPECIFICATIONS ......................................................................................................... 6
SAFETY WARNINGS..................................................................................................... 7
MAIN MACHINE........................................................................................................... 10
SET UP ........................................................................................................................ 11
INSTALLATION:.................................................................................................. 11
OPERATION STEPS: ......................................................................................... 12
OPERATION OF HYDRUALIC CYLINDER ........................................................ 13
OPERATIONAL CONTROLS.............................................................................. 14
HELPFUL CUTTING TIPS: ................................................................................. 14
ADJUSTMENTS........................................................................................................... 15
TOOTH SELECTION: ......................................................................................... 15
BLADE SPEED: .................................................................................................. 16
TELLTALE CHIPS............................................................................................... 16
SPEED FEED MATERIAL GUIDE: ..................................................................... 17
INSTALLING BLADE: ......................................................................................... 18
VERTICAL SAW POSITION: .............................................................................. 19
SAW ADJUSTMENTS ........................................................................................ 20
MAINTENANCE ........................................................................................................... 22
LUBRICATION & CLEANING ...................................................................................... 22
TROUBLESHOOTING ................................................................................................. 23
CIRCUIT DIAGRAM ..................................................................................................... 25
EXPLODED VIEW & PARTS LIST............................................................................... 27

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
3
983113
REV112020
DAKE STANDARD LIMITED WARRANTY
Finished Machines
Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be
free from defects in material and workmanship under normal use and service within 1 year (12
months) from the delivery date to the end user.
Parts
Dake warrants to the original purchaser the component part manufactured or distributed by it to be
free from defects in material and workmanship under normal use and service within 30 days from the
delivery date to the end user.
The standard limited warranty includes the replacement of the defective component part at no cost to
the end user.
Sale of Service (Repairs)
Dake warrants to the original purchaser the component part repaired by Dake Corporation at the
manufacturing facility to be free from defects in material and workmanship under normal use and
service within 90 days from the return date to the end user, as it pertains to the repair work
completed. The standard limited warranty includes repair of the defective component part, at no cost
to the end user.
Warranty Process
Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any portion of
the product that proves defective in materials or workmanship. The manufacturer retains the sole right
and option, after inspection, to determine whether to repair or replace defective equipment, parts or
components. The manufacturer will assume ownership of any defective parts replaced under this
warranty.
All requested warranty claims must be communicated to the distributor or representative responsible
for the sale. Once communication has been initiated, Dake Customer Service must be contacted for
approval:
Phone: [phone]
Email: customerserv[email protected]
When contacting Dake, please have the following information readily available:
- Model #
- Serial #
- Sales Order #
Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return
Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA
number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA
will not be processed.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
4
983113
REV112020
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
(a) Part installation or machine service was not completed by a certified professional, and is
not in accordance with applicable local codes, ordinances and good trade practices.
(b) Defects or malfunctions resulting from improper installation or failure to operate or maintain
the unit in accordance with the printed instructions provided.
(c) Defects or malfunctions resulting from abuse, accident, neglect or damage outside of
prepaid freight terms.
(d) Normal maintenance service or preventative maintenance, and the parts used in
connection with such service.
(e) Units and parts which have been altered or repaired, other than by the manufacturer or as
specifically authorized by the manufacturer.
(f) Alterations made to the machine that were not previously approved by the manufacturer, or
that are used for purposes other than the original design of the machine.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
5
983113
REV112020
RETURN & REFUND POLICY
Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help.
Returns
All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These
policies are valid from the date of final shipment to the end user.
To be eligible for a return, the item must be unused and in the same condition as received.
All requested warranty claims must be communicated to the distributor or representative responsible for the
sale. Once communication has been initiated, Dake Customer Service must be contacted for approval:
Phone: [phone]
Email: [e-mail]
Once the return request has been approved by Customer Service, a representative will supply a Return
Material Authorization (RMA) number. The returned item must have the provided RMA number clearly marked
on the outside packaging. Any item received without an RMA number clearly visible on the packaging will not
be processed.
An RMA number can only be provided by the Dake Customer Service team and must be obtained prior to the
return shipment.
Refunds
Once the item has been received and inspected for damages, a representative will notify the requestor
referencing the provided RMA number.
If the return is approved, a refund will be issued to the original method of payment, less a 20% restocking fee.
The restocking fee may be waived if an order is placed at the time of return with like-value merchandise.
Transportation costs are the responsibility of the end user and will not be credited upon return approval.
Any item that is returned after the initial 30 days or has excessive/obvious use will not be considered for a full
refund.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
6
983113
REV112020
SPECIFICATIONS
Features
Dimensions
Model:
SE – 810
Blade Speed:
Variable
65 – 250 FPM
Blade Wheel Diameter:
11 5/8” (295mm)
Blade Size:
1” x 118”
Table Height:
27”
Motor:
900W 5A 110V 1HP
DC DIRECT DRIVE
Head Movement:
± 45º
Vise Opening:
11”
Table Height:
27”
Overall Dimensions
(L x W x H)
60” x 24” x 50”
Gross Weight:
560lbs
Cutting Capacities
Degree
Round
Pipe
Flat
Solid Rectangle
90°
10”
8”
11”
8” x 10”
45°
6”
6”
8” x 6”
-In the space provided record the serial number and model number of the machine. This
information is only found on the black Dake tag. If contacting Dake this information must be
provided to assist in identifying the specific machine.
Model No:
SE-810
Part No:
Serial No:
Date of Purchase:

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
7
983113
REV112020
SAFETY WARNINGS
WARNING: FAILURE TO FAOLLOW THESE RULES
MAY RESULT IN SERIOUS PERSONAL INJURY
-As will all machinery there are certain hazards involved with operation and use of the machine.
Using the machine with respect and caution will considerably lessen the possibility or personal
injury. However, if normal safety precautions are overlooked or ignored, personal injury to the
operator may result.
-This machine was designed for certain applications only. We strongly recommend that this
machine NOT be modified and/or used for any application other than for which it was
designed. If you have any questions relative to its application DO NOT use the machine until
you contact with us and we have advised, you.
-This machine is for metal cutting only. It is not approved for cutting wood. The supplier accepts
no responsibility for any machine when used for wood cutting.
Your machine might not come with a power socket or plug. Before using this machine, please
ask your local electrician to install the socket or plug on the power cable end.
NOISE
A: Average Noise Level = continuous level of airborne noise from machines when running at full
speed with no load.
C: Loudest Noise level = the peak noise level recorded from machines when running at full speed
with no load.
Based on above two measurements A & C. this saw's equivalent A-weighted sound pressure level at
the work station was measured at 70 dB, while its peak C-weighted instantaneous sound pressure
value at the work station was measured at 75 dB.
SAFETY RULES FOR ALL TOOLS
USER
•Wear proper apparel: No loose clothing, gloves, rings, bracelets, or other jewelry to get caught
in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain
long hair.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
8
983113
REV112020
•Always wear eye protection. Refer to ANSLZ87.1 standard for appropriate recommendations.
Also use face or dust mask if cutting operation is dusty.
•Do not overreach. Always keep proper footing and balance.
•Never stand on the machine. Serious injury could occur if the machine is tipped or if the cutting
blade is accidentally contacted.
•Never leave the saw running unattended. Turn off power. Do not leave saw until it comes to a
complete stop.
•Do not operate the tool while under the influence of drugs, alcohol, or any medication.
•Make sure the saw is disconnected from power supply while motor is being mounted,
connected, or reconnected.
•Always keep hands and fingers away from table.
•Stop the machine before removing any chips or debris.
•Shut off power and clean the band saw and work area before leaving machine.
USE OF MACHINE
•Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the saw before turning it on.
•Do not force the saw. It will do a more efficient and safer job at the rate for which it was
designed.
•Use correct blade. Do not force blade or attachments to do a job for which it was not designed.
•Secure work. Use clamps or a vise to hold work when practical. It is safer than using your
hands.
•Maintain blade is in top condition. Keep blades sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
•Use recommended accessories. Consult the owner’s manual for recommended accessories.
The use of improper accessories may cause hazards.
•Avoid accidental starting. Make sure the switch is in the “OFF” position before plugging in the
cord.
•Direction of feed. Feed work into the blade against the direction of rotation of the blade.
•Adjust and position the blade guide arm before starting the cut.
•Keep blade guide arm tight. A loose blade guide arm will affect sawing accuracy.
•Make sure blade speed is set correctly for material being cut.
•Check for proper blade size and type.
•Stop the machine before putting material in the vise.
•Always have stock firmly clamped in vise before starting the cut.
•Ground all tools. If tool is equipped with three-prong plug, it should be plugged into a three-
hole electrical receptacle, the adapter plug must be attached to a known ground. Never
remove the third prong.
ADJUSTMENTS
•Make all adjustments with the power off. In order to maintain the machine, precision and
correct ways of adjustment while assembling, the user should read the detailed instruction in
this manual.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
9
983113
REV112020
WORKING ENVIRONMENT
•Keep work area clean. Cluttered areas and benches invite accidents.
•Do not use in dangerous environment. Do not use power tools in damp or wet locations or
expose them to rain. Keep work area well-lighted.
•Keep children and visitors away. All children and visitors should be kept a safe distance from
work area.
•Do not install or use this machine in an explosive, dangerous environment.
MAINTENACNE
•Disconnect machine from power source when making repairs.
•Check damaged parts. Before further use of the saw, a guard or other part that is damaged
should be carefully checked to ensure that it will operate properly and perform its intended
function check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other condition that may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
•Disconnect tools before servicing and when changing accessories such as blades, bits,
cutters, etc.
•Make sure that the blade tension is properly adjusted. Green LED will light when properly
tensioned. Saw will not operate until green light is lit.
•Re-check blade tension after initial cut with new blade.
•To prolong blade life always releases blade tension at the end of each work day.
•Check coolant daily. Low coolant level can cause foaming and high blade temperatures. Dirty
or weak coolant can clog pump. This can cause low cutting rate and permanent blade failure.
Dirty coolant can cause the growth of bacteria with ensuring skin irritation.
•When cutting magnesium never use soluble oils or emulsions (oil-water mix) as water will
greatly intensify any accidental magnesium chip fire. See your industrial coolant supplier for
specific coolant recommendations when cutting magnesium.
•To prevent corrosion of machined surfaces when a soluble on is used as coolant, pay
particular attention to wiping dry the surfaces where fluid accumulates and does not evaporate
quickly, such as between the machine bed and vise.
SPECIFIC USAGE
-This machine is used for general metals cutting within the range of cutting capacity.
SAFETY DEVICE
-By the time the saw arm cover is opened, the interlock switch will function to stop the all
involvement. Do not remove this switch from machine for any reason and check its function
frequency.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
10
983113
REV112020
MAIN MACHINE

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
11
983113
REV112020
SET UP
-This machine weighs 530lbs. Transport to desired location before unpacking, please use lifting
jack. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine.
Always keep proper footing and balance while moving this machine.
-Minimum space required for machine operation below:
INSTALLATION:
Assemble saw pedestal and bolt saw on the pedestal.
1. Tighten all locks before operation.
2. Turn off the power before wiring, and be sure machine is properly grounded. Overload and
circuit breakers are recommended for safety wiring.
3. Check to make sure the main shaft is rotating clockwise, if not reverse the wiring and test
again.
4. Carefully lift the machine to a sturdy stand or work bench. For the best performance, fasten the
machine to a bench or stand. Make sure that the machine in level in all directions.
5. When installing the wheel, raise the table about 8 inches high to facilitate the installation of the
wheel frame and ensue safety.
90’’
90
98”

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
12
983113
REV112020
OPERATION STEPS:

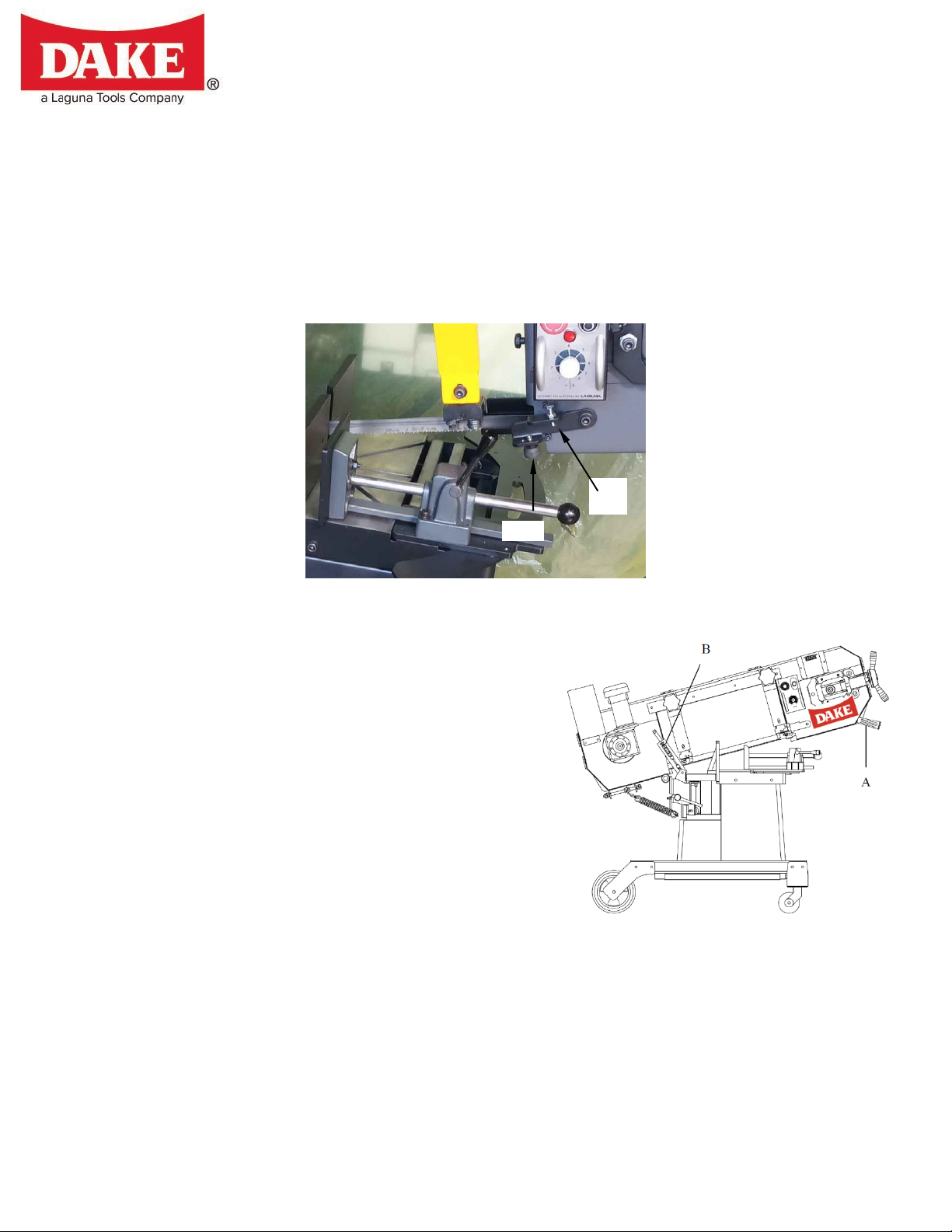

•Before use, make sure that the position of the lower limit screw (B) is correct.
•Make sure that the lower limit screw (A) of the saw blade is at the tooth surface of the blade
below the work surface.
•Make sure that the screw position of the lower limit switch is so that the band saw reaches the
lower limit position and the power is turned off immediately to stop the band saw.
1. Turn the on/off control valve (B) on the hydraulic
cylinder to the 90ºposition. Close and lock the
hydraulic cylinder and hold the handle (A) to raise
the saw bow about 5 inches high.
2. Place workpiece between the vice, clamp down to
secure the work, and adjust the height of the bow
up or down to ensure the blade is 1 inch about the
working height.
3. After confirming that the workpiece is clamped, start
the sawing belt. Please select a different cutting
speed according to the material of the workpiece
(refer to next section).
4. Turn the throttle valve of the hydraulic cylinder to the 0 position (clockwise to the
bottom), close the hydraulic cylinder, and then open the on-off valve to the 0-degree
position. At this time, the bow will not drop. (When the on-off valve is opened, the saw
bow will not descend, because the throttle valve is set to 0, closed position) (the throttle
valve at 0 position alone, cannot stop the saw, bow does not lower, it may be oil (Caused
by damage to the cylinder).
5. Slowly open the throttle valve of the hydraulic cylinder (turn counterclockwise) to adjust
B
A

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
13
983113
REV112020
the speed of the saw bow and start to approach the workpiece surface to be cut (when
the bandsaw is brand new, please reduce the speed as much as possible The cutting
speed of the saw is about 5-10 minutes. After the teeth of the bandsaw are properly run
in, the normal sawing work is performed)
6. The band saw will cut normally until the bow reaches the lower limit position, the work of
the workpiece is finished, and the bandsaw is automatically stopped.
7. Close the oil cylinder on-off valve, and then manually lift the saw bow away from the
workpiece, loosen the vise to take out the workpiece, and then complete the sawing
work (note the length of the workpiece, to avoid falling directly to the ground after
sawing, resulting in personal or material damage).
OPERATION OF HYDRUALIC CYLINDER
•Saw bow slow-down hydraulic cylinder (Fig.H), which
provides the control of the speed of the saw belt when
cutting the workpiece.
•ON / OFF on / off valve (P), which directly controls the
stop and movement of the hydraulic cylinder.
Generally, when performing repeated sawing of the
workpiece, this function can be used.
•The flow control valve (V) provides the control of the
speed of the saw bow and controls
the speed when sawing the workpiece. Turning clockwise will slow down and turning
counterclockwise will speed up.
Note: When turning clockwise to the end, the saw bow will stop completely. If the slow-down situation
occurs, the hydraulic cylinder may be damaged, please contact the dealer’s technician for inquiries.
CAUTION! When the size and position of the flow valve (V) are unknown, do not directly
open the on-off valve (P), to avoid the saw bow falling rapidly, causing the saw belt
to hit the workpiece and causing tooth damage.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
14
983113
REV112020
OPERATIONAL CONTROLS
•Emergency button ©. When the emergency button is
pressed, the saw belt will stop. (When returning power, turn
© to make it jump)
•Power button (S), ON / OFF / Power lamp indication, 3
functions.
•The VR rotary button © controls the speed of the bandsaw.
•Speed display (P), you can directly see the current line
speed of the bandsaw.
•Motor overload protection lamp (D). When the feed speed of
the sawing workpiece is too fast, causing the motor to run at
over-rated current, the overload protection lamp © will light
red and slow down the saw belt speed to reduce the motor
load, if the re-cutting is continued continuously, the system
will stop directly and do overload protection.
•Lower limit switch (T), when the saw bow is lowered to the bottom, it will touch the lower limit
screw to stop the saw band.
•Power socket (L), for users to use external work lights or other accessories.
HELPFUL CUTTING TIPS:
1. The more hardness of the material is, the slower the cutting speed.
2. When the saw is stuck on the work piece, please stop the saw action, reverse the saw
belt to slowly withdraw from the work piece, and do not perform the second sawing on
the same sawing path. If the sawing path is repeated, the saw teeth wear will cause
serious damage to the tip of the entire bandsaw and will result is a low quality cut.
3. When the blade speed is high, additional cutting oil is recommended.
4. To control the descending speed of the hydraulic cylinder, you can control the flow of
the throttle valve. Turn clockwise-the flow becomes smaller-the speed becomes
slower, and counterclockwise-the flow becomes larger-the speed becomes faster.
Drop too fast and damage items.
5. When using a new saw blade, it is necessary to carry out a saw-tooth running-in
procedure, which can prolong the service life of the saw blade and increase the sawing
efficiency.
6. When using your band saw always change the blade speed to best suit the material
being cut. The material cutting chart gives suggested setting for several materials.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
15
983113
REV112020
ADJUSTMENTS

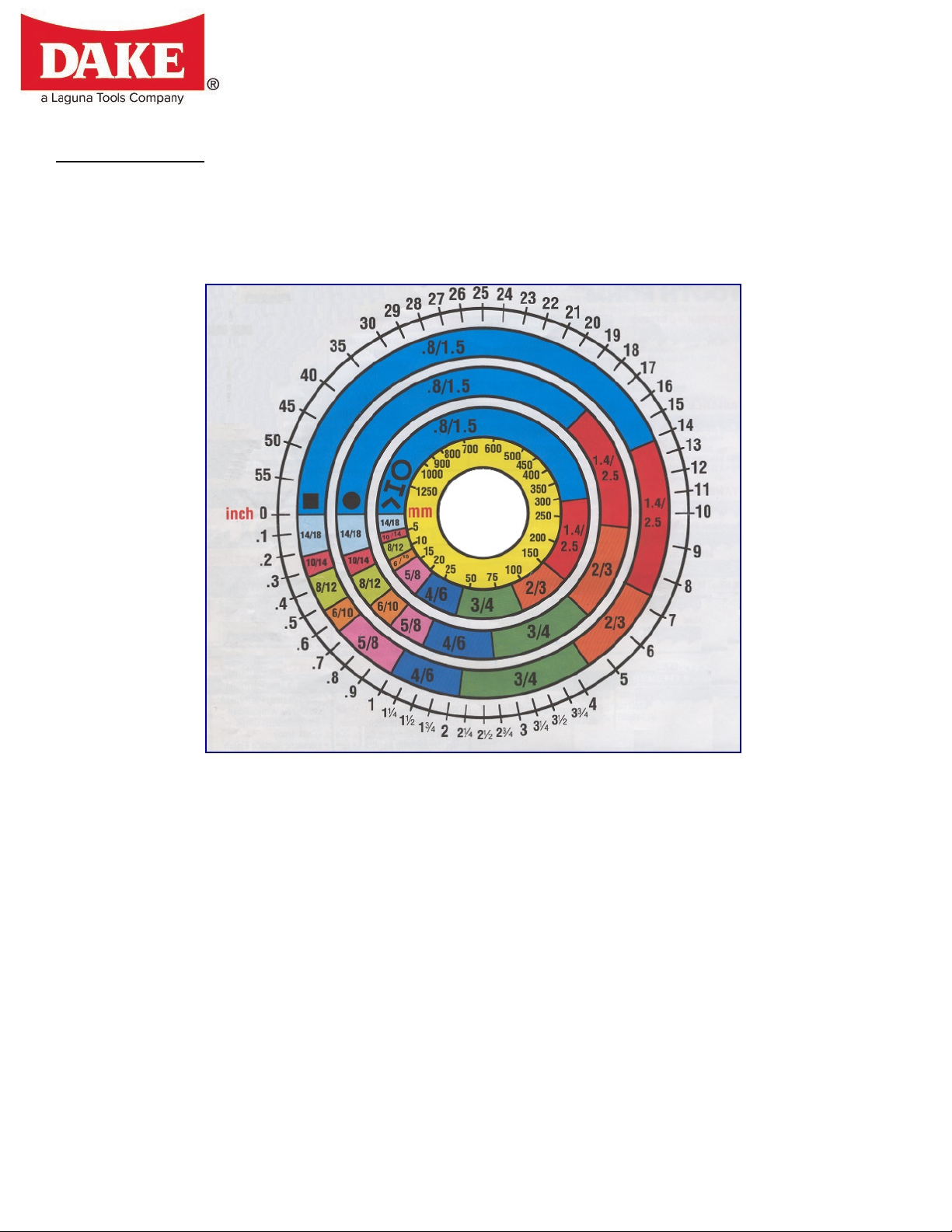

TOOTH SELECTION:
-For maximum cutting efficiency and lowest cost per cut, it is important to select the blade with
the right number of teeth per inch for the material being cut. The material size and shape
dictate tooth selection.
YOU NEED TO CONSIDER:
The width of the cut. That is, the distance in the cut that each tooth must travel from the point it enters
the work piece until it leaves the work piece, and the shape of the work piece. Use the chart above to
assist with tooth selection.
•Squares, Rectangles, Flats (Symbol: ■)
Locate the width of your work piece on the chart. (Inches on the outer circle and millimeters on
the inner circle.) Select the tooth pitch on the ring marked with square which aligns with the
width of the cut.
Example: 6” (150mm) square, use a 2/3 Vari-Tooth.
•Round Solids (Symbol: ●)
Locate the diameter of your work piece on the chart. Select the tooth pitch on the ring marked
with the circle which aligns with the size of stock you are cutting.
Example: 4” (100mm) round, use a 3/4 Vari-Tooth.
•Tubing, Pipe, Structural (Symbols: O, H, ˄)

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
16
983113
REV112020
Determine the average width of cut by dividing the area of the work piece by the distance the
saw blade must travel to finish the cut. Select the tooth pitch on the ring marked with the tubing
and structural shape which aligns with the average width you are cutting.
Example: 4” (100mm) outside diameter, 3” (75mm) inside diameter tubing.
4"(100mm) OD =12.5 in2(79 cm2)
3"(75 mm ) ID = 7.0 in2(44 cm2)
Area = 5.5 in2(35 cm2)
Example: 5.5 in2(35 cm2) / 4" (100mm) distance = 1.38” (35 mm) average width 1.38" (35
mm),
use a 4/6 Vari-Tooth.
BLADE SPEED:
The band speeds are to be used as a starting point for most application. For exact parameters
consult your saw blade supplier.
Material
Speed (FPM)
Tool, Stainless, Alloy Steels, Bearing Bronze
114
Med. to High Carbon Steels, Hard Brass or Bronze
114
Low to Med. Carbon Steel, Soft Brass
230
Aluminum, Plastic
230
TELLTALE CHIPS:
Chips are the best indicator of correct feed force. Monitor chip information and adjust feed
accordingly.
Thin or powdery chips – increase feed rate or reduce band speed.
Burned heavy chips – reduce feed rate and/or band speed.
Curly silvery and warm chips – optimum fed rate and band speed.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
17
983113
REV112020
SPEED FEED MATERIAL GUIDE:
Blade Speed
Material
Alloy ASTM No.
FT/MIN
M/MIN
Copper Alloy
173, 932
314
96
330, 365
284
87
623, 624
264
81
230, 260, 272
244
74
280, 264, 632, 655
244
74
101, 102, 110, 122, 172
234
71
1751, 182, 220, 510
234
71
625, 706, 715, 934
234
71
630
229
70
811
214
65
Carbon Alloy
1117
339
103
1137
289
88
1141, 1144
279
85
1141 HI STRESS
279
85
1030
329
100
1008, 1015, 1020, 1025
319
97
1035
309
94
1018, 1021, 1022
299
91
1026, 1513
299
91
A36 (SHAPES), 1040
269
82
1042, 1541
249
76
1044, 1045
219
67
1060
199
61
1095
184
56
NI-Cr-Mo
8615, 8620, 8622
239
73
Alloy Steel
4340, 8630
219
67
Tool Steel
A-6
199
61
A-2
179
55
A-10
159
49
D-2
90
27
H-11, H-12, H-13
189
58
Stainless Steels
420
189
58
430
149
46
410, 502
140
43
414
115
35
431
95
29
440C
80
24
304, 324
120
36
304L
115
35
347
110
33
316, 316L
100
30
416
189
58

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
18
983113
REV112020
INSTALLING BLADE:
1. Make sure that the main power switch is off.
2. Raise the saw so that the blade is 1” above the
fixed vise.
3. Open bow cover (B) (C) (D) remove the tooth
cover (E) and remove the steel brush wheel (F)
that is in contact with the bandsaw.
4. Turn the handle (A) counterclockwise to loosen
the tension of the saw belt. Press belt with
gloved hand to prevent blade from popping off
the wheel and injuring the operator or persons
nearby.
5. After the blade is completely relaxed then withdraw the saw wheel
surface and remove blade from the guide block.
6. Take out the new blade and spread out the saw blade. Check to
make sure the seam welds are ground flat and without sharp edges.
7. Put the new saw blade into the guide block, make sure that the back
of the saw blade is in contact with the upper bearing surface.
8. Put the blade surface on the bandsaw wheel and press the blade on
the saw wheel with gloves. Be careful to turn the blade tension
handle (A) clockwise to prevent the blade from popping out in the
process and hurting operator. (Note: Before the blade is fixed by
tension, you must press the blade on the saw wheel with your hands.
If necessary, two people should work together to ensure safety).
9. After the blade is installed, continue to turn the loading handle clockwise until the tension pointer
reaches the standard scale area on the mark.
10.Slowly start the bandsaw, and check whether the back of the blade and the back of the saw
wheel are between 1-2mm, and there is no sound of rubbing on the saw wheel.
11.When the bandsaw can run on the saw wheel at normal speed and without abnormal noise, it
means that the blade has been correctly installed.
12.Install the steel brush wheel (F) against the saw teeth. (Note: Do not press too deep into the tooth
surface, to avoid making excess noise and wearing sharp points of the saw teeth during rotation).
13.Install the tooth cover (E) back on the saw guide, cover the bow cover (B) (C) (D) and fasten it
with screws.
14.Slowly rotate the saw blade wheel to ensure that the saw blade can operate normally and will not
dry out with the saw wheel and the cover. Friction noise will occur.
NOTE: When a new blade is installed, it is necessary to reduce the saws feed rate and allow the
saw to run for 5-10 minutes to increase the life of the blade and have better sawing efficiency.

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
19
983113
REV112020
VERTICAL SAW POSITION:
1. Make sure that the moving wheels of the machine
are fixed, and the machine will not move.
2. Close the on-off valve of the hydraulic cylinder and
put the bow on the table with the handle (A), so
that the saw belt is raised to an angle of about 40
degrees with the table.
3. Loosen the spring bracket, remove the fixing screw
of the weight spring, and remove the weight spring.
4. Raise the saw bow again, so that the back end of
the saw bow rests on the upper threaded screw of
(B), and the bandsaw and the workbench are at an
angle of about 90 degrees, as shown in Fig. 3.
Lastly, open the hydraulic cylinder switch valve.
5. Remove the vertical saw blade (C). Insert the cut
groove into the saw belt. Hold saw blade against the
upper end of the fixing vise, fixed with the screw (D). and the position of the saw blade groove
in the middle of the saw blade rear fixed up right board. The main support arm (F) loosen the
handle and adjust the upper and lower positions so that the support arm (F) can contact the
vertical saw board. Press against the surface of point (C), which can maintain the stability of the
vertical saw board in use.
6. Take out the vertical saw cover (H) and fix it on the slave arm (K) with screws to ensure the
safety protection of the exposed bandsaw.
7. Adjust the up and down position from the support arm (K) to match the height of the workpiece
to be sawed.
8. Clamp the vise surface of the vise (G) and fix it so that it will not shake.
9. Check if there is any foreign matter interference on the moving line of the saw belt.
10.After making sure that it is correct, turn on the power and make the saw belt run at the slowest
speed to see if there is any noise or intervention.
11.When the saw belt can rotate normally, the normal, vertical saw cutting pin can be started.
A
H
K
C
E
G
D
F
B

Dake Corporation
1809 Industrial Park Drive
Grand Haven, MI 49417
www.dakecorp.com
20
983113
REV112020
SAW ADJUSTMENTS
1. Raise the saw to the upward position and
the bandsaw roughly ½” high from the
workpiece as shown in (Fig. 4).
2. Remove the 90ºangle ruler (C) and lean it
against the workpiece surface.
3. Check the saw belt (B) is perpendicular to
the work piece. NOTE: (If the deviation is
large, you can adjust the blade guides
accordingly).
4. First make sure that the bearings (F) and
(G) are in close contact with the bandsaw
surface. (Note: Visually, the bearing surface and the bandsaw surface are in close contact.
Once the bearing can still be rotated freely, it is to ensure that the bearing is not crushed. ,
Easy to cause damage).
5. Adjust the bearing shaft. It can be adjusted with a slotted screwdriver (H) and fixed with a
hexagon wrench (M). (Fig. 6) (Fig. 7)
6. Adjust the bandsaw 90 degrees, you can put the hex wrench (K) to loosen the screw, use the
hex wrench (I) to adjust 90 degrees, and the hex wrench (J) to adjust the gap between the
back of the bandsaw and the upper bearing After finishing the fine adjustment, fix the screw
lock with the hexagon wrench (K). NOTE: (It is necessary
to check and adjust the 90-degree angle between the main
block and the two positions from the guide block at the
same time)
7. The slowest speed of the saw belt can be performed after
the completion to ensure that the rotation of the saw belt
does not cause problems involving abnormal sounds, and
check whether the upper bearing and the back of the saw
blade only maintain proper contact without crushing.
8. After the saw belt has been tested correctly, the tungsten
steel guide block (O) can be fixed on the guide block (C)
with screws (P) to improve the stability of the saw belt when it rotates. (Note: The gap between
the tungsten steel guide block and the saw blade surface must be about 0.1mm (about 1 sheet
of paper) to prevent the tungsten steel from directly scratching the saw blade surface and
causing damage)
A
C
B
C
B
D
Figure 4
Figure 5
