Laguna Tools MPSP12-4-0135 User manual

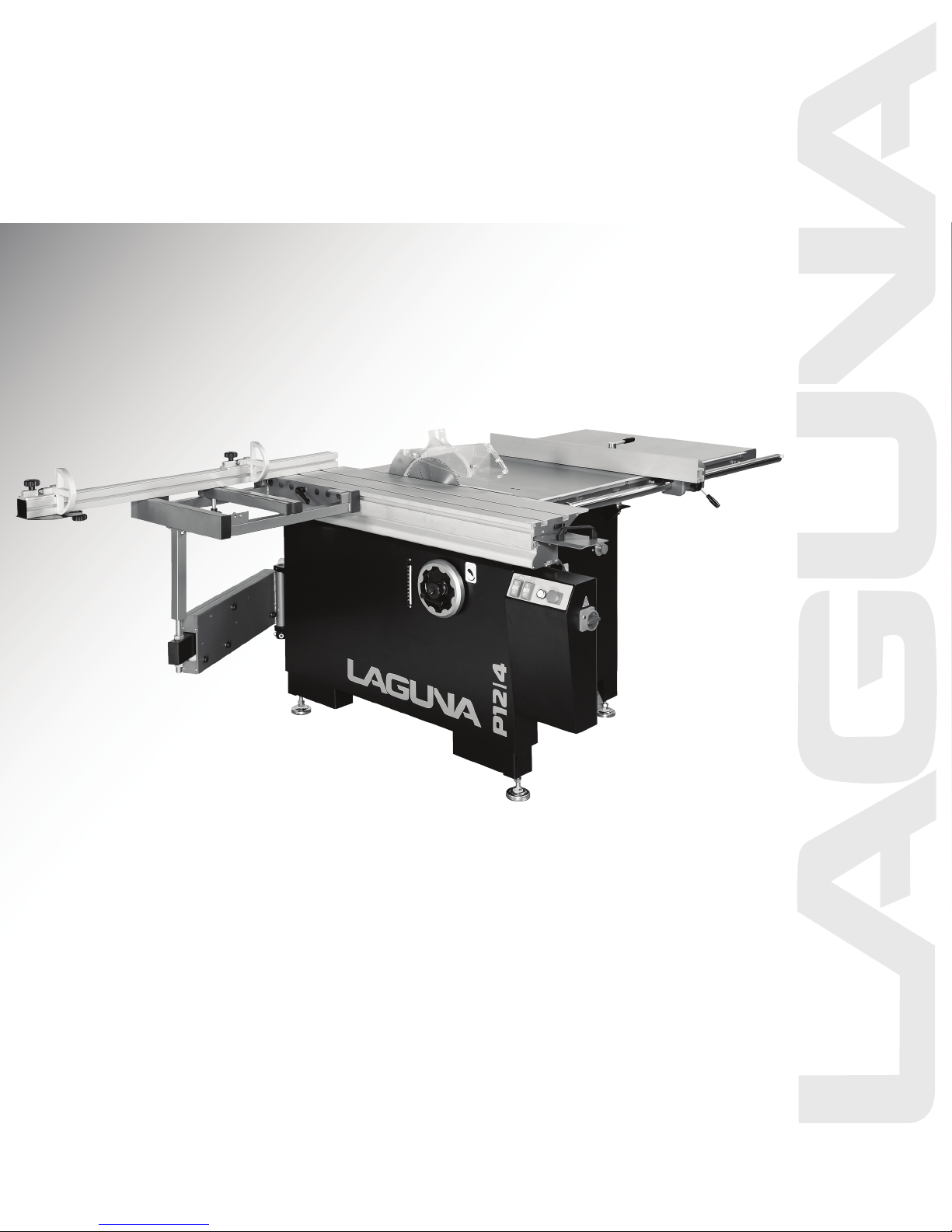

P12|4 Pro Panelsaw
Manual
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
Model Number: MPSP12-4-0135

Table of Contents
I. GENERAL INFORMATION
1-1. General information & safety rules …………………………………………………... p4
II. SPECIFICATIONS
Features…………………………………………………………………………………….…p9
Specifications…………………………………………………………………..…………….p10
III. INSTALLATION
Unpacking……………………………………………………………….…………….……...p11
Check the machine items.........…………………………………………….…………….. p11
1. Installation of control panel…………………….....…………………………..….……. p12
2. Installation of the crosscut table and fence …………………………..….…..……p12
3. Installation and alignment of crosscut fence……………………………………..… p13
4. Installation of the sliding table end handle and door …………………………...… p14
5. Installation of the extension table ………………………………..……………….….p15
6. Installation of round bar and scale…………………………………………...……..….p15
7. Moving and fixing the base unit …………………..………………………….........…..p16
8. Installation of Riving knife and standard guard …………………………...……..….p16
Operation and Maintenance
9. Riving Knife and saw blade …………………………...…………………………….….p17
10. Changing main blade…………………………………………………………………...p17
11. 12 Scoring blade, Fence scale alignment ……………………………………………p18
13.-15 Changing scoring blade, Rip cutting, test run…………………………………….p19
16 Rip cutting with the sliding table ……………………………………………………… .p20
17. Crosscutting……………………………………………………………………………….p21
18.-19. Lubrication, replace belts……………………………………………………………p22
20. Sliding table parallel adjustment………………………………………………………..p23
21. Squaring crosscut fence to blade……………………………………………………….p24
22. Trouble shooting…………………………………………………………………………..p25
IV. Tool Box……………………………………………………………………………………..p26
VII. WIRING DIAGRAM…………………………………………….,,………..……………...p27
3

PARTS LIST……………………………………………………………………………..
ASSEM01- Machine body & table ………………………………………………….
ASSEM02- Control panel ……………………………………………………...........
ASSEM03- Power unit ………………………………………………………………
ASSEM04- Saw blade angel device …………………………………………………
ASSEM05- Saw blade rise & fall device …………………………………………….
ASSEM06- Scoring device ……………………………………………………………
ASSEM07- Outrigger arm …………………………………………………………….
ASSEM08- Crosscut table …………………………………………………………….
ASSEM09- Crosscut fence ……………………………………………………………
ASSEM10- Rip fence …………………………………………………………………
ASSEM11- Sliding table ………………………………………………………...........
ASSEM12- Saw blade guard device …………………………………………………..
ASSEM14- Accessories ……………………………………………………………….
ASSEM16- Power Code…………………………………………………………………..
4

1. GENERAL INFORMATION & SAFETY RULES
OAV Equipment & Tools, Inc. specializes in supplying a full series of panel saws: from 1600,
2300, 2500, 3200 and 3800mm. The design of this machine is unique, and includes an enlarged
outrigger and carriage, and a direct dust collection outlet. We sincerely hope that you enjoy
operating this machine. If you have any suggestions as to how we can improve this product,
please don't hesitate to contact us through a regional OAV representative.
Panel saws are professional woodworking machines, designed to rip solid wood, chipboard,
fiberboard, plywood and other similar materials. It is very important to take note of the rigidity of
the materials you will be working with; please do not use the saw to cut metals, stone, or other
materials that are not suitable for cutting by panel saw.
HSS (High Speed Steel) saw blades and milling tools should not be used. Only saw blades made
in accordance with EN847-1: 1997 should be used with this machine.
Generally speaking, this machine should be installed under the following conditions:
1) Supply voltage: 0.9 - 1.1 is normal supply voltage
2) Source frequency : 0.99 - 1.01 is normal frequency
3) Ambient temperature: 5°C – 40°C.
4) Altitude: the altitude should be up to 1000m above sea level
5) Relative humidity: the humidity should not exceed 50% at 40°C.
6) Atmosphere: free of excess dust, acid fumes, corrosive gases and salt.
7) Avoid exposure to direct sunlight or heat rays, as they can change the environmental temp.
8) Avoid exposure to abnormal vibration.
8) The electrical equipment can withstand the effects of transportation and a storage
temperature of -25°C to 55°C. It can then withstand temperatures of +70°C for short
periods of time (Period of time cannot exceed 24 hours)
This machine was designed for certain applications only. We strongly recommend that this
machine NOT be modified and/or used for any applications, other than the ones for which it was
designed.
If you have any questions regarding its application, DO NOT use the machine until you have
received detailed instruction from our representative in your region.
Safety Rules
For your own safety, please read the instruction manual before operating this machine.
1) Read the instruction manual before operating the machine.
5

Anyone who operates the machine must first be properly trained. It is very important that anyone
who operates the machine first reads and understands all of the safety measures outlined in this
manual. They must also obey and execute the regulations stated in this manual, and learn the
machine's applications and limitations, as well as the specific hazards particular to the machine.
2) Ground all machines.
It is important to make sure that the "PE" terminal is connected before operating the machine.
3) Keep guards in place and the work area clean.
Keep guards in place and in working order. Keep the work area clean, as cluttered working
environments make accidents more likely.
4) Do not use the machine in dangerous environments.
Do not use the machines in damp or wet locations, or ever expose them to rain.
Please provide suitable lighting around the machine to reduce the risk of injury.
5) Keep children and visitors away.
All children and visitors should be kept at a safe distance away from the work area.
6) Store idle tools (saw blades).
When not in use, please remove all saw blades, and store them in a dry place, out of reach of
children.
7) Wear proper apparel.
Do not wear any loose clothing, neckties, gloves, rings, bracelets, or any other jewelry that can
get caught in moving parts. If you have long hair, it is important to wear a protective hair covering.
Please wear gloves to install/replace saw blades, and wear safety goggles/ear protection
during operation.
8) Stay alert.
Be mindful of what you are doing. Do not operate the machine if you are tired.
9) Do not force the machines.
The machines will work both better and safer if they are operated at the cutting speeds they are
designed for.
10) SHUT OFF the power, remove the work pieces, and turn off the power before leaving the
machine. Please turn off the power before carrying out any inspections, maintenance,
adjustments, or cleaning.
6

11) No smoking!! Please do not smoke while operating the machine.
12) Have your machine repaired by a qualified person.
Repairs should only be carried out by specially trained, qualified people, using original spare parts;
failure to do this may result in injury or death.
13) Check any damaged parts.
Before using the machine further, the guard or other damaged part should first be carefully
checked to determine if it will operate properly and perform its intended function. Check the
alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.
14) Waste Disposal
Dispose of all waste with extreme care, and in accordance with local regulations.
15) Fire extinguisher:
The workshop of the user must be equipped with a fire extinguisher, or other device specified by
local safety regulations.
16) Stand in a proper position for operation.
Please stand in front of machine for operation.
17) Use recommended auxiliary equipment.
Please consult the “drawings” section of the operation manual for recommended auxiliary
equipment and accessories.The use of improper accessories may result in personal injury.
If auxiliary equipment is removed, the original guards or safety devices must be replaced.
OAV is responsible for a connection of the machine to auxiliary equipment only if the auxiliary
equipment has been designed or specifically approved by OAV for used with this machine.
18) Reduce the risk of unintentional starting.
Make sure the switches on the control panel are in the OFF position before operating.
19) Never leave the machine running unattended. Turn the main power off before leaving the
machine unattended. Do not leave the machine until all moving parts come to a complete stop.
20) Make sure the machine is disconnected from the power supply:
Make sure the machine is disconnected from the power supply before beginning any
maintenance, service, adjustments, or repairs.
7

21) What to do in an emergency:
This machine is equipped with two emergency buttons. One is a self-latching push button
on the control panel. The other emergency button is positioned on the front side of the machine,
near in-feed work area. The emergency button is red with a yellow background. After the
emergency stop, unlock the emergency stop button, and follow normal start up procedure and
perform the suitable operation to eliminate the hazard. Please see the subsequent pages for a
diagram of the locations of the emergency stop buttons.
22) Never open the protective cover or the service door while the machine is running.
23) If the machine malfunctions while running, shut it down and call servicemen for help as quickly
as possible.
24) Wear ear protection (plugs or muffs) during extended periods of operation.
25) Remove all service items or tools before turning the machine on. Be sure to check that all
service tools and wrenches have been removed, and that all the nuts and bolts adjusted during
servicing are tightened.
26) After switching off the saw motor, allow the saw blade to stop on its own. Never attempt to
stop the blade with any body parts, or any other objects.
27) Never cut a wood panel if it is cracked, damaged, or too small in size.
28) The max. allowed rotation speed of the saw blade used on the machine must never be
exceeded.
29) Do not load more than one work-piece at a time onto the machine.
30) When wood panels are cut, harmful dust is produced. The machine must be equipped with a
proper dust-collecting system.
31) Use only properly sharpened and serviced saw blades. Never exceed the maximum RPM
marked on the saw blade. The optimum cutting speed must be selected by the user.
32) Report any problems with the machine, guards, or saw blades as soon as they are
discovered.
33) Implement safe procedures for cleaning and maintenance. It is important to remove chips and
dust regularly to avoid the risk of fire.
34) The saw blades should be sharpened and maintained win compliance with instructions
supplied by the saw blade manufacturers.
35) Ensure that any spacers and spindle rings are used in strict accordance with the
recommendations of the manufacturer.
36) Never remove any cut-off parts of the work piece from the cutting area while the machine is
running.
37) Ensure that the guards and other safety devices necessary for the machine's operation are in
position, in good working order, and properly placed, well-maintained, and secured.
38) Safe working practices.
a) Use of push blocks and push stick: a push stick should be used in cases when the operator's
8

body parts could get close to the area of the saw blade. Push blocks should be between 300mm
and 400mm long, 80mm to 100mm wide and 15mm to 20mm tall. Push blocks should be utilized
when
cutting small work pieces and in circumstances where it is necessary to push the work
piece against the fence.
b) Selection of the saw blade and riving knife: the operator should only select a saw blade that has
a diameter and thickness suitable for the machine.
c) Selection of riving knife slot: the riving knife guiding slot should be no more than 0.5mm wider
than the riving knife guiding elements.
d) Mounting of the saw blade: If the spindle diameter is less than the diameter of the saw blade
bore, a proper bushing should be used. The bushing must be provided by the machine's
manufacturer. The usage of loose rings or bushes may result in serious injury or death.
e) Lighting: it is important to provide adequate lighting around the machine.
39) If you need to guide the work piece along the rip fence, always use the push stick. Please
make sure to keep clear of the rotating saw blade. In case the push stick is damaged, it must be
replaced with a new one.
40) Do not operate this machine while tired or under the influence of drugs, alcohol or any
medications.
41) The dust generated by certain wood products can be hazardous to your health.
Always operate the machinery in well-ventilated areas. All machines must be equipped with a
proper dust-collecting system.
Please contact our authorized representative in your area for any other questions.
9

D30B2
Main Features
1. Cast Iron rip Fence: Micro adjustment for smooth and precise cutting
2. Standard Guard (one piece): Fully adjustable blade maintains, protection around the
saw blades.
3. Crosscut table: to support large panel size during crosscutting operation.
4. Crosscut fence: 90゜and 45゜quick position design for a precise crosscutting
5. Flip Stopper: Large stopper for accurate measurements
6. Hand wheel: Main blade high/low and angel manual adjust
7. Sliding table: Precise sliding guides the work-piece through the blade
10
1
2
3
4
5
6
7

SPECIFICATIONS:
ITEM P12 4
Sliding table dimension 1300x316
Cast iron table 548X896mm
Extension table (rear) 952X896mm
Table size 1500x896 mm
Round rail ∮40
Main saw blade (Max.) 305mm
Main saw bore 30mm
Max. cutting height with blade at 90∘90mm
Max. cutting height with blade at 45∘64mm
Main motor power (3ph) 3HP(3.75 Kw)
Main blade speed 4000rpm
Scoring saw blade 120mm
Scoring saw blade bore 20mm
Scoring blade motor power 1HP(0.75kw)
Scoring blade speed 8000 rpm
Cutting width 1300mm
Cutting width adjustment Manual
Main saw blade tilting adjustment Manual (0∘~ 45∘)
Main saw height adjustment Manual
Scoring saw height adjustment Manual
Saw guard Simple (overhead guard as option)
Crosscut fence Manual
Dust collection system 120mm/64mm
N.W./G.W./MEAS. (Machine) one package 350/420kgs (1450x1150x1090mm)
Ctn QTY: 16/32 sets
*Due to continuous product improvement, design & specifications are subjected to change without prior notice.
11

UNPACKING
SETUP SAFETY
– Please keep this manual near the machine for your reference.
Please follow the instructions set forth by this manual precisely.
– Provide sufficient space around the work area, and keep the area around the machine clean and free of scraps,
debris, oil, and grease.
-This Model gross weight is350kgs. For your safety, please use appropriate equipment when unloading and
unpacking it .
– Place a level on the saw table and adjust the foot studs in such a manner that the saw table is leveled from left to
right and from front to back. Lock the foot studs into position by tightening the lock nuts.
CHECK THE MACHINE ITEMS Packing List
1. Machine Body
2. Wooden crate for machine
3. Assembly parts for large extension table x 1
4. Assembly parts for crosscut table x 1
5. Assembly parts for round bar
6. Assembly parts for crosscut fence
7. Assembly parts for alum. High low fence
8. Assembly parts for back door
9. Assembly parts for standard blade guard, tool box
10. Control Panel
1
6
7
2
4
5
3
8
9
10
12

Installation
** Use forklift to move the machine or minimum 4 people to move together.
(1) Control panel
Install control panel with 4 Hex nuts, Lock washer, washer to mount
it to the machine right hand side.
1. Main Switch ： Power on and power off the panel saw.
2. Emergency stop button disconnects power to motor.
3. Blade " start" button ： Starts the main saw blade
and scoring saw blade.
4. Blade" stop" button ： Stops the main saw blade
and scoring saw blade.
2) Crosscut Table
1. Put the crosscut table on the pivot pin of the swing arm. (Fig. 2A)
2. Hold the table (Fig. 2B), insert the T-nut at the back side of the table
align the T-nuts into the sliding T Slot. (Fig. 2C)
3. Make sure table is placed proper in the position tighten the lever. (Fig. 2D)
4. Withdraw lever to move or take off the crosscut table.
Main
switch
Leve
r
Fig.2A Fig.2B
Fig.2C
Fig.2D
13

(3) Crosscut fence
1. Slide the center stud(M8x1.25), T-bolt (M8x12.5px60) , T-nut (M8x1.25) into crosscut fence T-slot. (Fig. 3C)
2. Insert the crosscut fence to the crosscut table, align the center stud, T-bolt, T-nut to the position. (Fig.3A)
3. Hold the crosscut fence again the 90 degree stop bolt, tighten with the knob to lock the crosscut position. (Fig. 3B)
90 degree stop can do the micro adjustment to be 90 degree (square) with the blade.
4. Install the flip stops in the T-slot on the crosscut fence use knob to secure (Fig. 3C item no. 2),
Use the knob the fasten the end of the extendable end of the fence. (Fig. 3C item no. 3 &4),(Fig. 3D)
Fig. 3A
Fig. 3C
Fig. 3B
Fig. 3D
Crosscut
fence
90 degree stop
14

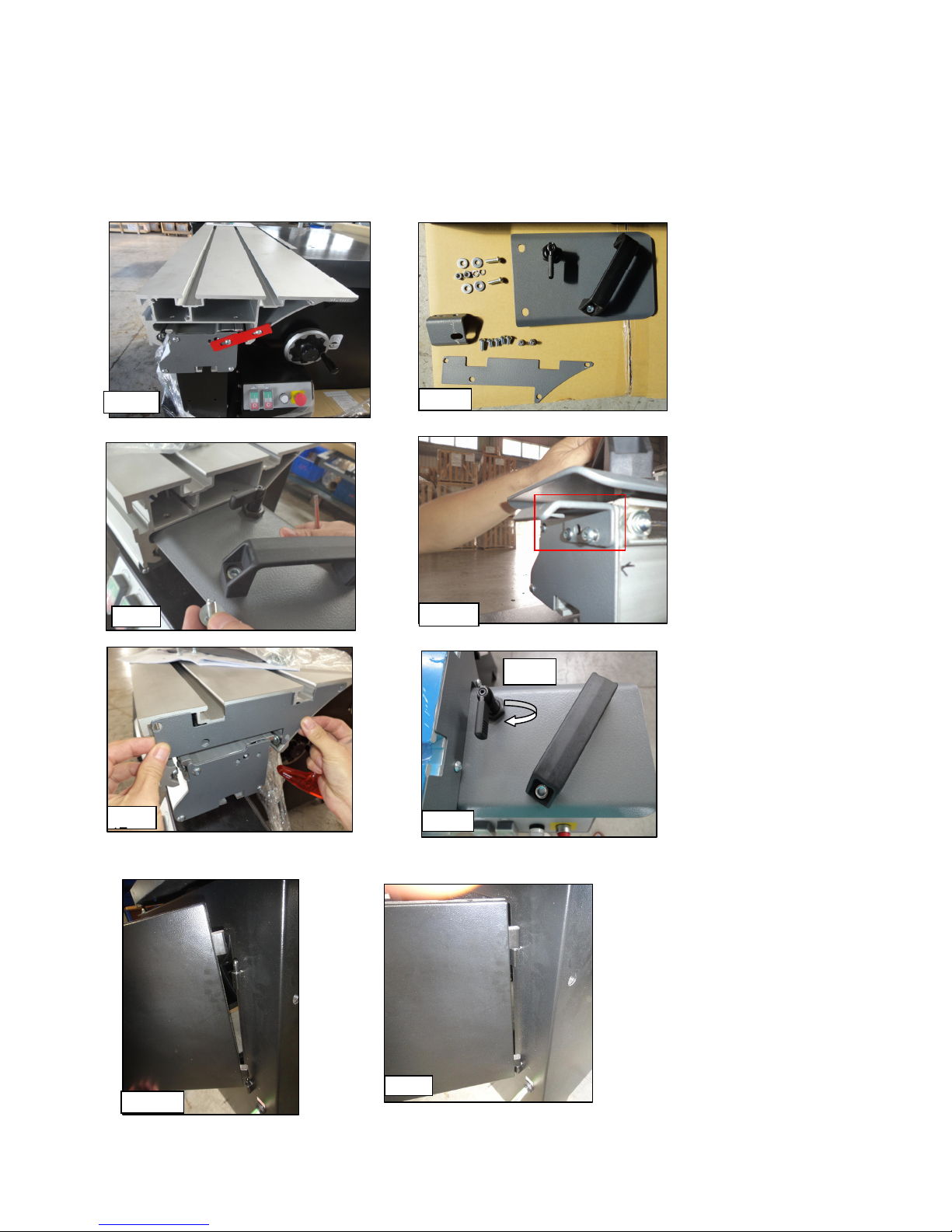

(4) Remove the shipping brace on the slipping table, attached the sliding table handle.
1. Remove the red shipping brace from the sliding table (Fig.4A), install the sliding table end cover (Fig. 4C)
to the sliding table use button head screw with washer (M6x16). (Fig.4B)
2. Install the locate plate under the sliding table end cover. (Fig. 4D)
3. Install the locate plate to the sliding table (Fig. 4E)
4. Install the back door cover
Insert the door into the door latch to finish installation the door. (Fig.4G &4H)
Fig. 4A Fig.4B
Fig.4C Fig. 4D
Fig.
4E
Lock
Fig.4F
Fig. 4G
Fig.4
15

(5) Fitting the extension table
The sliding table was installed on the machine and calibrated to the cast iron table in manufacture.
1. Before the tables are leveled, do not tighten the bolts in follow steps.
2. Attach the large extension table with three cap screws, lock washers and flat washers (Fig. 5A)
3. Check the surfaces 0 degree the table with a straightedge (Fig. 5B)
4. Make sure table is parallel with saw table. , then adjust the leveling screw of foot studs in order to make it
parallel with saw table.
(6) Fitting the round bar and scale
1. Remove the washer and nut from the round bar first and insert the screw rod of the round bar into
the cast iron table position. (Fig. 6A)
2. Thread and M12-1.75 hex nut onto each stud and tighten the nut against the round rail
3. Thread and M12-1.75 hex nut and a flat washer half way onto each studs (6B)
4. Insert the studs into the table Tighten with an M12 hex nut, lock washer and a flat washer on each stud.
(Fig. 6C) Before operation, the 0°mark on the rip fence scale must be aligned with the blade
the to ensure to be accurate.
Fig. 6A Fig.6B
Upper lock
Lower adjust
Fig.
Fig.
6C
Fig. 5B
16

5. Slide the rip fence body onto the rail, then place the adjustable ring on the sliding table end of the rail and
secure the ring with the set screw (Fig. 6D)
6 . Thread the lock handles (Fig. 6E) into the rip fence body and loosely install the fine adjustment knob.
7. Place the end washer on the end of the rip fence rail and secure it with the M8-1.25 cap screw and lock washer.
8. Check the height of the rip fence rail by sliding the rip fence along the rail and comparing the gap between
the fence body and the table.
9. Adjust the height of the rip fence rail, then tighten all of the nuts against the table showed
10. Check if the bottom of the rip fence rests on the surface of the table. If the rip fence does not rest on the table,
then the fence is correctly adjusted, otherwise, loose the set screw and adjust the hex bolt
to raise the round bar, tighten the set screw to lock the right height.
(7) Moving & fixing the base unit
Place a level on the saw table and adjusting foot stands, so the saw table is level from left to right and from
front to back. Lock the foot studs in position by tightening their jam bolts against the machine body. (fig. 7)

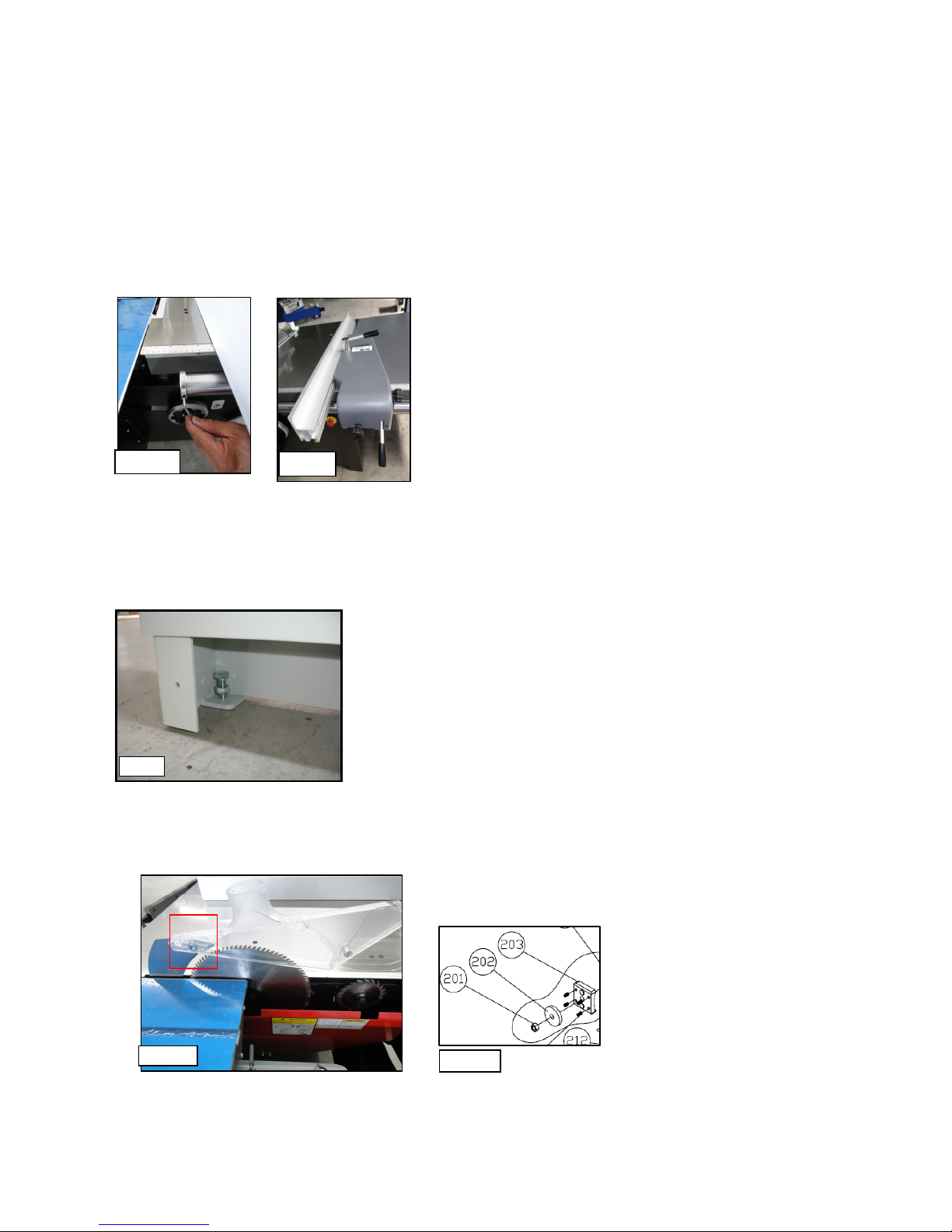

(8) Installation Riving Knife and Semi guard
The riving knife attaches with fix block, hex nut and washer in the place (Fig. 8B) , top distance need at least
3mm-5mm between the riving knife and blade. The semi blade guard fit over the riving knife and is secured in place
with head cap screw. (Fig.8A)
Fig.6E
Fig.6D
Fig. 7
Fig. 8A Fig. 8B
17

Operation and maintenance
(9) Riving knife and saw blade
1. Riving knife ： Maintains kerfs opening during cutting
operations. The Purpose is crucial to preventing
kickback caused by the deaf closing behind the blade.
2. Main saw blade ： The maximum is 305 mm.
(it is as option)
3. Scoring saw blade ： It is rotates opposite the main
saw blade, the blade cores the work piece before the
actual cutting operation is performed preventing
tear-out in laminate materials. The scoring is adjustable
forward and backward, upper and down.
(10) Changing Main Blade
This saw is designed with 12" main saw blade, before
you change blade sizes, the riving knife must be
adjusted to match the size of blade you install.
1. Slide the table all the way forward to access the blade
arbor and pull open the blade guard. (Fig. 10A)
2. Use the arbor wrench to remove the arbor nut and
arbor flange, the arbor nut has left hand threads and
loosens by turning clockwise.
3. Slide the blade over the arbor with the teeth facing the
front of the saw
4. Re-install the arbor flange and the arbor nut and
tighten them against the blade
5. Loosen the riving knife center bolt, slide the riving knife
over the bolt (Fig. 10B) and slightly tighten.
6. Position the riving knife about 3mm or 1/8" away from
the nearest carbide tooth on the main blade. For a quick
gauge, use the 3mm next wrench to find the correct
spacing between the blade and the riving knife.
7. Tighten the center bolt to secure the riving knife in position.
8. Move the blade guard back to its original position, and
move the sliding table back to center.
WARNING
Wear gloves to protect your hands when
installing or removing blades.
Fig. 10A
Fig. 10B
18

(11) Scoring Blade
Aligning Scoring Blade Set
The scoring blade must be aligned with the main blade to
ensure satisfactory cutting results.
1. Move the blade tilt to 0°(blade 90°to table) and raise
the main blade all the way up.
2. Use T tool to adjust scoring blade (Fig. 11A)
3. Move the rip fence against the main blade
(or scoring blade)
4. Use the adjustment controls to move the scoring blade
so that the rip fence can touch both the scoring blade
and the main blade.
5. Lower the scoring blade to the correct height (2mm or
5/64"), perform a text cut, then make any final adjustment.
(12) Fence Scale Alignment
Before operation, the 0°mark on the rip fence scale
must be aligned with the right side of the blade to ensure
that the rip fence measurements will be accurate.
1. Move the blade tilt to 0°(blade 60°to table), and raise the
main blade all the way up.
2. Move the rip fence against the main blade
3. Loosen the cap screws securing the fence scale.
4. Slide the fence scale to line up the first mark on the
scale with the left edge of the rip fence and tighten the
cap screw.
5. Set the rip fence at 1/8", slide the adjustable right against
the rip fence body, and lock the ring in place. This will
prevent the fence from hitting the blade.
Fig. 11A
19

(13) Changing Scoring Blade
1. Discount the saw from the power source.
2. Move the blade tilt to 0°(blade 90°to table), and raise
the scoring blade all the way up.
3. Move the sliding table all the way forward to expose the
internal blade guard that covers the blade and riving knife.
4. To fix the scoring by offered U Tool and using the
arbor wrench to remove the nut. (The arbor nut has
right hand threads and loosens by turning counterclockwise.)
5. Measure the main blade, and use the shims to stack the scoring blade
set so the thickness matches the thickness of the main blade.
6. Install the blade set, re-install the arbor flange and the arbor nut,
and tighten them against the blade set. (Fig.15A)
7. Move the orange blade guard back into its original position,
next to the blades, and center the sliding table.
8. Align the scoring blade set to the main blade.
* Use our offered tools for changing.
(14) Rip Cutting
The panel saw has the capability of rip cutting full size
panels, the sliding table removes the burden of sliding
a large and heavy panel over a stationary table
surface.
The saw also with the capability of rip cutting smaller
boards which is using the machine as a traditional table saw.
Smaller, lighter boards are easier to slide across the
stationary cast iron table surface to the right of the
saw blade.
(Fig. 16A & 16B)
(15) Test Run
Before operation, it must be testing this machine to make sure all the controls are working properly.
Before starting the saw, make sure you have performed the preceding assembly
and adjustment instructions, and you have read through the rest of the manual and
are familiar with the various functions and safety issues associated with this machine.
Failure to follow this warning could result in serious personal injury or even death
！
1. Connect the machine to the power source.
2. To check the machine light is turning on.
3. Press the main blade button, if the main blade is rotating in a counter-close wise,
then press the scoring blade button, if the main blade is rotating in a
clockwise direction, disconnect the saw from power and exchange wires in the terminal box.
Operation
You must follow these instructions EVERY time you use your saw.
1. Stand to the left of the blade line-of-cut when performing a cutting operation.
2. Turn off the saw and allow the blade to come to a complete stop before removing the cut-off piece.
3. Make sure the riving knife is always aligned with the main blade before cutting.
4. Always position the blade guard to the correct height above the workplace.
5. Carefully plan each cutting operation to avoid injuries.
6. When you release the sliding table lock, make sure that the knob is positioned so
that it will not lock the table during a cut.
WARNING
Fig. 15A
Fig.16B
Fig.16A
20

(16)Rip Cutting With The Sliding Table ：
：：
：
1. Install the crosscut fence in the center stud hole.
Note ： Put the crosscut fence into the center stud hole
and adjust it against to the 90°stop.
(Fig. 16A)
Check to make sure the fence is at 90°and adjust it. (Fig.16A)
2. Put the fence' protection block against the blade teeth to
calibrate the scale, then tighten the lock knob, and
make sure the scale will not be accurate if the protection block is cut.
3. Set a flip stop to the desired width-of-cut.
4. Position the blade guard to the correct height for your work-piece.
5. Load the work piece onto the table saw.
6. Take all the necessary safety precautions, then perform the
cutting operation.
7. Put the fence is 45 degree for angle cutting. (Fig. 16B)
Sliding Table Saw Cutting
1. Slide the crosscut table out of the way.
2. Lock the sliding table into a stationary position.
3. Place the fence in the high position (Fig. 16C) for
larger work-piece, or in the low position (Fig. 16D)
for angled cuts and for small work piece.
4. Slide the leading end of the rip fence so it is even
with the center of the main saw blade
Note ： This technique allows the finished cut-off piece
to "fall" away from the blade when the cutting operation
is complete, reducing the possibility of kickback.
5. Life the lock lever and position the rip fence to
approximately the desired width-of=cut.
6. Tighten down the micro-adjust lock knob (Fig. 16E) and
turn the micro-adjust knob to zero in on the desired
width-of-cut.
7. Push down the lock lever, then perform the cutting operation.
(Fig. 16E)
90°stop
(Fig. 16A)
(Fig. 16B)
Fig. 16C
High
Fig. 16D
low
Fig. 16E Lock lever
Micro adjust
Knob
Micro adjust lock knob
21
