Owner’s Manual
Platinum Series Tablesaw
MTS0300-0180
Platinum Series
Dovetail Action Tablesaw

1. Foreword
This manual contains basic information for qualified
operating staff and describes the surroundings and
using ways of the machine for those it is intended.
It contains also all necessary information for a
correct and safe operating. The machine is
equipped with various safety equipment protecting
operator and machines well at usual technological
using. These regulations, however, cannot sheet
all other safety aspects. That is why operator must
peruse and make sense of this manual before
starting of machine use. Installation and operation
mistakes will be foreclosed herewith.
Do not try to start the machine before having read
all instructions manual delivered with the machine
and understood every function and technique.
2. Warranty Information
Limited Warranty
One year
Proof of Purchase
Please keep your dated proof of purchase for
warranty and servicing purposes.
Limited Tool Warranty
We makes every effort to ensure that this product
meets high quality and durability standards. we
warrants to the original retail consumer a 1-year
limited warranty as of the date the product was
purchased at retail and that each product is free
from defects in materials. Warranty does not apply
to defects due directly or indirectly to misuse,
abuse, normal wear and tear, negligence or
accidents, repairs done by an unauthorized service
center, alterations and lack of maintenance. we
shall in no event be liable for death, injuries to
persons or property or for incidental, special or
consequential damages arising from the use of our
products. To take advantage of this limited warranty,
return the product at your expense together with
your dated proof of purchase to us ,we will either
repair or replace the product if any part or parts
covered under this warranty which examination
proves to be defective in workmanship or material
during the warranty period.

3. Machine Description
3.1 Technical parameters
Item HW110LS-30 HW110LS-50
Product
Dimensions
weight 550Ibs 590Ibs
length/width/height 62"×41"×40" 82"×41"×40"
foot print(length/width) 20"×20"
Electrical: switch magnetic with thermal overload protection
Motor
type TEFC capacitor start induction
horsepower/voltage/phase/amps
3HP-230V-1PH 12.8A
4HP-230V-1PH 15A
5.5HP-230V(400V)-3PH 13.9A/8.0A
speed/cycle
3450 RPM/60HZ
2850 RPM/50HZ
power transfer Triple V-belt Drive
blade information
maximum blade diameter 10"
riving knife/spreader thickness 0.1"(2.5mm)
required blade body thickness 0.071"-0.094"(1.8-2.4mm)
required blade kerf thickness 0.102"-0.126"(2.6-3.2mm)
maximum width of Dado 13/16"
blade tilt left 0-45°
arbor size 5/8“
arbor speed 4300 RPM(60Hz)、4150RPM(50Hz)
arbor bearings sealed and permanently lubricated
cutting capacities
maximum depth of cut at 90° 3-1/8"
maximum depth of cut at 45° 2-3/16"
maximum rip to right of blade-standard 30" 50"
maximum rip to left of blade 12"
Table
informations
floor to table height 34"
main table--length/width/thickness 20"×27"×1-1/2"
distance front of table to center of blade
17-1/4"
distance front of table to blade of
maximum cut 12-1/4"
fence information
fence size--length/width/height 48"×4-1/8"×2-1/2"
miter gauge
information miter gauge slot type T-slot
miter gauge slot type-- width/height 3/4" ×3/8"
other information
paint power coated
dust port size 4"

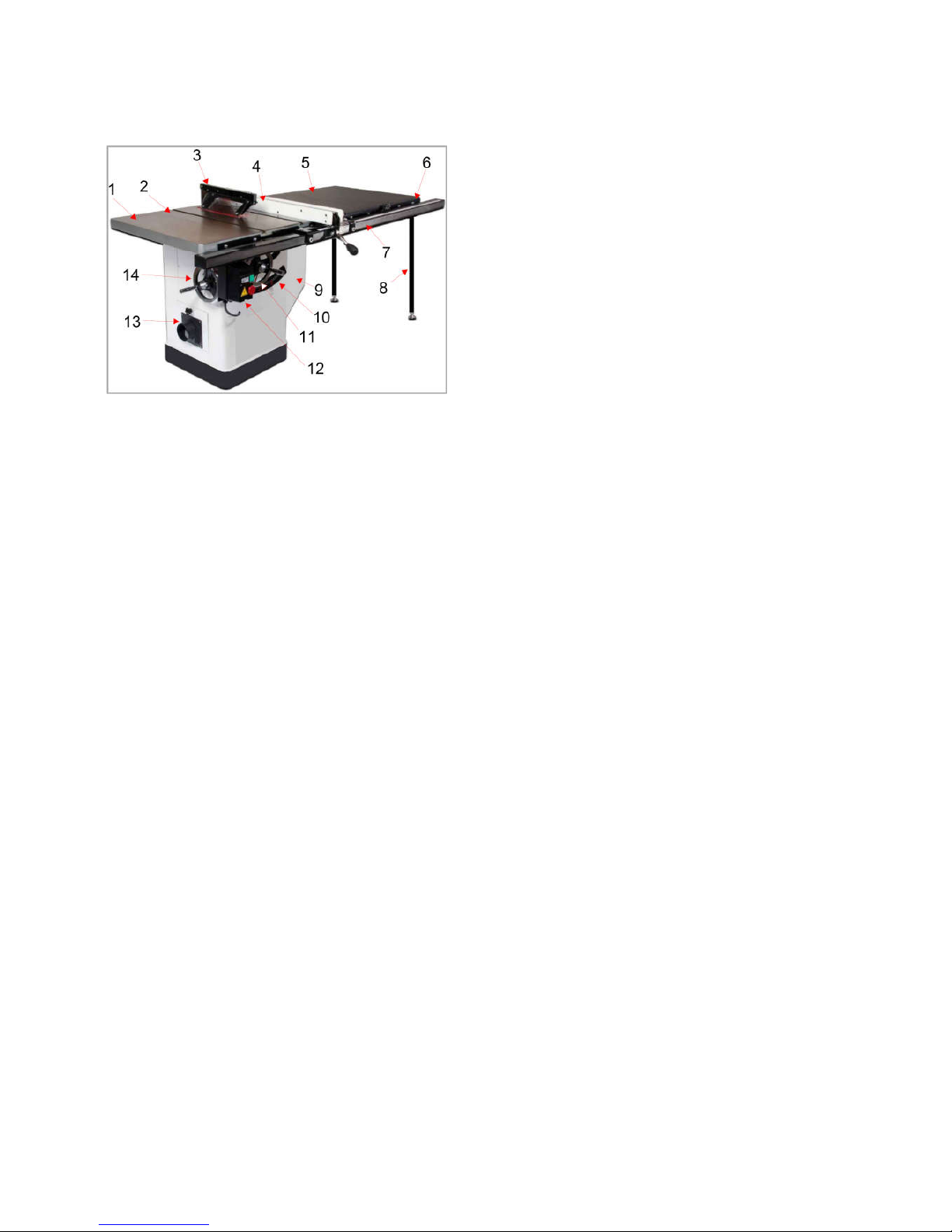

3.2 Feature Identification( Fig.1)
Fig.1
1 Extension Wing
2 Main table
3 Blade Guard
4 Fence
5 Extension Table
6 Front Rail
7 Front Rail Tube
8 Leg
9 Motor cover
10 Table Tilt Scale
11 Blade Height Hand wheel
12 On/Off Switch
13 Dust Port
14 Blade Tilt Hand wheel
3.3 Intended Use
Table saw and the workpiece guide equipment
supplied with it are intended to be used exclusively
for the following purposes:
● Laminated and unlaminated board materials (e.g.
chipboard, coreboard, MDF board, ...)
● 
Solid wood
● 
Gypsum plasterboard , Cardboard, Veneer with
a suitable clamping device
●Dimensionally stable plastics (thermoset plastics,
thermoplastics).Sawing these materials does not
normally involve any risks in respect of dust, chips,
and thermal degradation products.
Tools:
● The chosen saw blade must be suitable both for
the specific work cycle and for the specific material.
● Only circular blades which are solid chrome
vanadium (CV) or tungsten carbide tipped (TCT)
and have a diameter of 250mm , arbor size
30mm,as well as a maximum width of 20mm are
allowed for the main saw
● Saw blades made of high-alloy high-speed steel
(HSS) are not allowed to be used.
● Saw blades and their fixing devices shall conform
to EN 847-1:2005。
Site of installation/use:
● The machine is not suitable for use outdoors, or
in rooms that are subject to moisture or the risk of
explosions.

● The intended use of the machine involves
connection to a suitably dimensioned extraction
system .
● Intended use also involves compliance with our
specified operating, maintenance and repair
conditions and the safety information contained in
the operating instructions.
● The table saw may only be used, set up and
maintained by persons who are familiar with the
machine and aware of the dangers.
●The pertinent accident prevention regulations as
well as any other generally recognised technical
safety and industrial medicine rules must be
observed.
● Repair work must be carried out by our own
customer service or by an organization that we have
authorized. Only original spare parts are allowed to
be used for this. we will assume no warranty for any
damage that is caused by using non-original spare
parts.
The machine is prohibited to be used in a
potentially explosive atmosphere!
3.4 Requirements of electrical
power
The input power supply of the machine is 3/N/PE,
AC400V. The steady-state AC power supply is
0.9～1.1 times of the rated value.
Frequency
0.99～1.01 times of rated frequency ( 50 Hz ,
continuous working)
0.98～1.02 times of rated frequency(50Hz, short
period working)
List of the motor using & pre-wired voltage
Item
Motor
3HP 5.5HP 4HP
(2.2kW) (4kW) （3KW）
Voltage(V) 230V 380V/220V 230V
Phase 1Ph 3 Ph 1Ph
Freq.(Hz) 50/60Hz 60Hz
Nominal current A 12.8A 8.0A/13.9A 15A
Prewired 230V/1PH 230V/3PH 230V/1PH
Cords 3 4/5 3

Harmonics
The sum of 2nd-5th distorted harmonic must not
exceed 10% of RMS of voltage. An additional 2%
of RMS of line voltage is allowed to for the sum of
6th-30th harmonic.
Unbalanced voltage
Neither Negative nor zero sequence components is
allowed to exceed 2% of the positive sequence
component.
Electrical protection
End user should provide protection device against
overvoltage due to lightning and short-circuited
protection device at the power supply.
Ingress Protection at the inlet of incoming
power cable
The incoming method of incoming cable should
ensure IP54 protection class when finishing
installation on the spot.
3.5 Noise
3.5.1 Reference standards
The measurements of noise emission were
conducted according to the EN ISO 11202 for the
determination of sound pressure level at the
operation positions. When the measured sound
pressure levels at the operation positions exceed
85dB(A), the measurements of sound power levels
were conducted according to EN ISO 3746.
3.5.2 Operating conditions
The operating conditions for noise measurement
comply with Annex A of ISO 7960:1995.
3.5.3 Testing results
NO LOAD LOAD
LWA 101.3 104.1
LPA
Position A 84.7 88.5
Position B 86.1 89.1
Position C 77.0 79.8
Associated uncertainty
K = 4 dB
Note: Background noise of measurement
surrounding is 65.0dB (A).
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of the workforce include the characteristics of the
work room, the other sources of noise etc. i.e. the
number of machines and other adjacent processes.
Also the permissible exposure level can vary from
country to country. This information, however, will
enable the user of the machine to make a better
evaluation of the hazard and risk.”

4. Safety Regulations
4.1 General Safety Instructions
1. KNOW YOUR MACHINE.
Read and understand the owners manual and
labels affixed to the machine. Learn its application
and limitations as well as its specific potential
hazards;
2.GROUND THE MACHINE.
In the event of the electrical short, grounding
reduces the risk of electrical short;
3. KEEP GUARDS IN PLACE.
Keep in good working order, properly adjusted and
aligned;
4. REMOVE ADJUSTING KEYS AND
WRENCHES.
Form habit of checking to see that keys and
adjusting wrenches are removed from machine
before turning it on;
5. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
Make sure the floor is clean and not slippery due to
wax and sawdust build-up;
6. AVOID DANGEROUS ENVIRONMENT.
Don’t use machines in damp or wet locations or
expose them to rain. Keep work area well lit and
provide adequate surrounding work space;
7. KEEPCHILDREN AWAY.
All visitors should be kept a safe distance from
work area;
8. MAKE WORKSHOP CHILD-PROOF.
With padlocks, master switches or by removing
starter keys;
9. USE PROPER SPEED.
A machine will do a better and safer job when
operated at the proper speed;
10. USE RIGHT MACHINE.
Don’t force the machine or the attachment to do a
job for which it was not designed;
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties or
jewelry (rings, watch) because they could get
caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering to
contain long hair. Roll up long sleeves above the
elbows;
12. DON’T OVER REACH.
Keep proper footing and balance at all times;
13. MAINTAIN MACHINE WITH CARE.
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories;
14. DISCONNECT MACHINES.
Before servicing, when changing accessories or
attachments;
15. AVOID ACCIDENTAL STARTING.
Make sure the switch is in the ‘’OFF’ ’position
before plugging in;
16. USE RECOMMENDED ACCESSORIES.
Consult the manual for recommended accessories.
Follow the instructions that accompany the
accessories. The use of improper accessories may
cause hazards;
17. NEVER STAND ON MACHINE.

Serious injury could occur if the machine tips
over .Do not store materials such that it is
necessary to stand on the machine to reach them;
18. CHECK DAMAGED PARTS.
Before further use of the machine, a guard or other
parts that are damaged should be carefully
checked to ensure that they will operate properly
and perform their intended function. Check for
alignment of moving parts, breakage of parts,
mounting, and any other conditions that may affect
its operation. A guard or other parts that are
damaged should be properly repaired or replaced;
19. NEVER LEAVE MACHINE RUNNING
UNATTENDED.
Turn power ‘’OFF’’. Don’t leave any machine
running until it comes to a complete stop;
20. LIGHTING SHALL BE PROVIDED.
A dequate general or localised lighting shall be
provided;
4.2 Specific Safety Instructions for
Sliding Table Saw
1. ALWAYS USE A GUARD.
Always use a guard, splitter and anti-kickback
fingers on all “thru-sawing” operations.
Thru-sawing operations are those when the blade
cuts completely through the work piece as in
ripping or crosscutting.;
2. ALWAYS HOLD THE WORK.
Always hold the work firmly against the miter
gauge or fence;
3. ALWAYS USE A PUSHSTICK OR PUSH
BLOCKS.
Push blocks or push sticks shall be used when
cutting small workpieces and in circumstances
where it is necessary to push the workpiece
against the fence;
4.NEVER.
Never perform any operations “free-hand” which
means using your hands to support or guide the
work piece. Always use either the fence or the
miter gauge to position and guide the work piece;
5.NEVER.
Never stand or have any part of your body in line
with the path of the saw blade;
6.NEVER REACH BEHIND.
Never reach behind or over the cutting tool with
either hand for any reason;
7. MOVE THE RIP FENCE.
Move the rip fence out of the way when
crosscutting;
8. DIRECTION OF FEED.
Feed work into the blade against the direction of
rotation;
9. NEVER.
Never use the fence as a cut-off gauge when you
are cross-cutting;
10. NEVER.
Never attempt to free a stalled saw blade without
first turning the saw OFF;
11. PROVIDE ADEQUATE SUPPORT.
To the rear and sides of the table saw for wide or
long work pieces;

12. AVOID KICKBACKS.
Avoid kickbacks (work thrown back towards you)
by keeping the blade sharp, by keeping the rip
fence parallel to the saw blade, by keeping the
splitter and anti-kickback fingers and guard in place
and operating, by not releasing work before it is
pushed all the way past the saw blade, and by not
ripping work that is twisted or warped or does not
have a straight edge to guide along the fence;
13. AVOID AWKWARD OPERATIONS.
Avoid awkward operations and hand positions
where a sudden slip could cause your hand to
move into the spinning blade;
14. BLADE REQUIREMENTS.
Only correctly sharpened saw blades
manufactured in accordance with the requirements
of EN 847-1:2005 shall be used;
15. SPEED.
No saw blade shall be used where the maximum
marked speed is lower than the maximum
rotational speed of the saw spindle;
16. CHIP AND DUST.
The machine shall be connected to an external
chip and dust extraction system;
The dust extraction equipment is to be switched on
before commencing machining;
17. CHECK
Period check the brake function to make sure the
stop time of the saw blade is less than 10s.
4.3 Residual risks
1. Take precautions to reduce the hazard of
inhalation of harmful dusts (e.g. wearing a dust
mask);
2. Wear ear protection to prevent hearing loss;
3. Always wear safety glasses. also use a face or
dust mask if cutting operation is dusty;
4. Against the hazard of cutting when handling
saw blades into the machine or doing
maintenance;
5. Not to try removing chips whilst the saw
blade(s) is (are) running and the saw unit(s) is (are)
not in the rest position;
6. Not to try using the machine unless all of the
guards and other safety devices necessary for
machining are in good working order;
4.3 Safety equipment
A push block (Fig.2) and A push stick (Fig.3) must
be used
Fig.2
Fig.3

If the workpieces is less then 120mm,you must
use the push stick to prevent your hands from
getting too close to the saw blade.
Push block must be used to cut narrow
workpieces and, when necessary, to push the
workpiece against the fence, a push block can
be easily made by the operator as Fig.2,
5. Installation of the machine
5.1 Transportation of machines
5.1.1 Transportation and store
The measures of anti-rust and shockproof should
be taken during packing. The machine endures
transportation and store in -25~55°C ambient
temperature.
Be care of not making machine exposed to rain or
damaging the packing during transportation and
store.
While transporting or handling the machine, be
careful and let the activity be done by qualified
personnel especially trained for this kind of
activity!
While the machine is being loaded or unloaded,
make sure that no person or subject gets
pressed by the machine!
Select proper transportation device according
to the weight of the machine.
Make sure the lifting capacity of transportation
device is competent for the weight of the
machine.

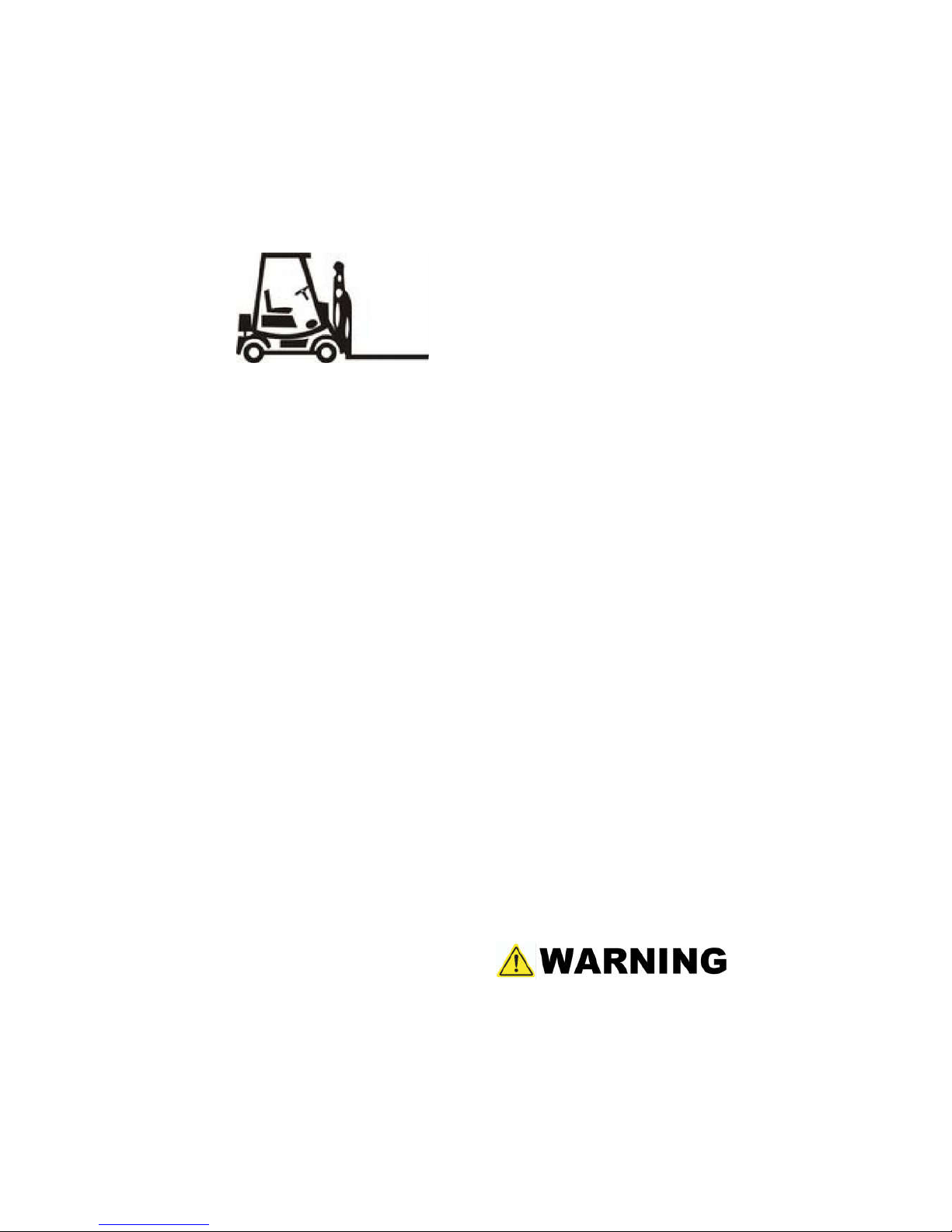

5.1.2 Transportation before unpacking
As standard, the machine is packed in a robust
wooden box. Fig.4 shows the tool can be used to
transport the packing box.
Fig.4
5.2 Unpacking
your machine was carefully packaged for safe
transportation. remove the packaging materials
from around your machine and inspect it. if you
discover the machine is damaged, please
immediately call Customer Service for advice.
save the containers and all packing materials
for possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
5.3 Safety measure before use &
installation
It is important to maintain free area of 0.8 m around
the machine, which is required for the working
place. If any long material is machined, it is
necessary to have a sufficient room in front of the
machine as well behind it in the places of material
input and output.
5.4 installation
Before beginning assembly, take note of the
following precautions and suggestions
----- The machine is bolted to the pallet. Before
attempting any of the assembly procedures
remove all of the loose parts and hardware from
the inside of the machine and unbolt the machine
from the pallet.
----- FLOOR: This tool distributes a large amount of
weight over a small area. Make certain that the
floor is capable of supporting both the weight of the
machine and the operator. The floor should also be
a level surface. If the unit wobbles or rocks once in
place, be sure to eliminate by using shims.
-----WORKING CLEARANCES: Take into
consideration the size of the material to be
processed. Make sure that you allow enough
space for you to operate the machine freely.
-----OUTLET PLACEMENT: Outlets should be
located close enough to the machine so that the
power cord or extension cord is not in an area
where it would cause a tripping hazard. Be sure to
observe all electrical codes if installing new circuits
and/or outlets.
DO NOT assemble the machine until you are
certain that the machine is not plugged in and
the power switch is in the OFF position.
DO NOT connect the machine to the power
source until the machine is completely

assembled and you read and understand the
entire User Manual.

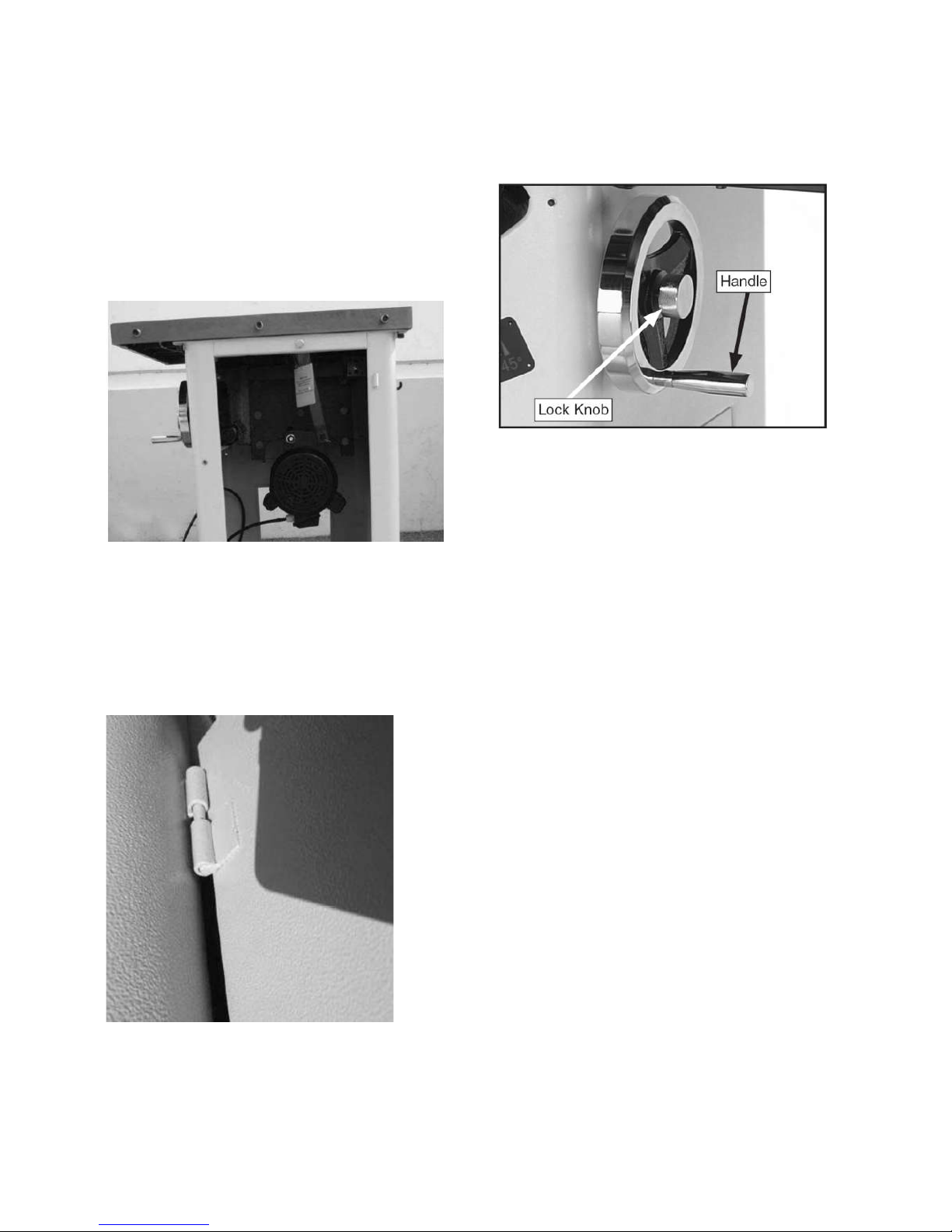

5.4.1Remove the shipping brace:
pull the switch out of the saw cabinet and remove
the shipping brace as Fig.5 ；
Fig.5: shipping brace location
5.4.2 motor cover install:
Install the door by inserting the door pins into the
hinge sockets on the cabinet as Fig.6;
Fig.6: motor cover install
5.4.3 handwheel handle install:
Install the handle into the Blade Tilt & Height hand
wheel as Fig.7.
Fig.7: hand wheel handle install
5.4.4 Extension wings install(Fig.8)
A. remove the screws from the ends of the main
table;
B. inspect the extension wings and main table
mating surfaces for burrs or foreign materials that
may inhibit assembly;
C. the mating edges of the wings and the table
must be clean, smooth, and flat, use a wire brush
or file if necessary to clean up the edges, this step
will ensure that the wings mount properly to the
main table;
D. Attach the wings to the main table with the
screws removed in step A;
E. Place the straightedge across the extension
wings and main table to make sure that the table
surface is flat;
……If the outside end of extension wings tilts down
Or up, use a strip of masking tape to shim the
extension wing up Or down ;

Fig.8: Extension wings install

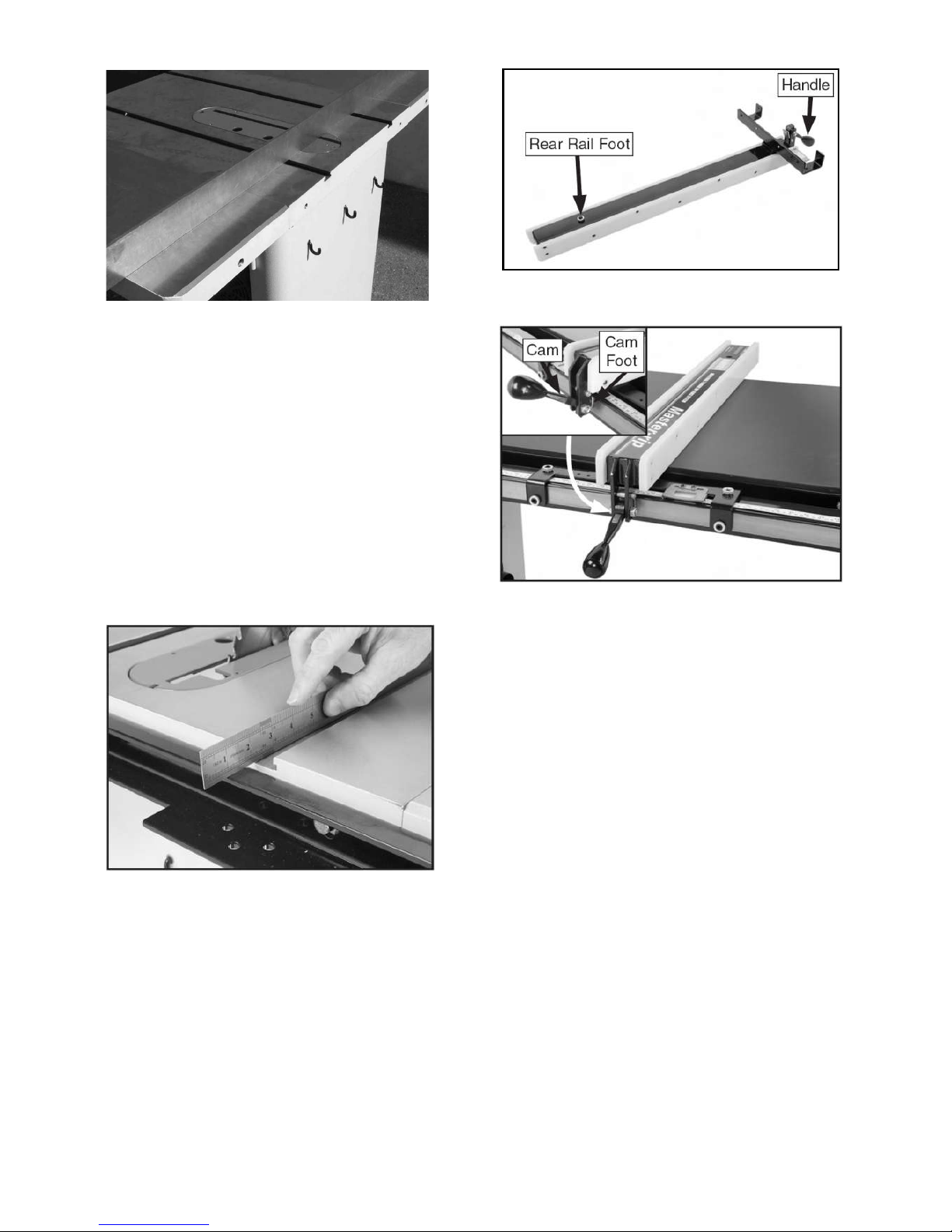

5.4.5 install the rail & fence
A. install the rear rail , front rail, tube,（extension
table ）as breakdown, Before tightening the
fasteners,check to make sure the top edge of rear
rail is flush with the lowest edge of both T-bolts，so
the miter gauge will slide smoothly when installed
later. as Fig.9
Fig.9: check the location of rear rail
B, Place the fence on the rails on the right hand
side of blade as Fig.10-2 .
Note:make sure the cam foot contacts the cam
on the fence lock handle before you place the
fence on the rail, otherwise the fence will not
lock into the rail tube. See Fig.10-1
Fig.10-1 Fence assembled
Fig.10-2: fence installed on rails
C, checking fence parallelism(see Fig.11)
----Slide the fence along the rail , if it drags across
the table, then adjust the foot at the rear of the
fence to raise the fence off of the table just enough ,
so that the gap between the fence, and the table is
even from front to back;
----Slide the fence up, against the right hand edge
of the miter slot , and lock it in place ,examine
how the fence line up with the miter slot;

Fig.11: checking fence parallelism
Note: It's permissible for the back of the fence
to pivot outward not more than 1
⁄
64" from being
parallel to the blade. This creates a slightly
larger opening between the fence and the blade,
at the rear of the blade, to reduce the risk of
workpiece binding or burning as it is fed
through the cut. Many woodworkers
intentionally set up their fence in this manner.
Keep this in mind before adjusting your fence.
D, Install the fence scale(see Fig.12)
Fig.12 Aligning rail tape with scale pointer.
Slide the fence up against the saw blade, and lock
it in place;
place the front rail tape scale on the fence tube,
make sure it is parallel with the tube, and the“0”
end is directly under the red line on the pointer
window as shown; lightly mark the “0” location on
the tube with a pencil, then remove the fence; peel
the tape and carefully align the “0” mark on the
scale with the pencil mark you made;
If you make a mistake, loosen the screws on the
point window, slide the fence against the blade,
adjust the pointer window , so the red line on the
window is over the “0” mark on the tape, then
secure the screws;
5.4.6 Install the switch
install the magnetic switch onto the bottom left
hand side of the front rail using two M6-1x 12 hex
bolts, 6mm lock washers, and 6mmflat washers, as
shown in Fig.13
Fig.13: switch install

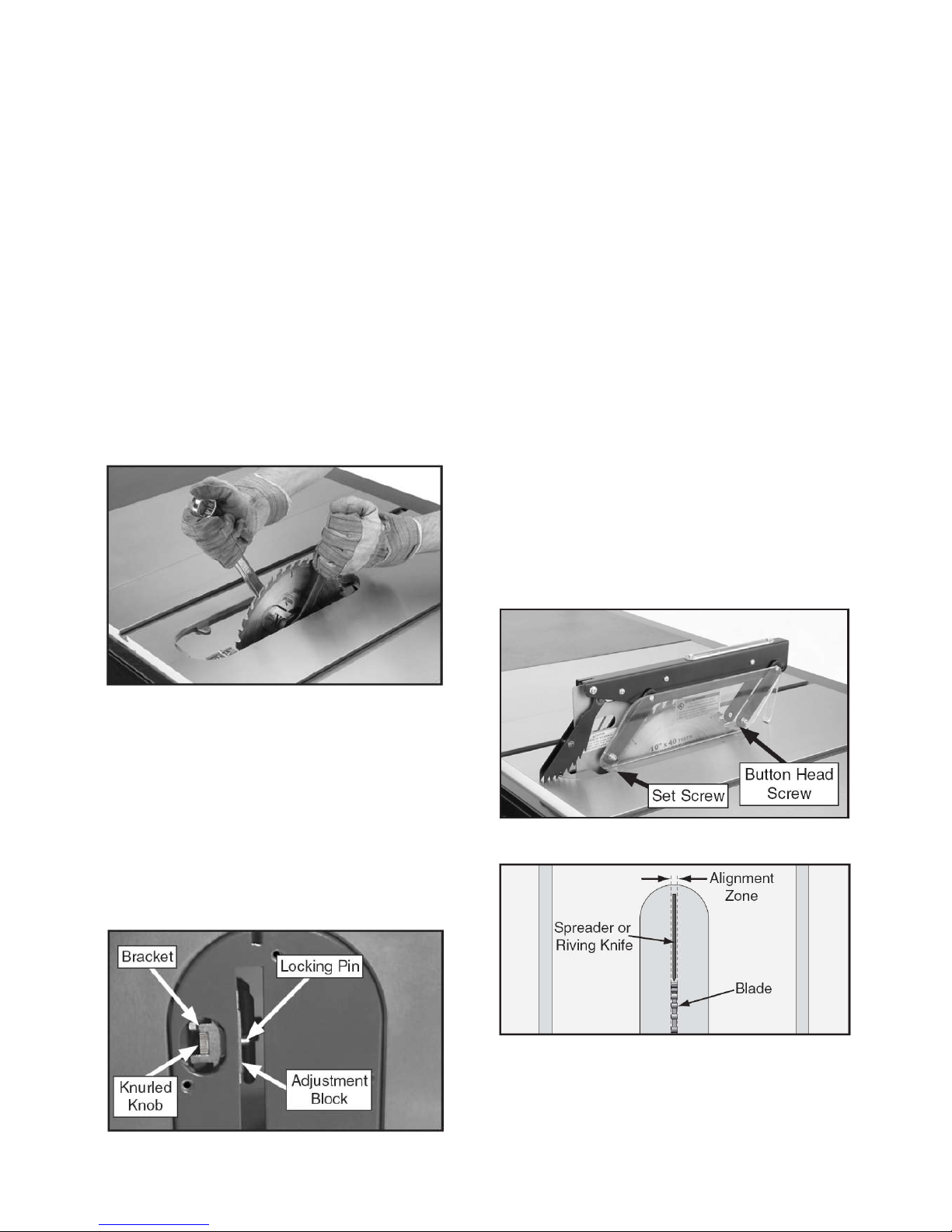

5.4.7 Install the blade
A. Remove blade guard assembly & table insert.
B. raise the arbor all the way up and set the blade
angle at 0º.
C. remove the arbor nut and arbor flange from the
arbor, slide on the included 10" saw blade, making
sure the teeth face the front of the saw, then install
the arbor flange and arbor nut onto the blade.
D. put on a pair of heavy leather gloves and use
the included arbor wrenches to tighten the arbor
nut (turn clockwise to tighten), as shown in Fig.14
Fig.14: Install the blade
5.4.8 install the blade guard and riving
knife
A. reinstall the insert, slide the knurled knob out
(see Fig.15) and rotate it forward so it engages the
upper bracket.
Fig.15:Knurled knob used
B. slide the blade guard spreader all the way down
into the block, then rotate the knurled knob so it
disengages the bracket and the locking pin
engages the hole in the center of the spreader.
C. give the spreader an upward tug to verify that it
is locked the blade guard, when properly installed,
should look like Fig, 16 and should pivot freely so it
touches the table surface in the down position. it
should also swing up high enough to accommodate
the workpiece.
D. place a straightedge against the blade and the
spreader. When properly aligned, the
spreader/riving knife will be in the "alignment
zone," shown in Fig.17 , and will be parallel with
the blade.
Fig.16: Blade guard installed.
Fig.17: alignment zone
After changing a saw blade, always check that the
Riving knife or Blade Guard is correctly set!

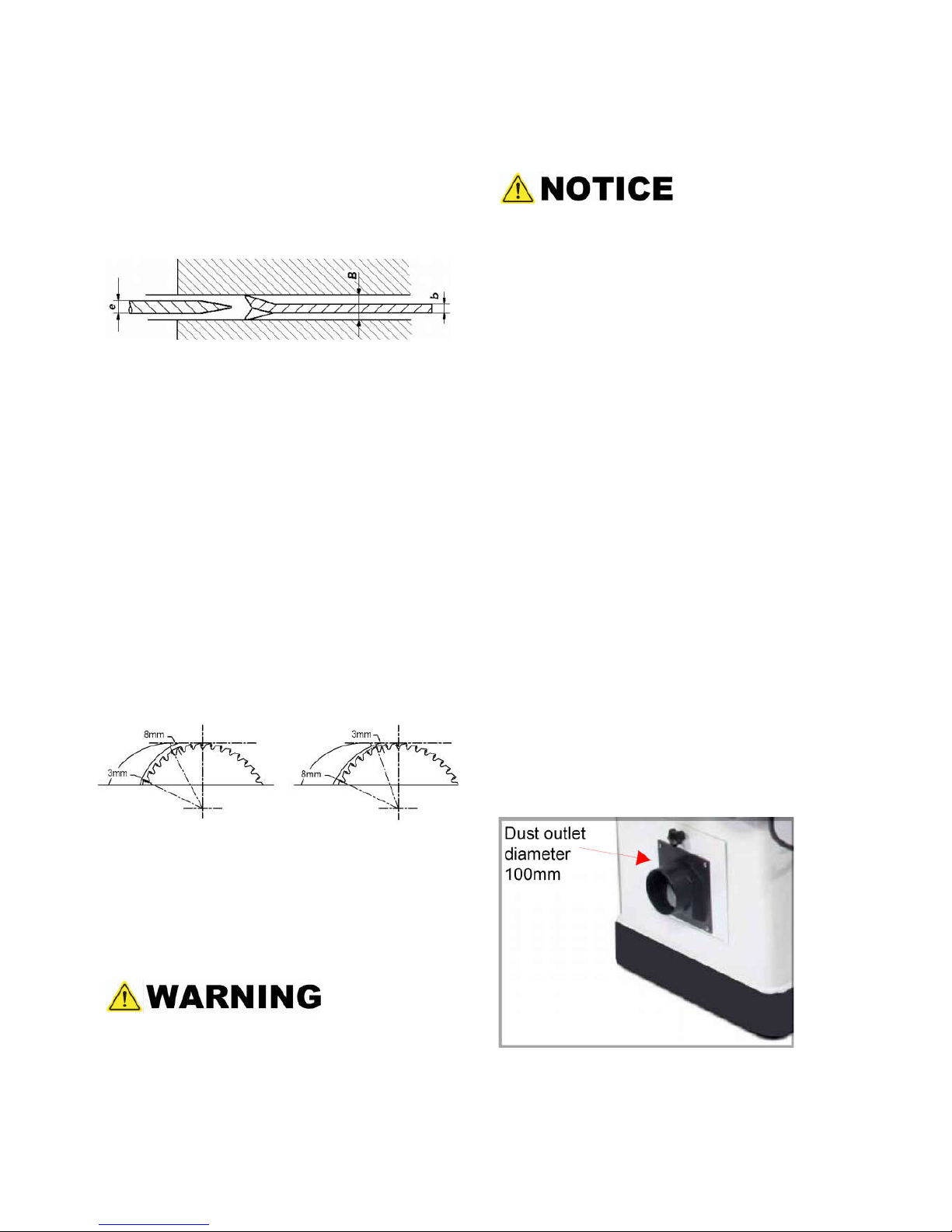

1. riving knives shall be manufactured from steel

with an ultimate tensile strength of 580 N mm-2 or
of a comparable material, have flat sides (within 0,1
mm per 100 mm) and shall have a thickness less
than the width of cut (kerf) and at least 0,2mm
greater than the saw blade plate. As Fig.18
Fig.18
Key:
e riving knife thickness
b saw blade blade
B kerf(width of saw blade cut)
2, The distance of the riving knife from the gear rim
must be between 3mm and 8mm. measured
radially through the centre of the saw spindle. As
Fig.19
Fig.19
3. the highest point of the riving knife must be set
beneath the topmost teeth.
Check that saw blade clamping system is tight
before operating the machine.
5.4.9 Connecting the extraction
system
Dust collector device should be prepared by
customer;
The dust extraction equipment is to be
switched on before commencing machining;
The outlet diameter of is 100mm. Fig.20
Air current speed is 20m/s for vacuum suction dust
emission index, When air current speed of dust
collector device (in accordance with EN
12779:2004) is not lower than 20m/s, ensure
machine can be normal exhausted. User must
wear dustproof mask.
1. Required air flow:1500 m3/h;
2. Ensure pressure drop of each dust collector outlet
carrying air current speed: 1100Pa
3. Wind speed of dust collector tube m/s: dry
chips: 20m/s, water content is equal to18% wet
chips: 28m/s.
Fig.20

5.4.10 Electrical installation
1. Wiring should only be done by professional
electricians. Always make sure the machine is
properly earthed.
2. All wirings in the cabinets should be
protected against direct contact to at least IP2X
when finishing electrical installation.
3. All exposed conductive parts should be
connected to the protective bonding circuit.
4. Close and lock the door of cabinets 。
1. Enough space around the machine and the
cabinets should be kept in order to maintain
conveniently.
2. The machine should be installed in a
workshop with good illumination and
ventilation.
3. Over-voltage protection device should be
provided by end user on spot.
Check that the voltage and frequency required by
the machine, shown on the machine’s name plate,
correspond to the electric power supply voltage
and frequency.
The circuit breaker shall be installed for supplying
electric power to this machine, in order to protect
people against electrical shock due to indirect
shock

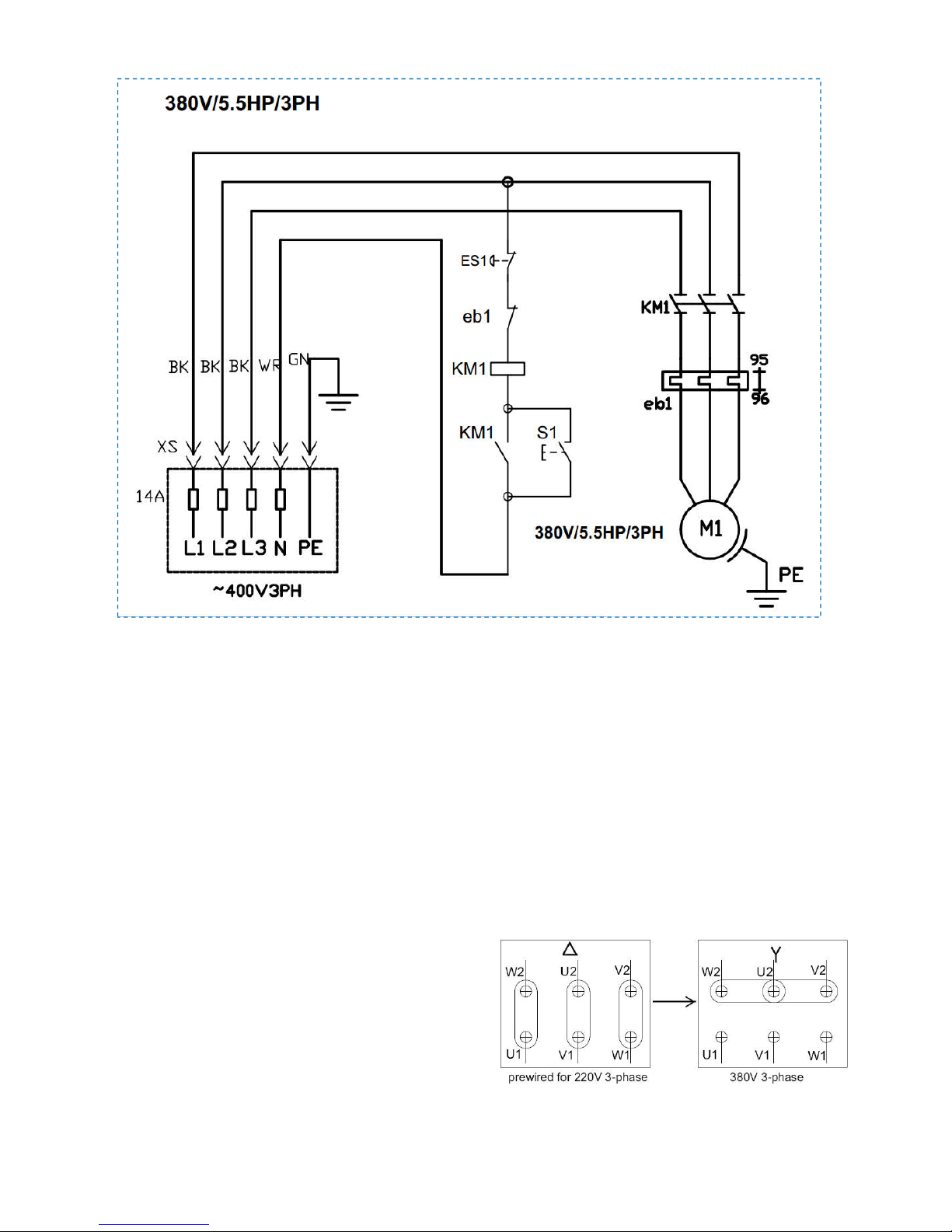

ELECTRICAL CONNECTIONS

Wiring:
Finish electrical connection according to the
electrical drawings.
The wirings on the spot should refer to the
requirements of Clause 13 (Wring practices) of EN
60204-1:2006.
Checking:
After finishing wiring on the spot, check the
following items at least:
Check the wirings of machine.
Check the direction of motors and change wiring if
necessary.
Check the components for defects, such as
loosening or damage.
Check the functions of safety devices
Change the Connections From
220V/3PH to 380V/3PH.
This model can be rewired from 220V/3PH to
380V/3PH operation, this procedure takes
moderate electrical skill and the rewiring job must
be inspected by a qualified electrician before the
saw is connected to the power source.

6. Adjustment
Before operation, the machine should be
carefully adjusted for best performance. Please
make adjustment as following:
6.1 Blade Raising and Tilting Machine
To raise or lower the blade, loosen lock knob (C)
As Fig.21 and turn the raising handwheel (D).
When desired height is obtained, retighten lock
knob. The blade should be raised 1/8” to 1/4”
above the top surface of the material being cut.
With hollow ground blades the blade should be
raised to the maximum to provide chip clearance.
To tilt the saw blade, loosen lock knob (B) and turn
tilting handwheel (A). When desired angle is
obtained, retighten lock knob. See Fig.21.
Fig.21
6.2 Adjusting Ripfence
1.The rip fence must be perfectly aligned with the
table T-slot, to verify this, align the edge of the rip
fence with the table T-slot and lower the locking
lever (A)Fig.22 to lock in into place. Check to see
if the edge of the rip fence and the table T-slot are
parallel. If they are not parallel, unlock the rip fence
and turn it upside down. Adjust the set screws (H)
as Fig.23 in or out, verify your adjustment, repeat if
necessary.
2.The lock lever pressure can be adjusted by
loosening the front lock nuts (B) as Fig.22 and
adjusting the set screws (C) the same amount,
make sure the fence remains parallel with the table
T-slot. Retighten lock nuts.
3.To set the fence perpendicular to the table, place
a square on the table and against the side of the
fence, loosen the top lock nuts (D) and adjust the
setscrews (E) until the fence is perpendicular.
Retighten lock nuts.
4.The pointer window (F) as Fig.22 position can be
adjusted if needed, loosen pan head screws (G),
reposition the pointer window and retighten pan
head screws.
Fig.22
Fig.23

6.3 Aligning Table T-slot Parallel With
Blade
1,The table T-slot must be aligned parallel with the
blade. Using a combination square (A) as Fig.24,
measure the distance from the back edge of the
blade to the table T-slot. Pivot blade forward 180º
and remeasure the distance using the exact same
point on the blade. The difference between both
measurements must be less than 0.2mm.
2. If an adjustment is necessary, loosen the screws
(B) as Fig.25 which fix to the table, make the
needed adjustment until both measurements are
equal or less than 0.2mm. and retighten the
screws.
Fig.24
Fig.25:Adjust Trunnions to Align Blade and
Miter Slot
6.4 Adjusting 45 and 90 Degree
Positive Stops
The tilt mechanism has adjustable stops for vertical
and 45 degrees. the machine comes factory-set but
should adjustment be required, loose the lock nut,
adjust the stop screw and retighten the lock nut.
Fig.26: Adjust 90&45 degrees
6.5 Aligning Blade Guard Splitter or
Riving Knife with Blade
The blade guard splitter and/or riving knife must be
aligned with the blade. If not properly aligned, the
splitter/riving knife will force the workpiece
sideways
during the cut, increasing risk of kickback. Place a
straightedge against the blade and the splitter or
riving knife and check for parallelism. If an
adjustment is needed, the mounting position can
be
adjusted into alignment with the blade using the
adjustment set screws (A) (see Fig.27)
1. Disconect saw from power source.
2. Remove the table insert.
3. Loosen the upper and lower cap screws (B),
