DAKE HORIZONTAL BANDSAW
Model JH10W1
INSTRUCTIONAL MANUAL
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 1 REV122021
Table of Contents
DAKE STANDARD LIMITED WARRANTY............................................................ 2
RETURN & REFUND POLICY .............................................................................. 4
SPECIFICATIONS ................................................................................................ 5
SAFETY ................................................................................................................ 6
INSTALLATION..................................................................................................... 7
UNCRATING................................................................................................ 7
LEVELING ................................................................................................... 7
OPERATION ......................................................................................................... 7
FEATURES.................................................................................................. 7
BLADE SELECTION .................................................................................... 8
BLADE REMOVAL....................................................................................... 9
BLADE TRACKING ADJUSTMENT ........................................................... 10
BLADE GUIDE ADJUSTMENT .................................................................. 11
FRAME BALANCE SPRING ADJUSTMENT.............................................. 11
OPERATING INSTRUCTIONS .................................................................. 11
MAINTENANCE .................................................................................................. 13
FEED CYLINDER BLEEDING.................................................................... 13
TROUBLESHOOTING ........................................................................................ 14
ELECTRICAL DIAGRAM .................................................................................... 15
EXPLODED VIEW & PARTS LIST ...................................................................... 18
OTHER VOLTAGE MODELS..................................................................... 20
WHEEL ASSEMBLIES............................................................................... 21
GEARBOX ASSEMBLY ............................................................................. 22
HYDRAULIC ASSEMBLY .......................................................................... 23
GUIDE ARM ASSEMBLY........................................................................... 24
VISE ASSEMBLY....................................................................................... 25
ORDERING INFORMATION ............................................................................... 25

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 2 REV122021
DAKE STANDARD LIMITED WARRANTY
Finished Machines
- Dake warrants to the original purchaser the finished machine manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 1 year (12 months) from the delivery date to the end user.
Parts
- Dake warrants to the original purchaser the component part manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 30 days from the delivery date to the end user.
The standard limited warranty includes the replacement of the defective component part
at no cost to the end user.
Sale of Service (Repairs)
- Dake warrants to the original purchaser the component part repaired by Dake
Corporation at the manufacturing facility to be free from defects in material and
workmanship under normal use and service within 90 days from the return date to the
end user, as it pertains to the repair work completed. The standard limited warranty
includes repair of the defective component part, at no cost to the end user.
Warranty Process
- Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any
portion of the product that proves defective in materials or workmanship. The
manufacturer retains the sole right and option, after inspection, to determine whether to
repair or replace defective equipment, parts or components. The manufacturer will
assume ownership of any defective parts replaced under this warranty.
- All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, Dake Customer Service
must be contacted for approval:
oPhone: [phone]
oEmail: [e-mail]
- When contacting Dake, please have the following information readily available:
- Model #
- Serial #
- Sales Order #
- Purchasers who notify Dake within the warranty period will be issued a Case number
and/or a Return Material Authorization (RMA) number. If the item is to be returned per
Dake’s request, the RMA number must be clearly written on the exterior packaging. Any
item shipped to Dake without an RMA will not be processed.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 3 REV122021
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
(a) Part installation or machine service was not completed by a certified professional, and
is not in accordance with applicable local codes, ordinances and good trade practices.
(b) Defects or malfunctions resulting from improper installation or failure to operate or
maintain the unit in accordance with the printed instructions provided.
(c) Defects or malfunctions resulting from abuse, accident, neglect or damage outside of
prepaid freight terms.
(d) Normal maintenance service or preventative maintenance, and the parts used in
connection with such service.
(e) Units and parts which have been altered or repaired, other than by the manufacturer
or as specifically authorized by the manufacturer.
(f) Alterations made to the machine that were not previously approved by the
manufacturer, or that are used for purposes other than the original design of the
machine.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 4 REV122021
RETURN & REFUND POLICY
- Thank you for purchasing from DAKE! If you are not entirely satisfied with your purchase,
we are here to help.
Returns
- All DAKE manufactured / distributed machines, parts and couplings include a 30-day
return option. These policies are valid from the date of final shipment to the end user.
- To be eligible for a return, the item must be unused and in the same condition as
received.
- All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, DAKE Customer
Service must be contacted for approval:
•Phone: [phone]
Email: [e-mail]
- Once the return request has been approved by Customer Service, a representative will
supply a Return Material Authorization (RMA) number. The returned item must have the
provided RMA number clearly marked on the outside packaging. Any item received
without an RMA number clearly visible on the packaging will not be processed.
An RMA number can only be provided by the DAKE Customer Service team and must be
obtained prior to the return shipment.
Refunds
- Once the item has been received and inspected for damages, a representative will notify
the requestor referencing the provided RMA number.
- If the return is approved, a refund will be issued to the original method of payment, less a
20% restocking fee. The restocking fee may be waived if an order is placed at the time of
return with like-value merchandise.
- Transportation costs are the responsibility of the end user and will not be credited upon
return approval.
- Any item that is returned after the initial 30 days or has excessive/obvious use will not be
considered for a full refund.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 5 REV122021
SPECIFICATIONS
JH10W1
JH10W3
Number
985017
985018
Voltage
110V/220V, Single Phase
220V/440V, 3-Phase
Capacity
10” rounds, 18” flats
Horsepower
1 HP
Max Blade Speed
270 fpm
Blade Width
1”
Blade Length
137”
Blade Speeds
50/90/160/270 fpm
Solid Round 90° Capacity
10”
Solid Round 45° Right Capacity
7”
Solid Rectangle 90° Capacity
5” x 18”
Solid Rectangle 45° Right Capacity
4” x 10”
Bed Work Area
11” x 18”
Weight
935 lbs.
Height
75”
Floor Space
30” x 65”
Floor To Bed
23-3/4”

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 6 REV122021
SAFETY
Employer is responsible to perform a hazard/PPE assessment before work activity.
Follow recommended precautions and safe operating practices.
Carefully read all safety messages in
these instructions and on your saw’s
safety signs. Keep safety labels in good
condition. Replace missing or damaged
safety labels.
This machine is intended to be operated
by one person. Only properly trained
personnel should be authorized to operate
this machine.
Label Part No.
84395
Label Part No.
84604
Label Part No.
84605
Label Part No.
76462

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 7 REV122021
INSTALLATION
UNCRATING: Remove crating carefully. For ease in handling do not remove from skid until
machine has been moved to its approximate location.
LEVELING: Position machine level, shim under legs if necessary. Wet machines should be
more carefully leveled to be certain that the coolant intake remains submerged.
CONNECT INCOMING POWER TO THE STARTER PER APPLICABLE DIAGRAM, AND IN
ACCORDANCE WITH ALL LOCAL CODES.
DO NOT ATTEMPT TO RUN THIS SAW UNTIL THE BLADE ALIGNMENT HAS BEEN CHECK
AS PER THE OWNER’S MANUAL AND THE BLADE HAS BEEN PROPERLY RE-
TENSIONED.
OPERATION
FEATURES
OFF/ON Switch: Machines are equipped with a with low voltage, dropout protected
manual starter and a limit switch. When the machine frame reaches the end of its down
travel it contacts the limit switch, turning off the machine.
Blade Tension Handle: To keep blade at proper tension turn the screw handle until it is
at tight as possible. Check every 8 operating hours and retighten to compensate for
possible stretching of the blades. Consult your blade manufacturer for the proper PSI
tension.
Guide Arms: Guide arms should be set as close as possible to the work without
interfering. Loosen the handle on the left guide arm to slide arm along the top of the
frame, once in desired location tighten the handle to lock guide arm in place.
Hydraulic Control: The hydraulic control cylinder mounted on the rear of the machine is
operated by a control valve mounted on the front of the machine head. To close the
valve, turn the control to the right. When the valve is completely closed, the frame will
remain stationary, the desired position. To open the valve, turn the control left. Opening
of the valve will control the descending speed of frame (or head) and does not control
frame weight. This control is mainly used for cutting pipe or thin-walled tubing, structural,
etc., to prevent plunging of the saw blade.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 8 REV122021
Stock Stop Guide: Consisting of a stock stop assembly and a mounting bar installed in
the tip-off block on front of the machine. The stop assembly can be moved along the bar
to indicate correct length for duplicate cuts. Stock stop rod has a cap screw in the end for
making fine adjustments. Rotate rod right to extend the rod into position in order
measure stock and turn left to retract the rod before cutting.
Vise: The vise can be positioned straight for a 90º cut or at any angle to cut at 45º. The
vise swivel jaw adjusts automatically to any position of the stationary jaw.
Vise Handwheel: Used to open and close the vise jaw, to do so the vise nut must be
fully engaged. Turn the handwheel counterclockwise to open the vise and clockwise to
close the vise.
Vise Quick Release: Consists of the vise half-nut, vise lift, lift handle and a sliding hold-
down block to which the swivel jaw is attached. To move the vise, lift on the lift handle
toward the front of the machine to disengage the vise nut from the vise screw; this allows
the swivel jaw to move freely. Move the lift handle towards the rear of the vise to engage
the vise nut when clamping.
BLADE SELECTION
Saw blades should be selected by choosing the blade that will give the best results at the lowest
cost. Type of material and the speed at which it must be sawed determine the choice. Listed
below are general factors affecting blade selection.
1. Blade Type
a. Carbon Steel – Can be used to cut all types of ferrous, non-ferrous and
composition materials except alloys containing high percentage of chrome and
nickel. Limiting factor: low resistance to heat.
b. Bi-Metal – Designed for cutting ferrous metals in production cut-off applications.
Developed to saw high alloy materials that cannot be cut economically by other
means. Can be operated at higher speeds and greater feed pressures than
carbon steel blades.
2. Tooth Style
a. Standard – Zero-degree rake angle and full round gullets. Best suited for cutting
ferrous and non-ferrous materials.
b. Skip Tooth – Basically the same as standard except for more widely spaced teeth.
Provides added chip room when cutting non-ferrous materials.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 9 REV122021
c. Hook Tooth – Similar to skip tooth except teeth have positive rake. Effective in
sawing non-ferrous metals and large ferrous sections when heavy feed pressures
are required.
3. Tooth Spacing
a. Tooth spacing is determined by hardness of material and/or the cross-section.
The harder the material, the more teeth per inch. Thin cross-sections require more
teeth to avoid straddle. Rule: at least 3 teeth in contact with work.
4. Tooth Set
a. Raker – Most widely used. Consists of a repeated pattern of one tooth set left, one
right and one tooth straight. Recommended for production cutting where material
is of uniform size, shape, and type.
b. Wavy – Has groups of teeth set alternately to the left and to the right forming a
wave-like pattern. Used for cutting thin stock or where the work varies such as in
pipe, angles, channels, and extrusions.
BLADE REMOVAL
1. Raise frame a few inches above the bed and close feed cylinder valve to hold frame up.
2. Remove the necessary guarding and blade cleaning brushes.
3. Turn blade tension screw counterclockwise and pull the idle wheel toward the center of
the machine.
4. Push blade down, out of blade guides and remove blade from machine.
BLADE INSTALLATION
1. Raise frame a few inches above bed and close the feed cylinder valve to hold frame up.
2. Remove necessary guards and blade cleaning brushes.
3. Turn blade tension screw counterclockwise and pull idle wheel toward center of machine.
4. Grasp blade in center forming two loops. From rear of machine place blade loops under
wheels and rest the near portion on right front blade guard. CAUTION: BE SURE TO
WEAR GLOVES WHEN HANDLING BLADES.
5. Push blade up into blade guides. CAUTION: BE AWARE OF HYDRAULIC & COOLANT
LINES.
6. Fit blade up against flanges of the idle and drive wheels and tighten tension screw
enough to hold blade in place. Depress side of blade near rear blade guard to hold blade
on wheels while tightening tension screw.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 10 REV122021
7. Check to see that the blade is positioned correctly and tighten screw. Consult blade
manufacturer for proper PSI tension.
8. Install blade cleaning brushes and guards that were removed earlier.
BLADE TRACKING ADJUSTMENT
- Saw blade should track on each wheel with the back of the blade up to, but not riding on
the wheel flange. Adjust as follows:
Idle Wheel
1. Open top cover on left end of machine to gain
access to idle wheel. Idle wheel is mounted on
a slide block, which contains the blade height
adjustment screws.
2. To raise the blade, loosen the two screws
toward center of machine (A, on right) one-half
turn and tighten the other two screws (B) one-
half turn. Be sure tension screw (C) is properly
tightened to not over adjust.
3. Check by running machine after each
adjustment.
To lower blade, reverse procedure – loosen screws
(B) and tighten screws (A).
Drive Wheel
1. To raise the blade, loosen two cap screws (A, on
right) and tighten screws (B and C). All four screws
must be turned equally and in small increments
(about ½ turn) to avoid over adjustment.
2. Check by running machine after each adjustment.
To lower blade, reverse above procedure – loosen
screws (B and C) and tighten screw (A).

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 11 REV122021
BLADE GUIDE ADJUSTMENT
FRAME BALANCE SPRING ADJUSTMENT
- To check for proper balance spring adjustment, lift frame at by the handle with an
extension type scale (fish scale). The frame should weigh 12-15 pounds; if not, adjust by
turning the nut on the tension screw on bottom of spring.
OPERATING INSTRUCTIONS
1. Raise frame and close feed cylinder valve to hold frame in elevated position.
2. Loosen the vise nut and open the vise. Place work in vise and slide the vise swivel jaw
against the work piece. Engage the vise nut and tighten the vise screw to clamp the work
securely.
3. Slowly open feed cylinder valve and lower the frame until the blade is ½” to 1” away from
the work. CAUTION: IF THE BLADE SHOULD REST UPON THE WORK BEFORE
MOTOR IS STARED THE BLADE TEETH CAN BE DAMAGED. IF THE BLADE IS
DROPPED ONTO THE WORK THE BLADE MIGHT BREAK. MAKE SURE THE
BLADE IS PROPERLY BROKEN IN PRIOR TO CUTTING.
Note: The following instructions are for one guide
arm; procedure is same for both arms. Left hand
guide arm is shown to the right.
1. Loosen nut (A, on right) and turn eccentric axle (B)
until there is no light gap between rollers and
blade…do not pinch the blade. Tighten nut (A).
2. Vertical and radial adjustment is provided by the
clearance in the guide mounting holes (C). This
allows squaring of the blade to the bed and holding
the blade in the natural blade line.
3. Proper guide adjustment may require adding or
removing washer (shims) (D) for correct bearing
height (E).

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 12 REV122021
4. Move the adjustable guide arm as close as possible without contact to the work to provide
maximum blade rigidity.
5. Check the blade tension, adjust if needed. Consult blade manufacturer for proper PSI
tension.
6. Turn coolant valve on. CAUTION: DO NOT OPERATE MACHINE WITHOUT
SUFFICIENT COOLANT IN TANK. COOLANT MUST BE WATER-SOLUBLE. DO NOT
USE OIL.
7. Check blade speed needed for material being cut. Refer to blade manufacturer for proper
speeds for materials.

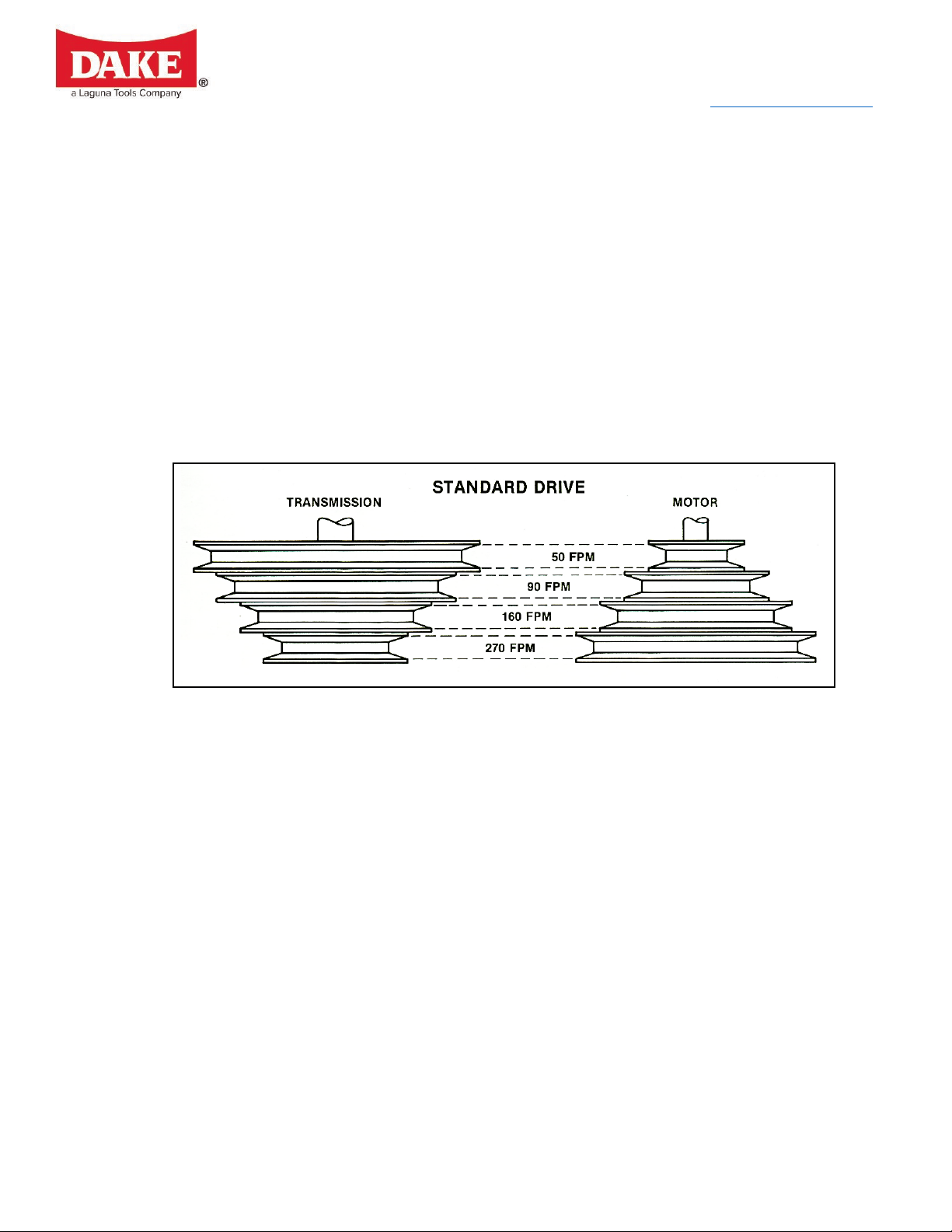

8. To change blade speed, loosen thumbscrew on right end of machine and raise the pulley
guard. Move drive belt to proper grooves in both pulleys for desired blade speed (See
figure below), then replace the guard.
9. Start motor.
10.Open feed cylinder valve to the proper setting. “Proper” setting depends upon type of
material, hardness and thickness of stock and desired accuracy and finish. Soft materials
require less feed than hard materials. Thin cross-sections require less feed than solid
cross sections. Generally, reduced feed pressure will result in a straighter more accurate
cut.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 13 REV122021
MAINTENANCE
FEED CYLINDER BLEEDING
Air trapped in the hydraulic cylinder can cause the down fed of the machine head to be
erratic or “bouncy”. Before taking corrective steps observe CAUTION note.
CAUTION: UNDER NO CIRCUMSTANCES SHOULD THE HYDRAULIC TUBING
CONNECTIONS BE LOOSENED OR DISCONNECTED WITH THE MACHINE HEAD IN
THE UP POSITION.
1. Using AW32 hydraulic oil or equivalent, open the oil cup and fill to top with oil, then close.
2. With your finger over the oil cup lid raise the head of the machine then lower it.
3. Repeat steps 1 & 2 until the oil cup is full.
LUBRICATION
Lube Point
(See below)
Description
Frequency
Lubricant
Instructions
1
Drive wheel
ring gear
6 months
D Clean thoroughly before lubricating.
2 Gear box Maintain
level
B
Maintain level at 2 to 3 ounces.
Drain and refill yearly. Capacity of 3
ounces.
3
Pivot bar (2
fittings)
Monthly
C
Use grease gun.
4
Tension
screw
6 months
C
Clean threads before lubricating.
5
Idle wheel
slide ways
6 months
C Clean thoroughly before lubricating.
6 Feed cylinder
Maintain
level
A
Maintain level found at the top of oil
cup.
RECOMMENDED LUBRICANTS
A
Mobil DTE 24 or 26 oil.
Viscosity range 310SSU @ 100°F
B
Gear oil 80/90.
Mobil SCH634 synthetic gear lube.
C
General purpose grease.
Viscosity range NLGI-2.
D
Open gear lubricant.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 14 REV122021
TROUBLESHOOTING
Blade not cutting straight
↓Blade breaking/teeth stripping
↓Premature blade dulling
↓Back of blade swaging over
↓Pieces breaking away from the back of the blade
↓
●●Improper blade tensions Adjust tension screw
●●●Excessive feed rate/cutting
pressure
Turn cylinder control knob to
decrease head descent speed
and/or move slide weight to
right
●●
Guide arms too far from work
or cutting pressure all on one
guide
Move guide arm
●●Improper contact to cleaning
brushes with blade
Clean brushes and adjust
holder; replace brushes if worn
out
●Damaged or worn blade Replace blade
●●Material insecurely held in vice Adjust vice handwheel
●●
Improper guide roller
adjustment
Readjust rollers
●
Blade guides improperly
adjusted
Readjust guides
●
Head approaching work piece
too fast
Turn cylinder control knob to
decrease head descent speed
●●Blade too coarse Install proper blade
●Excessive blade tension Readjust blade tension
●Insufficient feed pressure
Turn cylinder head control knob
to increase head descent aped
and/or move slide weight to left
●
Blade riding up on wheel
flanges
Re-adjust blade tracking
●
Blade tracking too high on
wheels
Adjust drive and idle wheels for
proper blade tracking.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 15 REV122021
ELECTRICAL DIAGRAM
110V Single Phase

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 16 REV122021
230V Single Phase

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 17 REV122021
230V 3-Phase
460V 3-Phase

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 18 REV122021
EXPLODED VIEW & PARTS LIST
Item
Part Name
Part Number
Qty
1
Front Frame
10002-01
1
2
Rear Frame
10003-01
1
3
Bed
10001-00
1
4
Pivot Bar
10066-00
1
5
Shaft Locking Collar
13010-08
2
6
Right Leg
10004-02
1
7
Left Leg
10005-02
1
8
Balance Spring – includes carriage bolt and nut
10070-00
1
9
Spring Perch
10100-01
1
10
Outboard Bearing Casting – (3/8” bolt, lock washer, & nut)
10101-00
1
11
Stock Stop Assembly
5527-00
1
11A
Holder Casting
5027-00
1
11B
Rod
5213-00
1
11C
Spring
5028-00
1
11D
Handle (S/N 10962)
5200-00
1
12
Stock Stop Mounting Bar
5027-01
1
13
Tip-off Block
10006-01
1
14
Coolant Drawer Pan
10269-00A
1
15
Left Hand Blade Guard
300405A
1
16
Right Hand Blade Guard
300404A
1
18
Left Leg Pan
10268-07A
1
19
Right Leg Pan
10268-05A
1
20
Frame Handle
10093-00
1
21
Brush Holder Guard
10229-00
1
22
Name Plate
72295
1
23
Submersible Coolant Pump – Electric 110 Volt
71541
1

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
985017/985018 19 REV122021
PARTS NOT ILLUSTRATED
Description
Part No.
Qty
Motor, 110/230 Volt, 60 Hz Single-Phase, 1 H.P.
10079-07
1
Motor Pulley – 5/8” Bore (1 Used on Old Style)
10042-10
2
Drive Belt
10077-10
1
Pulley Guard
10223-10A
1
Motor Mounting Bracket
5107-00
1
Stationary Motor Bracket
5106-02
1
Motor Mounting Pin
5106-03
1
Frame Covers (Left and Right)
300403A
2
Knob for Frame Covers
300804
4
Rear Frame Blade Guard
10230-10A
1
Drive Wheel Drip Pan
10271-00A
1
Wheel Pan Strap
10287-00
1
Wheel Pan Bar
10286-00
1
Thumb Screw – Drive Wheel Drip Pan (S/N 10962)
70295
2
Spring Bracket Top
10209-01
1
Lower Left Front Cover
10126-13A
1
Frame Rest (S/N 10962)
10091-10
1
Drive Wheel Cover
300407A
1
Idle Wheel Cover
300408A
1
Drive & Idle Wheel Spoke Guards (Not used on current model)
300409A
-
Wire Ties
300246
8
