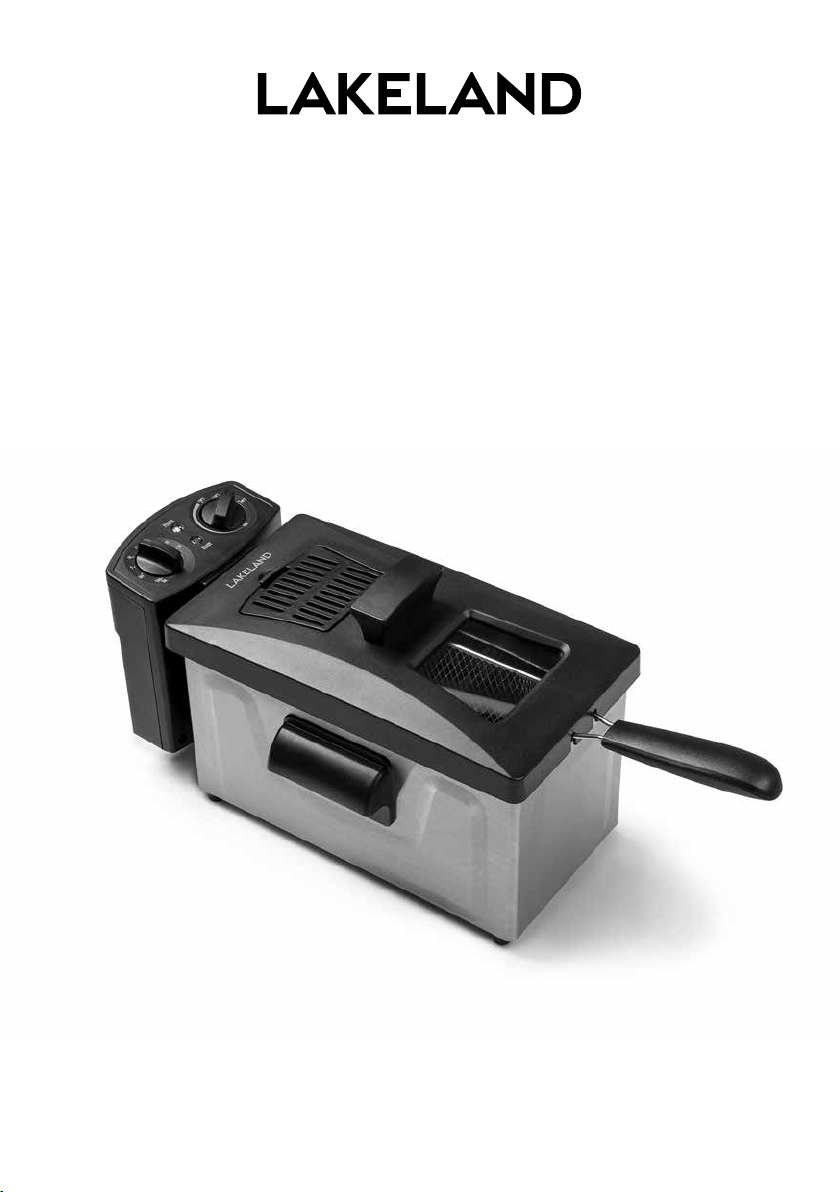

Lakeland 62804 User manual

INSTRUCTION BOOKLET
Model: 62804
DEEP FAT
FRYER

2
LAKELAND DEEP FAT FRYER
Thank you for choosing the Lakeland Deep Fat Fryer.
Please take a little time to read this booklet before getting started and keep it in a safe
place for future reference.
The Lakeland Deep Fat Fryer will sit neatly on the worktop and will help you produce a
wide range of foods for meals and treats; from traditional fish and chips, crispy onion
bhajis, tasty churros and more.
Here at Lakeland, our award-winning family-owned business still offers the same excellent
quality, value for money and exceptional customer service as when we founded the
company back in the 1960s.
Our products are hand-picked and thoroughly tested so you can be sure that everything
you purchase will be a pleasure to use for many years to come.

3
CONTENTS
Product features...........................................................................................................4-5
Safety cautions.............................................................................................................6-7
Setting up the Deep Fat Fryer and using for the first time.................................................8
Attaching the control panel to the base unit....................................................................8
Attaching the basket handle............................................................................................9
Instructions for use ..................................................................................................10-11
Guide to ingredients and cooking times.........................................................................11
Hints and tips................................................................................................................12
Frequently asked questions............................................................................................13
Care and cleaning .........................................................................................................14
Technical Information....................................................................................................15
Electrical connections....................................................................................................15
Recycling your electricals ...............................................................................................15

4
PRODUCT FEATURES
1. Control panel
2. Control panel
mounting plate
3. Removable filter
4. Air vents
5. Lid handle
6. Viewing
window
7. Lid
8. Housing
carry handles
9. Base unit
(stainless steel
housing)
10. Heating element
11. Tank
12. Maximum oil level
13. Minimum oil level
14. Non-slip feet
11
10
14
7
56
4
3
1
8
9
12
13
2

5
1. Timer Control Dial
The timer control dial turns the Fryer on and sets the desired frying time.
2. Temperature Control Dial
The temperature control dial turns the Fryer on and sets the desired temperature
for frying.
3. Power Light
The power light illuminates when the Fryer is on.
4. Ready Light
The ready light will go off when the set temperature has been reached. This light will
switch back on as the appliance has lost heat whilst food has been added. This is
normal and will switch back off once the appliance is back to the set temperature.
5. Reset Feature
To protect against damage due to overheating, the appliance will auto turn off should
it overheat. Once the appliance has cooled down, you will need to switch the reset
button to turn it on again.
15. Removable basket handle
16. Basket rest
17. Basket 17
16
15
CONTROL PANEL
3
4
1
2
5

6
SAFETY CAUTIONS
Carefully read all the instructions before using the appliance and keep in a safe place
for future reference. Always follow these safety cautions when using the appliance to
avoid personal injury or damage to the appliance. This appliance should be used only as
described in this instruction book.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be done by children unless they are older
than 8 and supervised.
• Make sure your electricity supply matches the voltage shown on the appliance.
• Ensure all packaging materials and any promotional labels or stickers are removed from
the appliance before the first use.
• Always inspect the appliance before use for noticeable signs of damage. Do not use if
damaged or has been dropped. In the event of damage, or if the appliance develops a
fault contact the Lakeland customer care team on 015394 88100.
• Do not use this appliance if the lead is damaged. If the lead is damaged it must be
replaced, contact the Lakeland customer care team on 015394 88100.
• Always use the appliance on a dry, level, heat resistant surface.
• Unplug from the mains when not in use and before cleaning. To disconnect, turn the
socket to “off” and remove the plug from the mains socket.
• Do not use any accessories or attachments with this appliance other than those
recommended by Lakeland.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or
unit in water or other liquids.
• Do not leave the lead hanging over the edge of a kitchen table or worktop. Avoid
contact between the lead and hot surfaces.
• For indoor use only.
• For domestic use only. It is not suitable for commercial use, or for use outdoors.
• This appliance should be used for preparation of food as described within the
instructions for use that accompany it.
• Always ensure that your hands are dry before removing the plug from the mains socket.
Never pull the plug out of the mains socket by its lead.
• To avoid injury or possible fire, do not cover the appliance when in use.
• Do not connect this appliance to an external timer or remote control system.
• An earthed extension cable may be used with care. The electrical rating of the cable
should be at least as great as the appliance. Do not allow the cable to hang over the
edge of the worktop or touch any hot surfaces.

7
• This appliance complies with the basic requirements of Directives 2014/30/EC
(Electromagnetic Compatibility) and 2014/35/EU (Low Voltage Directive).
• WARNING: A cut off plug inserted into a 13 amp socket is a serious safety (shock)
hazard. Ensure the cut off plug is disposed of safely.
• CAUTION: The plastic bags used to wrap this appliance or the packaging
may be dangerous. To avoid risk of suffocation, keep these bags out of reach
of babies and children. These bags are not toys.
• Do not heat the Fryer without putting oil in the tank first.
• Do not use the Fryer unless it is fully assembled.
• Oil must be filled to the minimum level at least and not exceed the maximum level.
• Do not attempt to move this appliance or empty the oil when the oil or appliance is still
hot. Cool completely before moving.
• Though the tank can be completely immersed in water to clean, it must be thoroughly
dried before next use to prevent electric shock.
• Do not add food with an excess of moisture to the hot oil.
• Do not cover the Fryer or block the air vents in the lid whilst in use.
• Avoid lifting the lid when cooking food in the Fryer, as this will decrease the
temperature of the oil. Use the window to check the progress of your cooking.
• On completion of frying, always raise the basket and wait a few seconds to allow steam
pressure to subside.
• Do not place the Fryer on or near a hot gas or electric burner, or in or near a
heated oven.
• Take great care to ensure that the handle is firmly locked into place on the basket. See
‘Attaching the basket handle’.
• Do not place utensils or over-sized pieces of food into the Fryer.
• Do not use to boil water.
• Switch off and unplug the Fryer from the socket before cleaning and when not
in use. Always allow the fryer to cool down completely before cleaning.
WARNING – HOT SURFACES
The surfaces marked with this symbol will get
very hot during use and will stay hot after use.
Serious hot oil burns may result from a deep
fryer being pulled off a countertop. Do not
allow the power cord to hang over the edge
of a counter where it may be grabbed by
children or become entangled with the user.
To prevent injury, DO NOT TOUCH.
Allow the appliance and oil to cool completely before handling
this appliance, and always use the handles. Use this fryer with
caution, use gloves.

8
SETTING UP THE DEEP FAT FRYER AND USING FOR
THE FIRST TIME
1. Unpack the Fryer, basket and basket handle. Remove all the packaging materials.
WARNING: Do not plug in the appliance when the control panel is not fully
assembled and installed on the base unit. Only plug in the Fryer when the unit is
fully assembled and the heating element is immersed in oil.
2. Wash the tank, base unit, lid, basket and basket handle in warm soapy water,
dry thoroughly.
WARNING: Do not immerse the control panel, cord or plug in water.
3. When you first use the Fryer there may be an odour, this is normal and will stop after
a few uses.
4. Before first use, fill the oil tank with oil to the MAX level, heat it for about
10 minutes at 150ºC, let it cool down completely, then drain out the oil.
ATTACHING THE CONTROL UNIT TO THE BASE UNIT
1. To attach the control panel to the base,
make sure the tank is already inside the
base unit.
2. With the heating element facing the
direction of the tank, slide the control
panel onto the control panel mounting
plate situated on the back of the
base unit.
3. Make sure the control panel is secure,
as an automatic safety switch will
prevent the appliance from switching on.
Control panel
mounting plate
Control
panel

9
ATTACHING THE BASKET HANDLE
1. Take the basket handle with the two metal prongs
facing downwards.
2. Squeezing the prongs together, slot them into the
two holes in the handle attachment on the inside of
the basket.
3. Pull the handle down until it clicks onto over the
edge basket.
4. Take great care to ensure that the handle is firmly
locked into place on the basket. The handle will feel
very secure and look like this.

10
WARNING: Do not heat the Fryer without putting oil in the tank first. Oil
must be filled to the minimum level and must not exceed the maximum
level. If the Fryer is switched on with no oil in the tank, the appliance will
automatically cut-out. This is a safety mechanism and will permanently
damage the appliance.
WARNING: Do not use the Fryer under wall-mounted cupboards, which
may prevent the lid fully opening. Do not leave the Fryer unattended when
it is switched on.
INSTRUCTIONS FOR USE
FILLING THE OIL RESERVOIR
1.
Pour the oil into the tank making sure that it is between the “MIN” and “MAX” fill lines.
2. Do not under fill or overfill. The oil levels must be maintained between the
minimum (2.2 litres) and the maximum levels (3 litres) marked inside the tank.
3. You can use blended vegetable oil, corn oil, or rapeseed oil. Do not use olive oil.
Never mix old and new oil together or different oils.
PREHEATING
1. WARNING: Never plug in the appliance before filling the tank with oil. Always unplug
the appliance when it is not in use.
2. Make sure that the oil level in the tank is between the “MAX” and “MIN” fill lines
inside the tank.
3. Place the lid onto the Fryer.
4. Insert the plug into the wall socket. The power on light will illuminate red.
5. Turn the temperature control to the desired temperature and turn the timer control
to ON. Select the frying temperature according to the food to be cooked, see ‘Guide
to ingredients and cooking times’.
6. The ready light will illuminate green when the set temperature is reached.
FILLING THE FRYING BASKET AND FRYING
1. WARNING: When frying frozen foods, remove the frying basket from the deep
fryer before filling because oil will spatter and cause burns.
2. CAUTION: When frying frozen foods such as French fries, remove any ice from frozen
food prior to frying. Failure to do so may cause the fryer to overflow when food is
placed in the oil.
3. Do not fill the basket when it is immersed in the hot oil.
4. Place the food in the basket. Do not drop the food into the hot cooking oil. Do not
overfill it and never exceed the 2/3 depth of the basket. For optimum results and
shorter frying time, fry smaller quantities.
5. Immerse the basket into the tank carefully and slowly so that you do not splash the oil.
6. Replace the lid on the appliance while it is frying to protect you from any splashes of
oil when the food is cooking.
7. Use the viewing window to view your food or lift the basket out of the oil and hook it
onto the side of the tank to have a look.
8. When the cooking period is over, carefully remove the lid, lifting it up away from you

11
to allow the steam to escape before removing the lid completely. Keep your face away
from the top of the appliance to avoid burns caused by escaping Steam.
Avoid standing too close to the deep fryer while it is working.
9. Turn the temperature control to the “MIN” position, turn the timer control to OFF.
10. Switch off at the socket and unplug the Fryer.
11. Lift up the basket by the handle and hook on the edge of the tank to allow the oil
to drain.
12. Once the oil has drained from the basket, the basket may be lifted off. Place your
cooked food on kitchen paper to soak up any excess oil, then serve.
WARNING: Always let the appliance cool completely (approximately 2 hours) before
cleaning or storing. Never carry or move the appliance with hot oil inside.
CAUTION: The metal surfaces of the appliance become hot during use. Do not touch the
sides of the appliance while it is in use.
RESET FEATURE
1. Should the appliance auto turn off due to overheating
turn off and unplug the appliance from the wall socket.
Let the appliance and the oil in the oil reservoir
cool completely.
2. After the appliance has cooled completely, lift the control
panel and using the tip of a ball point pen or pencil, push
the thermostat reset button that is located on the inside
of the control panel.
3. Re-assemble the control panel to the base unit of the Fryer
and then you may resume frying.
GUIDE TO INGREDIENTS AND COOKING TIMES
This table is only an approximate guide to cooking times for different foods. The exact
time may be different depending on actual quantity, personal cooking preferences, size
and thickness of pieces, etc. You can then use these ingredients in your favourite recipes
and dishes. In general, use lower settings for delicate foods (vegetables, fish) and higher
settings for frozen foods, chips and chicken.
RESET
Food Temperature Weight/Size Time
Fresh chips (steak cut, 1.5cm thick) 190°C 350g 8 - 10 min.
Frozen chips (steak cut, 1.5cm thick) 190°C 350g 10 - 15 min.
Fresh fish in batter or crumb 150°C 150g 3 - 5 min.
Frozen fish in batter or crumb 170°C 150g 12 - 15 min.
Fresh chicken drumsticks 170°C 150g 12 - 15 min.
Onion rings 150°C 100g 3 min.
Tempura style batter coated onion rings 170°C 100g 2 - 3 min.
Churros 180°C 2cm thick 4 - 5 min.

12
HINTS AND TIPS
OIL
• We recommend using vegetable oil, corn oil or rapeseed oil. Always check your oil is
recommended for deep frying. Do not mix different oils or new and old oil together.
• Always start with clean oil. To keep your oil clean, strain out any pieces of food after
use, and replace the oil completely after 10 uses, or longer than 6 months.
• To keep your food crisp and prevent it from soaking up too much oil, always make sure
your oil is heated to the right temperature before you start cooking.
• If you are battering food before frying, drain off any excess batter before adding it to
the Fryer. This will prevent you having to clean pieces of batter from the oil.
• The tank is removable, tip and pour to empty. Do not attempt to empty the oil when
the oil or appliance is still hot. Cool completely (approximately 2 hours) before moving,
changing the oil, cleaning and storing the Fryer.
• You can store the oil in a separate pot after use or store it inside the Fryer. If storing oil
in the Fryer you must keep the oil clean and sealed. Do not store the oil inside the Fryer
for more than 4 weeks. If you do not use the Fryer frequently, empty the oil after each
use, clean the appliance and store the oil separately until it is required again.
COOKING
• A wide variety of savoury and sweet foods can be cooked in the Fryer.
• Generally, foods with a batter or coating on the outside need a higher
cooking temperature.
• Frozen foods and raw meat should be cooked at a lower temperature, so they heat
through without browning too quickly.
• Foods cooked from frozen will require longer cooking times than fresh items.
• Remove any excess ice from the outside of frozen food, to avoid the oil spitting when
you add food to the Fryer.
• If you are planning on cooking several different foods in the Fryer in one cooking
session, start with the least strongly flavoured food first, so that the oil does not transfer
flavours between the foods.
• Foods containing sugar can turn brown outside without being fully cooked inside, cook
them at a lower temperature. Always check the food is fully cooked before serving.
• We strongly recommend that you do not fill the basket more than two thirds full of
food. For chips, do not cook more than 350g at one time.
• Cook food for the recommended amount of time, according to the ‘Guide to
ingredients and cooking times’ or the instructions on the food packet.
•CAUTION: Remember that the food may begin to turn golden brown before it is fully
cooked, check the food is fully cooked before serving.

13
FREQUENTLY ASKED QUESTIONS
Question: Why is the Fryer not operating?
Answer: The control panel may not be slotted correctly onto the base unit. If
assembled correctly check that the plug is turned on at the wall socket.
The reset safety feature may have tripped, turn off the appliance and unplug
from the wall socket. Allow to cool completely, then remove the control
panel and press the thermostat reset button.
The timer control dial may be switched off, ensure that the timer is on and
set at your desired time for cooking.
Question: Why is there an unpleasant smell when the oil is heating up?
Answer: The oil may be dirty. Switch off the Fryer, allow the oil to cool completely and
follow the instructions under Care and Cleaning. Fill the tank with clean oil.
Question: Why is my fried food not crispy?
Answer: The oil is not hot enough. Make sure it has fully heated to your required
temperature before cooking or increase the cooking temperature.
There may be too much food in the basket, remove some of the food from
the basket.
Question: Why is my food not cooked completely?
Answer: The food ingredients may be too large, cut them into smaller pieces.
You may need to increase the cooking time as it is not long enough.
The temperature of the oil is too hot, lower the temperature of the oil to
allow the food to cook completely.
Question: Why is the oil overflowing?
Answer: Either there is too much oil in the fryer or too much food in the basket,
check that the oil is below the maximum level or reduce the amount of food
in the basket. Or, the food in the fryer is too wet. Make sure excess water has
been removed from the food.
Question: Why is the oil foaming?
Answer: The oil has been used too often, turn off the fryer and allow to cool
completely, refill the oil reservoir with new oil.

14
CARE AND CLEANING
• Switch off and unplug the Fryer from the socket before cleaning and when not in
use. Always allow the Fryer to cool down completely (approximately 2 hours)
before cleaning.
• Do not attempt to empty the oil when the oil or appliance is still hot. Cool completely
before moving, tip and pour to empty.
• Pour the used oil into a suitable container for disposal.
• Before the first use and after every use, clean each part thoroughly.
• The control panel can be removed for
cleaning by sliding the control box upward
off its mounting plate.
• Never immerse the control panel, cord or
plug unit in water or any other liquid. To
clean, wipe with a clean damp cloth and
dry before storing.
• The base unit, tank, frying basket,
removable handle and lid can be washed
in hot, soapy water.
• Check all parts before reassembling.
• Re-assemble the control panel to the base
unit of the Fryer by sliding back onto the
mounting plate.
• Do not use steel wool, or abrasive
cleaners, or materials.
• The filter does not require regular
cleaning. In case you do need to clean it,
remove the filter cover on the lid under
which is the filter. Wash both parts in
warm soapy water. Rinse and dry.
Replace the parts back into place.
• Store the Fryer with the power cable
loosely coiled. Never wrap it tightly around
the product.
Filter
Control panel
mounting plate
Control
panel

15
TECHNICAL INFORMATION
• Power: 1800W.
• Voltage: 220-240V.
• Frequency: 50-60Hz.
ELECTRICAL CONNECTIONS
THIS APPLIANCE MUST BE EARTHED
The appliance is fitted with a fused three-pin plug to BS1363 which is suitable for use in
all homes fitted with sockets to current specifications.
CHANGING THE 10 AMP FUSE
Use a 10 amp BS1362 fuse. Only BSI or ASTA approved fuses should be used. If you are
unsure which plug or fuse to use, always refer to a qualified electrician.
Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the
cover must be refitted to the plug; the appliance must not be used without a fuse cover.
If lost, replacement fuse covers can be obtained from an electrical shop. This appliance
complies with the following EU Directives: 2014/35/EU (Low Voltage Directive) and
2014/30/EU (EMC Directive).
RECYCLING YOUR ELECTRICALS
Along with many other high street retailers, Lakeland has joined a
scheme whereby customers can take their unwanted electrical product
to recycling points set up around the country.
Visit www.recycle-more.co.uk to find your nearest recycling point.

16
Lakeland
Alexandra Buildings, Windermere, Cumbria, UK LA23 1BQ
Tel: [phone] lakeland.co.uk
