Lamona LAM6912 Guide

Instructions and Installation
LAM6912
Wine Cooler (300mm)
www.howdens.com/appliance-registration

See back page for product serial number

03_
Dear Customer,
Congratulations on your choice of wine cooler.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the appliance.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
Product information correct at the time of publication in October 2018. The company has a policy of
continuous product development and reserves the right to change any products and specifications given
in this manual.
This product’s packaging material is recyclable. Help recycle it and protect the environment
by dropping it off in the municipal receptacles provided for this purpose. Your product also
contains a great amount of recyclable material. It is marked with this label to indicate
the used appliances that should not be mixed with other waste. This way, the appliance
recycling organised by your manufacturer will be done under the best possible conditions,
in compliance with European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment. Contact your town hall or your retailer for the used appliance collection points
closest to your home. We thank you doing your part to protect the environment.
By placing the marking on this product, we declare, on our own responsibility, compliance to all
of European safety, health and environmental requirements stated in the legislation for this product.
User manual LAM6912

_ 04
Index
Contents Page
01 - Before Using The Wine Cooler 05
02 - Safety 05
General 05
03 - General Information 06
08
09
12
Wine cooler l ayout / control panel 06
04 - Operating Your Wine Cooler 07
Power on/off control 07
Interior light on/off 07
Temperature display window 07
Temperature setting 07
05 - Care & Maintenance
Cleaning your wine cooler 08
Power failure 08
Absence and holidays 08
Moving your wine cooler 08
Shelves 08
Energy saving tips 08
06 - Installation
Before installation 09
Integrated installation 09
Installing the handle 10
Reversing the door swing 10
Adjusting the plinth cover 11
Connection to the mains supply 11
07 - Troubleshooting
08 - Your Guarantee 13
LAMONA Appliances

05_
•
•
0 1 - Before Using The Wine Cooler
General
This appliance is for domestic purposes only
and is intended to be used exclusively for the
storage of sealed bottles. Commercial
use or anything beyond it’s intended purpose
will void the guarantee (see guarantee page).
The manufacturer shall not be liable for any
damage caused by improper use or handling
errors
• Use this appliance only as described in this
manual. Other uses not recommended may
cause fire, electric shock or personal injury.
This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced people
(including children) unless they are supervised
by a person who will be responsible for their
safety or who will instruct them accordingly in
the use of the product. Children must be
supervised to prevent them from tampering
with the product.
• To protect against the risk of electric shock,
do not immerse the unit, cord, or plug in
water or spray any other liquid nearby.
• Unplug the appliance from the plug socket
when not in use, when moving from one
location to another and before cleaning.
• To disconnect the appliance, grip the plug
and pull it from the wall outlet. Never pull
out by the cord.
• Do not operate the appliance in the
presence of explosive or flammable gases.
• Do not place the appliance or any of its
parts near an open flame, cooking or other
heating the appliance.
•
•
Do not use outdoors.
• Do not operate the the appliance with a
damaged cord or plug, if the product
malfunctions, or damaged in any manner.
• The use of attachments not recommended
by the manufacturer may be hazardous.
• Place the unit on a dry level surface.
• Do not opera t e if the housing is removed or
damaged.
• A loose fit between socket and the plug may
cause overheating and a distortion of the
plug. Contact a qualified electrician to
replace any loose or worn sockets before
installation.
• Locate the unit away from direct sunlight
and sources of heat (cooker, heater, radiator).
• This appliance is CFC and HFC free.
• Ensure that the ventilation openings of
the built-in appliance are never blocked or
covered and keep children and animals away
from the slots.
• No liability will be accepted for any damage
incurred owing to misuse of the appliance
or as a result of repairs carried out by
unqualifed personnel. In this case neither
the guarantee nor other liability claims apply.
Do not operate any electrical appliances
inside the wine cooler.
To reduce the risk of fire, electric shock, or
personal injury, unplug or disconnect the
appliance from the power supply before moving
or cleaning the appliance.
02 - Safety
Before using your wine cooler
Please remove all packaging, stickers and films from the product’s surface
and clean the product's surfaces with a damp cloth and mild detergent
before using for the first time.
We recommended that you leave your wine cooler to stand for at least
24 hours before switching on to allow compressor oil to settle.
Do not store explosive substances such as
aerosol cans with a flammable propellant
in this appliance.
User manual LAM6912

_ 06
03 - General Information
Height. 870 - 890mm
Width. 150mm
Depth 570mm (inc handle)
Wine cooler layout / control panel
°C
°F
°C/°F
i kj
m
Control Panel
Power Lighting Display window Temperature up/down
Interior LED Light
Digital control panel
Handle
Shelf
Door
Adjustable feet
General information
LAMONA Appliances

07_
04 - Operating Your Wine Cooler
For your wine cooler to work at optimum
efficiency it is recommended that the product is
installed in a domestic environment where the
ambient temperature is maintained between
16-25°C.
If the ambient temperature is above or below
the recommended range (for example; extreme
hot or cold conditions) the temperature range
of 5-22°C may not be reached.
The wine cooler will run continuously until
the required temperature range is achieved. This
is quite normal and not a cause for concern.
Once the wine cooler is running for a few
hours everything will be back to normal.
If the unit is unplugged, power lost, or turned off
it is recomended you wait 3 to 5 minutes before
restarting the unit.
Power on/off control
• When the appliance is plugged in to a power
outlet, it powers on automatically.
Interior light on/off control
• Touch the light symbol to turn the
interior LED light on/off.
• If the light is left on it will increase the
energy consumption slightly.
Temperature display window
• The number in the digital display reflects
the temperature selected for the cooler.
Temperature setting
• The temperature setting range is 5-22ºC
• Directly touch the or to set the
temperature that you would like.
• Touch the to increase the set temperature
by 1ºC and touch the to decrease the set
temperature by 1ºC.
Operating your wine cooler
Touch the power symbol and hold for 10
seconds to turn the appliance on/off.
•
User manual LAM6912

08_ Care and Maintenance
Cleaning your wine cooler
• Turn o ff the p ow er, unplug the appliance, and
rem ove all items including shelves.
• To remove the shelves from the
compartment; open the door fully and slide
them out carefully taking care not to lose
the anti-vibration pads. Please ensure these
are replaced when the shelf is put back (for
further information please refer to ‘shelves’
section).
• Clean the inside surfaces with a damp cloth
and baking soda solution. The solution
should be 2 tablespoons of baking soda to
1 litre of clean of water. Use a soft, dry,
clean cloth to wipe dry.
• Clean the shelves with a mild detergent
and damp cloth, and dry.
• Use a damp, clean cloth when cleaning
the area of the controls.
• Clean the outside of the cabinet with a
damp cloth with warm water and mild
liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
Power failure
• Most power failures are corrected within a
few hours and should not affect the
temperature of your appliance if you
minimise the number of times the door is
opened. If the power is going to be off for a
longer period of time, you need to take the
proper steps to protect the contents.
Absence & holidays
• For short holidays, leave the wine cooler
in operation for periods of less than three
weeks.
For long absences or if the appliance will not
be used for several months, remove all items,
turn off the appliance and unplug. Clean
and dry the interior thoroughly. To prevent
odours and mould growth, leave the door
open slightly: blocking it open if necessary.
•
Moving your wine cooler
• Remove all items
• Securely tape down the shelves inside your
appliance.
• Wind in the adjustable legs up to the base in
order to avoid damage.
• Tape the door shut.
• Protect the outside of the appliance with a
blan ket, or similar item.
Shelves
• To prevent damaging the door gasket, make
sure the door is fully opened when pulling
shelves out of the compartment. (You may
need to pull the cooler forward to remove
shelves once it has been installed depending
upon size of unit gap)
• The shelves are designed for 75cl Bordeaux
bottle storage. The maximum loaded amount
of bottles may vary according to the size or
dimensions of bottles you store.
Energy saving tips
• The wine cooler should be located in the
coolest area of the room, away from heat
producing appliances, and out of direct
sunlight.
• Ensure that the unit is adequately ventilated
Never cover air vents.
• Only open the door for as long as necessary.
05 - Care & Maintenance
LAMONA Appliances

_ 09
Installation
Before installation
The product should only be installed by a
suitably competent person.
*Please ensure the power socket accessible after installation
The product must be installed in
accordance with all local regulations.
Prior to installation, visually check the
product for any damage/defects. Do not
install if any issues are found.
Damaged products may cause risks to your
own safety.
Let the appliance stand upright for
approximately 24 hours before connecting it
to the power source. This helps to reduce the
possibility of a cooling-system malfunction
from handling or transportation.
The appliance is intended for installation
between Howdens kitchen cabinets.
Kitchen cabinets must be set level and fixed.
06 - Installation

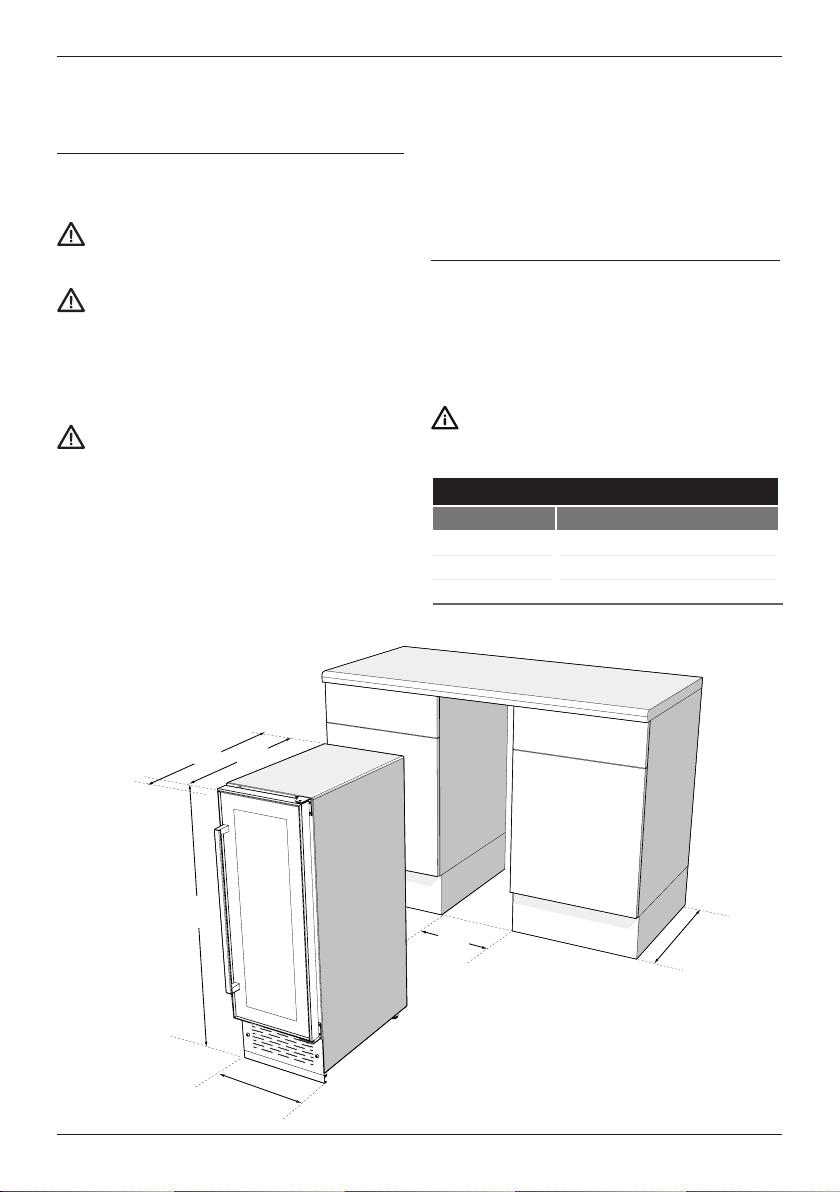

The following installation drawings are
representational and may not
.ecnailpparuoyhtiwyltcaxehctam
Integrated installation
When integrating your wine cooler into a fitted
kitchen, sufficient space is required to allow the
wine cooler to be fully ventilated and for the door
to be opened fully . The appliance may need to be
positioned off centre to overcome any door
collision issues.
Ensure your cabinet aperture meets the
minimum dimensions listed below.
CABINET OPENING DIMENSIONS
mm (Minimum)
Height 870
Width 305
Depth 570
305mm
Min
295mm
870 - 890 mm
525mm
570mm (Exc handle )
520mm
User manual LAM6912

LAMONA Appliances
10_ Installation
Installing the handle
Gently pull the door gasket to one side to reveal
the two designated holes for handle installation.
Install the handle tightly as shown below with
the two screws, and washers provided.
Reversing the door swing
This wine cooler door can open from either
the left or right-hand side. The unit is delivered
with the door opening from the left-hand side.
Should you wish to reverse the door swing,
please follow the reversal instructions below.
All parts removed must be saved to reinstall
the door
Open the door and remove the two screws (1)
under the lower right hand corner of the door
that are used to hold the pivot plate (3), to
the hinge plate (2). Be careful to support the
glass door with both hands to prevent it
dropping after removing the screws and
moving the door away from the hinge.
4
5
7
3
2
Pull down to remove the glass door and place
it on a padded surface to prevent scratching it.
Remove the right top hinge (4), and the lower
hinge plate (2).
(4) Right Top Hinge
(5) Door
(3) Pivot Plate
(2) Hinge Plate
(3) Pivot Plate
(1) Screws x 2
(2) Hinge plate
3
2
1
7
8
Remove the left top hinge (6), and left lower
hinge (7) from the component bag that is
included and install them at the designated
positions at the left side of the cabinet
(pictured below).
3
2
1
4
5
3
2
Turn the glass door 180º and reinstall using
the pivot plate, tighten screws to secure the
hinge plate.
(6) Left Top Hinge
(7) Left Lower
Hinge

_11
Adjusting the plinth cover
• The adjustable lower plinth cover is located
behind the plinth grille, and is held in position
by two screws.
• Loosen the two screws. Slide the adjustable
plinth down to cover the gap between the
wine cooler and the floor.
• Retighten the screws.
• The cover remains behind the grille.
Connection to the mains supply
Check that the voltage marked on the product
corresponds with your supply voltage.
This Appliance Must Be Earthed
The wires in the mains lead are coloured in
accordance with the following code:
GREEN / YELLOW – EARTH
BLUE – NEUTRAL
BROWN- LIVE
Earth
(Green / Yellow)
Neutral
(Blue) Live
(Brown)
Earth
(Green / Yellow)
Neutral
(Blue) Live
(Brown)
This appliance is fitted with a plug which has a
13 amp fuse. Should the fuse fail, then it must
be replaced with an ASTA approved fuse
(conforming to BS1362)of the same rating. If
you need to replace the plug or if the plug is
incorrect for your type of socket, remove it, and
replace it with an appropriate plug. Dispose of the
old plug safely.
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows: The GREEN / YELLOW wire is
the EARTH and must be connected to the terminal
which is marked with the letter ‘ E ‘ or by the earth
symbol
The BLUE wire is the NEUTRAL and must be
connected to the terminal which is marked with
the letter ‘N’ or coloured BLACK.
The BROWN wire is the LIVE wire and must be
connected to the terminal which is marked with
the Letter ‘L ’ or coloured RED.
Always ensure that the plug cord grip is fastened
correctly, if in doubt consult a qualified electrician
This product conforms to all current EU Directives.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable
plug fitted to the mains lead, you will find that it
incorporates a fuse, the value of which is indicated
either on the base of the plug or on the fuse carrier.
Should the fuse need replacing, you must use an
ASTA approved one (conforming to BS1382) of
the same rating.
If the fuse cover is lost, the plug must not he used
until a replacement is obtained from an electrical
supplier.
If you need to remove the plug, cut it from
the mains lead and immediately dispose of it.
Never attempt to re-use this plug or insert it into
a socket outlet as there is a very great risk of an
electric shock.
Connection to the mains supply
User manual LAM6912

12_ Troublehshooting
07 - Troubleshooting
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
No cooling • Plug not put in correctly Ensure the plug is in and the socket is switched on
• Low voltage Ensure normal voltage
• Fuse blown Replace the fuse with the recommended AMP
rating
Temperature inside is not
cold enough • The wine cooler is placed too close
to a heat source
Keep the wine cooler away from sunshine or
other heat sources
• Bad ventilation Ensure the grille vents are kept clear
• The door is not closed tightly, or
opened too frequently or for too long
Close the door tightly and do not open the door
too frequently or for too long
Strange smell inside the
wine cooler
• Check contents for anything sour or
perishable.
Remove any perishable items and clean
thoroughly.
Display light flashes • The set temperature is higher than the
inner temperature of the wine cooler
Adjust the temperature accordingly.
• The wine cooler is defrosting This is a normal automatic function, and no repair
is needed.
Frost is forming on the
cooling surface
• There may be too much humidity or
the temperature is too low inside
the case.
Disconnect the power to the wine cooler and
defrost manually, reconnect the power once the
forst has thawed.
The wine cooler seems to
make noises
• Noises may come from the working of
the compressor or refrigerant, which
is normal.
Some noises are normal and no cause for concern
Check to assure that the appliance is level and not
touching the surrounding cabinetry.
• As each cycle ends, you may hear
gurgling sounds caused by the flow
of the refrigerant.
• Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not close
properly
• The wine cooler is not level Adjust the products feet to ensure the product is
level
• The door gasket may dirty. Clean the door gasket with warm water and a
damp cloth - then dry throughly.
• The shelves or bottles may be
misaligned
Re-adjust the shelves
The display window is
shown with “HH” or “LL”
instead of a digital figure
and/or with continuous
‘beep/buzz’ sound
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
The temperature probe is out of order. Consult your authorized service agent
.
If you cannot eliminate the problem after following the instructions in this section, consult
your depot or the authorised service agent. Never try to repair a nonfunctional product
yourself.
LAMONA Appliances

_ 13
Guarantee
08 - Your Guarantee
Inside the machine on
the left hand side.
Where to find the model
and serial number on
your machine.
Product Guarantee Details (UK Only)
Your appliance has the benefit of a comprehensive manufacturer’s guarantee
which covers the cost of breakdown repairs. (Details of which are shown on your
Proof of purchase Document).
• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY THE PROOF OF
PURCHASE.
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to affect
the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal right)
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase
Document supplied with the product / kitchen.
or
Call the LAMONA Service Line on 0344 460 0006
*Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people
are using the appliance.
User manual LAM6912

14
Model LAM6912
Category Wine storage (2)
Energy Class A
AEc 139kWh/a
C
Capacity 19 x 75cl Bottles
apacity 58L
Climate class N
Noise 47dB
Product Fiche
Commission Regula on (EU) No 1060/2010
This appliance is intended to be used exclusively for the storage of
wine
LAMONA Appliances

_ 15
User manual LAM6912

(Place sticker here)
Product Serial Number
ISSUE v1 24/01/2019
